Tekram P5M3-A+ User Manual

Rev: 1.00H

Date: August - 99

MAINBOARD

Installation Guide

∗ All other product names are trademarks or copyrights of their respective

owners.

∗ Specifications and information contained in this manual are subject to change

without notice.

Table of Contents

INTRODUCTION...............................................................................3

Product Description........................................................................................3

Features & Specifications ...............................................................................4

Package Checklist...........................................................................................5

Board Level Feature........................................................................................6

Comprehensive Mainboard View.................................................................... 8

INSTALLATION ................................................................................9

Installing the CPU..........................................................................................9

Setting the Jumpers ......................................................................................10

Connections..................................................................................................14

Installing an AMR Card...............................................................................24

Installing an AGP Card................................................................................25

Installing the Memory Modules (DIMM)......................................................26

Installing the Support Drivers and Utilities ...................................................27

SOFTWARE SUPPORT .................................................................29

Mainboard BIOS ..........................................................................................29

Flash BIOS Programming Utility..................................................................30

Symbios SCSI Configuration Utility .............................................................31

DMI Utility...................................................................................................31

2

Installation Guide

INTRODUCTION

Product Description

Designed as a flexible, high-performance and cost-effective solution for System
Integrators and End Users alike, this mainboard provides the power and
expandability to meet the requirements of the most advanced operating systems
and software applications.

This mainboard is a high performance Pentium –based (FSB 100MHz) system
board that utilizes the VIA Apollo MVP3 AGPset on ATX Platform. By
incorporating such advanced features as AMR, AC97 audio, Super I/O, Ultra
DMA/66 Bus Mastering IDE, Universal Serial Bus (USB) and Hardware
Monitoring onto the mainboard, optimum system performance is assured and
system design and implementation is simplified.

Fully “Plug & Play” compatible via an Award BIOS, this mainboard facilitates
easy system configuration and peripheral setup. Also, the Award BIOS supports
ACPI Readiness and is compatible with the PC’98 specification. This mainboard is
the ideal foundation for high-end computer systems.

Installation Guide

3

INTRODUCTION

Features & Specifications

Processor ZIF socket 7 support AMD K6 / K6-2 / K6-III up to 450 MHz,

Cyrix MII up to PR466, INTEL Pentium MMX up to 233 MHz

Chipset VIA  Apollo MVP3 AGPset
BIOS Award  BIOS, support DMI, Plug-and-Play, ACPI, Boot from CD-

ROM, LS-120 120MB F.D.D., ZIP Devices
Support Symbios SCSI BIOS

Anti-virus BIOS for prevention against boot-virus

System Memory

On-board I/O
Features

Advanced
Features

PCI Bus Master
IDE

Power
Connector
Expansion Slots 1 AMR Slot, 1 AGP Slot, 5×32-bit PCI Slots, 1×16-bit ISA Slot

Switching VR
Form Factor

3×168-pin DIMM Sockets up to 384 MB SDRAM Memory
Capacity
Support 8/16/32/64/128 MB Memory Module
ECC Supported

1×Floppy Port ( up to 2.88 MB) 2×USB ports
1×Parallel Port (EPP, ECP Port) 1×IrDA TX/RX Header
2×Serial Port (16550 Fast UART Compatible)
1×MIDI/game port
1×Audio Jacks: Line Out, Line In, and Mic. In

1. AC97 Audio on board

2. Wake-up on LAN

3. Modem Ring-in Remote Power on

4. Hardware Monitoring (Fan, Temperature, Voltage)

5. Xstore Pro IDE Bus Master Software Driver (*)

6. Anti-Virus PC-Cillin Software (*)

7. Supports AMR for MC97 Modem upgrade

2×UltraDMA/66PCI Bus Master IDE Ports support up to
66MB/Sec

3V, 5V and 12V 20-pin ATX 20-pin Power Connector

Switching Voltage Regulator to support 1.3V to 3.5V
ATX Size (7.8” x 12” or 197mm x 305mm)

4

Installation Guide

INTRODUCTION

Remark:
The XStore Pro IDE Driver enhances memory management by working with the

Windows 95/98 operating system, resulting in higher system performance by
implementing "read-ahead caching after seeking". This is especially effective with
the large block sizes of modern hard disks.

PC-cillin anti-virus software provides a powerful defense against viruses to
protect data integration.

Package Checklist
Your mainboard package should include the items listed below. Damaged or

missing items should be reported to your vendor.

þ The mainboard
þ Floppy disk ribbon cable
þ IDE ribbon cable
þ This Installation Guide
þ BIOS, Driver & Utility Guide
þ CD-ROM containing the following support software:

(The latest drivers can always be found at their respective web sites.)

§ VIA PCI Bridge driver,

§ VIA VxD driver,

§ VIA PCI Mini-port driver

http://www.via.com.tw/drivers

§ Support software for updating the FLASH BIOS

§ HighPoint® XStore Pro IDE Bus Master

http://www.highpoint-tech.com

§ Trend ® PC-cillin Anti-Virus software

http://www.antivirus.com

Installation Guide

5

INTRODUCTION

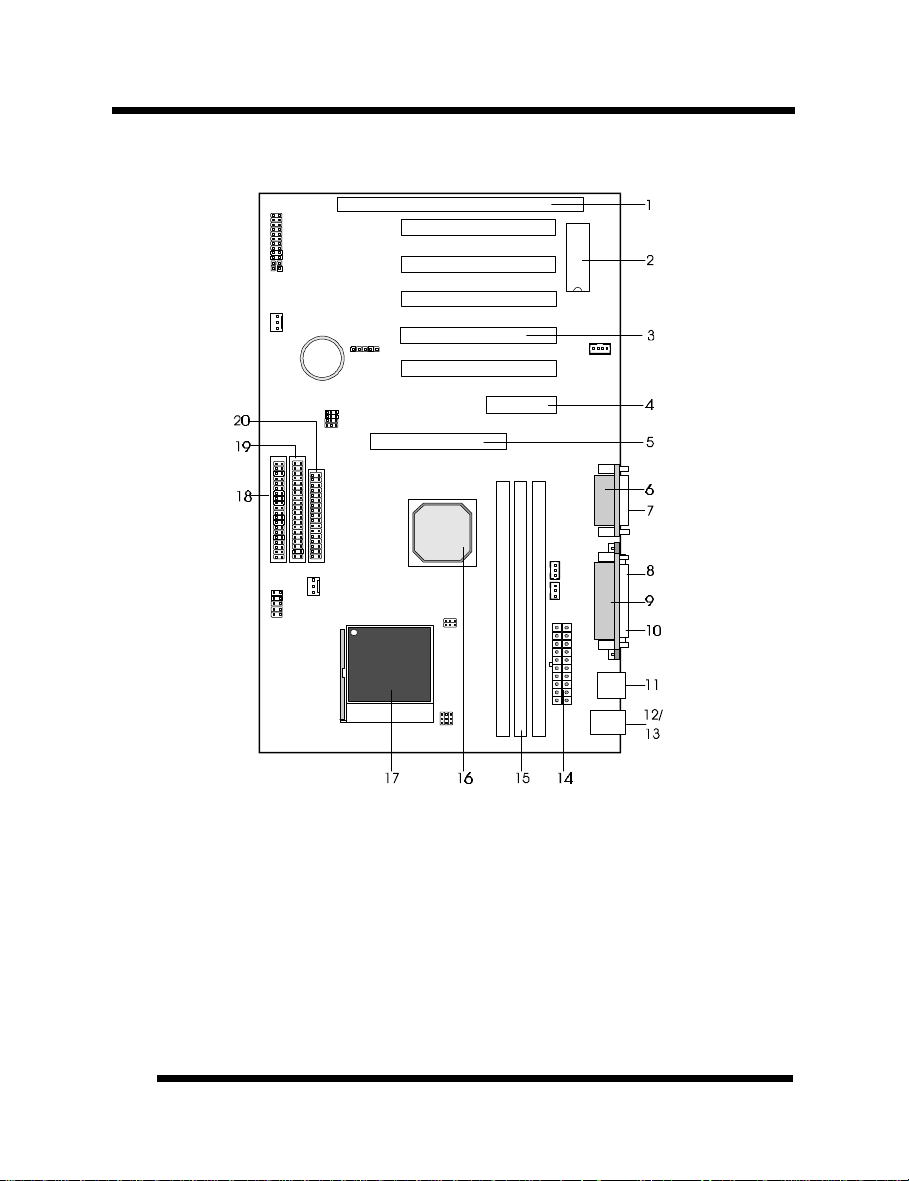

Board Level Feature

6

1. ISA slot 11. USB connectors

2. Mainboard BIOS 12. PS/2 mouse connector (top)

3. PCI slots 13. PS/2 keyboard connector (bottom)

4. AMR Slot 14. Power connector

5. AGP Slot 15. DIMM sockets

6. MIDI/Game port 16.

7. Audio port 17. CPU socket (Socket 7)

8. COM2 connector 18. Secondary IDE connector

9. Printer port 19. Primary IDE connector

10. COM1 connector 20. Floppy connector
* Board Size: ATX 305 mm x 197 mm (12” x 7.8”)

Installation Guide

VIA Apollo MVP3 AGPset

INTRODUCTION

1. ISA Slot: (1) 16-bit ISA slot.

2. Mainboard BIOS: Award BIOS supporting ACPI, “Plug and Play”, DMI, on

screen setup for Enhanced IDE and Multi-I/O. The BIOS is FLASH
Upgradeable via the AWDFLASH Utility.

3. PCI Slots: (5) 32-bit PCI slots are provided.

4. AMR Slot: The Audio Modem Riser is a new standard interface for cost-

effective AMR AC97/MC97 audio/modem cards.

5. AGP Slot: Accelerated Graphics Port for high performance graphics

capabilities, especially 3D.

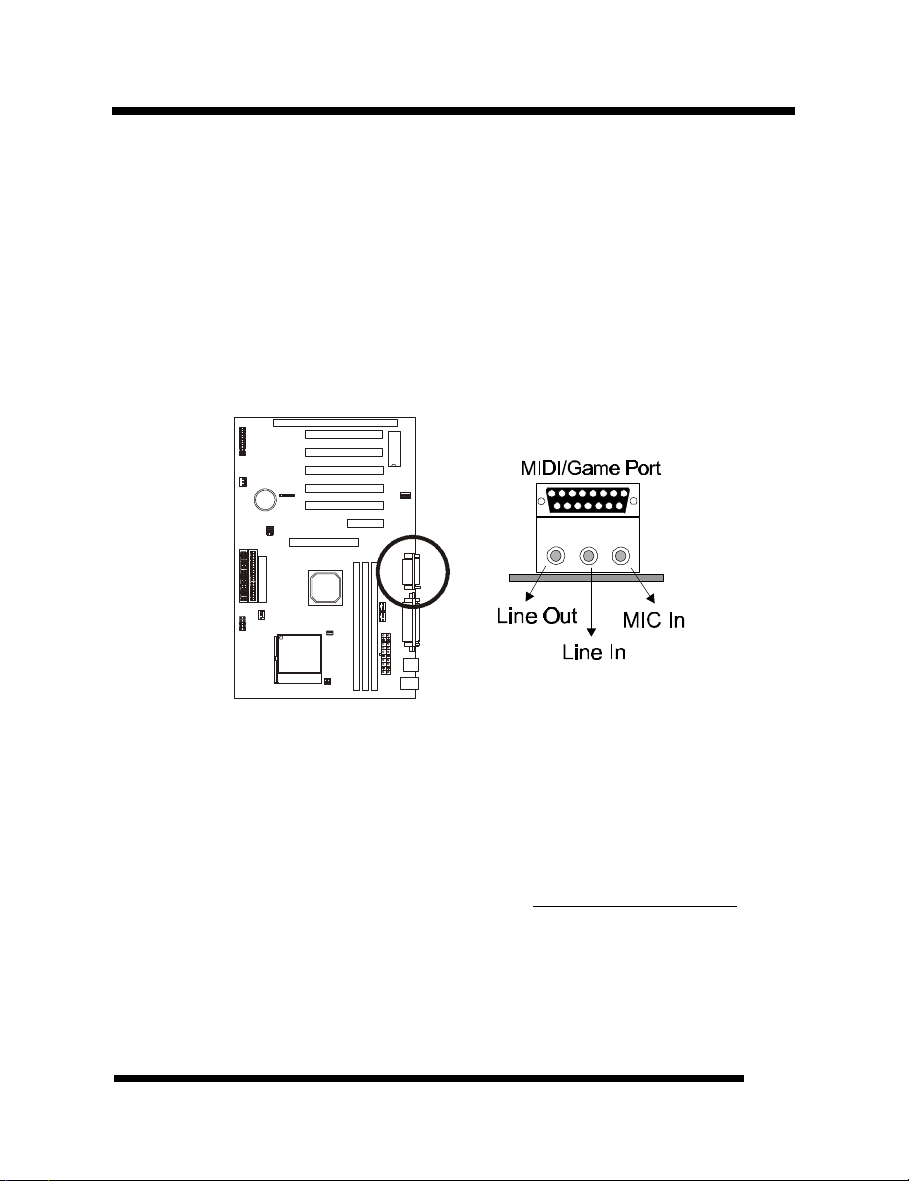

6. MIDI/Game Port: 15-pin female MIDI/Joystick connector.

7. Audio Port: Three 1/8” female jacks for Line Out, Line In and MIC.

8. COM2 Connector: High-speed UART compatible serial port. COM2 can be

directed to the Infrared Module for wireless connection capability.

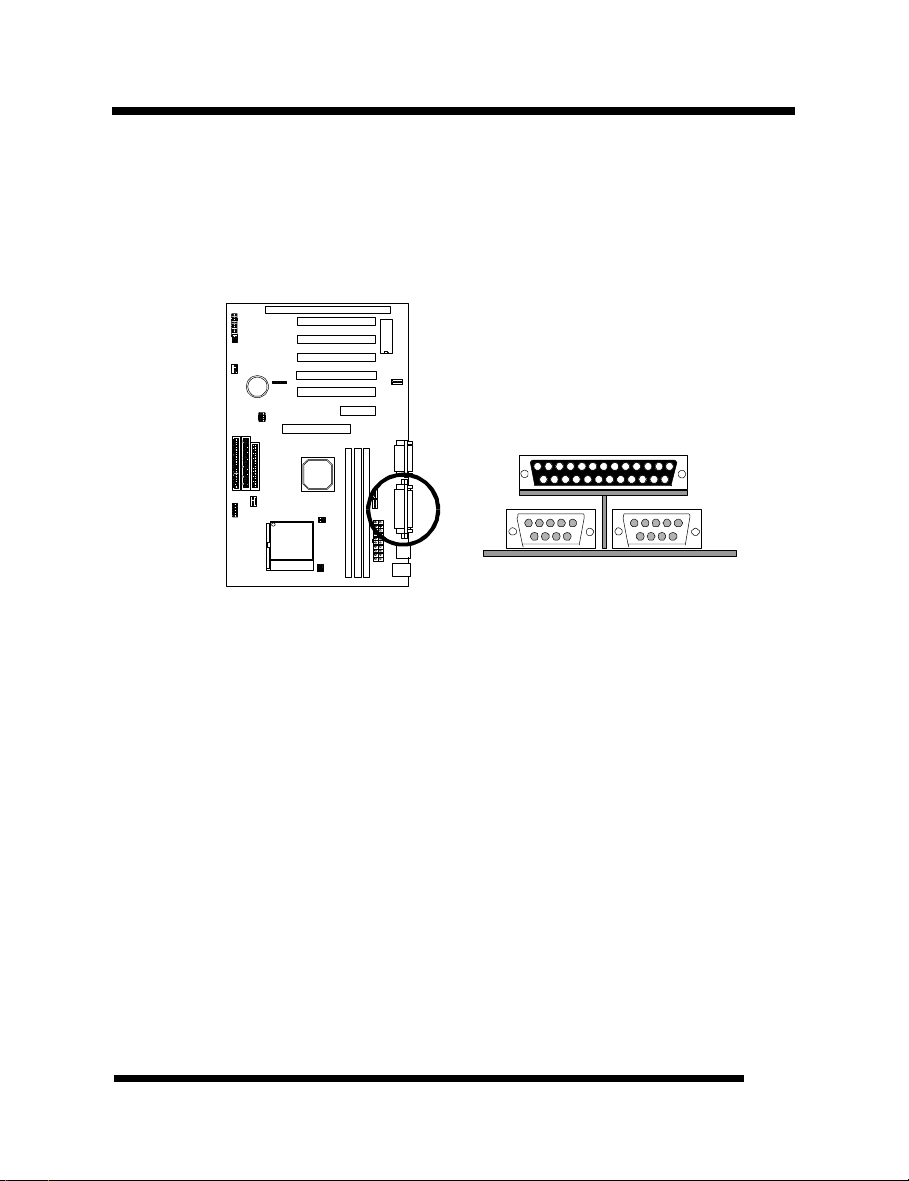

9. Printer Port: EPP and ECP compatible 25-pin D-Sub parallel port.

10. COM1 Connector: High-speed UART compatible serial port.

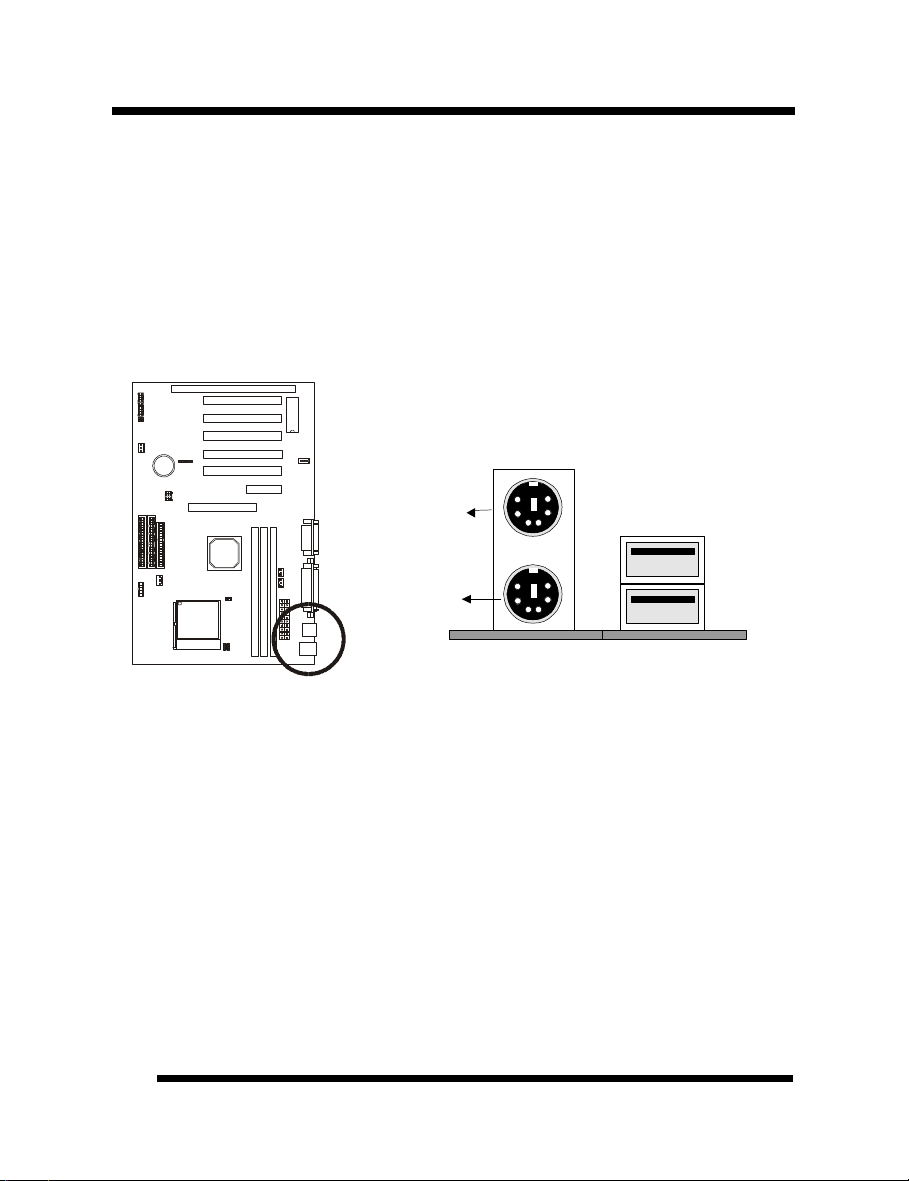

11. USB Connectors: These connectors permit the connection of two USB

peripheral devices directly to the port without an external hub.

12. PS/2 Mouse Connector: Supports PS/2 style mice.

13. PS/2 Keyboard Connector: Supports PS/2 style keyboards.

14. Power Connector: 20-Pin ATX Power Connector.

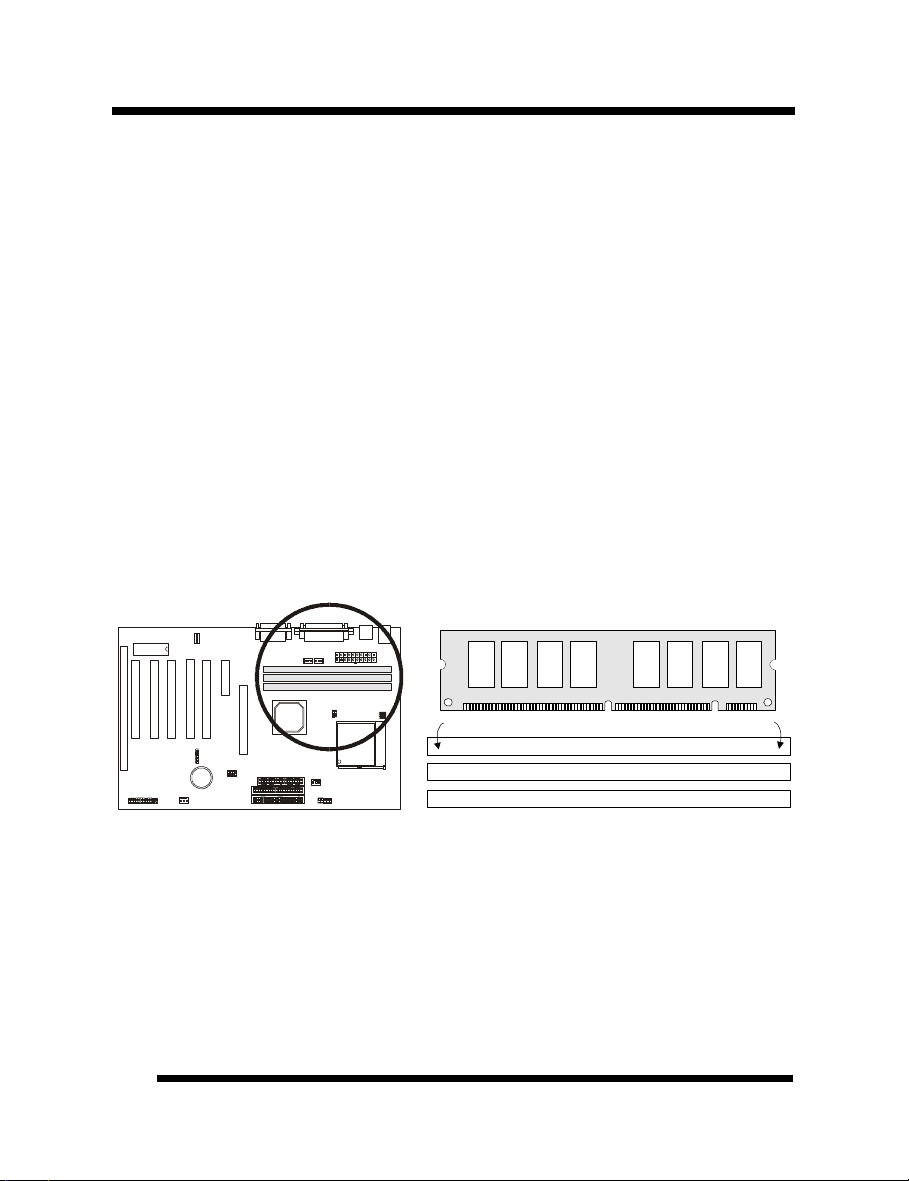

15. DIMM Sockets: (3) 168-pin DIMM sockets are provided to support a

maximum RAM memory capacity of 384 MB. DIMM types of 3.3 Volt true
SDRAM is supported and automatically detected by the BIOS.

16. VIA® Apollo MVP3 AGPset: Supports Socket 7 CPUs, UltraDMA/66 and

AGP 2x.

17. CPU Socket: ZIF Socket 7 for AMD K6/K6-2/K6-III up to 450 MHz,
Cyrix MII up to PR466 and Intel Pentium MMX up to 233 MHz.

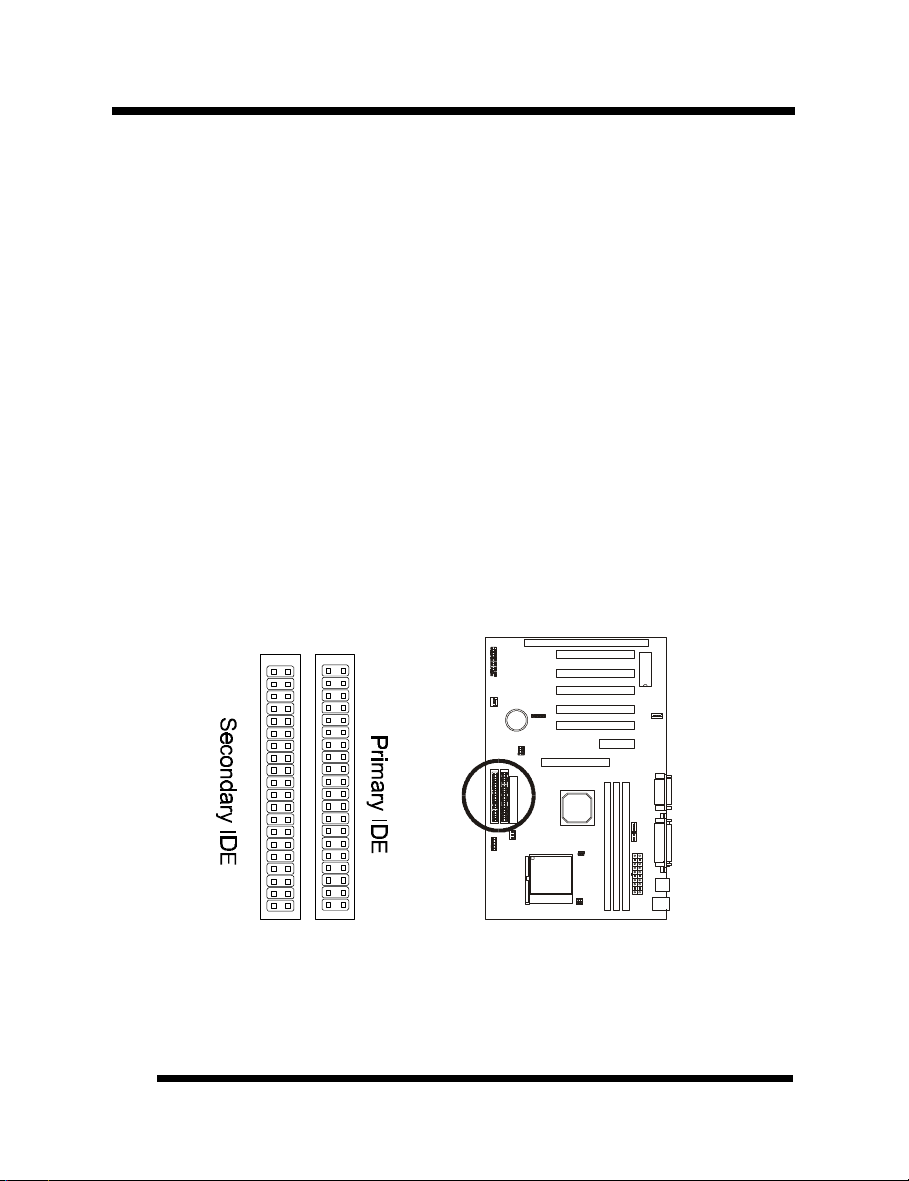

18. Secondary IDE Connector: Connector for second IDE channel.

19. Primary IDE Connector: Connector for first IDE channel. The on-board
PCI Bus Mastering IDE controller features support UltraDMA/66 for faster
data transfer rates. (2) Connectors are provided for support of up to (4) IDE
devices on two channels. ATAPI Tape Drives and CD-ROMs are also
supported.

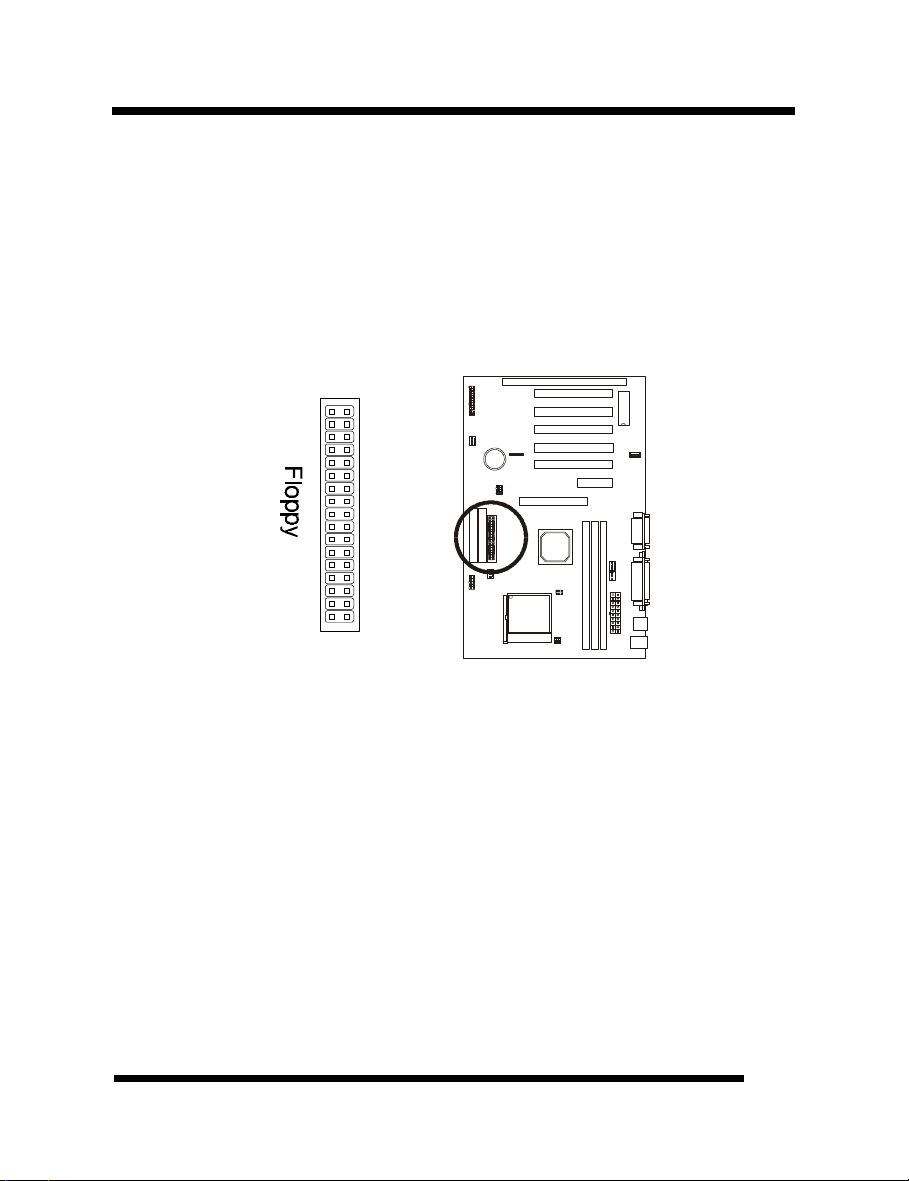

20. Floppy Connector: Built-in floppy controller supports (2) 5.25" or 3.5"
(1.44MB or 2.88MB) floppy drives.

Installation Guide

7

INTRODUCTION

Comprehensive Mainboard View

8

Installation Guide

INSTALLATION

Static Precautions
Static electricity can be a serious danger to the electronic components on this mainboard. To

avoid damage caused by electrostatic discharge, observe the following precautions:
ü Don’t remove the mainboard from its anti-static packaging until you are ready to install

it into a computer case. Also, handle add-in cards and modules by the edges or mounting
bracket.

ü Before you handle the mainboard in any way, touch a grounded, anti-static surface, such

as an unpainted portion of the system chassis, for a few seconds to discharge any built­up static electricity.

Installing the CPU

ü WARNING: Use of a CPU Cooling Fan is required to prevent CPU from

overheating. The Fan should be installed first before inserting the CPU into its
socket.

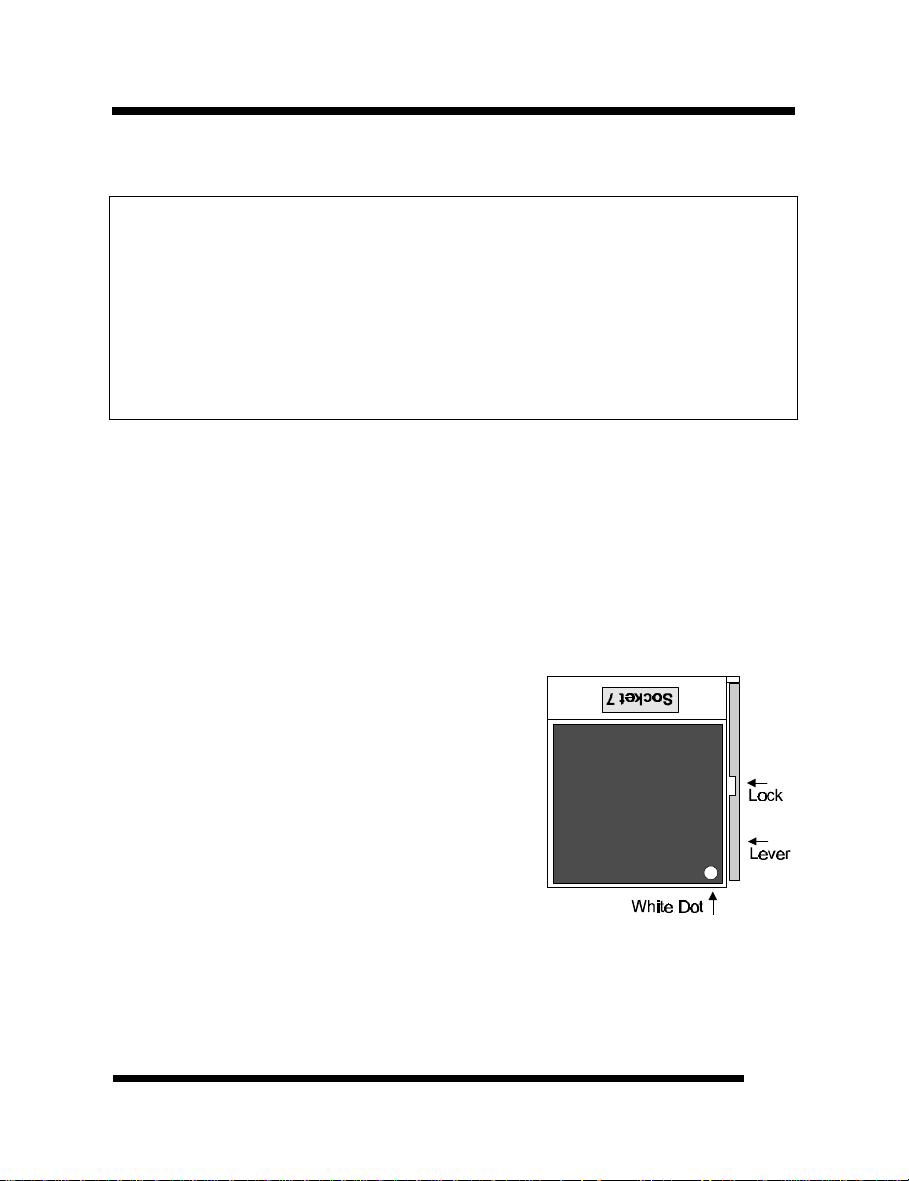

1. Locate the ZIF (Zero Insertion Force) Socket 7.

2. First open the socket by pulling the lever sideways, then upwards. Notice how

the lever locks in place when pressed all the way down.

3. The CPU must be inserted with the correct

orientation. One corner of the CPU has a
“Notch” and looks different that the other
three. This corner is also missing a pin unlike the
other three and is marked with a white dot on
top of the CPU. Align this corner towards the
end of the lever as shown in the figure here.
Insert the CPU, press it down, and close the
lever until it locks into place.

Installation Guide

9

INSTALLATION

Setting the Jumpers

Jumpers are used on this mainboard to select various settings and features. A 2-pin
jumper has two settings: Open and Short (or Closed). The jumper is closed by
placing the Jumper Cap across the two pins, thereby connecting them. 3-pin
jumpers can be set to pins 1-2 or 2-3 connected. Pin-1 is labeled on the circuit
board.

3-pin Jumper 2-pin Jumper

Pin 1-2

Pin 2-3

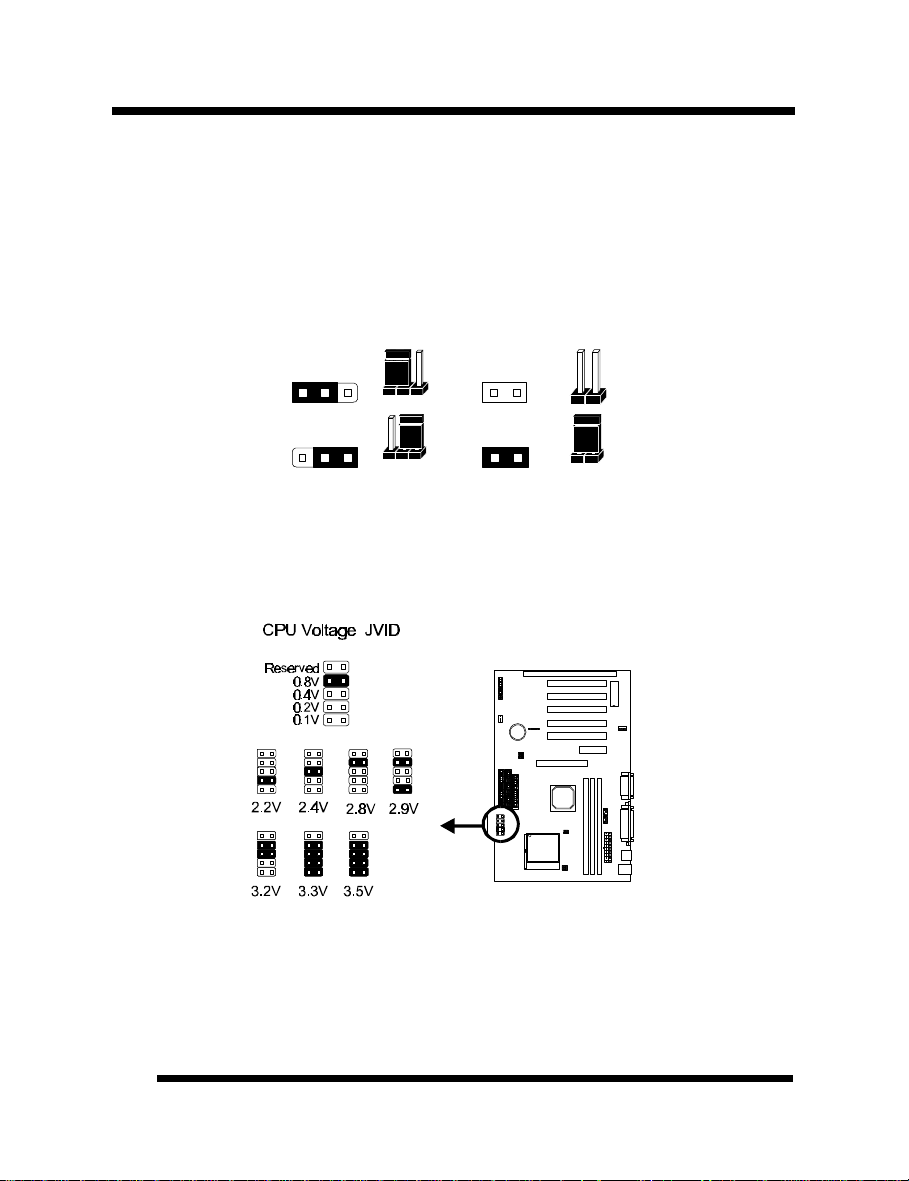

CPU Voltage Selection Jumper (JVID)

Locate Jumper JVID on the mainboard. Set this jumper in accordance with your
specific CPU type.

Open

Short

• If you are uncertain about the speed or voltage requirements of your particular CPU,

you should obtain Technical Documentation from the manufacturer. Such information
is available via the Intel, Cyrix and AMD WWW sites.

10

Installation Guide

INSTALLATION

CPU Clock Selection Jumper (JBF0-2, JFS0-2 and JAGP1-2)

Find the Jumper Blocks labeled JBF0-2, JFS0-2 and JAGP1-2. Set the jumpers
according to your particular CPU type (a list of currently available CPU settings is
provided on the following pages).

DRAM Clock Selection Jumper (JFS3)

If the speed of the SDRAM is slower than the speed of the CPU, it is recommended
to set this jumper to the “Synchronized with AGP” setting to ensure stability. For
example, if you are using non-PC100 SDRAM with a CPU of 100MHz clocked
system bus, you should set this jumper to “Synchronized with AGP”.

Installation Guide

11

INSTALLATION

Jumper setting for CPU:

CPU Model CPU Clock Bus Clock (JFS0-3) Ratio (JBF0-2)
AMD-K6-III-450MHz 450MHz 100MHz ×4.5
AMD-K6-III-400MHz 400MHz 100MHz ×4.0

AMD-K6-2-500MHz 500MHz 100MHz ×5.0
AMD-K6-2-450MHz 450MHz 100MHz ×4.5
AMD-K6-2-400MHz 400MHz 100MHz ×4.0
AMD-K6-2-350MHz 350MHz 100MHz ×3.5
AMD-K6-2-300MHz 300MHz 100MHz ×3.0
AMD-K6-2-266MHz 250MHz 100MHz ×2.5

AMD-K6-2-380MHz 380MHz 95MHz ×4.0
AMD-K6-2-333MHz 333MHz 95MHz ×3.5

AMD-K6-300MHz 300MHz 66MHz ×4.5
AMD-K6-266MHz 266MHz 66MHz ×4.0
AMD-K6-233MHz 233MHz 66MHz x3.5
AMD-K6-200MHz 200MHz 66MHz x3.0
AMD-K6-166MHz 166MHz 66MHz x2.5

AMD-K5-PR200 66MHz x3.0
AMD-K5-PR166 66MHz x2.5
AMD-K5-PR133 66MHz ×1.5

Intel Pentium MMX-233 233MHz 66MHz x3.5
Intel Pentium MMX-200 200MHz 66MHz x3.0
Intel Pentium MMX-166 166MHz 66MHz x2.5

Intel Pentium -200 200MHz 66MHz ×3.0
Intel Pentium -166 166MHz 66MHz ×2.5
Intel Pentium -133 133MHz 66MHz ×2.0

Cyrix MII PR366 100MHz ×2.5
Cyrix MII PR333 83MHz ×3.0
Cyrix MII PR300 66MHz ×3.5

Cyrix MII PR266 83MHz ×2.5
Cyrix 6×86MX PR233 (M2) 75MHz ×2.5
Cyrix 6×86MX PR200 (M2) 75MHz ×2.0
Cyrix 6×86MX PR200 (M2) 100MHz ×5.0
Cyrix 6×86MX PR166 (M2) 66MHz ×2.0

Cyrix 6×86 P200+ 75MHz ×2.0
Cyrix 6×86 P166+ 66MHz ×2.0

12

Installation Guide

INSTALLATION

IDT WinChip 2-300 100MHz ×2.5
IDT WinChip 2-266 100MHz ×5.0
IDT WinChip 2-233 233MHz 66MHz ×3.5

IDT C6-225 225MHz 75MHz ×3.0
IDT C6-200 200MHz 66MHz ×3.0
IDT C6-150 150MHz 75MHz x2.0

RISE MP6 (PR266) 100MHz ×2.0
RISE MP6 (PR233) 95MHz ×2.0
RISE MP6 (PR166) 83MHz ×2.0

• The Internal (Core) frequency corresponds to the number marked on the CPU. The

External Frequency when multiplied with the Ratio gives the CPU's internal frequency.

• This table lists the current CPU available. New settings may be available for new CPU

products. Refer to your CPU specifications for more information.

Installation Guide

13

INSTALLATION

Connections

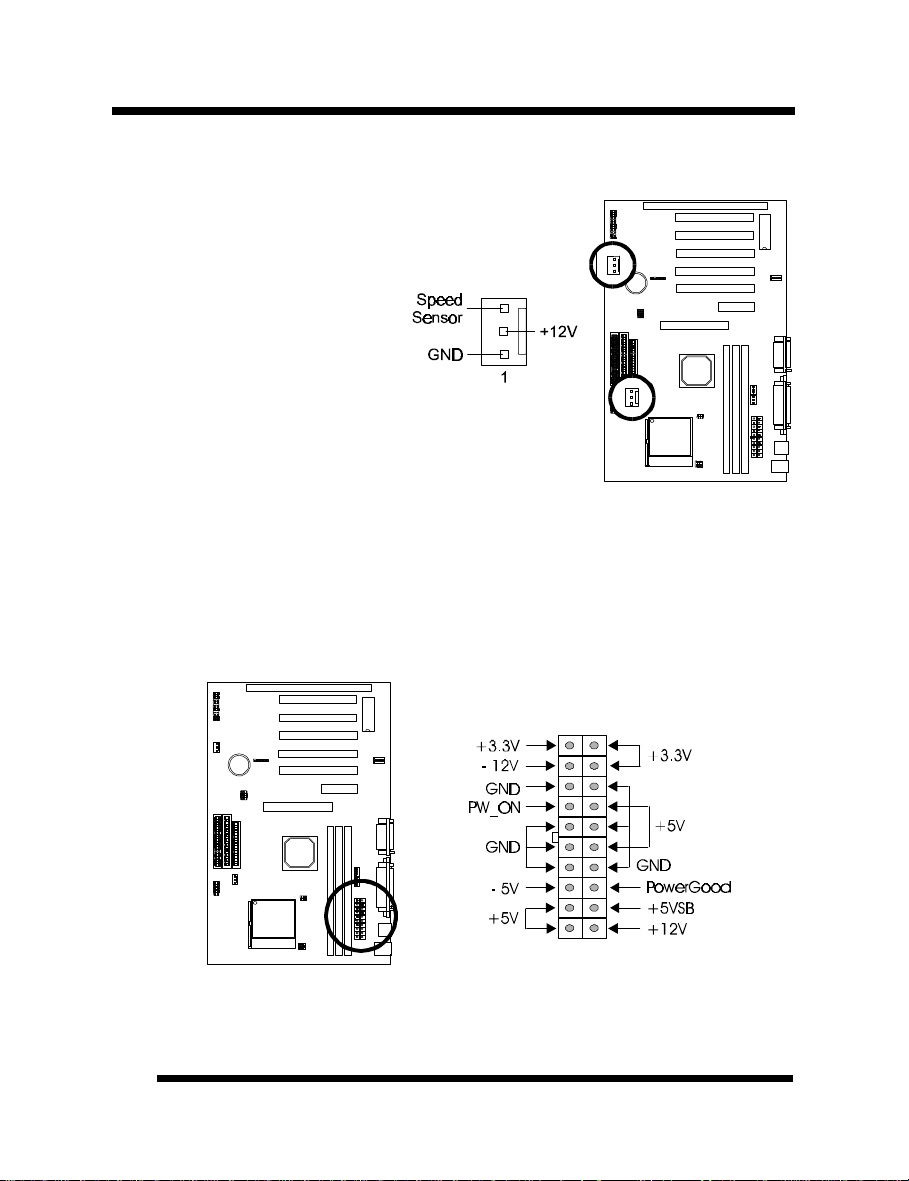

Cooling Fan Power Connector

These connectors are small 3­pin Header Connectors that
provide 12-Volt power for CPU
and chassis cooling fans. Plug
in the fan cable to the
connector. Pin-2 corresponds to
the RED power lead as shown:

Power Supply Connector

This mainboard features an ATX-style Power Supply Connector. This connector is
keyed to prevent connection in the wrong direction. Line up the locking
mechanism on the connector from the Power Supply with the tab on the mainboard
connector. Press down until the two connectors are locked.

14

Installation Guide

INSTALLATION

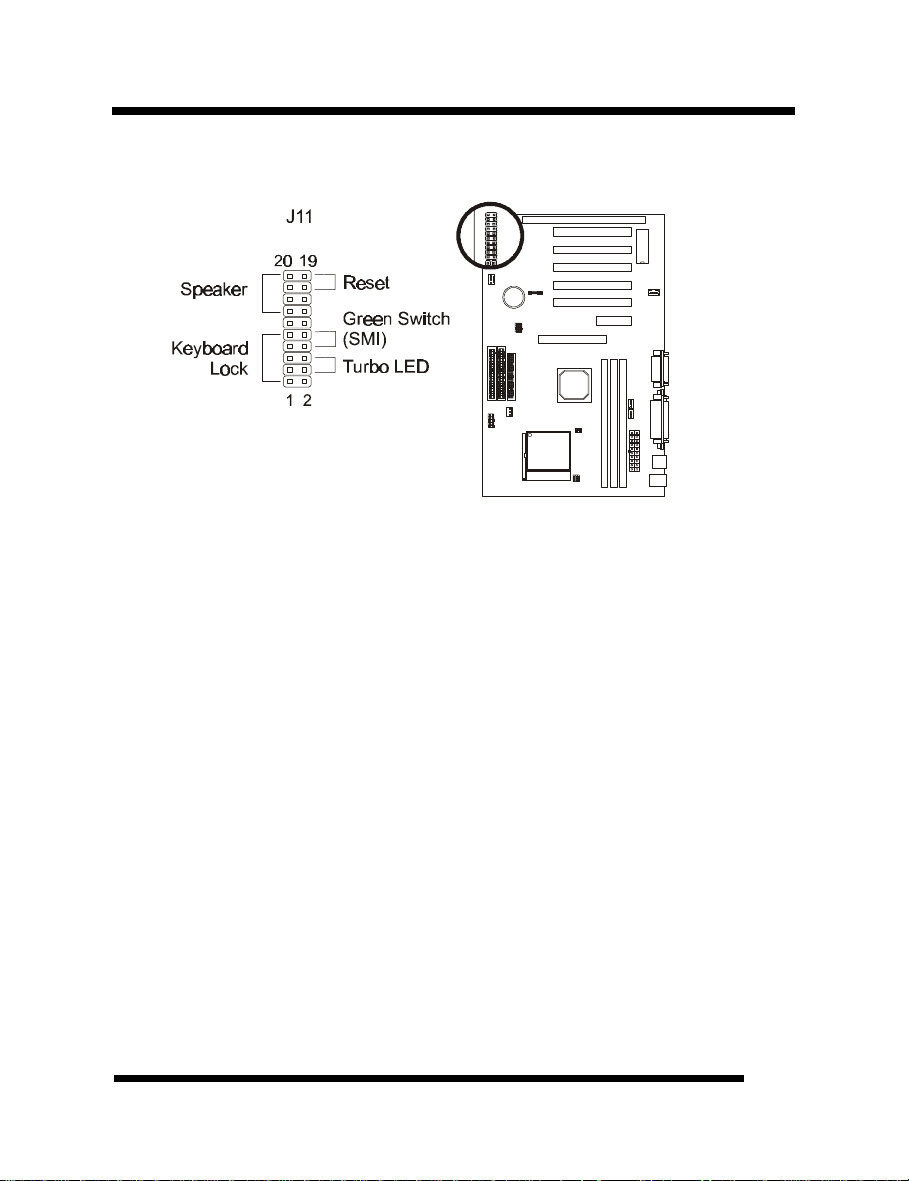

System Function Connector Block (J11)

Pins [3 & 5] Turbo LED lead – The Turbo function is not supported by this
mainboard. Therefore, the Turbo LED will always remain lit as long as the system
power is on.

Pins [7 & 9] SMI suspend switch lead - If your system’s case has a suspend
switch, hook the lead from the switch to pins 7 & 9. A suspend switch is used to
save electricity by putting the system into a suspend mode when the computer is
not being used. For this switch to be functional, “Suspend Mode” must first be
enabled in the Power Management Setup in the BIOS Setup utility.

Pins [17 & 19] Reset switch lead - Connects to the Reset Switch lead from the
system’s case. The reset switch is used to “cold-boot” the system without actually
turning off the power, reducing wear and tear on the power supply.

Pins [2, 6, 8 & 10] Keyboard lock switch lead – Pins 2 & 6 connect to the power
LED from the system’s case, Pins 8 and 10 connect to the case-mounted keylock
switch.

Pins [14 & 20] Speaker connector - Connects to the Speaker lead from the
system’s case.

Installation Guide

15

INSTALLATION

IDE Activity LED (JP2)

Hook the IDE LED lead to this connector, with the RED lead corresponding to
Pin-1.

Soft Power Switch (JP9)

Connects to the Power Switch featured on ATX case designs. This switch must be
hooked up before the system can be powered on, unlike traditional “Baby-AT”
designs where the power switch is located on the Power Supply itself.

Note: Under the following two conditions, you have to press and hold the switch
for more than 4 seconds to power off your system, regardless of the “Soft-Off by
PWRBTN” setting in the Power Management Setup of the BIOS.

• Shortly after the system is powered on, when the BIOS message is not yet

appear.

• When CPU hangs.

16

Installation Guide

INSTALLATION

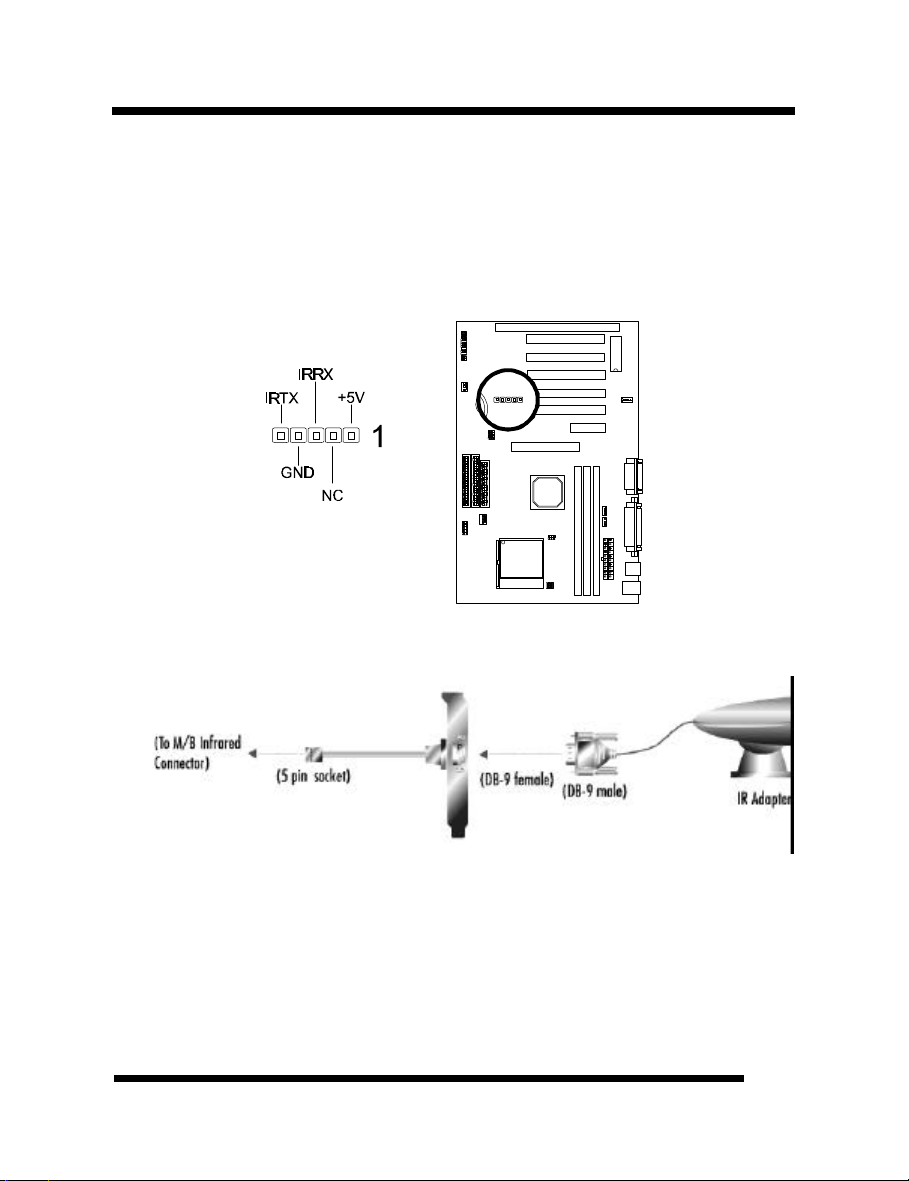

IrDA-Compliant Infrared Module Connector (JP4)

The IrDA connector bracket hooks directly to this connector on the mainboard.
This connector provides support for the optional wireless transmitting and
receiving infrared module. You must first configure through the BIOS setup where
UART2 is directed, COM2 or IrDA.

Installation Guide

17

INSTALLATION

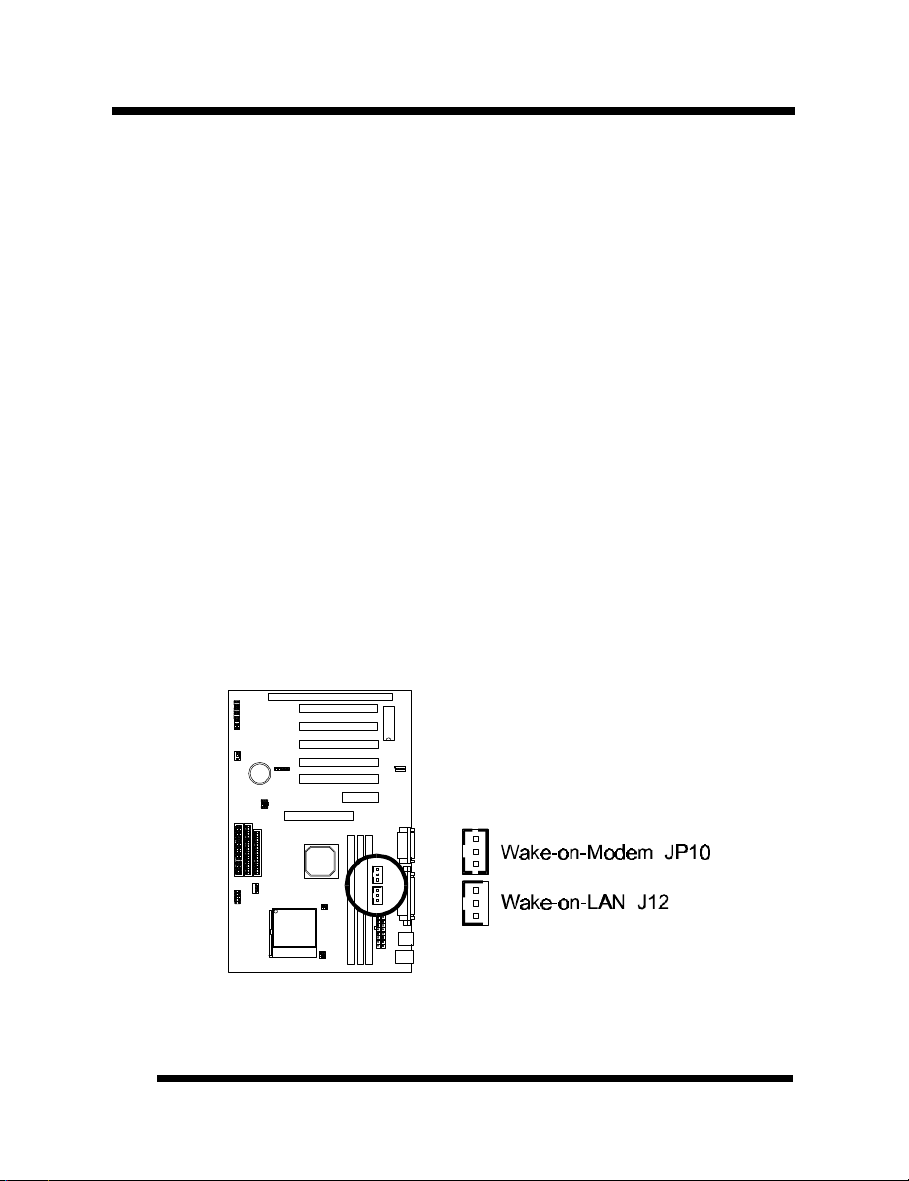

Wake-up On LAN Connector (J12)

The Wake-up On LAN function will allow the network to wake up a Soft Power
Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can
wake-up the system only through an IRQ or DMA interrupt. To use the Wake-up
On LAN function, you must enable the “Power On By Ring/LAN” field in the
Power Management Setup of the Award BIOS. Connect the cable that comes with
your LAN card to this connector on the system board. Refer to the add-in card’s
manual for details.

Note: Your LAN card must support Magic Packet in order to use the Wake-up On
LAN function.

Wake-on-Modem Function (JP10)

The Wake-on-Ring function allows the modem to remotely power on the system.
Install an external modem (normally to COM2) and enable “Power On by
Ring/LAN” function in the Power Management Setup from the BIOS.

For the function to work for an internal modem card, you must also connect the
Wake-on-Ring cable on the modem card to the Wake-on-Ring function connector
on the mainboard.

18

Installation Guide

INSTALLATION

Serial and Parallel Ports

A 25-pin D-Sub header is provided on the back panel for a multi-mode bi­directional parallel port.

Two 9-pin D-Sub headers are also provided on the back panel for Serial ports.

ParallelPort

Installation Guide

COM1

C OM2

19

INSTALLATION

USB Connectors

These two connectors permit connection of two USB peripheral devices directly to
the system without an external hub.

PS/2 Keyboard and Mouse Connectors

These two connectors are located on the back panel of the mainboard.

PS/2
M ouse

PS / 2
Keyboard

USB

20

Installation Guide

INSTALLATION

Floppy Drives

The on-board floppy controller supports (2) floppy disk drives with the floppy
ribbon cable provided. Make sure the RED stripe on the ribbon cable is oriented
towards Pin-1. Notice the “twist” between the sets of connectors on the floppy
cable. The floppy drive “A” position is at the END of the cable, whereas floppy
drive “B” is hooked to one of the connectors on the other side of the twist. The
cable provides both “Edge” and “Pin” connectors for both the A and B positions to
match the connector on your floppy drives.

1

Installation Guide

21

INSTALLATION

IDE Hard Drives and CD-ROMs

The on-board Enhanced IDE controller can support up to (4) IDE hard drives or
other ATAPI devices, such as CD-ROMs. This controller, as with all Enhanced
IDE controllers, consists of both Primary and Secondary ports. Each port has an
associated connector and cable which can support up to (2) ATAPI devices each.

All IDE devices have jumpers which allow the user to configure the device as
either “Master” or “Slave”. A Master device is one that is ALONE on the IDE
cable, whereas a Slave device is installed as a SECOND device on the same cable.
Keep in mind that the Master device will appear before the Slave device in the
CMOS Setup, as well as the Operating System software. *Refer to the device
documentation for jumper settings.

The Secondary IDE port can be used for up to (2) additional ATAPI devices.
Normally it’s recommended that you connect your first hard drive to the Primary
port, and the first CD-ROM to the Secondary.

Make sure to align the RED stripe on the ribbon cable with Pin-1 on the mainboard
IDE connector. On most hard drives and CD-ROMs, the RED stripe should be
oriented towards the power connector of the device.

1 1

22

Installation Guide

INSTALLATION

MIDI/Game Port

You may plug a joystick or game pad to this 15-pin female connector for game
playing, or connect a MIDI device for playing or editing audio.

Audio Port

You can connect powered speakers or headphones to Line Out jack. Cassette
players or other external audio sources can be connected to Line In jack. Plug in
your microphones to MIC jack.

Note:
To use the onboard AC97 audio features, make sure that the “OnChip Sound”

option in Chipset Features Setup of the BIOS is enabled (default).
To use the on-chip legacy SoundBlaster-compatible audio support, make sure that

the “Onboard Legacy Audio” options in Integrated Peripherals Setup of the
BIOS is set according to your system configuration before driver installation.

Installation Guide

23

INSTALLATION

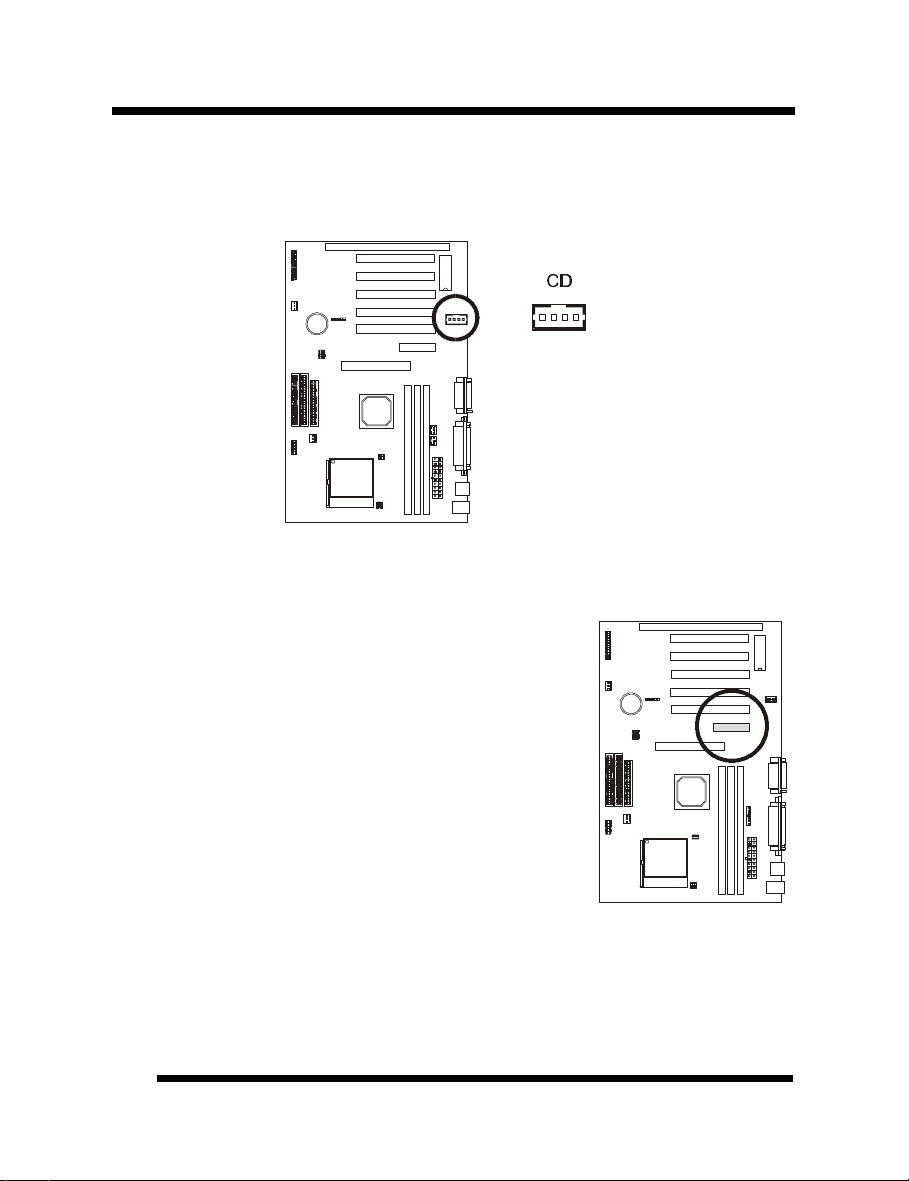

Audio Connectors (J13)

A CD Audio connector is available for connecting the CD-ROM drive using CD
audio cables.

Installing an AMR Card

One AMR (Audio/Modem Riser) standard interface
connector is provided for Audio Codec 97 (AC97)
and/or Modem Codec 97 (MC97) cards.

* If your AC97 and/or MC97 is coming from the

AMR card, make sure the “OnChip Sound” and/or
the “OnChip Modem” option in Chipset Features
Setup of the BIOS are set to Disabled.

24

Installation Guide

INSTALLATION

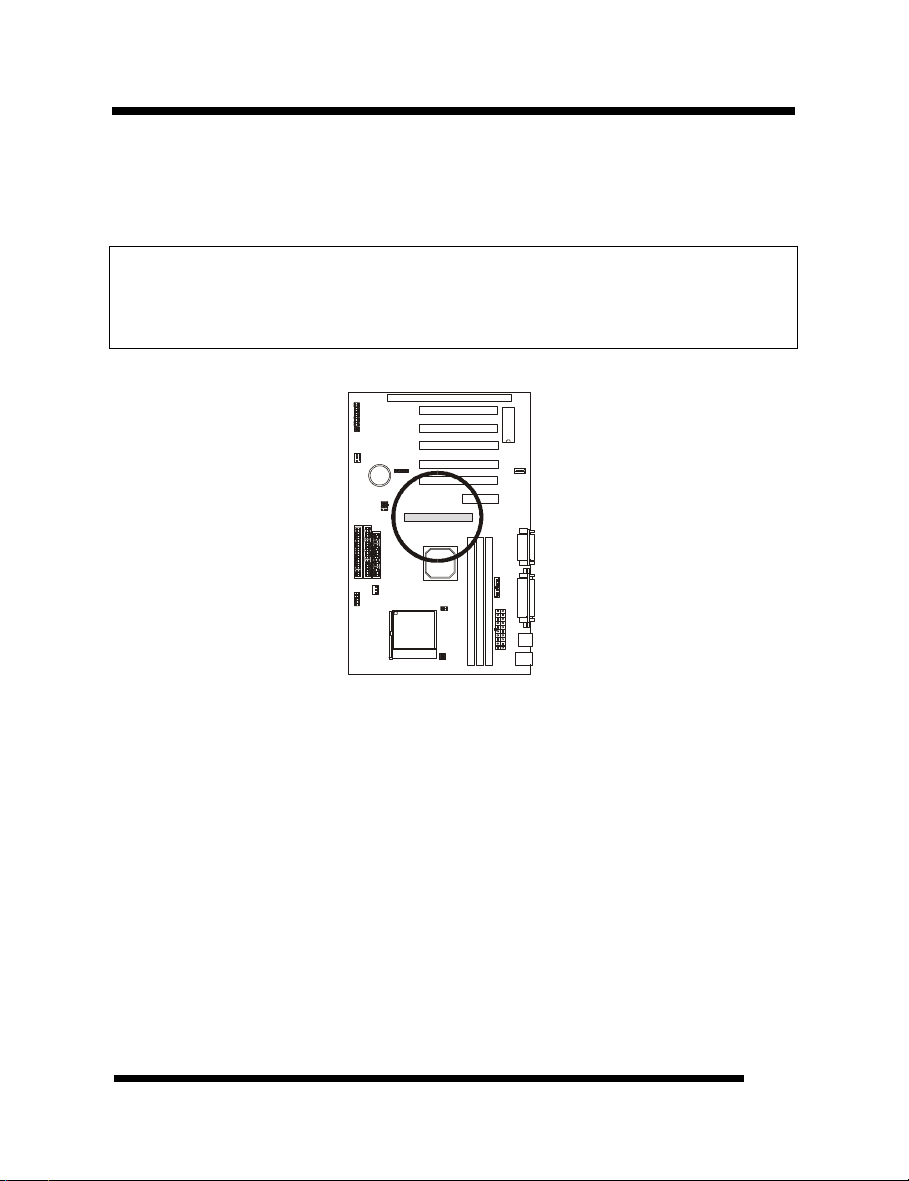

Installing an AGP Card
This mainboard provides an AGP slot to support a new generation of graphics

cards with high performance graphics capability.
Note: Make sure that the AGP card is firmly seated in the AGP slot. For the card

that complies with the AGP 1.x specifications, a slightly more force may be
required to fully insert the card into the slot. For cards that comply with AGP 2.0
and later specifications, the installation should be relatively easy.

Installation Guide

25

INSTALLATION

Installing the Memory Modules (DIMM)

• This mainboard has three sockets available for 168-pin DIMMs. They can be

3.3 volt Unbuffered Synchronous DRAMs (SDRAM), 3.3 volt FPG or EDO
DRAMs.

• To ensure reliability, it is recommended to use PC100 SDRAM for

your 100MHz clocked SDRAM performance requirement.

• DIMM Sizes supported: 8MB, 16MB, 32MB, 64MB and 128MB

• A total of (3) DIMMs can be installed for a maximum RAM capacity of

384MB.

To insert the DIMMs, the modules must be oriented in the correct way. Notice the
notches of the DIMM. Align these notches as shown in the diagram below. Gently
push the DIMM until the retainers on both sides of the socket lock the module in
place.

To remove a DIMM, push the retainers outwards to release the module then pull
the module out of the socket.

26

DIMM1
DIMM2

DIMM3

Installation Guide

notch notch

1

1
1
1

INSTALLATION

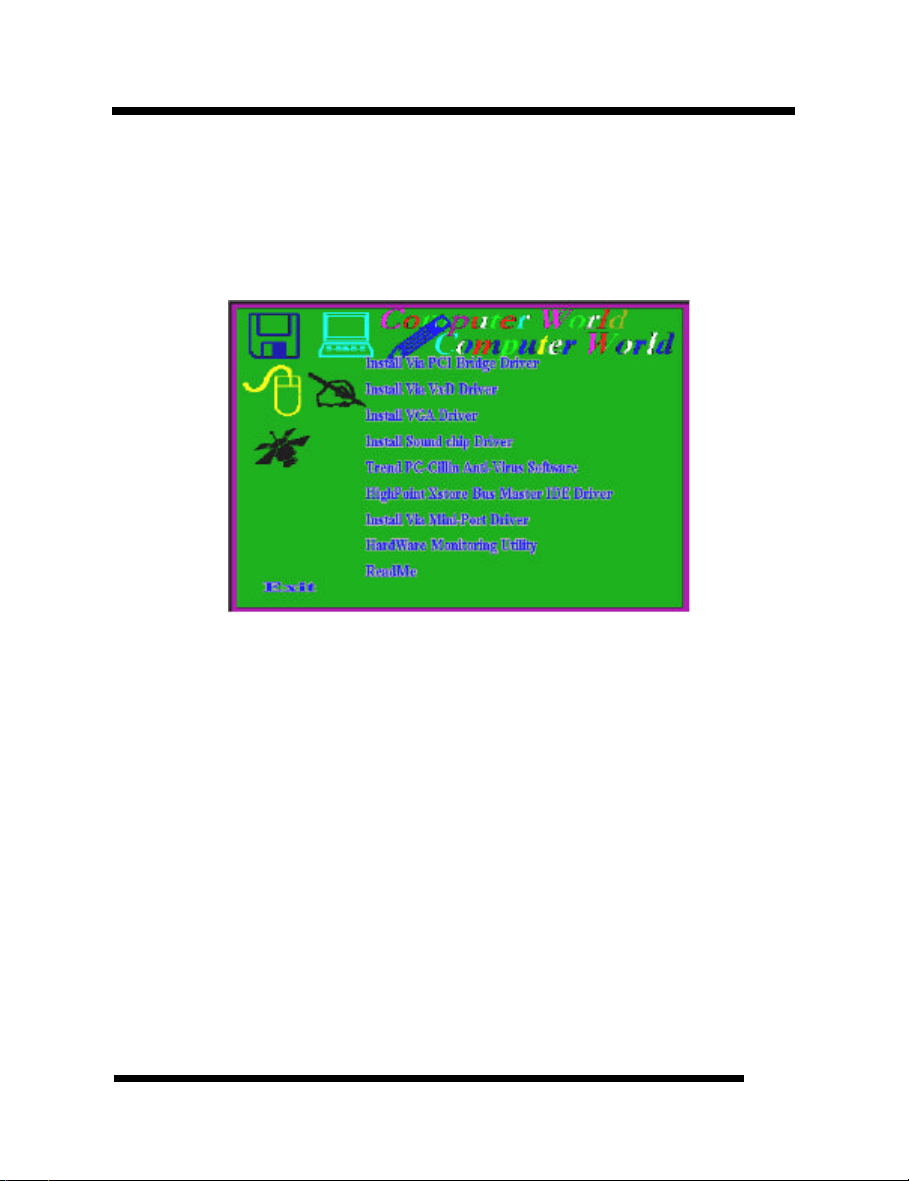

Installing the Support Drivers and Utilities

Included in your mainboard package you can find a CD-ROM containing support
drivers and utilities. Just insert the CD-ROM, and from the Autorun screen, click
the driver/utility that you want to install. Follow the on-screen instructions to
complete the installation.

* The screen may look different under different color mode.

More utilities can be found under the “Utilities” folder of the CD-ROM.

Installation Guide

27

INSTALLATION

Special Note on the Onboard Audio Features

Using the Onboard Audio Features
To use the onboard AC97 audio features, make sure that the “OnChip Sound”

option in Chipset Features Setup of the BIOS is enabled (default).
To use the on-chip legacy SoundBlaster-compatible audio support, make sure that

the “Onboard Legacy Audio” options in Integrated Peripherals Setup of the
BIOS is set according to your system configuration before driver installation.

Special Note on VIA MVP4 and VGA Drivers

Before installing the AGP VGA drivers under Windows 95/98, specific software
support must be included in your system first:

Windows 95

A. Though Windows 95 OSR2.0 supports AGP, it is necessary that you first upgrade

OSR2.0 to OSR2.1 with a USB upgrade to take full advantage of the AGP features.

B. To access the advanced 3D features in Windows 95, you also need to first install the

Microsoft DirectX 5.0.

C. Then install the following VIA drivers found in the supplied CD-ROM:

1) VIA PCI Bridge driver.

2) VIA Bus Master driver.

3) VIA VxD driver.

Make sure all the above are included in your system before you install the display driver.

Windows 98

Install VIA VxD driver found in the supplied CD-ROM before you install the display driver.

28

Installation Guide

SOFTWARE SUPPORT

For detailed information, please refer to the BIOS, Driver & Utility Guide

included in your mainboard package.

Mainboard BIOS

Shortly after the system is powered on, provided that the system is properly setup,
you will see the message:

Press DEL to enter SETUP

• Press the DEL key to enter the Award BIOS Setup program.

The Main Menu will appear on the screen. Use the arrow keys to select among the

items and press <Enter> to accept and enter the sub-menu.

ROM PCI/ISA BIOS (xxxxxxxx)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP SUPERVISOR PASSWORD
CHIPSET FEATURES SETUP USER PASSWORD
POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION
PNP / PCI CONFIGURATION SAVE & EXIT SETUP
LOAD BIOS DEFAULTS EXIT WITHOUT SAVING
LOAD SETUP DEFAULTS

Esc : Quit
F10 : Save & Exit Setup (Shift) F2 : Change Color

↑ ↓ → ← : Select Item

Select LOAD SETUP DEFAULTS for optimum system performance.

Installation Guide

29

SOFTWARE SUPPORT

Flash BIOS Programming Utility

Since this mainboard features FLASH BIOS, the user can simply re-program the
old BIOS using the AWDFLASH Utility (found under “Utilities” folder of the
supplied CD-ROM) as follows:

1. First, boot the system with DOS or to “Safe Mode” under Windows 95. This is

the only correct way to run the AWDFLASH Utility program.

2. Make sure the files “AWDFLASH.EXE” and the updated “BIN” file (which

contains the actual BIOS code) are in the same directory.

3. Changing to the directory where the two required files exist, type: AWDFLASH

and press [ENTER]. The AWDFLASH Utility Screen appears:

4. Type in the name of the new BIOS (.bin) file and hit [ENTER].

5. Backup the old BIOS by entering the name of the new backup file (such as

“backup.bin”) and press [ENTER].

6. To begin programming, hit “y”. The Utility can be aborted at this time by

hitting “n”.

7. A bar indicator will show the progress of the programming operation. After

successful completion, hit the reset button or power off the computer.

Be sure to perform “LOAD SETUP DEFAULTS” for your new BIOS to
synchronize the previous BIOS with the updated BIOS.

30

Installation Guide

SOFTWARE SUPPORT

Symbios SCSI Configuration Utility

This mainboard features built-in Symbios SCSI BIOS. The Symbios SCSI
Configuration Utility is a menu driven utility that allows you to view and change

the default configuration settings for host adapters using Symbios 53C8XX chips.
In most cases you should not need to change the default configuration of your host

adapter. You may decide to alter these default values if there is a conflict between
device settings, or if you need to optimize system performance. A message appears
on your computer monitor (for about 5 seconds) during boot that looks like this:

Press Crtl-C to start Symbios Configuration Utility

If you decide to press Ctrl-C during boot, the following message appears:

Please wait, invoking Symbios Configuration Utility …

After a brief pause, your computer will display the Main Menu of the utility.
Note: Pressing Ctrl-A after memory count during re-boot allows you to recover the

default settings and reconfigure.

DMI Utility

This mainboard supports the Desktop Management Interface (DMI), which is a
new method of providing enterprise management for personal computers. The
main component of DMI is the Management Information Format Database (MIF),
which contains information about the computer system and its components, such as
BIOS version/vendor, CPU speed/type, memory size/type, L1/L2 cache, port
connectors (IDE, floppy, 2S/1P, USB, keyboard, mouse, ), slots … etc. Using DMI,
remote PC management software is able to obtain various information about the
system, including hardware profiles, capabilities, operational status, installation
dates, and other information about the system and its components.

This DMI utility, DMICFG.EXE (found under “Utilities” folder of the supplied
CD-ROM), allows you to add additional information, such as serial numbers,
vendor information, and enclosure/chassis configurations, into the MIF.

Installation Guide

31

FCC & DoC Compliance Statement

This device complies with Part 15 of the FCC rules, operation is subject to the following
two conditions.

1. This device may not cause harmful interference and,

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interface to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television
equipment reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

l Reorient or relocate the receiving antenna.
l Move the equipment away from the receiver.
l Plug the equipment into an outlet on a circuit different from that to which the receiver is

connected.

l Consult the dealer or an experienced radio/television technician for additional

suggestions.

The FCC requires the user to be notified that any change or modifications to the equipment
by the user not expressly approved by the grantee or manufacturer could void the user’s
authority to operate such equipment. The use of shielded cables for connection of the
monitor to the graphics card is required to assure compliance with FCC regulations.

27-0M0586-47
