Tekram EN-PV41 User Manual

Page 1
Rev: 1.01H
Date: April - 99
MAINBOARD
Installation Guide
All other product names are trademarks or copyrights of their respective owners.
Specifications and information contained in this manual are subject to change
without
notice.
Page 2
Table of Contents
INTRODUCTION..............................................................................3
Product Description............................................................................................ 3
Features & Specifications...................................................................................4
Package Checklist............................................................................................... 5
Board Level Feature ........................................................................................... 6
Comprehensive Mainboard View.......................................................................8
INSTALLATION................................................................................9
Installing the CPU...............................................................................................9
Setting the Jumpers........................................................................................... 10
Connections...................................................................................................... 14

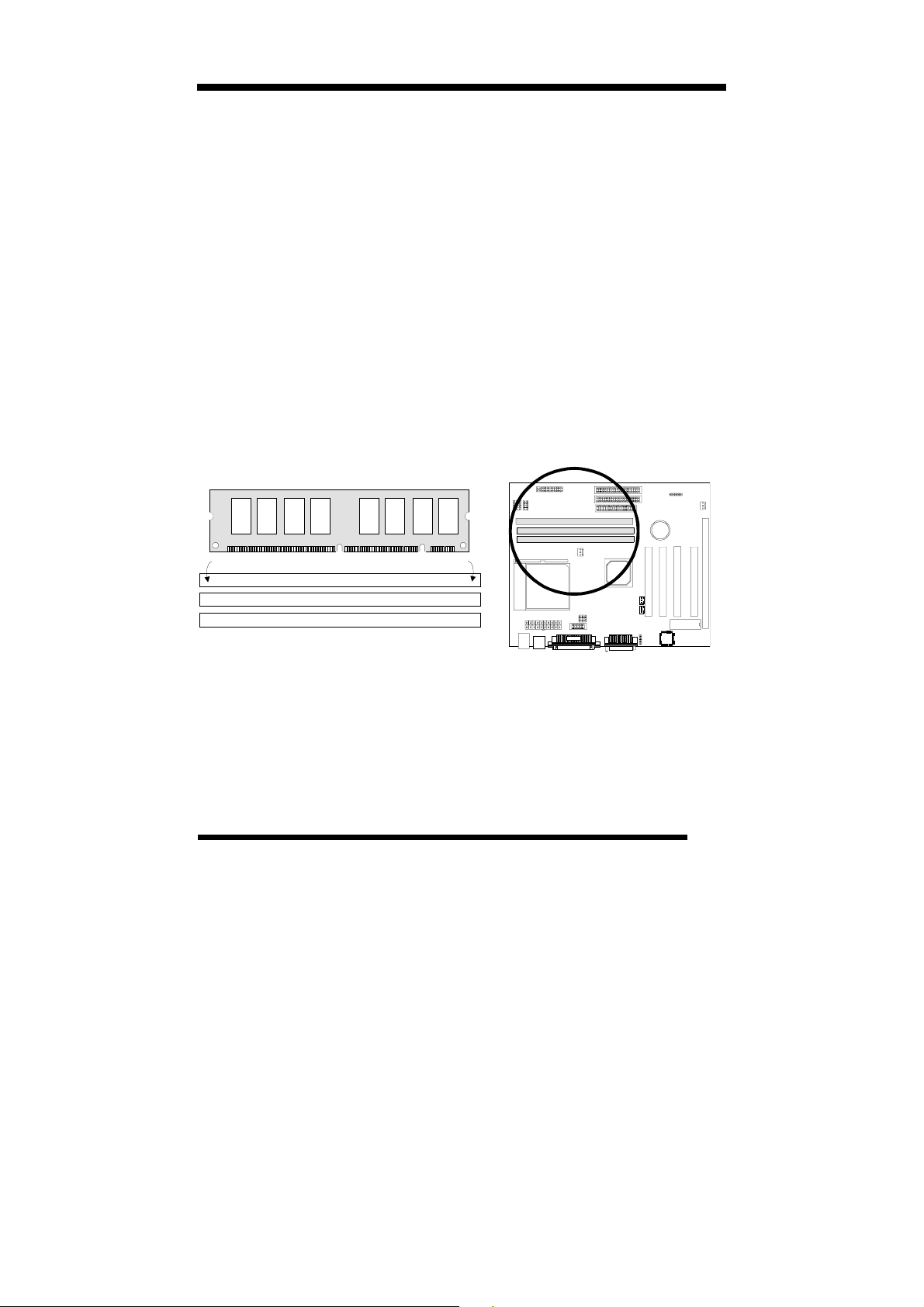

Installing the Memory Modules (DIMM)......................................................... 25

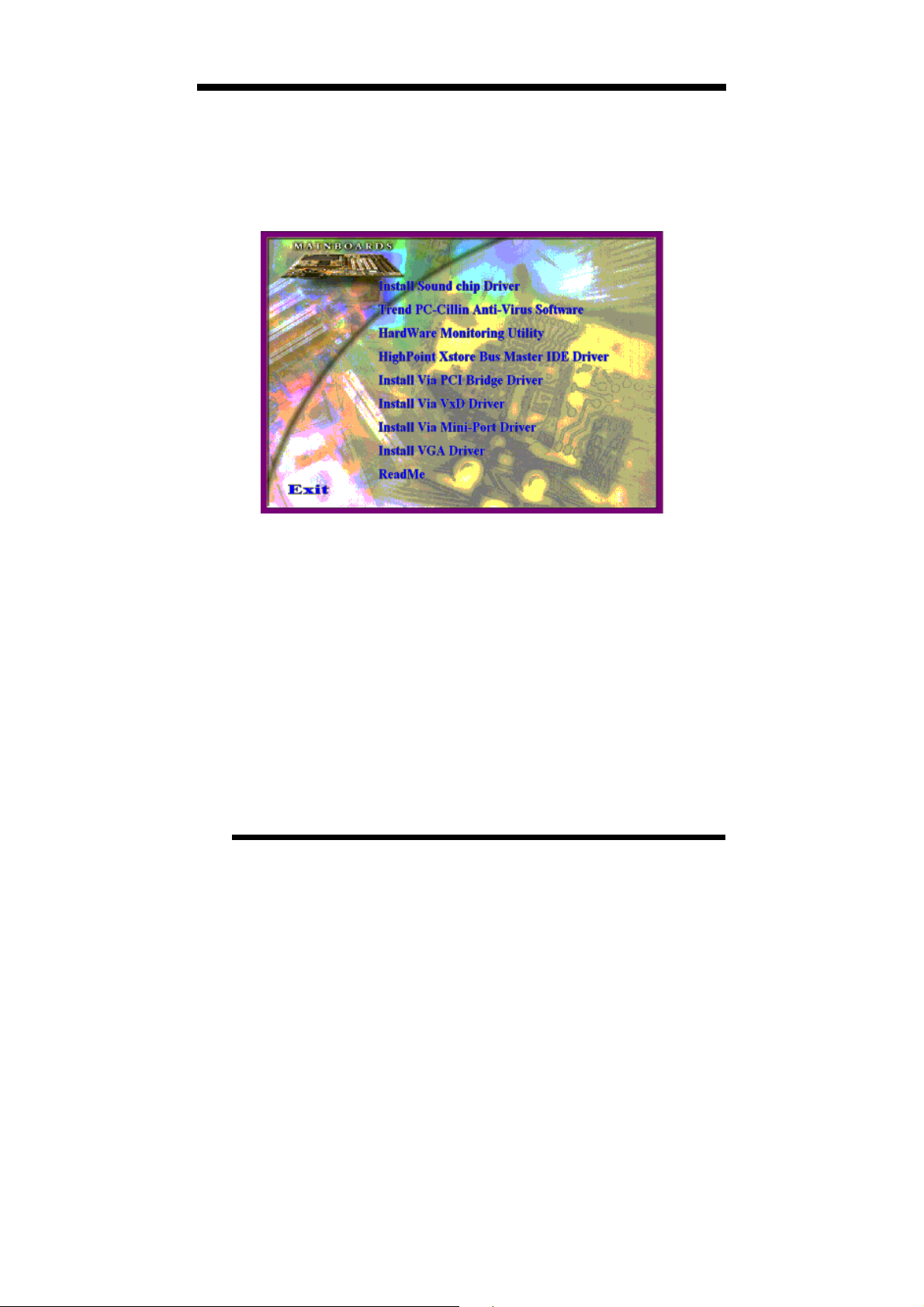

Installing the Support Drivers and Utilities ...................................................... 26
SOFTWARE SUPPORT................................................................. 29
Mainboard BIOS .............................................................................................. 29

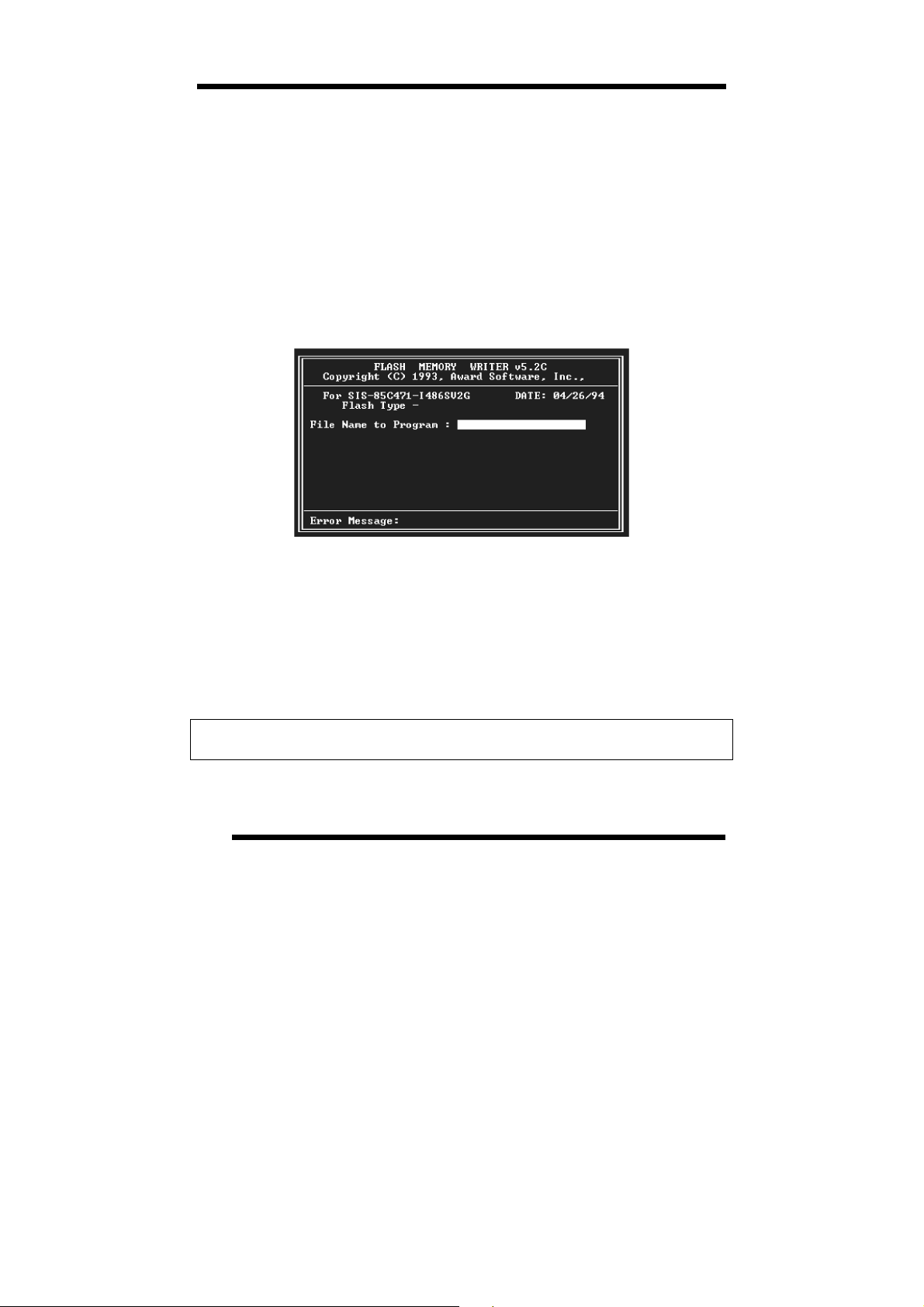

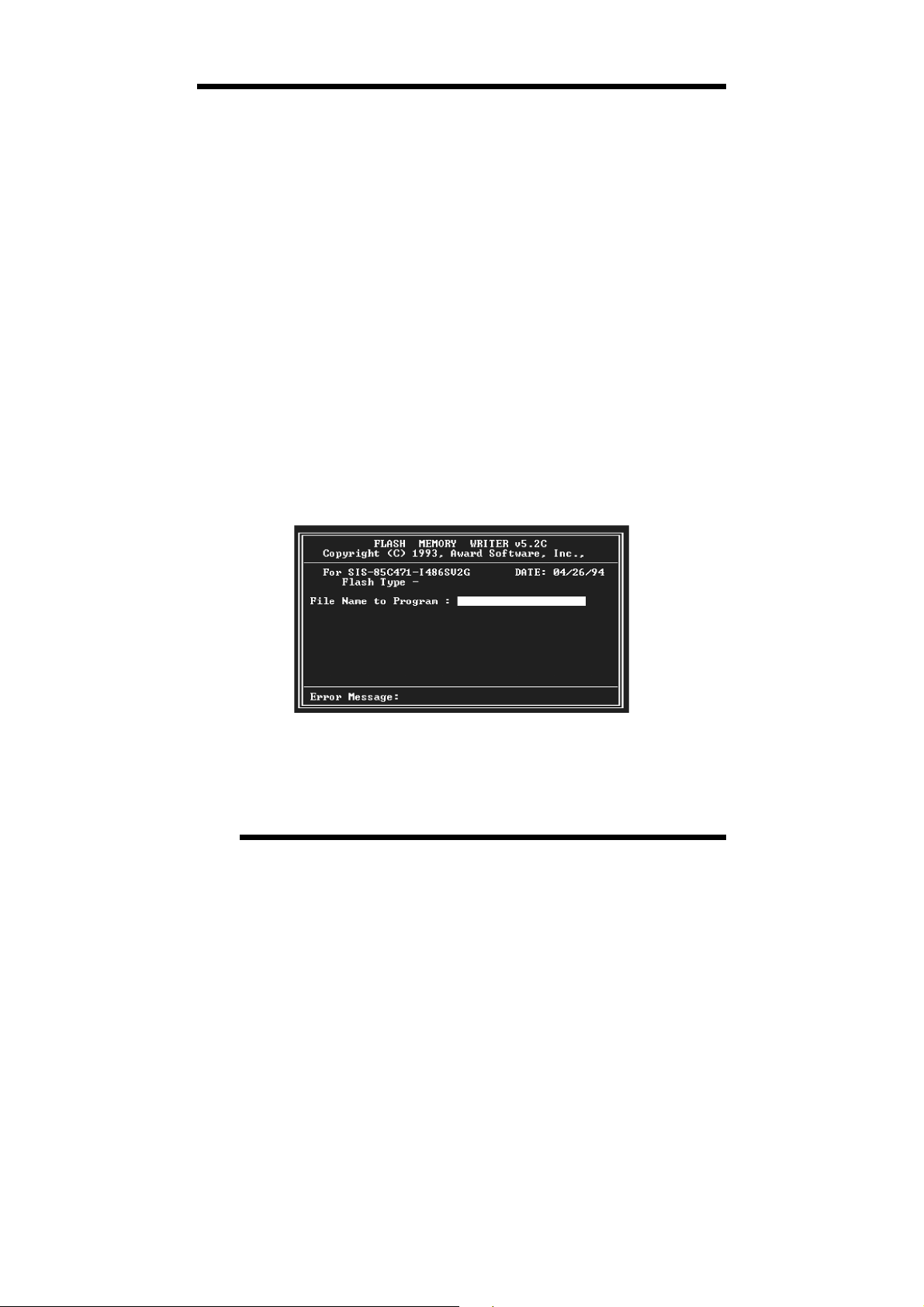

Flash BIOS Programming Utility...................................................................... 30
Symbios SCSI Configuration Utility................................................................. 31
DMI Utility.......................................................................................................31
2
Installation Guide
Page 3
INTRODUCTION
Product Description
Designed as a flexible, high-performance and cost-effective solution for System Integrators and End Users alike, this mainboard provides the power and expandability to meet the requirements of the most advanced operating systems and software applications.
This mainboard is designed to provide Pentium –based (FSB 100MHz) system by utilizing the VIA Apollo MVP4 AGPset on Micro-ATX Platform. By incorporating such advanced features as Super I/O, AC97 audio, Ultra DMA/66 Bus Mastering IDE, Universal Serial Bus (USB) and Hardware Monitoring onto the mainboard, optimum system performance is assured and system design and implementation is simplified.
Fully “Plug & Play” compatible via an Award BIOS, this mainboard facilitates easy system configuration and peripheral setup. Also, the Award BIOS supports ACPI Readiness and is compatible with the PC’98 specification. This mainboard is the ideal founda t ion for high-end computer systems.
Installation Guide
3
Page 4
INTRODUCTION
Features & Specifications
Processor
Chipset BIOS
System Memory
On-board I/O Features
Advanced Features
PCI Bus Master IDE
Power Connector Expansion Slots
Switching VR Form Factor
ZIF socket 7 support AMD K6-2 / K6-3 up to 500 MHz, INTEL Pentium MMX up to 233 MHz
VIA Apollo M VP4 AGPset Award BIOS, support DMI, Green PC, Plug-and-Play, ACPI,
Boot from CD-ROM, LS-120 120MB F.D.D.., ZIP Devices Support
Symbios SCSI BIOS
Anti-virus BIOS for prevention against boot-virus 3×168-pin DIMM Sockets up to 768 MB SDRAM Memory
Capacity Support 8/16/32/64/128/256 MB Memory Module ECC Supported
1×Floppy Port ( LS120) 2×USB Ports 1×Parallel Port (EPP, ECP Port) 1×IrDA TX/RX Header 1×Serial Port (16550 Fast UART Compatible) 1×Serial Header (16550 Fast UART Compatible) 1×Internal Keyboard Header 1×MIDI/Game port 1×Audio Jacks: Line Out, Line In, and Mic. In 1×Video Port
1. AGP 3D Graphics and AC97 Audio on board
Wake-up on LAN
2.
3. Modem Ring-in Remote Power on
4. Hardware Monitoring (Fan, Temperature, Voltage)
5. Xstore Pro IDE Bus Master Software Driver (*)
6. Anti-Virus PC-Cillin Software (*)
2×PCI Bus Master IDE Port UltraDMA/66 Mode up to 66MB/s transfer rate
3V, 5V and 12V 20-pin ATX 20-pin Power Connector
4×32-bit PCI Slots, 1×16-bit ISA Slots Switching Voltage Regulator to support 1.3V to 3.5V Micro-ATX Size (7.7” x 9.6” or 200mm x 245mm)
4
Installation Guide
Page 5
INTRODUCTION
Remark:
The XStore Pro IDE Driver enhances memory management by working with the Windows 95/98 operating system, resulting in higher system performance by implementing "read-ahead caching after seeking". This is especially effective with the large block sizes of modern hard disks.
PC-cillin anti-virus software provides a powerful defense against viruses to protect data integration.
Package Checklist
Your mainboard package should include the items listed below. Damaged or missing items should be reported to your vendor.
The mainboard Floppy disk ribbon cable IDE ribbon cable This Installation Guide BIOS, Driver & Utility Guide CD-ROM containing the following support software:
(The latest drivers can always be found at their respective web sites.)
VIA PCI Bridge driver, VIA VxD driver, VIA PCI Mini-port driver
http://www.via.com.tw/drivers
Support software for updating the FLASH BIOS HighPoint® XStore Pro IDE Bus Master
http://www.highpoint-tech.com
Trend ® PC-cillin Anti-Virus software
http://www.antivirus.com
Installation Guide
5
Page 6
INTRODUCTION

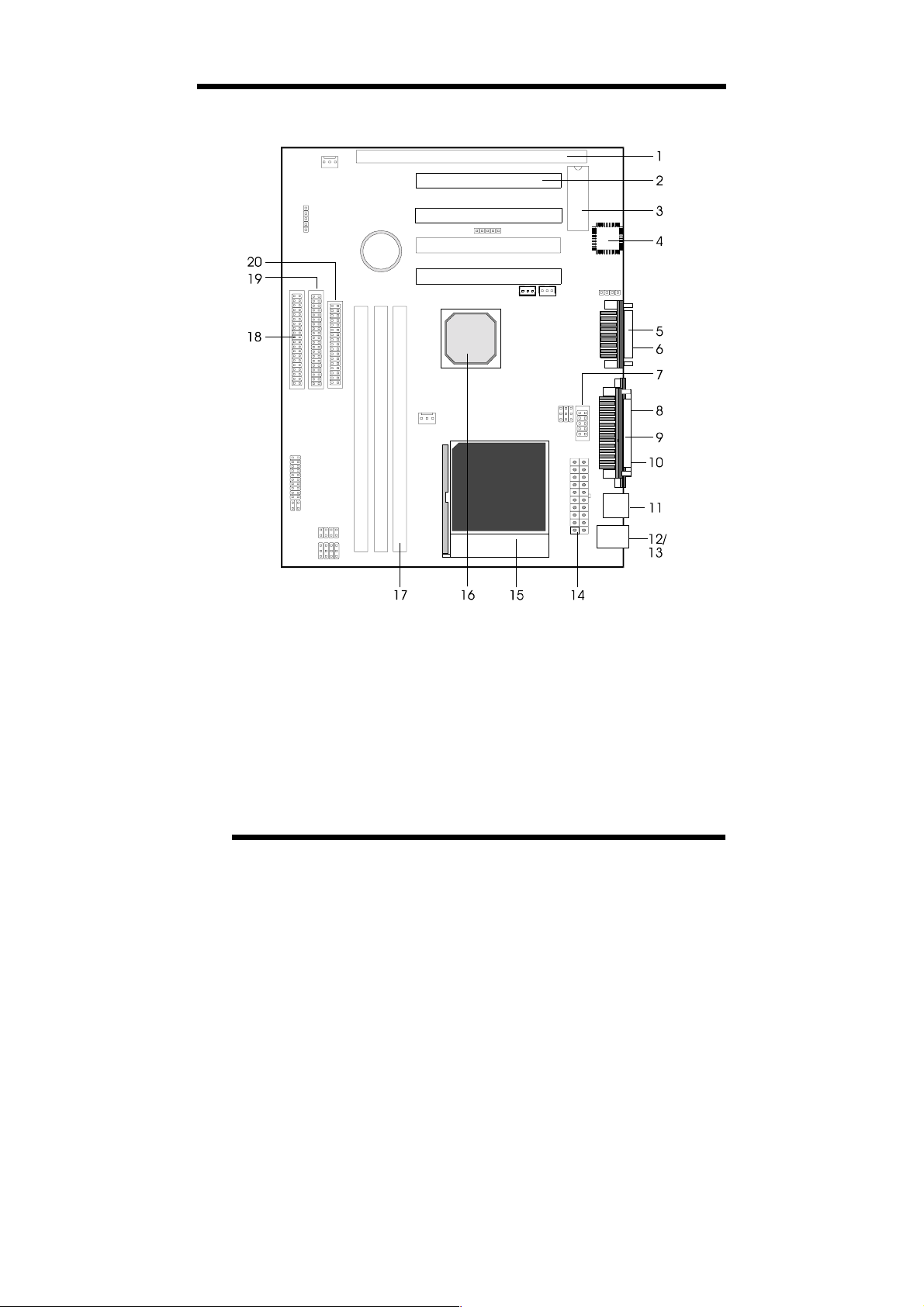

Board Level Feature
1. ISA slot 11. USB connectors
2. PCI slots 12. PS/2 mouse connector (top)
3. Mainboard BIOS 13. PS/2 keyboard connector (bott om)
4.
AC97 codec chip
5.
MIDI/Game port
6.
Audio port
7. COM2 connector 17. DIMM sockets
8. VGA connector 18. Primary IDE connector
9. Printer port connector 19. Secondary IDE connector
10. COM1 connector 20. Floppy connector * Board Size: Micro-ATX 245 mm x 200 mm (9.6” x 7.7”)
6
14. Power connector
15. CPU socket (Socket 7)
16.
VIA Apollo MVP4 AGPset
Installation Guide
Page 7
INTRODUCTION
1. ISA Slot: (1) 16-bit ISA slot.
2. PCI Slots: (4) 32-bit PCI slots are provided.
3. Mainboard BIOS: Award BIOS supporting “Plug and Play”, DMI, Green PC
specification, on screen setup for Enhanced IDE and Multi-I/O. The BIOS is FLASH Upgradeable via the AWDFLASH Utility.
4. AC97 Codec Chip: AC97 audio codec chip.
5. MIDI/Game Port: 15-pin female MIDI/Joystick connector.
6. Audio Port: Three 1/8” female jacks for Line Out, Line In and MIC.
7. COM2 Connector: Connects to High-speed UART compatible serial port
bracket. COM2 can be directed to the Infrared Module for wireless connection capability.
8. VGA Connector: 9-pin VGA connector.
9. Printer Port Connector: EPP and ECP compatible 25-pin D-Sub parallel
port.
10. COM1 Connector: High-speed UART compatible serial port.
11. USB Connectors: These connectors permit the connection of two USB
peripheral devices directly to the port without an external hub. USB is a new technology supporting printers, fax modems and other telephony device.
12. PS/2 Mouse Connector: Supports PS/2 style mice.
13. PS/2 Keyboard Connector: Supports PS/2 style keyboards.
14. Power Connector: 20-Pin ATX Power Connector.
15. CPU Socket: ZIF Socket 7 for AMD K6-2 / K6-3 up to 450 MHz, Cyrix
up to MII-500, Intel Pentium MMX up to 233 MHz.
16. VIA® Apollo MVP4 AGPset: Supports Socket 7 CPUs, UDMA66 and AGP
2x.
17. DIMM Sockets: (3) 168-pin DIMM sockets are provided to support a
maximum RAM memory capacity of 768 MB. DIMM types of 3.3 Volt true SDRAM is supported and automatically detected by the BIOS.

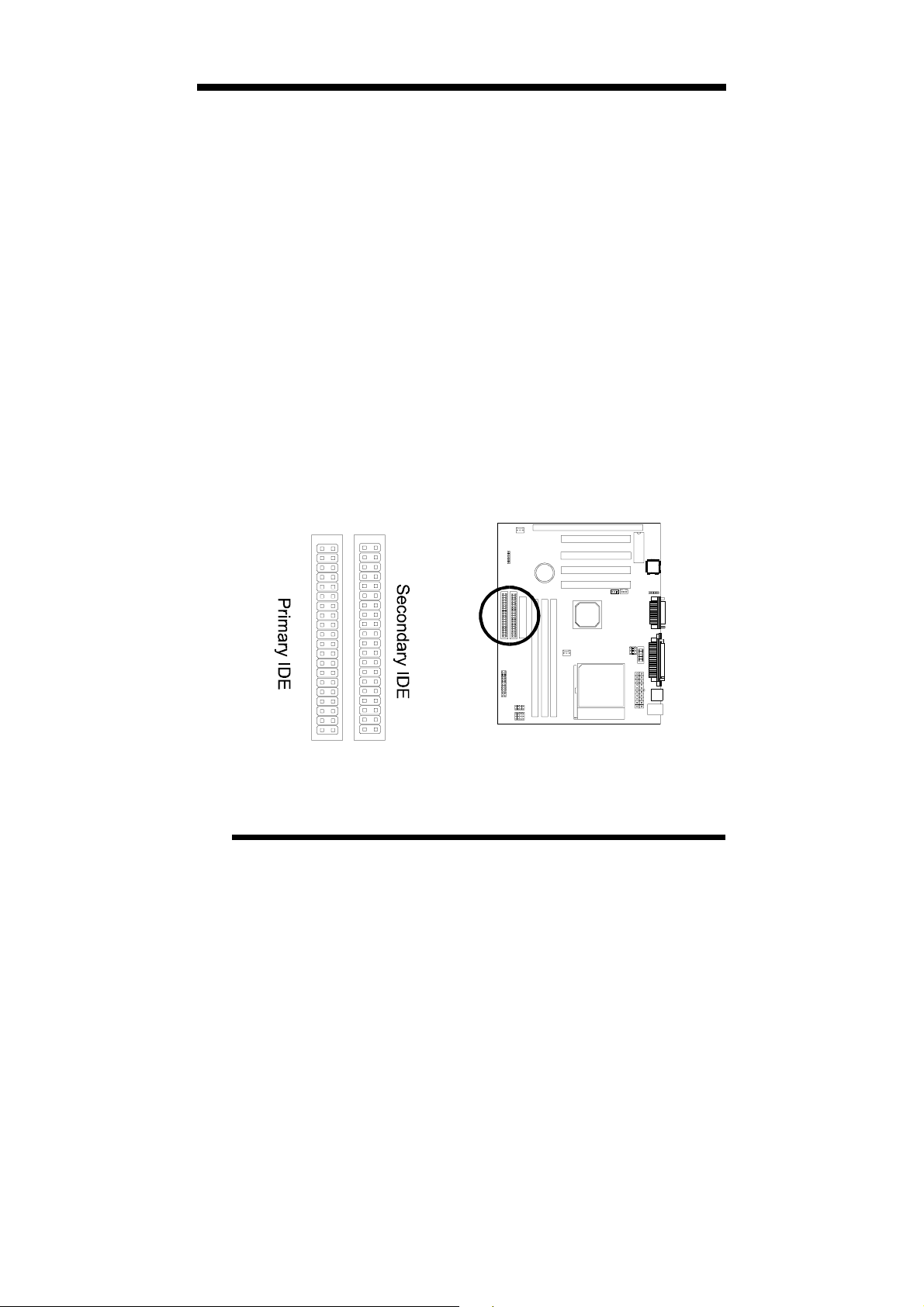

18. Primary IDE Connector: Connector for first IDE channel. The on-board PCI
Bus Mastering IDE controller features support for DMA Mode 2 and PIO Modes 3 and 4 for faster data transfer rates. (2) Connectors are provided for support of up to (4) IDE devices on two channels. ATAPI Tape Drives and CD-ROMs are also supported.
19. Secondary IDE Connector: Connector for second IDE channel.
20. Floppy Connector: Built-in floppy controller supports (2) 5.25" or 3.5"
(1.44MB or 2.88MB) floppy drives.
Installation Guide
7
Page 8
INTRODUCTION

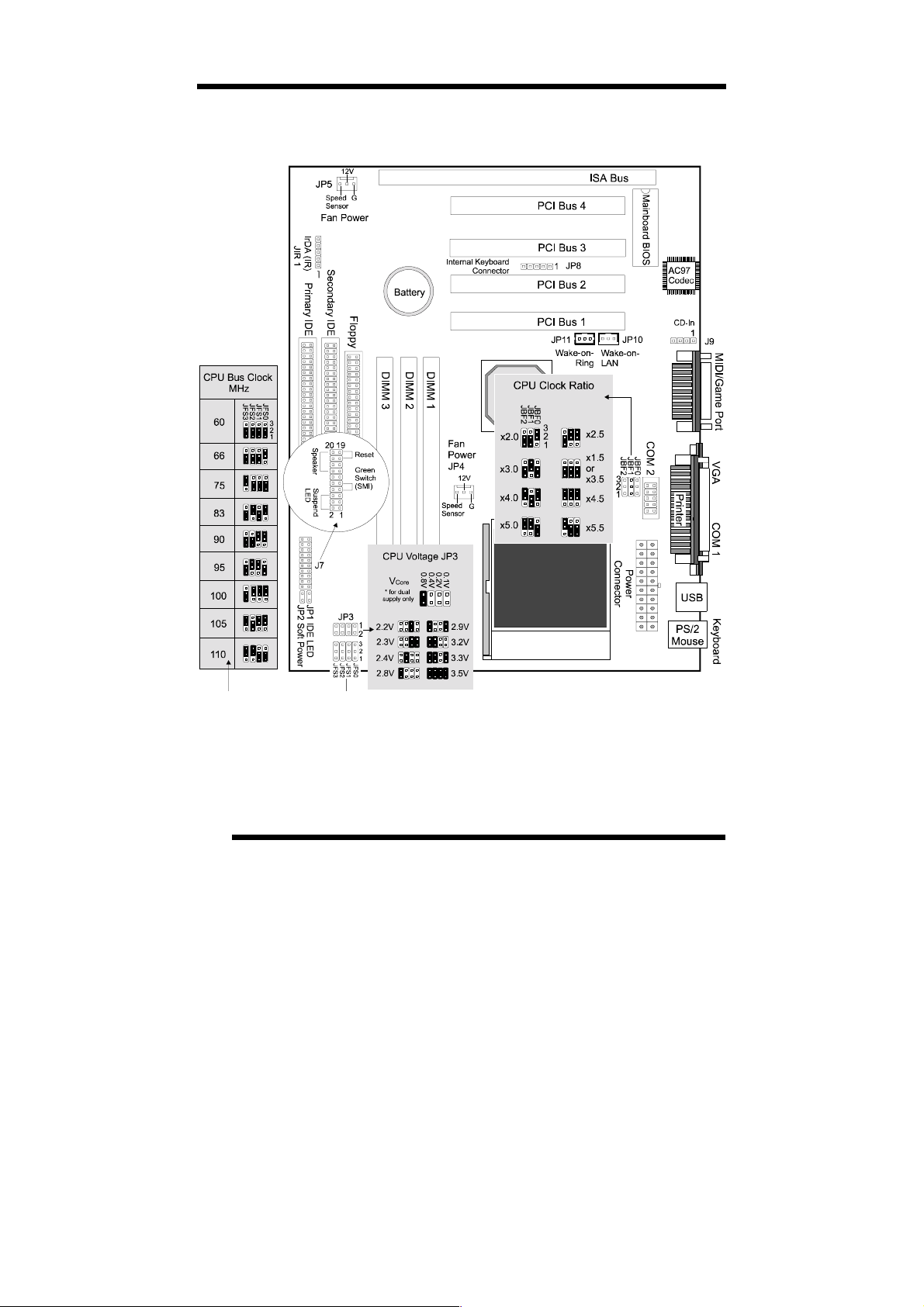

Comprehensive Mainboard View
8
Installation Guide
Page 9
INSTALLATION
Static Precautions
Static electricity can be a serious danger to the electronic components on this mainboard. To avoid damage caused by electrostati c discharge, observe the following precautions:
Don’t remove the mainboard from its anti-static packaging until you are ready to install it
into a computer case. Also, handle add-in cards and modules by the edges or mounting bracket.
Before you handle the mainboard in any way, touch a grounded, anti-static surface, such
as an unpainted portion of the system chassis, for a few seconds to discharge any built-up static electricity.

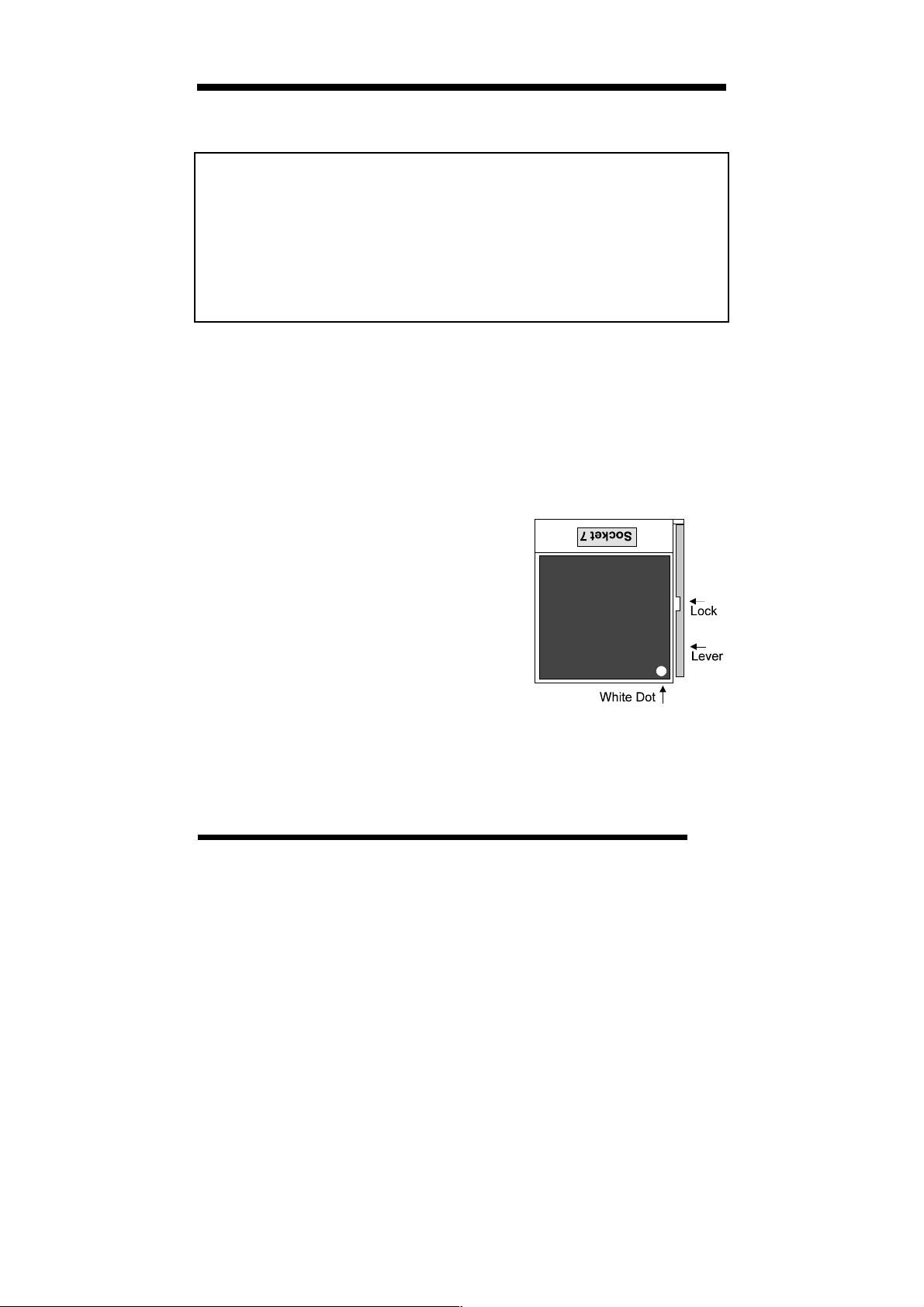

Installing the CPU
WARNING: Use of a CPU Cooling Fan is required to prevent CPU from
overheating. The Fan should be installed first before inserting the CPU into its socket.
1. Locate the ZIF (Zero Insertion Force) Socket 7.
2. First open the socket by pulling the lever sideways, then upwards. Notice how
the lever locks in place when pressed all the way down.
3. The CPU must be inserted with the correct
orientation. One corner of the CPU has a “Notch” and looks different that the other three. This corner is also missing a pin unlike the other three and is marked with a white dot on top of the CPU. Align this corner towards the end of the lever as shown in the figure here. Insert the CPU, press it down, and close the lever until it locks into place.
Installation Guide
9
Page 10
INSTALLATION

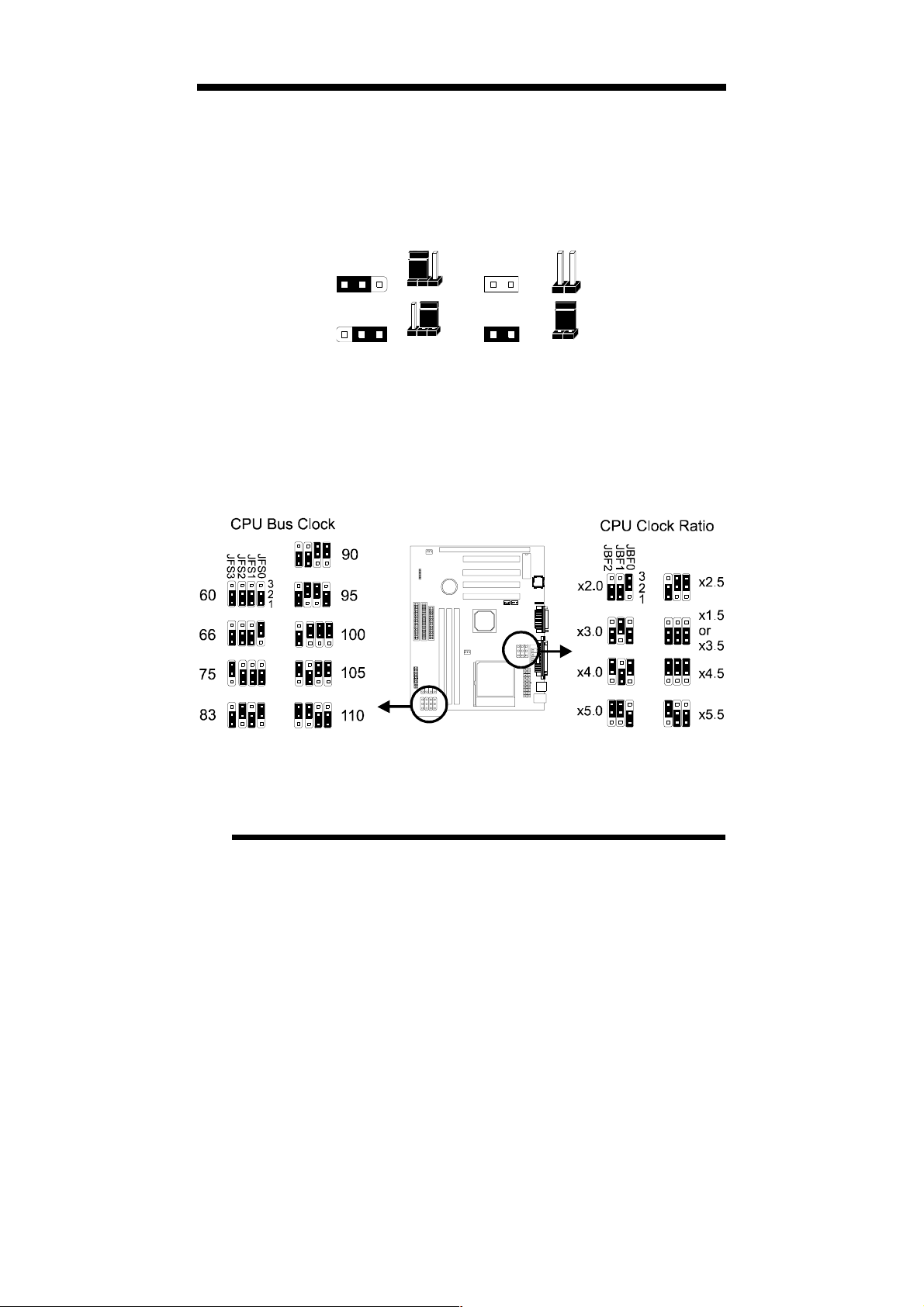

Setting the Jumpers
Jumpers are used on this mainboard to select various settings and features. A 2-pin jumper has two settings: Open and Short (or Closed). The jumper is closed by placing the Jumper Cap across the two pins, thereby connecting them. 3-pin jumpers can be set to pins 1-2 or 2-3 connected. Pin-1 is labeled on the circuit board.
3-pin Jumper 2-pin Jumper
Pin 1-2
Pin 2-3
CPU Clock Selection Jumper (JBF0-2 and JFS0-3)
After installing the CPU, you must set the clock selection jumpers to match the frequency of the CPU. Find the Jumper Blocks labeled JBF0-2 and JFS0-3. Set the jumpers according to your particular CPU type (a list of current available CPU settings is provided on the following page).
Open
Short
10
Installation Guide
Page 11
INSTALLATION
Jumper setting for CPU:
CPU Model CPU Clock Bus Clock (JFS0-3) Ratio (JBF0-2)
AMD-K6-III-450MHz 450MHz 100MHz ×4.5 AMD-K6-III-400MHz 400MHz 100MHz ×4.0
AMD-K6-2-450MHz 450MHz 100MHz ×4.5 AMD-K6-2-400MHz 400MHz 100MHz ×4.0 AMD-K6-2-350MHz 350MHz 100MHz ×3.5 AMD-K6-2-300MHz 300MHz 100MHz ×3.0 AMD-K6-2-266MHz 250MHz 100MHz ×2.5
AMD-K6-2-380MHz 380MHz 95MHz ×4.0 AMD-K6-2-333MHz 333MHz 95MHz ×3.5
AMD-K6-300MHz 300MHz 66MHz ×4.5 AMD-K6-266MHz 266MHz 66MHz ×4.0 AMD-K6-233MHz 233MHz 66MHz x3.5 AMD-K6-200MHz 200MHz 66MHz x3.0 AMD-K6-166MHz 166MHz 66MHz x2.5
AMD-K5-PR200 66MHz x3.0 AMD-K5-PR166 66MHz x2.5 AMD-K5-PR133 66MHz ×1.5
Intel Pentium MMX-233 233MHz 66MHz x3.5 Intel Pentium MMX-200 200MHz 66MHz x3.0 Intel Pentium MMX-166 166MHz 66MHz x2.5 Intel Pentium MMX-150 150MHz 60MHz x2.5
Intel Pentium -200 200MHz 66MHz ×3.0 Intel Pentium -166 166MHz 66MHz ×2.5 Intel Pentium -150 150MHz 60MHz ×2.5 Intel Pentium -133 133MHz 66MHz ×2.0 Intel Pentium -120 120MHz 60MHz ×2.5
IDT WinChip 2-300 100MHz ×2.5 IDT WinChip 2-266 100MHz ×5.0 IDT WinChip 2-233 233MHz 66MHz ×3.5 IDT WinChip 2-200 200MHz 60MHz ×3.0
IDT C6-240 240MHz 60MHz ×4.0 IDT C6-225 225MHz 75MHz ×3.0 IDT C6-200 200MHz 66MHz ×3.0 IDT C6-180 180MHz 60MHz ×3.0 IDT C6-150 150MHz 75MHz x2.0
Installation Guide
11
Page 12
INSTALLATION
RISE MP6 (PR266) 200MHz 100MHz ×2.0 RISE MP6 (PR233) 190MHz 95MHz ×2.0 RISE MP6 (PR166) 166MHz 83MHz ×2.0
The Internal (Core) frequency corresponds to the number marked on the CPU. The
External Frequency when multiplied with the Ratio gives the CPU's internal frequency.
This table lists the current CPU available. New settings may be available for new CPU
products. Refer to your CPU specifications for more information.

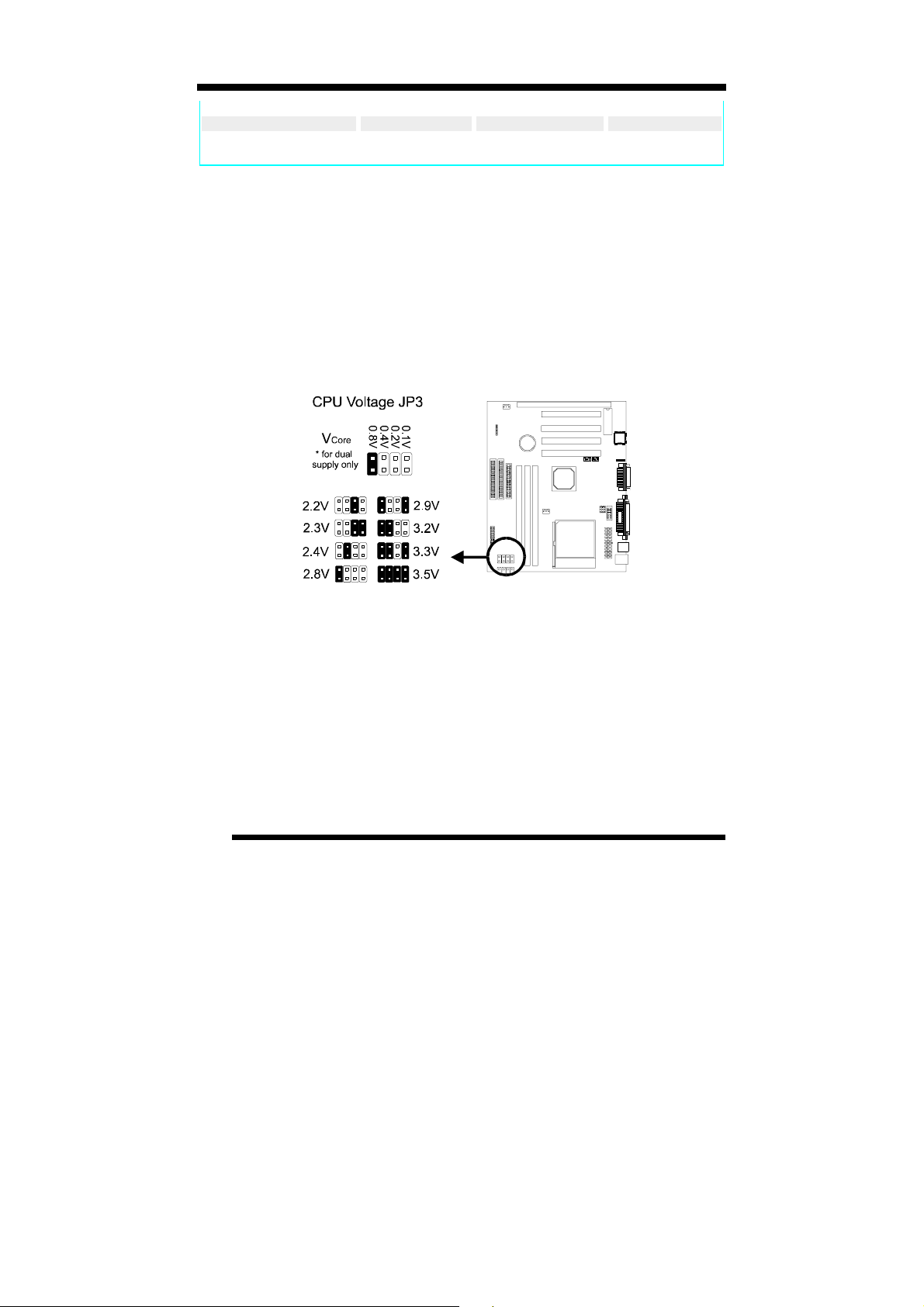

Setting the CPU Voltage Selection Jumper (JP3)
Locate Jumper JP3 on the mainboard. Set this jumper in accordance with your specific CPU type.
* The Intel MMX CPU is an example of a dual supply chip (2.8V & 3.3V). When single
supply CPUs are used, this setting is not relevant and should be left on the default (Refer to the CPU documentation).
12
Installation Guide
Page 13
INSTALLATION

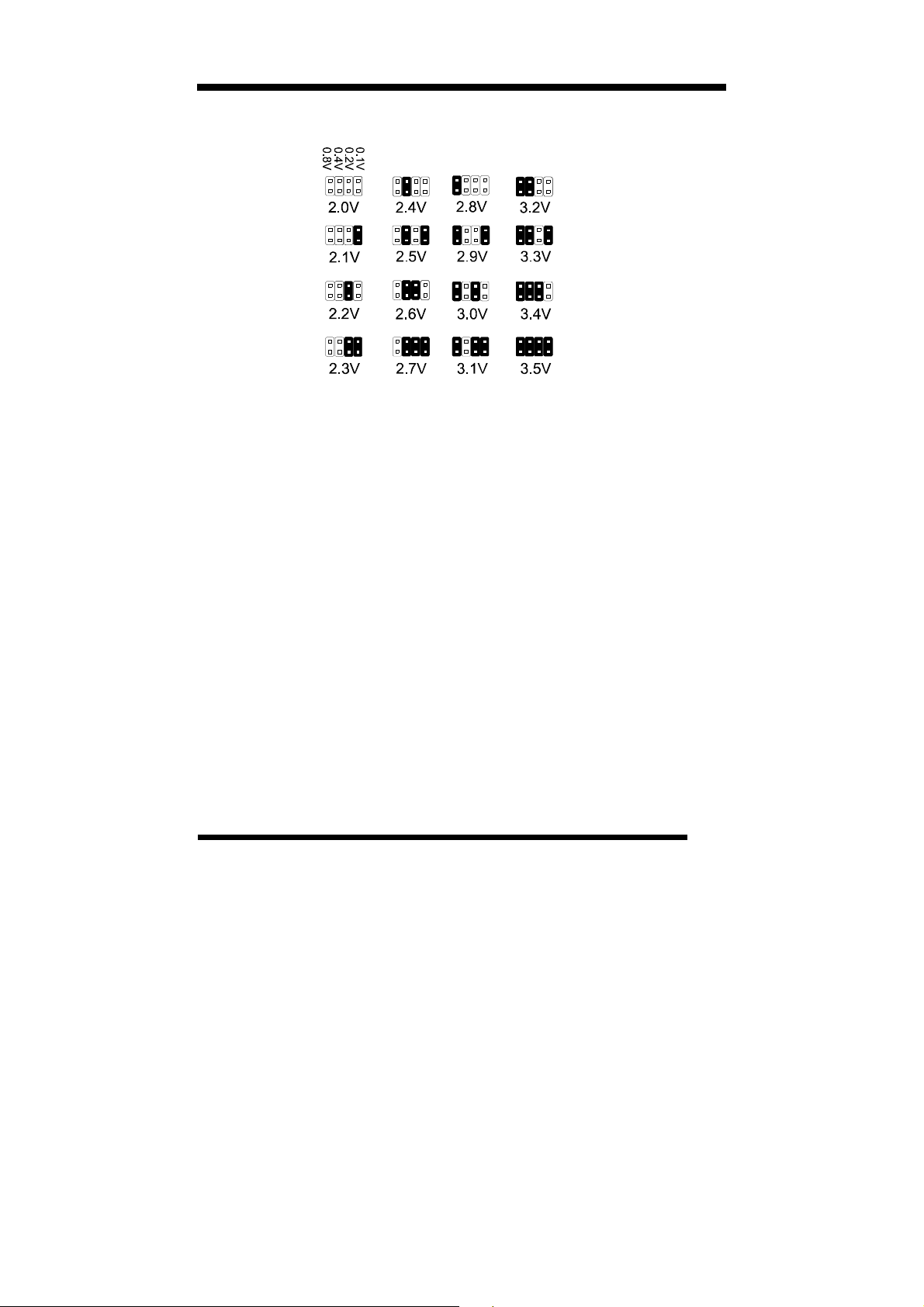

The following diagram illustrates all possible CPU Vcore Voltage Selection j umper settings:
If you are uncertain about the speed or voltage requirements of your particular CPU, you
should obtain Technical Documentation from the manufacturer. Such information is available via the Intel and AMD WWW sites.
Installation Guide
13
Page 14
INSTALLATION
Connections

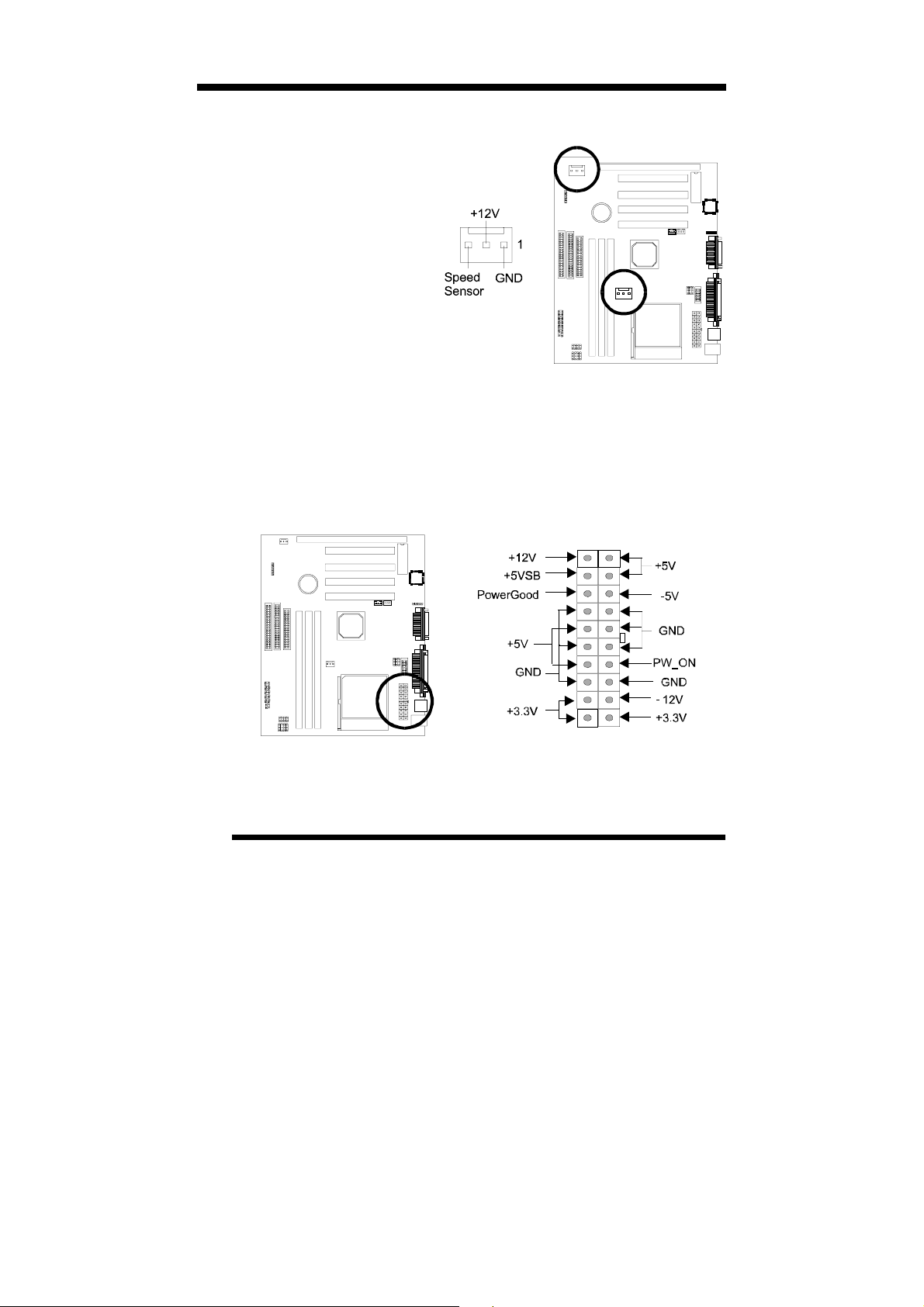

Cooling Fan (JP4 and JP5)
These connectors are small 3-pin Header Connectors that provide 12-Volt power for CPU and chassis cooling fans. Plug in the fan cable to the connector. Pin-2 corresponds to the RED power lead as shown:
Power Supply Connector
This mainboard features an ATX-style Power Supply Connector. This connector is keyed to prevent connection in the wrong direction. Line up the locking mechanism on the connector from the Power Supply with the tab on the mainboard connector. Press down until the two connectors are locked.
14
Installation Guide
Page 15
INSTALLATION

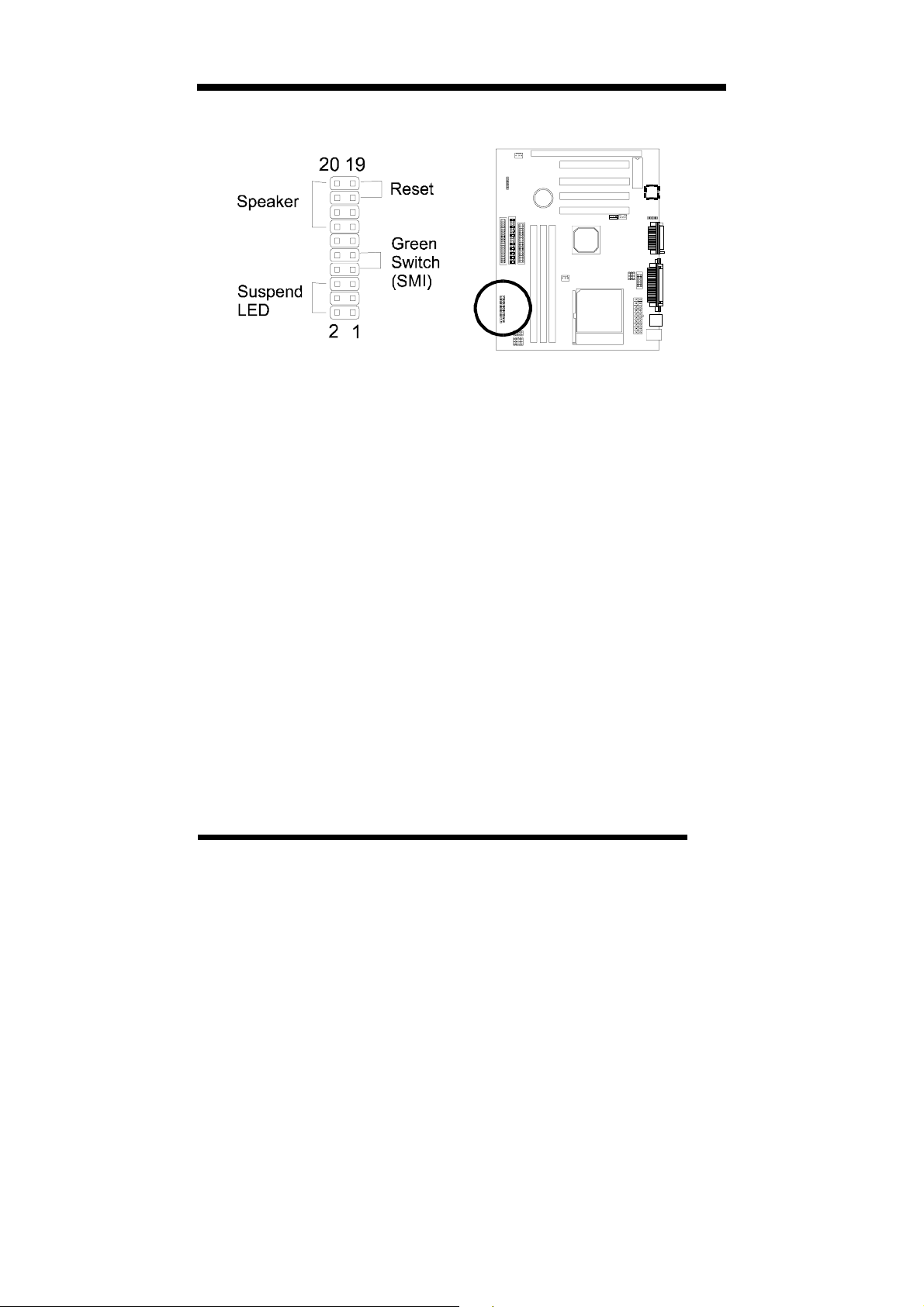

System Function Connector Block (J7)
Pins [7 & 9] SMI suspend switch lead - If your system’s case has a suspend switch, hook the lead from the switch to pins 7 & 9. A suspend switch is used to save electricity by putting the system into a suspend mode when the computer is not being used. For this switch to be functional, “Suspend Mode” must first be enabled in the Power Management Setup in the BIOS Setup utility.
Pins [17 & 19] Reset switch lead - Connects to the Reset Switch lead from the system’s case. The reset switch is used to “cold-boot” the system without actually turning off the power, reducing wear and tear on the power supply.
Pins [2 & 6] Suspend LED lead – Pins 2 & 6 connect to the case-mounted Suspend LED switch.
Pins [14 & 20] Speaker connector - Connects to the Speaker lead from the system’s case.
Installation Guide
15
Page 16
INSTALLATION

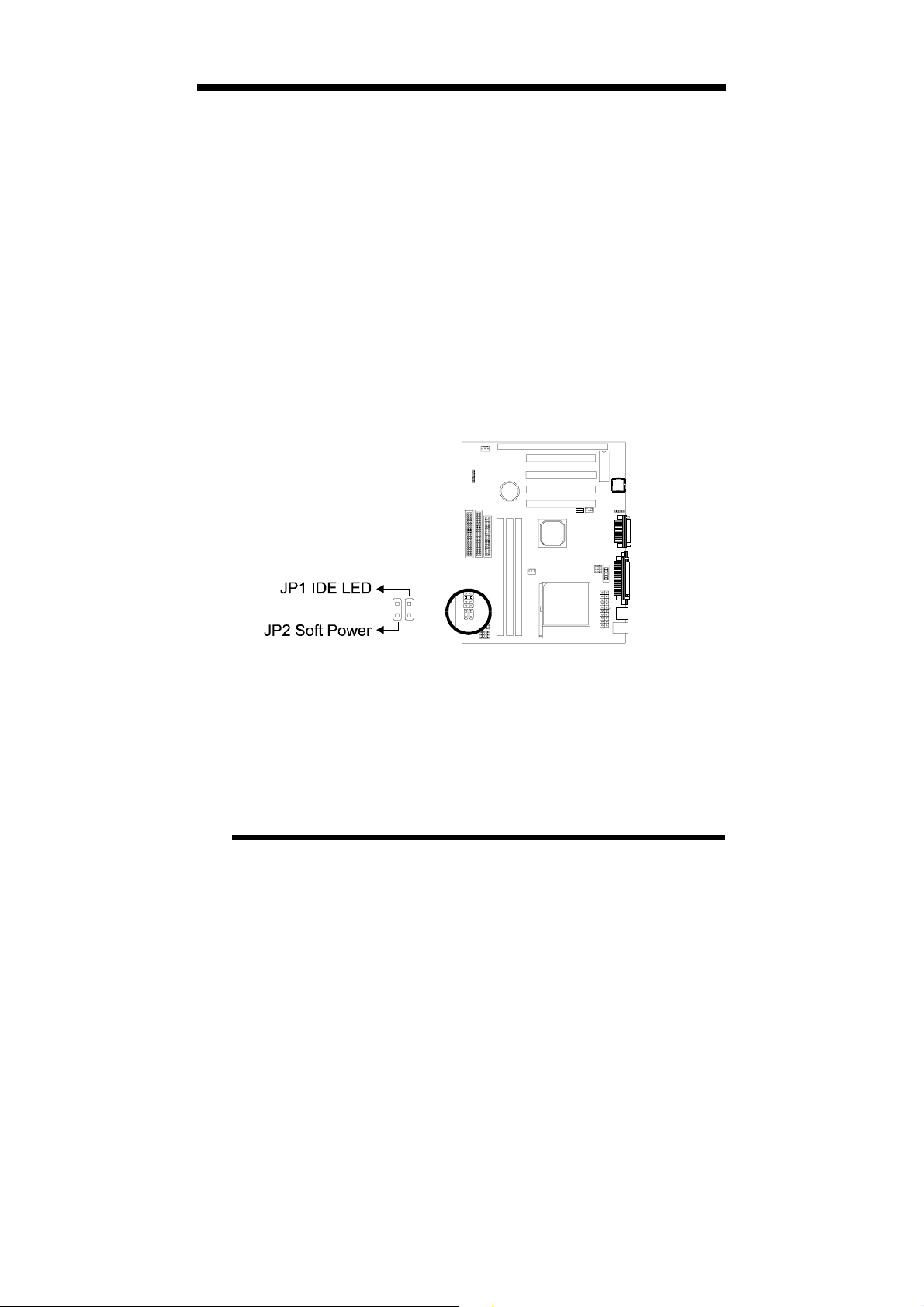

IDE Activity LED (JP1)
Hook the IDE LED lead to this connector, with the RED lead corresponding to Pin-1.
Soft Power Switch (JP2)
Connects to the Power Switch featured on ATX case designs. This switch must be hooked up before the system can be powered on, unlike traditional “Baby-AT” designs where the power switch is located on the Power Supply itself.
Note: Under the following two conditions, you have to press and hold the switch for more than 4 seconds to power off your system, regardless of the “Soft-Off by PWRBTN” setting in the Power Management Setup of the BIOS.
Shortly after the system is powered on, when the BIOS message is not yet
appear.
When CPU hangs.
16
Installation Guide
Page 17
INSTALLATION

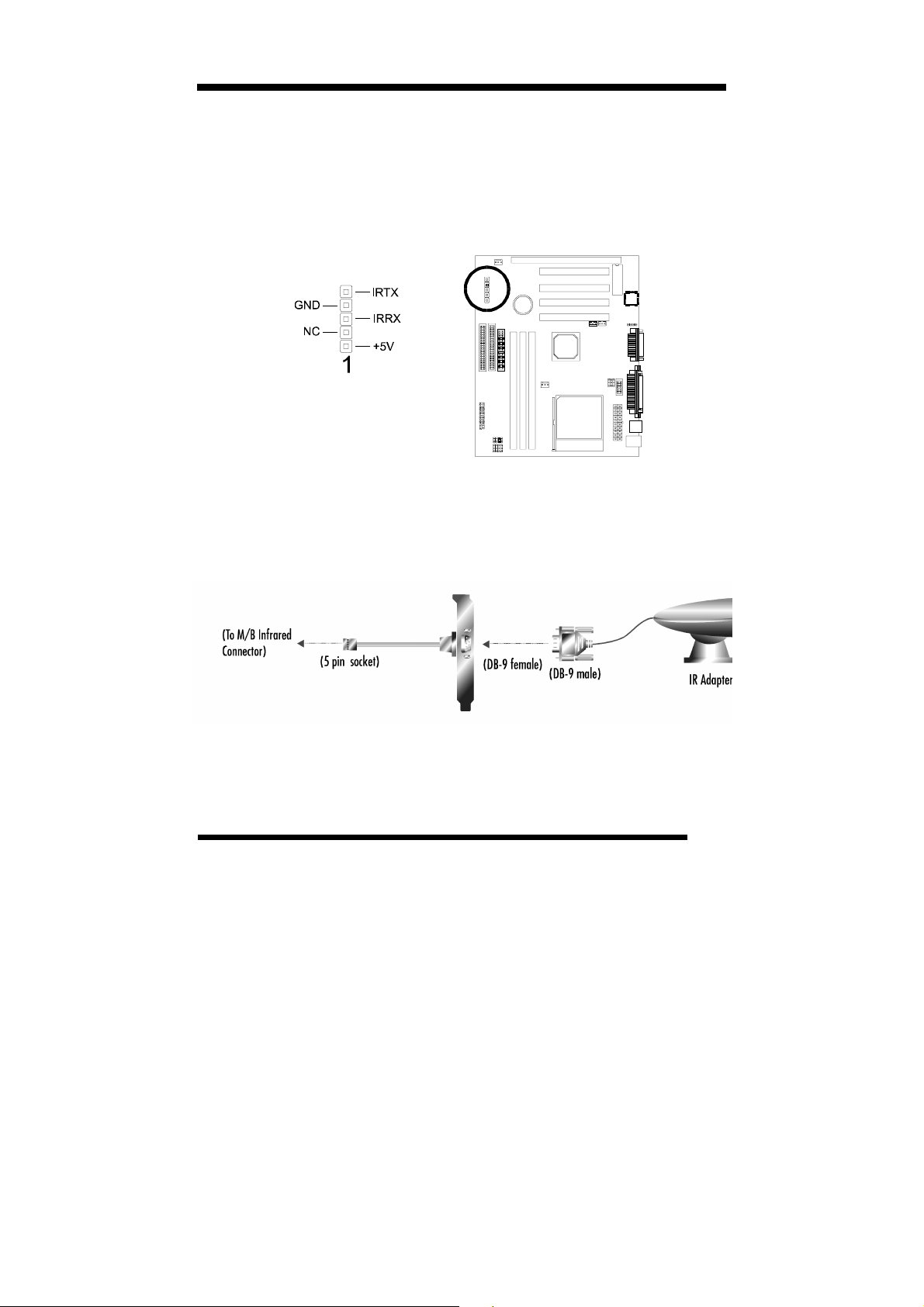

IrDA-Compliant Infrared Module Connector (JIR1)
The IrDA connector bracket hooks directly to this connector on the mainboard. This connector provides support for the optional wireless transmitting and receiving infrared modul e. You must fir st configur e thro ugh the BIO S setup where UART2 is directed, COM2 or IrDA.
Installation Guide
17
Page 18
INSTALLATION
Wake-up On LAN Connector (JP10)
The Wake-up On LAN function will allow the network to wake up a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can wake-up the system only through an IRQ or DMA inte rr up t. T o use t he W ake -up On LAN function, you must enabl e the “Power On By Ring/LAN” field in the Power Management Setup of the Award BIOS. Connect the cable that comes with your LAN card to this connector on the system board. Refer to the add-in card’s manual for details.
Note: Your LAN card must support Magic Packet in order to use the Wake-up On LAN function.
Wake-on-Ring Function (JP11)
The Wake-on-Ring function allows the modem to remotely power on the system. Install an external modem (normally to COM2) and enable “Power On by Ring/LAN” function in the Power Management Setup from the BIOS.
For the function to work for an internal modem card, you must also connect the Wake-on-Ring cable on the modem card to the Wake-on-Ring function connector on the mainboard.
18
Installation Guide
Page 19
INSTALLATION

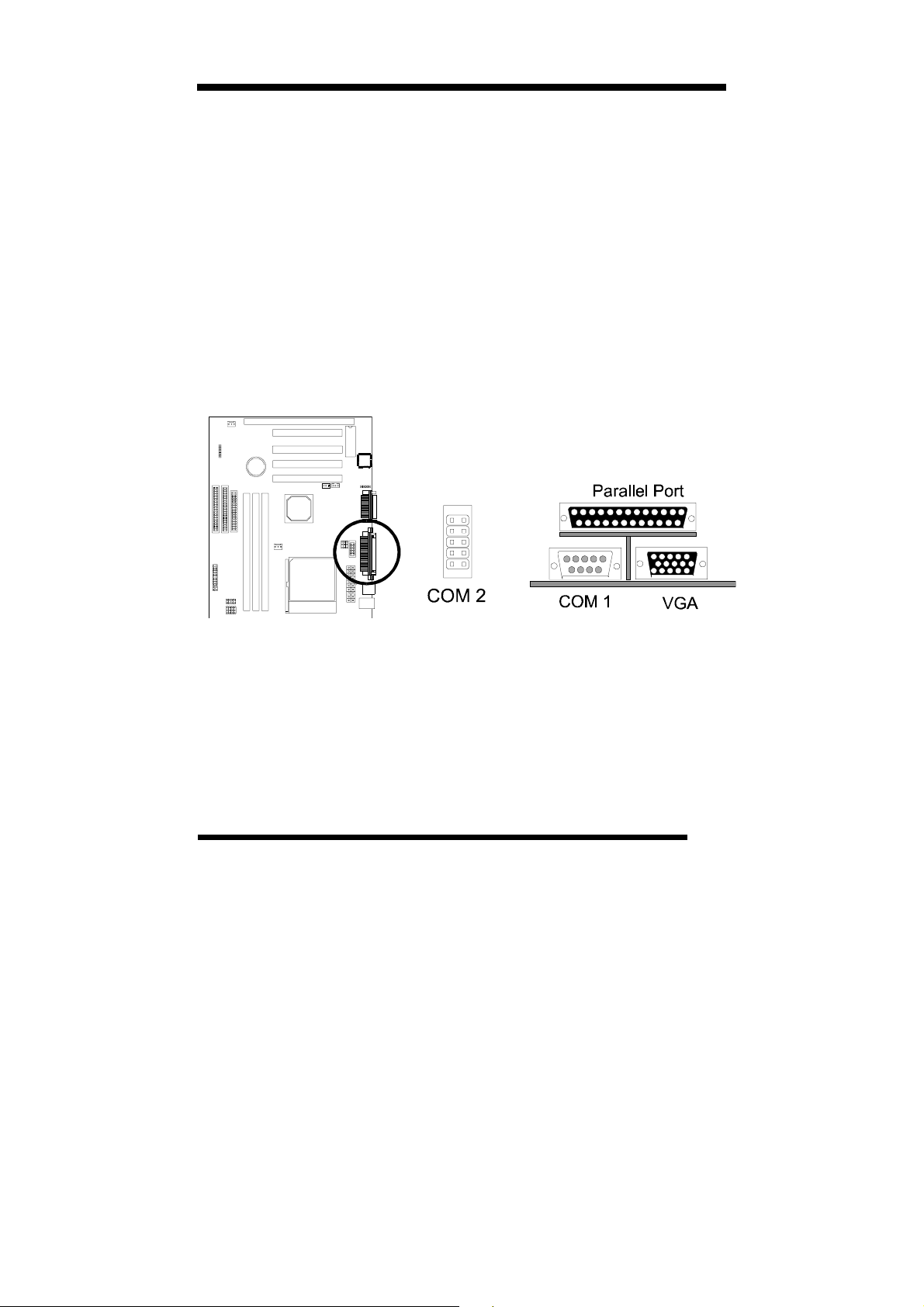

Serial and Parallel Ports
A 25-pin D-Sub header is provided on the back panel for a multi-mode bi­directional parallel port.
One 9-pin D-Sub headers are also provided on the back panel for Serial ports. For the second serial port, plug the 10-pin cable of the serial port bracket to the
COM2 connector on the mainboard.
VGA Connector
This mainboard has built-in VGA features. A 9-pin connector is provided on the back panel for connecting to the VGA connector from the monitor.
Installation Guide
19
Page 20
INSTALLATION

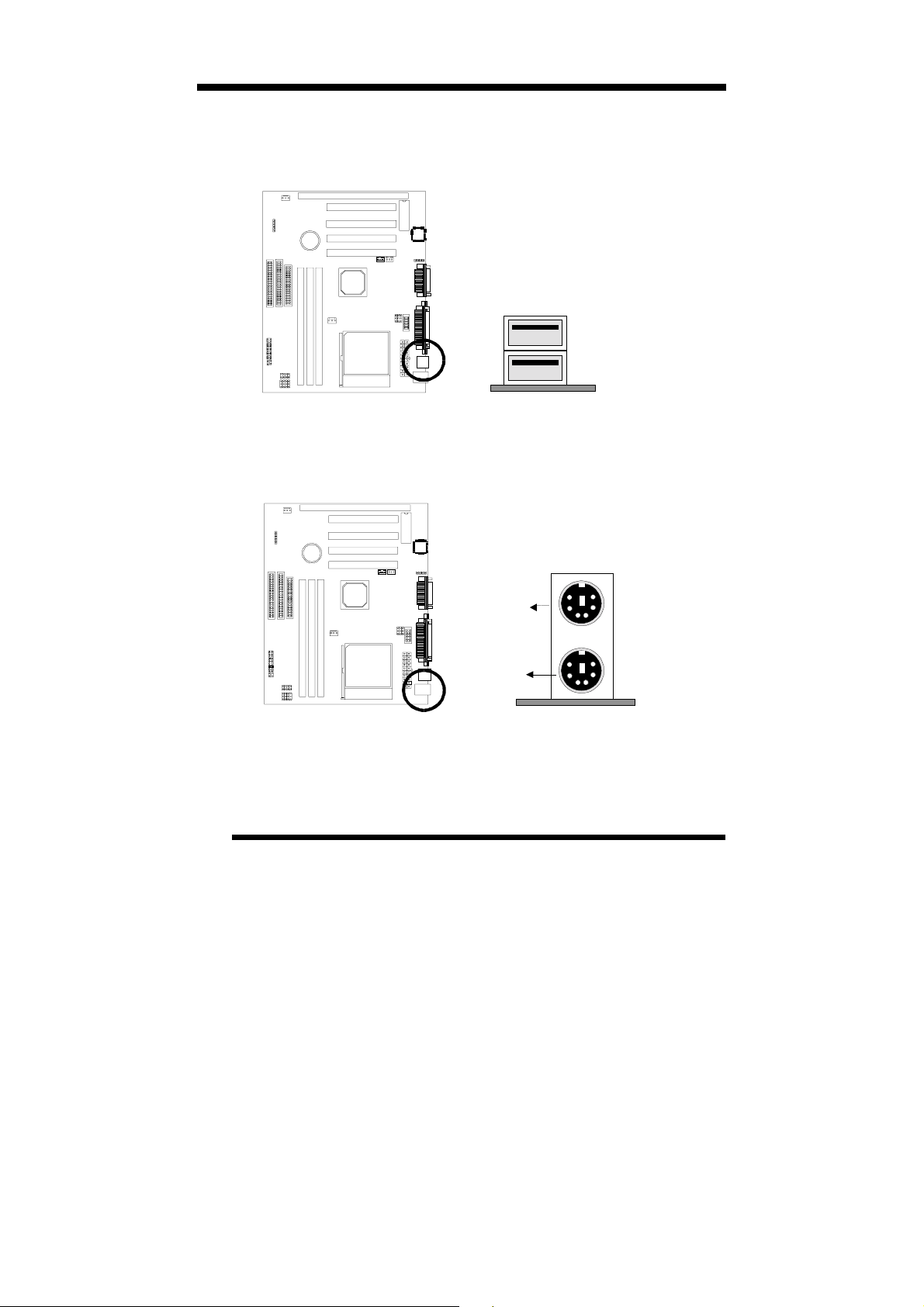

USB Connectors
These two connectors permit connection of two USB peripheral devices directly to the system without an external hub.
USB
PS/2 Keyboard and Mouse Connectors
These two connectors are located on the back panel of the mainboard.
20
PS/2 Mouse
PS/2 Keyboard
Installation Guide
Page 21
INSTALLATION

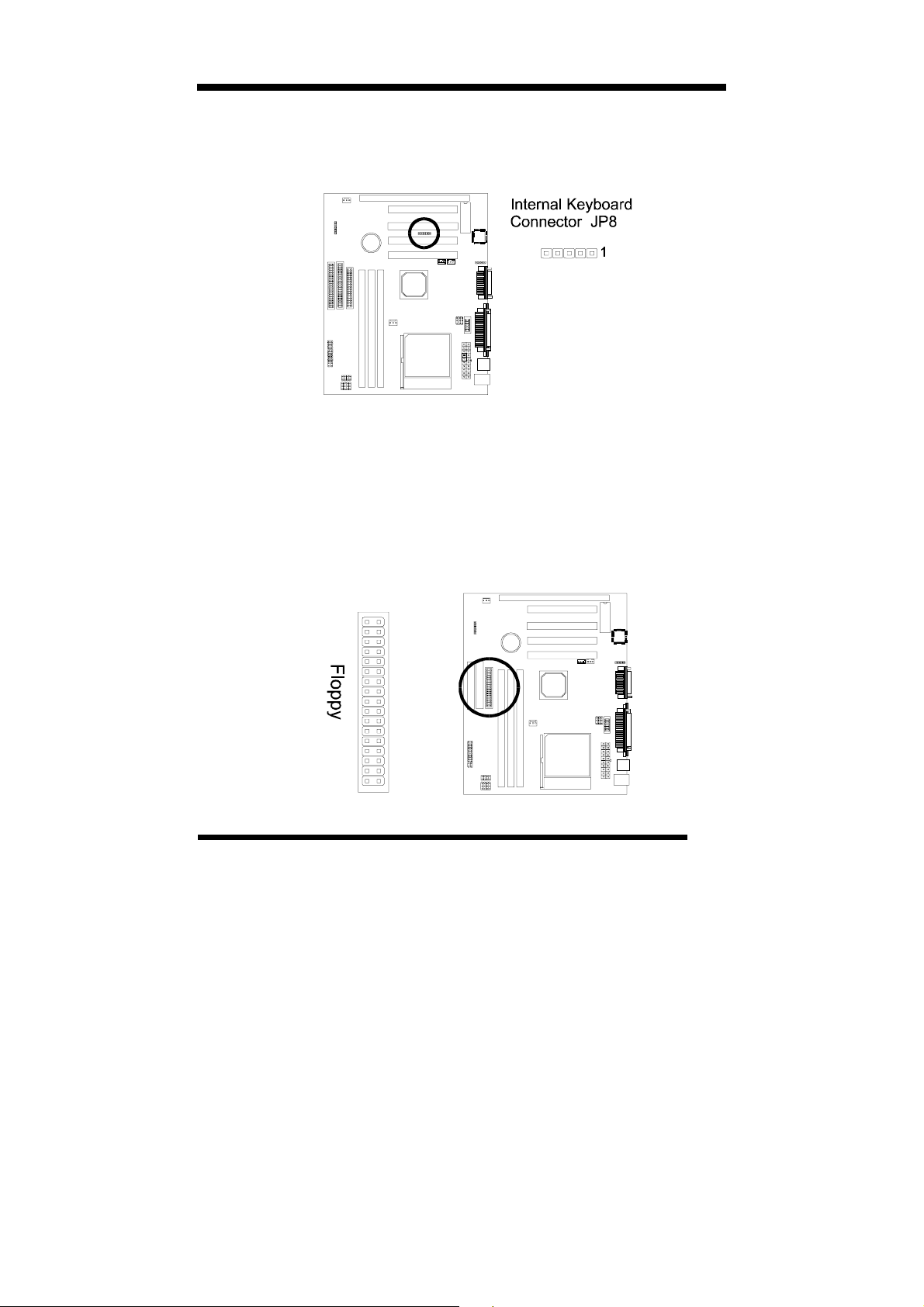

Internal Keyboard Connector
The front panel keyboard connector bracket hooks directly to this 5-pin connector on the mainboard. Make sure the red lead is oriented toward pin 1.
Floppy Drives
The on-board floppy controller supports (2) floppy disk drives with the floppy ribbon cable provided. Make sure the RED stripe on the ribbon cable is oriented towards Pin-1. Notice the “twist” between the sets of connectors on the floppy cable. The floppy drive “A” position is at the END of the cable, whereas floppy drive “B” is hooked to one of the connectors on the other side of the twist. The cable provides both “Edge” and “Pin” connectors for both the A and B positions to match the connector on your floppy drives.
1
Installation Guide
21
Page 22
INSTALLATION
IDE Hard Drives and CD-ROMs
The on-board Enhanced IDE controller can support up to (4) IDE hard drives or other ATAPI devices, such as CD-ROMs. This controller, as with all Enhanced IDE controllers, consists of both Primary and Secondary ports. Each port has an associated connector and cable which can support up to (2) ATAPI devices each.
All IDE devices have jumpers which allow the user to configure the device as either “Master” or “Slave”. A Master device is one that is ALONE on the IDE cable, whereas a Slave device is installed as a SECOND device on the same cable. Keep in mind that the Master device will appear before the Slave device in the CMOS Setup, as well as the Operating System software. *Refer to the device documentation for jumper settings.
The Secondary IDE port can be used for up to (2) additional ATAPI devices. Normally it’s recommended that you connect your first hard drive to the Primary port, and the first CD-ROM to the Secondary.
Make sure to align the RED stripe on the ribbon cable with Pin-1 on the mainboard IDE connector. On most hard drives and CD-ROMs, the RED stripe should be oriented towards the power connector of the device.
22
1 1
Installation Guide
Page 23
INSTALLATION

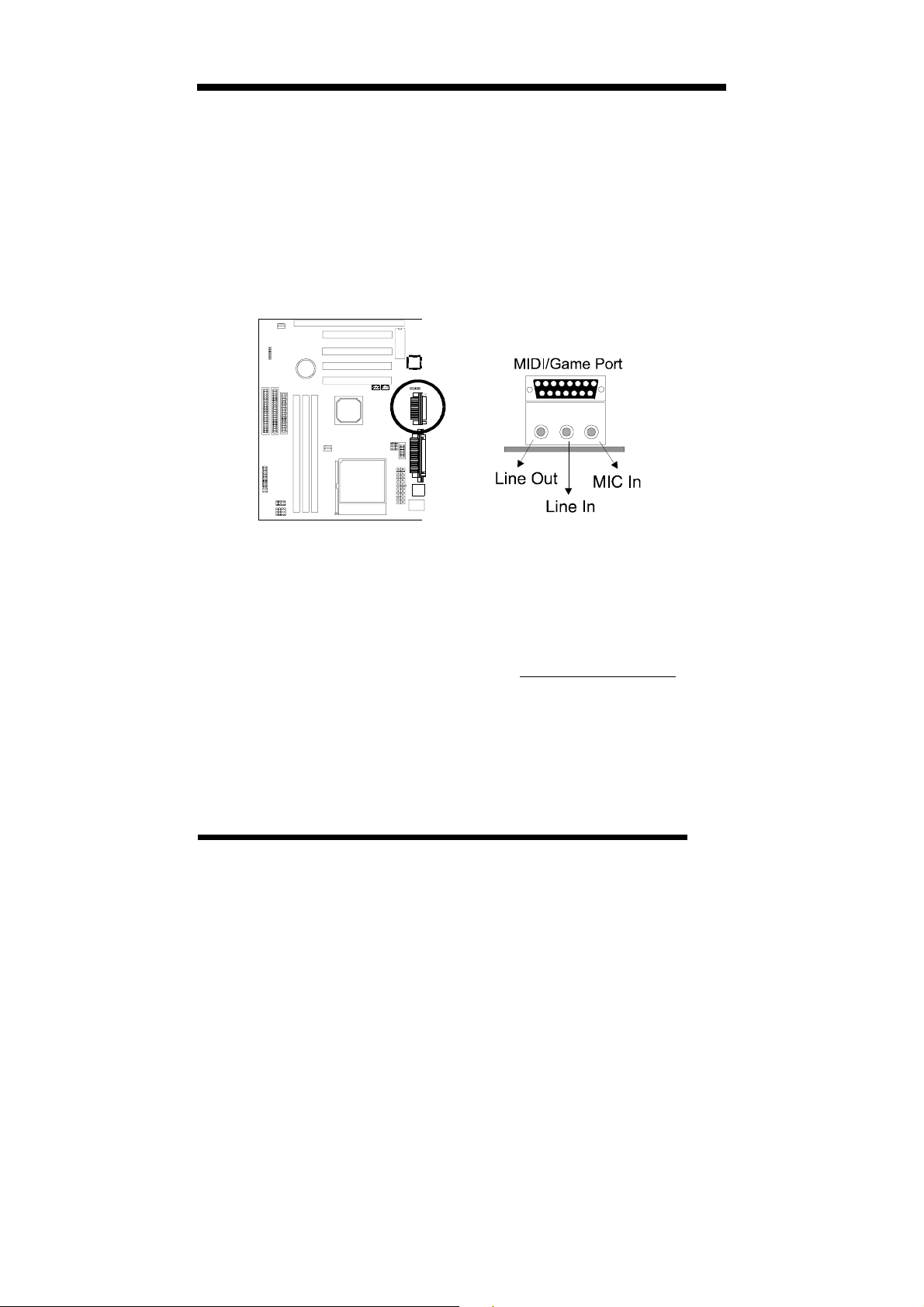

MIDI/Game Port
You may plug a joystick or game pad to this 15-pin female connector for game playing, or connect a MIDI device for playing or editing audio.
Audio Port
You can connect powered speakers or headphones to Line Out jack. Cassette players or other external audio sources can be connected to Line In jack. Plug in your microphones to MIC jack.
Note:
To use the on-chip direct sound AC97 audio support, make sure that the “OnChip Sound” option in Chipset Features Setup of the BIOS is enabled (default).
To use the on-chip legacy SoundBlaster-compatible audio support, make sure that the “Onboard Legacy Audio” options in Integrated Peripherals Setup of the BIOS is set according to your system configuration before driver installation
Installation Guide
.
23
Page 24
INSTALLATION

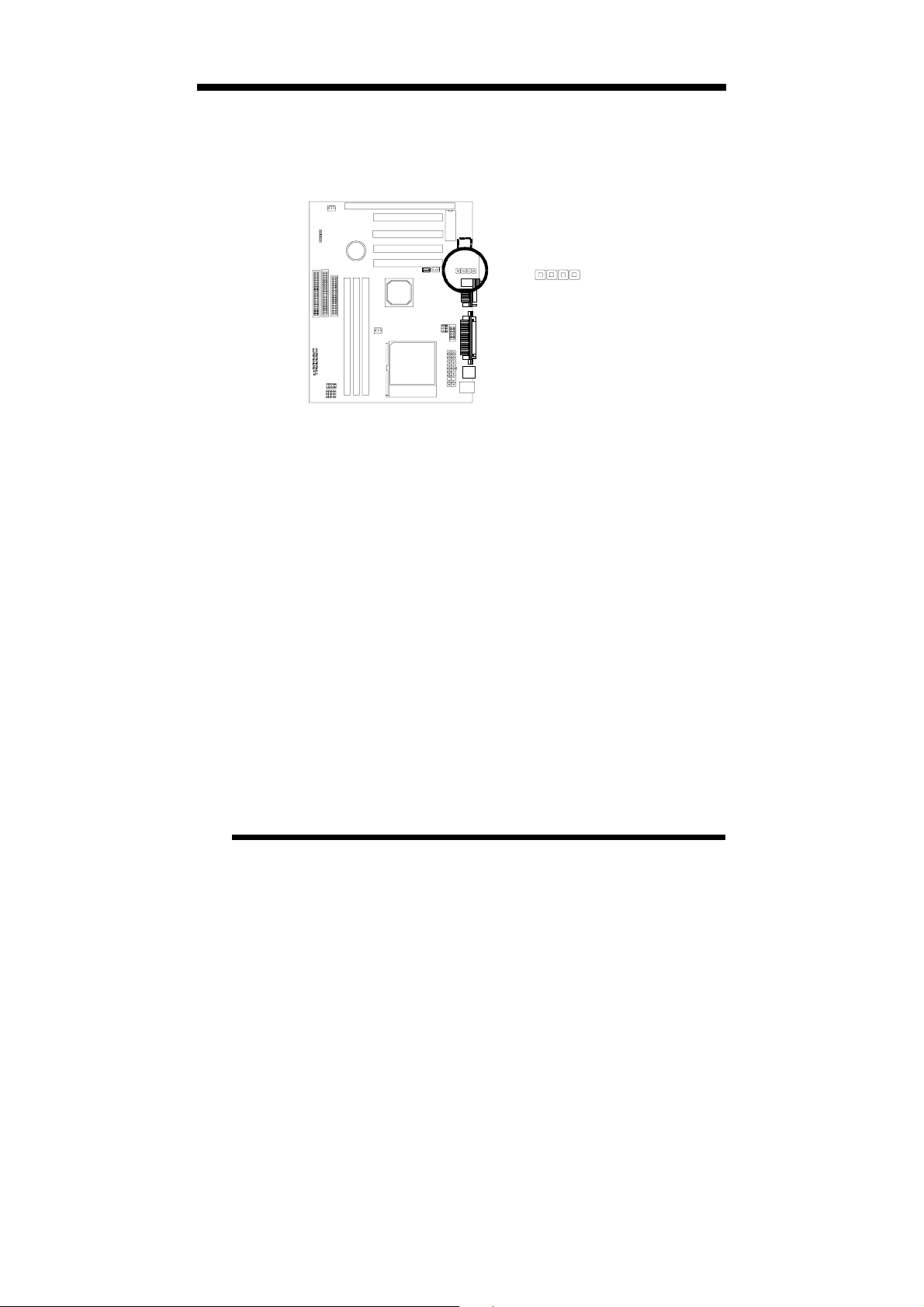

Audio Connectors (J9)
A CD Audio connector is available for connecting the CD-ROM drive using CD audio cables. Make sure red lead is oriented toward pin 1.
CD-IN
1
24
Installation Guide
Page 25
INSTALLATION
Installing the Memory Modules (DIMM)
This mainboard has three sockets available for 168-pin DIMMs. They can be
3.3 volt Unbuffered Synchronous DRAMs (SDRAM), 3.3 volt FPG or EDO DRAMs.
To ensure reliability, it is recommended to use PC100 SDRAM for your
100MHz clocked SDRAM performance requirement.
Via Apollo MVP4 chipset does not support Register DIMMs.
DIMM Sizes supported: 8MB, 16MB, 32M B, 64MB, 128MB and 256MB
A total of (3) DIMMs can be installed for a maximum RAM capacity of
768MB.
To insert the DIMMs, the modules must be oriented in the correct way. Notice the notches of the DIMM. Align these notches as shown in the diagram below. Gently push the DIMM until the retainers on both sides of the socket lock the module in place. To remove a DIMM, push the retainers outwards to release the module then pull the module out of the socket.
notch notch
DIMM 3 DIMM 2
DIMM 1
Installation Guide
1
1 1 1
25
Page 26
INSTALLATION
Installing the Support Drivers and Utilities
Included in your mainboard package you can find a CD-ROM containing support drivers and utilities. Just insert the CD-ROM, and from the Autorun screen, click the driver/utility that you want to install. Follow the on-screen instructions to complete the installation.
* The screen may look different under different color mode.
More utilities can be found under the “Utilities” folder of the CD-ROM.
26
Installation Guide
Page 27
INSTALLATION
Special Note on the Onboard Audio Features
Using the Onboard Audio Features
To use the on-chip direct sound AC97 audio support, make sure that the “OnChip Sound” option in Chipset Features Setup of the BIOS is enabled (default).
To use the on-chip legacy SoundBlaster-compatible audio support, make sure that the “Onboard Legacy Audio” options in Integrated Peripherals Setup of the BIOS is set according to your system configuration before driver installation
For Windows NT 4.0
Ensure Windows NT 4.0 is up and running pr operly. Inst all the audio drive rs before Service Pack 4. If Service Pack 4 is installed before the audio drivers, you may not
see peripheral devices including the CD-ROM drive due to Service Pack 4 problem.
.
Installation Guide
27
Page 28
INSTALLATION
Special Note on VIA MVP4 and VGA Drivers
Before installing the AGP VGA drivers under Windows 95/98, specific software support must be included in your system first:
Windows 95
A. Though Windows 95 OSR2.0 supports AGP, it is necessary that you first upgrade
OSR2.0 to OSR2.1 with a USB upgrade to take full advantage of the AGP features.
B. To access the advanced 3D features in Windows 95, you also need to first install the
Microsoft DirectX 5.0.
C. Then install the following VIA drivers found in the supplied CD-ROM:
1) VIA PCI Bridge driver.
2) VIA Bus Master driver.
3) VIA VxD driver.
Make sure all the above are included in your system before you install the display driver.
Windows 98
Install VIA VxD driver found in the supplied CD-ROM before you install the display driver.
28
Installation Guide
Page 29
SOFTWARE SUPPORT
For detailed information, please refer to the BIOS, Driver & Utility Guide included in your mainboard package.
Mainboard BIOS
Shortly after the system is powered on, provided that the system is properly setup, you will see the message:
Press DEL to enter SETUP
Press the DEL key to enter the Award BIOS Setup program.
The Main Menu will appear on the screen. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.
ROM PCI/ISA BIOS (xxxxxxxx)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP SUPERVISOR PASSWORD
CHIPSET FEATURES SETUP USER PASSWORD
POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION
PNP / PCI CONFIGURATION SAVE & EXIT SETUP
LOAD BIOS DEFAULTS EXIT WITHOUT SAVING
LOAD SETUP DEFAULTS
Esc : Quit F10 : Save & Exit Setup (Shift) F2 : Change Color
Select LOAD SETUP DEFAULTS for optimum system performance.
↑ ↓ → ← : Select Item
Installation Guide
29
Page 30
SOFTWARE SUPPORT
Flash BIOS Programming Utility
Since this mainboard features FLASH BIOS, the user can simply re-program the old BIOS using the AWDFLASH Utility (found under “Utilities” folder of the supplied CD-ROM) as follows:
1. First, boot the system with DOS or to “Safe Mode” under Windows 95. This is the only correct way to run the AWDFLASH Utility program.
2. Make sure the files “AWDFLASH.EXE” and the updated “BIN” file (which contains the actual BIOS code) are in the same directory.
3. Changing to the directory where the two required files exist, type: AWDFLASH and press [ENTER]. The AWDFLASH Utility Screen appears:
4. Type in the name of the new BIOS (.bin) file and hit [ENTER].
5. Backup the old BIOS by entering the name of the new backup file (such as “backup.bin”) and press [ENTER].
6. To begin programming, hit “y”. The Utility can be aborted at this time by hitting “n”.
7. A bar indicator will show the progress of the programming operation. After successful completion, hit the reset button or power off the computer.
Be sure to perform “LOAD SETUP DEFAULTS” for your new BIOS to synchronize the previous BIOS with the updated BIOS.
30
Installation Guide
Page 31
SOFTWARE SUPPORT
Symbios SCSI Configuration Utility
This mainboard features built-in Symbios SCSI BIOS. The Symbios SCSI Configuration Utility
the default configuration settings for host adapters using Symbios 53C8XX chips. In most cases you should not ne ed to change the d efault configura tion of your host
adapter. You may decide to alter these default values if there is a conflict between device settings, or if you need to optimize system performance. A message appears on your computer monitor (for about 5 seconds) during boot that looks like this:
If you decide to press Ctrl-C during boot, the following message appears:
Please wait, invoking Symbios Configuration Utility …
After a brief pause, your computer will display the Main Menu of the utility.
Note: Pressing Ctrl-A after memory count during re-boot allows you to recover the default settings a nd reconfigure.
is a menu driven utility that allows you to view and change
Press Crtl-C to start Symbios Configuration Utility
DMI Utility
This mainboard supports the Desktop Management Interface (DMI), which is a new method of providing enterprise management for personal computers. The main component of DMI is the Management Information Format Database (MIF), which contains information about the computer system and its components, such as BIOS version/vendor, CPU speed/type, memory size/type, L1/L2 cache, port connectors (IDE, floppy, 2S/1P, USB, keyboard, mouse, ), slots … etc. Using DMI, remote PC management software is able to obtain various information about the system, including hardware profiles, capabilities, operational status, installation dates, and other information about the system and its components.
This DMI utility, DMICFG.EXE (found under “Utilities” folder of the supplied CD­ROM), allows you to add additional information, such as serial numbers, vendor information, and enclosure/chassis configurations, into the MIF.
Installation Guide
31
Page 32
FCC & DoC Compliance Statement
This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions.
1. This device may not cause harmful interference and ,
2. This device must accept any interference received, in cluding in terference that may cause undesired operation.
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate rad io frequ ency energy, and i f not inst alled an d u sed i n acco rd ance with the instructions, may cause harmful interface to radio communication s. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television eq uipment reception, which can be determined by turning the equ ipment off and on , the user is encour aged to try to correct th e interference by one or more of the following measures:
Reorient or relocat e the receiving antenna. Move the equip ment away from the receiver. Plug the equi pment into an outlet on a circui t different from that to whi ch the receiver is
connected.
Consult the dealer or an experienced radio/television technician for additional
suggestions.
The FCC requires the user to be notified that any change or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user’s authority to operate such equipment. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations.
Page 33
27-0M0586-42
Page 34
MAINBOARD
BIOS, Driver & Utility Guide
Rev: 1.00S Date: March - 99
All other product names are trademarks or copyrights of their respective owners.
Specifications and information contained in this manual are subject to change
without
notice.
Page 35
Table of Contents
MAINBOARD BIOS SETUP...........................................................................3
About the BIOS.................................................................................................. 3
Main Menu ......................................................................................................... 5
Standard CMOS Setup........................................................................................ 6
BIOS Features Setup.........................................................................................10
Chipset Features Setup......................................................................................14
Power Management Setup ................................................................................ 17
PNP/PCI Configuration Setup.......................................................................... 20
Load BIOS Defaults ......................................................................................... 22
Load Setup Defaults ......................................................................................... 22
Integrated Peripherals Setup.............................................................................23
Supervisor Password and User Password Setting ............................................. 26
IDE HDD Auto Detection.................................................................................27
Save & Exit Setup / Exit Without Saving......................................................... 27
PCI Device Listing ........................................................................................... 28
BUILT-IN SYMBIOS SCSI BIOS..................................................................29
FLASH BIOS PROGRAMMING UTILITY ....................................................36
DMI UTILITY.................................................................................................38
2
BIOS, Driver & Utility Guide
Page 36
MAINBOARD BIOS SETUP
About the BIOS
The Mainboard BIOS (Basic Input/Output System) acts as the bridge between your Hardware (CPU, Disk Drives, Video, etc.) and Operating System Software (Windows 95, OS/2 and so on…) The BIOS Setup (also called CMOS Setup) is where many hardware configuration op tions are set and stored . This configuration information will remain in the BIOS until it is changed, or cleared by removing the battery for a while then reinstalling it back.
CMOS (Complementary Metal Oxide Semiconductor) refers to the chip in which the BIOS information is stored.
This mainboard features Award BIOS, which provides an easy to use Setup program to aid in hardware configuration. In this section we will look at the various menus and options contained in the Award BIOS Setup Program. This mainboard also features a “Flash” BIOS. A Flash BIOS can be upgraded via software, thereby eliminating the need to actually replace the “BIOS Chip” on the mainboard. Procedures for updating the BIOS follow this section.
The Award BIOS installed in your computer system’s ROM (Read Only Memory) is a custom version of an industry standard BIOS. This means that it supports Intel processor in a standard IBM-AT compatible input/output system.
Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and Pa geD o wn keys to change e ntr ies, p re ss <F1 > for hel p and pr ess < E sc> to quit.
Getting Help
Pressing F1 will display a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.
BIOS, Driver & Utility Guide
3
Page 37
MAINBOARD BIOS SETUP
A Final Note about Setup
Not all systems have the same Setup. While the basic look and function of the Setup program remains the same for all systems, individual motherboard and chipset combinations require custom configurations. For example, you may find that your Setup main menu has a different number of entries from the main menu displayed in this manual. These are simply features not supported (or not user configurable) on your system.
The final appearance of the Setup program also depends on the Original Equipment Manufacturer (OEM) who built your system. If your OEM has decided that certain items should only be available to their technicians, those items may very well be removed from the Setup program.
4
BIOS, Driver & Utility Guide
Page 38
MAINBOARD BIOS SETUP
Main Menu
Shortly after the system is powered on, provided a CPU and sufficient RAM are installed, you will see the message:
Press DEL to enter SETUP
Press the DEL key to enter the Award BIOS Setup program.
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.
ROM PCI/ISA BIOS (xxxxxxxx)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP SUPERVISOR PASSWORD
CHIPSET FEATURES SETUP USER PASSWORD
POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION
PNP / PCI CONFIGURATION SAVE & EXIT SETUP
LOAD BIOS DEFAULTS EXIT WITHOUT SAVING
LOAD SETUP DEFAULTS
Esc : Quit F10 : Save & Exit Setup (Shift) F2 : Change Color
↑ ↓ → ← : Select Item
Note that a brief description of each highlighted selection appears at the bottom of the screen.
BIOS, Driver & Utility Guide
5
Page 39
MAINBOARD BIOS SETUP
y
K
y
K
y
K
ota
y
:
6384K
Standard CMOS Setup
This first menu is where the most basic hardware options are set. Information regarding the system clock, IDE hard disks and floppy drives is stored and configured in this section. To enter the Standard CMOS Setup, press the [ENTER] key with this menu highlighted.
Upon entering the Standard CMOS Setup screen, you will see a screen like that below:
Date (mm:dd:yy) : Sat, Dec 18 1999 Time (hh:mm:ss) : 00:00:00
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master : Auto 0 0 0 0 0 0 Auto Primary Slave : Auto 0 0 0 0 0 0 Auto Secondary Master : Auto 0 0 0 0 0 0 Auto Secondary Slave : Auto 0 0 0 0 0 0 Auto
Drive A : 1.44M , 3.5in. Drive B : None
Floppy 3 Mode Support: Disabled
Video : EGA / VGA Halt On : All Errors
ESC : Quit ↑ ↓ → ← : Select Item PU / PD / + / - : Modify F1 : Help (Shift) F2 : Change Color
Base Memor
Extended Memor
Other Memor
T
l Memor
: 640 : 15360 : 384
1
First, let’s set the system Date. Use the arrow keys to move to and highlight the “Date” option. Select the Month by using the PgDn and PgUp keys. This is how most settings will be configured. Then, move to the day, year and time via the arrow keys to finish setting the system date and time.
Keep in mind that the system time is set in 24-hour time. With this method, 1PM is represented as 13:00, 2PM as 14:00 and so on, with 00:00 corresponding to Midnight.
Pri Master, Pri Slave, Sec Master, Sec Slave - These four options relate to the (4) IDE hard drives, CD-ROMs or other ATAPI devices that can be controlled via the on-board IDE controller (review IDE Hard Drives and CD-ROMs in the Installation Guide). The “Pri Master” setting specifies the first device on the primary IDE
6
BIOS, Driver & Utility Guide
Page 40
MAINBOARD BIOS SETUP
channel, “Pri Slave” - the second. Sec Master and Sec Slave specify the devices on the secondary channel.
The first option available is the most important: Type. This is where you will specify the type of device and how it is represented in the BIOS Setup. If the device is a hard disk or CD-ROM, generally the Auto option is the best choice for fast and easy setup of the hard disk parameters. Let’s take a look at the difference between the Auto, User and Types (1-45) options:
Auto - This option instructs the BIOS to automatically configure the hard disk
by reading the parameters (cylinders, sectors, etc.) directly from the hard disk’s firmware. Use this option if you a re configuring a new hard d rive, or one that has already been formatted using the Auto option. Keep in mind that a hard drive is configured using a certain set of parameters, those same parameters must be used for the life of the drive, unless the drive is re-FDISKed using a different parameter set. (This procedure deletes the old partition(s) on the drive and creates a new one, using the new parameters).
User - This option allows you to
manually enter in the parameters of the hard drive. Generally, this option would be used only if the hard drive has already been formatted with a certain set of parameters, and assured consistency between the old and new parameters is desired.
Types 1-45 - Similar to the User option, these types should only be used if the
exact parameters for the hard drive are already entered as a specific type stored in the Setup Program. Again, this would only be needed to assure that the parameters the drive was formatted with and those it is using now, are identical. For new hard drives, the Auto option is the preferred choice.
Mode - One of Enhanced IDE’s most important features is LBA (Logical Block Addressing) Mode. This feature allows the use of larger hard drives by providing a way to bypass the cylinder limitations imposed by many Operating Systems. LBA Mode is used to extend a hard drive’s useable capacity by “remapping” the cylinders in a way that is acceptable to these operating systems. For instance, a hard drive with the parameters of 2100 Cylinders, 16 Heads and 63 Sectors would be represented by LBA Mode as 525 Cylinders, 64 Heads and 63 Sectors. (Notice that the Cylinders have been divided, and the Heads have been multiplied, by a factor of 4.)
BIOS, Driver & Utility Guide
TYPE drive type CYLS. number of cylinders HEADS number of heads PRECOMP write precom LANDZONE landing zone SECTORS number of sectors MODE mode type
7
Page 41
MAINBOARD BIOS SETUP
On hard drives smaller in capacity than 528MB, LBA support is not needed. The option on these devices is ignored, even if enabled. For hard drives greater than 528MB, LBA mode should be enabled. The following rules apply:
Operating Systems that do not use the FAT file system do not need LBA Mode,
and can use the Normal or Large Modes. Examples would be NetWare and Unix.
When configuring a new hard drive greater than 528MB in capacity, always
make sure LBA mode is enabled.
If you are using a hard drive that is over 528MB in capacity, but was already
formatted without using LBA mode, LBA support will be ignored even if it is enabled. This assures correct access to the drive’s data.
SCSI Hard Drives are NOT
The hard drive settings in the Standard CMOS Setup are only for drives connected to the IDE Controller. So, if only SCSI drives were installed, all these settings would be set to Type: None. SCSI Devices are configured via the SCSI controller’s BIOS.
Floppy Drives A: and B: - Select the Type for the A: and/or B: floppy drives. Remember, floppy drive A: is the first drive, hooked to the END of the floppy ribbon cable. Floppy drive B: is hooked up after the twist. Available settings are listed below:
entered into the Mainboard BIOS Setup in any way.
None No floppy drive installed 360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity
1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity 720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity
1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity
2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity
Floppy 3 Mode Support: - Enable this option ONLY for floppy drive(s) that support the Japanese standard (1.2MB on 3.5” Diskette). Options: Disabled (Default), Both, Drive A / B.
Video - This category selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select their type in Setup.
8
BIOS, Driver & Utility Guide
Page 42
MAINBOARD BIOS SETUP
EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA, V GA,
SEGA, S VGA or PGA mon itor adapters. CGA 40 Color Graphics Adapter, power up in 40 column mode CGA 80 Color Graphics Adapter, power up in 80 column mode MONO Monochrome adapter, includes high resolution monochrome adapters
Halt On - Determines whether or not the system will prompt you if an error is detected during POST.
All Errors Whenever the BIOS detects a non-fatal error the system will be
stopped and you will be prompted.
No Errors The system boot will not be stopped for any error that may be
detected.
All, But Keyboard The system boot will not stop for a keyboard error; it will stop for
all other errors.
All, But Diskette The system boot will not stop for a disk error; it will stop for all
other errors.
All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will
stop for all other errors.
Memory - This category is display-only. All memory detected by the POST (Power On Self Test) of the BIOS is shown as the following types:
Base Memory is the amount of conventional memory installed in the system. This value is typically 640K for systems with 640K or more memory installed on the motherboard. The Extended Memory is the amount of memory located above 1MB in the C P U' s me mo r y a dd r e s s ma p . Other M emory refers to the memory located in the region between 640K and 1MB. This region can be used for shadowing as well as expanded memory in DOS.
BIOS, Driver & Utility Guide
9
Page 43
MAINBOARD BIOS SETUP
BIOS Features Setup
This menu provides access to more advanced BIOS configuration settings that deal with overall performance of the system and peripheral setup. This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.
Anti-Virus Protection : Enabled Video BIOS Shadow : Enabled CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled External Cache : Enabled CC000-CFFFF Shadow : Disabled Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Di sabled Hard Disk Boot From : Pri-IDE-M D4000-D7FFF Shadow : Disabled Boot Sequence : C, A D8000-DBFFF Shadow : Disabled Swap Floppy Drive : Disabled DC000-DFFFF Shadow : Disabled Boot Up Floppy Seek : Enabled Boot Up NumLock Stat us : On Gate A20 Option : Fast Memory Parity/ECC Check : Disabled Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec) : 6 Typematic Delay (Msec) : 250 Security Option : System PCI / VGA Palette Snoop : Disabled OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/- : Modify HDD S.M.A.R.T. Capability : Disabled F5 : Old Values (Shift) F2 : Color Report No FDD For WIN 95 : No F6 : Load BIOS Defaults F7 : Load Setup Defaults
ESC : Quit ↑ ↓ → ←: Select Item
Anti-Virus Protection – Enables/Disables the built-in anti-virus for protection against boot virus infection. Unlike traditional BIOS protection which generally consists of simply write protecting the hard disk partition table, this Anti-Virus protection provides more complete virus protection by taking control early in the boot process, detecting boot viruses before they have a chance to load.
CPU Internal Cache - Enables or Disables the Level-1 Internal Cache memory. Generally, this would only be Disabled for troubleshooting purposes.
External Cache - Enables or Disables the Level-2 External Cache memory. Generally, this would only be Disabled for troubleshooting purposes.
Quick Power on Self Test - Speeds up Power On Self Test (POST) after the computer is powered on. When set to Enabled, the BIOS will shorten or skip some checks during POST.
10
BIOS, Driver & Utility Guide
Page 44
MAINBOARD BIOS SETUP
Hard Disk Boot From - This option lets you choose to boot from Primary IDE Master (Pri-IDE-M), Primary IDE Slave (Pri-IDE-S), Secondary IDE Master (Sec- IDE-M), Secondary IDE Slave (Sec-IDE-S), or SCSI hard disk. Same as IDE options, the Boot Sequence in the next field is set to C, A when the SCSI is chosen.
Boot Sequence - When your system is powered on, the BIOS performs a variety of operations, then attempts to boot an Operating System from either a hard drive, floppy drive, CD-ROM or LS-120/ZIP. This setting determines the sequence that the BIOS will follow when searching devices for a bootable disk. Most users find the C, A setting to be most beneficial, since it takes the least amount of time to boot the system. If however, you want the ability to boot from a Floppy or CD-ROM drive, you would need to choose either the A, C or CDROM, C, A setting. For instance, if your boot sequence was set to C, A and for some reason you wanted to boot to your Floppy A: Drive, it would not be possible, since the BIOS would always boot from the C: drive first. In this case, this setting would need to be changed to A, C so that the system would first check the floppy drive for a bootable disk. This would slow bootup speed, however, since the floppy would be checked on every boot.
A,C System will first search for boot sector on floppy disk, then hard
disk.
C, A System will first search hard disk drive then floppy disk drive for
boot sector.
C, CDROM, A System will first search for boot sector on hard disk drive , then
CDROM drive, and then floppy disk drive.
CDROM, C, A System will first search the CDROM drive, then hard disk drive and
then floppy disk drive for boot sector. C only System will search for boot sector on hard disk drive only. LS/ZIP, C System will first search for boot sector on LS-120 IDE floppy drive
or ZIP ATAPI drive, then hard disk.
Swap Floppy Drive - The hardware connections determine which floppy is configured as drive A: and drive B: “Swapping” the floppy drives can be useful if your system has two floppy drives, and you want the ability to boot from both. For example: Since a PC cannot boot from the B: Floppy, you would need to “Swap” floppy drives A: and B: in order to set the second floppy drive to drive A:, thereby making it bootable.
Boot Up Floppy Seek - When enabled, BIOS will attempt to move the head of the floppy disk drive forth and back once during POST to see if the drive is working properly.
BIOS, Driver & Utility Guide
11
Page 45
MAINBOARD BIOS SETUP
Boot Up NumLock Status - When On, the NumLock key will be automatically enabled when the system boots.
Gate A20 Option - This entry allows you to select how the gate A20 is handled. The gate A20 is a device used to address memory above 1 Mbytes. Initially, the gate A20 was handled via a pin on the keyboard (Normal). Today, while keyboards still provide this support, it is more common, and much faster, for the system chipset (Fast; default) to provide support for gate A20.
Memory Parity/ECC Check - When Disabled, there will be no memory errors shown on the monitor for Memory parity SERR# (NMI). When parity DRAM modules are used, select Enabled for Parity or ECC (Error Checking and Correcting) checking to correct 1 bit memory errors in the memory.
Typematic Rate Setting - Determines if the typematic rate is to be used. When disabled, continually holding down a key on your keyboard will generate only one instance. In other words, the BIOS will only report that the key is down. When the typematic rate is enabled, the BIOS will report as before, but it will then wait a moment, and, if the key is still down, it will begin to report that the key has been depressed repeatedly. This feature is used to accelerate cursor movements with the arrow keys.
Typematic Rate (Chars/Sec) - When the typematic rate is enabled, this selection allows you to select the rate at which the keys are accelerated: Options are 6 (default), 8, 10, 12, 15, 20, 24 and 30.
Typematic Delay (Msec) - When the typematic rate is enabled, this selection allows you to select the delay (in msec) between when the key was first depressed and when the acceleration begins. Options are 250 (default), 500, 750 and 1000.
Security Option - This option enables password checking every time the computer is powered on or every time BIOS Setup is executed. If System is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears only when the BIOS Setup program is executed. Refer to the section Supervisor Password for more information.
PCI / VGA Palette Snoop - This option must be set to Enabled if any ISA MPEG card installed requires VGA palette snooping.
OS Select For DRAM > 64MB - This should be set to OS2 if you are running IBM OS/2 with more than 64MB of RAM in the system. Otherwise, the setting should be Non-OS2.
12
BIOS, Driver & Utility Guide
Page 46
MAINBOARD BIOS SETUP
HDD S.M.A.R.T. Capability - The default is Disabled. If you are using har d d r ive s that support S.M.A.R.T., set this field to Enabled. SMART (Self-Monitoring, Analysis and Reporting Technology) is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. SMART is supported in ATA-3 or later hard drives.
Report No FDD For WIN95 – When no floppy disk drive is installed, set this option to No to release IRQ6 for passing Win95 logo. This option is irrelevant under normal operation.
Video BIOS Shadow - This option controls the location of the contents of the 32KB of Video ROM beginning at the C0000h memory location. The settings are:
Enabled The contents of C0000h-C7FFFh are written to the same address in
system memory (RAM) for faster execution.
Disabled The video ROM is not copied to RAM. The contents of the video
ROM cannot be read from or written to cache memory.
C8000-DFFFF Shadow - These options control the location of the contents of the 16KB expansion card ROMs beginning at the specified memory location. If no adapter ROM is using the named ROM area, this area is made available to the local bus. Shadowing a ROM reduces the memory available between 640KB and 1024KB by the amount used for this purpose.
BIOS, Driver & Utility Guide
13
Page 47
MAINBOARD BIOS SETUP
Chipset Features Setup
This setup menu cont ains advanced configuratio n options re lating to the mainboard chipset. These options are rarely changed by the user.
Bank 0/1 DRAM Timing : SDRAM 10ns Auto Detect DIMM/PCI Clk : Enabled Bank 2/3 DRAM Timing : SDRAM 10ns Spread Spectrum : Disabled Bank 4/5 DRAM Timing : SDRAM 10ns SDRAM Cycle Length : 3 Current CPU Temp. DRAM Read Pipeline : Disabled Current System Temp. Sustained 3T Write : Enabled Current CPUFAN1 Speed : 5400 RPM Cache R/CPU W Pipeline : Enabled Current CPUFAN2 Speed : 0 RPM Cache Timing : Fast Vcore : 2.81V 2.5V : 2.81V Video BIOS Cacheable : Enabled 3.3V : 3.36V 5V : 5.14V System BIOS Cacheable : Enabled 12V : 12.16V Memory Hole : Disabled Init Display First : PCI Slot Frame Buffer Size : 8M AGP Aperture Size : 64M AGP-2X Mode : Disabled OnChip USB : E nabled USB Keyboard Support : Disabled F1 : Help PU/PD/+/- : Modify OnChip Sound : Enabled F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
ESC : Quit ↑ ↓ → ←: Select Item
Bank 0/1, 2/3, 4/5 DRAM Timing DRAM timing is controlled by the DRAM timing registers. The timings programmed into this register are dependent on the system design. The slower timing may be required in certain system designs to support loose layouts or slower memory.
: 47°C/116°F : 47°C/116°F
SDRAM Cycle Length - When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.
Options are 2, 3 (default). DRAM Read Pipeline - This item allows you to enable/disable the DRAM read
pipeline. Pipelining improves system performance. Sustained 3T Write – This item allows you to enable or disable direct map write
back / write through secondary cache. Cache R/CPU W Pipeline - This item allows you to enable/disable the cache read
and CPU write pipeline.
14
BIOS, Driver & Utility Guide
Page 48
MAINBOARD BIOS SETUP
Cache Timing - This item determines the cache timing. Options are Fast (default) and Fastest.
Video BIOS Cacheable - When Enabled, the Video BIOS cacheable will cause access to the video BIOS addressed at C0000H to C7FFFH to be cached. *Enabled is the default.
System BIOS Cacheable – When enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled.
Memory Hole - In order to improve compatibility, certain space in memory can be reserved for old style ISA cards that map memory between 15M-16M. Do not select the 15M-16M option unless you use the old style ISA card, otherwise the memory size may be reduced to 15 MB for some O.S.
Init Display First – If you have a PCI display adapter installed, this item allows you to decide whether to activate the PCI first or the on-chip AGP graphics support.
Frame Buffer Size – Determines the size of the frame buffer in the system memory. A frame buffer is used to hold a frame of data for screen display and is the size of the maximum image area on screen.
AGP Aperture Size (MB) - Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. See www.agpforum.org information.
for AGP
AGP-2X Mode – Set to Enabled if your AGP card supports the 2X mode, which uses a double-clocked data technique to transfer twice the data per each AGP clock.
OnChip USB - If your system contains a Universal Serial Bus peripheral, select Enabled. The next option will become available:
USB Keyboard Support - Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard.
OnChip Sound – Enabling this option allows the system to use the on-chip AC97 audio support. If you want to use the Sound Blaster compatible mode or an add-on audio card instead, set this option to Disabled to avoid possible conflict.
Auto Detect DIMM/PCI Clk – When enabled, any DIMM/PCI clock not in use will be disabled to reduce EMI radiation.
BIOS, Driver & Utility Guide
15
Page 49
MAINBOARD BIOS SETUP
Spread Spectrum – The default is the optimal value determined by the system designer to reduce EMI radiation peak. Users should not attempt to change it.
Hardware Monitoring -
The on-chip hardware monitoring functions allow you to observe the current temperatures of the CPU and the system, current speeds (in RPM, rotation per minute) of the system and CPU fans, as well as the various operating voltages. (If the fan is not installed, 0 RPM will be shown.)
16
BIOS, Driver & Utility Guide
Page 50
MAINBOARD BIOS SETUP
Power Management Setup
This menu contains configura tion options that r educe power co nsumption when the system is not in use. Other “Green-PC” compliant peripherals are also supported. Power Management allows you to configure you system to use energy most efficiently, and still in a manner consistent with your own style of computer use.
ACPI function : Enabled Primary INTR : ON Power Management : User Define IRQ3 (COM 2) : Primary PM Control by APM : Yes IRQ4 (COM 1) : Primary Video Off Method : DPMS Support IRQ5 (LPT 2) : Primary Video Off After : Suspend IRQ6 (FDD) : Primary MODEM Use IRQ : 3 IRQ7 (LPT 1) : Primary Doze Mode : Disabled IRQ8 (Alarm) : Disabled Suspend Mode : Disabled IRQ9 (RSV) : Secondary HDD Power Down : Disabled IRQ10 (RSV) : Secondary Soft-Off by PWRBTN : Instant-Off IRQ11 (RSV) : Secondary PWRON After PW-Fail : Off IRQ12 (PS/2) : Primary ** PM Events ** IRQ13 (Copro) : Primary VGA : OFF IRQ14 (HDD) : Primary LPT & COM : LPT/COM IRQ15 (RSV) : Disabled HDD & FDD : ON DMA/master : OFF Power On by RTC Alarm : Disabled F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults Power On by Ring/LAN : Disabled F7 : Load Setup Defaults
ESC : Quit ↑ ↓ → ←: Select Item
ACPI Function – This option allows you to enable/disable the Advanced Configuration and Power Interface which offers improved power management.
Power Management – This category allows you to select the type (or degree) of
power saving and is directly related to the following modes: Doze Mode, Suspend Mode and HDD Power Down:
Min Saving Minimum power management.
Doze Mode = 1 hr., Suspend Mode = 1 hr.
Max Saving
User Define Set each mode individually. When selected, each range is from 1 min. to
Maximum power management – ONLY AVAILABLE FOR SL CPUs. Doze Mode = 1 min., Suspend Mode = 1 min.
1 hr., except for HDD Power Down which ranges from 1 min. to 15 min.
BIOS, Driver & Utility Guide
17
Page 51
MAINBOARD BIOS SETUP
PM Control by APM – When set to Yes, an Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU internal clock.
Video Off Method – This determines the manner in which the monitor is blanked.
V/H SYNC+Blank Blank Screen This option only writes blanks to the video buffer. DPMS Support Initial display power management signaling.
This selection will cause the system to turn off the vertical and
horizontal synchronization ports, writing blanks to the video buffer.
Video Off After – This option determines how the monitor operates in a power saving mode.
NA Monitor will remain on during power saving modes. Suspend Monitor blanked when the systems enters the Suspend mode. Doze Monitor blanked when t he system enters the Dose mode.
MODEM Use IRQ – This option forces the installed MODEM to use the specified IRQ so that the Power Management BIOS can use this information. Options are NA, 3, 4, 5, 7, 9, 10, and 11.
The following three modes are Green PC power saving functions. Dose Mode and Suspend Mode are only user configurable when User Define Power Management has been selected. See below for available selections:
Doze Mode
Suspend Mode HDD Power Down
When enabled and after the set time of system inactivity, the CPU clock will run at slower speed while all other devices still operate at full speed. When enabled and after the set time of system inactivity, all devices except the CPU will be shut off. When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN – With Instant-Off selected, the ATX switch functions like a normal system power off button. With Delay 4 Sec. selected, you must hold down the ATX switch for more than 4 seconds to power off the system.
PWRON After PW-Fail – This feature can power on the PC when power returns after a power failure. The table below lists the options available and the corresponding “System State” when power returns after a power failure.
18
BIOS, Driver & Utility Guide
Page 52
MAINBOARD BIOS SETUP
Options Available System State When
Power Failure Occurred
Former-State On On
Off Off
Off On Off
Off Off
On On On
Off On
**PM Events** VGA - When set to On, any event occurring at a VGA port will awaken a system
which has been powered down. LPT & COM - Any event occurring at the specified port(s) will awaken a system
which has been powered down. HDD & FDD - When set to On, any event occurring at a hard or floppy drive port
will awaken a system which has been powered down DMA/master - When set to On, any event occurring to the DMA controller will
awaken a system which has been powered down. Power on by RTC Alarm - When enabled, the system will automatically power on
or returns to full power out of suspend mode at the time and date of the month (0 for daily) specified.
System State When
Power Returns
Power on by Ring/LAN – An input signal on the serial Ring Indicator (RI) line in
other words, an incoming call on the modem (either external modem or internal modem card) power on the system. Refer to “Wake-on-Ring Function” in the Installation Guide for more information. With a LAN card installed, the Wake-up On LAN function allows the network to wake up a Soft Power Down (Soft-Off) PC. Refer to “Wake-up On LAN Connector” in the Installation Guide for more information.
Primary INTR - When set to On (default), any primary interrupt request (see below) will awake the system which has been powered down.
Following this option is a list of IRQs (Interrupt ReQuests). You can set each IRQ to be Primary, Secondary or Disabled. When set to Secondary, the interrupt request will neither prevent the system from going into a power management mode nor awaken it.
BIOS, Driver & Utility Guide
19
Page 53
MAINBOARD BIOS SETUP
PNP/PCI Configuration Setup
The PCI Personal Component Interconnect Bus was developed to address two important issues: a) How to allow peripheral devices to take the fullest advantage of the power of Pentium and Pentium Pro chip technology, and b) Provide a simpler installation process for peripheral devices, such as Network cards, EIDE or SCSI controllers.
PCI accomplishes these goals with its 32-bit Data path Local Bus design, and support for Plug & Play. Unlike older expansion bus architectures, PCI provides peripherals with a direct connection to the CPU and memory. The PCI bus runs at 33Mhz and has a maximum transfer capability of 132MBps. With Plug & Play, the system BIOS automatically determines hardware resources for new peripherals, simplifying installation of multiple interface cards.
This Setup Menu provides configuration options for the PCI Bus and its assigned resources.
PNP OS Installed : No CPU to PCI Write Buffer : Enabled Resources Controlled by : Manual PCI Dynamic Bursting : Enabled Reset Configuration Data : Enabled PCI Master 0 WS Write : Enabled PCI Delay Transaction : Enabled IRQ-3 assigned to : PCI/ISA PnP PCI#2 Access #1 Retry : Disabled IRQ-4 assigned to : PCI/ISA PnP AGP Master 1 WS Write : Enabled IRQ-5 assigned to : PCI/ISA PnP AGP Master 1 WS Read : Disabled IRQ-7 assigned to : PCI/ISA PnP IRQ- 9 assigned to : PCI/ISA PnP SYMBIOS SCSI BIOS : Auto IRQ-10 assigned to : PCI/ISA PnP Assign IRQ For USB : Enabled IRQ-11 assigned to : PCI/ISA PnP Assign IRQ For VGA : Enabled IRQ-12 assigned to : PCI/ISA PnP IRQ-14 assigned to : PCI/ISA PnP IRQ-15 assigned to : PCI/ISA PnP DMA-0 assigned to : PCI/ISA PnP DMA-1 assigned to : PCI/ISA PnP DMA-3 assigned to : PCI/ISA PnP F1 : Help PU/PD/+/- : Modify DMA-5 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color DMA-6 assigned to : PCI/ISA PnP F6 : Load BIOS Defaults DMA-7 assigned to : PCI/ISA PnP F7 : Load Setup Defaults
ESC : Quit ↑ ↓ → ←: Select Item
PNP OS Installed - Set to Yes if your operating system supports Plug & Play, such as Windows
95.
Resources Controlled By - The Award Plug and Play BIOS has the capacity to
automatically configure all of the boot and Plug and Play compatible devices. This
20
BIOS, Driver & Utility Guide
Page 54
MAINBOARD BIOS SETUP
capability is specifically designed for a Plug and Play operating system such as Windows
Reset Configuration Data - Reset Configuration Data: When set to Enabled, ESCD (Extended System Configuration Data) is cleared. This setting will automatically be set back to Disabled when the system reboots.
IRQ3/4/5/7/9/10/11/12/14/15, DMA0/1/3/5/6/7 assigned to These options are available when the above Resources Controlled by option is set to Manual. By default, all resources are assigned to the PCI Bus. If an ISA card requires a particular IRQ or DMA channel, that resource should be set to Legacy ISA so that the PCI Bus will not try to use them.
CPU to PCI Write Buffer - When this field is Enabled, writes from the CPU to the PCI bus are buffered to compensate for the speed differences between the CPU and the PCI bus. When Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle.
PCI Dynamic Bursting - When Enabled, data transfers on the PCI bus, where possible, make use of the high-performance PCI burst protocol, in which greater amounts of data are transferred at a single command.
PCI Master 0 WS Write - When Enabled, writes to the PCI bus are executed with zero wait states.
95. Choices are Auto and Manual.
PCI Delay Transaction - The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.
PCI#2 Access #1 Retry - This item allows you enable/disable the PCI #2 Access #1 Retry when PCI#2 (AGP bus) access to PCI#1 (PCI bus) has a error occurred.
AGP Master 1 WS Write - When Enabled, writes to the AGP (Accelerated Graphics Port) are executed with one wait state. When Disabled, two wait states are used by the system, allows for greater stability.
AGP Master 1 WS Read - When Enabled, reads to the AGP (Accelerated Graphics Port) are executed with one wait state. When Disabled, two wait states are used by the system, allows for greater stability.
SYMBIOS SCSI BIOS - W hen set to Auto, the system will automatically sense the presence of any SCSI adapter that uses a Symbios SYM53C8XX SCSI chip:
BIOS, Driver & Utility Guide
21
Page 55
MAINBOARD BIOS SETUP
If the SCSI adapter installed has its own BIOS on board: If the SCSI adapter installed doesn’t have its own BIOS and the card uses or is compatible with the SYM53C8XX chip:
* Disabling the onboard SCSI BIOS prevents it from being active in any way.
Assign IRQ For USB - When Enabled, the system automatically assigns an IRQ for the USB device connected to your system. However, if no USB devices are used and an ISA slot requires an IRQ address, set this function to Disabled. The IRQ address previously occupied by the USB device will be available for the ISA slot.
Assign IRQ For VGA - The Enabled option allows the BIOS to auto-route an IRQ for use by a VGA card. While most of the VGA cards do not need the IRQ assignment, certain VGA cards may need it.
The on-board SCSI BIOS will not be loaded. The adapter’s own SCSI BIOS will be used. The on-board SCSI BIOS will load and control the SCSI ad apter.
Load BIOS Defaults
Loads “Fail Safe” settings into the BIOS Setup program. These options are designed to slow the system down for troubleshooting purposes. To load the default values, highlight this option and press [ENTER]. Enter “Y” in the confirmation screen and press [ENTER] again. User-defined options in the Standard CMOS Setup are not affected.
Load Setup Defaults
Loads the default values for best system performance into the BIOS Setup program. To load the default values, highlight this option and press [ENTER]. Enter “Y” in the confirmation screen and press [ENTER] again. User-defined options in the Standard CMOS Setup are not affected.
22
BIOS, Driver & Utility Guide
Page 56
MAINBOARD BIOS SETUP
Integrated Peripherals Setup
This menu is used to configure the integrated IDE subsystem and other peripherals.
OnChip IDE Channel 0 : Enabled Onboard Parallel Port : 378/IRQ7 OnChip IDE Channel 1 : Enabled Onboard Parallel Mode : ECP/EPP IDE Prefetch Mode : Enabled ECP Mode Use DMA : 3 IDE HDD Block Mode : Enabled Parallel Port EPP Type : EPP 1.9 Primary Master PIO : Auto Onboard Legacy Audio : Enabled Primary Slave PIO : Auto Sound Blaster : Enabled Secondary Master PIO : Auto SB I/O Base Address : 220H Secondary Slave PIO : Auto SB IRQ Select : IRQ 5 Primary Master UDMA : Auto SB DMA Select : DMA 1 Primary Slave UDMA : Auto MPU-401 : Enabled Secondary Mast er UDMA : Auto MPU-401 I/O Base Address : 330 -333H Secondary Slave UDMA : Auto FM Port (388-38BH) : Enabled Game Port (200-207H) : Enabled Onboard FDD Controller : Enabled Onboard Serial Port 1 : Auto Onboard Serial Port 2 : Auto IR/COM2 Mode Select : UART COM2 F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2: Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
On-Chip IDE Channel 0 - Enables or Disables the primary controller. Situations where this controller would be disabled are: a) You are not using any IDE Drives or b) You are using an add-on IDE controller in a PCI Slot.
ESC: Quit ↑ ↓ → ←: Select Item
On-Chip IDE Channel 1 - Enables or Disables the secondary controller. Situations where this controller would be disabled are: a) You are not using any IDE Drives or
b) You are using IDE Drives ONLY on the primary controller or c) You are using an add-on IDE controller in a PCI Slot.
IDE Prefetch Mode - Enable prefetching for IDE drive interfaces that support its faster drive accesses. If you are getting disk drive errors, change the setting to omit the drive interface where the errors occur. Depending on the configuration of your IDE subsystem, this field may not appear, and it does not appear when the Internal PCI/IDE field, above, is Disabled.
IDE HDD Block Mode - This allows your hard disk controller to use fast block mode to transfer multisector data to and from your hard disk drive (HDD).
BIOS, Driver & Utility Guide
23
Page 57
MAINBOARD BIOS SETUP
IDE PIO Mode - IDE Programmed I/O Mode - This setting relates to the speed
at which the hard drive is able to transfer data, up to
16.6MB/second for Mode 4 drives. Available settings are Auto, 0, 1, 2, 3, or 4. As with the Type setting, Auto is the preferred choice, in that the supported PIO Mode is read directly from the hard drive. Be sur e not to use a PIO Mo de higher than what the drive actually supports. This could result in loss of data.
IDE UDMA (Ultra DMA) Mode - The chipset used for this mainboard
improves the IDE performance by implementing UltraDMA/33 Bus Mastering IDE which can handle data transfer up to 33 Mbyte/sec. This UDMA technology is downward compatible with existing ATA-2 IDE. So there is no upgrade required for current hard drives and cabling. *Auto is default.
Onboard FDD Controller - Set to Enabled if you have a floppy disk drive installed on the system board and you wish to use it. Even when so equipped, if you add a higher performance controller, you will need to disable this feature.
Onboard Serial Port 1 - With this option, the on-board Serial Port 1 can be Disabled, or set to Auto, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4 or 2E8/IRQ3.
Onboard Serial Port 2 - With this option, the on-board Serial Port 2 can be Disabled, or set to Auto, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4 or 2E8/IRQ3.
PIO Mode Timing
0 600 ns 1 383 ns 2 240 ns 3 180 ns 4 120 ns
IR/COM2 Mode Select - By default, this field is set to UART COM2, which directs the second serial port UART to support the COM2 serial port. Choosing SHARP IR (ASKIR) or IrDA SIR (HPSIR) will activate the on-board infrared feature and redirect the second serial port UART to support the infrared module connector on the mainboard.
Onboard Parallel Port - With this option, the on-board Parallel Port can be Disabled, or set to 378/IRQ7 (*Default), 3BC/IRQ7 or 278/IRQ5.
Onboard Parallel Mo de - Sets the operating mode of the parallel port. Options are:
Normal, EPP (Enhanced Parallel Port), ECP (Extended Capability Port), and ECP/EPP (default).
ECP Mode Use DMA - Options are 1 and 3. This field is available only when one of the two following options in Onboard Parallel Mode is selected: ECP or ECP/EPP.
24
BIOS, Driver & Utility Guide
Page 58
MAINBOARD BIOS SETUP
Parallel Port EPP Type - Options are EPP1.7 and EPP1.9 (default ; IEEE 1284 compliant). This field is available only when one of the two following options in Onboard Parallel Mode is selected: EPP or ECP/EPP.
Onboard Legacy Audio – Enabling this option allows the system to use the on-chip legacy SoundBlaster-compatible audio support. If you want to use the on-chip AC97 audio support or an add-on audio card instead, set this option to Disabled to avoid possible conflict.
*** The following fields are available only when the Onboard Legacy Audio is Enabled.
Sound Blaster – Enables/Disables the Sound Blaster compatible mode. SB I/O Base Address – This op tion allows the user to select the audio I/O base
address in Sound Blaster compatible mode. SB IRQ Select – This option allows the user to select the IRQ for audio in Sound
Blaster compatible mode. SB DMA Select – This option allows the user to select the DMA for audio in Sound
Blaster compatible mode.
MPU-401 – Enables/Disables the MPU-401 MIDI interface standard. MPU-401 I/O Base Address – This option allows the user to select the I/O base
address for the use of MPU-401 MIDI device. FM Port (388-38BH) – Enable this option to use the FM port, which occupies 388-
38BH address. Game Port (200-207H) – Enable this option to use the game port, which occupies
200-207H address.
BIOS, Driver & Utility Guide
25
Page 59
MAINBOARD BIOS SETUP
Supervisor Password and User Password Setting
Passwords can be set to provide protection for the BIOS configuration op tions, or to restrict access to the computer itself.
When enabled, User Password will require all users to enter a password in order to use the system, and/or enter the BIOS setup (but can’t change its contents). A Supervisor Password is used to protect the stored CMOS options from being changed by unauthorized users.
Keep in mind that when set, a password is required only when booting the system. It will not provide protection to a system that is already booted.
The password check option is set in BIOS FEATURES SETUP by choosing either System (the password prompt appears every time the system is powered on) or Setup (the password prompt appears only when the user enters the BIOS Setup). The password is stored in CMOS RAM, and can be cleared by removing the battery for a while and then re-installing it back.
To set a passwor d:
1. You must first set the Supervisor password by choosing Supervisor Password and pressing [ENTER]. Setup prompts for a password.
2. Enter a 1-8 character password using letters, numbers, or a combination of both. The specific characters are not shown as you enter them. Press [ENTER].
3. A confirmation box appears asking you to re-enter the password. Enter the password again. Press [ENTER]. Follow the same procedure to set the User Password.
Changing a Password: Select the appropriate password option (Supervisor or User) from the main menu
and press [ENTER]. Enter the current password and press [Enter]. The screen does not display the characters entered. Enter in the new password, then the confirmation. You cannot change the current password unless you know it.
26
BIOS, Driver & Utility Guide
Page 60
MAINBOARD BIOS SETUP
Erasing a Password:
1. If you know the current password, but want to disable password checking, follow the procedure for changing the password. When Setup prompts for the new password, simply press [ENTER]. You will see a message indicating that the password is disabled.
2. If you do not know the current password, the CMOS must be cleared by removing the battery for a while and then re-installing it back. *This will clear all user-defined BIOS Setup options.
IDE HDD Auto Detection
Automatically detect and configure hard disk parameters. The Award BIOS includes this ability in the event you are uncertain of your hard disk’s parameters. See also “Standard CMOS Setup”.
Save & Exit Setup / Exit Without Saving
Select Save & Exit Setup to save into the CMOS memory all modifications specified during the current session. To save the configuration changes, highlight this option in the main menu and press [ENTER]. The system displays a confirmation message on the screen. Press the “Y” key and then [Enter]. Press the “N” key and then the [Enter] key to abort. The Exit Without Saving option allows the user to exit the BIOS Setup without updating any changes made during the current session.
BIOS, Driver & Utility Guide
27
Page 61
MAINBOARD BIOS SETUP
PCI Device Listing
This list of installed PCI devices appears after the System Configuration screen:
PCI device listing .....
Bus No. Device No. Func No. Vendor ID Device ID Device Class IRQ 0 7 1 1106 0571 IDE Controller 14/15 0 7 2 8086 8829 Serial bus controller 11 0 9 0 1013 7333 Display controller 11
Bus No. Encoded value indicating 1 of 256 possible buses in a system. Device No. Encoded value indicating 1 of 32 possible devices on a given bus. Func No. Encoded value indicating 1 of 8 possible functions on a multifunction
device.
Vendor ID Identifies the manufacturer of the device. Valid vendor identifiers are
allocated by the PCI SIG (Special Interest Group) to ensure uniqueness.
Device ID Identifies the particular device. This identifier is allocated by the
vendor.
Device Class
Specifies one of the following device classes: Mass storage controller, Network controller, Display controller, Multimedia device, Bridge device, Simple communication controller, Base system peripherals, Input device, Docking station, Processor and Serial bus controller.
The PCI device listing is useful for troubleshooting purposes. More detailed information for each field may be obtained through the PCI specification documentation.
28
BIOS, Driver & Utility Guide
Page 62
BUILT-IN SYMBIOS SCSI BIOS
To provide easy to use and cost effective support for adapters using or compatible with the Symbios Logic 53C8XX SCSI chips, this mainboard features built-in Symbios SCSI BIOS.
In most cases you should not ne ed to change the d efault configura tion of your host adapter. You may decide to alter these default values if there is a conflict between device settings, or if you need to optimize system performance. A message appears on your computer monitor (for about 5 seconds) during boot that looks like this:
Press Crtl-C to start Symbios Configuration Utility
If you decide to press Ctrl-C during boot, the following message appears:
Please wait, invoking Symbios Configuration Utility …
After a brief pause, your computer will display the Main Menu of the utility.
The Symbios SCSI Configuration Utility
This menu driven utility allows you to view and change the default configuration settings for host adapters using Symbios 53C8XX chips.
Note: Pressing Ctrl-A after memory count during re-boot allows you to recover the default settings a nd reconfigure.
The following tables list the configuration settings you can change:
Global: Affects both the adapter and all SCSI devices
Device: Affects only the individual SCSI devices
BIOS, Driver & Utility Guide
29
Page 63
BUILT-IN SYMBIOS SCSI BIOS
Global Default Settings Device Default Settings
Settings Default Settings Default
SCAM Support On Synchronous Transfer
Rate (MB/sec) Parity Checking Enabled Data Width 8 Host Adapter SCSI ID 7 Disconnect On Scan Order Low to Hi gh (0-Max) Read Write I/O Timeout
(secs) Scan for Devices at Boot
Time Scan for SCSI LUNs Yes Queue Tags Enabled
Main Menu
MAIN MENU
Port Irq ----------Status--------- NvRAM
Num Level Current Next-Boot Found SYM53C860 FC00 9 On On Yes SYM53C820 0 0 Off Off ? SYM53C825 FD00 9 On On Yes SYM53C815 FE00 10 On On No Change Adapter Status Adapter Boot Order Additional Adapter Configuration Display Mode = Verbose Mono/Color Language Help Quit
20
10
Yes
You can select an adapter only if the current status is “On”. Changes are only possible with SCSI adapters that support NVRAM (non-volatile mem ory). Check the “NvRAM Found” column to see if NVRAM is present on your adapter. If you choose to alter any of these settings, exit via the Quit option and the system will reboot.
Change Adapter Status - Allows you to activate or deactivate a host adapter and all SCSI devices attached to it. The change takes place after a reboot, which is automatic upon exit from the utility when this option is changed.
30
BIOS, Driver & Utility Guide
Page 64
BUILT-IN SYMBIOS SCSI BIOS
Adapter Boot Order - Allows you to set the order in which host adapters will boot when more than one Symbios host adapter is present in the system. To change an adapter’s boot order, select it and press <Enter>. You are then prompted to enter the new boot sequence number. When the adapters are ordered properly, press the <Esc> key to exit this menu.
Boot Order
Port Irq ----------Status--------- NvRAM
Num Level Current Next-Boot Found SYM53C860 FC00 9 On On Yes SYM53C820 0 0 Off Off ? SYM53C825 FD00 9 On On Yes SYM53C815 FE00 10 On On No
Display Mode - Determines how much information about your host adapters and SCSI devices is displayed on your computer monitor during boot:
verbose: for more complete information
terse: for a faster boot
Mono/Color - Allows you to choose between a black and white or color display for the SCSI Configuration utility.
Language - English mode only. Help - Brings up a help screen with information about the Main menu. Quit - Exits the SCSI Configuration utility.
Adapter Utilities Menu
When you select a host adapter from the main menu, the following screen is displayed:
SYM53C860
Adapter Setup Device Selections Help Exit this menu
BIOS, Driver & Utility Guide
31
Page 65
BUILT-IN SYMBIOS SCSI BIOS
Adapter Setup: Adapter settings are viewed and changed.
SYM53C860 Adapter Setup
SCAM Support Off Parity On Host SCSI ID 7 Scan Order Low to High (0..Max) Removable Media Support None CHS Mapping SCSI Plug and Play Mapping Spinup Delay (Secs) 2 Help Restore Default Setup Exit this menu
SCAM Support - SCAM (SCSI Configured AutoMatically) is the SCSI Plug and
Play protocol supported by Symbios BIOS version 4.X.
Parity - The Symbios host adapters always generate parity, but some SCSI devices
do not. Therefore, you are offered the option of disabling parity checking.
Note: When disabling parity checking, it is also necessary to disable disconnect for
all devices, as parity checking for the reselection phase will not be disabled. If a device does not supporting parity disconnects, the I/O will never complete because the reselection phase will halt.
Host SCSI ID - The host adapter SCSI ID should remain on 7 (default), as this
setting gives the adapter the highest priority on the SCSI bus. However, if you have two adapters on the same SCSI bus, you should give one of them an unassigned ID to avoid duplication of SCSI IDs.
Scan Order - This option allows you to tell the host adapter BIOS and your device
drivers to scan the SCSI bus from low to high (0 to max) SCSI IDs, or from high to low (max to 0) SCSI IDs. If you have more than one device on the SCSI bus, changing the scan order changes the order in which drive letters are assigned by the system.
Removable Media Support - Determine if the removable media will be used as
BIOS device. A BIOS device here is a device that can be controlled via BIOS INT 13H, i.e. it does not need a device driver and can be bootable. However, when used as a BIOS device, the full removability of removable media devices is not preserved. The following constrai nts apply: a) The device can only work as a fixed disk, i.e. media change is not allowed.
32
BIOS, Driver & Utility Guide
Page 66
BUILT-IN SYMBIOS SCSI BIOS
b) The media must be inserted before the system boot-up. c) Only media with 512Bytes/sector is supported.
None The removable media devices will not be used as BIOS devices. Boot Drive
Only With Media
Installed
CHS Mapping – Cylinder, Head, Sector mapping. Options are “SCSI Plug and Play
Mapping” (default) and “Alternate CHS Mapping”.
Spinup Delay – 1-10 seconds. The default is a 2-second delay before the BIOS starts to scan
for SCSI devices during initialization. This amount of time is enough for most devices to get ready for proper operation. Since some older hard drives may need more time to spin up, you may need to extend the delay for those devices.
Device Selections: Settings for the devices attached to the selected adapter are
viewed and changed.
SYM53C860
Devices 0 to 7
Sync Data Disc Time Scan Queue Init Rate Width Out Bus LUNS Tags Boot
Dev0 N/A 20 8 On 10 Yes Yes On No Dev1 N/A 20 8 On 10 Yes Yes On No
Dev2 N/A 20 8 On 10 Yes Yes On No Dev3 N/A 20 8 On 10 Yes Yes On No Dev4 N/A 20 8 On 10 Yes Yes On No Dev5 N/A 20 8 On 10 Yes Yes On No Dev6 N/A 20 8 On 10 Yes Yes On No SYM53C860 20 8 On 10 Yes Yes On No Devices 8 to15 Help Exit this menu
The above menu provides information about individual SCSI devices attached to the selected host adapter, as well as the adapter itself. To make changes to these settings select a device from this display and press <Enter> to bring up the individual Device Setup menu.
Allows only the removable media installed as Drive C: to work as a BIOS device.
Enables all removable disk drives to work as BIOS devices.
BIOS, Driver & Utility Guide
33
Page 67
BUILT-IN SYMBIOS SCSI BIOS
Device Setup Menu
When you select a specific device from the Device Selection menu, your computer displays the following Device Setup menu. The settings in this menu effect individual SCSI devices attached to the selected host adapter. Changes made from this menu will require a system reboot upon exit from the SCSI Configuration utility.
SYM53C860 Setup for All devices on this adapter
Sync Rate (MBytes/sec) 20 Width (bits) 8 Disconnect On Read Write I/O Timeout (secs) 10 Scan for Device at Boot Time Yes Scan for SCSI LUNS Yes Queue Tags On Initial Boot Device No Format Verify Help Restore Default Setup Exit this menu
Sync Rate (Mega Bytes/sec) - Defines the maximum transfer rate the host adapter attempts to negotiate. The host adapter and a SCSI device must agree to a rate they can both handle.
Width (bits) - Sets the maximum data width the host adapter will attempt to negotiate. The host adapter and a SCSI device must agree to a width they can both handle. Only those host adapters that support 16 bit data transfers will show this option as enabled.
Disconnect - SCSI devices have the ability to disconnect from the bus during an I/O transfer. This option tells the host adapter whether or not to allow a device to disconnect. Some devices run faster with disconnect enabled (mostly newer devices), while some run faster with disconnect disabled (mostly older devices).
Read Write I/O Timeout (secs) - This option sets the time the host adapter waits for a read, write, verify, or seek command to complete before trying the I/O transfer again. Since this provides a safeguard allowing the system to recover if an I/O operation fails, it is recommended that you always set the time-out to a value greater than zero (no time-out).
Scan for Device at Boot Time - When there is a device you do not wish to make available to the system, set this option to No for that device. Also, on a bus with
34
BIOS, Driver & Utility Guide
Page 68
BUILT-IN SYMBIOS SCSI BIOS
only a few devices attached, you can speed up boot time by changing this setting to No for unused SCSI I Ds.
Scan for SCSI LUNs - You can set this option to No if you have problems with a device that responds to all LUNs whether they are occupied or not.
Queue Tags - If your device driver can issue queue tags, this option allows you to enable or disable the issuing of queue tags during I/O requests.
Format - Low level format the selected device. All information on the drive will be erased.
Verify – This command is used to detect bad blocks on the chosen disk. With your confirmation, the bad blocks detected can be reassigned for future operations. This command is non-destructive, and therefore won’t destroy the data on the drive.
Since some changes only take effect after your system reboots, it is important that you quit this Configuration utility properly. You should return to the Main Menu and exit via the Quit option. If you reboot the system without properly exiting the utility, some changes may not be saved.
Device Drivers
To function pr operly with different SCSI devices under different ope rating systems you’ll need to install device drivers. The device driver information should be available in your SCSI adapter’s package.
BIOS, Driver & Utility Guide
35
Page 69
FLASH BIOS PROGRAMMING UTILITY
Updating the Award BIOS Code is made easy with the AWDFLASH Utility found under the “Utilities” folder of the supplied CD-ROM. Since this mainboard features FLASH BIOS, it is not necessary to change the actual BIOS chip in order to upgrade the System BIOS. The user can simply re-program the old BIOS using the AWDFLASH Utility as follows:
1. First, boot the system with DOS or to “Safe Mode” under Windows 95. If you are booting DOS from a hard drive or floppy disk, press [F5] when the message “Starting MS-DOS…” appears on the screen. If you are booting Windows 95, press the [F8] key, and select the “Safe mode command prompt” option. This will assure that the system is running in real mode with no device drivers loaded. This is the only correct way to run the AWDFLASH Utility program.
2. There are (2) important files needed to re-program the BIOS. The first is “AWDFLASH.EXE” which is the FLASH BIOS Programming Utility. The second file needed is the updated “BIN” file which contains the actual BIOS code. This file will have the extension [.bin], such as “P598GH.BIN”. Make sure these files are on the diskette or hard drive in the same directory.
3. Start the AWDFLASH Utility by changing to the directory where the two required files exist and typing: AWDFLASH and pressing [ENTER].
4. The AWDFLASH Utility Screen appears. You will be asked for the file name to program. Type in the name of the new BIOS (.bin) file and hit [ENTER].
36
BIOS, Driver & Utility Guide
Page 70
FLASH B
FLASH BIOS PROGRAMMING UTIL ITY
FLASH BFLASH B
5. The program will then ask if you want to backup the old BIOS. This is recommended in case there are any problems with the new “.bin” file. Enter the name of the new backup fil e (such as “backup.bin”) and press [ENTER].
6. At this time the system will prompt you for final confirmation before beginning programming. The Utility can be aborted at this time by hitting “n”. To begin programming, hit “y”…
7. When the Flash programming starts, a bar indicator will show the progress of the programming operation. After successful completion, hit the reset button or power off the computer.
Be sure to perform “LOAD SETUP DEFAULTS” for your new BIOS to synchronize the previous BIOS with the updated BIOS.
IOS PROGRAMMING UTILITY
IOS PROGRAMMING UTILITYIOS PROGRAMMING UTILITY
BIOS, Driver & Utility Guide
37
Page 71
DMI UTILITY
This mainboard supports the Desktop Management Interface (DMI), which is a new method of providing enterprise management for personal computers. The main component of DMI is the Management Information Format Database (MIF), which contains information about the computer system and its components, such as BIOS version/vendor, CPU speed/type, memory size/type, L1/L2 cache, port connectors (IDE, floppy, 2S/1P, USB, keyboard, mouse, ), slots … etc. Using DMI, remote PC management software is able to obtain various information about the system, including hardware profiles, capabilities, operational status, installation dates, and other information about the system and its components.
This DMI utility, DMICFG.EXE found under the “Utilities” folder of the supplied CD-ROM, allows you to add additional information, such as serial numbers, vendor information, and enclosure/chassis configurations, into the MIF.
[Edit DMI] [Add DMI] [Load DMI FILE] [Save DMI FILE]
BIOS
System
Base Board
Enclosure/Chassis
Processor
Memory Controller
Memory Module Memory Module Memory Module Memory Module Memory Module Memory Module Memory Module Memory Module
Cache
Cache Port Connector Port Connector Port Connector Port Connector
←←←← →→→→
↑↑↑↑ ↓↓↓↓
Move cursor Enter-Accept DEL-Delete ESC-Abort&Exit
=== Display component === Type : BIOS Information Handle : 0000
Vendor Name : Award Software International, Inc. BIOS Version : 4.51 PG BIOS starting Address Segment : E000 BIOS Build Date : 08/26/98 BIOS Characteristics : Press [ENTER] for detail Size of BIOS ROM : 0256K
Note: The DMI utility must be run in real mode without the EMM386 memory manager loaded.
38
BIOS, Driver & Utility Guide
Page 72
27-0M0586-37
Loading...
