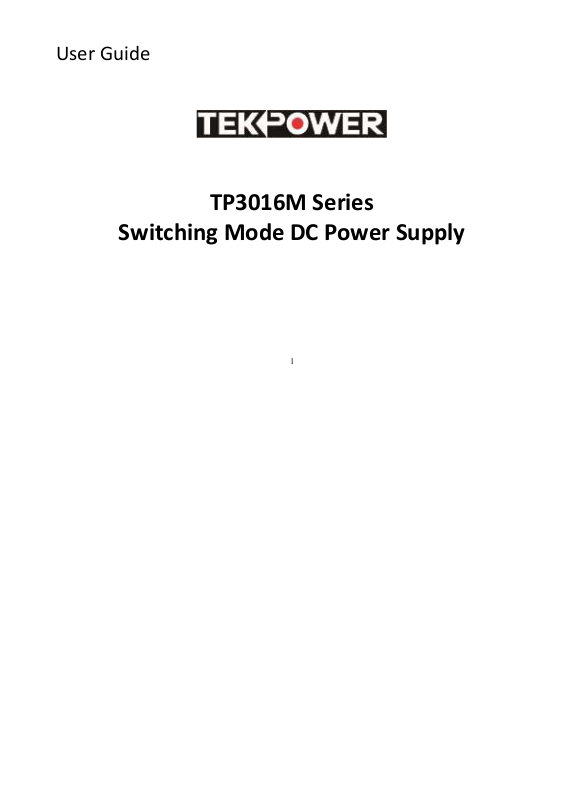

Tekpower TP3016M User Manual

User Guide

Switching Mode DC Power Supply

TP3016M Series

1

Introduction

I. Quick Start

1.1 Front Panel Description

1.2 Pre-Checking

1.3 Quick Start

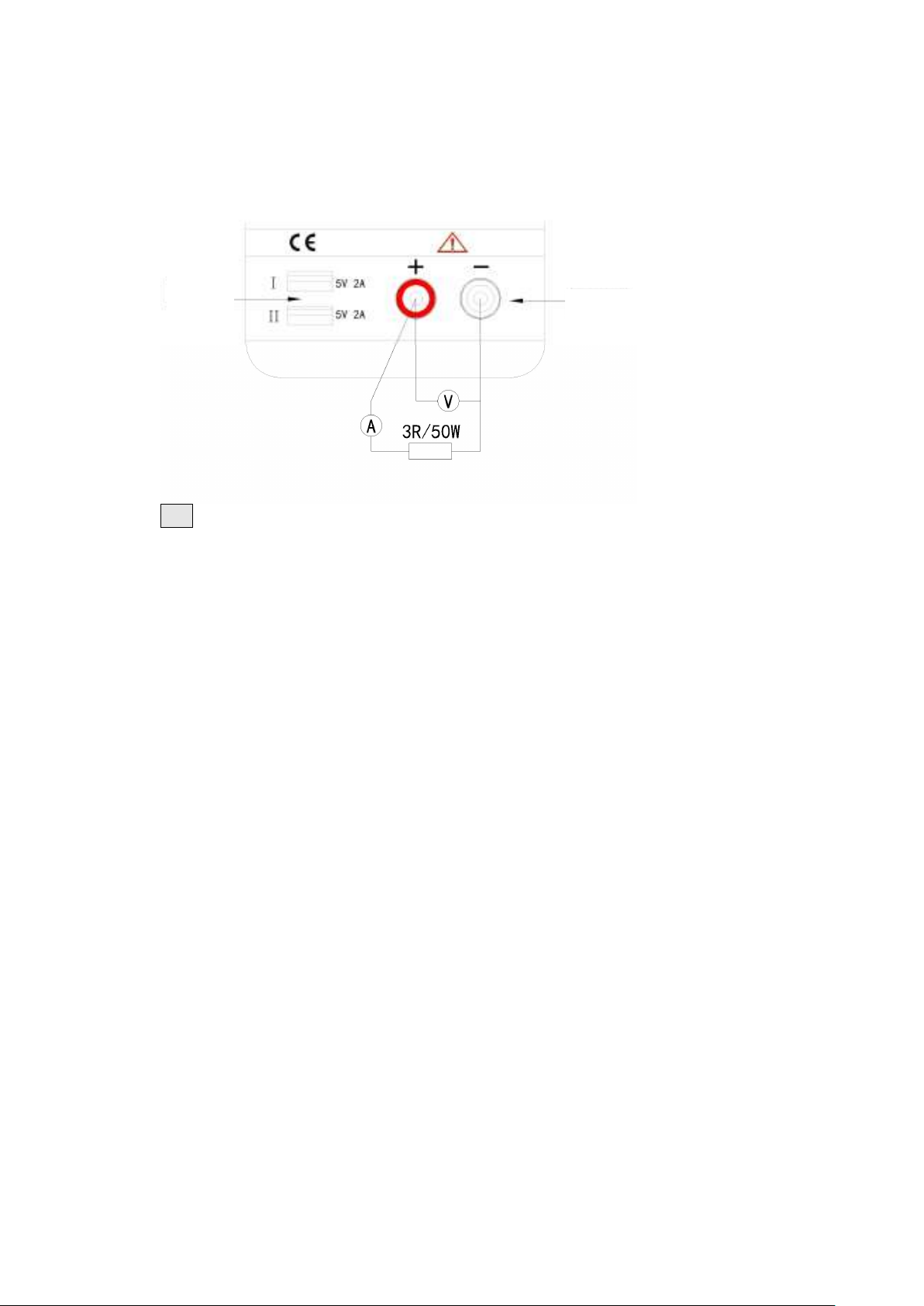

1.4 Output Checking

II. Specifications

2.1 Major Specification

2.2 Supplementary Characteristic

III. Operation

3.1 Keypad

3.2 Front Panel

3.3 Voltage Setting

3.4 Current Setting

3.5 Output Switch

3.6 Data Saving Operation

2

3.7 Recall Saving Operation

3.8 USB Power Charging

IV. Calibration

4.1Voltage Calibration

4.2 Current Calibration

3

Introduction

Thank you for selecting the TP3016M Switching DC Power Supply, please read this user guide before
the operation.

Safety

This manual contains important safety and operation instructions for correct use of power supply.
Read through the manual and pay attention to the markings and labels of this unit to be connected.

Do not install the substituted spare parts or operate the modification without permission, please
send the unit back for A/S to our authorized dealers or factory for guaranty of the stability of the unit.

Pay special attention to the information of WANRINGS or CAUTIONS to avoid the damage to power
supply or connected equipment and human injured.

Please contact the trained technicians for repair service.

Safety Marks

WARNING:

4

Failure to observe this warning may cause injury to persons and damage to power supply or
connected equipment.

CAUTION:
Failure to observe this warning may result in damage to equipment and improper functioning of
power supply.

Grounding

High Voltage

Attention on the Warning or Caution

Specification Compliance

TP3016M Switch mode DC Power Supply is compliance with the specification described in this manual.

The content or specification of this manual is subject to change, without prior notice.

Product Features

5

TP3016M is the single output switch mode DC power supply with max. 30V output voltage, 1.6A
output current and max. output power as 50W.

TP3016M is integrating the AC/DC and DC/DC 2nd level voltage regulator technology, the AC/DC
input is adapting the worldwide voltage range. The DC/DC is using the synchronous buck mode, which
with the high efficiency and high speed dynamic response performance.

TP3016M can be set the voltage and current through the keypad of front panel and save the setting
groups for further performance.

TP3016M also has the 4 digit voltage and current meter, as well as the fantastic handheld size. The
TP3016M is perfect for solving a variety of loading conditions and applications.
Please find the following main features of TP3016M:

● Handheld design

● Without noise of fan

● 4 digits LCD display

● Output short circuit protection

● High speed dynamic response

● Once power cut-off, automatically protect under power off status

● The output has the automatic recognition of USB charging port

● Can be calibrated via software operation

6

I. Quick Start

This chapter describes the basic check points on TP3016M for making sure the proper operation, as
well as the functions of TP3016M.

1.1 Front Panel Description

1 – Current Setting Indicator
2 – Voltage Setting Indicator
3 – Measured Value Display
4 – Keypad
5 – USB Charging Ports
6 – DC Output Terminals

7
