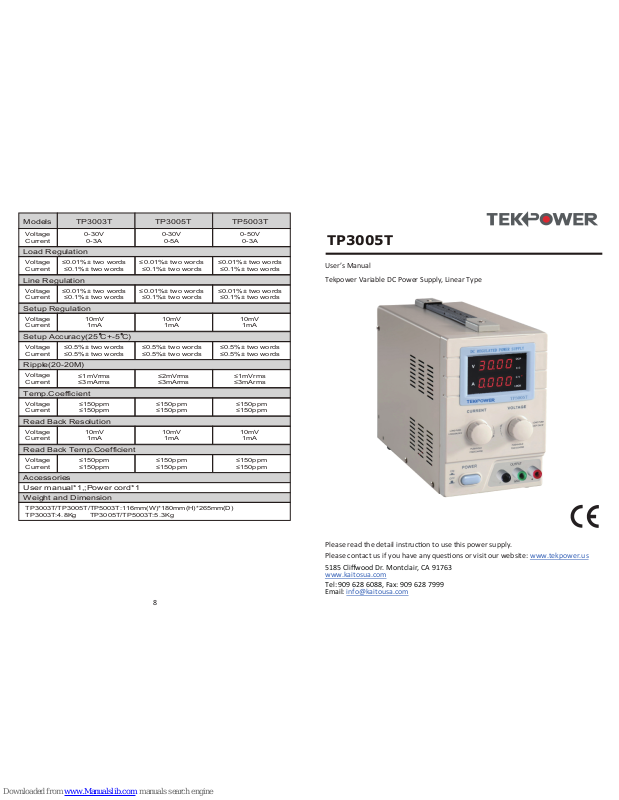

TekPower tp3005t User Manual

Tekpower Variable DC Power Supply, Linear Type

User’s Manual

Please read the detail instrucon to use this power supply.
Please contact us if you have any quesons or visit our website:

www.tekpower.us

5185 Cliffwood Dr. Montclair, CA 91763

www.kaitosua.com

Tel: [phone], Fax: [phone]
Email: [e-mail]

TP

3005T

8

Models

Load Regulation

TP3003T TP5003TTP3005T

Voltage
Current

0-30V

0-3A

0-30V

0-5A

0-50V

0-3A

Voltage
Current

≤0.01%± two words

≤0.1%± two words

≤0.01%± two words

≤0.1%± two words

≤0.01%± two words

≤0.1%± two words

≤0.01%± two words

≤0.1%± two words

≤0.01%± two words

≤0.1%± two words

≤0.01%± two words

≤0.1%± two words

≤0.5%± two words
≤0.5%± two words

≤0.5%± two words
≤0.5%± two words

≤0.5%± two words
≤0.5%± two words

≤1mVrms
≤3mArms

≤2mVrms
≤3mArms

≤1mVrms
≤3mArms

≤150ppm
≤150ppm

≤150ppm
≤150ppm

≤150ppm
≤150ppm

≤150ppm
≤150ppm

≤150ppm
≤150ppm

≤150ppm
≤150ppm

Line Regulation

Voltage
Current

Setup Regulation

Voltage
Current

10mV

1mA

10mV

1mA

10mV

1mA

Setup Accuracy(25 C+-5 C)

Voltage
Current

Ripple(20-20M)

Voltage
Current

Temp.Coefficient

Voltage
Current

Read Back Resolution

Voltage
Current

10mV

1mA

10mV

1mA

10mV

1mA

Read Back Temp.Coefficient

Voltage
Current

Weight and Dimension

TP3003T/TP3005T/TP5003T:116mm(W)*180mm(H)*265mm(D)
TP3003T:4.8Kg TP3005T/TP5003T:5.3Kg

Accessories

User manual*1,;Power cord*1

User’s Manual

Features:

Product Type: Linear Transformer Type with Super Quiet Output

Input Voltage: 110V AC 60Hz,

Single Chip CPU for Precision Control and Display

The discrete potenal meter gives reliable and precision adjustment

Four digits LED to show both Current and Voltage

Higher stability with low Dri for both Constant Current and Constant
Voltage control

Lock key to avoid any damage to the device by mistake

Limited current protecon, you can set up Protecon Value where it is
limited

Over Protecon Current (OPC) feature to preset OPC, it will shut off the
output when the

current reaches the OPC value.

Over Heat Protecon: If the cooling fan fails to run, the system will detect
it and stop working to

protect the system

Intelligent Heat Radiaon: The fan speed changes with the output power
value to lower the

noise.
