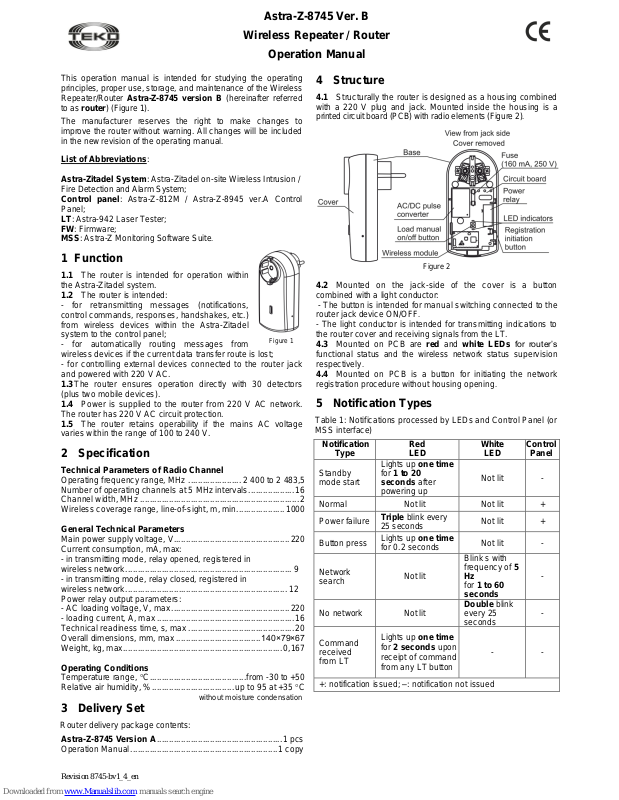

Astra-Z-8745 Ver. B
Wireless Repeater / Router
Operation Manual
Revision 8745-bv1_4_en
This operation manual is intended for studying the operating
principles, proper use, storage, and maintenance of the Wireless
Repeater/Router Astra-Z-8745 version B (hereinafter referred
to as router) (Figure 1).
The manufacturer reserves the right to make changes to
improve the router without warning. All changes will be included
in the new revision of the operating manual.
List of Abbreviations:
Astra-Zitadel System: Astra-Zitadel on-site Wireless Intrusion /
Fire Detection and Alarm System;
Control panel: Astra-Z-812M / Astra-Z-8945 ver.A Control
Panel;
LT: Astra-942 Laser Tester;
FW: Firmware;
MSS: Astra-Z Monitoring Software Suite.
1 Function
1.1 The router is intended for operation within
the Astra-Zitadel system.
1.2 The router is intended:
- for retransmitting messages (notifications,
control commands, responses, handshakes, etc.)
from wireless devices within the Astra-Zitadel
system to the control panel;
- for automatically routing messages from
wireless devices if the current data transfer route is lost;
- for controlling external devices connected to the router jack
and powered with 220 V AC.
1.3 The router ensures operation directly with 30 detectors
(plus two mobile devices).
1.4 Power is supplied to the router from 220 V AC network.
The router has 220 V AC circuit protection.
1.5 The router retains operability if the mains AC voltage
varies within the range of 100 to 240 V.
2 Specification
Technical Parameters of Radio Channel
Operating frequency range, MHz ...................... 2 400 to 2 483,5
Number of operating channels at 5 MHz intervals ................... 16
Channel width, MHz .................................................................. 2
Wireless coverage range, line-of-sight, m, min .................... 1000
General Technical Parameters
Main power supply voltage, V ................................................ 220
Current consumption, mA, max:
- in transmitting mode, relay opened, registered in
wireless network ..................................................................... 9
- in transmitting mode, relay closed, registered in
wireless network ................................................................... 12
Power relay output parameters:
- AC loading voltage, V, max ................................................. 220
- loading current, A, max ......................................................... 16
Technical readiness time, s, max ............................................ 20
Overall dimensions, mm, max ................................... 140×79×67
Weight, kg, max .................................................................. 0,167
Operating Conditions
Temperature range, °C ........................................ from -30 to +50
Relative air humidity, % .................................. up to 95 at +35 °C
without moisture condensation
3 Delivery Set
Router delivery package contents:
Astra-Z-8745 Version A .................................................... 1 pcs
Operation Manual ............................................................. 1 copy
4 Structure

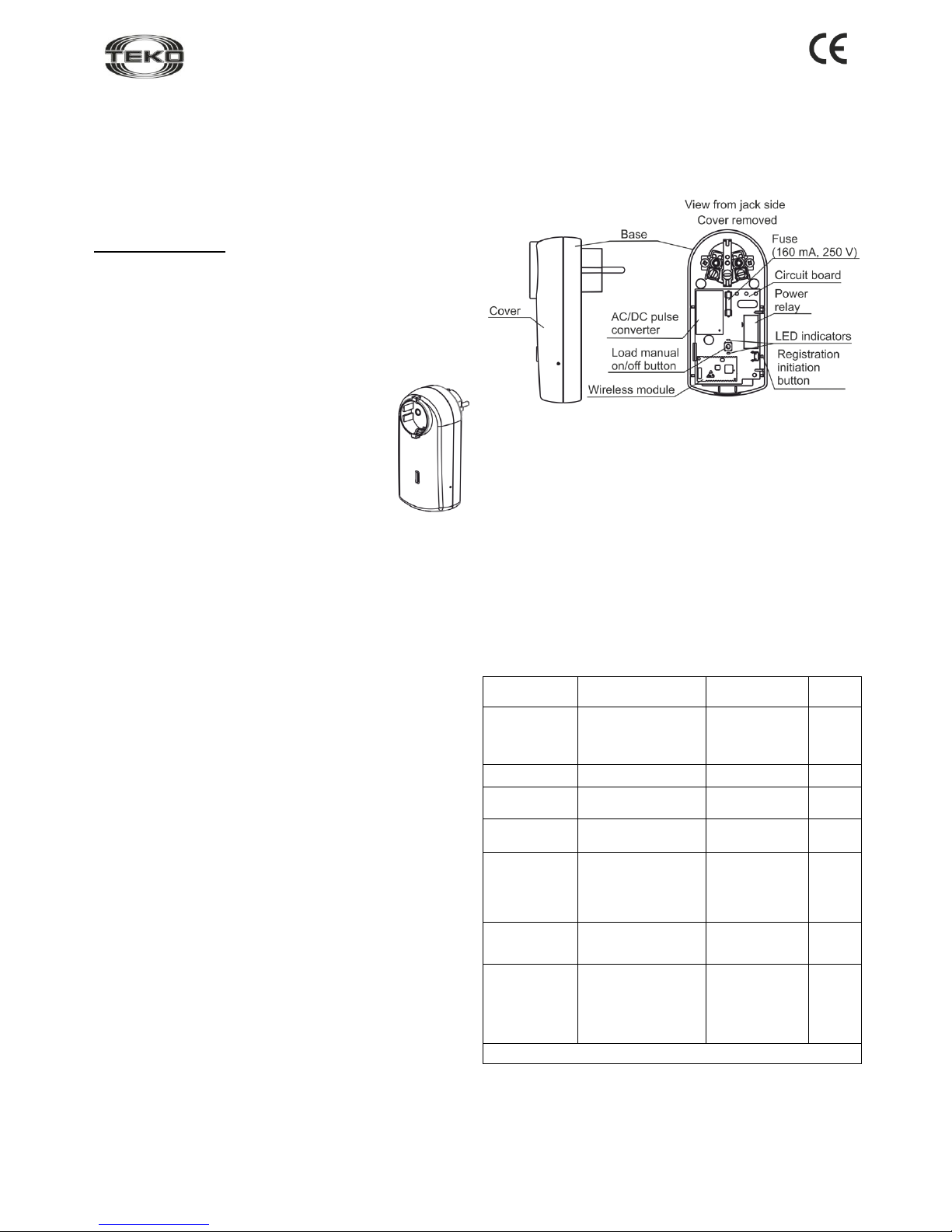

4.1 Structurally the router is designed as a housing combined
with a 220 V plug and jack. Mounted inside the housing is a
printed circuit board (PCB) with radio elements (Figure 2).
Figure 2
4.2 Mounted on the jack-side of the cover is a button
combined with a light conductor:
- The button is intended for manual switching connected to the
router jack device ON/OFF.
- The light conductor is intended for transmitting indications to
the router cover and receiving signals from the LT.
4.3 Mounted on PCB are red and white LEDs for router’s
functional status and the wireless network status supervision
respectively.
4.4 Mounted on PCB is a button for initiating the network
registration procedure without housing opening.
5 Notification Types
Table 1: Notifications processed by LEDs and Control Panel (or
MSS interface)
Notification
Type
Red
LED
White
LED
Control
Panel
Standby
mode start
Lights up one time
for 1 to 20
seconds after
powering up
Not lit
-
Normal
Not lit
Not lit
+
Power failure
Triple blink every
25 seconds
Not lit
+
Button press
Lights up one time
for 0.2 seconds
Not lit
-
Network
search
Not lit
Blink s with
frequency of 5
Hz
for 1 to 60
seconds
-
No network
Not lit
Double blink
every 25
seconds
-
Command
received
from LT
Lights up one time
for 2 seconds upon
receipt of command
from any LT button
-
-
+: notification issued; –: notification not issued
Figure 1
Page 2
Revision 8745-bv1_4_en
2
6 Operating Modes
6.1 The following operations can be executed upon a
command from Astra-Z-812M control panel or Astra-Z MSS in
accordance with the Astra-Zitadel Quick Start Guide*:
1) Setting router`s power output (jack) operating mode;
2) FW upgrade.
6.2 Operating modes initiated by the Astra-942 laser tester
buttons:
1) test (upper button);
2) wireless network optimization (middle button);
3) router registration in wireless network (lower button).
7 Pre-starting Procedure
7.1 After transportation in conditions differing from those of
operation, the router must be kept unpacked for 4 hours in the
expected operating conditions.
7.2 Registering the Router in the Wireless Network
Router registration is required for router identification in the
wireless network in which it is supposed to operate.
7.2.1 Registering the router in Astra-Z-812M control panel
Step-1
Turn the router ON by plugging it into the selected 220 V
outlet at the site.
Step-2
Switch the control panel to Wireless component
registration mode by the method described in an appropriate
Astra-Zitadel system operation manual Quick Start Guide*.
Step-3
The router can be registered by one of two methods:
a) by command from the LT;
b) using the hidden registration initiation button.
Step-4
Initiating Router Registration Procedure Using LT:
1) Press the lower button on the LT and hold until a beam
appears.
2) Direct the laser beam at the router LED and irradiate it for
at least 1 second.
The router’s red LED lights up for 2 seconds, and then the
white LED blinks with a frequency of 5 Hz for not more than
60 seconds («Network search» mode).
Step-5
Initiating Router Registration Procedure Using
the Hidden Registration Initiation Button:
Shortly (for 0.5 to 2.5 seconds) press the hidden

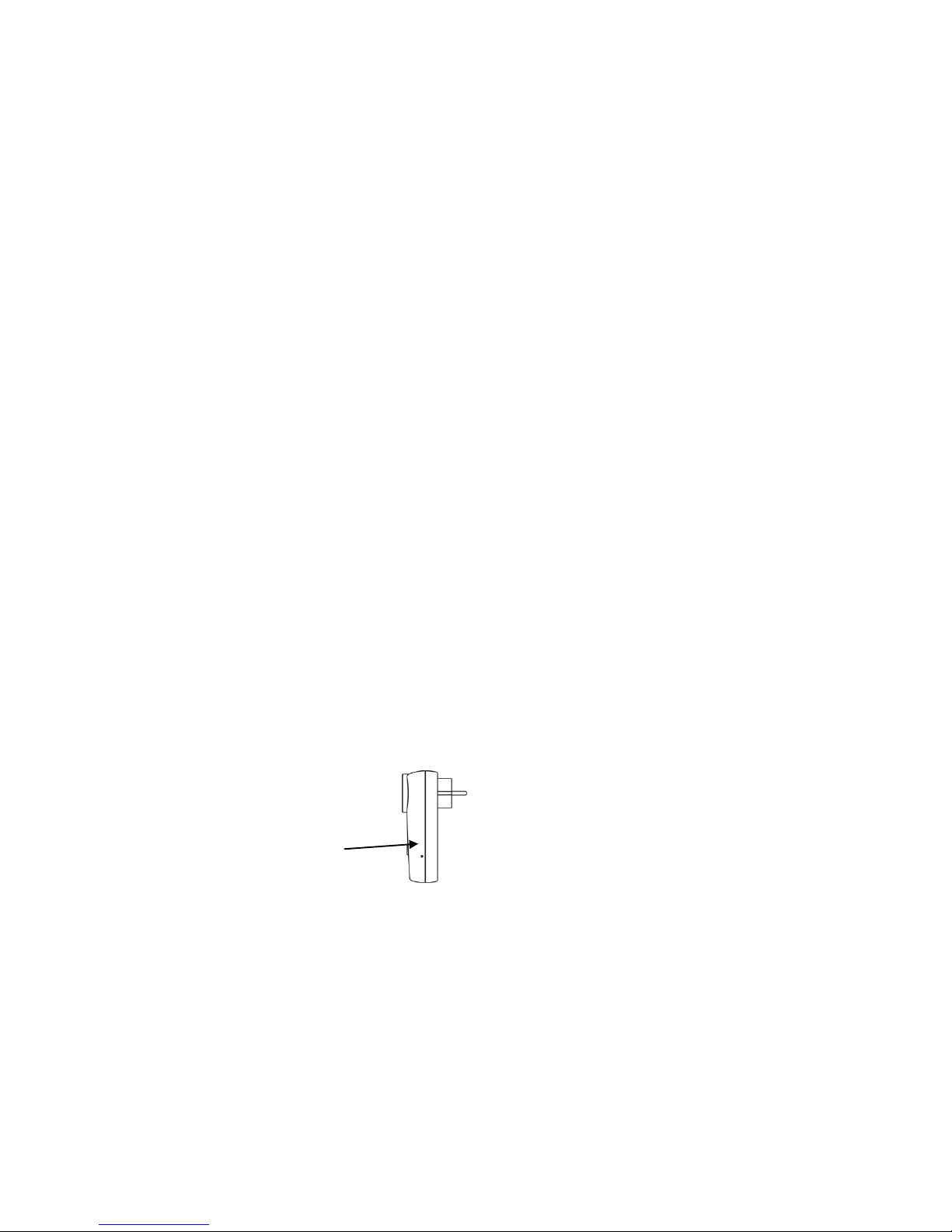

button through the opening on the side edge of
the router housing.
The router’s white LED lights up at a frequency
of of 5 Hz during the wireless network search, but
not more than 60 seconds.
Step-6
Verify registration by the control panel indication:
If registration procedure completed successfully, the
control panel screen displays the «RTRxxx registered»
notification.
If registration procedure failed, the control panel screen
displays the «Registration time expired» notification. In this
case, repeat the registration procedure, i.e. execute steps 2
and 4 or 2 and 5.
Step-7
After successful registration of the router, for long term
storage before its installation, it is allowed to switch the
router OFF.
When power is supplied, there is no need to re-register the
router in the same wireless network if it was not intentionally
removed from the network through Astra-Z-812M control panel.
7.3.2 Registering the router in Astra-Z-8945 control
panel
Step-1
Turn the router ON by plugging it into the selected 220 V
outlet on site.
Step-2
Set Astra-Z MSS on PC according to method described in
Astra-Zitadel system based on Astra-Z-8945 ver.A control
panel Operating manual* or Quick Start Guide*. Run
Setup module. Choose Wireless network / List of
wireless devices menu item. Right click any empty row
and choose Register wireless devices command from
pop-up menu.
Step-3
Initiate router registration procedure by one of 2 methods
(see p.7.2.1):
a) using the LT;
b) using the dedicated hidden registration initiation
button.
Step-4
Make sure the registration procedure is completed
according to the procedure described in the Astra-Zitadel
system operating manual* or Quick Start Guide*:
Once registration procedure completed successfully,
«RTR» appears in selected row.
In case registration procedure failed repeat
registration procedure.
Step-5
After successful registration of the detector, for long term
storage before its installation, it is allowed to switch the
router OFF.
When power is supplied, there is no need to re-register the
router in the same wireless network if it was not intentionally
removed from the network through Astra-Z MSS.
7.3 Installation and Operability Verification
7.3.1 Plug the router into the selected 220 V outlet on site.
7.3.2 Set the router operating modes in accordance with an
appropriate Astra-Zitadel system Quick Start Guide*.
Configure the router through «Alerting / System outputs»
menu sub-item:
7.3.3 Verify Router Operability:
1) In the system based on Astra-Z-812M control panel:
- Verify the router status on the control panel («Normal» status
should appear);
- Initiate a test mode from the control panel in accordance
with an appropriate Astra-Zitadel system Quick Start
Guide*.
2) In the system based on Astra-8945 control panel:
- Verify the router status on MSS interface («Normal» status
should appear);
- Initiate a test mode from MSS interface in accordance with
an appropriate Astra-Zitadel system Quick Start Guide*.
3) Make sure appropriate notification is issued.
Page 3
Revision 8745-bv1_4_en
3
8 Maintenance
To ensure the alarm system reliable operation, testing and
maintenance of the router is recommended as follows:
- Inspect the integrity and secure fastening of the router
housing at least once a month;
- Verify router operability by the method described in p.7.3.3 at
least once a month;
- Clean contaminants from the router at least once in three
months.
9 Labeling
The following information is marked on the label attached to the router
housing:
- manufacturer trademark;
- abbreviated router designation;
- firmware version;
- month and year (last two digits) of manufacture;
- conformity mark (if an appropriate certificate is available);
- bar-code that duplicates textual information.
10 EC Conformity Declarations
This product is in conformity with the provisions of:
R&TTE Directive 1999/5/EC, Article 10.5;
EN 60950: 2001 Safety of information technology equipment;
EN 50371 Generic standard to demonstrate the compliance of lowpower electronic and electrical apparatuses with the basic restrictions
related to human exposure to electromagnetic fields (10 MHz - 300
GHz) – General public;
EN 301489-17 V1.1.1 (09-2000) Electromagnetic Compatibility and
radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions for wideband data Hiperlan equipment;
EN 300220-1 V1.3.1 (2000-09) Electromagnetic compatibility and
Radio spectrum Matters (ERM); Short range devices; Technical characteristics and test methods for radio equipment to be used in the 25
MHz to 1 000 MHz frequency range with power levels ranging up to
500 mW; Part 1: Parameters intended for regulatory purposes.
Construction of the detector provides for protection class IP41.
11 Recycling
The router poses no threat to human life or health or to the
environment; after its service life is over, it can be disposed of without
any special environmental protection measures.
12 Warranty Terms
12.1 Quality Management System meets provisions of ISO 9001-2011.
12.2 The manufacturer guarantees the compliance of the router to
specifications on condition that user observes required conditions of
transportation, storage, installation and operation.
12.3 The storage warranty period is 5 years and 6 months from the
date of manufacture.
12.4 The operating warranty period is 5 years from the startup date, but
not more than 5 years and 6 months from the date of manufacture.
12.5 The manufacturer guarantees replacement or repair of the product
during the warranty period.
12.6 The warranty doesn’t come into effect in the following cases:
- not adherence to the operating manual;
- mechanical damage to the router;
- repair of the router by any third-party service except the
Manufacturer.
12.7 The warranty applies to the router only. All equipment from other
manufacturers used in conjunction with the router is subject to its own
warranty terms.
The manufacturer bears no responsibility for death, injury,
property damage or other incidental or premeditated loss based
on user's statement that the device failed to implement its
functions.
* Available for free downloading from www.controlex.eu
Sales:
Controlex GmbH
Warranty service and
technical support:
ТЕКО-TD
Philosophenweg 31-33
47051 Duisburg, Germany
Phone: +49 (0) 203 / 393 91 188
Fax: +49 (0) 203 / 393 91 189
GSM: +49 (0) 178 / 218 48 22
E-mail: info@controlex.eu
Web: www.controlex.eu
Prospect Pobedy str. 19
420138 Kazan, Russia
Phone: +7 (843) 261-55-75
Fax: +7 (843) 261-58-08
E-mail: info@teko.biz
support@teko.biz
Web: www.teko.biz
Made in Russia
Loading...
