Tekno RC NB48.4 Building Instructions

Introduction

Additional equipment and parts needed:

•

Paint for body

•

.21 nitro engine, tuned pipe, manifold and glow plug

•

High torque steering & brake servos (at least 300 oz/in)

•

RX battery, switch and harness

•

1/8th scale tires, wheels & CA glue (or premounts)

•

Fuel bottle, fuel, 1/8th buggy starter box and glow ignitor

Tools needed:

•

Hex drivers 1.5mm (TKR1104), 2.0mm (TKR1105), 2.5mm (TKR1106)

•

Nut drivers 5.0mm (TKR1107, 5.5mm (TKR1108), 7.0mm (TKR1109)

•

Hobby knife

•

Needle-nose pliers

•

Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)

•

17mm Wheel Wrench (TKR1116)

•

4mm turnbuckle wrench (TKR1103) - 5.5/7.0 two sided wrench (TKR1119)

•

4mm arm reamer (or #19 drill bit)

Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a

result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict connes of

a legally permitted RC track or facility.

Warnings: Always double-check that your radio gear is working properly before operating vehicle. Never operate the

vehicle indoors (unless the RC track is an indoor facility). Use caution while operating vehicle so as not to collide with

people who may be turn marshalling or who might otherwise not be aware that a fast moving RC vehicle is in the vicinity.

Warranty: We warrant that the parts included in this kit are free from defects. If you nd a defective part in your kit,

please contact us @ [e-mail] and we will help you to resolve the issue. We do not warranty parts that may be

broken during operation of the vehicle or otherwise. Refer to the end of this instruction manual for a listing of

spare/replacement and option parts. All spare parts and other info are available on our website (www.teknorc.com)

and through our network of domestic and international dealers and distributors.

Thank you for purchasing the Tekno RC NB48.4 1/8th Scale 4WD Competition Nitro Buggy Kit.

We are always working on new projects, so please check our website

at www.teknorc.com or our Facebook page at www.facebook.com/teknorc

for the latest news, parts, and kits.

Take your time! When you work your way through these building instructions, keep an eye out
for the following important indicators below:

•

RED TEXT - This indicates important areas of the build process that should be observed.

•

YOUTUBE - We also have many useful build videos on Youtube, so be sure to check these out!

https://www.youtube.com/c/teknorc

Thread Lock icons

Thread lock is always used when a screw is inserted into any metal part. (Included with kit)

Thread

Lock

Grease icons

Grease is usually used on any areas with movement and for sealing. (Included with kit)

Grease

TKR5150

TKR5149

*TKR5149A

(Option)

Grease

Grease

TKRBB08165

TKR5144

TKR5145B

TKR5150

Apply grease to the groove in the outdrive

Apply grease to the groove

where the o-ring is placed

as well as the o-ring itself

Fill with 10,000 wt oil to

1mm below full

DO NOT OVERFILL

Diff

Oil

Bag A

Center Differential
(overview)

TKR5415C

TKR5149

TKR5150

TKR5150

TKR5143

TKR5113

TKR1325
M3x14mm Flat Head Screw

x4

TKR5144

TKR5145B

TKRBB08165
Ball Bearing (8x16x5mm)

x2

TKR5144
Differential 0-rings

x2

TKR5145B
Differential Shims (6x17mm)

x2

TKR1325 x4

TKR5112X

TKR5112X

TKR5144

Grease

Grease

Step

A-2

Step

A-1

Step

A-4

Step

A-3

*TKR5149A

(Option)

Apply a liberal

amount of grease in the

areas between the shims

and o-rings, as well as

around the outdrive and

both sides of the seal

TKR5415C

3

*TKR5149A

(Option)

TKR8151B

TKR5149

TKR5150

TKR5150

TKR5143

TKR5113

TKR5114XB

TKR5114XB

TKR5144

Apply grease to

the groove

where the o-ring

is placed

as well as the

o-ring itself

Apply grease to the

groove in the outdrive

TKR5144

TKR5145B

TKR1325 x4

TKR5143

TKR8151B

Grease

Grease

TKR1325
M3x14mm Flat Head Screw

x8

TKRBB08165
Ball Bearing (8x16x5mm)

x4

TKR5144
Differential 0-rings

x4

TKR5145B
Differential Shims (6x17mm)

x4

Grease

Grease

Repeat for rear di

Repeat for rear di

Repeat for rear di

Repeat for rear di

Fill FRONT with 10,000 wt oil

Fill REAR with 7,000 wt oil

to 1mm below full
DO NOT OVERFILL

Bag B

Front and Rear Differential
(overview)

Step

B-1

Step

B-3

Step

B-4

Step

B-2

Diff

Oil

TKRBB08165

TKR5150

TKR5144

TKR5145B

TKR5150

Apply grease to the groove

where the o-ring is placed

as well as the o-ring itself

Apply grease to the groove in the outdrive

TKR5149

*TKR5149A

(Option)

4

TKR5075

TKR5012

TKR8152B

TKR5012

TKR5268

TKR1222

TKR1222

TKR1525

TKR1525

TKR1222

TKR1222

TKR1226

TKRBB05114

TKR1525
M3x14mm Cap Head Screw

x6

TKR1603
M5x4mm Set Screw

x1

TKR1222
13x16x0.1mm Diff Shim

x2

TKR1226
5x7x0.2mm Shim

x1

TKR1603

TKRBB05114

TKRBB05114

TKR8152B

TKR1226

TKRBB05114

TKR1603

TKR1525TKR1525

Front

Rear

Note: at spot

Note: at spot

Note: The front and rear of

the car use dierent inner

bulkheads.

The front is angled

whereas the rear is

only slightly angled.

*These may not be needed

*These may not be needed

*These may not be needed

*These may not be needed

Grease

Bag C

Front Gearbox
(overview)

Thread

Lock

Step

C-1

Step

C-2

Step

C-3

TKRBB05114
Ball Bearing (5x11x4)

x2

TKR1525 x6

5

Note Step C-2: To properly shim the di, start by test tting the di with no shims and check for

side to side play. If no (or very little) play is present, then continue on to the next step. If you feel

excessive side to side play, then start by adding one shim on the gear side of the di assembly. This

will move the mesh tighter and remove any play. If the mesh is too tight at this point, move the shim

to the other side. In some rare cases, two shims may be necessary.

TKR1222

TKR1222

TKR1525
M3x14mm Cap Head Screw

x4

TKRBB05134
Ball Bearing (5x13x4)

x2

TKR1222
13x16x0.1mm Diff Shim

x2

TKRBB05134

TKRBB05134

TKR8152B

TKR1603

TKR1525TKR1525

Front

Note: at spot

Rear

Note: at spot

TKR1603
M5x4mm Set Screw

x1

TKR1226
5x7x0.2mm shim

x1

Inner Bulkheads

TKR5075

TKR5016B

TKR8152B

TKR5016B

TKR5269

TKR1222

TKR1529

TKR5181

TKR1525

TKR1222

TKR1525

TKR1226

TKRBB05134

TKRBB05134

TKR1603

TKR1525

TKR1529

TKR1529
M3x20mm Cap Head Screw

x1

Grease

Bag D

Rear Gearbox
(overview)

Step

D-1

Step

D-2

Step

D-3

Thread

Lock

Note: The front and rear of

the car use dierent inner

bulkheads.

The front is angled

whereas the rear is

only slightly angled.

*These may not be needed

*These may not be needed

*These may not be needed

*These may not be needed

TKR1226

6

Note Step D-2: To properly shim the di, start by test tting the di with no shims and check for

side to side play. If no (or very little) play is present, then continue on to the next step. If you feel

excessive side to side play, then start by adding one shim on the gear side of the di assembly. This

will move the mesh tighter and remove any play. If the mesh is too tight at this point, move the shim

to the other side. In some rare cases, two shims may be necessary.

TKR5213A

TKR5213A

TKR1522

TKR5310

TKR5368

TKR5345B

TKR1522

TKR5213A

TKR5314B

TKR1601

TKR1601

TKR5336B

TKR5362

TKR5368

TKR5336B

TKR5345B

TKR5310

TKR1402

TKR5338

TKR1402

TKR5368

TKR5314B

TKR5314B

TKR5310

TKR1402

TKR5215B

Bag E

Center Differential Assembly
(overview)

Step

E-1

Step

E-3

Step

E-4

Step

E-2

TKR1522

TKR5310

TKR1322

TKR1522

TKR5215B

TKR5336B

TKR1601

TKR5341

TKR1322

TKR1322
M3x8mm Flat Head Screw

X2

TKR1402
M3x8mm Button Head Screw

x4

TKR1522
M3x8mm Cap Head Screw

x4

TKR1601
M3x4mm Set Screw

x2

Thread

Lock

7

Note: Brake lever alignment

4mm

Pre-thread all brake

post holes with a

separate M3 screw

Note: Tighten brake posts

(TKR5213A) all the way

down and then back o

1/2 TURN. This will

ensure your brake discs

are free while on throttle.

Rear Front

Note: Orientation of the brake cams TKR5215B.

The rear cam should be pointing up & the front cam

should be pointing down.

TKR1529

TKR1201

TKR1221

TKR1221

TKR1201

TKR1529

TKR1529
M3x20mm Cap Head Screw

x4

TKR1524
M3x12mm Cap Head Screw

x6

TKR1201
M3 Lock Nut Black

x2

TKR1221
M3x8mm Washer

x2

Step

F-1

Step

F-2

TKR1524

TKR1524

TKR5181

Bag F

Low Profile Wing Mount

8

SETTINGS

1 2
3 4

1 2
3 4

POSITION SETTINGS

1 - REARWARD LOW 2 - FORWARD LOW

3 - REARWARD HIGH 4 - FORWARD HIGH

DOWNFORCE SETTINGS

(downforce angles)

Note: Stock position setting is

#2, Forward Low

Note: Stock downforce setting is 4

°

4

°

7

°

10

°

Stock Position

(”D” Block)

Stock Position

(”C” Block)

30.2

TKR1601

TKR1601

TKR1601

TKR5086

TKR5491 - 2.4mm

TKR5086

Note: Loosen the M3x4 set screw (TKR1601)

if

the sway bar does not

turn freely.

Note: Do not overtighten

TKR5049A

TKR8163

TKR8164

TKR5165

TKR8184

TKR5174

TKR1402

TKR1601

TKR5079A

TKR1522

TKR1522
M3x8mm Cap Head Screw

x2

TKR1525
M3x14mm Cap Head Screw

x2

Bag G

Rear End

*TKR5490 - 2.3mm
*TKR5492 - 2.5mm
*TKR5493 - 2.6mm
*TKR5494 - 2.8mm
*TKR5495 - 3.0mm

(Option)

Thread

Lock

Thread

Lock

TKR1525

TKR1533
M3x40mm Cap Head Screw

x2

TKR1238
M4x10mm Droop Screw

x2

TKR5049A
Pivot Ball Sway Bar

x2

TKR5079A
Stabilizer Ball

x2

TKR1529
M3x20mm Cap Head Screw

x2

TKR1533

TKR1238

TKR1529

TKR1601
M3x4mm Set Screw

x6

Step

G-1

Step

G-2

Step

G-3

TKR5020

TKR1402
M3x8mm Button Head Screw

x4

TKR5165

Note: With these stock settings,
Anti-Squat = 2° / Rear Toe = 2.5°

For reference, with center dot

inserts in both braces,

Toe = 3° / Anti-Squat = 2°

Use a #19 drill bit or

4mm reamer to ream

arms until hinge pin

falls through freely.

9

Install the sway bar ball onto the

sway bar wire until the end of

the wire is ush with the ball

collar as

pictured above.

Front

Rear

Pivot Ball Orientation

TKR8087

TKR8034

TKR5165

TKR1201

TKR1201

TKR1601

TKR5165

TKR1201
M3 Locknut Black

x4

Step

H-1

Step

H-2

Changes to the wheelbase have a dramatic eect on handling,

since it shifts the distribution of weight over the rear wheels.

This adjusts traction. By shortening the wheelbase at the rear, you

are placing more weight over the rear wheels.

Changes to the wheelbase also change the amount of sweep the
rear driveshaft will have. More driveshaft sweep creates an eect

similar to anti-squat, where the rear end gets pushed upwards on

throttle. This helps reduce chassis slap when landing jumps on throttle.

(FRONT)

(REAR)

TKR1603
M5x4mm Set Screw

x2

TKRBB13194
Ball Bearing (13x19x4)

x2

TKRBB08165
Ball Bearing (8x16x5)

x2

TKR5071
M3x16.8mm Pin

x2

TKR1601
M3x4mm Set Screw

x4

Bag H

Rear Hub/CVA Assembly

10

Thread

Lock

Note: Notch on pin

needs to line up

with set screw.

TKR8040A

TKRBB13194

TKRBB08165

TKR5071
*TKR5071B
*TKR5071C
*TKR5071X

(Option)

TKR1603

TKR5187

TKR5050

TKR5187

TKR8052A

TKR8052A

38.50

Note: Notch always goes
on

left side of vehicle

1
2

3

4

5

A

B

C

Stock position is 4/C

TKR1529

TKR1201

Left/Right x 2pcs

TKR1201

TKR1534

TKR1201
M3 Locknut Black

x4

TKR1529
M3x20mm Cap Head Screw

x2

TKR1534
M3x22mm Cap Head Screw

x2

TKR8052A
Pivot Ball M3x6.8mm

x2

Step

H-3

Step

H-4

Actual Size

Bag H

Rear Camber Links

11

Stock Position

(”B” Block)

Stock Position

(”A” Block)

30.2

TKR1601

TKR1601

TKR1601

TKR5086

TKR5081 - 2.3mm

TKR5086

Loosen the M3x4 set screw

(TKR1601) if

the anti-roll bar

does not

turn freely.

Note: Do not overtighten

TKR1601

TKR1522

TKR1522
M3x8mm Cap Head Screw

x2

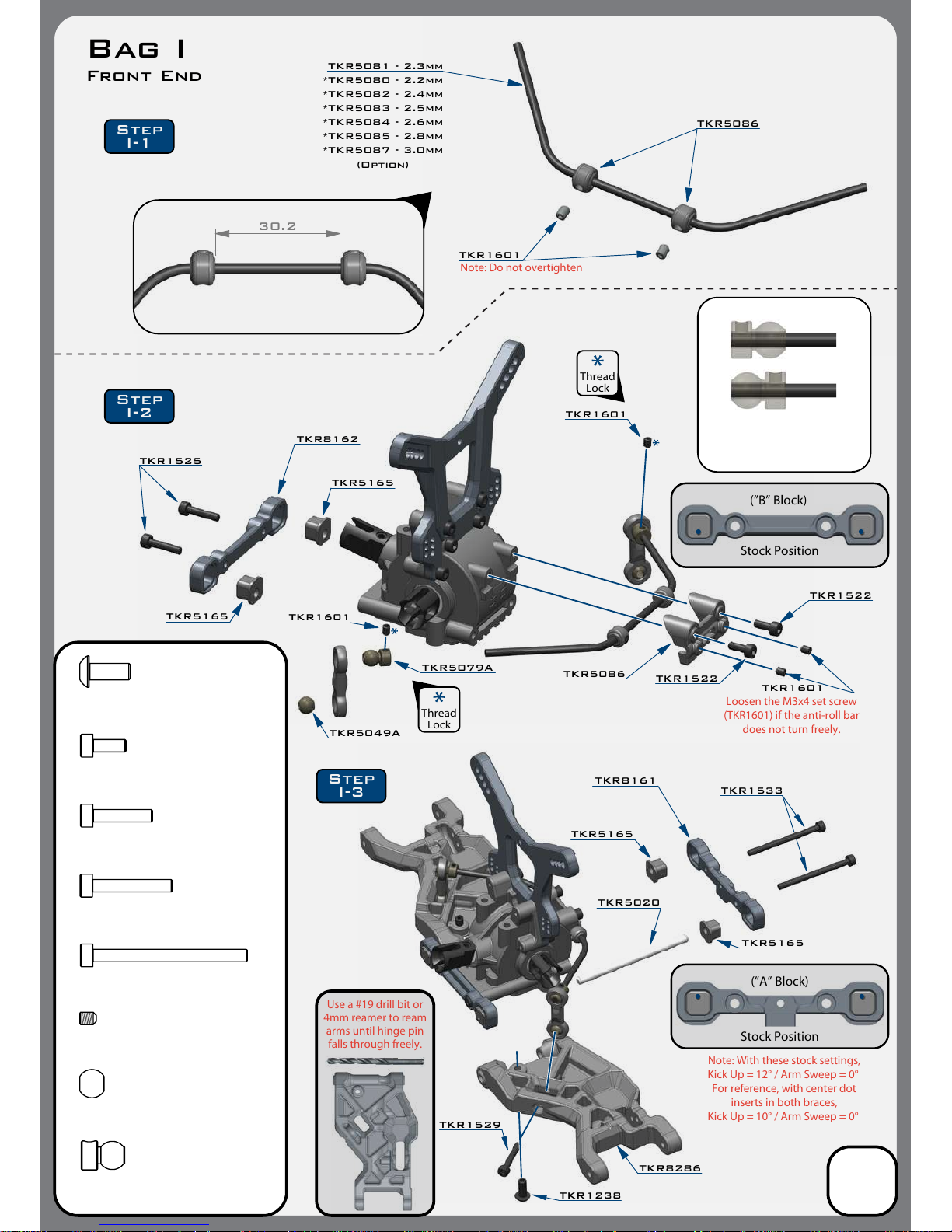

Bag I

Front End

*TKR5080 - 2.2mm
*TKR5082 - 2.4mm
*TKR5083 - 2.5mm
*TKR5084 - 2.6mm
*TKR5085 - 2.8mm
*TKR5087 - 3.0mm

(Option)

Thread

Lock

Thread

Lock

TKR1525

TKR1238
M4x10mm Droop Screw

x2

TKR5049A
Pivot Ball Sway Bar

x2

TKR5079A

Stabilizer Ball

x2

TKR1529
M3x20mm Cap Head Screw

x2

TKR1533

TKR1529

TKR1238

TKR5020

TKR1601
M3x4mm Set Screw

x6

Step

I-1

Step

I-2

Step

I-3

TKR8162

TKR8161

TKR1522

TKR8286

TKR5165

TKR5049A

TKR5079A

TKR5165

TKR5165

TKR5165

Note: With these stock settings,
Kick Up = 12° / Arm Sweep = 0°

For reference, with center dot

inserts in both braces,

Kick Up = 10° / Arm Sweep = 0°

TKR1525
M3x14mm Cap Head Screw

x2

TKR1533
M3x40mm Cap Head Screw

x2

Use a #19 drill bit or

4mm reamer to ream

arms until hinge pin
falls through freely.

12

Install the sway bar ball onto the

sway bar wire until the end of

the wire is ush with the ball

end as

pictured above.

Front

Rear

Pivot Ball Orientation

TKR8087

TKR8041

TKR8042

TKRBB08165

TKR8194A

TKR8034

TKR1201

TKR5165

TKR1601

TKR1201

TKRBB05104

TKR1601

TKR1601

TKRBB13194

TKR1221

TKR1401

TKR8042

TKRBB05104

Step

J-1

Step

J-3

Step

J-2

TKR5071

TKR1603

(Option)
*TKR5071B
*TKR5071C
*TKR5071X

TKR1603
M5x4mm Set Screw

x2

TKRBB13194
Ball Bearing (13x19x4)

x2

TKRBB08165
Ball Bearing (8x16x5)

x2

TKR5071
M3x16.8mm Pin

x2

TKR1601
M3x4mm Set Screw

x8

TKR1401
M3x6mm Button Head Screw

x2

DO NOT SKIP THIS STEP!

Note: The TKR1601 set screws are meant to keep the TKR8042 screws from coming loose. After installing TKR8042
and ensuring the steering action is free, install TKR1601 in the locations indicated. Very slowly tighten the screws

until you feel some resistance from contacting the TKR8042 screws. DO NOT OVERTIGHTEN. Also be sure to loosen

TKR1601 before unscrewing TKR8042 or you will damage the screws and the parts.

Thread

Lock

TKRBB05104
Ball Bearing (5x10x4)

x4

Bag J

Front Spindle / CVA Assembly

13

Note: The TKR1601 set screws are meant to keep the TKR8034 hinge pin from

rotating. After installing TKR8034, install the TKR1601in the locations indicated.

Very slowly tighten the screws until you feel some resistance from contacting

the TKR8034 hinge pin. DO NOT OVERTIGHTEN. Also be sure to loosen
TKR1601 before removing TKR8034 or you will damage the hinge pin.

Note: Notch on pin

needs to line up

with set screw.

TKR1221
M3x8mm Washer

x2

Note: The steering stops provide adjustable

travel limiters to control overall steering throw.

We recommend 1 washer on each side.

With too much steering travel,

the rear end will lose traction around

corners, the vehicle will be very hard to drive

and it will be more prone to breaking parts.

TKR1201
M3 Locknut Black

x4

TKR1529

Stock position is 5/A

TKR1201

TKR1201

TKR1529

14.00

TKR1201
M3 Lock Nut Black

x4

TKR1529
M3x20mm Cap Head Screw

x4

TKR5053A
Pivot Ball M3x6.8mm

No Flange

x2

TKR5187

TKR5550

TKR5187

TKR8052A

TKR5053A

Right

TKR5187

This side
mounts on hub
Note: no ange

This side
mounts on hub
Note: no ange

This side mounts

on shock tower

Note: raised ange

This side mounts

on shock tower

Note: raised ange

TKR5187

Left

TKR5550

TKR5053A

TKR8052A

Note: Notch always goes
on

left side of vehicle

1
2
3

4
5
6

A

B

Step

J-5

Step

J-4

TKR8052A
Pivot Ball M3x6.8mm

x2

Bag J

Front Camber Links

14

Actual Size

TKR1403

TKRBB050825

TKRBB050825

Note: Apply
a small drop

of oil for

easy o-ring

installation.

Note: Tighten nut all the way down,

then back it o 3 full turns

Stock Position

(is MIDDLE hole)

(front of vehicle)

TKR8100

TKR5056

TKR5123

TKR8052A

TKR8104

TKR8104

TKR5101X

TKR5231

TKR1201

TKRBB06103

TKRBB06103

TKR1529

Note: Stock bumpsteer setting is

4

washers over the steering ball link.

4 x TKR1221

TKR1221

TKRBB06103

TKRBB050825

TKRBB050825

TKR8104

TKR5122

TKR8100

TKR1529

TKR5122

TKR5122

TKR1221

TKR1201

TKR5103

TKR5103

TKR1403

TKRBB06103

TKR5123

TKR8052A

26.50

TKR1201
M3 Lock Nut Black

x2

O-ring 16x12x2

TKR5231

x1

TKRBB06103
Ball Bearing (6x10x3)

x4

TKRBB050825
Ball Bearing (5x8x2.5)

x4

TKR1529
M3x20mm Cap Head Screw

x2

TKR1221
M3x8mm Washer

x8

TKR8052A

TKR8052A

Thread

Lock

Thread

Lock

Thread

Lock

Left/Right x 2pcs

Step

K-1

Step

K-2

Step

K-3

Step

K-4

TKR8052A
Pivot Ball M3x6.8mm

x4

TKR1403
M3x10mm Button Head Screw

x2

Actual Size

Bag K

Steering Assembly
(overview)

15

Note: Notch always goes
on

left side of vehicle

TKR8104

TKR1323

TKR1250

TKR1443

TKR5102A

TKR1443

Note: On steps L-2, L-3 and L-4:

Do not tighten the chassis

screws all the way

down until the assembly steps are complete.

Position the entire front assembly on the

chassis and tighten each screw evenly.

TKR1522

TKR5166

TKR1443

TKR1344

TKR1344

TKR1343

TKR5362

Note: Initial bumpsteer setting

is four

washers below the steering ball link.

TKR5181

TKR1522
M3x8mm Cap Head Screw

x1

TKR1343
M4x10mm Flat Head Screw

x2

TKR1344
M4x12mm Flat Head Screw

x6

TKR1201
M3 Lock Nut Black

x2

TKR1323
M3x10mm Flat Head Screw

x1

TKR1443
M4x10mm Button Head Screw

x5

TKR1221
M3x8mm Washer

x8

Note: On step L-4:

Line up the bottom of the

steering posts (TKR5102A)

with the corresponding

recess cut in the

chassis.

Thread

Lock

Thread

Lock

Step

L-3

Step

L-4

Step

L-1

Step

L-2

TKR1250
M3 Steering Link Screw

x2

Bag L

Front End Assembly

16

TKR5377

TKR1443

TKR1343

TKR8320

TKR1344

TKR8320

TKR1344

TKR1528

TKR1528

TKR5376

TKR1343
M4x10mm Flat Head Screw

x4

TKR1443
M4x10mm Button Head Screw

x2

TKR1344
M4x12mm Flat Head Screw

x8

Step

M-1

Step

M-2

Step

M-3

TKR8303

Note: Three rear chassis braces are included in the kit. The shortest

brace is the stock brace and provides the most ex characteristics.

The other two are optional. Adding additional braces will further

stien the chassis. Longer braces stien more than short ones.

Bumpier tracks usually require less stiness.

(stock)(optional)

(optional)

Bag M

Center/Rear Assembly

*TKR5377A

*TKR5296

(Option)

*TKR5376A

*TKR5295

(Option)

17

TKR1240

TKR1202

Note: Slot in spring

perch should face
outside of vehicle.

Note: Black screw

is RH threaded

and goes on

driver side.

Silver screw is

LH and goes

on passenger side.

M2.5 Lock Nut Zinc

TKR1200

x2

TKR1240
M3x18mm Shock Mnt Screw

x2

TKR1248
M2x4mm Emulsion Screw

x2

TKR1211
M3 Lock Nut Flange Black

x2

Step

N-5

TKR1202
M4 Lock Nut Black

x2

TKR1211

TKR6007

TKR8027

Thread

Lock

Stock shock position is inside
hole on the arm and 2nd from
inside hole on the tower

Stock front ride height is 27mm

Shock length (droop) is 120mm

TKR1605
M3x10mm Set Screw

x2

TKR6015

TKR6146B

TKR6009

TKR6016

TKR1200

TKR6165

TKR6017

TKR6140B

TKR5049A

*TKR6017T

(Option)

*TKR6160
*TKR6162
*TKR6163

(Option)

Note:
Shaft guide
orientation

Note: Use green

slime or oil on

shock shaft

threads AND

O-rings to

prevent tearing

and leaking.

TKR6144

Step

N-1

Step

N-2

Step

N-4

Step

N-3

Note: Shock boots

must be installed

BEFORE attaching

rod end.

TKR1605

TKR6140B

TKR8763

*TKR8762
*TKR8764
*TKR8765
*TKR8766
*TKR8767

(Option)

Bag N

Front Shock Assembly

TKR8702

*TKR6003

*TKR6003B

(Option)

Use #550wt oil

FRONT

550

TKR6013

Refer to lling

instructions on

page 20 during

this step.

18

TKR6007

TKR8027

Note: Slot in spring

perch should face

outside of vehicle.

TKR1202

M2.5 Lock Nut Zinc

TKR1200

x2

TKR1211
M3 Lock Nut Flange Black

x2

Step

O-5

TKR1202
M4 Lock Nut Black

x2

TKR1211

Thread

Lock

TKR1240

Note: Black screw is RH threaded and goes on passenger side.
Silver screw is LH and goes on driver side.

TKR1240
M3x18mm Shock Mnt Screw

x2

TKR1248
M2x4mm Emulsion Screw

x2

Stock shock position is outside
hole on the arm and 2nd from
outside hole on the tower

Stock rear ride height is 29mm

Shock length (droop) is 135mm

TKR1605
M3x10mm Set Screw

x2

Use #450wt oil

REAR

450

Step

O-1

Step

O-2

Step

O-4

Step

O-3

Refer to lling

instructions on

page 20 during

this step.

Bag O

Rear Shock Assembly

19

TKR6015

TKR6146B

TKR6009

TKR6060

Note:
Shaft guide
orientation

TKR1200

TKR6165

TKR6061

TKR6140B

TKR5049A

*TKR6061T

(Option)

*TKR6160
*TKR6162
*TKR6163

(Option)

Note: Use green

slime or oil on

shock shaft

threads AND

O-rings to

prevent tearing

and leaking.

TKR6145

Note: Shock boots

must be installed

BEFORE attaching

rod end.

TKR6013

TKR1605

TKR6140B

TKR8773

*TKR8772
*TKR8774
*TKR8775
*TKR8776

(Option)

TKR8702

*TKR6003

*TKR6003B

(Option)

20

Shock Filling Instructions

For both front and rear shocks

Step 1. Insert all four larger o-rings into the emulsion caps and set aside. Install the small o-rings onto the
small emulsion screws by placing the o-rings on a pit mat or towel and pressing the screws into the o-rings.

Step 2. Fill shock with oil all the way to the top and pump the shock shaft up and down 3-5 times.

Step 3. Screw on the cap all the way tight (shock tool TKR1115 is helpful in tightening completely).

Step 4. With the shock at about a 45° angle, push and hold the shock shaft to the top and insert the

prepared emulsion screw/seal. Oil will leak out during this process. Tighten the screw until snug
(do not overtighten).

Step 5. Pump the shock shaft up and down about 30 times vigorously. This emulsies the oil.

Step 6. With the shock shaft fully extended, remove the emulsion screw from the cap to do the nal bleed.

Step 7. With the shock at about a 45° angle, push and hold the shock shaft to the top and insert the

prepared emulsion screw/seal again. Oil will leak out during this process. Tighten the screw until snug
(do not overtighten).

Step

1

Step

2-3

Step

4

Step

5

Step

6-7

We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3.

By the time you've nished step 2 on the last shock, the rst one will be ready for step 3.

Fill with oil,

Pump up and down

3-5 times,

Then screw on cap

Fill with oil,

Pump up and down

3-5 times,

Then screw on cap

Pump up

and down

30 times

Pump up

and down

30 times

Prepare caps by

inserting seals

AND

Push smaller

screws into seals

Push shaft up

to bleed air out

AND

Insert screw snug

(do not overtighten)

TKR1248 TKR1248

Pull shaft down,

remove screw

AND

Push shaft up to bleed air,

insert screw snug

(do not overtighten)

Electronics (not included)

Note: We recommend
using a servo with at
least 300 oz/in torque.

Screws (not included)

TKR1401

TKR1401

TKR1401

TKR1525

TKR1525

TKR1401

TKR5317

Switch (not included)

Electronics (not included)

Note: We recommend using

a piece of thin foam or other

type of padding under the

battery to reduce shock.

Likewise, we suggest either

using a couple layers of 2-sided

tape under the receiver or

simply use another piece of

foam and let the receiver ‘oat’

in the box. The servo wires will
help keep the receiver in place

and provide shock protection.

RED = Switch / YELLOW = Brake Servo / BLUE = Steering Servo

Wire Routing Diagram

Electronics (not included)

TKR1525

TKR1401
M3x6mm Button Head Screw

x13

TKR1525
M3x14mm Cap Head Screw

x8

TKR1221
M3X8mm Washer

x8

TKR1221

TKR1221

TKR1221

Step

P-3

Step

P-2

Step

P-1

TKR1601
M3x4mm Set Screw

x6

Antenna tube installation

Bag P

RX Tray Mud Guard

21

TKR1343
M4x10mm Flat Head Screw

X5

TKR1323
M3x10mm Flat Head Screw

x3

Bag P

Mud Guard Installation

Step

P-5

Step

P-4

TKR1323

TKR1343

Note: Do not overtighten radio tray screws.

Note: Do not overtighten mud guard screws.

22

Bag Q

Air Filter / Clutch

Step

Q-1

Step

Q-2

Step

Q-3

Step

Q-4

TKR1323
M3x10mm Flat Head Screw

x3

TKR1323

TKR1323

TKR5353

TKR5353 x4

TKR5350

TKR5353

TKR1226

TKRBB05104

TKRBB05134

TKR4213

TKR1226

TKR5353 X4

TKR5351 x4

TKR5324

TKR5324

TKR5324

TKR5324

TKR5324

TKR5353
Clutch Pin

x4

Engine and Pipe Sold Separately

Note: Do not use any other collet
than the one supplied in this kit.

Engine and Pipe Sold Separately

Manifold and pipe springs not

shown or included

TKR1226
5x7x0.2mm shim

x4

TKRBB05134
Ball Bearing (5x13x4)

x1

*TKR5363

(Option)

(foams only)

*TKR5363

(Option)

(foams only)

Note: Secure air lter hose

with 2 zip ties (included).

Thread

Lock

TKRBB05104
Ball Bearing (5x10x4)

x1

23

Note: Your kit contains 3 sets of clutch springs. 0.9mm

(green), 1.0mm (gold), and 1.1mm (red) springs are
included. The stock setting is to use (2x) 0.9mm springs
on opposing shoes and then use (2x) 1.0mm springs on

the other shoes. If the track is very high bite you can use

(2x) 1.0mm springs and (2x) 1.1mm springs for more

‘pop’. However, we strongly recommend trying the

stock setting rst and adjusting from there.

Note: Properly shimming the clutch bell is critical. The clutch bell must

not rub on the ywheel. Depending on your particular engine, you may

need to use a few of the 5x7x.2mm shims (TKR1226) to properly space the

clutch bell. The clutch bell must also move freely when the end washer and

screw are fastened. There is no ‘one size ts all’ for the number and order of

clutch bell shims that need to be used. In rare cases, the clutch bell may be

too long. Simply put the clutch bell at on a sheet of 200 grit sand paper

(teeth side up) and sand about .2mm o the bottom. This should only take a

minute and it will ensure that your clutch is working properly.

TKR1343
M4x10mm Flat Head Screw

X5

TKR1603
M5x4mm Set Screw

x1

TKR1524
M3x12mm Cap Head Screw

x1

Bag R

Engine / Pipe
Installation

Step

R-1

Step

R-2

Step

R-3

TKR5323

TKR1525

TKR1524

TKR1343

TKR1343

TKR1228

TKR1228

TKR1525

TKR1603

TKR5321

TKR5321

Set Screw

(not included)

*You may need to bend the pipe wire hanger forward

or backward depending on your particular pipe.

VERY IMPORTANT - With the set screws that secure the

pipe hanger wire set loose, install pipe onto pipe hanger

wire. Adjust the wire such that the pipe and the manifold

connections from the engine are not bent or angled. The

pipe must t naturally. You may need to bend the pipe

hanger wire to accomplish this. Then tighten the set

screw that secures the wire to the wire hanger block. The

wire must then be cut ush to the wire hanger block so it

will not interfere with the fuel tank. If the wire is not ush

with the block, you may risk puncturing your fuel tank.

! ! !

Thread

Lock

Thread

Lock

Thread

Lock

Thread

Lock

Thread

Lock

TKR1525
M3x14mm Cap Head Screw

x4

24

Bag S

Steering Linkage

Step

S-1

Step

S-2

Step

S-3

TKR5058A

TKR5056

TKR6252

TKR5056

TKR1201

TKR1201

TKR1325

TKR5320

TKR1221

TKR1221

TKR1407

TKR1325
M3x14mm Flat Head Screw

x1

TKR1201
M3 Lock Nut Black

x2

Note: Oset servo arm so it is parallel with the connecting arm at neutral or zero servo position.

PARALLEL

TKR1221
M3x8mm Washer

x2

TKR5058A
Pivot Ball M3x5.8mm

No Flange

x2

TKR1407
M3x16mm Button Head Screw

x1

*TKR5251B
*TKR5252B
*TKR5253B

(Option)

25

TKR1609

TKR1609

Note: Set collars up to appear

close to this diagram.

Note: Set collars up to appear

close to this diagram.

BEFORE AFTER

Thread

Lock

Thread

Lock

Thread

Lock

Thread

Lock

Note: Leave
2mm space

TKR1609

TKR1609

BEFORE

AFTER

Note: This rod has small

threaded section

Note: TKR5336B

should spin

freely.

TKR1609

Bag S

Brake Linkage

Step

S-4

Step

S-5

Step

S-6

Step

S-7

Step

S-8

Step

S-9

TKR1201

TKR5336B

TKR5336B

TKR1201

TKR5331

TKR1325

TKR5320

TKR5331

TKRBB050825

TKRBB050825

TKR1325
M3x14mm Flat Head Screw

x1

TKR1201
M3 Lock Nut Black

x1

TKR1221
M3x8mm Washer

x1

TKRBB050825
Ball Bearing (5x8x2.5)

x2

TKR1609
M3x3mm Set Screw

x7

Thread

Lock

Thread

Lock

NOTES:

• Align the carburetor so it forms a

straight line to the servo linkage, with
the servo in the neutral position

• Attach all linkages before setting

brake bias

• All collars should be snug against the

springs without being compressed

• Turn on radio equipment for nal

adjustment of collars, total brake force,
F/R brake bias, and throttle EPA

• Brakes should be fully disengaged and

the carburetor should be fully
closed at neutral position

26

Bag T

Fuel Tank

Step

T-1

Step

T-2

Step

T-3

Step

T-4

TKR1524

TKR5340C

TKR5340C

TKR5340C

TKR1401

TKR5341

TKR1323

TKR1221

TKR1524
M3x12mm Cap Head Screw

x2

TKR1323
M3x10mm Flat Head Screw

x2

TKR1401
M3x6mm Button Head Screw

x4

TKR1221
M3x8mm Washer

x2

*Align the fuel tank posts to the cutouts in the chassis

Note: Fuel tubing

wraps around the

tank 1 1/2 times

from the pick up

nipple (yellow line).

Pressure line is
shown in blue.

27

Wheels/Tires (not included)

Bag U

Wing/Wheels/Body

TKR5116

TKR1235

TKR8345

TKR1235

TKR5292W

*TKR5292K
*TKR5292Y

(Option)

*TKR5116B
*TKR5116C

(Option)

TKR1325

TKR1220

TKR1201

TKR5181

TKR5181

TKR1220

TKR1325
M3x14mm Flat Head Screw

x2

TKR1201
M3 Lock Nut Black

x2

TKR5116
Wheel Nut

x4

TKR1235
Body Clip

x2

Note: It may be necessary to cut holes in the body for ventilation.

Step

U-1

Step

U-2

Step

U-3

TKR1220

M4 Countersunk Washer

X2

Wing Hole Options

Most Downforce

Least Downforce

(Use Dimples as Hole Cutting Guides)

(Use as many holes as you see t to ne tune the amount

of downforce the wing creates.)

28

Parts List

TKR4213 - Clutch Bell (13t)
TKR5012 – Gearbox (front)
TKR5016B – Gearbox (rear, angled)
TKR5020 – Hinge Pins (inner, front/rear)
TKR5049A – Pivot Balls (6.8mm, no ng, sway bar, shck ends, almnm, 4pcs)
TKR5050 – Turnbuckle (camber link, front/rear, 2pcs)
TKR5053A – Pivot Balls (6.8mm, anged, outside camber, aluminum, 4pcs)
TKR5056 – Rod Ends (5.8mm, brake/steering/sway bar linkage, 8pcs)
TKR5058A – Pivot Balls (5.8mm, no ange, brake/steering link, aluminum, 4pcs)
TKR5071 – Wheel Hubs (17mm, aluminum, gun metal ano, w/pins, 2pcs)
TKR5075 – Di Coupler (f/r, hardened steel)
TKR5079A – Stabilizer Balls (6.8mm, sway bars, aluminum, 4pcs)
TKR5081 – Sway Bar (2.3mm, front)
TKR5086 – Sway Bar Mounts
TKR101X - Servo Saver Spring (HD, EB48, SCT410, NB48)
TKR5102A – Steering Posts (aluminum)
TKR5103 – Servo Saver Post (aluminum, gun metal ano)
TKR5116 – Wheel Nuts (17mm, serrated, gun metal ano, M12x1.0, 4pcs)
TKR5122 – Steering Rack Bushings (aluminum, gun metal ano, 2pcs)
TKR5123 – Turnbuckle (steering links, 2pcs)
TKR5126 – Antenna tube (universal, w/ caps, 5pcs)
TKR5165 - V2 Hinge Pin Inserts, Wheelbase Shims (EB/NB/ET/NT/SCT)
TKR5166 - Front Bumper (revised, EB/NB/ET/NT48)
TKR5174 - Rear Arm Mud Guards (for TKR5184, EB/NB)
TKR5181 - Low Prole Wing Mount and Body Mounts (EB/NB48/EB48SL)
TKR5187 - Rod Ends (straight, 6.8mm, EB/NB/ET/NT48, 8pcs)
TKR5213A – Brake Posts (aluminum, 4pcs)
TKR5215B – Brake Cams (10 deg, steel, 2pcs)
TKR5231 – Servo Saver Nut and Spring
TKR5268 - Shock Tower (front, 7075 CNC, gun metal ano, EB/NB48.3)
TKR5269 - Shock Tower (rear, 7075 CNC, gun metal ano, EB/NB48.3)
TKR5292W – Wing (high downforce, hole guides, white)
TKR5310 – Center Dierential Mount (NB48, NT48)
TKR5314B - Brake Pad Set (2pcs, NB/NT)
TKR5316 – Rear GearBox (oset, rear, NB48, NT48)
TKR5317 – Radio Tray and Mud Guard Set (left/right side, NB48, NT48)
TKR5319 – Radio Tray Covers (NB48, NT48)
TKR5320 - Servo Horns (steering, throttle, NB48, NT48)
TKR5321 - Exhaust Wire Mount Set (CNC, NB48, NT48)
TKR5323 - Engine Mounts (CNC, NB48, NT48)
TKR5324 - Air Filter Set (hose, lter, housing, NB48, NT48)
TKR5331 - Throttle Pivot Ball Assembly (CNC, NB48, NT48)
TKR5336B – Throttle, Brake Linkage (NB/NT, revised)
TKR5340C - Fuel Tank (w/ clunk, NB48, IFMAR legal)
TKR5341 - Fuel Tank Post and Air Filter Hanger Set (NB48, NT48)
TKR5345B - Brake Disc (steel, NB/NT, revised, 1pc)
TKR5350 - Flywheel (4-shoe)
TKR5351 - Clutch Shoes (7075, 4pcs, NB48, NT48)
TKR5353 - Clutch Springs and Hardware Set (NB48, NT48)
TKR5362 - Chassis Brace Set (NB48, NT48)
TKR5363 - Air Filter Foams (inner, outer, pre-oiled, 3pcs each, NB48, NT48)
TKR5368 - Brake Post Spring (NB/NT, 4pcs)
TKR5376 - Driveshaft (center, rear, steel, NB48)
TKR5377 - Driveshaft (center, front, steel, NB48, NT48)
TKR5491 - Sway Bar (2.4mm, rear)
TKR5550 – Turnbuckle (camber link, front, 2pcs)
TKR6252 - Turnbuckle (M3 thread, 40mm length, 2pcs)
TKR8027 – Shock Standos (ts TKR8702, TKR6018, TKR6003, 2pcs)
TKR8034 – Hinge Pins (outer, f/r, EB/NB48.4)
TKR8040A – Rear Hubs (L/R, 0 RC oset, EB/NB48.4)
TKR8041 – Spindles (L/R, EB/NB48.4)
TKR8042 – Kingpin Shoulder Screws (EB/NB48.4, 4pcs)
TKR8052A – Pivot Balls (6.8mm, camber, str links, almnm, centered, 4pcs)
TKR8087 – Universal Driveshaft Set (f/r, 96.5mm, EB/NB.4, 2 pcs)
TKR8100 – Ackerman Plate (7075, EB/NB48.4)
TKR8104 – Bell Cranks and Top Plates (ALL, requires TKR8100)
TKR8161 – Hinge Pin Brace (CNC, 7075, EB/NB48.4, A Block)
TKR8162 – Hinge Pin Brace (CNC, 7075, EB/NB48.4, B Block)
TKR8163 – Hinge Pin Brace (CNC, 7075, EB/NB48.4, C Block)
TKR8164 – Hinge Pin Brace (CNC, 7075, EB/NB48.4, D Block)
TKR8184 – Suspension Arms (rear, EB/NB48.4)
TKR8194A – Spindle Carriers (L/R, 15 degree, 0 RC oset, EB/NB.4)
TKR8286 – Suspension Arms (front, EB/NB48.4)
TKR8303 – Chassis (7075, 4mm, hard anodized, lightened, NB48.4)
TKR8320 – Rear Chassis Brace Set (NB48.4)
TKR8345 – Body (.040 lexan, NB48/48.3/48.4, w/ window mask)
TKR8346 – Decal Sheet (NB48.4)

Bearings List

TKRBB050825 – Ball Bearing (5x8x2.5mm, 4pcs)
TKRBB05104 – Ball Bearing (5x10x4, 4pcs)
TKRBB05114 – Ball Bearing (5x11x4, 4pcs)
TKRBB05134 – Ball Bearing (5x13x4, 4pcs)
TKRBB06103 – Ball Bearing (6x10x3, 4pcs)
TKRBB08165 – Ball Bearing (8x16x5, 4pcs)
TKRBB13194 – Ball Bearing (13x19x4, 4pcs)

Shocks List

TKR6007 – Shock Cap Bushings (4pcs, EB/NB/ET/NT/SCT)
TKR6009 – Shock O-Ring and Bladder Set (for 2 shocks)
TKR6013 – Shock Adjustment Nuts (aluminum, gun metal ano, 2pcs)
TKR6015 – Shock Cartridge Caps (aluminum, gun metal ano, 2pcs)
TKR6016 – Shock Body (rear, aluminum, hard ano, 2pcs)
TKR6017 – Shock Shafts (rear, steel, 2pcs)
TKR6060 – Shock Body (rear, x-long, aluminum, hard ano, 2pcs)
TKR6061 – Shock Shafts (rear, x-long, steel, 2pcs)
TKR6140B – Locking Shock Rod End and Spring Perch Set (revised, EB/NB/ET/NT/SCT)
TKR6144 – Shock Boots (long length, EB/NB, 2pcs)
TKR6145 – Shock Boots (X-long length, rear EB/NB, 2pcs)
TKR6146B – Shock Cartridge Set (revised, CNC, Delrin, EB/NB/ET/NT/SCT)
TKR6165 – Shock Pistons (CNC, at/at, 4x1.9, 11.3mm2)
TKR8702 – Shock Caps (7075, emulsion/vented/standard, black ano, 2pcs)
TKR8725 – Emulsion O-ring Set (4x cap seals, 8x emulsion o-rings, for 16mm shocks)
TKR8763 – Shock Spring Set (front, 1.6x11.6, 3.58lb/in, 75mm, black)
TKR8773 – Shock Spring Set (rear, 1.6x14.5, 2.75lb/in, 85mm, orange)

TKR8300 - NB48.4 1/8th Competition Nitro Buggy Kit

Dierential List

TKR5112X – Dierential Outdrives (center, lightened)
TKR5113 – Dierential Case (f/c/r)
TKR5114XB – Dierential Outdrives (f/r, lightened, revised)
TKR5143 – Dierential Seals (3pcs)
TKR5144 – Dierential O-Rings (6pcs)
TKR5145B – Dierential Shims (revised, 6x17mm, 6pcs)
TKR5149 – Dierential Cross Pins (steel, 6pcs)
TKR5150 – Dierential Gear Set (internal gears only)
TKR5415C – Spur Gear (48t, steel, CNC, revised)
TKR8151B – Dierential Ring Gear (CNC, 39t, use with TKR8152B)
TKR8152B – Di Pinion (12t, CNC, use with TKR8151B)

Hardware List

TKR1200 – M2.5 Locknuts (zinc nish, 10pcs)
TKR1201 – M3 Locknuts (black, 10pcs)
TKR1202 - M4 Locknuts (black, 10pcs)
TKR1211 – M3 Locknuts (anged, black, 10pcs)
TKR1220 – M3 Countersunk Washers (aluminum, natural, 10pcs)
TKR1221 – M3x8mm Washer (black, 10pcs)
TKR1222 – 13x16x.1mm Di Shims (10pcs)
TKR1226 - 5x7x.2mm shims (10pcs)
TKR1228 - M4 Countersunk Washer (black, 10pcs)
TKR1235 – Body Clips (10pcs)
TKR1238 - Droop Adjustment Screws (M4x10mm, 8pcs)
TKR1240 - Lower Shock Mount Screws (2 CW thread, 2 CCW thread, EB/NB/SCT)
TKR1248 – M2x4mm Cap Head Screws (black, 10pcs)
TKR1250 – Steering Link Screws (black, steel, 2pcs)
TKR1322 – M3x8mm Flat Head Screws (black, 10pcs)
TKR1323 – M3x10mm Flat Head Screws (black, 10pcs)
TKR1325 - M3x14mm Flat Head Screws (black, 10pcs)
TKR1341 – M4x6mm Flat Head Screws (black, 10pcs)
TKR1343 - M4x10mm Flat Head Screws (black, 10pcs)
TKR1344 - M4x12mm Flat Head Screws (black, 10pcs)
TKR1401 - M3x6mm Button Head Screws (black, 10pcs)
TKR1402 - M3x8mm Button Head Screws (black, 10pcs)
TKR1403 – M3x10mm Button Head Screws (black, 10pcs)
TKR1407 - M3x16mm Button Head Screws (black, 10pcs)
TKR1443 - M4x10mm Button Head Screws (black, 10pcs)
TKR1522 - M3x8mm Cap Head Screws (black, 10pcs)
TKR1524 - M3x12mm Cap Head Screws (black, 10pcs)
TKR1525 - M3x14mm Cap Head Screws (black, 10pcs)
TKR1529 - M3x20mm Cap Head Screws (black, 10pcs)
TKR1533 – M3x40mm Cap Head Screws (black, 10pcs)
TKR1534 – M3x22mm Cap Head Screws (black, 10pcs)
TKR1601 - M3x4mm Set Screws (black, 10pcs)
TKR1603 - M5x4mm Set Screws (black, 10pcs)
TKR1605 - M3x10mm Set Screws (black, 10pcs)
TKR1609 - M3x3mm Set Screws (black, 10pcs)
TKR8042 – Kingpin Shoulder Screws (EB/NB48.4, 4pcs)

Option Parts

TKR1103 – Turnbuckle Wrench (4mm, 5mm, hardened steel)
TKR1104 – XT Hex Wrench (1.5mm, adjustable length, 4mm shank)
TKR1105 – XT Hex Wrench (2.0mm, adjustable length, 4mm shank)
TKR1106 – XT Hex Wrench (2.5mm, adjustable length, 4mm shank)
TKR1107 – XT Nut Driver (5.0mm , adjustable length, 4mm shank)
TKR1108 – XT Nut Driver (5.5mm , adjustable length, 4mm shank)
TKR1115 – Pivot Ball and Shock Multi-tool (aluminum)
TKR1116 – 17mm Wheel Wrench, Shock Cap Tool
TKR1119 – 5.5mm / 7.0mm Wrench (hardened steel)
TKR5071B – Wheel Hubs (17mm, alum, ltnd, gun metal ano, 1mm o, w/pins, 2pcs)
TKR5071C – Wheel Hubs (17mm, alum, ltnd, gun metal ano, 2mm o, w/pins, 2pcs)
TKR5071X – Wheel Hubs (aluminum, lightened, gun metal ano, w/pins, 2pcs)
TKR5080 – Sway Bar (front, 2.2mm)
TKR5082 – Sway Bar (front, 2.4mm)
TKR5083 – Sway Bar (front, 2.5mm)
TKR5084 – Sway Bar (front, 2.6mm)
TKR5085 – Sway Bar (front, 2.8mm)
TKR5087 – Sway Bar (front, 3.0mm)
TKR5092 – Sway Bar (front, 2.0mm, EB.3/NB.3/SL/SCT.3)
TKR5093 – Sway Bar (front, 2.1mm, EB.3/NB.3/SL/SCT.3)
TKR5094 – Sway Bar (front, 2.7mm, EB.3/NB.3/SL/SCT.3)
TKR5095 – Sway Bar (front, 2.9mm, EB.3/NB.3/SL/SCT.3)
TKR5149A – Di Cross Pins (aluminum, 6pcs, requires TKR5150)
TKR5251B – Aluminum Servo Horn (23t spline, M3 clamp, double hole arm)
TKR5252B – Aluminum Servo Horn (24t spline, M3 clamp, double hole arm)
TKR5253B – Aluminum Servo Horn (25t spline, M3 clamp, double hole arm)
TKR5292K – Wing (high down force, hole guides, ROAR/IFMAR legal, black)
TKR5292Y – Wing (high down force, hole guides, ROAR/IFMAR legal, yellow)
TKR5295 - Universal Driveshaft (center, rear, 111mm, NB48/48.3)
TKR5296 - Universal Driveshaft (center, front, 90.5mm, NB/NT48.3)
TKR5376A - Driveshaft (center, rear, aluminum, NB48)
TKR5377A - Driveshaft (center, front, alminum, NB48, NT48)
TKR5490 – Sway Bar (rear, 2.3mm)
TKR5492 – Sway Bar (rear, 2.5mm)
TKR5493 – Sway Bar (rear, 2.6mm)
TKR5494 – Sway Bar (rear, 2.8mm)
TKR5495 – Sway Bar (rear, 3.0mm)
TKR5496 – Sway Bar (rear, 2.1mm, EB.3/NB.3/SL/SCT.3, ET48, NT48)
TKR5497 – Sway Bar (rear, 2.2mm, EB.3/NB.3/SL/SCT.3, ET48, NT48)
TKR5498 – Sway Bar (rear, 2.7mm, EB.3/NB.3/SL/SCT.3, ET48, NT48)
TKR5499 – Sway Bar (rear, 2.9mm, EB.3/NB.3/SL/SCT.3, ET48, NT48)
TKR6003 – Shock Caps (aluminum, gun metal ano, 2pcs, EB48)
TKR6003B – Shock Caps (aluminum, non-vented top, 2pcs)
TKR6009B – Shock O-Ring Set (16pcs)
TKR6017T – Shock Shafts w/ TiNi coating (rear, steel, 2pcs)
TKR6061T – Shock Shafts w/ TiNi coating (rear, x-long, steel, 2pcs)
TKR6152 – Full Option Shock Kit (122mm, no springs, no pistons)
TKR6153 – Full Option Shock Kit (137mm, no springs, no pistons)
TKR6159 – Shock Pistons (CNC, at/tapered, 4x1.8mm)
TKR6160 – Shock Piston Blanks (CNC, at/tapered, 16 dimples)
TKR6162 – Shock Pistons (CNC, at/tapered, 3×2.1, 10.4mm2, 4pcs)
TKR6163 – Shock Piston Blanks (CNC, at/at, 16 dimples)

29

Box Stock

27 29

-2 deg

550

4x 1.9 at

black

0

emul emul

10k 10k

300oz min 300oz min

7k

0

orange

4x 1.9 at

450

15 deg

0 deg

12 deg

2 deg

.5 deg out 2.5 deg

2.3mm

120

stock

stock

2

3

135

13

60 40

2x green / 2x gold

aluminum

48

2.4mm

-2 deg

0

4

0

1

3

4

Tekno RC

10755 Scripps Poway Pkwy #598

San Diego CA 92131

USA
