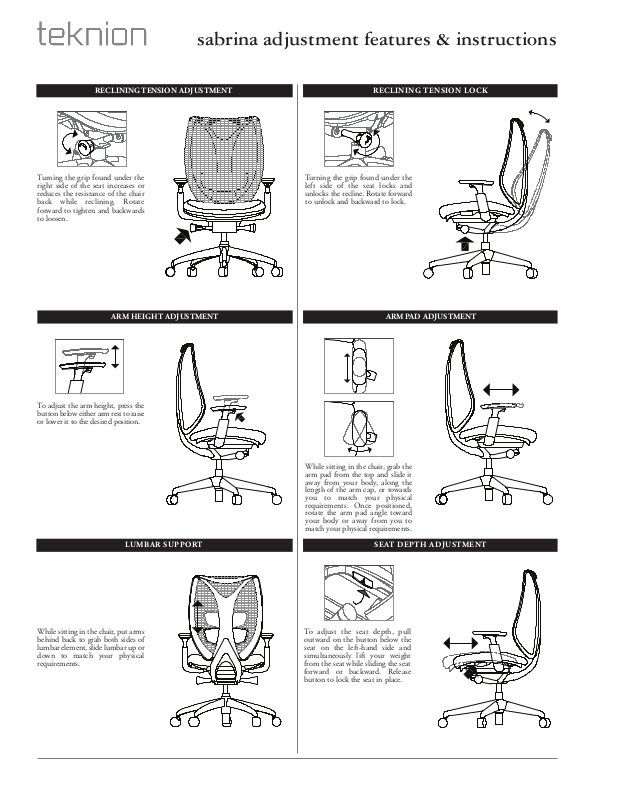

sabrina adjustment features & instructions
RECLINING TENSION ADJUSTMENT RECLINING TENSION LO CK
Turning the grip found under the
right side of the seat increases or
reduces the resistance of the chair
back while reclining. Rotate
forward to tighten and backwards
to loosen.
ARM HEIGHT ADJUSTMENT ARM PAD ADJUSTMENT
To adjust the arm height, press the
button below either arm rest to raise
or lower it to the desired position.
LUMBAR SUPPORT SEAT DEPTH ADJ US TM EN T
Turning the grip found under the
left side of the seat locks and
unlocks the recline. Rotate forward
to unlock and backward to lock.
While sitting in the chair, grab the
arm pad from the top and slide it
away from your body, along the
length of the arm cap, or towards
you to match your physical
requirements. Once positioned,
rotate the arm pad angle toward
your body or away from you to
match your physical requirements.
While sitting in the chair, put arms
behind back to grab both sides of
lumbar element, slide lumbar up or
down to match your physical
requirements.
To adjust the seat depth, pull
outward on the button below the
seat on the left-hand side and
simultaneously lift your weight
from the seat while sliding the seat
forward or backward. Release
button to lock the seat in place.
sabrina adjustment features & instructions
SEAT H EI GH T ADJUSTMENT FIT AND FLEX BACK
Seat height can be adjusted by
pulling up on the lever below the
seat on the right hand side. When
this lever is pulled, the weight of
the body will cause the seat to
lower, and releasing it stops the seat
at the desired height. Pulling up on
the lever with no weight on the seat
allows it to rise.
While the center frame firmly
supports the user sitting, the slide
frame allows passive forking right
and left as the user twists, or flexes
torsionally.
Warning
Tipping or collapsing can result in serious injury. To prevent product failure and possible injury:
• This chair has been designed and tested for users weighing up to 300 lbs
• Frequently inspect the chair for visible cracks and damages, tighten all screws, bolts, adjustable knobs and parts
• Do not use the chair if damaged or unstable – immediately remove it from service
• This chair is equipped with casters intended for use on carpeted surfaces. Use of these casters on hard surfaces could result in unexpected rolling
and tipping. Casters designed for use on hard surfaces are available. If in doubt, see your dealer for appropriate selection
• Do not stand on or use the chair as a step ladder
• Failure to follow these warnings could result in serious injury
