[SENTRY] LED FLOOD LIGHT
USER MANUAL
INDOOR USE ONLY
Teknik Lighting Solutions Pty Ltd
ABN: 44 608 397 913
Tel: 1300 313 780
www.tekniklighting.com.au
IP65
Page 2
INTRODUCTION
Thank you for selecting the [SENTRY] LED Flood Light. Please ensure that luminaire is installed in
accordance with the below instructions. TEKNIK assumes no responsibility for inappropriate use
or installation of the product, including any associated damage caused.
1. Read the entire manual carefully before
installation and operation.
2. The “Warranty Period” is 5 years from
date of purchase. Teknik will replace or
repair the product if it fails or becomes
defective under normal use or due to a
manufacturin defect within the prescribed
warranty period.
3. Declared lumen output is based upon
measurements obtained during operation
on the appointed LED Electronic Driver
under standardised laboratory conditions.
4. Installation must be performed by a
licenced and qualified electrician.
5. Instant restart is allowed.
6. Use solid copper wire of 18 AWG
(minimum) for the input terminal
extension, and 20 AWG (minimum) for the
output terminal extension.
7. Under no circumstance should any
changes be made to any internal electric
circuits connectors or cables for any
reasons.
8. Under no circumstance should any
physical objects of any nature be inserted
into the LED product as this may cause
electric shock, malfunction, or damage of
the products.
9. When the LED light is in operation, the
heat sink body temperature may rise to
60° C.
10. Before replacement of luminaire, turn
the power off and allow the lamp to cool
down.
PRECAUTION
\ 5 year warranty
\ Innovative installation method
\ Longer life (LM80 test data)
\ Flex and plug for simple installation
\ Reduced heat output
\ Zero Mercury, Ultraviolet or infra-red
\ High CRI
\ Wide beam angle, ideal for commercial
environments
Page 3

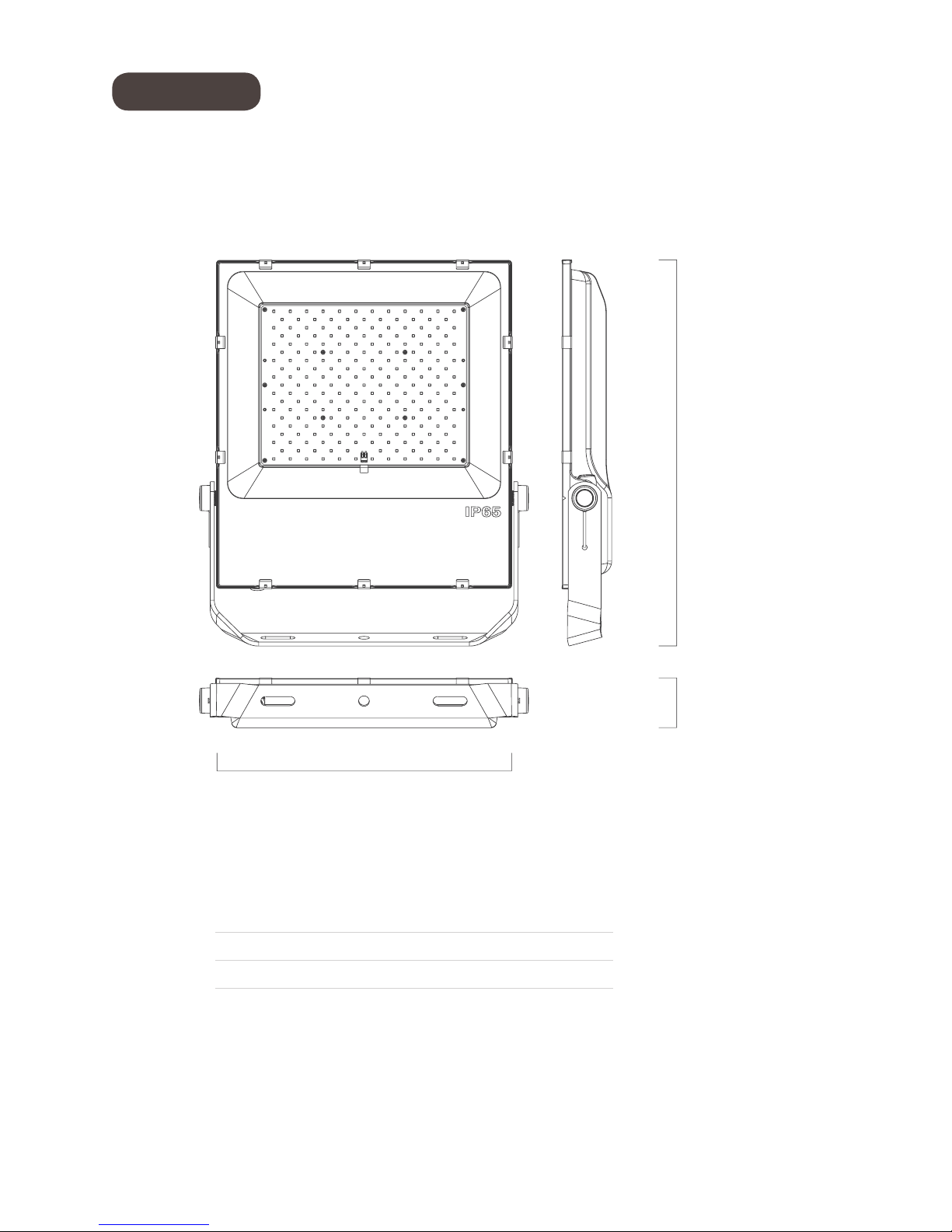

DIMENSIONS
Model L W H
100W 295 60 402
150W 330 60 430
Height (H)
Width (W)
Length (L)
Page 4

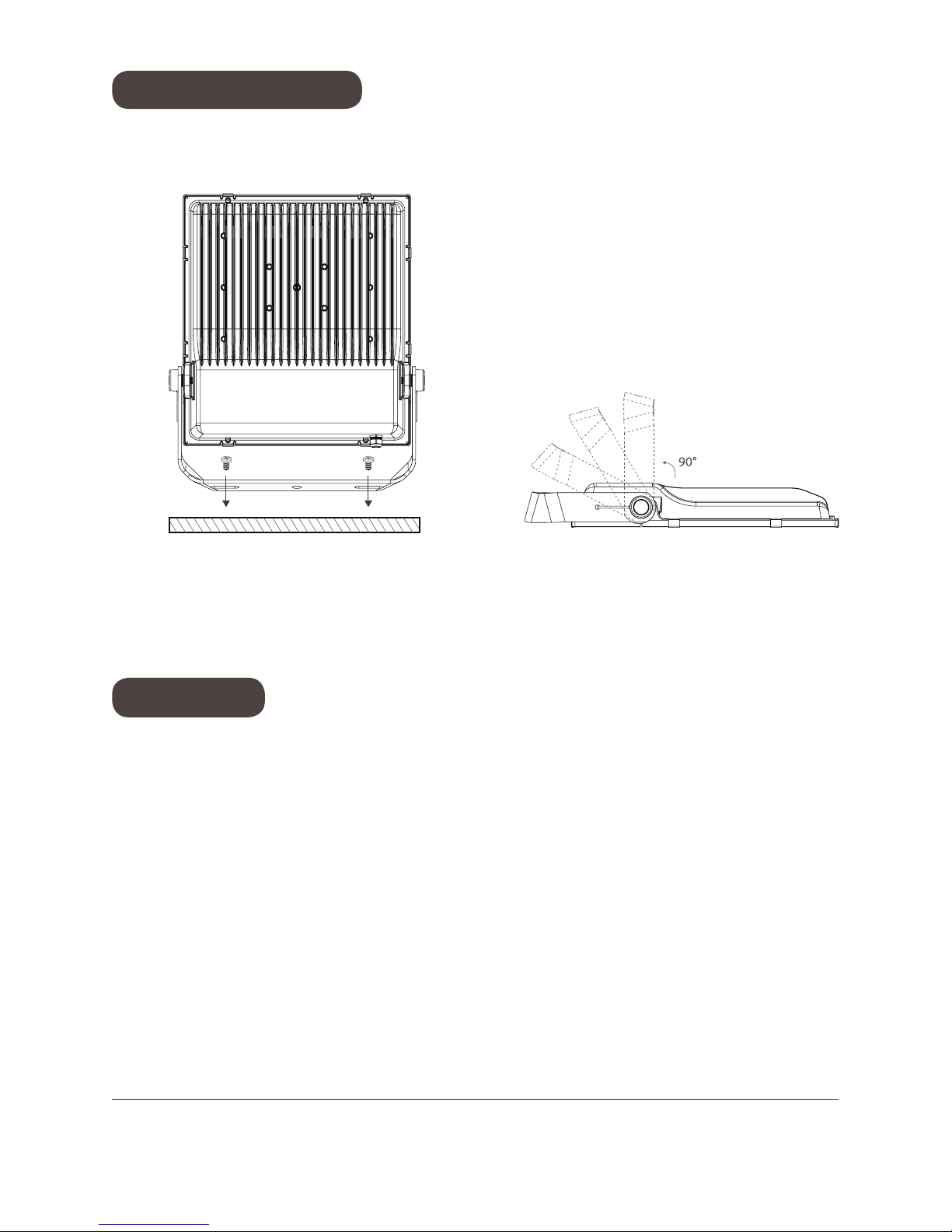

INSTALLATION DIAGRAM
5/26-34 Dunning Ave, Rosebery NSW 2018 | 1300 313 780 | [email protected]
www.tekniklighting.com.au
DISCLAIMERS
1. This product must be installed and used as per these instructions.
2. This product contains no serviceable parts and no attempt should be made to repair this
product. If the product is faulty it should be recycled.
3. This product is not suitable for installation in hazardous and/or corrosive areas.
4. Electrical installations periodically receive transient over voltages. This product has been
designed to minimise the effect of such voltages on connected equipment. It may not give
full protection for extreme over-voltage transients such as those resulting from a close
lighting strike.
5. This product has been designed to operate in ambient temperatures: -10°C to 45°C.
6. Teknik reserves the right to modify the specification of this product at any time.
Wall Mount
Fasten by Screw Adjustable angle up to 90°
