Tekmatix TMFM - 65 Operation Manual
Fully Automatic Coffee Machine
OPERATION MANUAL
TMFM - 65
1
2
3
4
5
6
7
8
9
11
10
12
13
14
16
15
Instructions of coffee machine parts
Bean container cover
Water tank lid
Water tank
Coffee grounds container
Drip tray
Drip tray grid
Powder container cover
Grinding wheel
Bean container
Coffee spout
Handle
Milk pipe
Milk frother
Hot water spout
Milk and cream spout
Power cord
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
6
5
7
8
9
10
Coffee machine operation interface instructions
Espresso icon
Long coffee icon
Hot water icon
Power switch
Screen
Cappuccino icon
Coffee Latte icon
Hot milk/cream icon
Cleaning button
Rotary button
1
2
3
4
5
6
7
8
9
10
01
Safety Instructions
Precautions

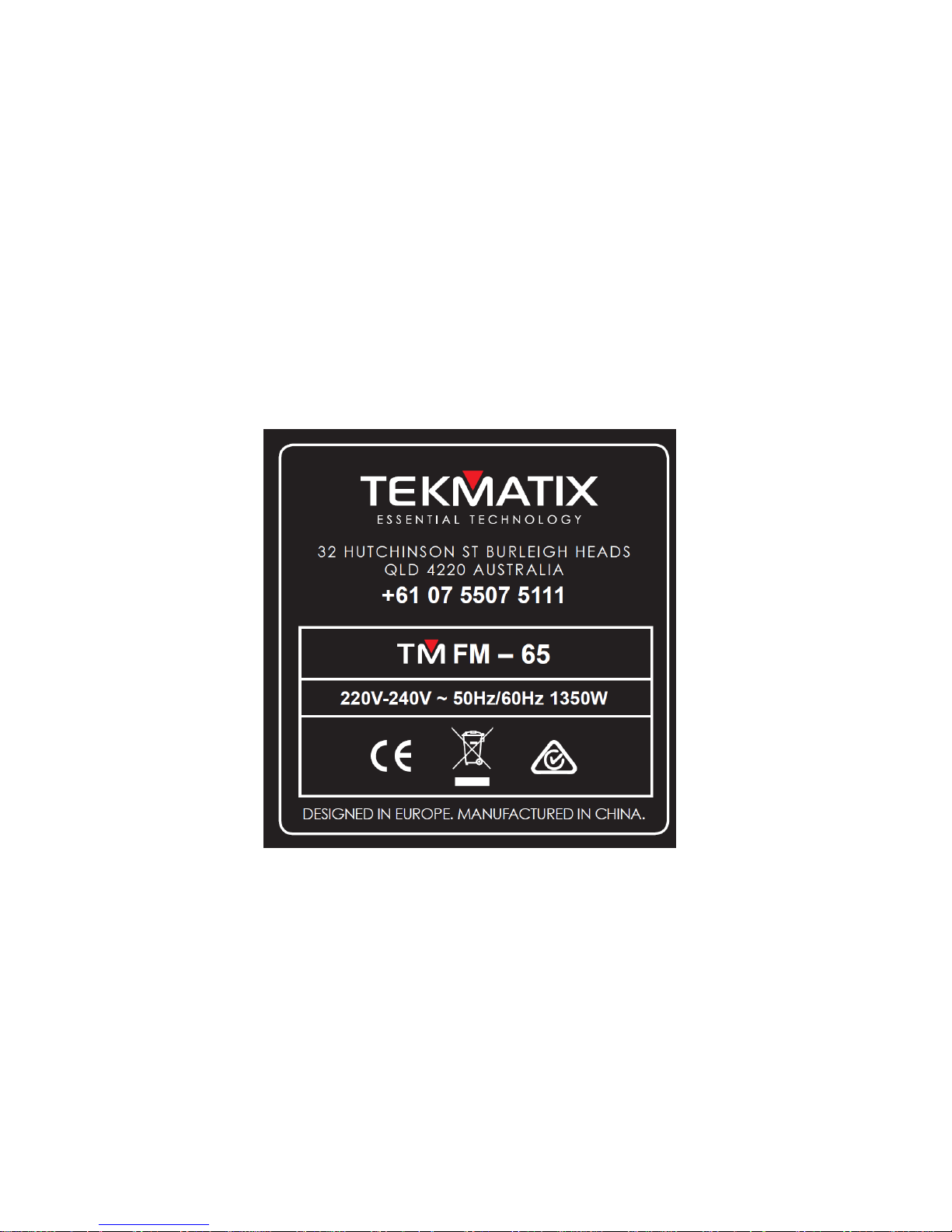

Please see specification label on the bottom of coffee machine or technical
date indicated in instruction manual(P20).
Please do not contact with heat parts of coffee machine to avoid scalding.
To avoid operator’s injury caused by burn, electric shock or other unexpected
reasons, please do not contact the power cord, plug, and main body with
water.
Unplug from outlet when stop using and before cleaning. Allow to cool
before disassembling and cleaning the coffee machine.
Use of parts that are not explicitly recommended would result in a fire of
coffee machine, electric shock, or injury to persons.
Please do not use the machine outdoor.
Please do not hang up the power cord to the edges of the table, for it might
be abased to an electric leakage, and cause injury to operators.
Please place the machine in a fixed and stable workbench, and keep far
away from high temperature (e.g. gas stoves, electric cookers, induction
cookers, etc).
Power off the machine, until the cleaning program finished and no
indication on screen, and then unplug the power.
When using espresso, long coffee and hot water, liquid in high temperature
will flow from coffee spout and hot water spout. Please do not touch it to
avoid scalding.
When using cappuccino, coffee latte, hot milk/cream, please confirm that
the milk pipe has been connected from the milk frother to milk before
making cappuccino, coffee latte, and hot milk/cream. Otherwise, high
temperature steam may cause personal injury.
●
●
●
●
●
●
●
●
●
●
■
■
■
This appliance can be used by children aged from
8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the
hazards involved. Cleaning and user maintenance
shall not be made by children unless they are
older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than
8 years. Children shall not play with the appliance.
Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similar
qualified persons in order to avoid a hazard.
02
Warnings
Prohibitions
Never disassemble and repair the machine without authorization. If there is
any error, please send it to authorized service center for repairing.
Except for cleaning and daily maintenance to coffee machine, if it fails to
work please send it to authorized after-sale service center for repairing, or
contact with customer service for after-sale services.
Never immerse the machine into water, and do not put the machine near
the water tap or water tank.
Never disassemble coffee machine without authorization, for any maintenance
contact after-sales service center.
Never use an unmatched voltage to the electric specification of the
machine; otherwise, the machine would be burnt.
Only purified water in room temperature is allowed to be filled into the water
tank. Never put warm water, hot water, milk or other liquid into it.
Never carry or move the coffee machine while working. For moving or
carrying the coffee machine, please switch it off and unplug the power
cord firstly.
The machine may release heat. Therefore, when placing the machine in the
workbench, at least 3cm must be left against its surface, sides and wall side;
at least 15cm must be left against its top. Prohibit placing the machine into
a narrow space. As for dimension of the machine, please look at the
Technical Data of User Manual (Page 20).
●
●
●
●
●
●
Safety Instructions
Never use non-family usage detergent to wipe the machine, otherwise it
may cause corrosion of coffee machine, and result in a risk of electric shock.
Never use wet rag to wipe coffee machine, may result in a risk of electric
shock.
Never use hard edged tool or rough rag to clean the stain on the machine,
it will damage the machine.
Never put instant coffee powder or powder or other mixture powder
into the bean container or powder container. It would cause coffee
machine damaged.
Never fill specially treated coffee bean (e.g. cocoa, sugar coated) into the
bean container, it would cause coffee machine damaged.
Only roasted coffee bean is allowed to put into the bean container. Rice,
soybean, chocolate bean, nut, sugar, spice,etc .,are prohibited. Otherwise
it would cause coffee machine damaged.
Never wash bean container or powder container with water, it will damage
the machine.
Never use coffee machine in the environment temperature below 0 °C.
Water inside the machine will freeze and cause the coffee machine
damaged.
Never expose the machine in rainy, snowy, frosty environment. It would
cause coffee machine damaged.
●
●
●
●
●
●
●
●
●
If the coffee machine is damaged because of the situation that has
been warned above, it is not covered in the warranty!
needs disassembling the machine,please return it to Service Centre or
cocoa
03
Proper operation
Safety Tips
To guarantee the coffee taste, make sure that temperature of the water filled
into the water tank is at 25℃ or so.
Coffee machine can only be used for preparing coffee, hot milk, milk foam,
and hot water. Do not use it for any other intended use. We will not take
any responsibility for the consequences of improper use. Please carefully
read all the contents of this manual, so that you can know the coffee machine
sufficiently.
Please keep this manual properly for looking up at any time.
Please notice the following tips to avoid personal injury from electric shock.
Do not operate the coffee machine if the appliance or the power cord is
damaged.
When encountering breakdowns of the machine (if any burning smell or
smoke), unplug the power cord immediately and contact with service
center.
If the power cord of the coffee machine is damaged, please contact with
service center.
Place the coffee machine and the power cord far away from heat sources.
Please don't contact power cord with sharp tools.
Do not repair the coffee machine without authorization or operate it in the
way that was not mentioned in this manual, to avoid personal injury.
Place the coffee machine out of the reach of children.
When Coffee machine is unused for long periods, unplug the power cord
and put it away, so that not to trip up people or damage to the power cord.
Please don't use unoriginal parts, otherwise, it may cause the machine
damaged.
●
●
●
●
●
●
●
●
●
Instructions for use
Symbol description
Reading this manual will help you be familiar with the coffee machine, and use
it properly.
“Instructions for first-time use " introduces the operation process of coffee
machine step-by-step, for first time use.
“failures handling" will provide information when encountering problems.
Non-compliance with the operation, may cause electric shock,
and threat to life.
Non-compliance with the operation may cause Coffee machine
damaged, or personal injury.
Non-compliance with the operation, may cause scalded or burn
injury.
This symbol, if prompted, please carefully read it.
This symbol, if prompted, represents recycle.
04
05
03
03
05
05
05
06
06
18
19
20
20
05
01
03
03
09
10
10
11
11
11
11
11
11
9
12
12
13
14
16
17
12
17
17
17
18
09
07
07
08
17
Catalogue
Safety Instructions
Proper operation
Instructions for use
Coffee machine model
Symbol description
Instructions for first time use
Power connection
Fill water tank
Fill beans
Grinding wheel
Power on
Power off
Making beverages
Preparing coffee by touch icon
Single time setting of coffee parameters
Preparing coffee with coffee powder
Program setting
Maintenance setting
Setting beverage parameters and range
Temperature setting
Energy-saving setting
Automatic switch off
Reset
Information
Language
Exit
Cleaning and maintenance
Cleaning the coffee machine before operation
Cleaning brewing unit
Rinsing milk unit
Descaling the coffee machine
Cleaning coffee grounds container and drip tray
Cleaning water tank
Cleaning bean container
Disassembling and cleaning the milk frother
Installing milk pipe
Cleaning milk pipe
Cleaning coffee machine
Transport and recycle
Display information
Failures handling
Technical data
05
Instructions for first-time use
This chapter will help you understand the basic operations and settings for your
first time use
Power connection
Place the coffee machine on a stable workbench that is not
close to water.
Keep the coffee machine far away from high temperature
heat source.
Be sure to use power supply that is in accordance with
specification label.
Put the power cable at a suitable place to avoid people
tripping over.
●
●
●
●
Fill water tank
Only purified water at room temperature is allowed to fill in
the water tank, never fill any other liquid (e.g. warm water,
hot water, milk). It will damage coffee machine. In order to
ensure the taste of coffee, it is recommended to use water at
25℃ or so. Low temperature water will not make a good
taste.
To ensure healthy and the taste of coffee, please change
the water in the tank every day.
The amount of water in the water tank cannot exceed the
height of the MAX mark.
●
●
●
Fill beans
Never put the coffee beans that have been specially
treated (e.g. sugar, cocoa) into the bean container.
Only roasted coffee beans can be put into the bean container,
never put others like rice, soybeans, chocolate beans, nuts,
sugar, and spices.
Never put hard objects into the bean container, otherwise it
will damage the grinder.
The bean container cover playing a role as seal. It keeps the
aroma of coffee beans maximally. Please do not lose the
cover.
Don't fill the liquid in the bean container.
●
●
●
●
●
Finest
Fine
Medium
Rough
Roughest
Grinding wheel
Please adjust the fineness of coffee bean powder according
to the coffee beans.
Please adjust the grinding wheel when the grinder is running,
or the grinder will be damaged.
If your coffee beans are in dark color, it is recommended to
set to the rough mode.
If your coffee beans are in light color, it is recommended to
set to the fine mode.
During making coffee, if the coffee outflows very slowly
or completely does not outflow, please set it to the
rough mode.
If the coffee outflows very quickly and the color of crema on
the top is very light, please set it to the fine mode.
The adjustment of grinding wheel will be effective only after
making two or more cups of coffee.
●
●
●
●
●
●
●
06
Power on
As the machine has been tested at factory, there may be a
little coffee powder left . We promise the machine is
brand new.
The coffee machine will start self-testing and cleaning at the
first-time use, this helps the coffee machine achieve the
best working condition, and this process cannot be skipped
●
●
Every time powering on the coffee machine, it will automatically
complete heating and cleaning for one time, and the
process cannot be stopped. The coffee machine can only
be used after finished the above cycle process.
During the cleaning process, some hot water may flow out of
the coffee spout into the drip tray. Please avoid contacting
the spilling hot water.
Please ensure the power is connected before pressing
power button.
●
●
First-time use
Power off
READY
Every time when powering off the coffee machine, it will
automatically complete cleaning process for one time, and
the process cannot be stopped. This operation is to clean up
the coffee pipelines and remove the coffee grounds.
During the cleaning process, some hot water will flow out of
the coffee spout into the drip tray. Avoid touching spilt hot
water, so as not to be burned.
Only after using milk/cream/cappuccino/lattee, the Rinse
Milk Unit function will be operated when power off.
When you press power button, the machine will be
power off after auto cleaning.
●
●
●
Loading...
