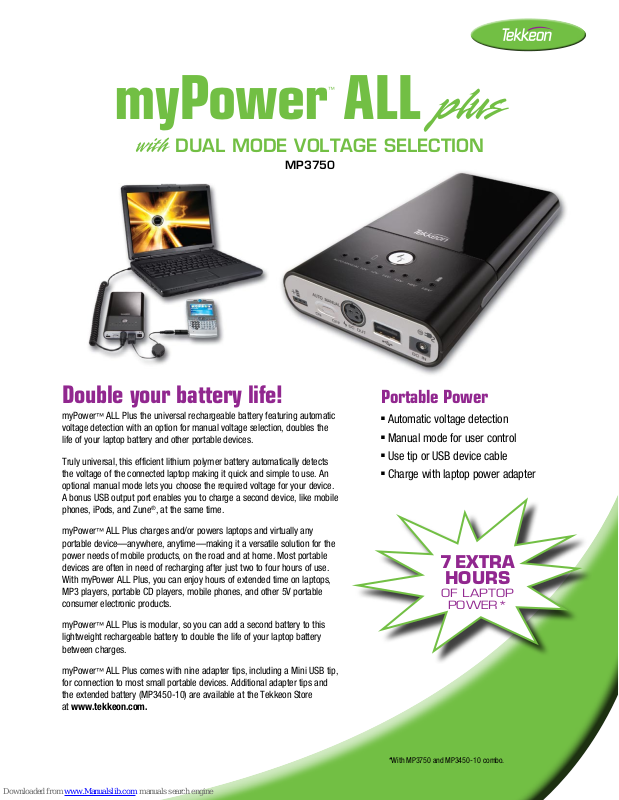

Page 1
™
myPower ALL plus
with DUAL MODE VOLTAGE SELECTION
MP3750
Double your battery life!
myPower™ ALL Plus the universal rechargeable battery featuring automatic
voltage detection with an option for manual voltage selection, doubles the
life of your laptop battery and other portable devices.
Truly universal, this efficient lithium polymer battery automatically detects
the voltage of the connected laptop making it quick and simple to use. An
optional manual mode lets you choose the required voltage for your device.
A bonus USB output port enables you to charge a second device, like mobile
phones, iPods, and Zune®, at the same time.
myPower™ ALL Plus charges and/or powers laptops and virtually any
portable device—anywhere, anytime—making it a versatile solution for the
power needs of mobile products, on the road and at home. Most portable
devices are often in need of recharging after just two to four hours of use.
With myPower ALL Plus, you can enjoy hours of extended time on laptops,
MP3 players, portable CD players, mobile phones, and other 5V portable
consumer electronic products.
myPower™ ALL Plus is modular, so you can add a second battery to this
lightweight rechargeable battery to double the life of your laptop battery
between charges.
myPower™ ALL Plus comes with nine adapter tips, including a Mini USB tip,
for connection to most small portable devices. Additional adapter tips and
the extended battery (MP3450-10) are available at the Tekkeon Store
at www.tekkeon.com.
Portable Power
n
Automatic voltage detection
n
Manual mode for user control
n
Use tip or USB device cable
n
Charge with laptop power adapter
7 extra
hours
of laptop
power*
*With MP3750 and MP3450 -10 combo.
Page 2
™
myPower ALL plus
with DUAL MODE VOLTAGE SELECTION
MP3750
Adapter tips included!
Includes adapter tips for many laptop models:
n
Asus n Averatec n IBM/Lenovo n Dell n Fujitsu
Acer
Gateway n HP/Compaq n NEC n Panasonic n Toshiba n Sony
More adapters available at tekkeon.com.
Output Adapter Tips
Input Adapter Tips
Capacity Display/
Voltage Selector
Voltage/Capacity
Indicators
Power/Mode
Selector
Power and charge
two devices at once!
Use an adapter tip or your device USB cable to
simultaneously charge your 5V devices including
mobile phones, PDAs, iPod, Zune® and MP3.
MP3750
USB Port for Connection
to 5V device
MP3450-10
Charging/USB Indicator
Adapter kit with carrying pouch
(includes mini USB tip AND 8 output adapter tips/
6 input adapter tips for connection
to most laptops)
Specifications
Weight: 15.4 oz (or 32 oz with extendable battery)
Dimensions: 3.32" (W) x 6.85" (L) x .89" (D)
Battery Type: Rechargeable lithium polymer
Lithium Content*: 4 grams (MP3750)
4 grams (MP3450-10)
Charging Time: 4 hours
Voltage Selection: 10 to 19V for main output,
5V for USB port
Output Power: 50Wh
Color: Black
*Meets FAA lithium battery requirements for carry-on luggage.
Box includes
n
myPower ALL Plus universal rechargeable battery
n
Adapter kit with carrying pouch
(includes mini USB tip AND 8 output adapter tips/
6 input adapter tips for connection to most laptops)
n
Retractable USB cable
n
Output cord
n
User guide
Battery Connection Port/
3-Pin Input Port
For Connection to Device
(10V - 19V auto select)
DC OUT
For Connection to Power
Power on the Go
DEVICE EXTRA POWER WITh EXTRA bATTERy*
Laptops 3.5 hours 7 hours
Portable media 12 hrs of video 24 hrs of video
centers 30 hrs of audio 60 hrs of audio
MP3 players 42 hours 84 hours
Portable CD players 96 hours 192 hours
PDAs 14 hours 28 hours
Mobile phones
talk time talk time
*With MP3750 and MP3450-10 combo.
Hours shown are approximate, and will vary depending on
connected device. Extra run time for 17" laptops will be lower.
MP3750 will power or charge virtually all laptops for which an adapter tip is
available, and that draw up to 90W output power from the device power adapter.
Each battery contains 4 grams of lithium, which is less than the FAA maximum of
8 grams for carry-on luggage.
60 hours of 120 hours
www.tekkeon.com
Tekkeon, Inc. . 3002 Dow Avenue, #134 . Tustin, CA 92780
DC IN
Adapter
Battery Connection Port
Optional extended battery
(MP3450-10) available to
double the capacity.
© 2009 Tekkeon, Inc. All rights reserved. myPower is a trademark of Tekkeon, Inc. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
Zune is a registered trademark of Microsoft Corporation. Specifications are subject to change without notice. 0409 Made in China. Rev A
