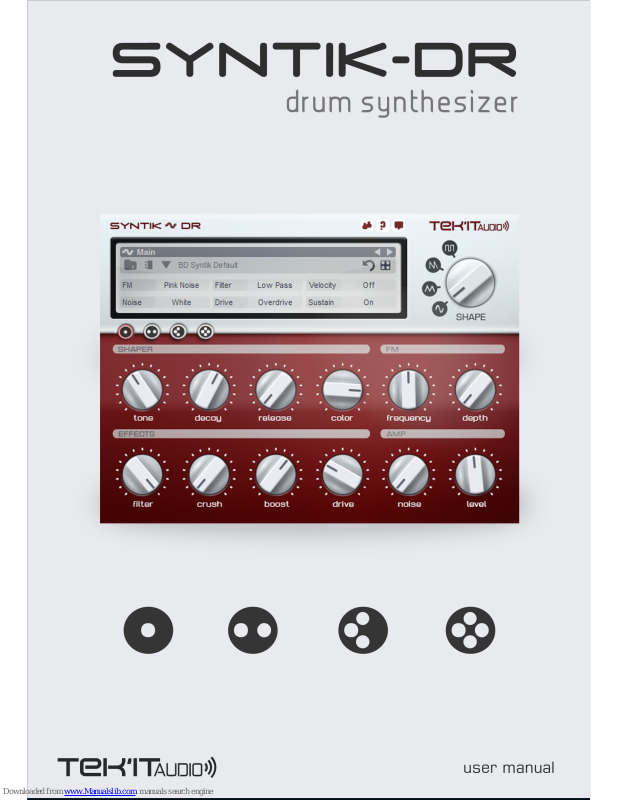

Tek'it Audio Syntik-DR User Manual

Syntik-DR

USER MANUAL

Copyright.

Genobazz © 2013 Tek'it Audio.

No part of this documentation may be reproduced or transmitted in any form by any
means, electronic or mechanical, including photocopying, recording, or any
information storage and retrieval system, without written permission from Tek'it Audio.

VST is a trademark of Steinberg Media Technologies GmbH.
Microsoft, Windows, and the Windows logo are registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
All other trademarks and logos f rom these or other manufacturers written or shown
on this documentation are property of their respective holders.
KnobSamples by az is licensed under a Creative Commons Attribution 3.0 Unported
License / CC BY 3.0.

User License Agreement..................... .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . ..4

Overview.................................................................. . . . . .. . . . . .. . . . . .. . . . . .. . . . .. . . . . .. 6

Requirements................................................................. . . .. . . . . .. . . . . .. . . . . .. . . . . .. .7

Installation............................................................... . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . 8

Trial Version................................................................................................ 9

Using................................................................... . . . . .. . . . . .. . . . . .. . . . .. . . . . .. . . . . .. . . . 10

Control Types............................................................................................ 10

Layers................................................................... . . . .. . . . . .. . . . .. . . . . .. . . . . .. . . . . .. . . .11

Preset................................................................. . . . .. . . . . .. . . . . .. . . . .. . . . . .. . . . . .. . . . . .12

Screen.................................................................. . . . . .. . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . .12

Shape.................................................................. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . .14

Shaper.................................................................. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. .15

FM.................................................................. .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . . 15

Effects..................................................................................... . . . .. . . . . .. . . . . .. . 16

AMP................................................................. . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . .. . . 17

MIDI................................................................. . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . .18

Updates and Support................................................................. . . .. . . . . .. . . . . . 20

Clothing And A cce ssories. . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . .. . . . . .. . . . . .. . . . . .. . . . .21

Other Products........ .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . 22

Credits.................................................................. . . . . .. . . . . .. . . . . .. . . . . .. . . . .. . . . . .. . .24

Table Of Contents

4

User License Agreement

This User License Agreement is a legal agreement between you (either as
an individual or a single entity) and Tek'it Audio for the product
accompanying this document, which includes software and all associated
media ("Software").

All copyrights to the Software are exclusively owned by the Author, Tek'it
Audio. All rights not expressly granted here are reserved by Tek'it Audio .

Installing, copying, or using the Software signifies acceptance of the terms
and conditions of this License Agreement. If you do not agree with the terms
of this License Agreement you must remove the Software files from your
storage devices and cease to use the Software.

The Software is licensed, not sold. You have the right to use this Softw are
for music composition and sound design for both commercial and non­commercial projects. You have the right to use this Software for creating
non-commercial preset libraries. For commercial preset libraries you should
request a written or emailed permission of the copyright holder.

The Software may not be distributed, shared, duplicated with exceptions
noted below. You can duplicate the Software for backup purpose only, to
backup devices such as hard disks and optical media solely to replace the
original copy if the original copy is damaged or destroyed. No person or
company may charge a fee for the distribution of the S of t ware without
written or emailed permission from the copyright holder. The Software may
not be bundled or distributed with any other product without written or
emailed permission of the copyright holder.

The user is granted a non-exclusive license to use the Software on one
computer, for any legal purpose, at a time.

5

The Software including its files may not be rented or leased, or given away
to a third person, but may be permanently transferred, if the copyright
holder authorize the transfer and the person receiving it agrees to the terms
of this License Agreement. If the Software is an update, the transfer must
include the update and all previous versions of the Software.

You may not use, copy, emulate, clone, rent, lease, sell, modify, decompile,
disassemble, otherwise reverse engineer or transfer the licensed Software,
or any subset of the licensed Software, except as provided for in this
License Agreement.
Any such unauthorized use shall result in immediate and automatic
termination of this license and may result in criminal and/or civil
prosecution.

THIS SOFTWARE IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, NON-INFRINGEMENT OR ARISING FROM A
COURSE OF DEALING, USAGE , TRADE OR PRACTICE.
Some jurisdictions do not allow the exclusion of implied warranties, so the
above disclaimer may not apply to you.

IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY SPECIAL,
DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY
DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR
OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION
WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

All questions concerning this License Agreement shall be directed to:

e-mail: [email protected]
web: http://tekit-audio.com

6

Overview

Thank you for choosing Syntik-DR, Tek'it Audio's electronic drum
synthesizer. Syntik-DR use a work-flow based on layering to produce typical
drum sounds often heard in analogue synthesizers and drum-box but also a
wide spectrum of sounds used in modern productions like deep layered
kicks, lo-fi percussions, out of this world fx and distorted rave kicks.

We hope you enjoy this software, and love creating music with it. Please,
take the time to read this manual and learn how to exploit all the feature of
Syntik-DR.

Feature highlights

► 4 shapes, Sine, Triangle, Saw, Pulse.

► 4 sound layers.

► 4 intregrated effects.

► 3 distortion types, Overdrive, Hard-clip and Fold-back.

► Low pass, High pass and Band pass filter mode.

► FM with 7 selectable waveforms.

► Full MIDI automation support.

► Easy MIDI learn on all parameters.

► Preset manager, rename, copy, save, load...

► Undo your changes to initial preset value.

► One click preset randomize.

► 128 Factory presets.

7

Requirements

This software is a "Virtual Studio Technologies" plug-in (VST), he work only
with VST 2 compatible host software or on other host through the use of a
VST adapter. It requires a host that transmit transport and tempo messages
to work properly.

System requirements:

Operating System

• Microsoft® Windows® 8, 7, XP (SP2 or later), or Vista™.

CPU

• 1,5 GHz or higher with SSE2.

Memory

• 512 Mb RAM or higher.

Graphics

• 800x600 32 bit.

Audio

• Audio interface with A S I O driver support recommended and minimum
44kHz samples rates.

MIDI

• To use the automation a Host with automation features and for MIDI

learn a MIDI interface and an external MIDI control device is required.

8

Installation

1. Simply run the installer program by double-clicking it, and follow
the on-screen instructions.

2. Run your host software and load Syntik-DR. Consult your host
documentation for information on how to do this.

Our un-installer keep your system clean, all the files are
deleted and there are no entry left in your Windows
registry.

9

Trial Version

The trial version of Syntik-DR gives you full funct iona lit y, but a nag-screen
will pop and the plug-in need to be relaunched after ten minutes.

To avoid this restrictions, you will need to purchase the full version. You can
buy a license at http://tekit-audio.com/shop/

10

Using

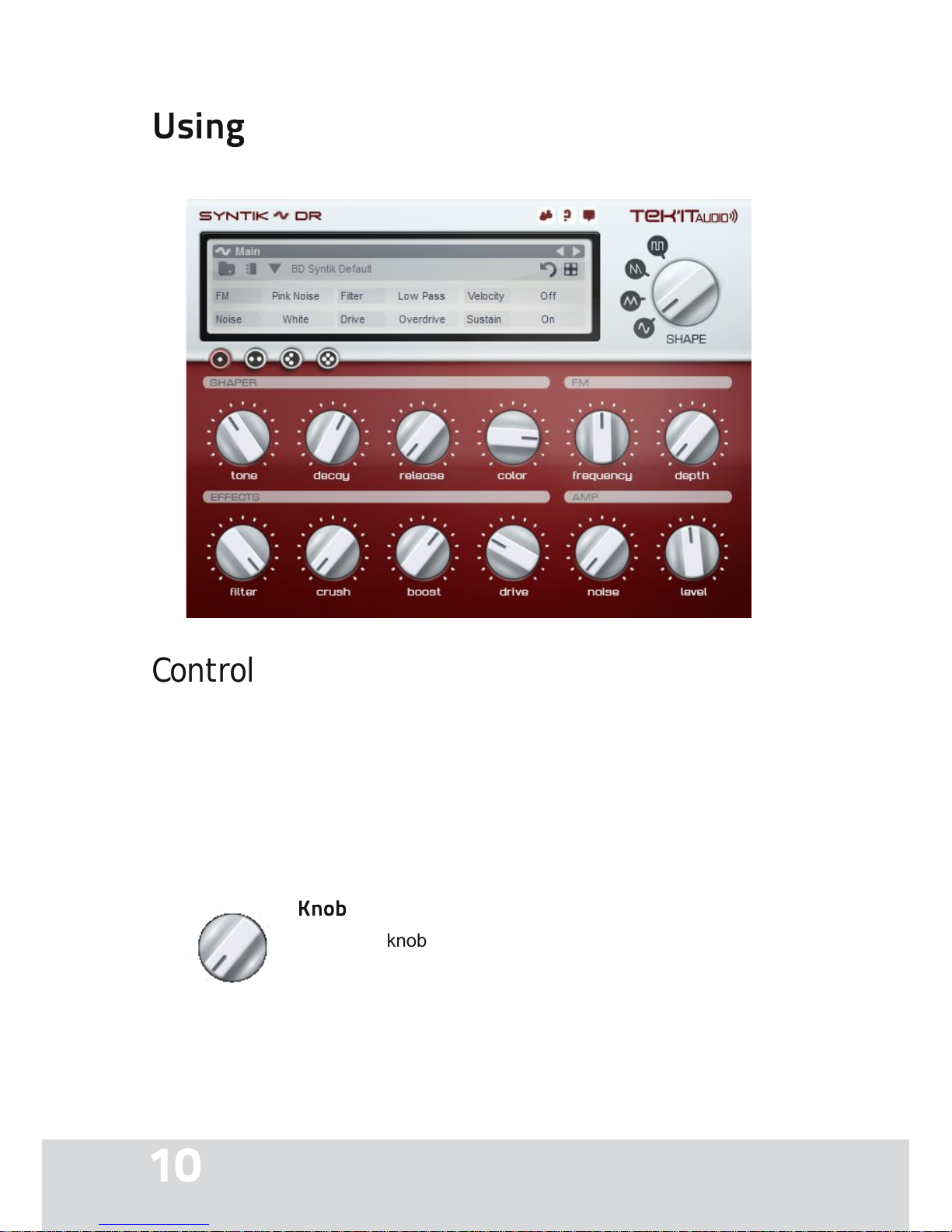

Control Types

While using Syntik-DR, you will find that many parameters have similar
controls. Hovering your mouse over a control will bring up a tool-tip with its
name or description.

Knob

To Turn a knob, click it and when drag upwards to move
the knob to the right, drag downwards to move the knob
to the left. For hight precision control use Ctrl+Mouse .
Double-click on it, reset it to the initial value of the preset.

11

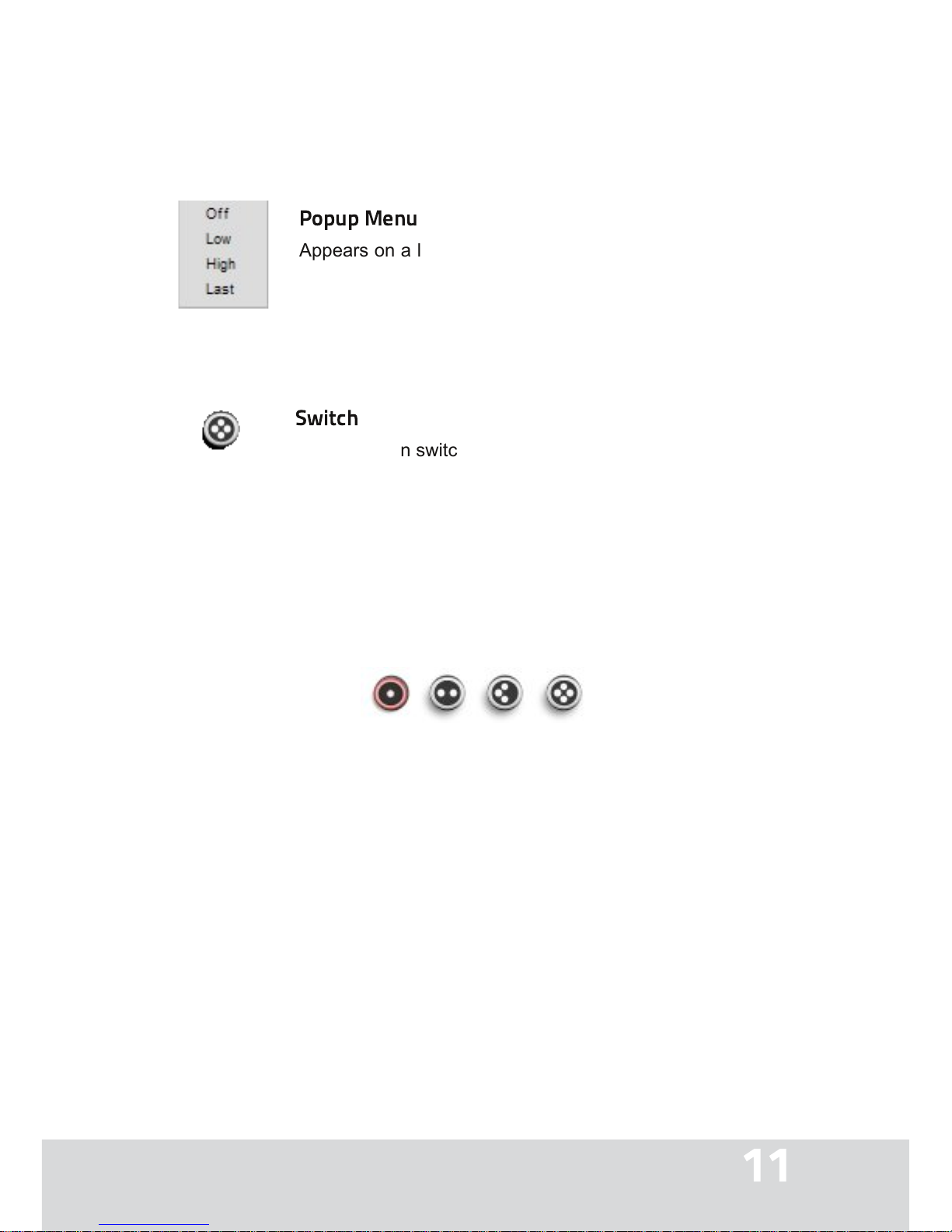

Popup Menu

Appears on a left click or right-click on a text or an icon to
select a value.

Switch

A two position switch, click on it to change the position.

Layers

One of the most important feature of Syntik-DR is the Layers. Using them
you can create complex textures and massive drum kicks.

In Syntik-DR you can use up to four layers per presets to create your
sound. Click on one of the layer switches to select the desired layer and use
the controls to edit this layer, this include the screen parameters and all the
knobs.

12

Preset

Syntik-DR comes with a default bank of 128 presets.

Preset Change

Change the current preset, left to previous and right to next.

Undo All Changes

Undo all your changes to their initial preset value. If you change
the preset before it does not work, because your changes are
saved automatically when you switch to another preset.

Randomize

Randomize all parameters except Level and Pan.

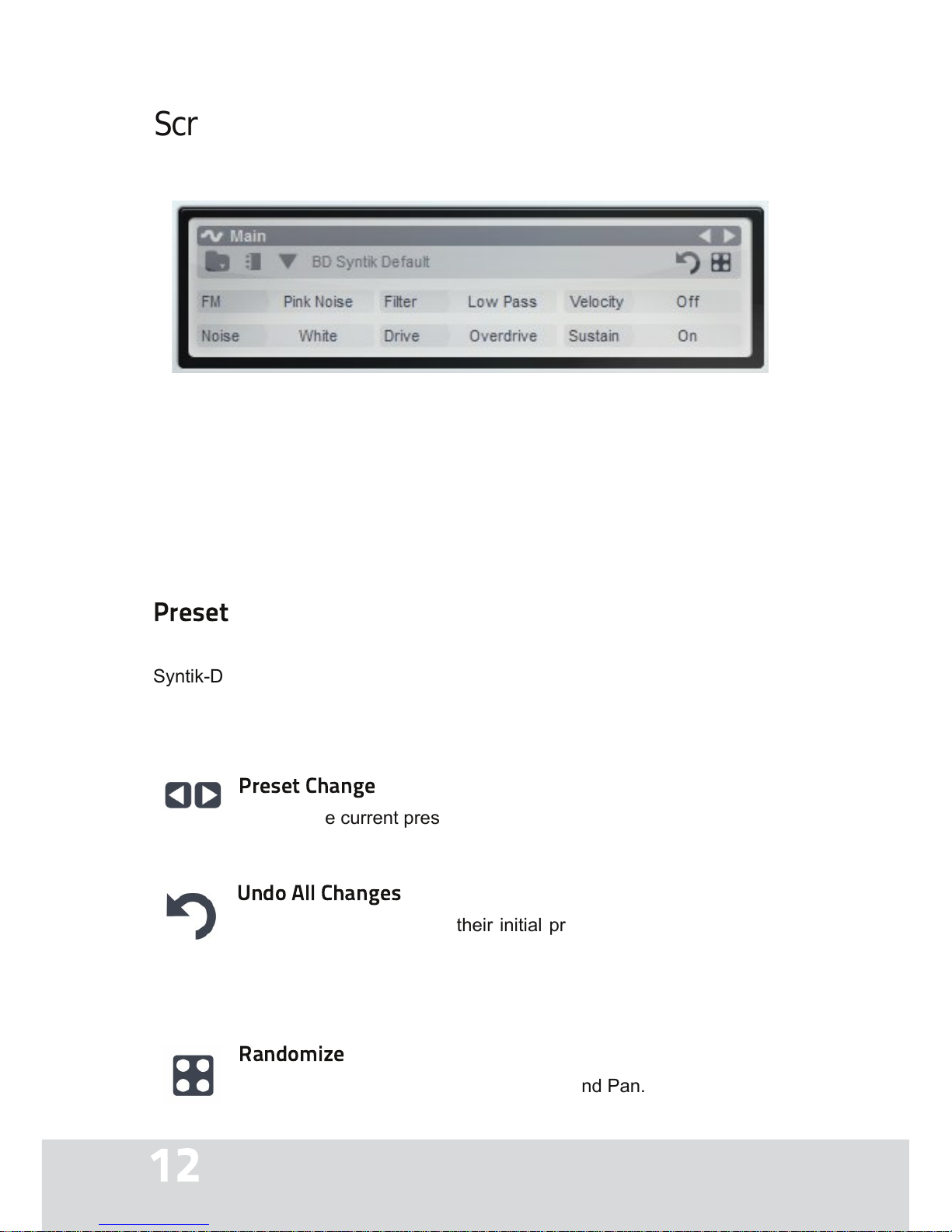

Screen

To change a value on the screen, simply click on it.

Additionally you can change the waveform and the filter type with the two
selectors below.

13

Copy Preset

Copy the current preset to another preset or a
range of presets.

Load Preset

Load a preset in (*.fxp) file format on the current
preset.

Save Preset

Save the current preset in (*.fxp) file format.

Load Bank

Load an bank (*.fxb).

Save Bank

Save the bank of presets in a file (*.fxb).

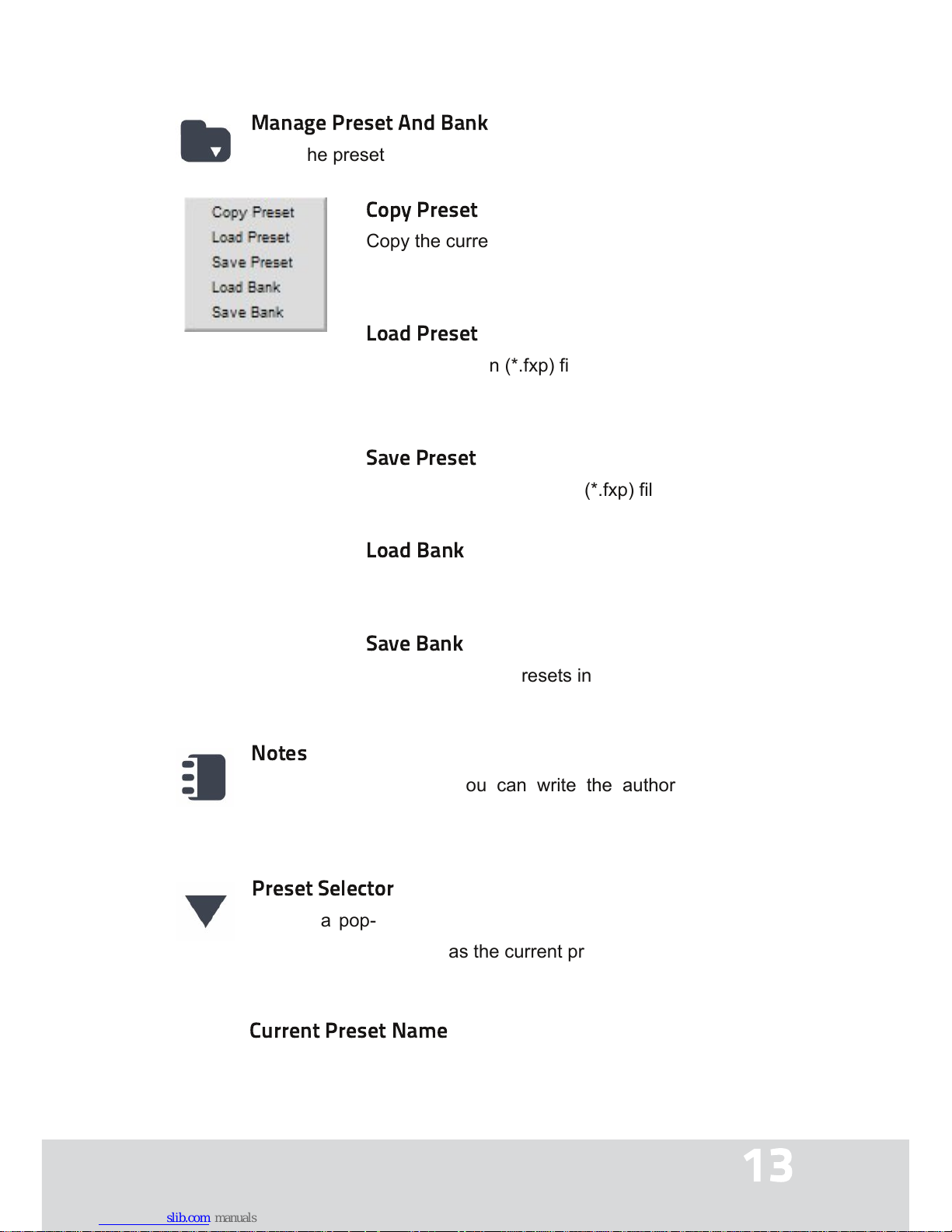

Manage Preset And Bank

Open the preset manager pop-up menu.

Notes

Open a pop-up where you can write the author name of the
preset and notes.

Preset Selector

Display a pop-up menu with all the presets in the current bank.
Click on one to select it as the current preset.

Current Preset Name

Display the name of the current preset. Click on it to rename the
preset.

14

FM

Select one of the 7 waveforms available for the FM modulator.

Noise

Select one of the 2 different noise types of the noise oscillator, White or
Pink.

Filter

Select one of the 3 filter mode types, lowpass, highpass or bandpass.

Drive

Select one of the 3 distortion types. Overdrive, Hardclip or Foldback.

Velocity

Activate the velocity mode. When the velocity is on the output level is
controled by the MIDI velocity.

Sustain

Activate the envelope sustain. When activated the sound is sustained
between each notes.

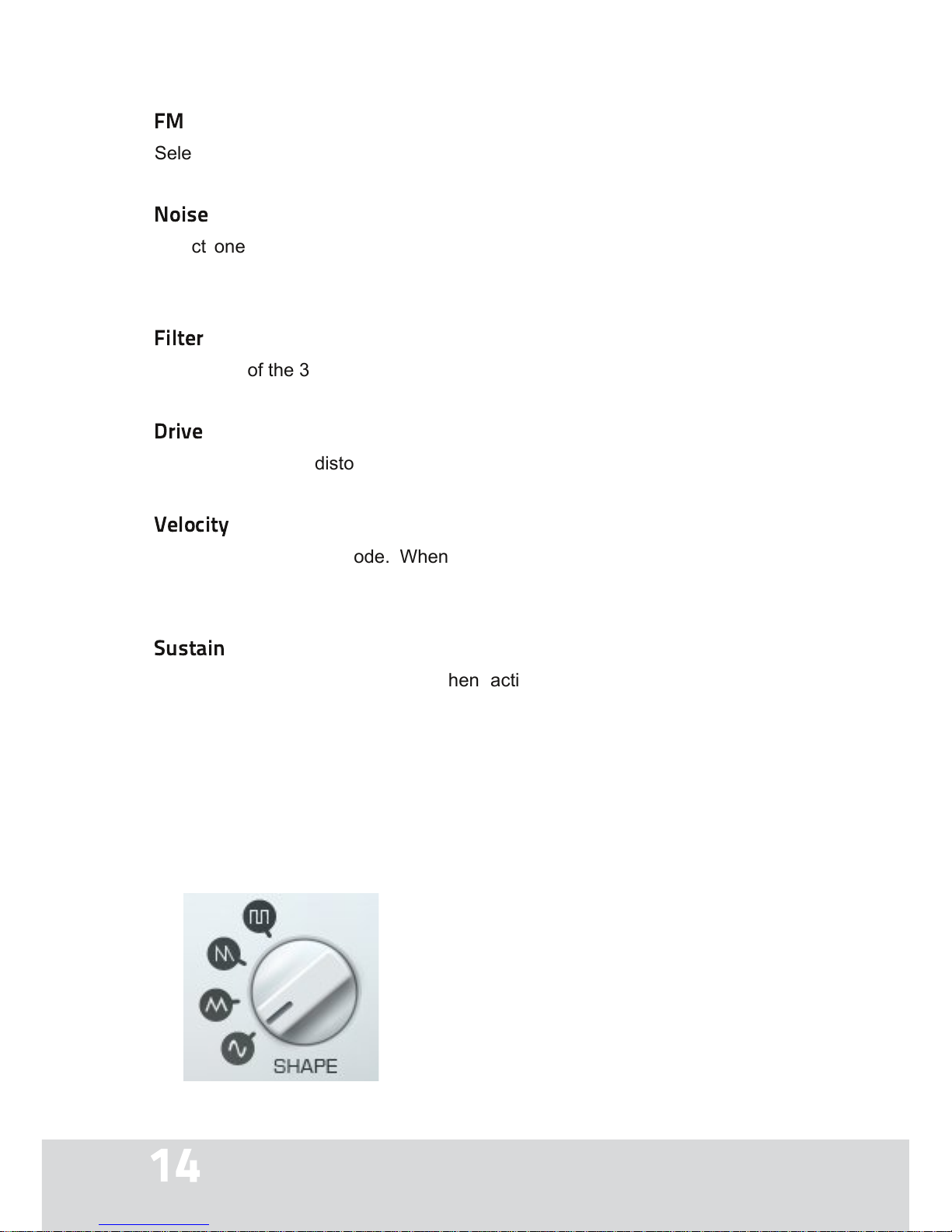

SHAPE

Select the sound basic waveform. You
can choose between Sine, Triangle, Saw
and Pulse.

15

SHAPER

Tone

Change the pitch of the oscillator of +/- 2 octave. The centre position is at 0,
turn it clockwise to make the pitch higher and anti-clockwise to make the
pitch lower.

Decay

Control the decay time, quickest to slowest.

Release

Control the release time, quickest to slowest. This is the time taken to
decrease to zero after the key is released.

Color

Colorize the sound from dark tone at left to brighter at right.

FM

Frequency

Change the modulator frequency from -3 octaves at full left to +3 octaves at
full right.

Depth

Control the depth of the modulation from 0 to 100 %.

16

EFFECTS

Syntik-DR come with four effects.

Filter

Changes the cut-off point of the selected filter.
For low-pass filters, this means that frequencies above the cut-off point are
attenuated.
For high-pass filters, that frequencies lower than the cut-off point are
attenuated.
For a band-pass filter, frequencies outside a certain range upper and lower
than the cut-off point are attenuated.

Crush

Control the bits crusher from full resolution to 4bits. This effect is used to
create low-fi sound, usefull to create drum sounds found on old video
games for example.

Boost

Control the amount of the bass boost from 0% to 100%. This effect boost
bass frequencies when is turned on to give punch to your sound when is
needed.

Drive

Control the distortions drive amount from -20dB to +30dB.

17

AMP

Noise

Control the volume of the noise oscillator.

Level

Control the output volume. If you turn the knob to high the sound can be
distorted.

18

MIDI

Syntik-DR have integrated MIDI learn and full automation on all parameters.

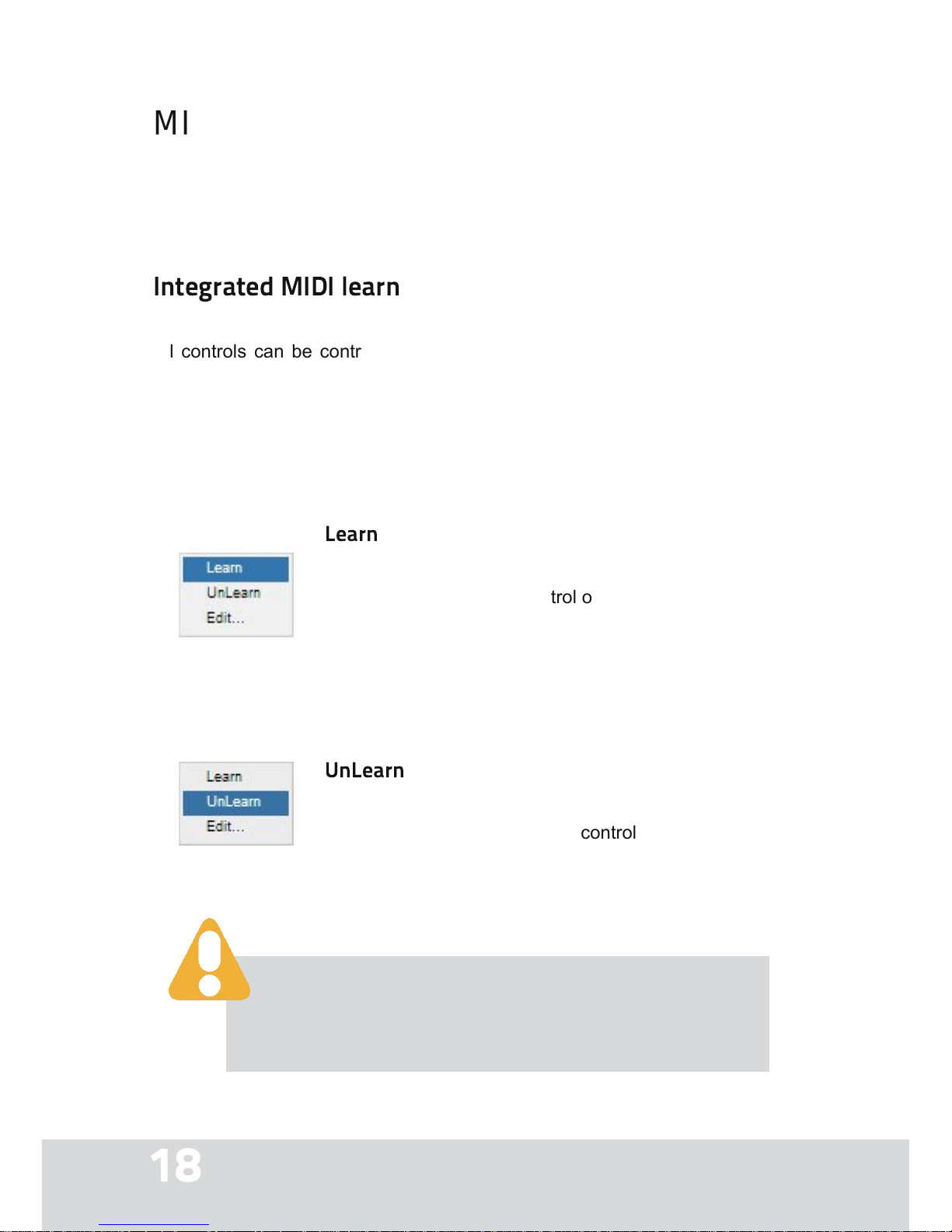

Integrated MIDI learn

All controls can be controlled by an external MIDI controller easily, simply
right click on the parameters you want to control and the Learn pop-up
menu appear.

Learn

Click on Learn, move a control on your MIDI device
and it will automatically assigned.

UnLearn

Click on UnLearn will clear the controller.

Some hosts (like FL Studio) filters MIDI CC messages
coming from MIDI controller, integrated MIDI learn can't
work properly in such hosts.

19

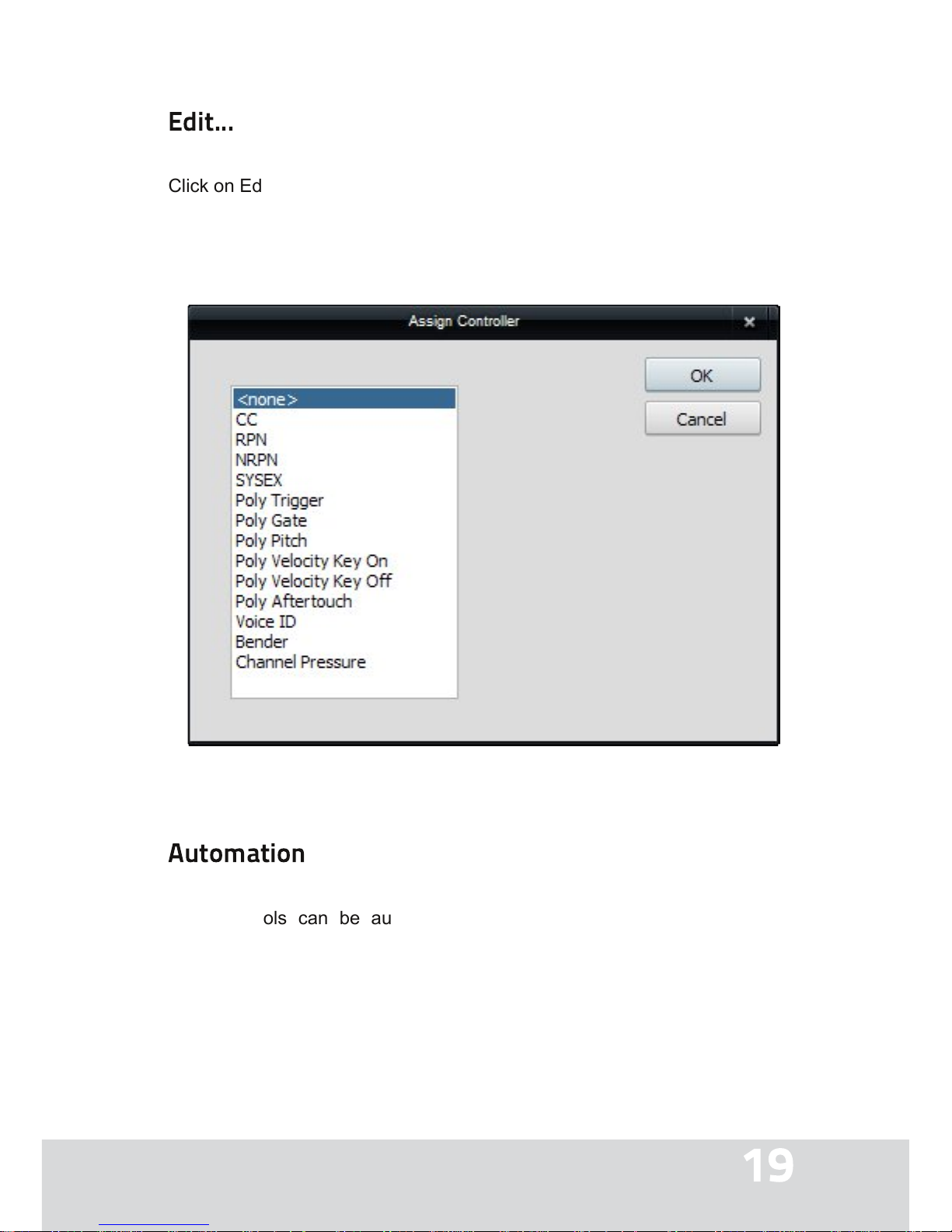

Edit...

Click on Edit will open the Assign Controller dialogue.
You can change manually the MIDI controllers using 7-bit MIDI Continuous
Controller or High resolution 14-bit MIDI NRPN and RPN.

Automation

Each controls can be automated using your host automation features.
Consult your host documentation for information on how to do this.

20

Updates and Support

Updates will be made available online on your account
at http://tekit-audio.com/my-t a/

When a new update is released you will receive an
email to notify you of its availability.

Additionally you can follow us on Twitter for instant
updates and news at http://twitter.com/TekitAudio

For ideas, complaints, sound demo, presets and
anything you feel is worth sharing, please use our
contact form at http://tekit-audio.com/co nt act -us/

If you prefer, you can contact our team directly by
email at [email protected]

For any help and support consult our online support at

http://tekit-audio.com/support/

21

Clothing And Accessories

Show your support!

Europe:

http://tekit-audio.spreadshirt.fr/

Hoodie, T-Shirt, Girlie Shirt, Stickers, Hooded

Jacket and bag availables!

International:

http://tekit-audio.spreadshirt.com/

22

Other Products

Genobazz R

Monophonic bass synthesizer

Genobazz 2

Monophonic bass synthesizer

GattR

Sequenced stereo gate

Kutter 2

Sequenced frequency cutter

Arp-EG classic

Classic MIDI arpeggiator

Badass 2

Filter and distortion effects

23

DubSiren

Dub siren synthesizer

RECsoprano

Soprano recorder

8eqf

8 band semi-parametric equalizer

8eqp

8 band parametric equalizer

8kut

8 pads frequency cutter

APC

DIY punk console synthesizer

24

Credits

Development & Design

Michaël Dubois

Product Management

Michaël Dubois

Additional Softwares

Jeff McClintock
Jordan Russell
Peter Schoffhauzer

Graphic Design

Michaël Dubois

Sound Design

AbstractCats
Audioware
John Finter
Michaël Dubois

Software Test

AbstractCats
John Finter
Michaël Dubois

Documentation

Michaël Dubois

25

Demo Materials

Michaël Dubois

Special Thanks to

Everyone else who has contributed to the "Syntik-DR" development in any
way.
