tekflo Edge Instruction Manual

Edge Hand Dryer

Instructions Manual

2 3

Table of Contents

Product Dimensions 3

Product Features, Technical Specications & Package Contents 4

Installation & Safety Guidelines 5

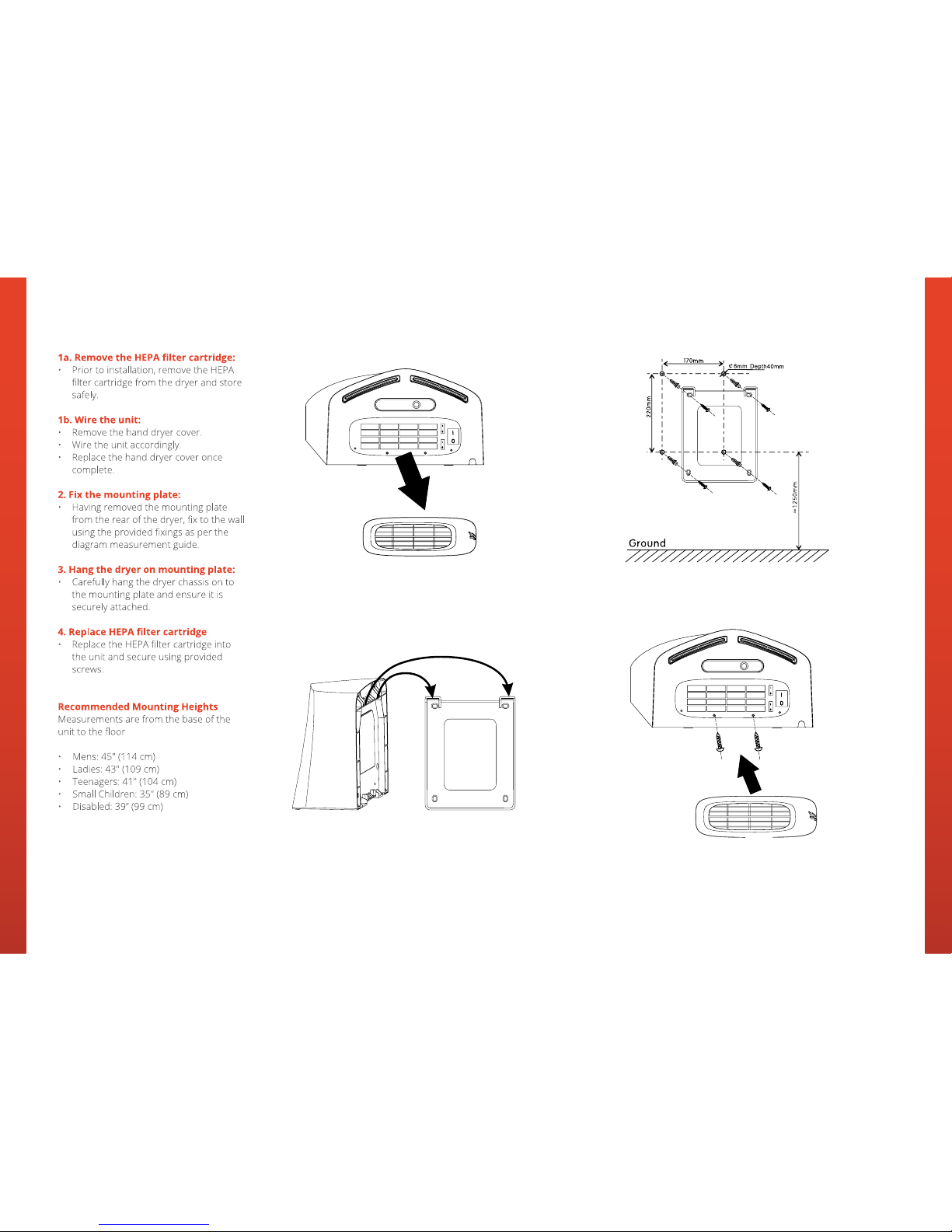

Installation Instructions 6

Operation Guidelines 8

Cleaning & Maintenance Guidelines 9

Warranty Details 10

Product Dimensions

4 5

Product Features, Technical Specications
& Package Contents

Product Features:

• Twin-blade dryer with V-style formation for fast, quiet drying – under 9 seconds!

• Produces sheets of ‘clean’ air at over 100 meters per second

• Heavy duty Stainless Steel casing gives excellent ongoing protection against
corrosion and vandalism

• Automatic ‘no touch’ operation ensures impeccable hygiene

• Eco-mode switches inside the casement allow you to adjust power consumption
to help reduce cost and carbon footprint

• No unnecessary energy wastage thanks to the automatic cut-o

• Reduced noise levels make this one of the quietest and most discrete dryers in

any class

• Built-in removable HEPA lter for hygienic operation with ltered air

• Easy to install and maintain

• Finishes available in Brushed Metal, Reex Silver, Arctic White and even your
colours…

Technical Specications:

• Shell material: 304 Stainless Steel

• Standard nishes: Brushed Metal,

Reex Silver, Artic White

• Rated voltage: AC 220-240V

• Rated frequency: 50 / 60 Hz

• Rated Power: 2,000W (800W motor,

1,200W heating element)

• Installation: wall mounted

• Drying time: 9 Seconds

• Air speed: 100 M/s

• Noise output: 70dB

• Operation: infrared automatic ‘no
touch’

• Timing protection: 60 seconds auto

cut o

• Thermal protection: cut o above
70C

• Drip Proof: IPX1

• Unit Dimensions: 310mm W x

325mm H x 188mm D

• Filter: HEPA lter

• Net weight: 6.0 kg

• Certication: CE, RoHs

Package Contents:

• Hand dryer

• Wall mounting bracket

• Fixtures and ttings

• User manual and installation guide

Installation & Safety Guidelines

• All electrical installation and repair work should be carried out by a qualied
electrician in accordance with current locals codes or regulations.

• Do not attempt any disassembly or modication of the unit that is not expressly
stated in this manual.

• Do not install when the product (power cable) is electried.

• Install securely in a location strong enough to support the weight of the unit.

• Install the hand dryer on a smooth surface and in an area where people are not

likely to collide with the object once installed.

• Do not scratch, damage, process, excessively bend, pull, twist or bundle the
power cable, and do not place heavy objects onto it or trap it.

• Do not use in a hot location such as a shower room, where condensation may
form on the unit, or where water may splash directly at the unit.

• Do not install this hand dryer above sources of water such as sinks or taps.

• Ensure a clear space of at least 400mm around the air nozzle.

• Do not install in locations where salt damage may occur, or where corrosive,

neutral, or reductive gases are present.
