V1.3
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers
1 Introduction
TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory
setups. With a frequency range of 2MHz to 6GHz, they are ideal to boost the signals picked up by our EMC near
field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.

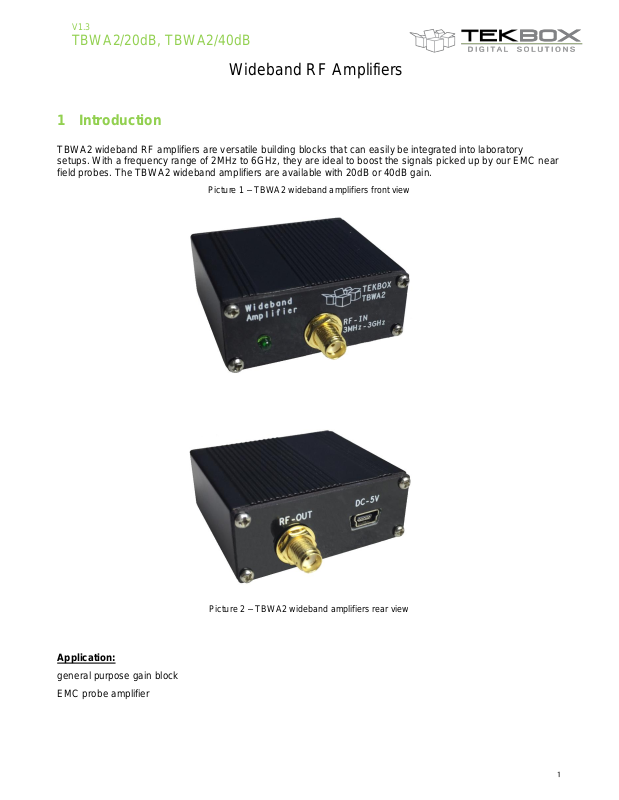

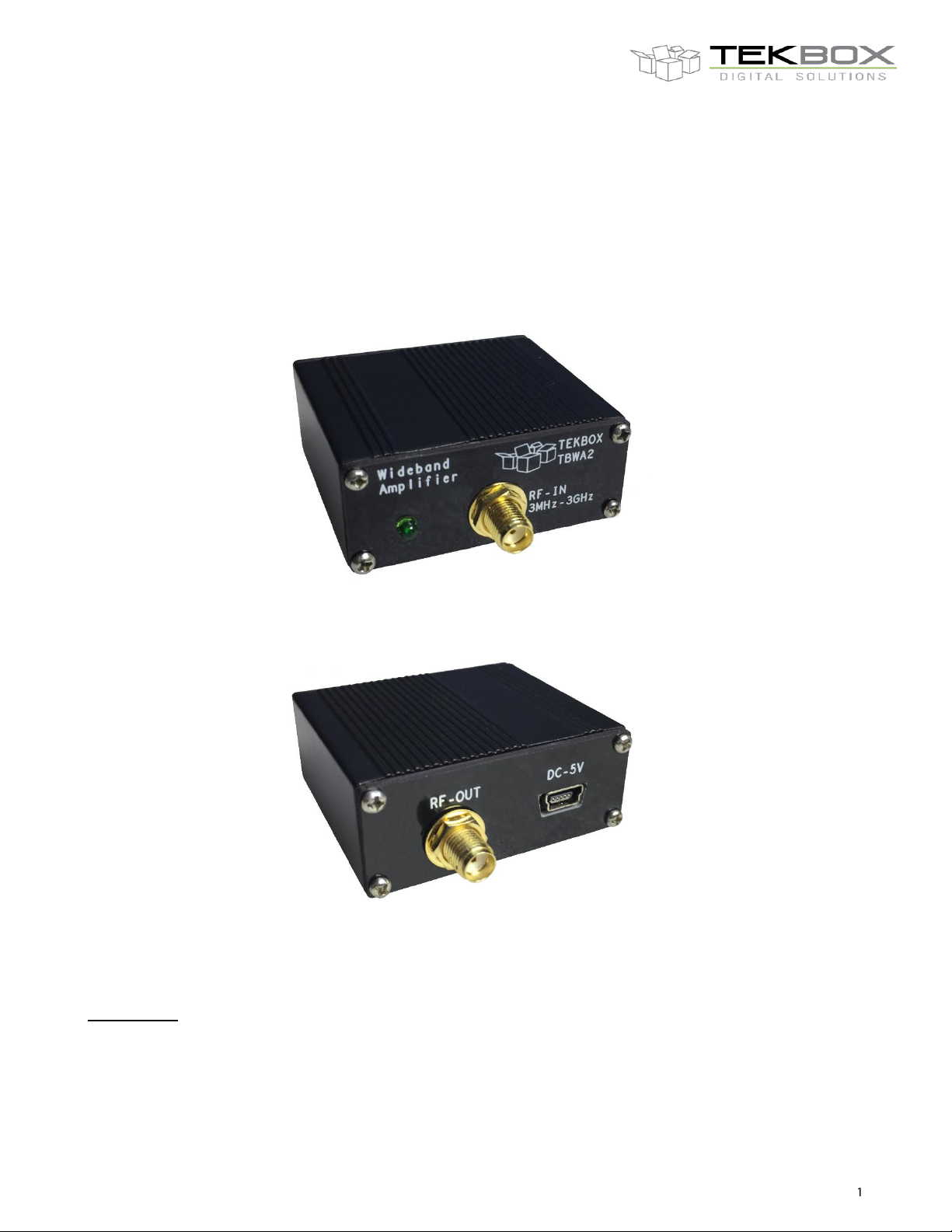

Picture 1 – TBWA2 wideband amplifiers front view
Application:
general purpose gain block
EMC probe amplifier
Picture 2 – TBWA2 wideband amplifiers rear view
Page 2
V1.3
1 MHz
10 MHz
100 MHz
500 MHz
1 GHz
2 GHz
3 GHz
4.5 GHz
6 GHz
14.8 dB
20.2 dB
20.2 dB
20 dB
19.8 dB
19 dB
17.6 dB
17.4 dB
15.4 dB
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers
Technical Data:
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S12, 0.1 …6GHz: 23dB
Noise Figure @ 2GHz: 4.5 … 5 dB
Gain:
Table 1 – TBWA2/20dB gain
Page 3
V1.3
TBWA2/20dB, TBWA2/40dB

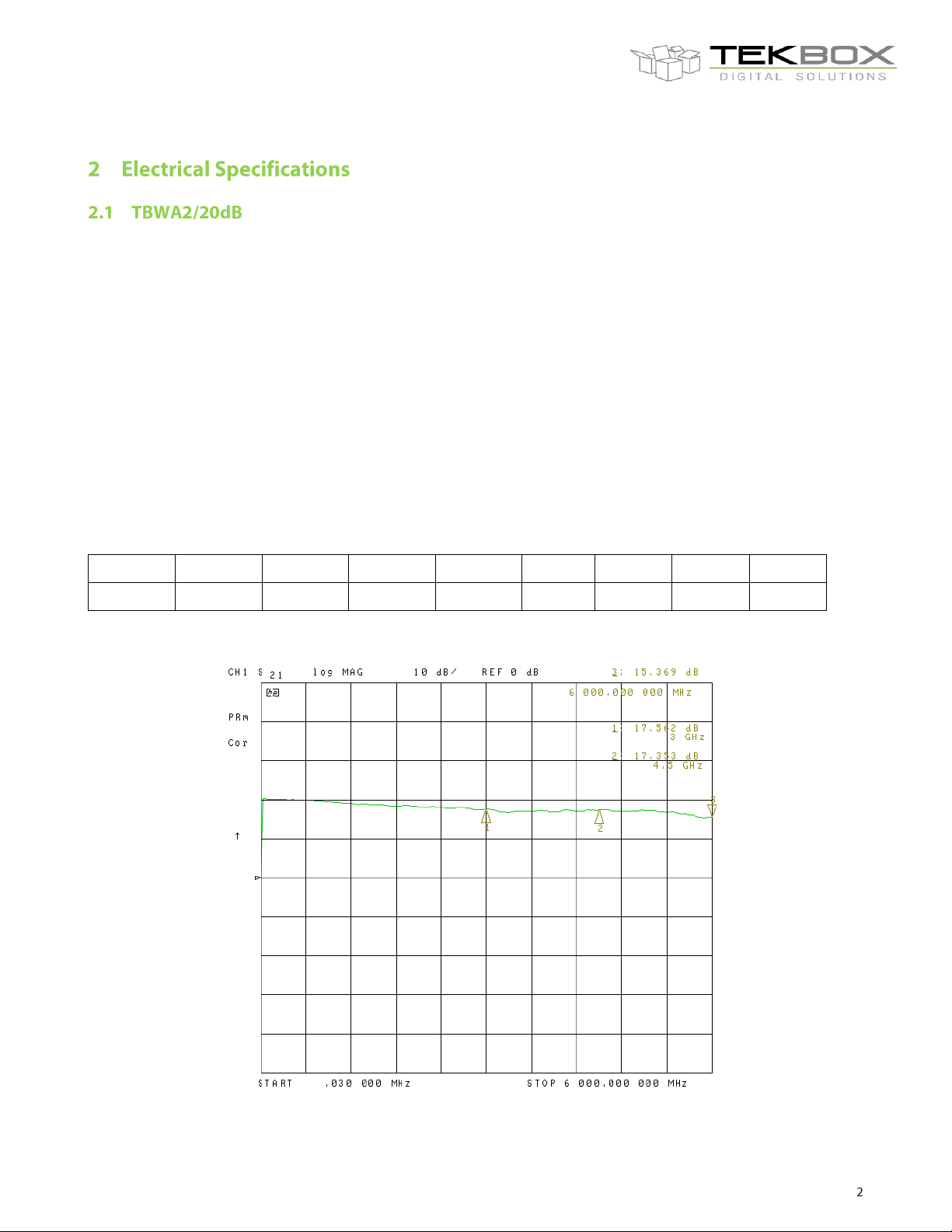

Picture 3 – TBWA2/20dB, gain, 30 kHz – 6 GHz, lin.
Wideband RF Amplifiers

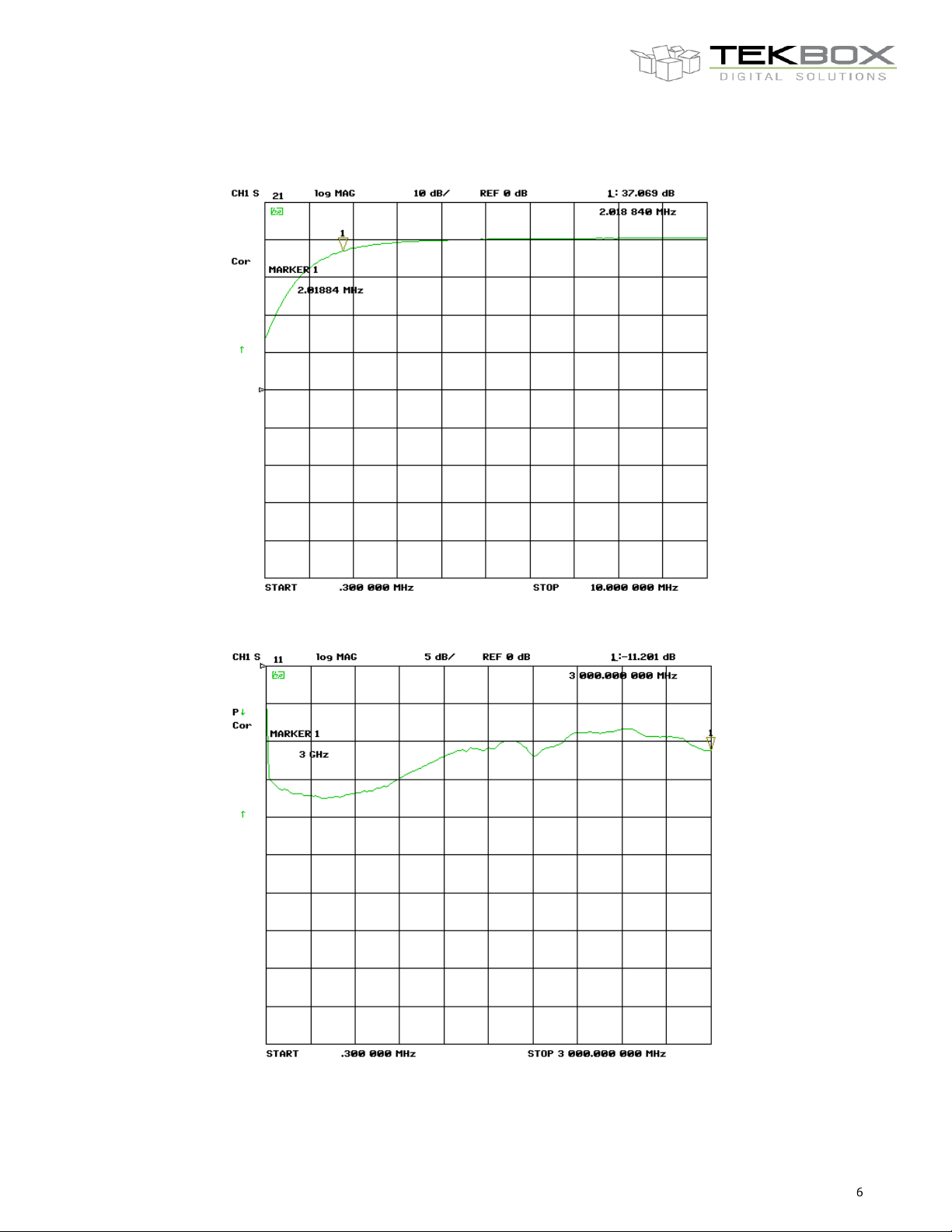

Picture 4 – TBWA2/20dB, gain, 300 kHz – 10 MHz, lin.
Picture 5 – TBWA2/20dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.
Page 4
V1.3
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers

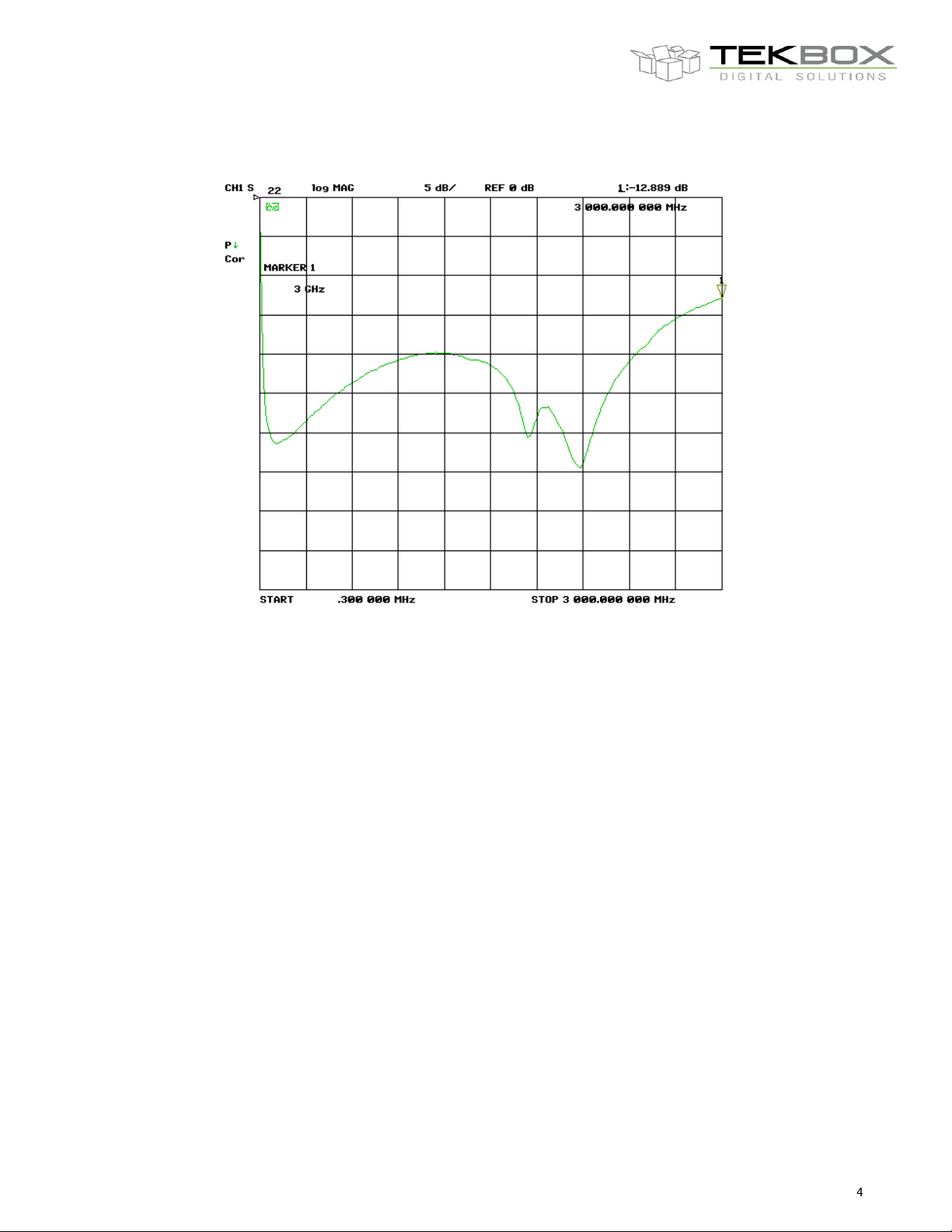

Picture 6 – TBWA2/20dB, output return loss, lS22l, 300 kHz – 3 GHz, lin.
Page 5
V1.3
1 MHz
10 MHz
100 MHz
500 MHz
1 GHz
2 GHz
3 GHz
4.5 GHz
6 GHz
30 dB
40.2 dB
40.2 dB
40 dB
39.5 dB
37.6 dB
36.4 dB
34.6 dB
34.7 dB
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers
Technical Data:
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB output compression point @ 2GHz: +20dBm
Reverse isolation S12, 0.1 …6GHz: 40dB
Noise Figure @ 2GHz: 5 dB
Gain:
Table 2 – TBWA2/40dB gain

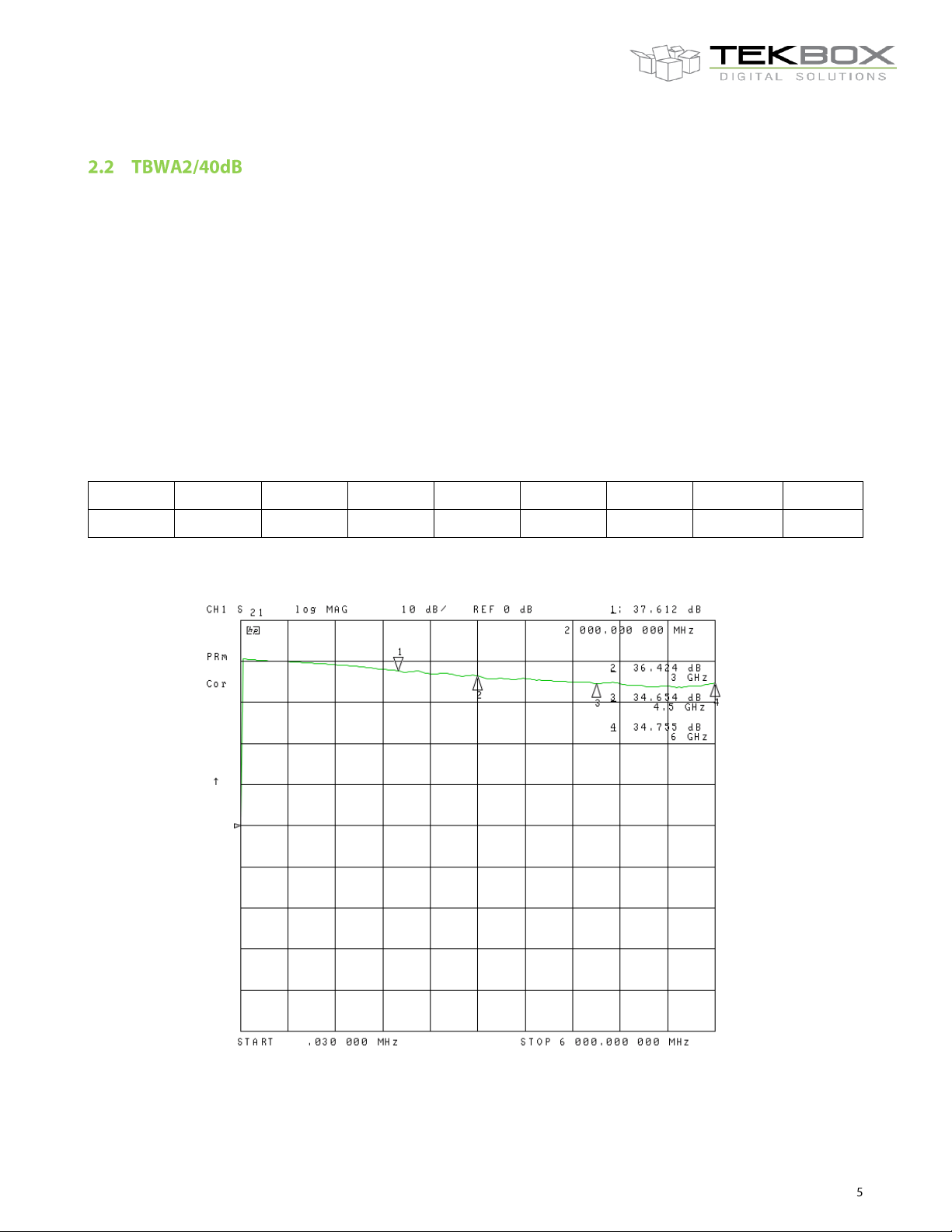

Picture 7 – TBWA2/40dB, gain, 30 kHz – 6 GHz, lin.
Page 6
V1.3
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers

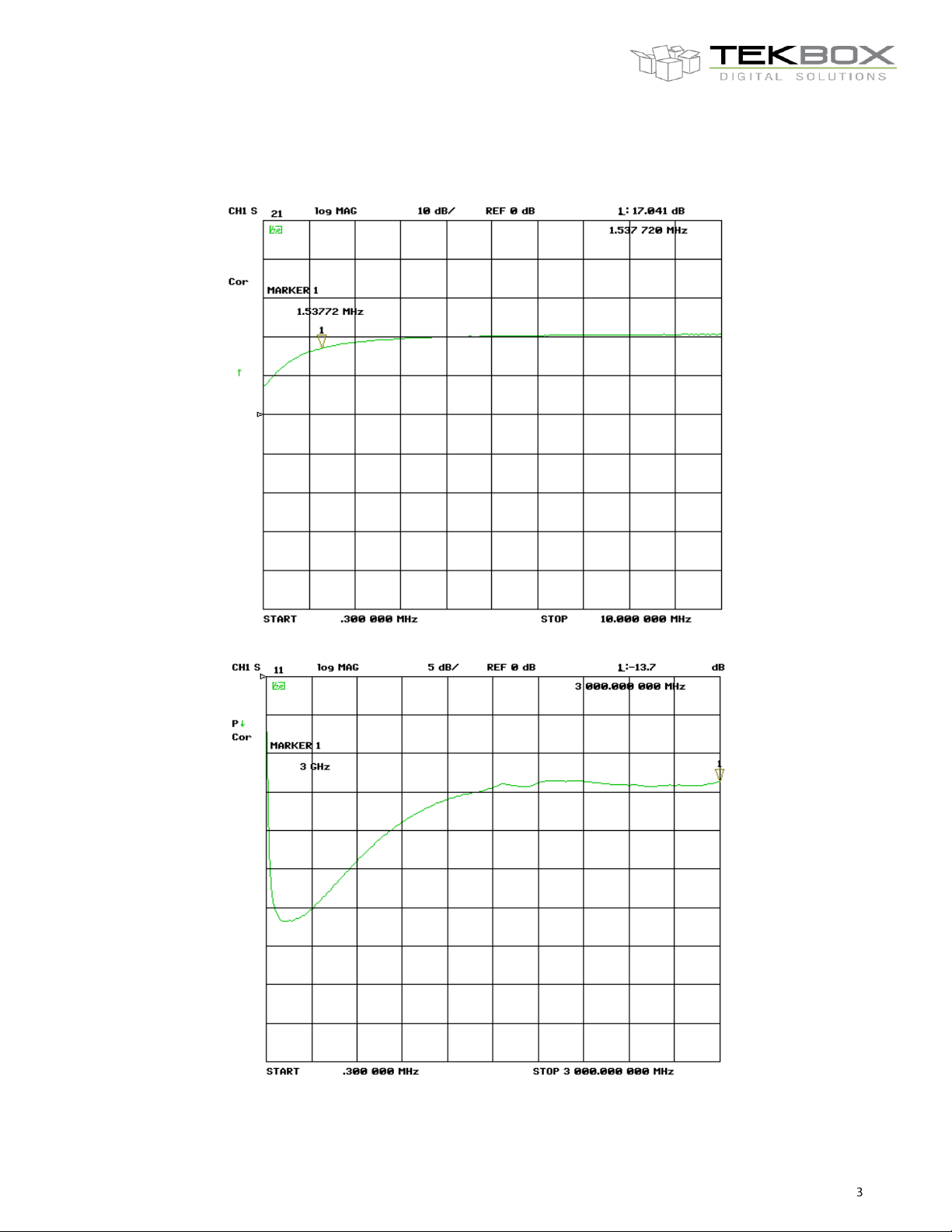

Picture 8 – TBWA2/40dB, gain, 300 kHz – 10 MHz, lin.
Picture 9 – TBWA2/40dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.
Page 7
V1.3
Part Number
Description
TBWA2/20dB
20 dB amplifier, 1 pc 25cm SMA-male to SMA-male cable, 1 pc 75cm SMA- male to Nmale cable. 1 pc SMA-female to N-male coaxial adapter, USB cable, measurement plot
TBWA2/40dB
40 dB amplifier, 1 pc 25cm SMA-male to SMA-male cable, 1 pc 75cm SMA- male to Nmale cable. 1 pc SMA-female to N-male coaxial adapter, USB cable, measurement plot
Version
Date
Author
Changes
V1.0
16.6.2016
Mayerhofer
Creation of the document
V1.1
10.9.2016
Mayerhofer
Updated chapter 2, frequency response
V1.2
14.11.2016
Mayerhofer
Updated chapter 3, deliverables
V1.3
9.1.2017
Mayerhofer
S21 updated to 6 GHz
TBWA2/20dB, TBWA2/40dB
Wideband RF Amplifiers

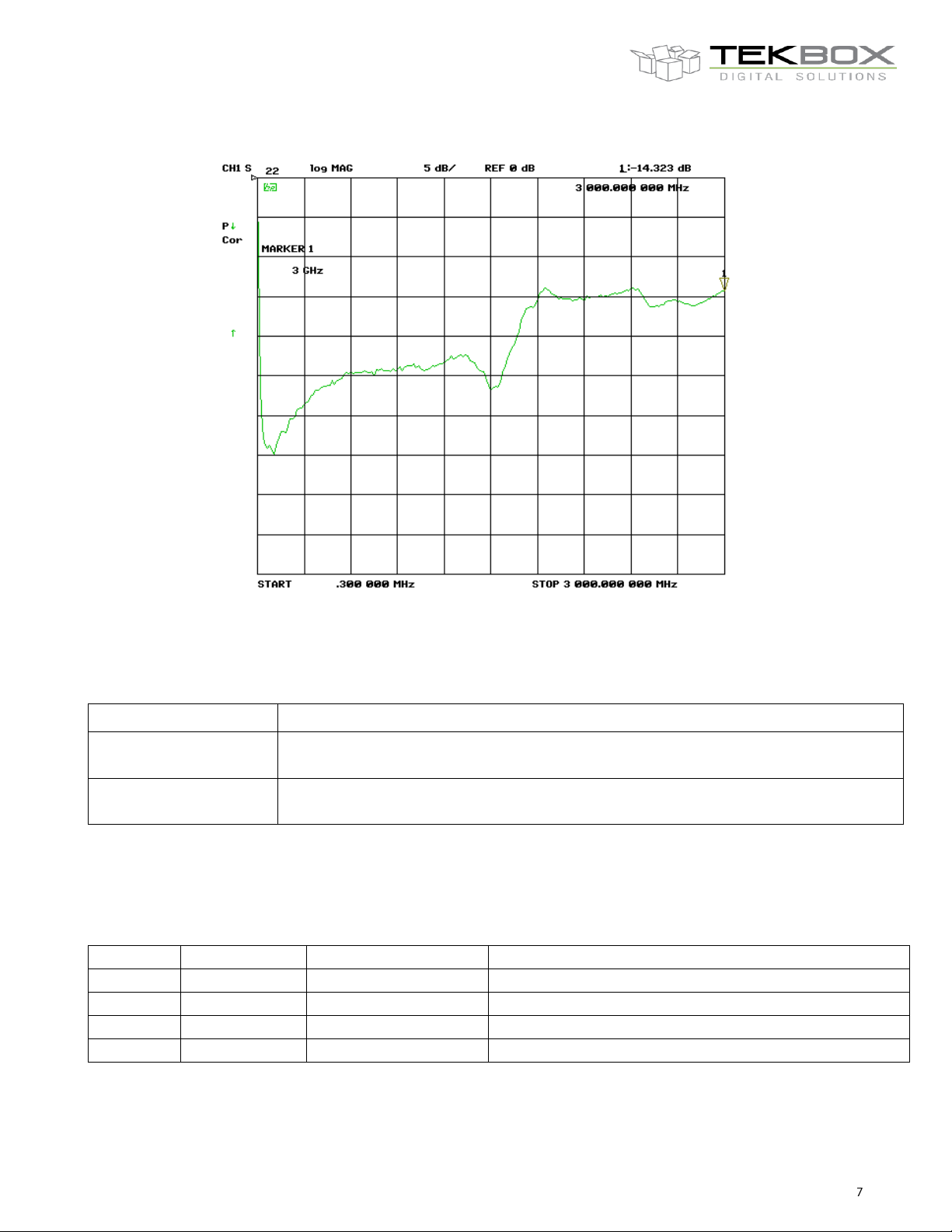

Picture 10 – TBWA2/40dB, output return loss, lS22l, 300 kHz – 3 GHz, lin.
3 Ordering Information
4 History
Table 3 – Ordering Information
Table 4 – History
