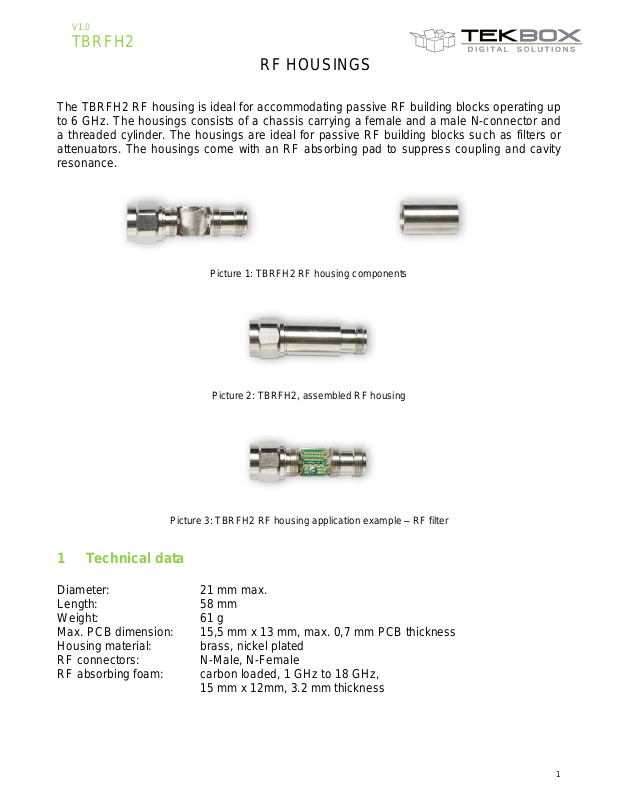

TBRFH2
RF HOUSINGS
The TBRFH2 RF housing is ideal for accommodating passive RF building blocks operating up
to 6 GHz. The housings consists of a chassis carrying a female and a male N-connector and
a threaded cylinder. The housings are ideal for passive RF building blocks such as filters or
attenuators. The housings come with an RF absorbing pad to suppress coupling and cavity
resonance.

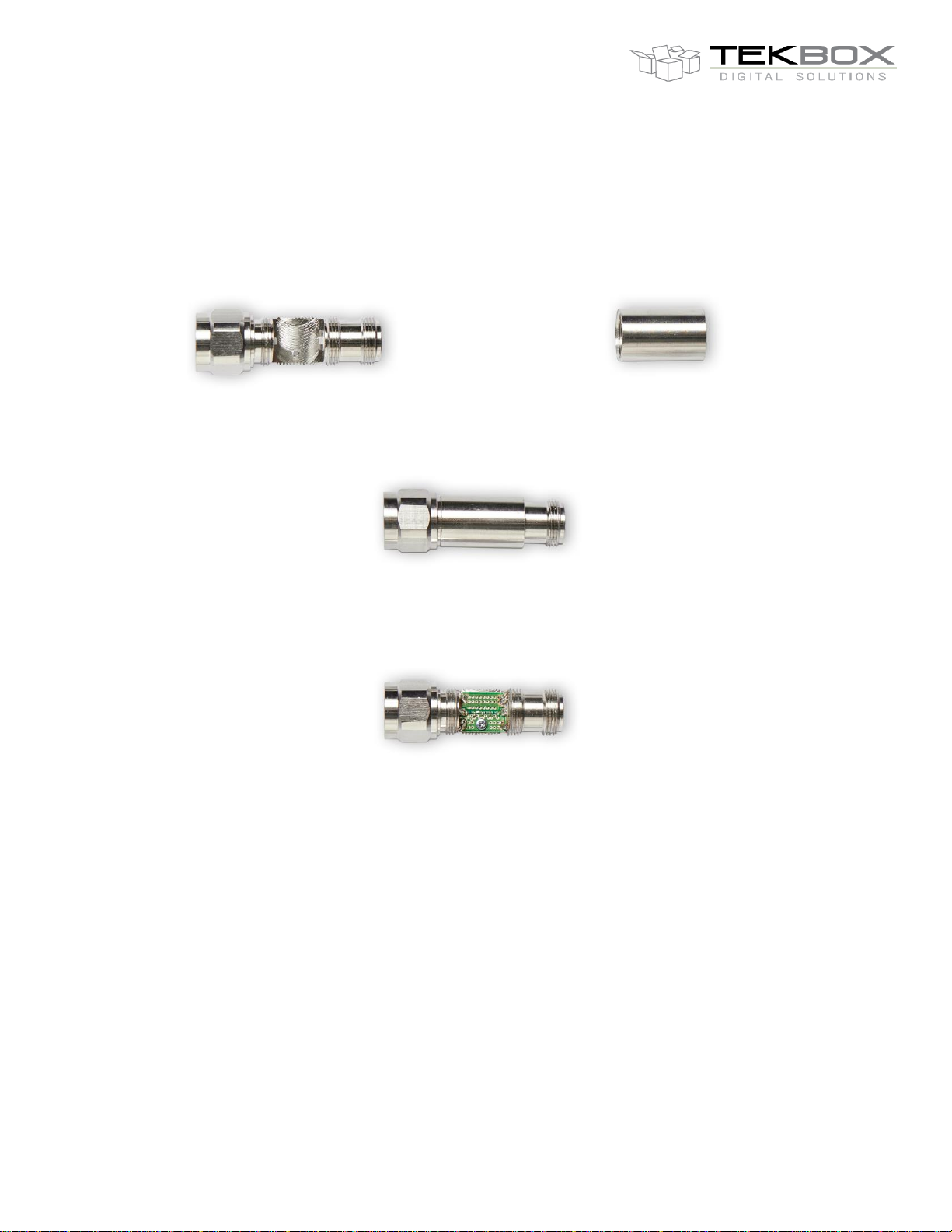

Picture 1: TBRFH2 RF housing components
Picture 2: TBRFH2, assembled RF housing
Picture 3: TBRFH2 RF housing application example – RF filter
1 Technical data
Diameter: 21 mm max.
Length: 58 mm
Weight: 61 g
Max. PCB dimension: 15,5 mm x 13 mm, max. 0,7 mm PCB thickness
Housing material: brass, nickel plated
RF connectors: N-Male, N-Female
RF absorbing foam: carbon loaded, 1 GHz to 18 GHz,
15 mm x 12mm, 3.2 mm thickness
Page 2
V1.0
2
RF chassis
1 pc
Threaded cylindrical tube
1 pc
RF absorber pad
1 pc
Screws, M2 x 4, stainless steel
1 pc
Part Number
Description
TBRFH2
Coaxial RF housing, N-Male / N-Female
Version
Date
Author
Changes
V 1.0
17.12.2019
Mayerhofer
Creation of the document
TBRFH2
2 Parts list
3 Mechanical drawings
RF HOUSINGS
4 Ordering Information
5 History

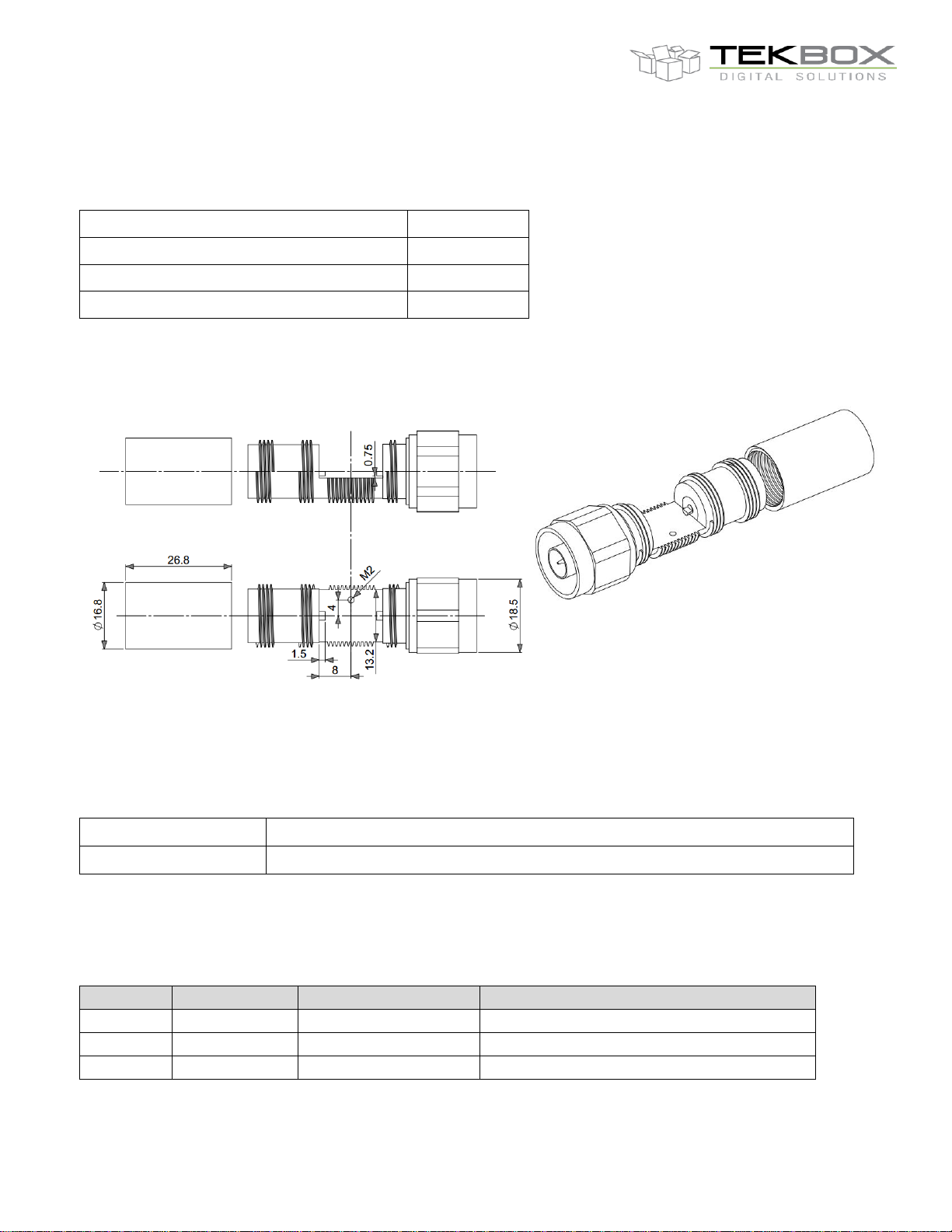

Picture 4: housing dimensions
Table 2 – Ordering Information
