TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers
1 Introduction
TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory
setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they
are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1
wideband amplifiers are available with 14dB or 28dB gain.

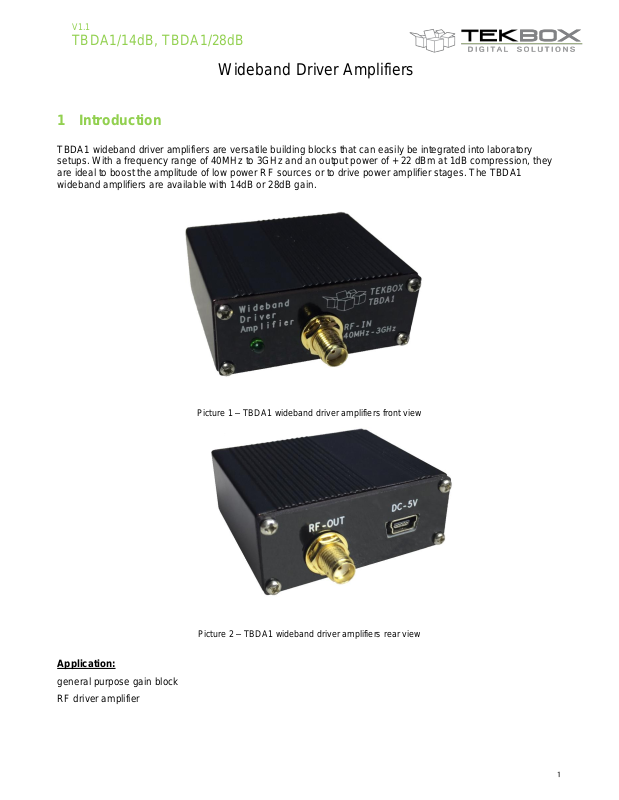

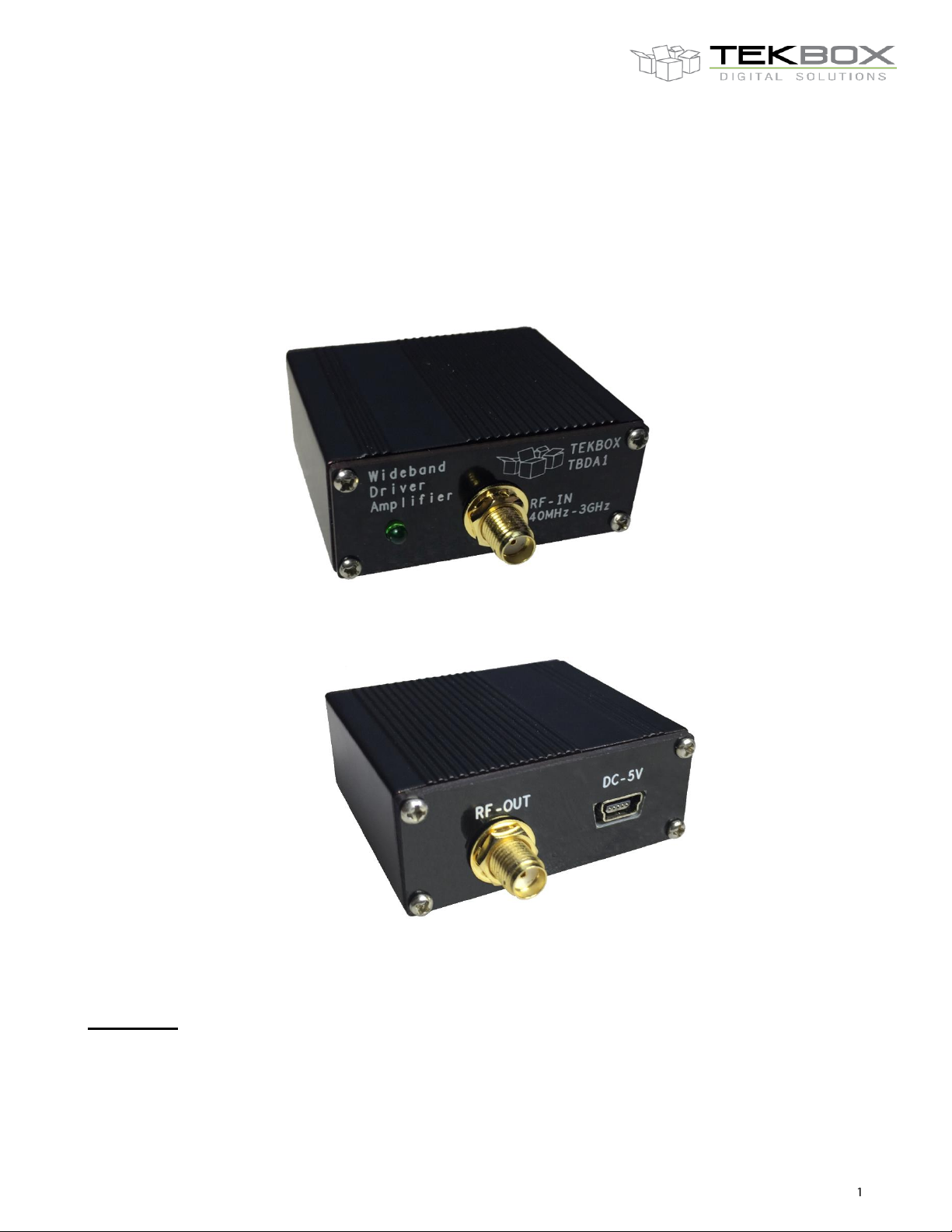

Picture 1 – TBDA1 wideband driver amplifiers front view
Application:
general purpose gain block
RF driver amplifier
Picture 2 – TBDA1 wideband driver amplifiers rear view
Page 2
V1.1
25 MHz
50 MHz
100 MHz
500 MHz
1 GHz
1.5 GHz
2 GHz
2.5 GHz
3 GHz
12 dB
13.8 dB
14.2 dB
14.2 dB
14.3 dB
14.3 dB
13.7 dB
14.8 dB
14.6 dB
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers
2 Electrical Specifications
Technical Data:
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +40dBm
3rd order output intercept point @ 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise Figure: 3 … 4 dB
Gain:
Table 1 – TBDA1/14dB gain

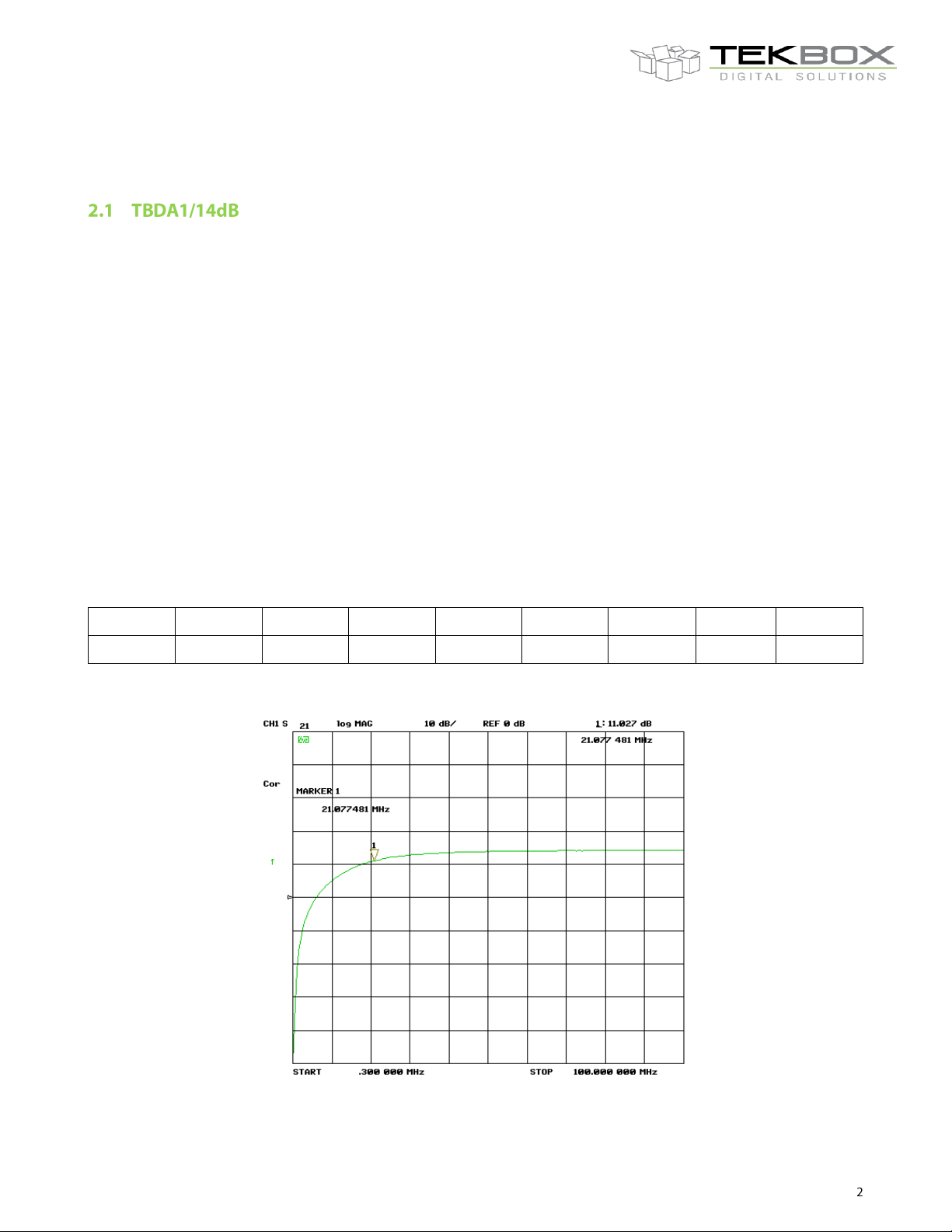

Picture 3 – TBDA1/14dB, gain, 300 kHz – 100 MHz, lin.
Page 3
V1.1
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers
Picture 4 – TBDA1/14dB, gain, 300 kHz – 3 GHz, lin.

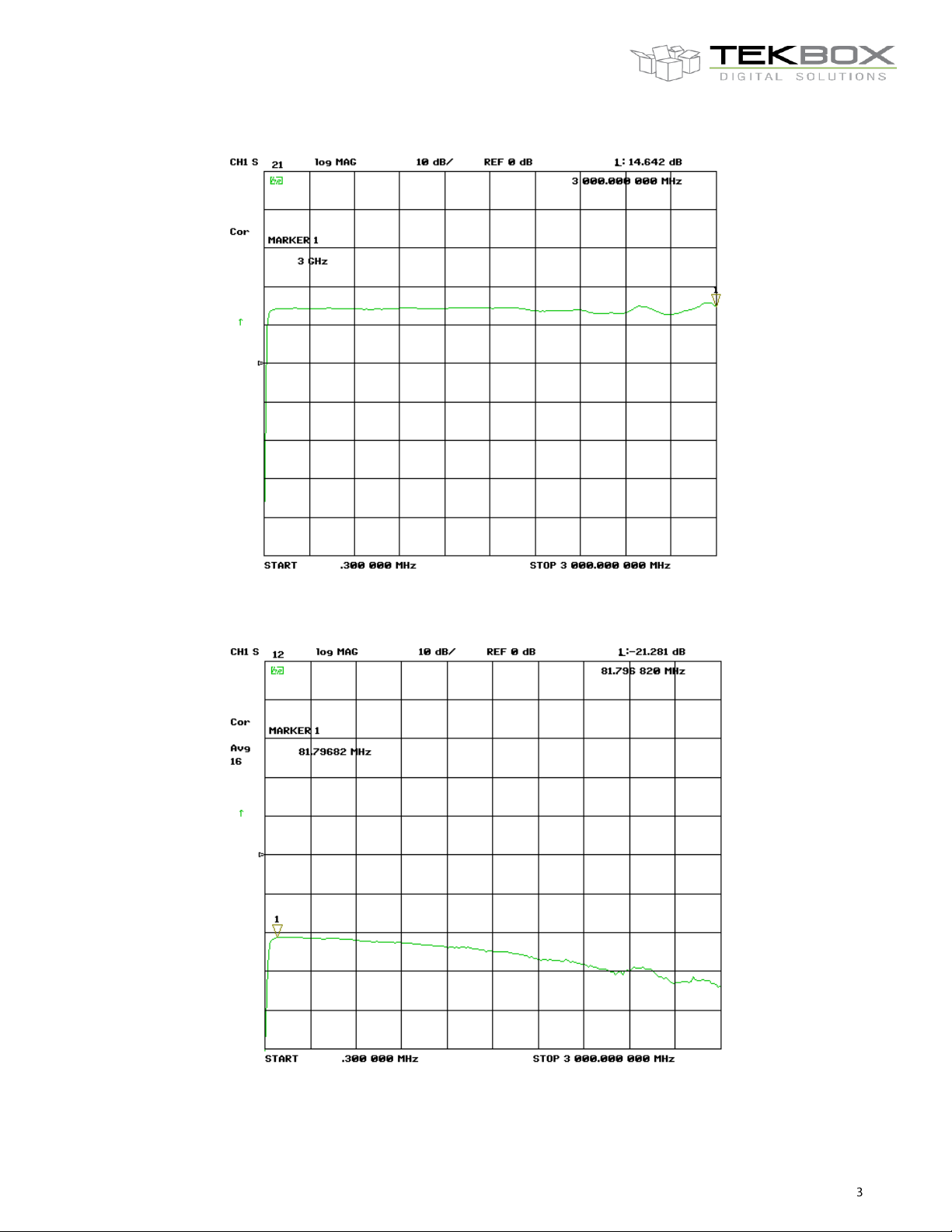

Picture 5 – TBDA1/14dB, reverse isolation, 300 kHz – 3 GHz, lin.
Page 4
V1.1
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers

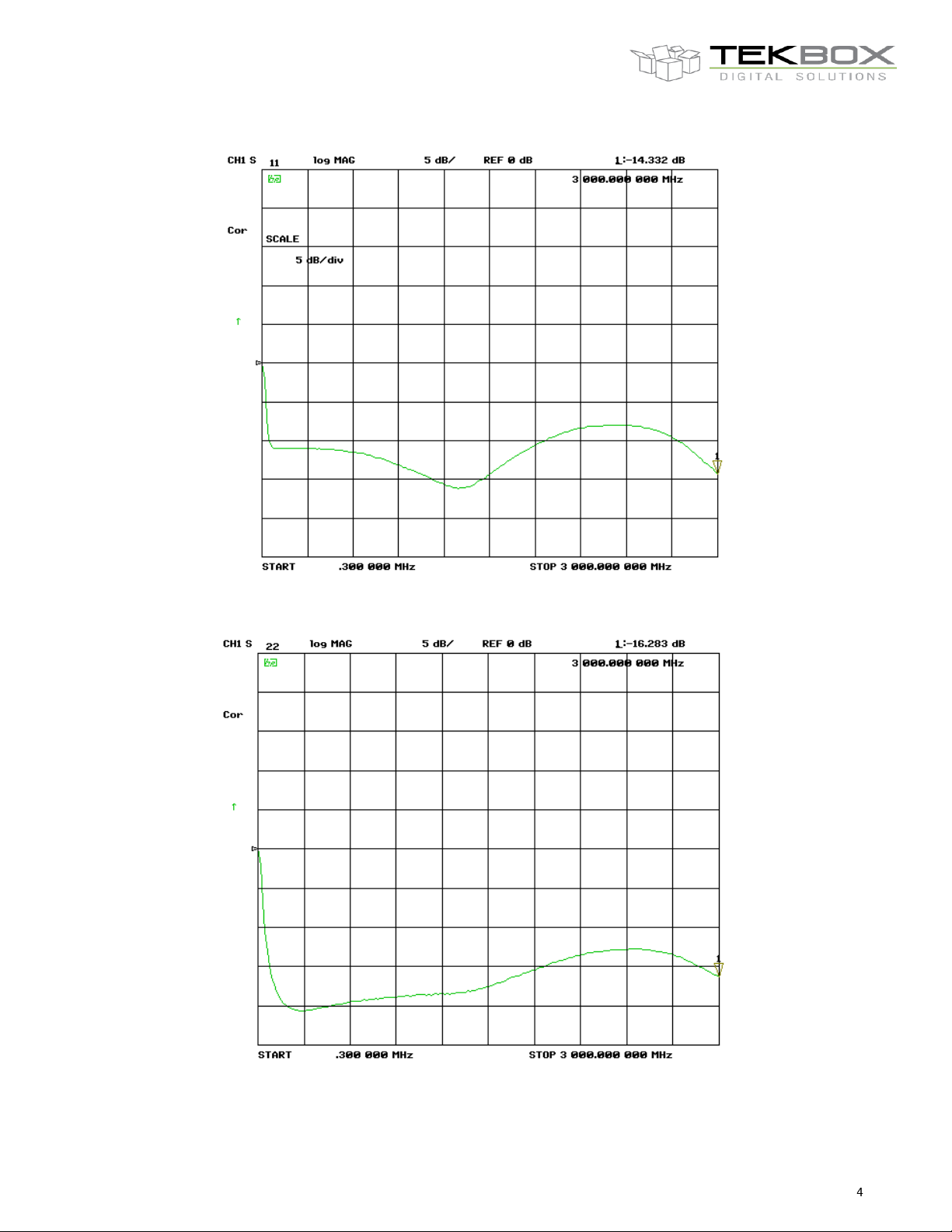

Picture 6 – TBDA1/14dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.
Picture 7 – TBDA1/14dB, output return loss, lS22l, 300 kHz – 3 GHz, lin.
Page 5
V1.1
25 MHz
50 MHz
100 MHz
500 MHz
1 GHz
1.5 GHz
2 GHz
2.5 GHz
3 GHz
26 dB
28.4 dB
28.6 dB
28.6 dB
28.8 dB
28.3 dB
27.2dB
28.5 dB
28.9 dB
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers
Technical Data:
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +6 dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +39.8dBm
3rd order output intercept point @ 2 GHz: +42.8dBm
Reverse isolation S12: < -40dB
Noise Figure: 3.1 … 4.1 dB
Gain:
Table 2 – TBDA1/28dB gain
Picture 8 – TBDA1/28dB, gain, 300 kHz – 100 MHz, lin.
Page 6
V1.1
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers
Picture 9 – TBDA1/28dB, gain, 300 kHz – 3 GHz, lin.

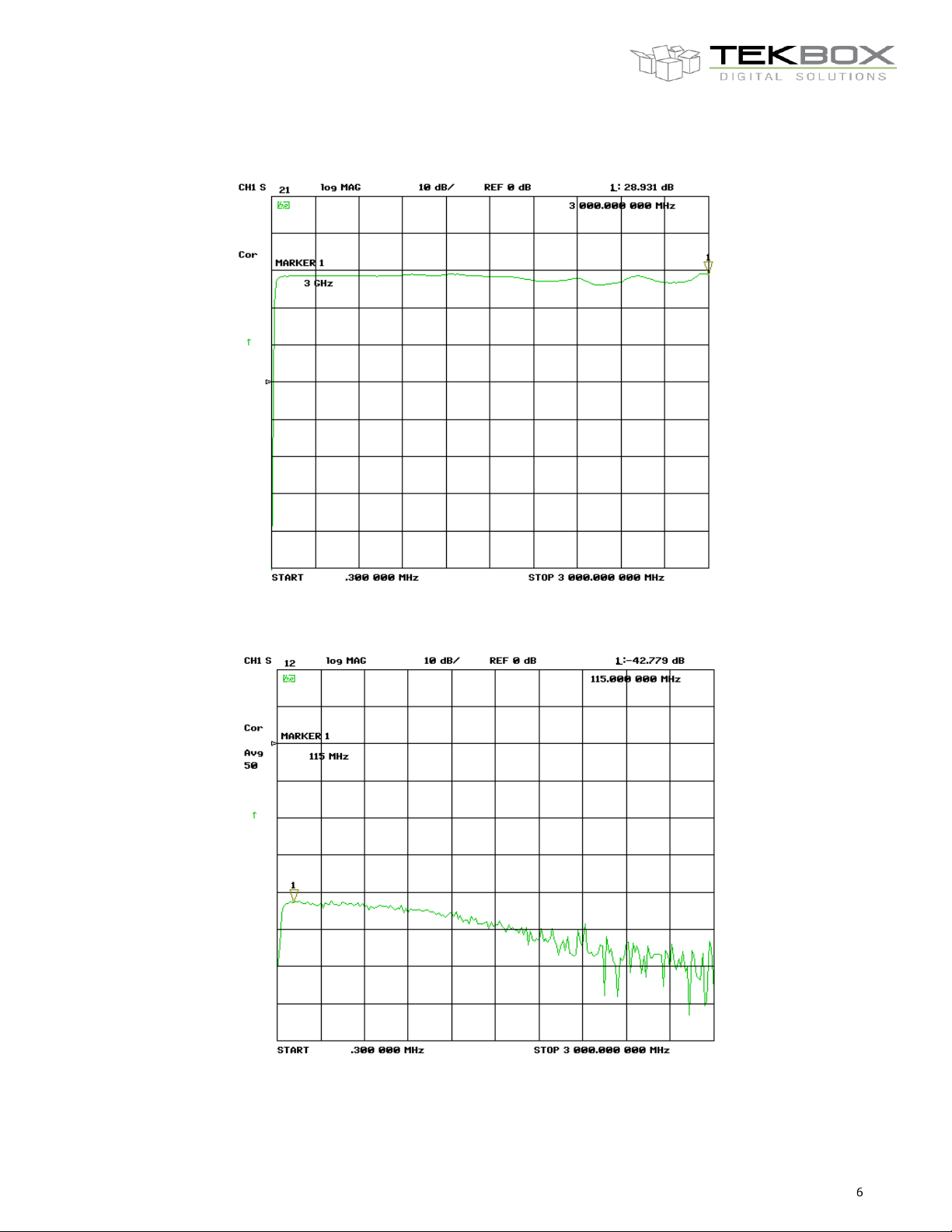

Picture 10 – TBDA1/28dB, reverse isolation, 300 kHz – 3 GHz, lin.
Page 7
V1.1
TBDA1/14dB, TBDA1/28dB
Wideband Driver Amplifiers

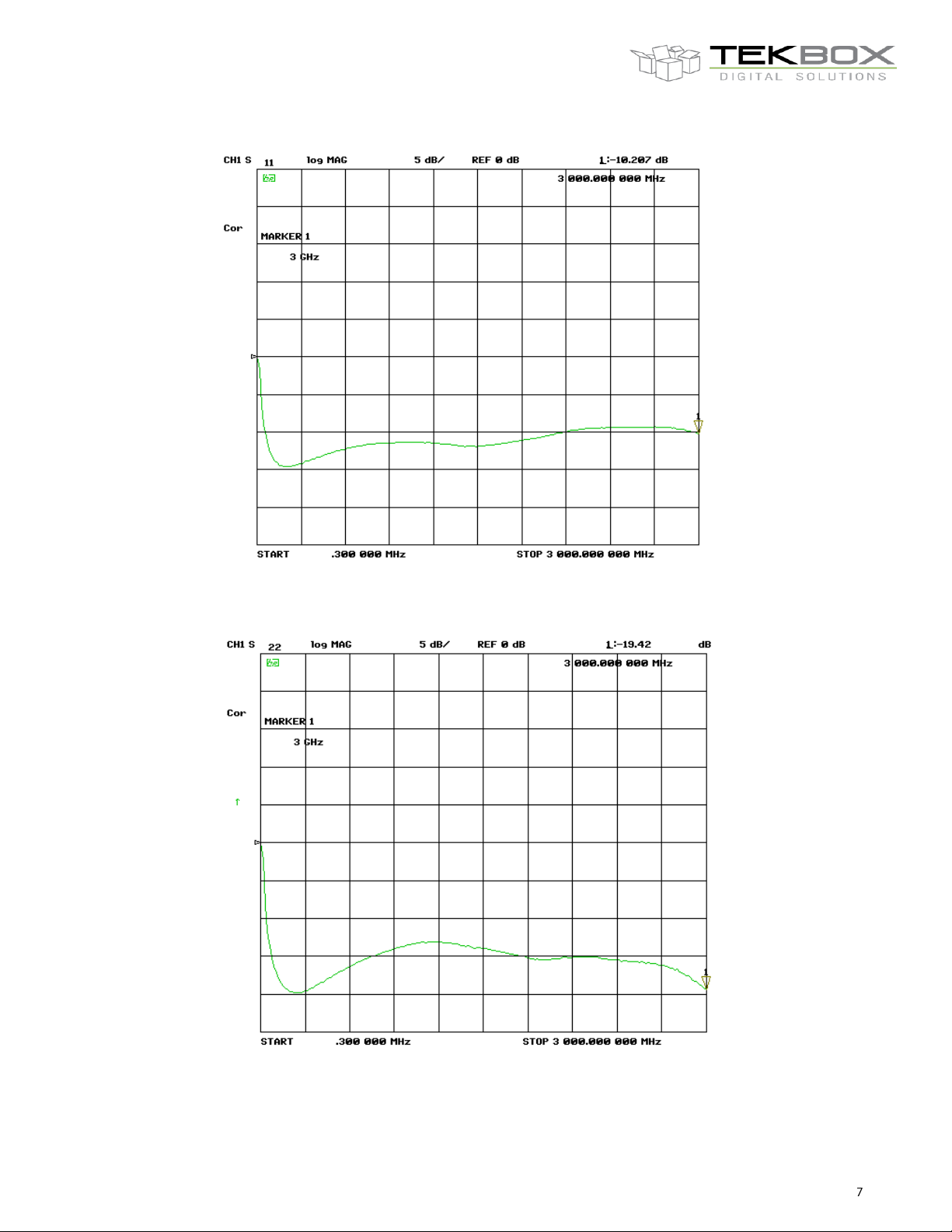

Picture 11 – TBDA1/28dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.
Picture 12 – TBDA1/28dB, output return loss, lS22l, 300 kHz – 3 GHz, lin.
Page 8
V1.1
Part Number
Description
TBDA1/14dB
14 dB driver amplifier, 1 pc 25cm SMA-male to SMA-male cable, 1 pc 75cm SMA- male
to N-male cable. 1 pc SMA-female to N-male coaxial adapter, USB cable, measurement
plot
TBDA1/28dB
28 dB driver amplifier, 1 pc 25cm SMA-male to SMA-male cable, 1 pc 75cm SMA- male
to N-male cable. 1 pc SMA-female to N-male coaxial adapter, USB cable, measurement
plot
Version
Date
Author
Changes
V1.0
16.6.2016
Mayerhofer
Creation of the document
V1.1
14.11.2016
Mayerhofer
Updated chapter 3, deliverables
TBDA1/14dB, TBDA1/28dB
3 Ordering Information
Wideband Driver Amplifiers
Table 3 – Ordering Information
