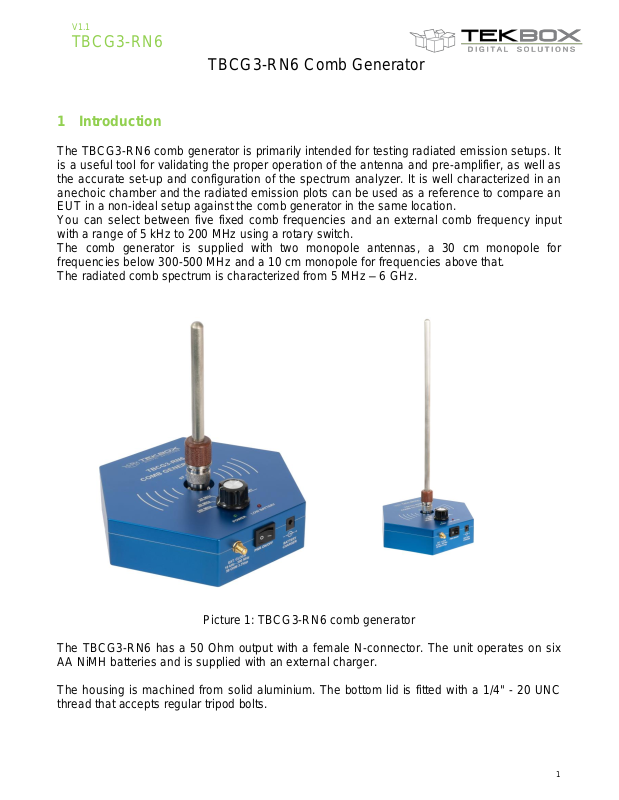

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator
1 Introduction
The TBCG3-RN6 comb generator is primarily intended for testing radiated emission setups. It
is a useful tool for validating the proper operation of the antenna and pre-amplifier, as well as
the accurate set-up and configuration of the spectrum analyzer. It is well characterized in an
anechoic chamber and the radiated emission plots can be used as a reference to compare an
EUT in a non-ideal setup against the comb generator in the same location.
You can select between five fixed comb frequencies and an external comb frequency input
with a range of 5 kHz to 200 MHz using a rotary switch.
The comb generator is supplied with two monopole antennas, a 30 cm monopole for
frequencies below 300-500 MHz and a 10 cm monopole for frequencies above that.
The radiated comb spectrum is characterized from 5 MHz – 6 GHz.

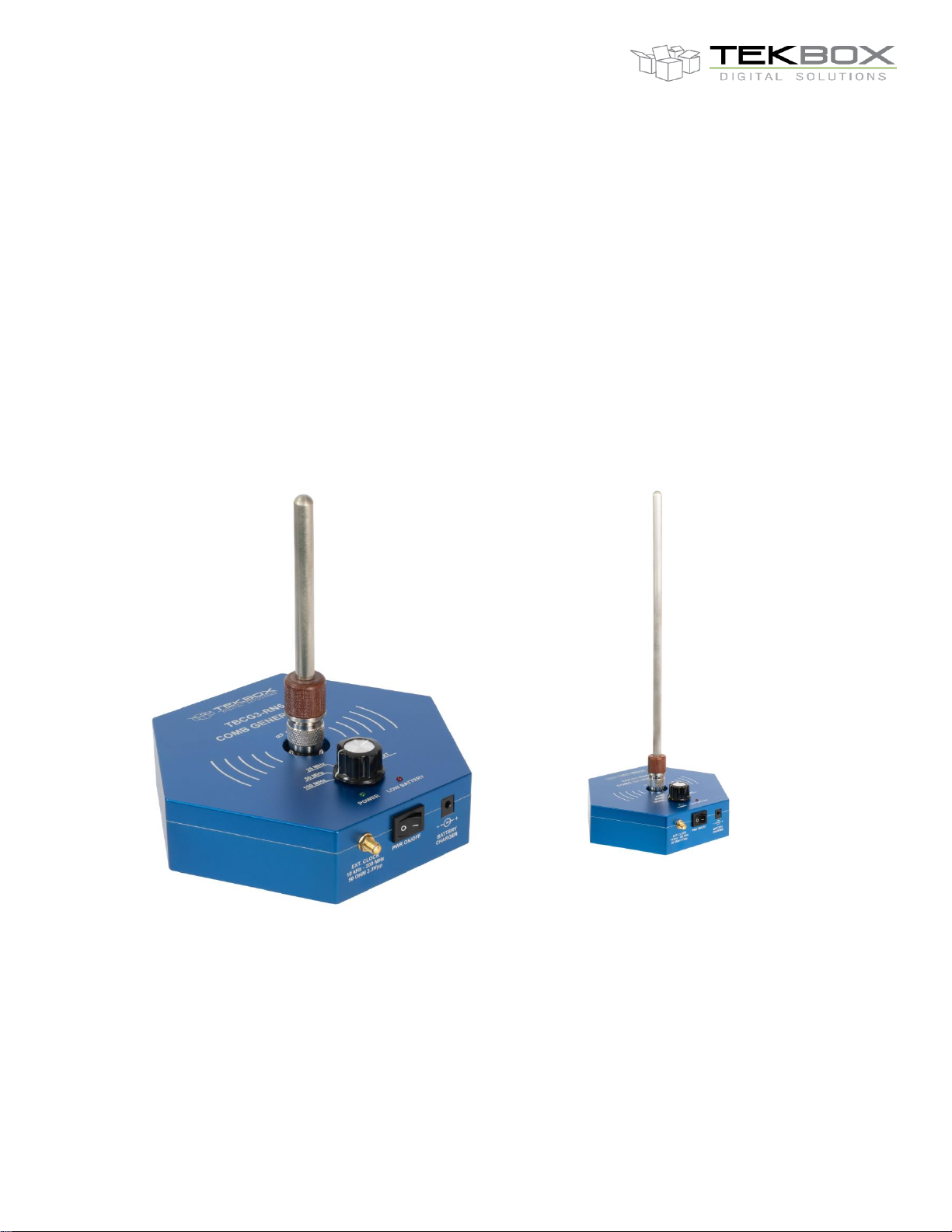

Picture 1: TBCG3-RN6 comb generator
The TBCG3-RN6 has a 50 Ohm output with a female N-connector. The unit operates on six
AA NiMH batteries and is supplied with an external charger.
The housing is machined from solid aluminium. The bottom lid is fitted with a 1/4" - 20 UNC
thread that accepts regular tripod bolts.

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator
2 Specification
Characterized frequency range: 5 MHz - 6 GHz
Comb spectrum flatness up to 2 GHz: typically 10 dB at the RF connector
Comb spectrum flatness up to 6 GHz: typically 40 dB at the RF connector
Output impedance: 50 Ohm
Output power: 0 dBm max. @ 100 MHz f
comb
; decreasing 6 dB with every f
comb
/2
Amplitude stability: < 0.2 dB; <0.1 dB after 15 minutes
Aging: < 0.5 dB over 12 months
Output connector: N type-female
Selectable, fixed comb frequencies: 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz
Frequency stability: 50 ppm
External excitation input: 5 kHz – 200 MHz @ square input signal; 3.3 Vpp max
100 kHz – 200 MHz @ sinus input signal; 3.3 Vpp max
External input impedance: 50 Ohm
Input connector: SMA-female
Indicators: Power On LED, Low Battery LED
Power supply: 6 x AA NiMH cells (e.g. Varta Mignon 2700, not supplied)
Charger: external; Ansmann ACS310
Antennas: 30 cm monopole for f<300 … 500 MHz; 10 cm monopole for f>300…500 MHz
Operation time: battery capacity / 91 mA
Temperature range: -10°C to +45 °C; lower operating temperature dependent on battery type
Housing diameter: 180 mm
Housing height: 60 mm
Weight: 1250 g
Warning: the TBCG3-RN6 radiates across a wide spectrum, significantly exceeding radiated
emission limits specified in any CISPR standard. Use it only in a shielded environment to
avoid interference with other electronic products.
3 Characterization
The comb generator was tested in an anechoic chamber at 1 meter height and 3 meters from
the antenna. The antenna was mounted at a fixed height of 1m.
The test plan, test report, and the associated CVS files contain the raw data (antenna voltage)
and can be downloaded from the Tekbox website. Due to a restriction of the test tool, the
amplitude axis of the charts in the test report is incorrectly labelled dBµV/m. It is, in reality,
dBµV.
The data package also includes the data sheets and antenna factors for the measurement
antennas involved. The processed raw data including conversion into electric field-strength is
stored in the Excel file TBCG3_RN6_summary.xlsx.

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator
4 Spectrum plots, conducted output spectrum

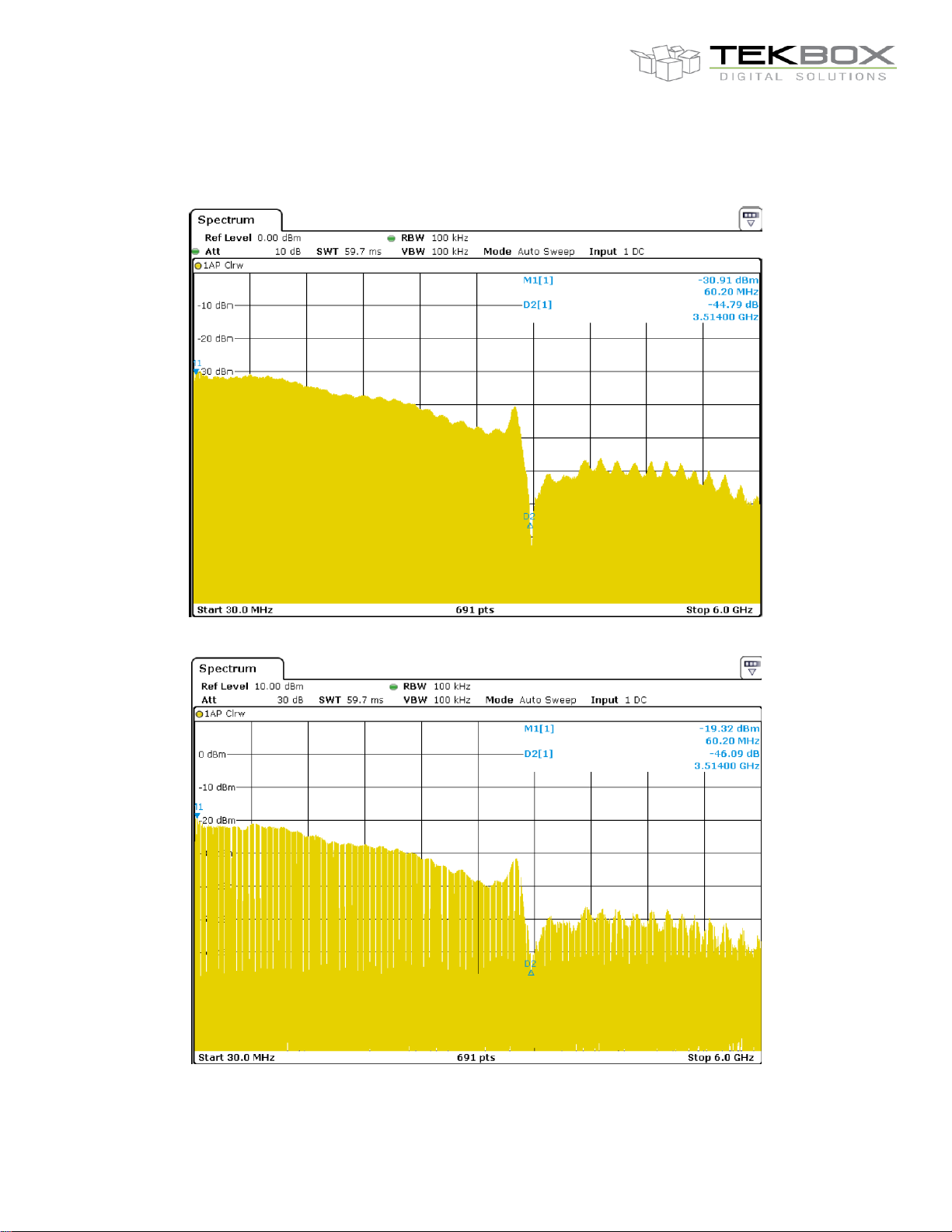

Figure 1 – 5 MHz comb frequency
Figure 2 – 10 MHz comb frequency

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

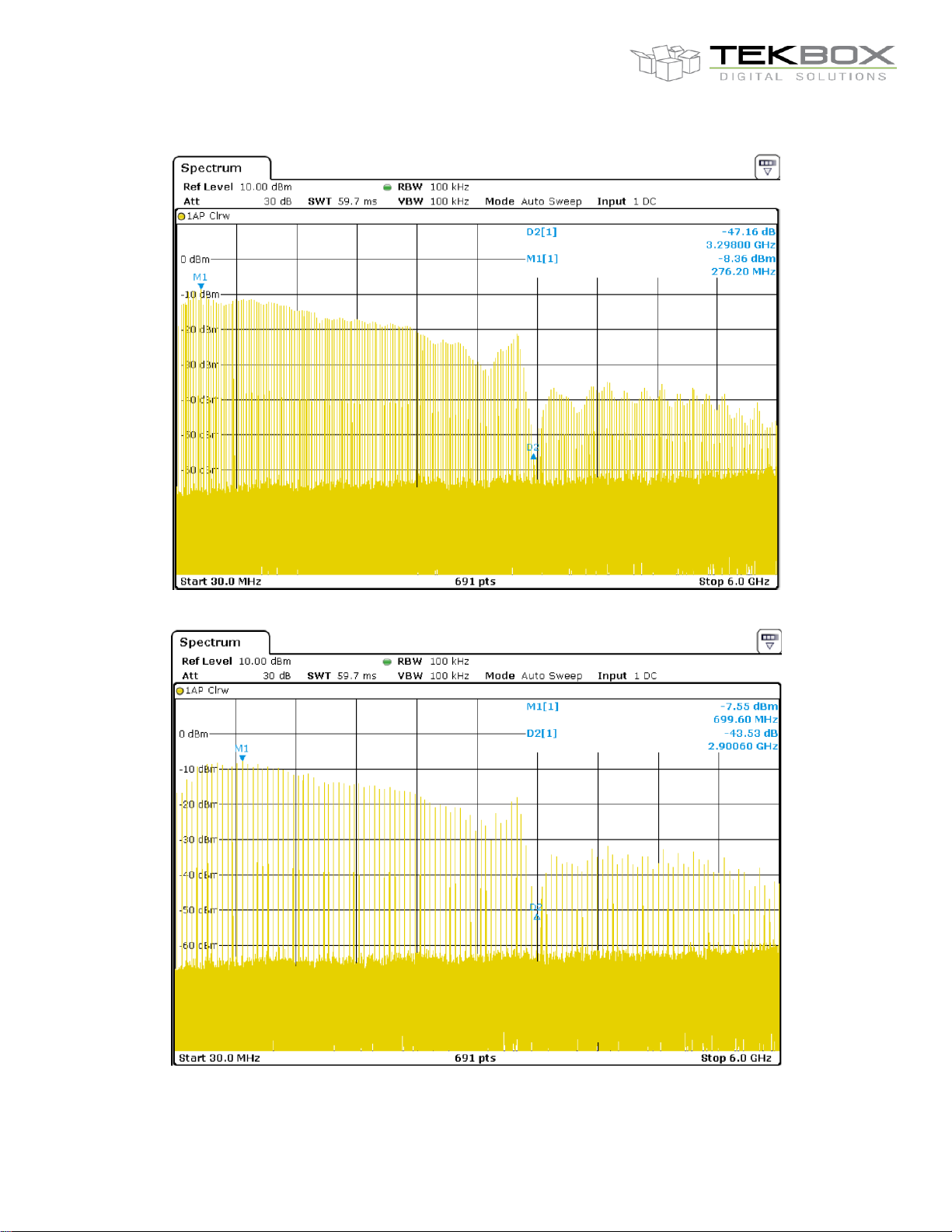

Figure 3 – 25 MHz comb frequency
Figure 4 – 50 MHz comb frequency

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

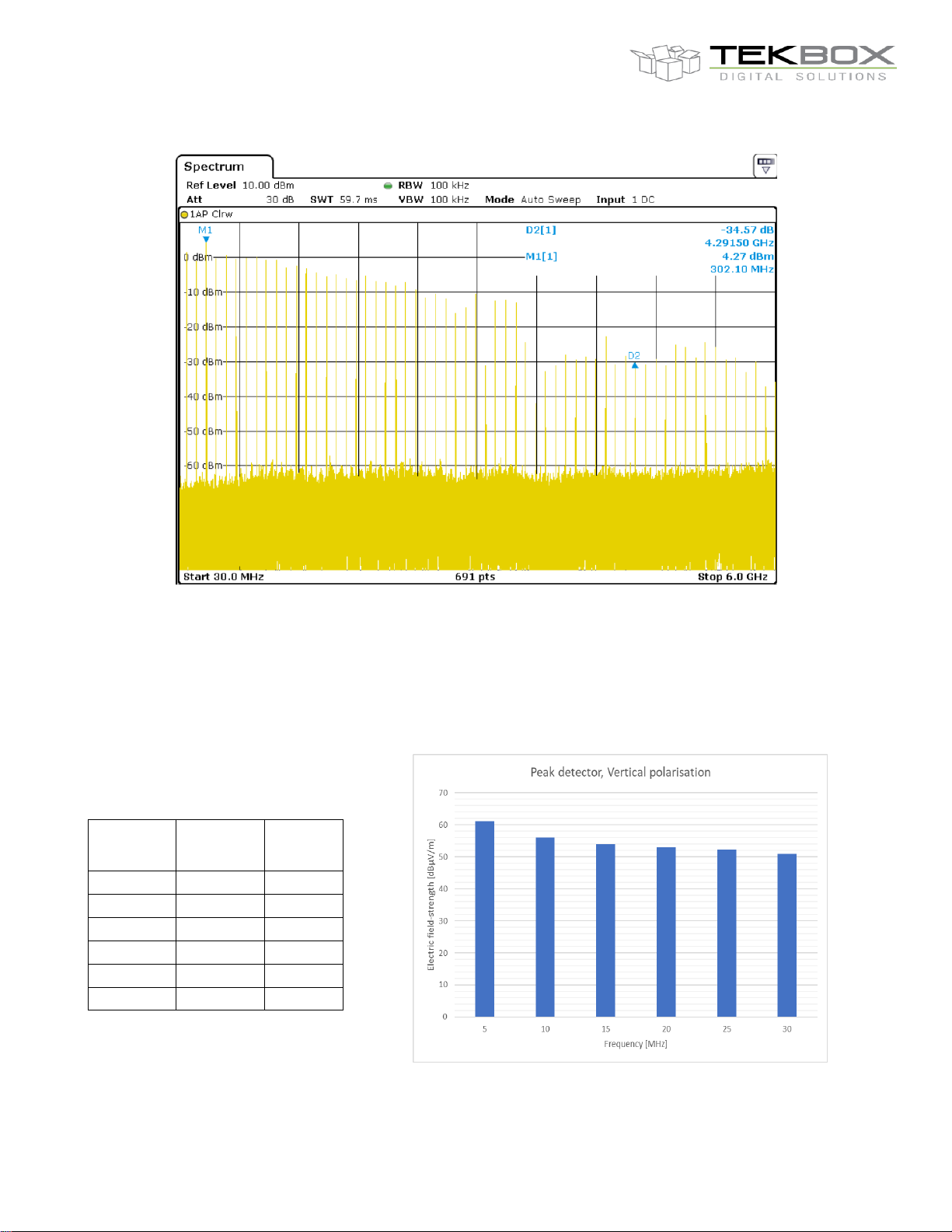

Figure 5 – 100 MHz comb frequency
5 Spectrum plots, radiated spectrum
5.1 5 MHz comb frequency, 30 cm antenna, 5 MHz – 30 MHz
Measured with monopole antenna
3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

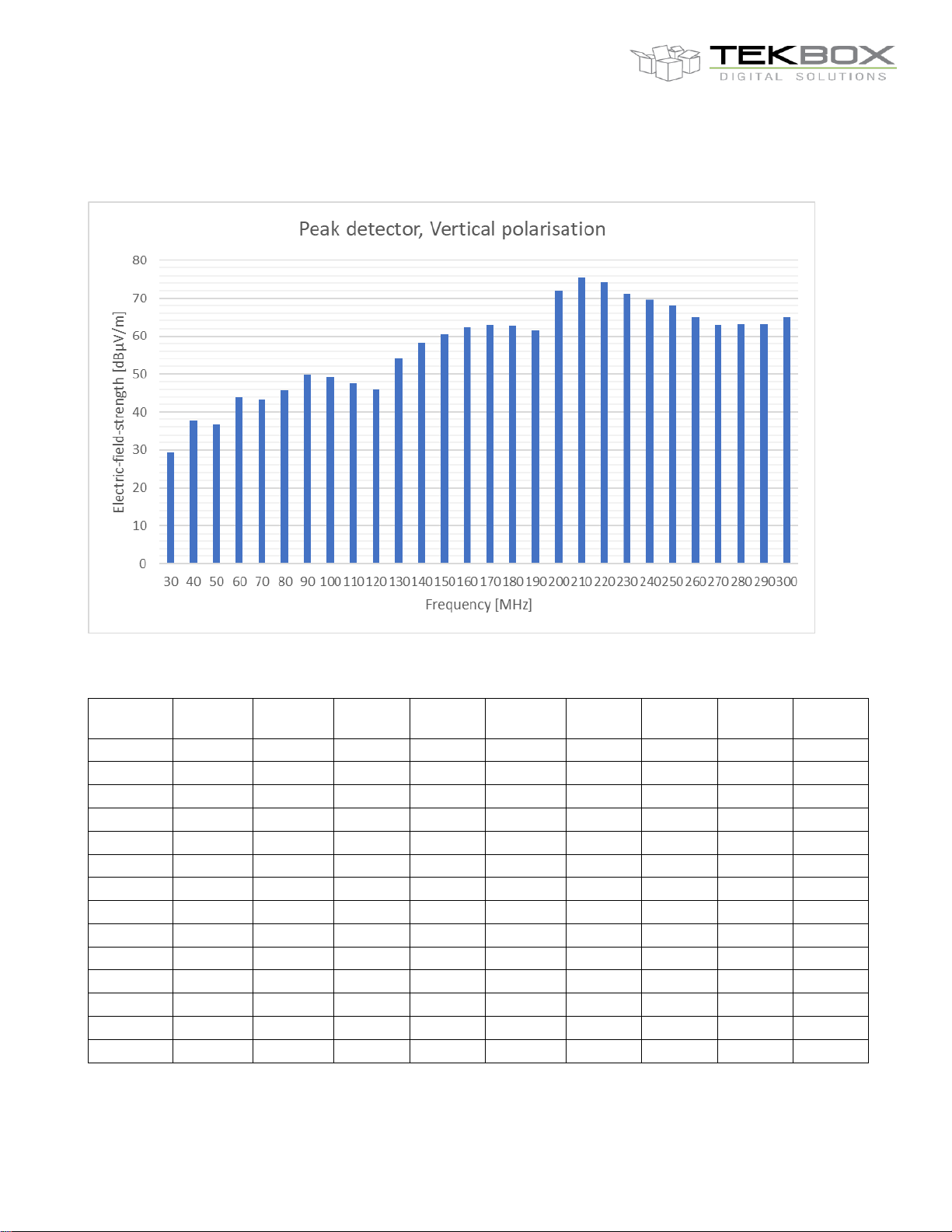

5.2 10 MHz comb frequency, 30 cm antenna, 30 MHz – 200 MHz
Measured with biconical antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

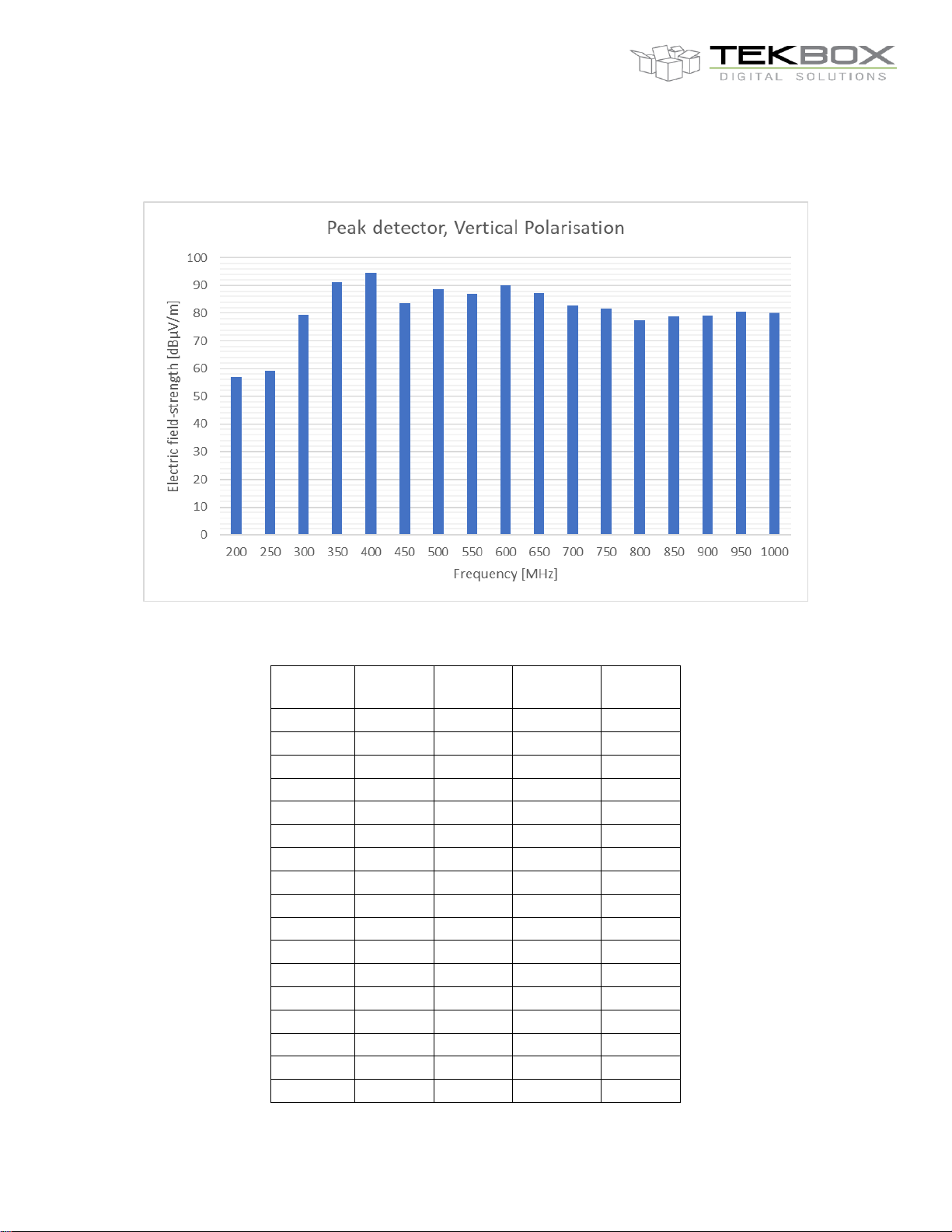

5.3 10 MHz comb frequency, 10 cm antenna, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

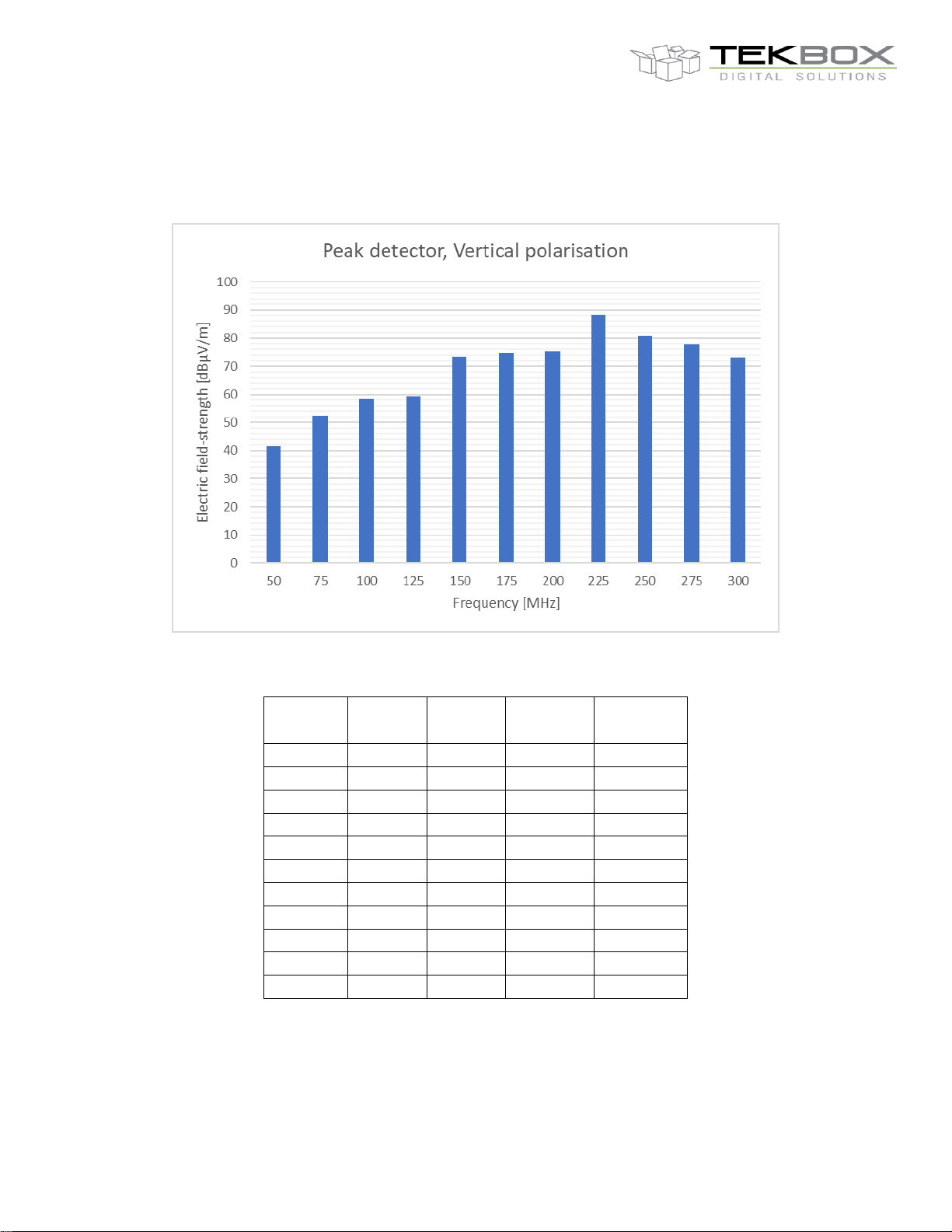

5.4 25 MHz comb frequency, 30 cm antenna, 30 MHz – 200 MHz
Measured with biconical antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

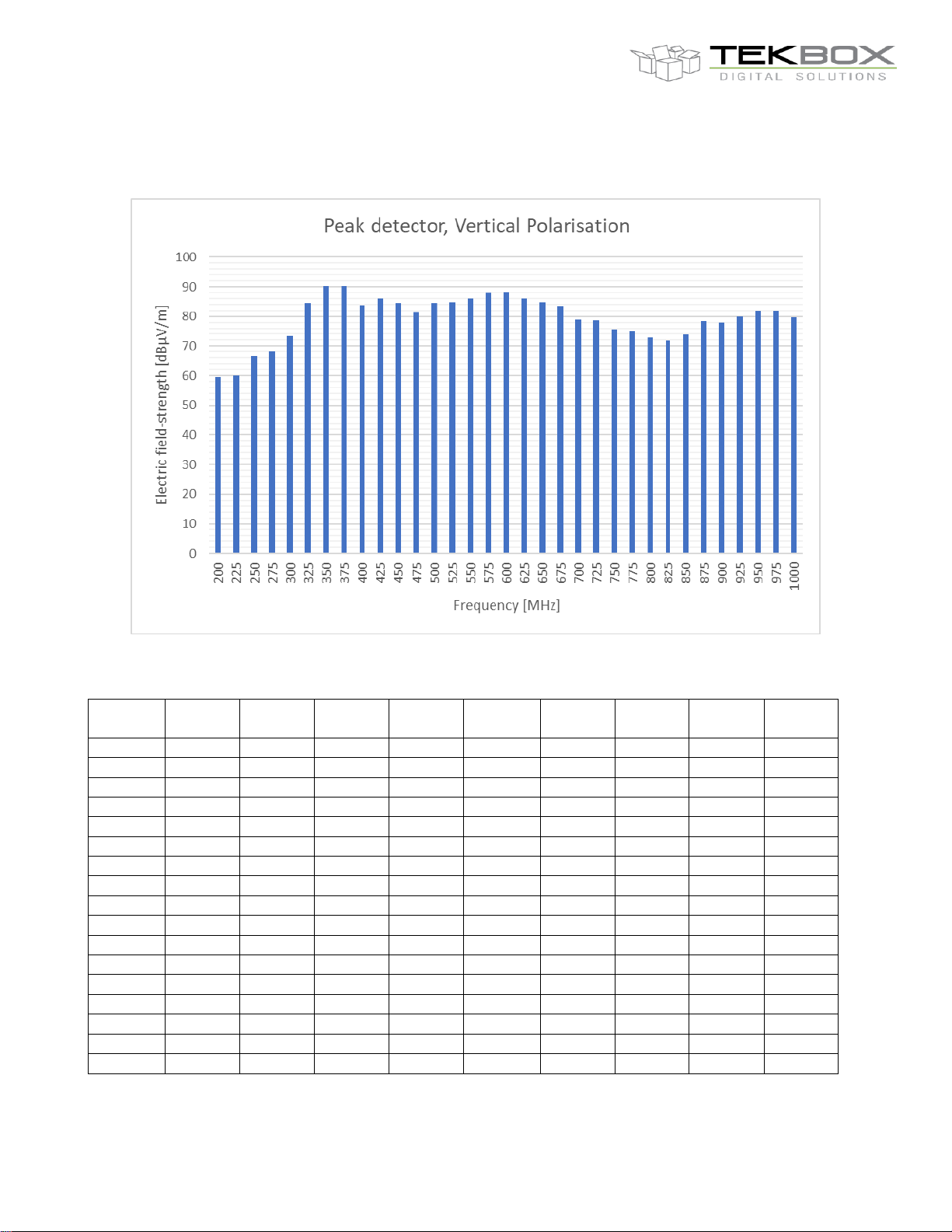

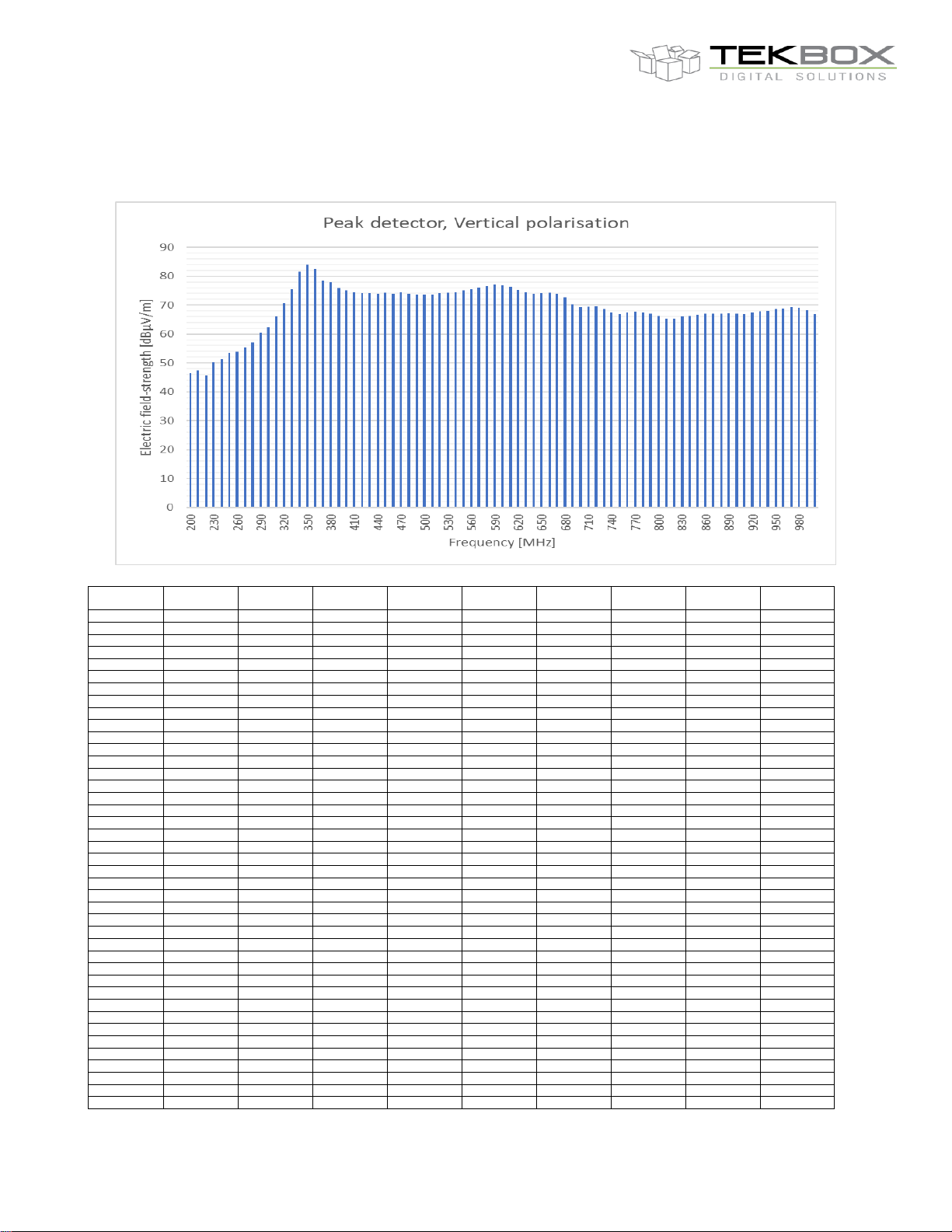

5.5 25 MHz comb frequency, 10 cm antenna, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

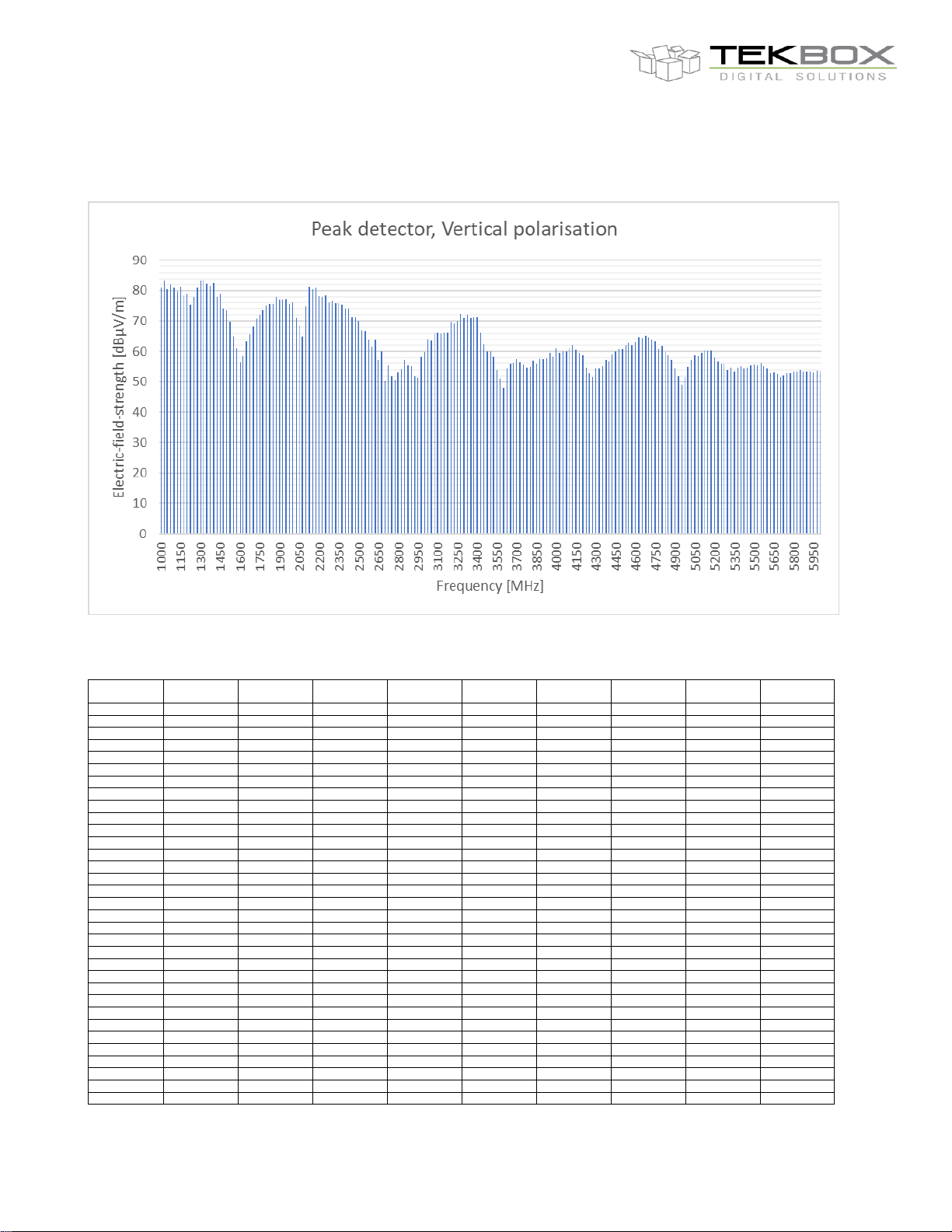

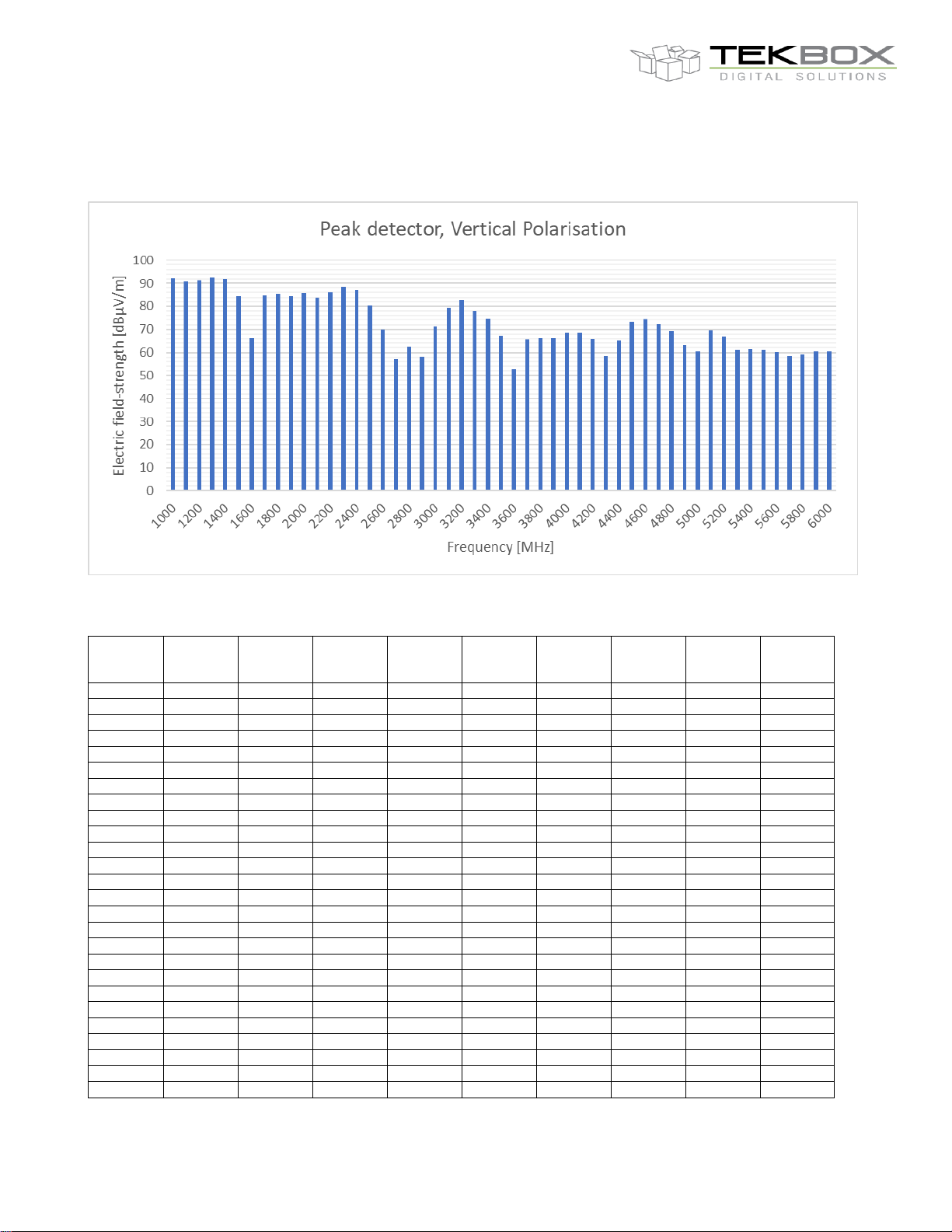

5.6 25 MHz comb frequency, 10 cm antenna, 1 GHz – 6 GHz
Measured with horn antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

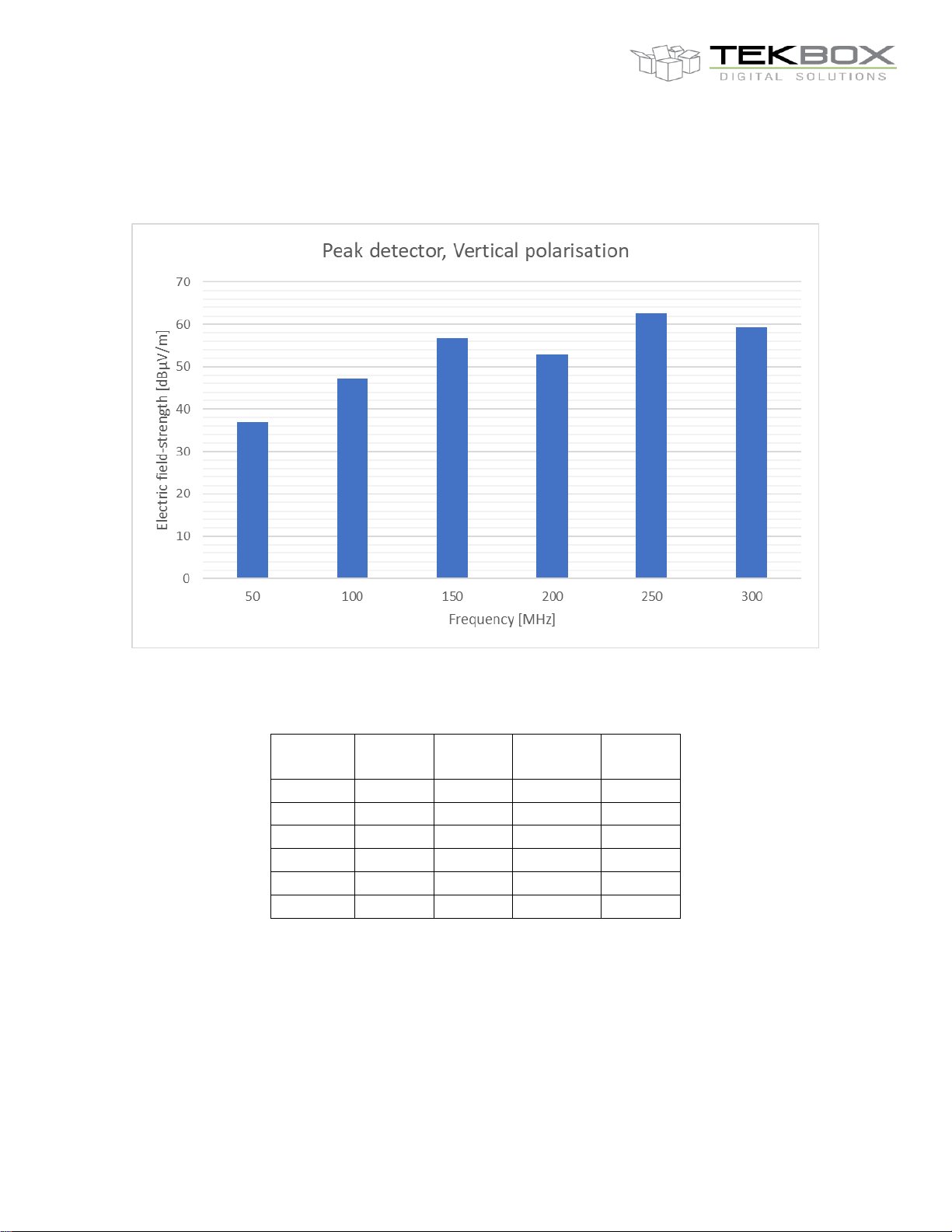

5.7 50 MHz comb frequency, 30 cm antenna, 30 MHz – 200 MHz
Measured with biconical antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator
5.8 50 MHz comb frequency, 10 cm antenna, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

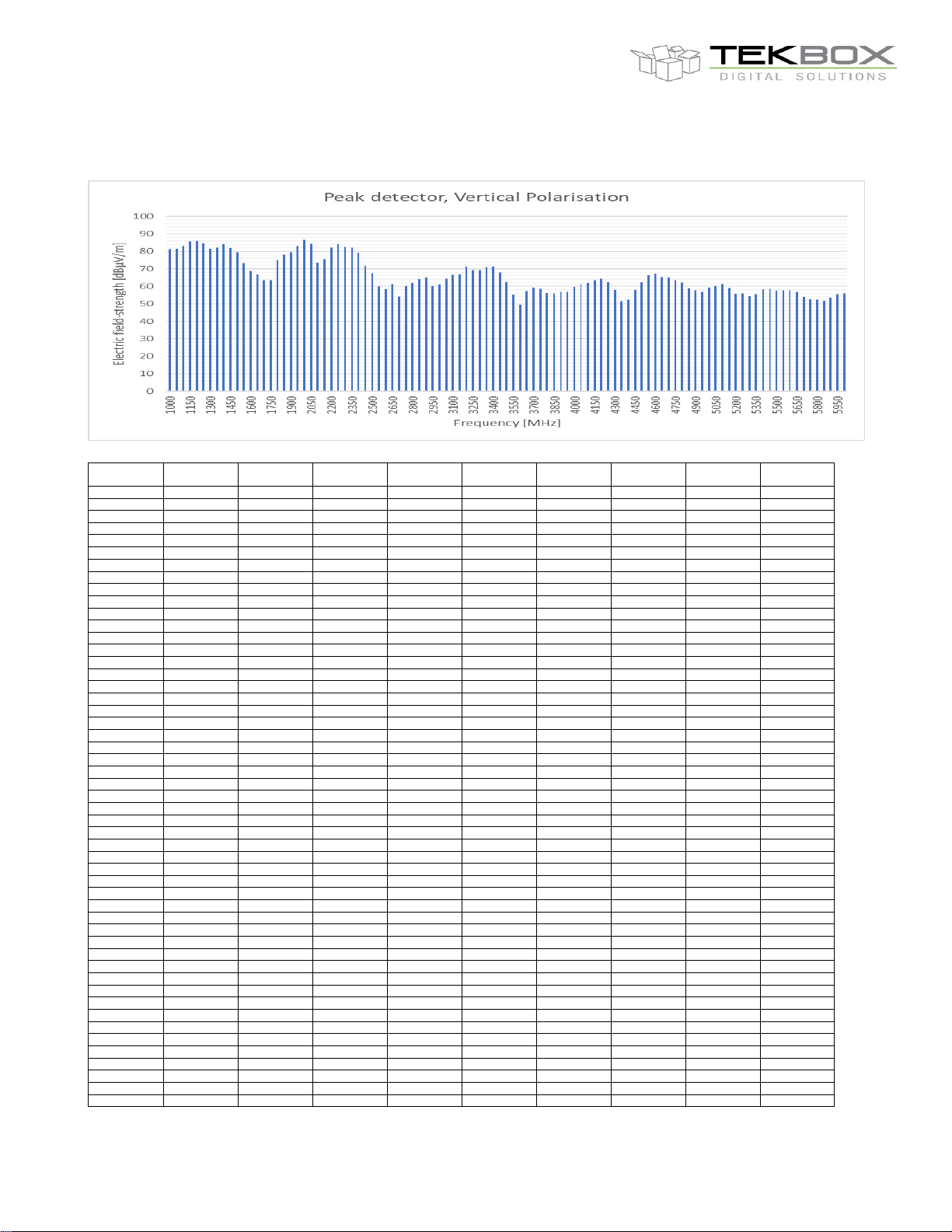

5.9 50 MHz comb frequency, 10 cm antenna, 1 GHz – 6 GHz
Measured with horn antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

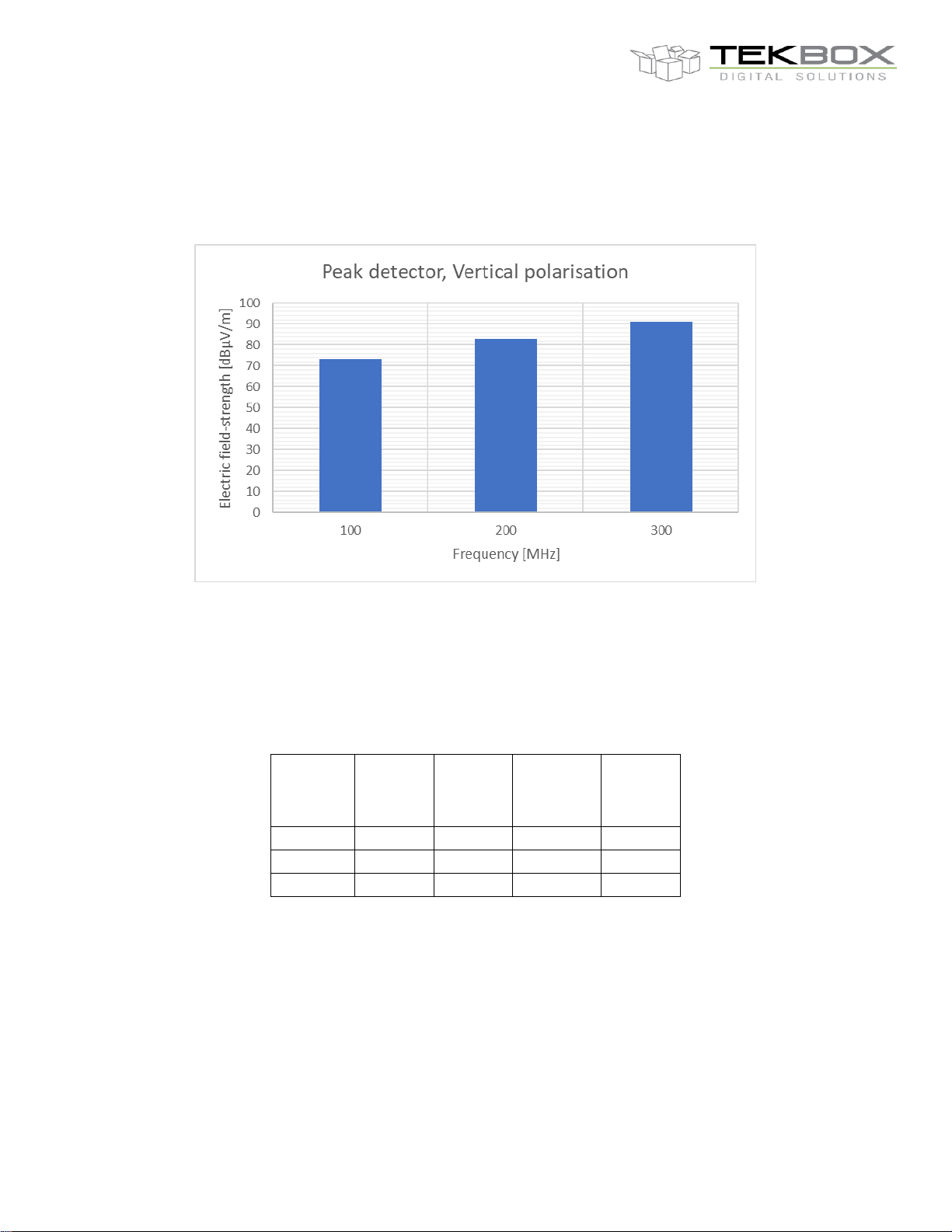

5.10 100 MHz comb frequency, 30 cm antenna, 30 MHz – 200 MHz
Measured with biconical antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

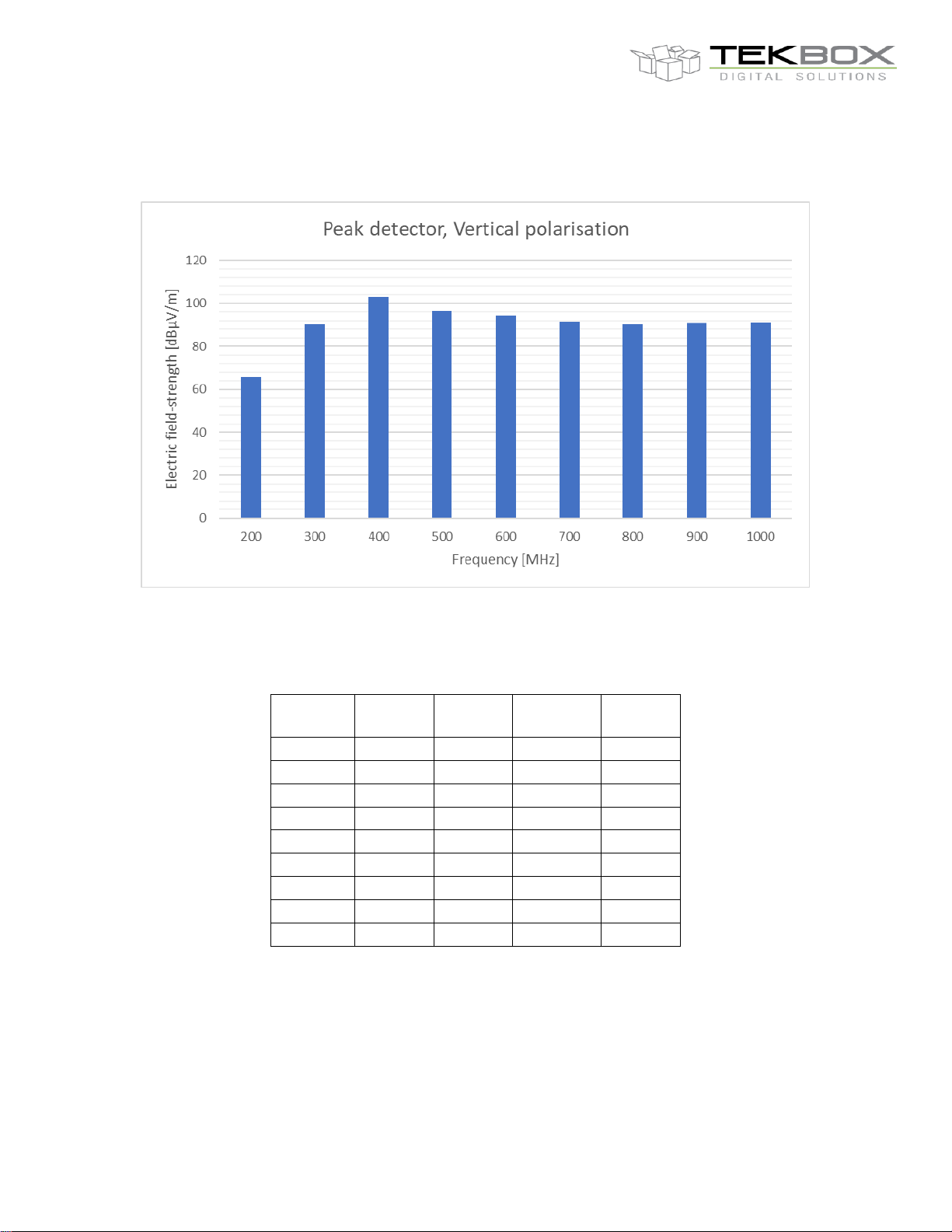

5.11 100 MHz comb frequency, 10 cm antenna, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator
5.12 100 MHz comb frequency, 10 cm antenna, 1 GHz – 6 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height

V1.1
TBCG3-RN6
TBCG3-RN6 Comb Generator

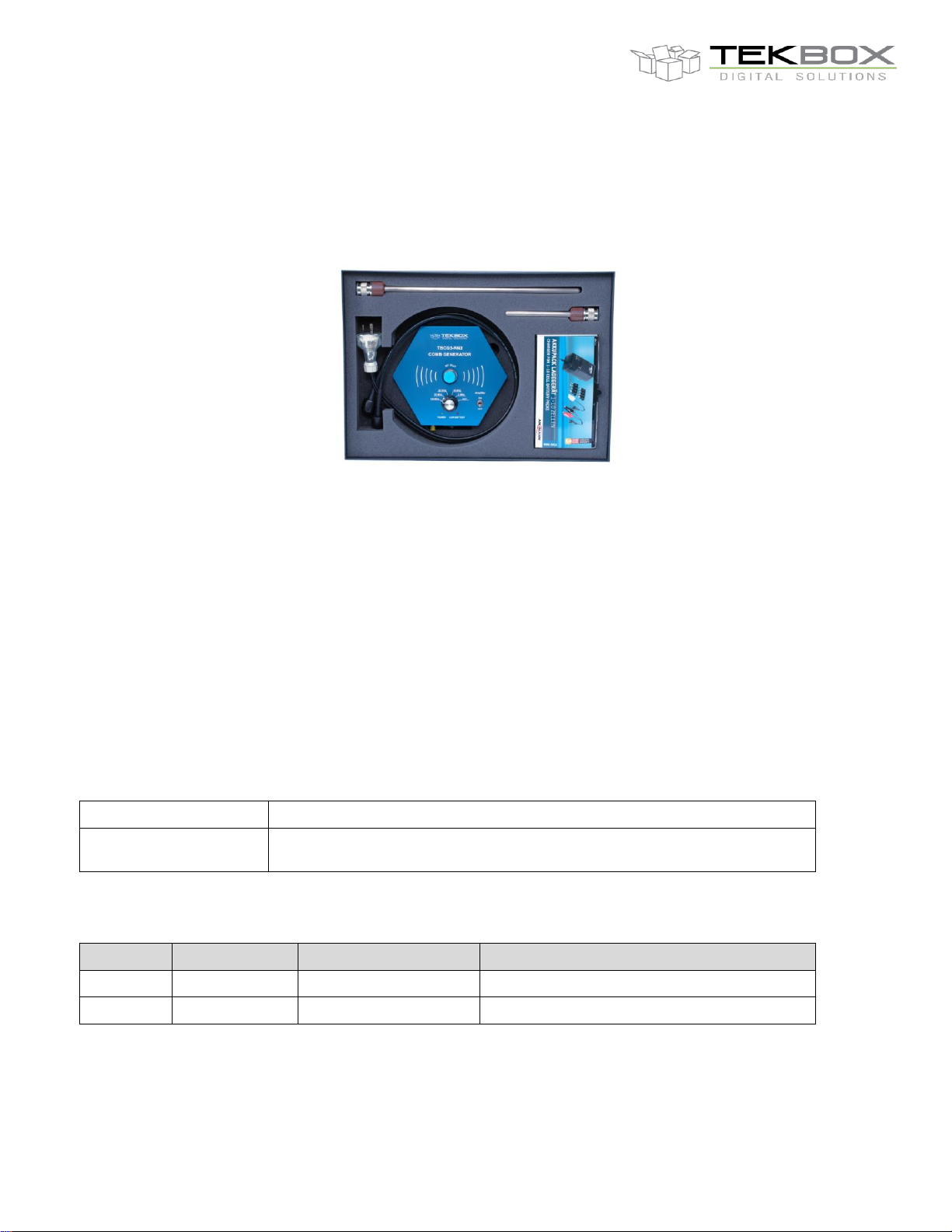

6 Accessories
The TBCG3-RN6 includes a charger and two monopole antennas as standard accessories. A
coaxial interfacing cable for LISN is available as optional accessory.
TBCG3-RN6 accessories
7 Inserting / replacing batteries
Due to airfreight regulations concerning batteries, the TBCG3 is not supplied with batteries.
Loosen the SMA-connector nut a few turns. Remove the six screws at the bottom of the comb
generator housing and take off the bottom lid. Insert six AA rechargable 1.2V NiMH batteries
in the battery compartments taking care to follow the polarity indicated on the PCB.
Reattach the bottom lid, then tighten the screws and the SMA-connector nut as well.
Before connecting the charger plug to the unit connector, please check that the centre tip
polarity is shown as (positive) “+”.
8 Ordering Information
Comb generator, Ansmann ACS310 charger, 30 cm monopole,
10 cm monopole
Update Charger part number
www.tekbox.com
TekBox Digital Solutions Vietnam Pte. Ltd.
Factory 4, F4, Lot I-3B-1, Saigon Hi-Tech Park, Tan Phu Ward, District 9, Ho Chi Minh City, Vietnam
