TBCG3-RN2 Comb Generator
1
1 Introduction
The TBCG3-RN2 comb generator is primarily intended for testing radiated emission setups. It
is a useful tool for validating the proper operation of the antenna and pre-amplifier, as well as
the accurate set-up and configuration of the spectrum analyzer. It is well characterized in an
anechoic chamber and the radiated emission plots can be used as a reference to compare an
EUT in a non-ideal setup against the comb generator in the same location.
You can select between five fixed comb frequencies and an external comb frequency input
with a range of 5 kHz to 200 MHz using a rotary switch. A switchable RF amplifier may
increase the output signal by 20 decibels (dB).

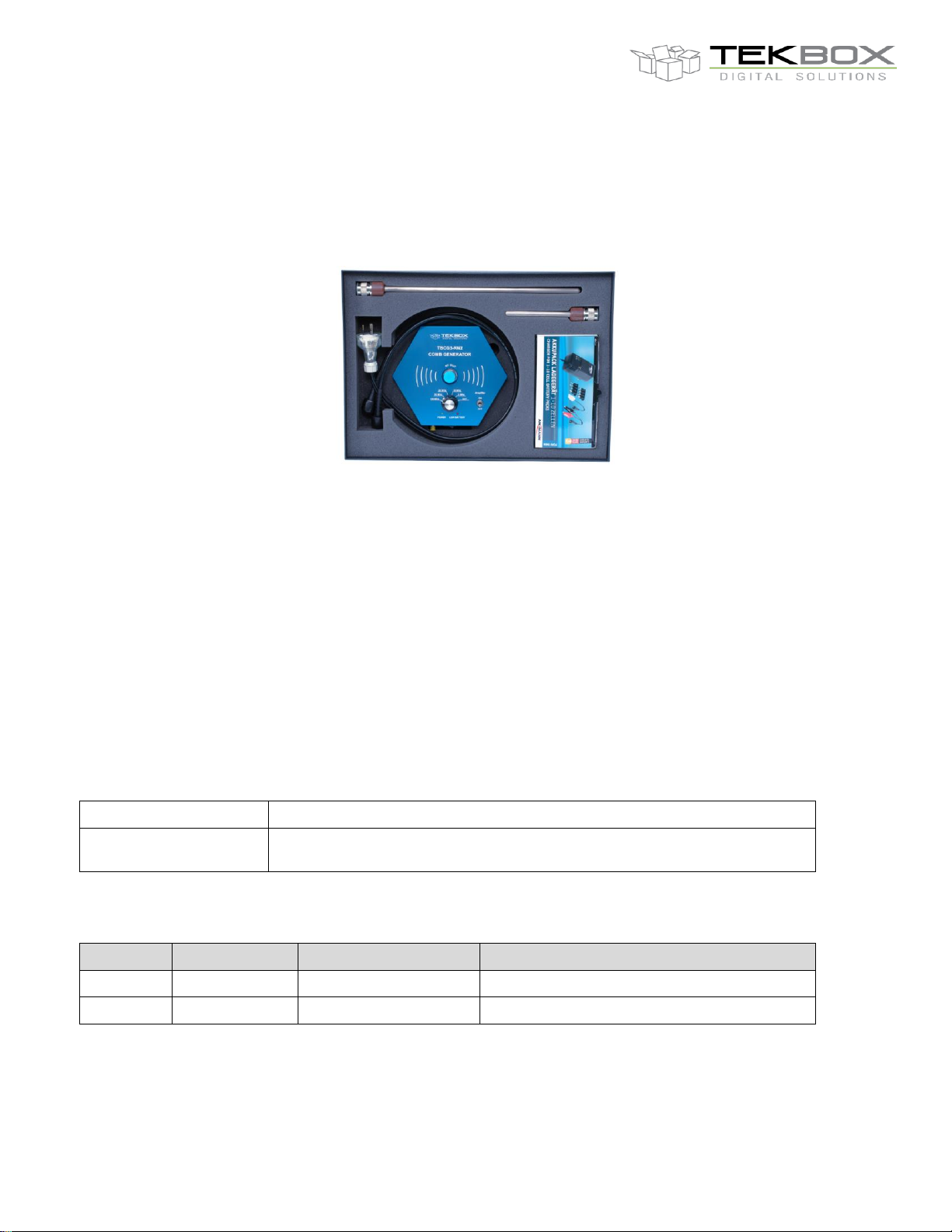

The comb generator is supplied with two monopole antennas, a 30 cm monopole for
frequencies below 300-500 MHz and a 10 cm monopole for frequencies above that.
The radiated comb spectrum is characterized from 5 MHz – 6 GHz.

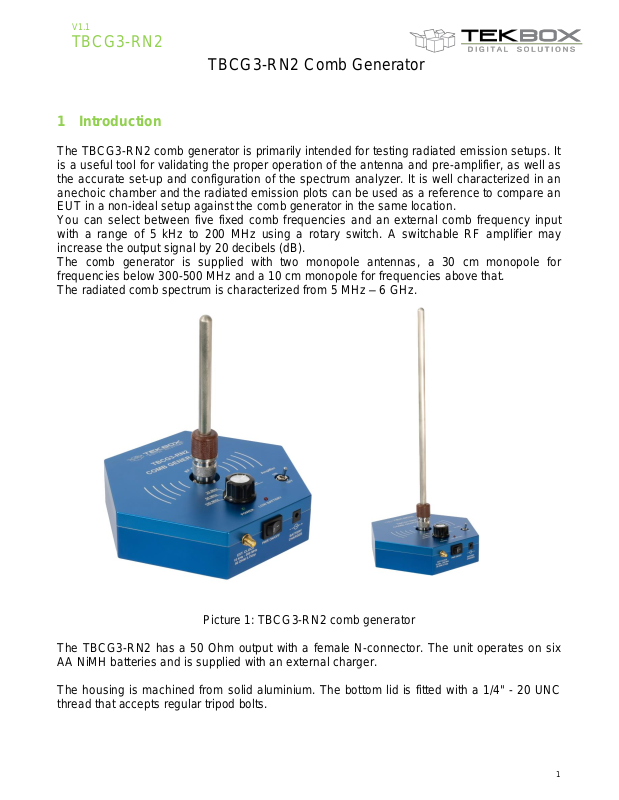

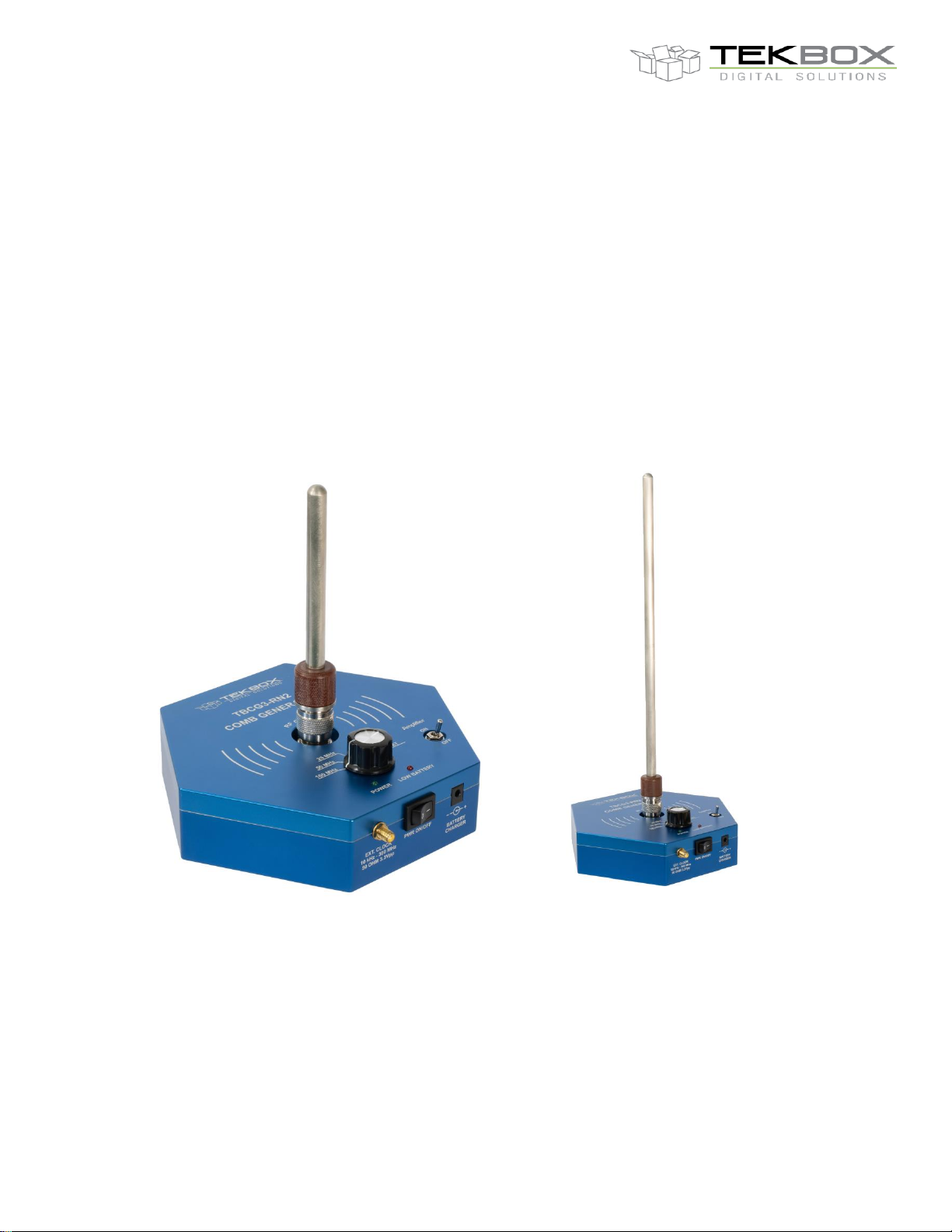

Picture 1: TBCG3-RN2 comb generator
The TBCG3-RN2 has a 50 Ohm output with a female N-connector. The unit operates on six
AA NiMH batteries and is supplied with an external charger.
The housing is machined from solid aluminium. The bottom lid is fitted with a 1/4" - 20 UNC
thread that accepts regular tripod bolts.
Page 2
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
2
2 Specification
Characterized frequency range: 5 MHz - 3 GHz
Comb spectrum flatness up to 1.5 GHz, amplifier off: typically 8 dB at the RF connector
Comb spectrum flatness up to 1.5 GHz, amplifier on: typically 12 dB at the RF connector
Output impedance: 50 Ohm
Output power: -5 dBm max. @ 100 MHz f
comb
; decreasing 6 dB with every f
comb
/2
Amplitude stability: < 0.2 dB; <0.1 dB after 15 minutes
Aging: < 0.5 dB over 12 months
Output connector: N type-female
Selectable, fixed comb frequencies: 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz
Frequency stability: 50 ppm
External excitation input: 5 kHz – 200 MHz @ square input signal; 3.3 Vpp max
100 kHz – 200 MHz @ sinusodial input signal; 3.3 Vpp max
External input impedance: 50 Ohm
Input connector: SMA-female
Indicators: Power On LED, Low Battery LED
Power supply: 6 x AA NiMH cells (e.g. Varta Mignon 2700, not supplied)
Charger: external; Ansmann ACS310
Antennas: 30 cm monopole for f<300 … 500 MHz; 10 cm monopole for f>300…500 MHz
Operation time: battery capacity / 96 mA (ampl. off) or 181 mA (ampl on)
Temperature range: -10°C to +45 °C; lower operating temperature dependent on battery type
Housing diameter: 180 mm
Housing height: 60 mm
Weight: 1250 g
Warning: the TBCG3-RN2 radiates across a wide spectrum, significantly exceeding radiated
emission limits specified in any CISPR standard. Use it only in a shielded environment to
avoid interference with other electronic products.
3 Characterization
The comb generator was tested in an anechoic chamber at 1 meter height and 3 meters from
the antenna. The antenna was mounted at a fixed height of 1m.
The test plan, test report, and the associated CVS files contain the raw data (antenna voltage)
and can be downloaded from the Tekbox website. Due to a restriction of the test tool, the
amplitude axis of the charts in the test report is incorrectly labelled dBµV/m. It is, in reality,
dBµV.
The data package also includes the data sheets and antenna factors for the measurement
antennas involved. The processed raw data including conversion into electric field-strength
are stored in the Excel file TBCG3-RN2-summary.xlsx.
Page 3
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
3

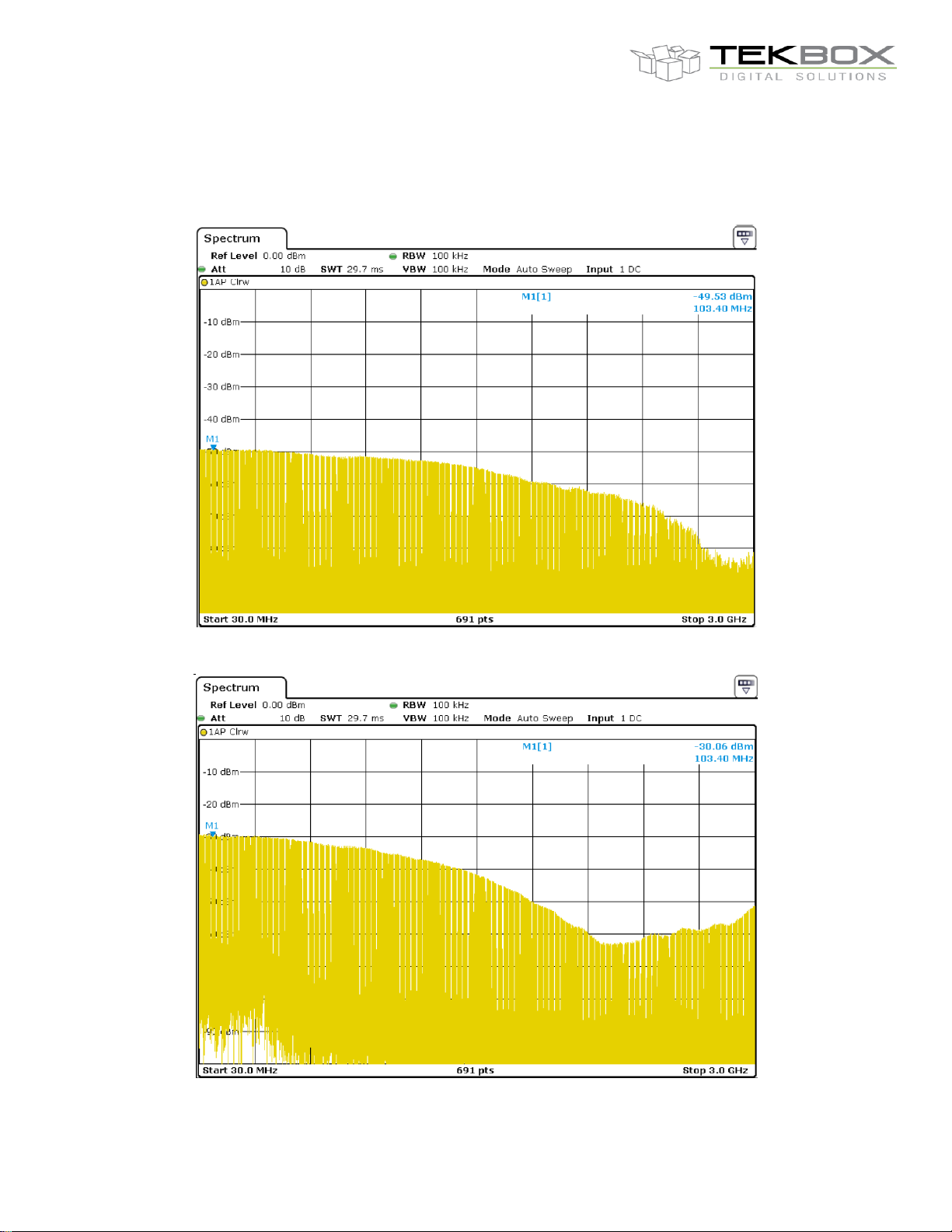

4 Spectrum plots, conducted output spectrum

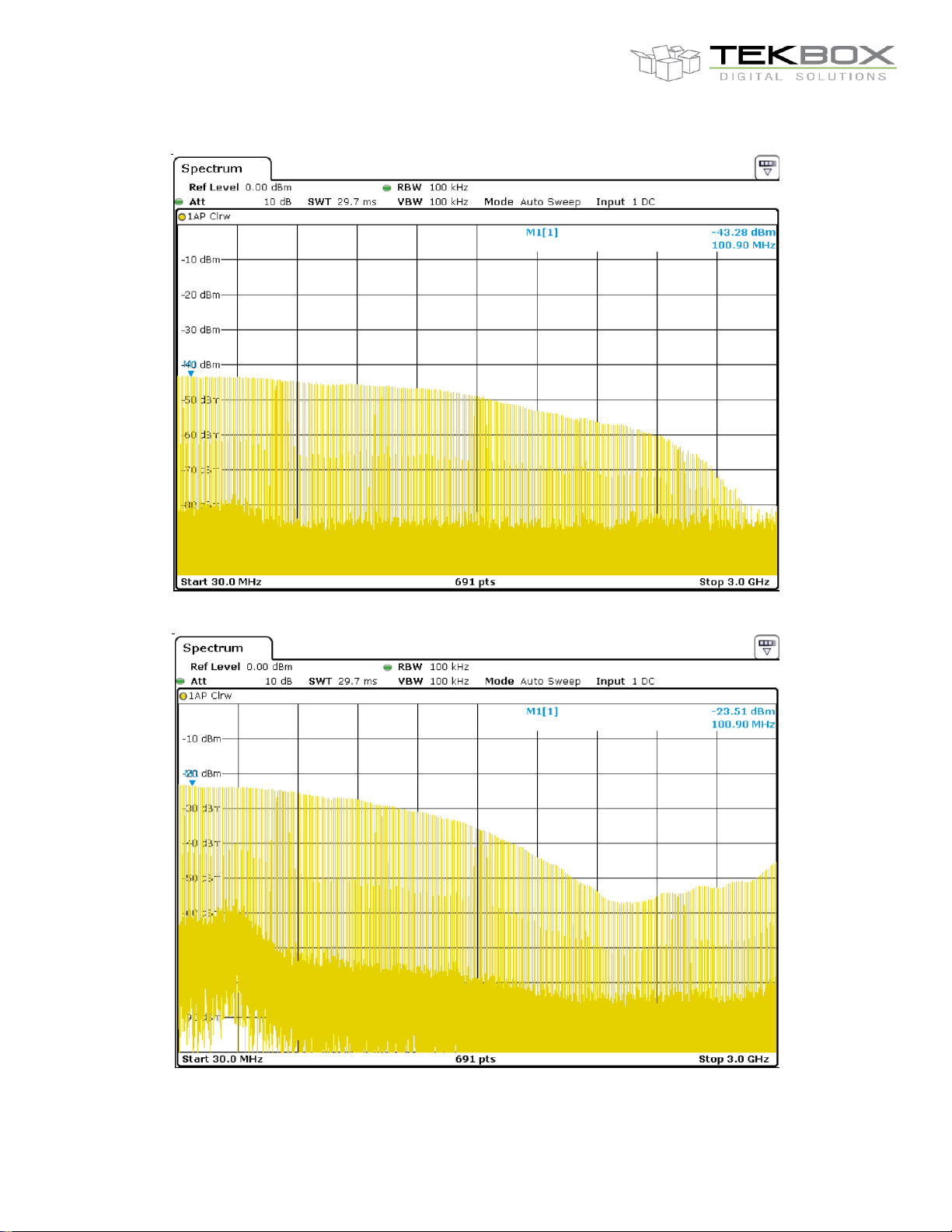

Figure 1 – 5 MHz comb frequency; amplifier off
Figure 2 – 5 MHz comb frequency; amplifier on
Page 4
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
4

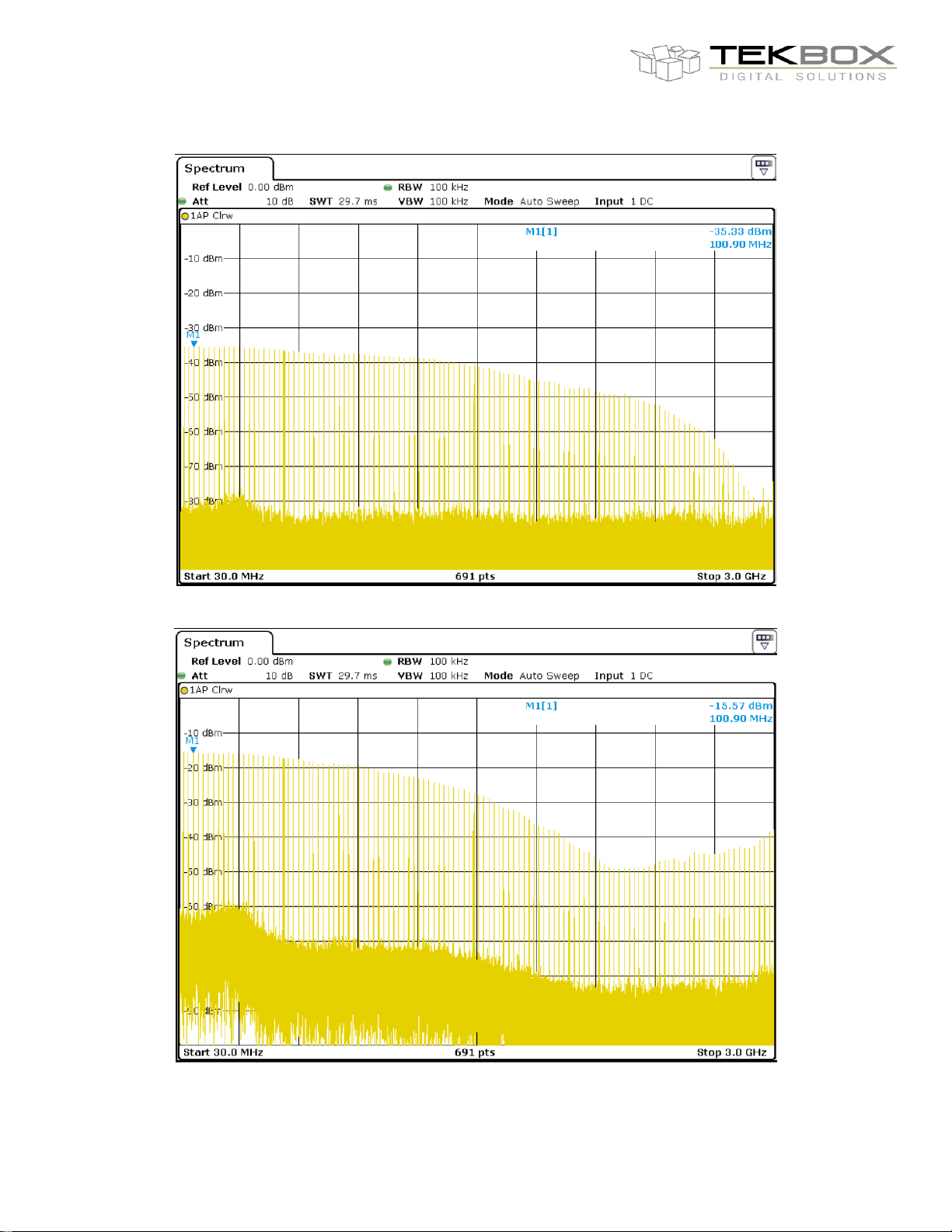

Figure 3 – 10 MHz comb frequency; amplifier off
Figure 4 – 10 MHz comb frequency; amplifier on
Page 5
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
5

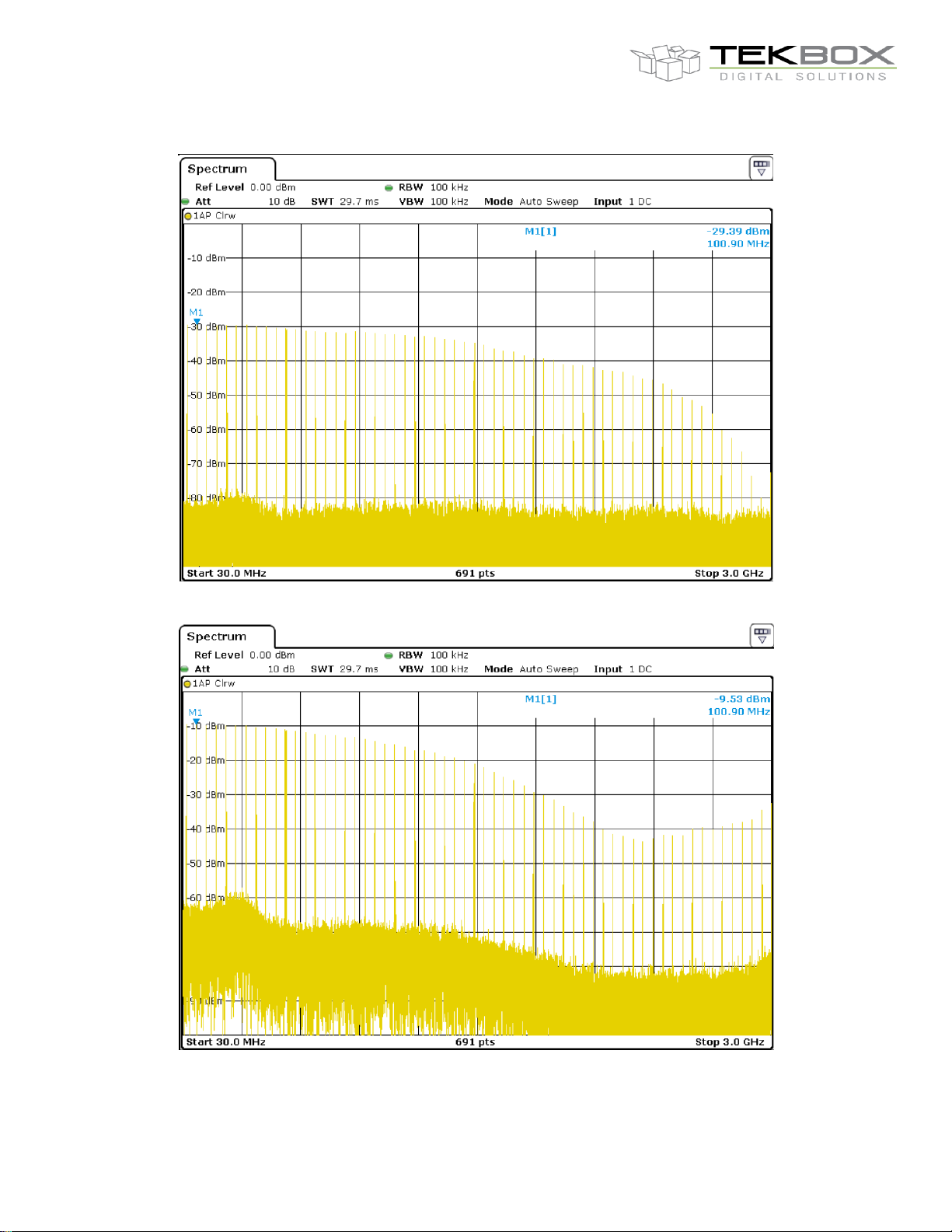

Figure 5 – 25 MHz comb frequency; amplifier off
Figure 6 – 25 MHz comb frequency; amplifier on
Page 6
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
6
Figure 7 – 50 MHz comb frequency; amplifier off
Figure 8 – 50 MHz comb frequency; amplifier on
Page 7
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
7

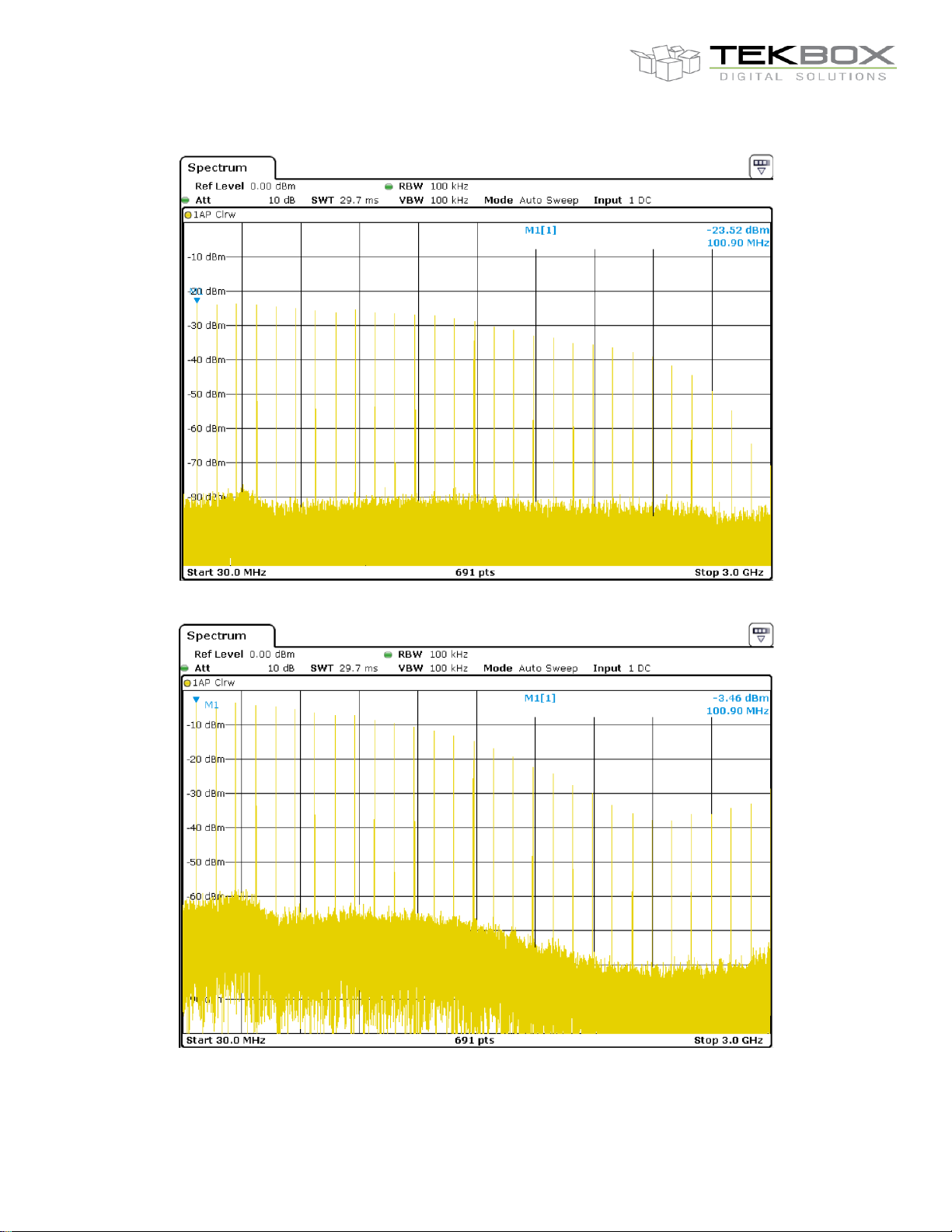

Figure 9 – 100 MHz comb frequency; amplifier off
Figure 10 – 100 MHz comb frequency; amplifier on
Page 8
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
8
5 Spectrum plots, radiated spectrum

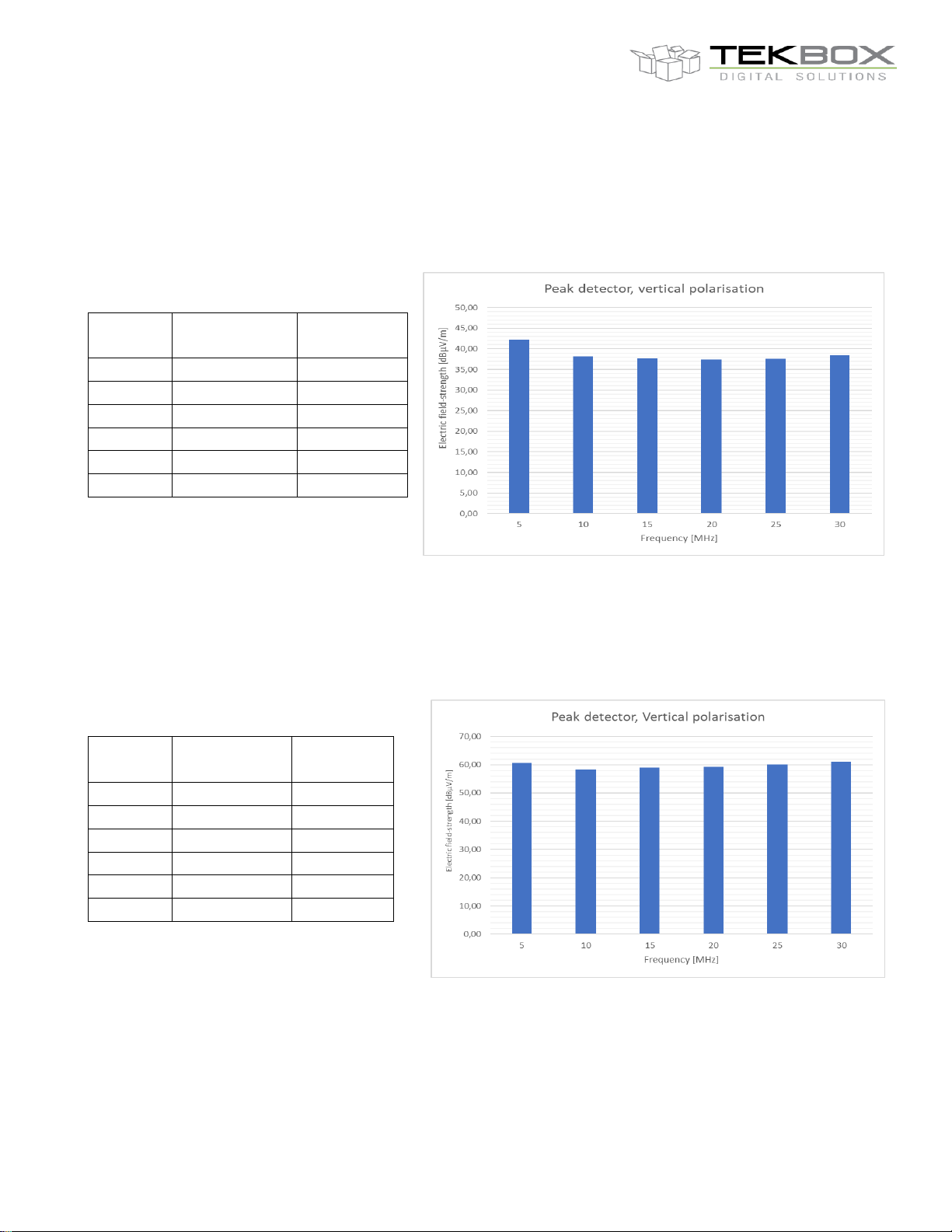

5.1 5 MHz comb frequency, 30 cm antenna, amplifier off, 5 MHz – 30 MHz
Frequency
[MHz]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
5
41,90
42,22
10
37,79
38,24
15
37,26
37,80
20
36,85
37,39
25
37,00
37,58
30
37,73
38,39
Measured with monopole antenna
3m distance, 1 meter height
5.2 5 MHz comb frequency, 30 cm antenna, amplifier on, 5 MHz – 30 MHz
Frequency
[MHz]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
5
60,46203465
60,52186436
10
58,18131657
58,25656147
15
58,9213401
58,9933921
20
59,24687763
59,31687351
25
59,94397008
60,01258504
30
60,97456223
61,04570252
Measured with monopole antenna
3m distance, 1 meter height
Page 9
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
9

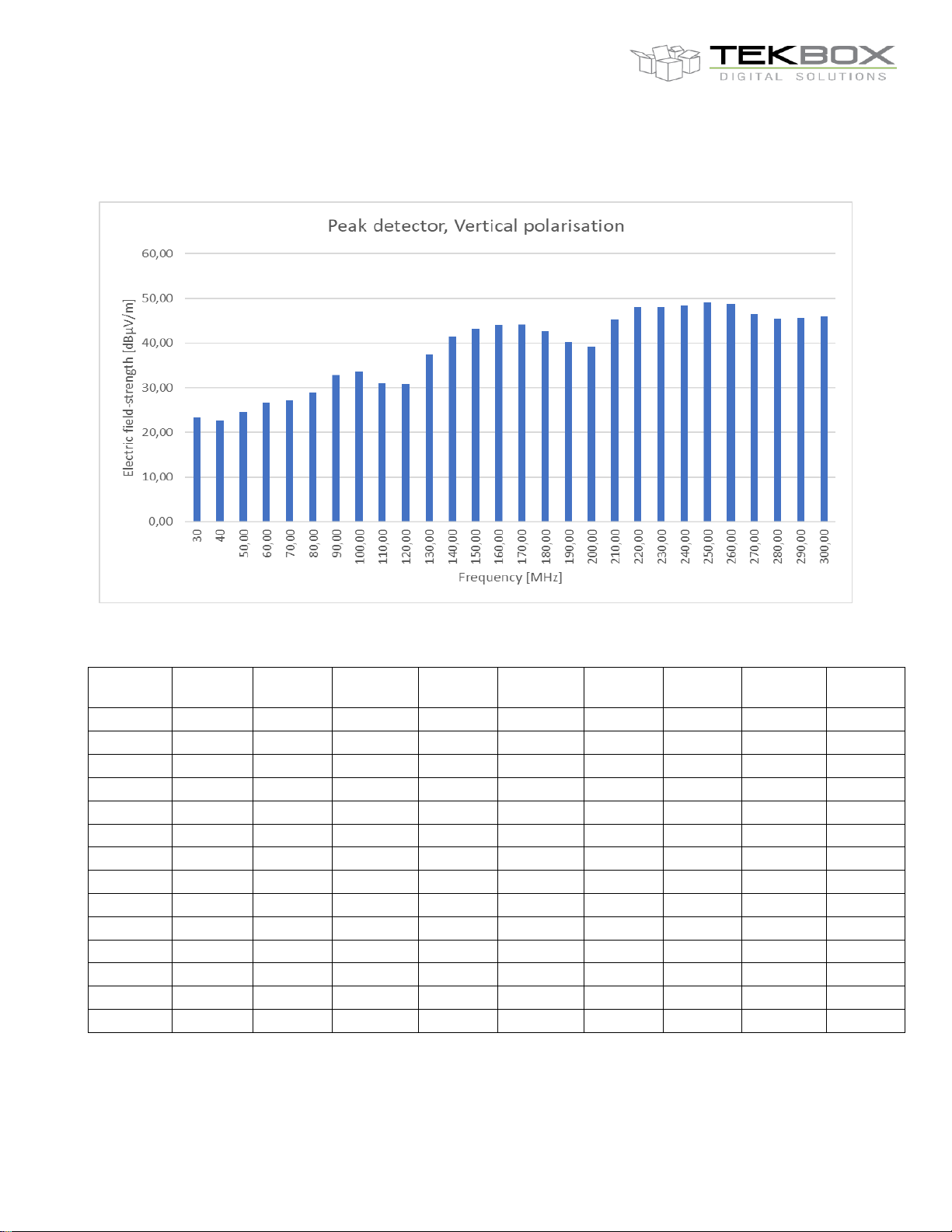

5.3 10 MHz comb frequency, 10 cm antenna, amplifier off, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
30
0,33
20,47
13,48
23,27
170
21,69
25,61
43,70
44,10
40
-5,46
13,92
18,17
22,60
180
17,09
22,80
42,17
42,68
50
-7,46
11,10
22,36
24,48
190
16,09
22,81
39,52
40,22
60
-7,19
9,37
25,38
26,57
200
12,93
21,44
38,53
39,29
70
-11,57
6,86
26,42
27,23
210
7,11
19,65
44,87
45,28
80
-10,14
7,00
28,22
28,95
220
19,81
24,83
47,61
47,95
90
-5,78
9,42
32,24
32,81
230
24,22
27,78
47,68
48,02
100
0,68
12,57
32,95
33,61
240
21,47
26,09
48,02
48,38
110
-0,49
13,34
30,10
31,10
250
21,44
26,68
48,75
49,08
120
1,25
14,37
29,59
30,76
260
23,68
27,77
48,34
48,68
130
0,92
16,20
36,91
37,51
270
21,14
26,24
46,07
46,46
140
8,92
18,28
41,04
41,46
280
27,21
30,67
44,88
45,41
150
15,07
21,42
42,85
43,26
290
21,44
26,95
45,02
45,56
160
19,59
24,12
43,66
44,05
300
16,28
25,51
45,24
45,90
Page 10
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
10

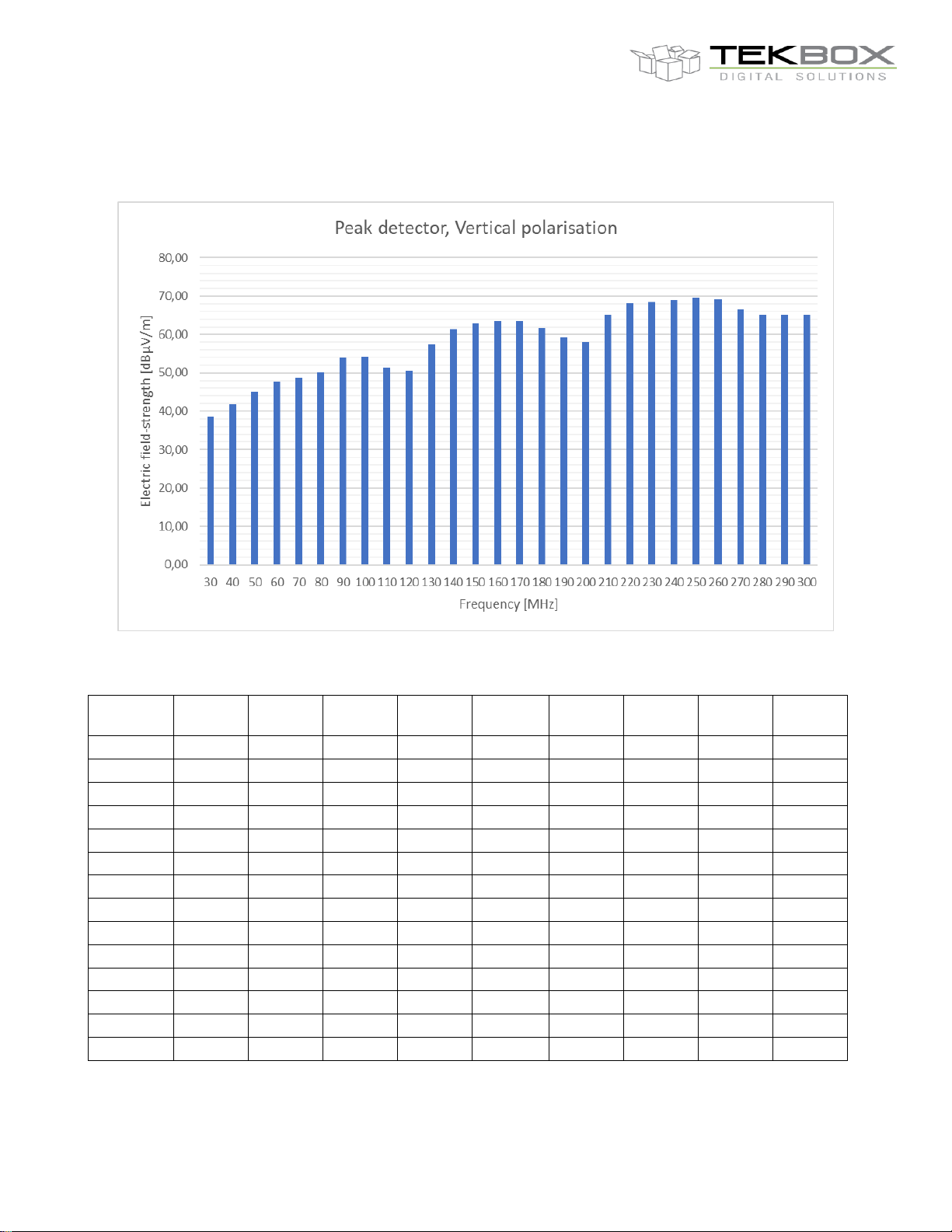

5.4 10 MHz comb frequency, 10 cm antenna, amplifier on, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
30
2,67
20,77
37,44
38,56
170
41,61
42,06
63,22
63,37
40
1,00
15,92
41,31
41,74
180
37,14
37,96
61,58
61,73
50
8,90
15,84
44,96
45,19
190
36,39
37,31
59,11
59,27
60
15,38
18,63
47,64
47,81
200
34,00
35,18
57,82
57,99
70
7,97
13,16
48,44
48,59
210
29,50
31,61
64,90
65,06
80
10,82
15,15
50,05
50,19
220
40,89
41,53
67,86
68,02
90
17,16
20,17
53,73
53,87
230
45,20
45,61
68,25
68,42
100
23,33
25,18
54,10
54,24
240
42,79
43,36
68,86
69,03
110
21,68
24,05
51,08
51,23
250
42,71
43,35
69,47
69,66
120
21,70
24,28
50,31
50,48
260
44,83
45,33
68,96
69,14
130
23,14
25,77
57,34
57,49
270
42,54
43,13
66,42
66,60
140
30,51
31,86
61,14
61,29
280
47,69
48,09
64,98
65,15
150
35,59
36,42
62,70
62,84
290
42,05
42,83
64,84
65,05
160
39,81
40,38
63,38
63,52
300
37,53
38,97
64,87
65,08
Page 11
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
11

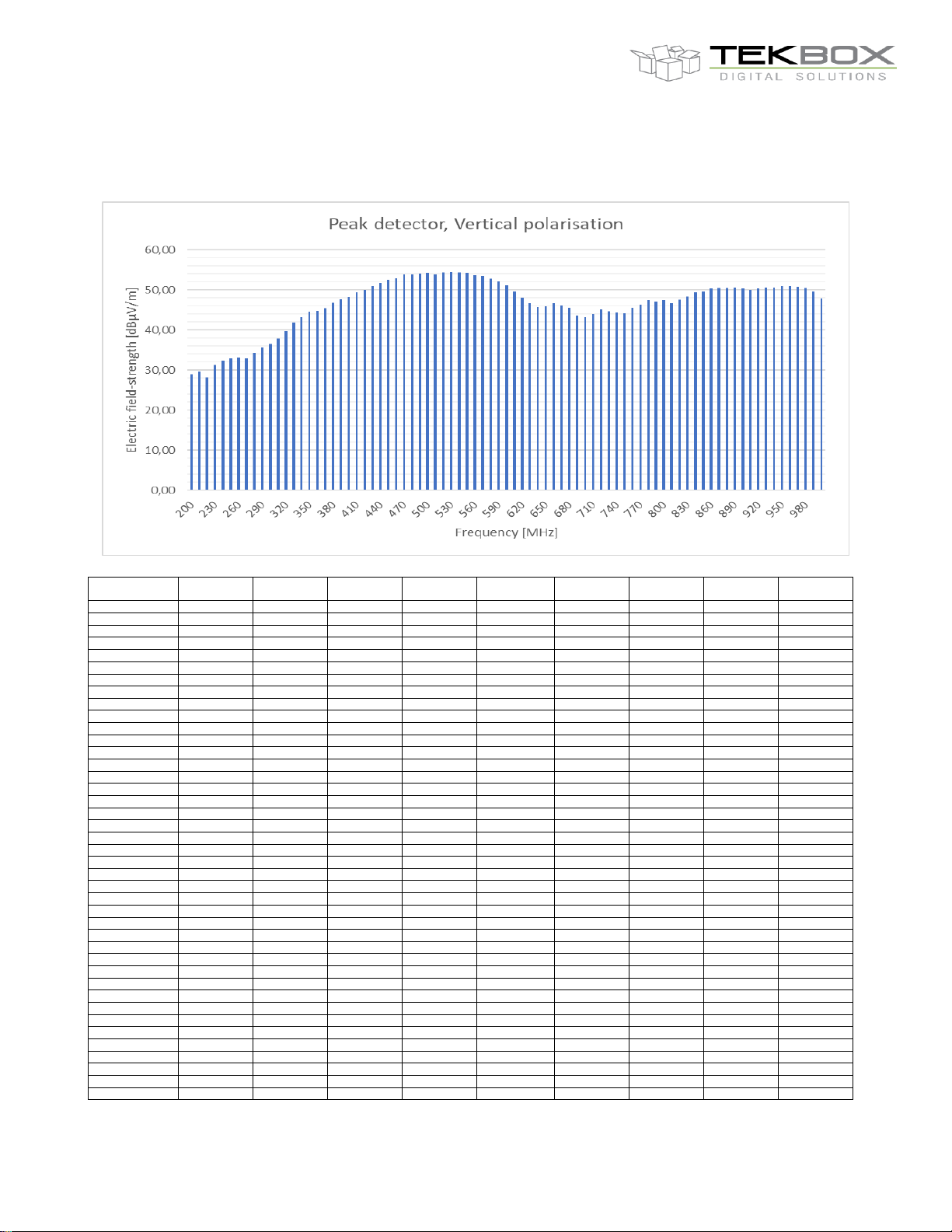

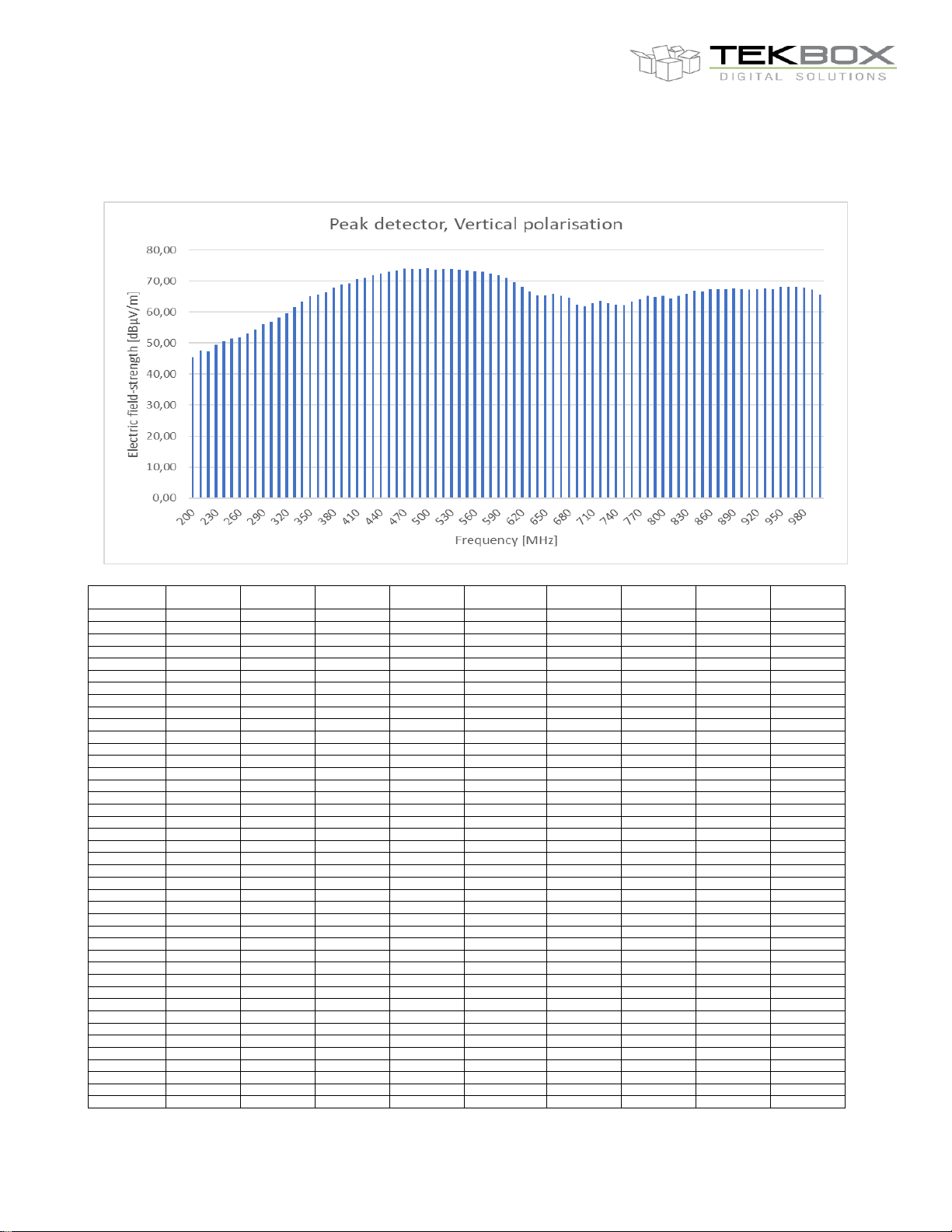

5.5 10 MHz comb frequency, 10 cm antenna, amplifier off, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
5,05
16,57
27,39
28,96
610
18,78
26,12
49,16
49,51
210
8,84
17,40
28,29
29,65
620
16,49
25,29
47,68
48,11
220
5,75
16,40
26,51
28,22
630
10,72
23,09
46,18
46,68
230
-3,34
13,65
30,02
31,26
640
20,49
27,69
45,16
45,75
240
0,04
14,36
31,26
32,28
650
19,98
27,09
45,41
45,94
250
-0,17
14,41
31,91
32,92
660
10,26
23,54
46,08
46,63
260
5,15
16,59
32,10
33,14
670
11,02
23,87
45,55
46,19
270
7,58
17,24
31,89
32,92
680
20,13
27,40
44,96
45,56
280
6,93
17,71
33,27
34,29
690
18,84
27,20
42,79
43,56
290
15,81
21,48
34,72
35,65
700
21,15
27,83
42,39
43,25
300
13,16
20,26
35,61
36,50
710
23,19
29,02
43,31
44,10
310
13,80
20,70
37,10
37,89
720
18,54
26,82
44,34
45,05
320
12,96
21,21
39,14
39,71
730
7,62
24,17
43,85
44,66
330
9,46
19,76
41,37
41,86
740
22,35
28,52
43,60
44,37
340
9,43
19,49
42,75
43,20
750
21,50
27,81
43,53
44,26
350
20,24
24,60
44,08
44,50
760
19,17
27,67
45,02
45,64
360
18,03
23,71
44,42
44,81
770
17,65
26,82
45,81
46,40
370
9,99
20,23
45,14
45,50
780
19,61
27,41
46,85
47,41
380
18,65
23,88
46,40
46,78
790
19,69
27,41
46,54
47,09
390
22,45
26,33
47,46
47,77
800
23,88
29,75
46,90
47,50
400
21,83
25,89
47,87
48,18
810
24,22
29,71
46,02
46,62
410
16,40
22,90
49,22
49,48
820
22,94
29,10
46,98
47,56
420
18,96
24,54
49,73
50,01
830
24,98
30,39
47,90
48,43
430
21,26
25,98
50,65
50,89
840
27,16
31,85
48,96
49,43
440
19,20
25,06
51,50
51,75
850
27,59
32,10
49,16
49,64
450
11,15
22,03
52,25
52,45
860
26,97
31,53
49,89
50,34
460
10,62
21,57
52,73
52,92
870
25,84
30,88
50,05
50,49
470
22,89
27,33
53,67
53,84
880
24,26
30,63
50,01
50,45
480
25,27
28,98
53,74
53,93
890
24,63
30,60
50,20
50,66
490
23,35
27,77
53,82
54,00
900
23,83
30,13
49,86
50,31
500
29,53
31,97
54,02
54,20
910
15,80
27,12
49,51
50,04
510
31,66
33,53
53,65
53,81
920
24,29
30,65
49,86
50,33
520
31,20
33,26
54,23
54,40
930
28,74
32,96
50,14
50,62
530
25,81
29,52
54,40
54,57
940
28,51
32,80
50,15
50,61
540
22,55
27,41
54,15
54,33
950
27,54
32,65
50,56
50,99
550
14,54
23,57
53,94
54,13
960
28,48
33,06
50,58
51,02
560
21,51
27,54
53,59
53,79
970
26,24
31,84
50,43
50,88
570
25,87
29,80
53,18
53,39
980
25,50
31,18
50,02
50,54
580
23,03
28,41
52,60
52,83
990
26,18
31,57
49,06
49,60
590
23,33
28,47
51,87
52,15
1000
20,72
29,52
47,11
47,83
600
24,01
29,13
50,85
51,15
Page 12
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
12
5.6 10 MHz comb frequency, 10 cm antenna, amplifier on, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
26,52
28,16
45,22
45,50
610
39,40
40,50
69,66
69,72
210
28,86
30,20
47,43
47,67
620
38,95
40,05
68,02
68,08
220
27,81
29,26
47,15
47,37
630
31,76
34,02
66,51
66,57
230
14,79
19,96
49,29
49,51
640
42,46
43,24
65,44
65,52
240
20,01
23,66
50,37
50,59
650
42,25
43,06
65,47
65,54
250
20,45
23,59
51,26
51,46
660
34,26
36,12
65,86
65,92
260
26,21
28,09
51,71
51,92
670
31,55
34,07
65,25
65,33
270
31,36
32,56
52,82
53,03
680
40,82
41,77
64,53
64,61
280
25,57
27,77
54,02
54,22
690
39,79
40,86
62,32
62,43
290
35,99
36,86
55,82
56,04
700
41,68
42,61
61,82
61,93
300
33,68
34,64
56,68
56,90
710
43,33
44,12
62,75
62,85
310
34,98
35,89
58,02
58,24
720
38,55
39,86
63,58
63,67
320
34,72
35,75
59,39
59,60
730
25,42
30,88
62,82
62,93
330
31,86
33,24
61,51
61,74
740
41,79
42,68
62,40
62,50
340
32,73
34,24
63,18
63,39
750
41,02
41,98
62,13
62,23
350
42,17
42,65
64,85
65,03
760
38,84
40,07
63,38
63,47
360
40,00
40,61
65,45
65,63
770
37,65
39,08
64,06
64,15
370
33,43
34,66
66,33
66,49
780
39,58
40,83
65,13
65,21
380
40,29
40,85
67,70
67,86
790
39,69
40,84
64,80
64,88
390
43,90
44,33
68,82
68,96
800
43,39
44,24
65,23
65,31
400
43,42
43,90
69,18
69,32
810
43,46
44,24
64,36
64,45
410
38,11
38,94
70,57
70,68
820
41,94
42,89
65,15
65,23
420
40,88
41,49
70,89
71,02
830
43,58
44,41
65,87
65,94
430
42,50
43,02
71,70
71,81
840
45,37
46,09
66,79
66,86
440
38,69
39,54
72,41
72,51
850
45,56
46,25
66,68
66,76
450
37,07
38,07
72,98
73,08
860
44,94
45,71
67,34
67,41
460
31,90
33,59
73,30
73,39
870
43,98
44,85
67,45
67,53
470
44,07
44,55
73,98
74,05
880
42,76
43,74
67,38
67,46
480
46,02
46,42
73,87
73,95
890
43,06
44,18
67,65
67,72
490
43,82
44,34
73,85
73,93
900
42,15
43,27
67,49
67,55
500
49,74
50,01
74,10
74,17
910
34,40
36,81
67,11
67,18
510
51,75
51,97
73,53
73,60
920
42,35
43,50
67,40
67,47
520
51,71
51,94
73,81
73,87
930
46,58
47,36
67,57
67,64
530
46,83
47,21
73,81
73,87
940
46,42
47,07
67,48
67,55
540
42,85
43,51
73,59
73,65
950
45,53
46,29
67,91
67,98
550
33,76
35,41
73,49
73,55
960
46,47
47,17
68,03
68,10
560
41,65
42,39
73,28
73,34
970
44,42
45,30
67,97
68,04
570
46,22
46,66
72,98
73,04
980
44,03
44,95
67,77
67,84
580
43,57
44,23
72,49
72,54
990
44,99
45,85
67,13
67,21
590
43,87
44,52
71,86
71,93
1000
40,01
41,52
65,50
65,60
600
44,63
45,23
71,05
71,10
Page 13
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
13

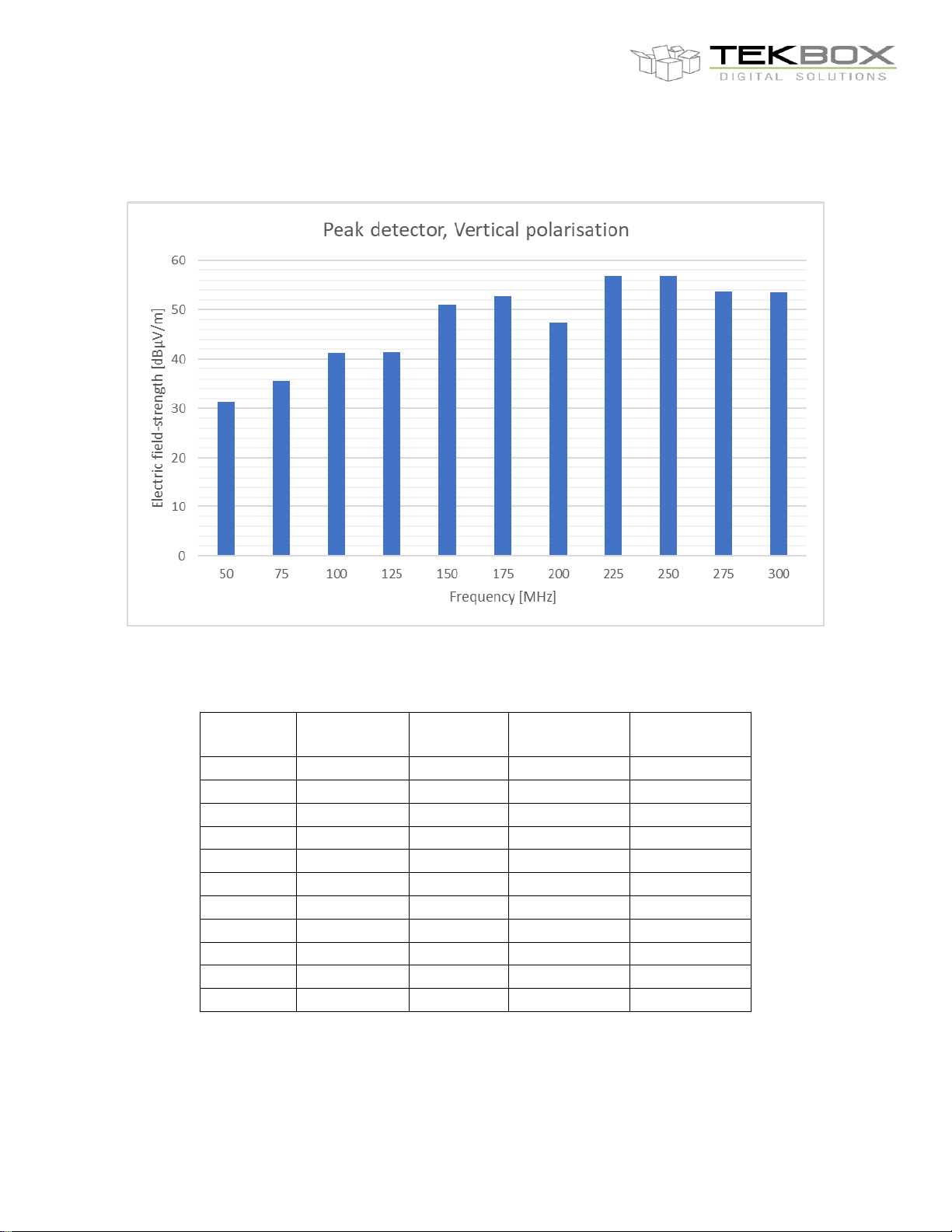

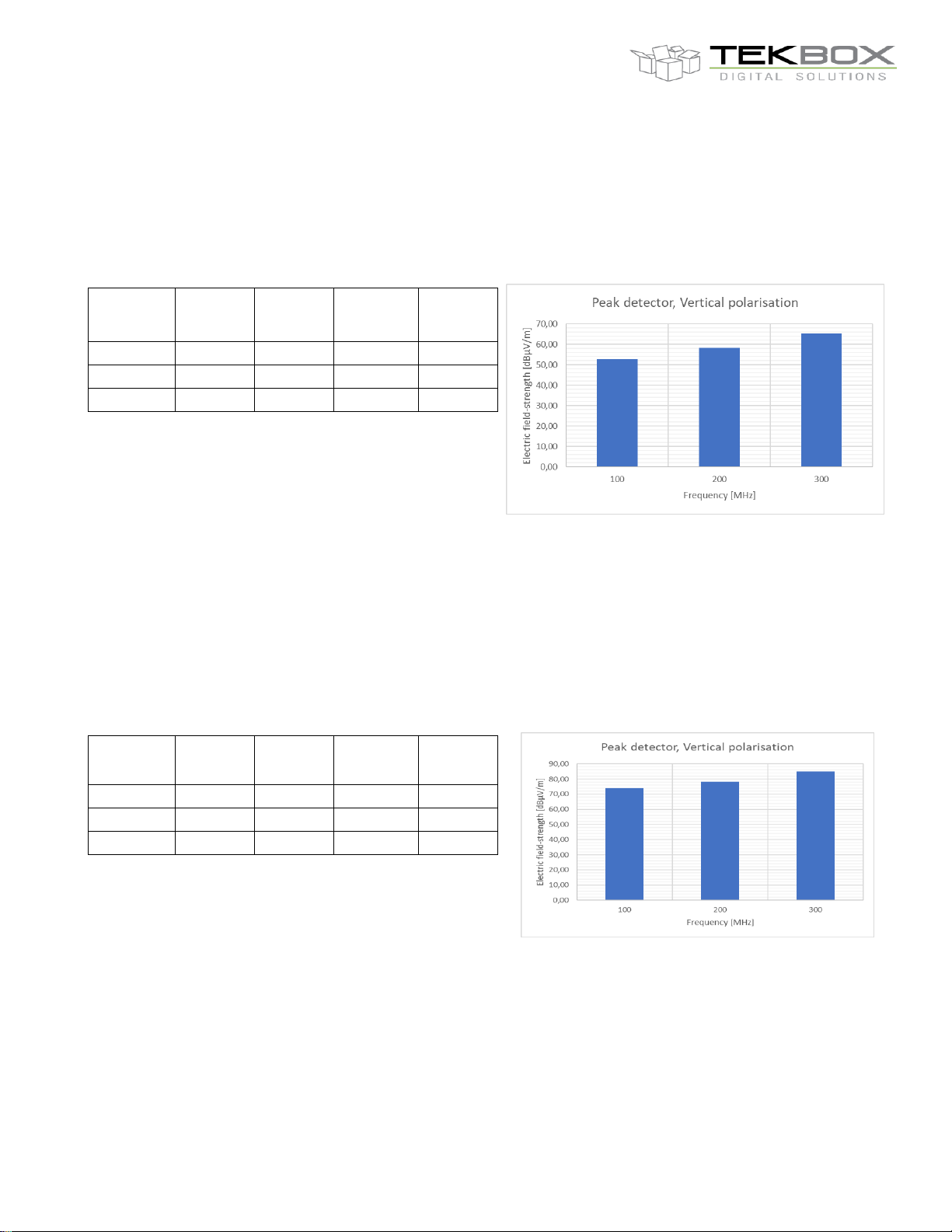

5.7 25 MHz comb frequency, 10 cm antenna, amplifier off, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
50
-5,04
12
30,48
31,43
75
-6,15
8,15
35,37
35,68
100
9,57
16,05
40,93
41,19
125
7,97
17,14
41,1
41,47
150
23,33
26,54
50,82
50,98
175
32,19
33,59
52,67
52,82
200
21,47
25,6
47,17
47,46
225
34,82
36,14
56,73
56,86
250
29,8
32,27
56,65
56,79
275
29,2
31,75
53,42
53,61
300
25,1
29,87
53,21
53,47
Page 14
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
14

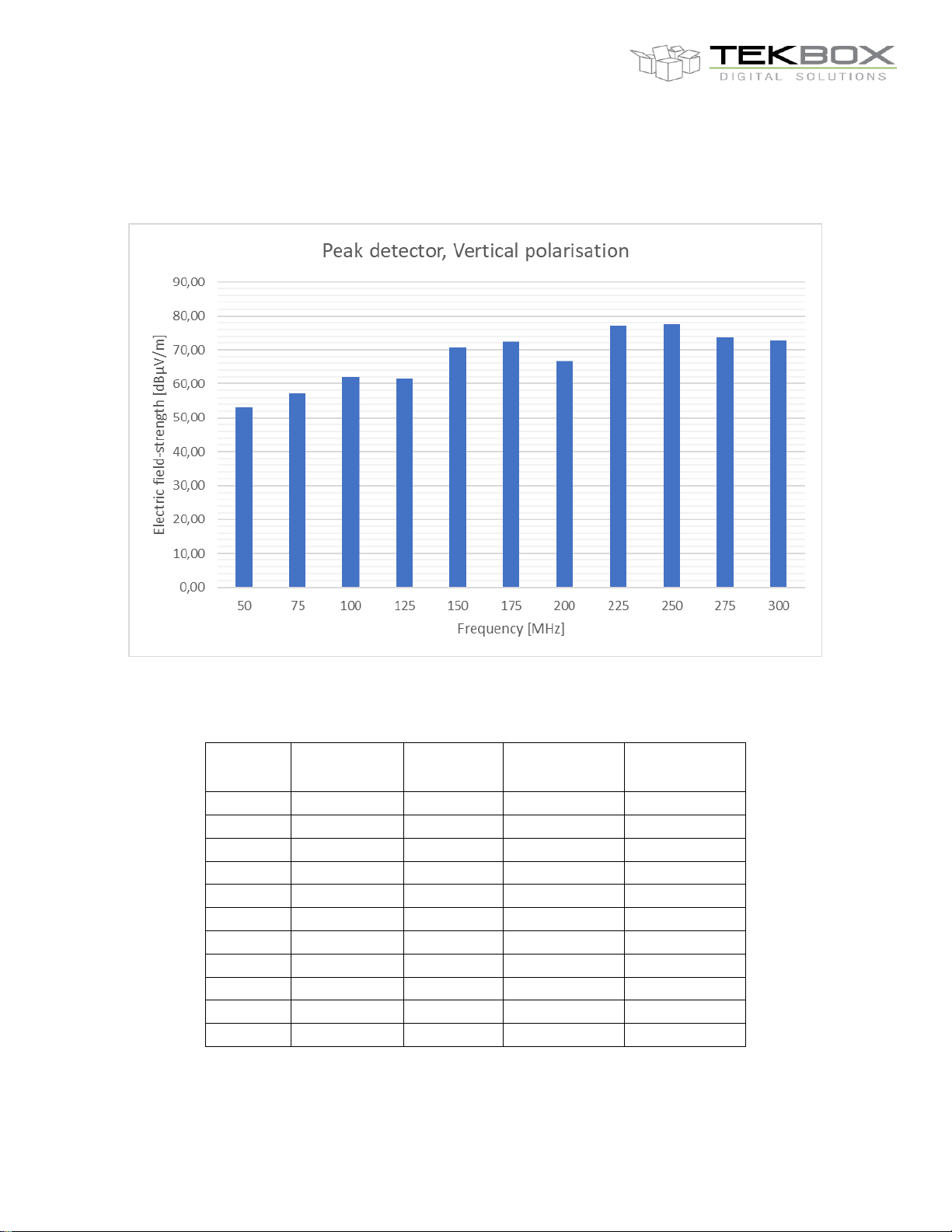

5.8 25 MHz comb frequency, 10 cm antenna, amplifier on, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
50
17,46
20,81
52,94
53,03
75
16,88
19,18
57,20
57,26
100
31,67
32,40
62,09
62,15
125
28,77
30,17
61,54
61,61
150
43,61
43,94
70,68
70,74
175
51,89
52,06
72,35
72,41
200
41,98
42,52
66,53
66,60
225
55,26
55,40
77,04
77,11
250
50,84
51,09
77,41
77,48
275
48,99
49,29
73,63
73,71
300
45,72
46,25
72,82
72,90
Page 15
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
15

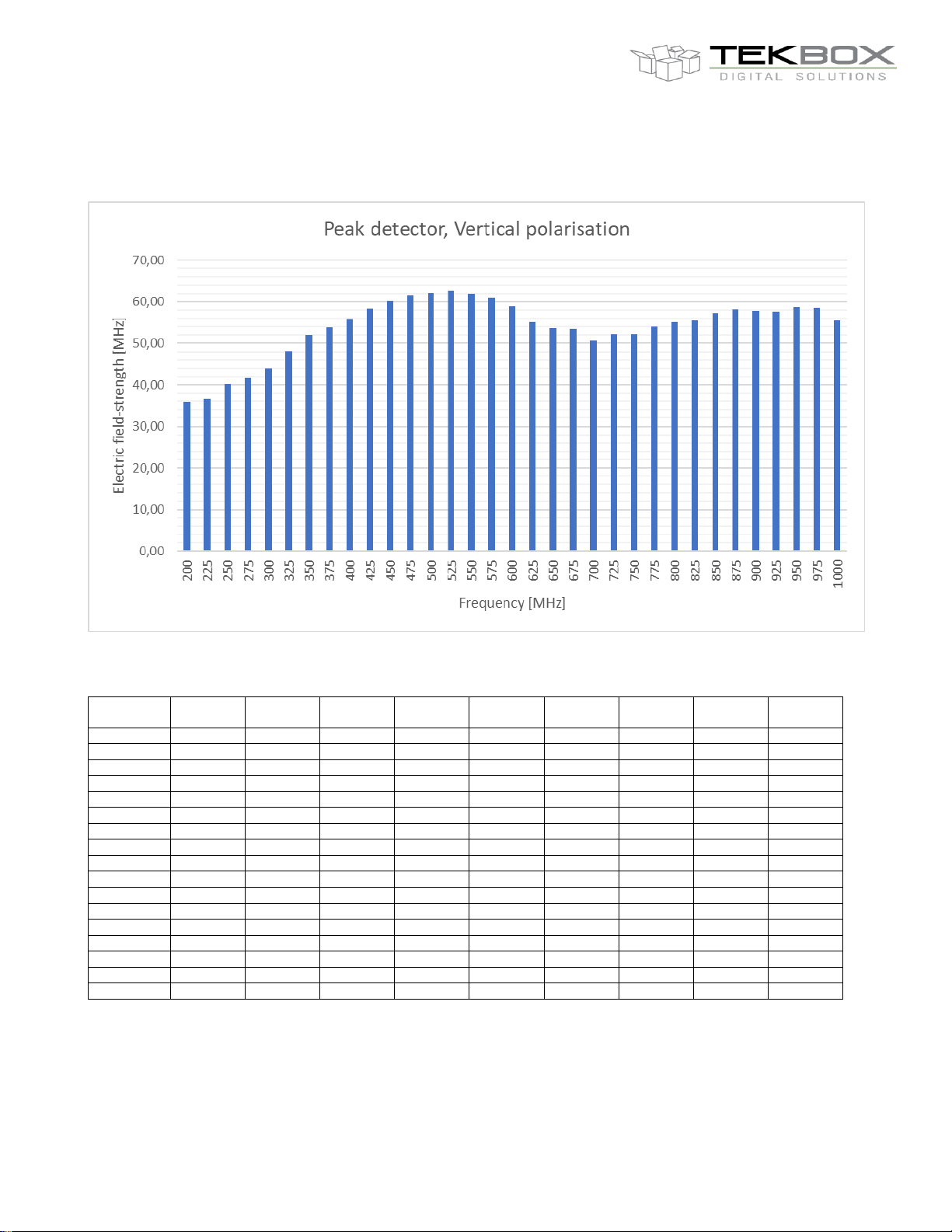

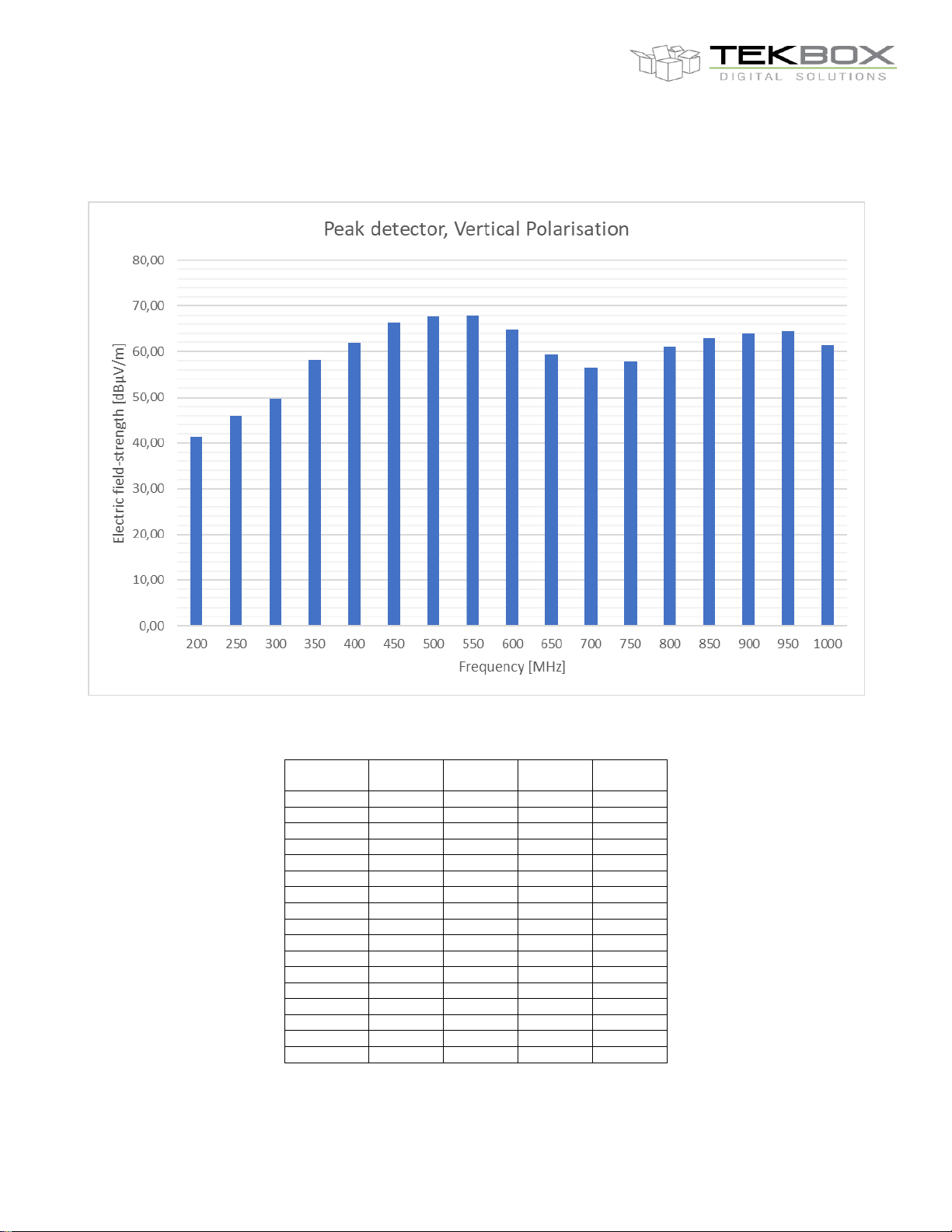

5.9 25 MHz comb frequency, 10 cm antenna, amplifier off, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
13,38
19,15
35,28
35,93
625
3,80
22,13
54,94
55,13
225
1,98
15,07
35,99
36,59
650
27,30
31,07
53,43
53,66
250
9,92
17,72
39,83
40,26
675
29,27
32,56
53,29
53,52
275
13,48
19,98
41,11
41,56
700
28,68
32,22
50,33
50,68
300
22,34
25,41
43,60
43,93
725
25,73
30,61
52,03
52,32
325
21,19
25,14
47,81
48,03
750
31,55
34,17
51,89
52,22
350
28,91
30,70
51,81
51,99
775
27,67
31,45
53,75
53,98
375
14,88
21,83
53,76
53,90
800
31,49
34,25
54,89
55,13
400
28,13
30,36
55,76
55,89
825
30,70
34,07
55,21
55,44
425
25,18
28,66
58,34
58,43
850
34,84
36,99
57,16
57,35
450
23,49
27,31
60,12
60,20
875
30,14
33,77
58,06
58,24
475
36,08
37,36
61,50
61,59
900
29,64
33,49
57,88
58,05
500
38,94
39,84
61,99
62,07
925
34,59
36,91
57,41
57,62
525
39,74
40,57
62,54
62,61
950
35,53
37,76
58,48
58,67
550
26,99
30,34
61,83
61,91
975
34,82
37,36
58,43
58,61
575
29,89
32,76
61,05
61,14
1000
29,72
34,04
55,12
55,41
600
29,05
32,21
58,78
58,91
Page 16
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
16

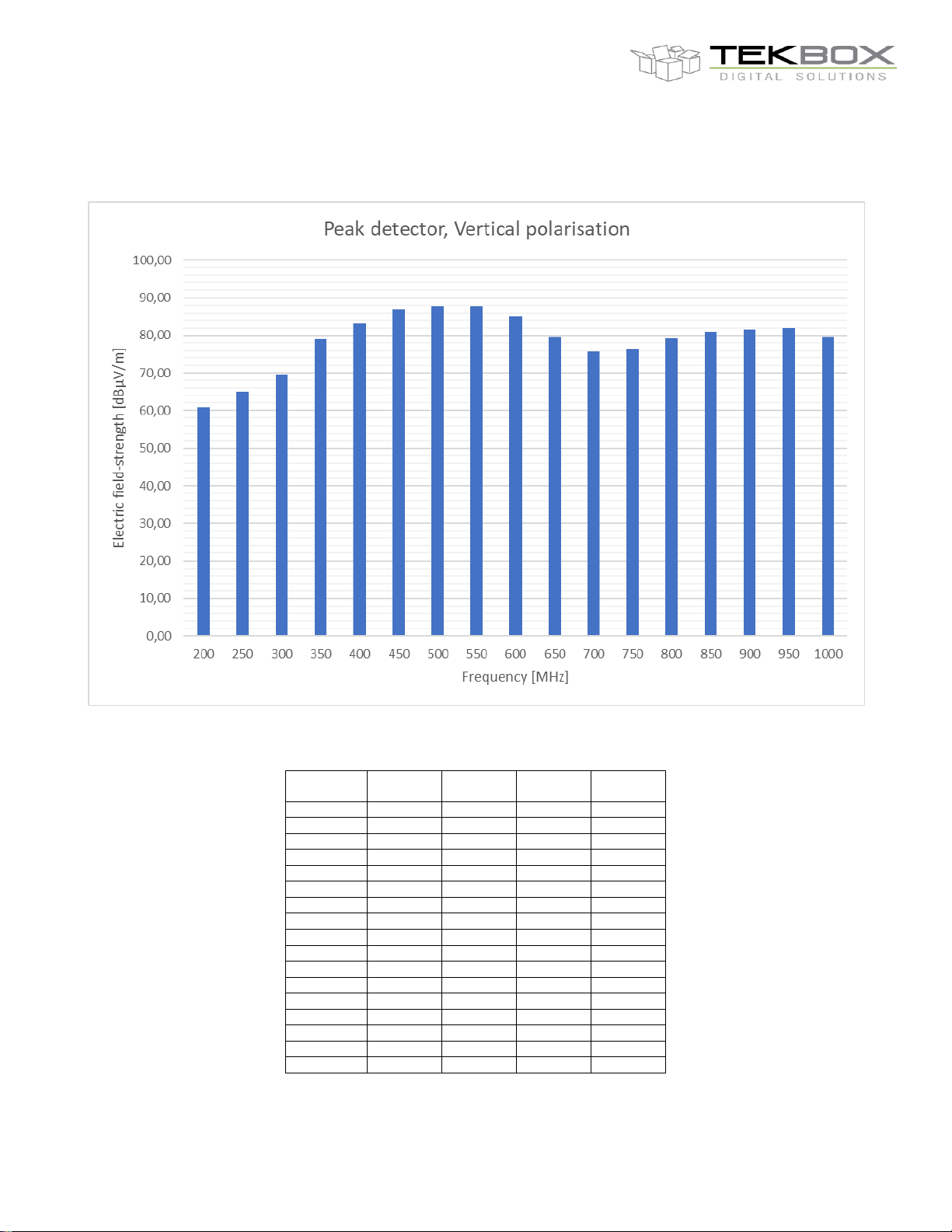

5.10 25 MHz comb frequency, 10 cm antenna, amplifier on, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
35,84
36,48
52,98
53,09
625
34,66
36,50
75,29
75,33
225
24,94
26,87
55,02
55,12
650
49,02
49,44
73,49
73,52
250
28,43
29,89
59,16
59,25
675
47,28
47,75
72,97
73,01
275
26,22
28,30
61,02
61,11
700
49,18
49,60
69,79
69,83
300
40,52
40,99
64,67
64,77
725
44,04
44,76
71,17
71,22
325
44,42
44,75
67,88
67,96
750
49,40
49,78
70,48
70,53
350
49,04
49,26
72,57
72,65
775
46,08
46,66
71,99
72,03
375
42,12
42,58
75,03
75,09
800
51,02
51,39
73,23
73,27
400
49,43
49,69
77,10
77,16
825
50,23
50,61
73,32
73,36
425
49,46
49,72
79,44
79,49
850
52,45
52,81
74,77
74,81
450
44,74
45,18
80,86
80,90
875
50,79
51,22
75,46
75,50
475
53,50
53,67
81,70
81,75
900
49,91
50,44
75,56
75,59
500
58,34
58,44
82,09
82,13
925
51,53
51,93
74,92
74,96
525
58,57
58,67
82,00
82,03
950
53,81
54,11
75,92
75,95
550
42,28
42,94
81,40
81,43
975
51,90
52,29
76,17
76,21
575
52,54
52,78
80,92
80,95
1000
48,23
48,85
73,60
73,65
600
52,02
52,29
79,01
79,05
Page 17
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
17

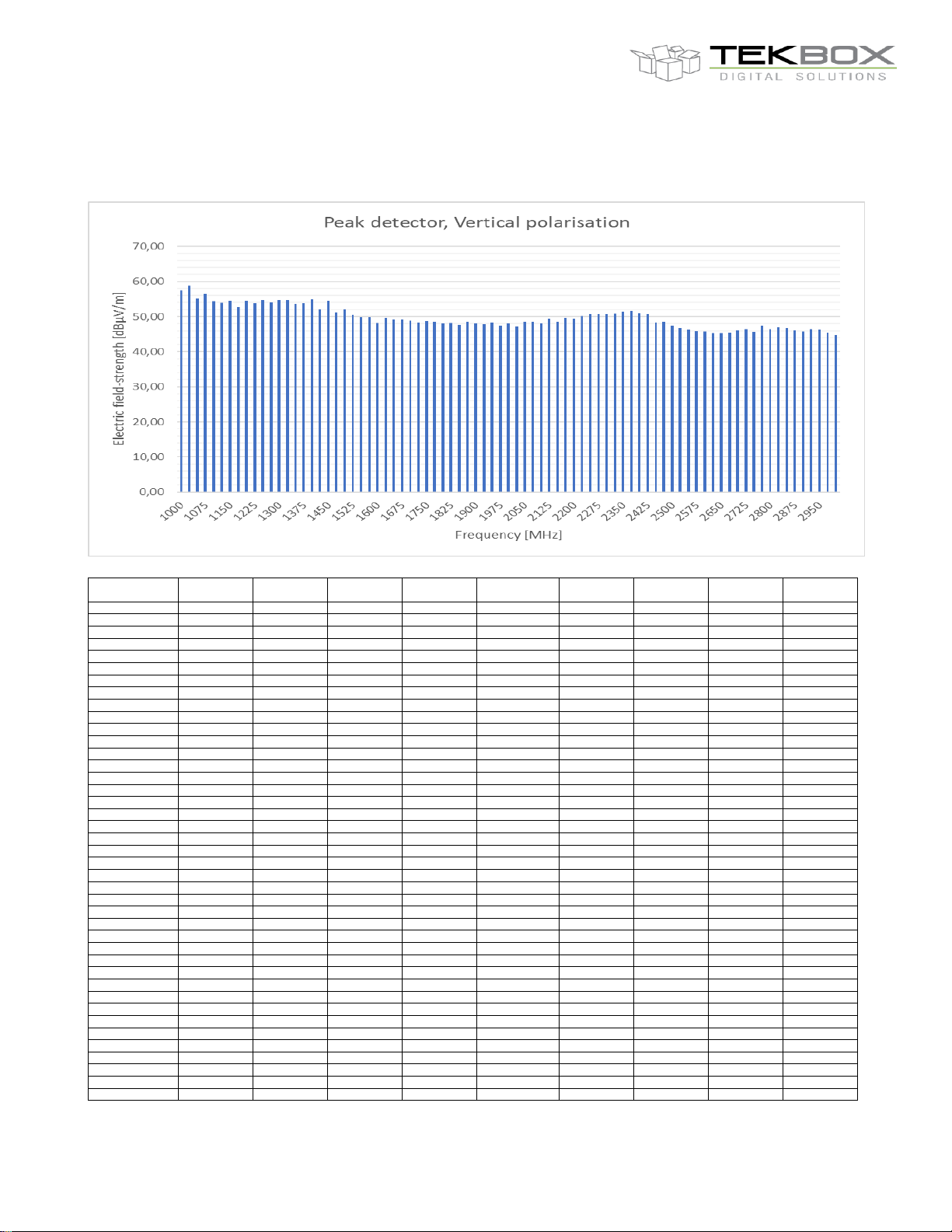

5.11 25 MHz comb frequency, 10 cm antenna, amplifier off, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
29,42
42,14
56,23
57,42
2025
28,94
42,70
41,03
47,20
1025
29,16
41,31
57,73
58,81
2050
29,15
42,09
43,42
48,47
1050
26,58
39,44
54,01
55,29
2075
29,61
42,96
42,71
48,59
1075
26,38
39,12
55,38
56,44
2100
30,02
43,11
41,17
47,96
1100
26,09
39,37
53,01
54,45
2125
30,48
43,93
43,49
49,26
1125
26,16
39,25
52,31
53,91
2150
30,99
44,76
42,14
48,54
1150
27,32
40,91
53,02
54,54
2175
31,37
45,13
44,02
49,74
1175
26,64
39,67
50,86
52,82
2200
31,79
44,83
42,80
49,40
1200
27,32
39,98
52,95
54,56
2225
32,02
44,48
43,90
50,23
1225
27,11
39,69
51,99
53,82
2250
32,16
45,38
45,10
50,63
1250
26,69
39,61
53,05
54,65
2275
32,01
44,76
44,12
50,61
1275
26,63
41,03
52,44
54,08
2300
31,84
45,68
45,22
50,61
1300
26,66
39,80
53,07
54,73
2325
32,12
45,06
44,88
50,76
1325
26,58
39,82
53,21
54,78
2350
32,63
45,34
45,49
51,47
1350
26,60
39,92
52,04
53,65
2375
33,45
46,25
44,32
51,61
1375
26,56
39,38
51,95
53,71
2400
34,21
46,78
42,85
50,97
1400
26,78
39,70
53,32
54,89
2425
33,72
47,16
42,21
50,70
1425
26,68
40,25
50,02
52,06
2450
33,01
46,74
38,21
48,43
1450
26,94
40,03
52,80
54,50
2475
32,72
46,01
37,87
48,48
1475
27,08
40,16
48,29
51,08
2500
32,62
45,28
36,34
47,41
1500
27,30
40,77
49,76
52,19
2525
32,31
45,40
34,41
46,81
1525
27,48
40,45
47,41
50,55
2550
32,10
45,01
34,15
46,23
1550
27,70
41,53
46,47
49,79
2575
32,03
45,00
33,15
45,86
1575
27,80
40,43
46,68
49,84
2600
31,87
44,80
32,84
45,74
1600
27,46
40,42
44,21
48,14
2625
31,93
44,71
32,99
45,23
1625
27,34
39,83
46,51
49,75
2650
32,13
45,45
32,55
45,30
1650
27,32
39,93
45,77
49,11
2675
32,26
45,07
32,75
45,48
1675
27,26
40,52
45,88
49,23
2700
32,48
45,87
32,46
46,01
1700
27,27
40,39
45,21
48,80
2725
32,59
45,59
32,68
46,47
1725
27,54
40,60
44,70
48,39
2750
32,77
45,53
32,79
45,64
1750
27,87
40,56
44,42
48,66
2775
33,63
46,53
33,58
47,43
1775
28,00
40,94
44,16
48,56
2800
33,41
47,57
33,37
46,41
1800
27,68
40,58
43,68
47,98
2825
33,69
47,10
33,64
46,87
1825
27,80
40,69
43,83
48,15
2850
33,87
47,23
33,83
46,77
1850
27,70
41,63
43,17
47,61
2875
33,04
46,25
33,00
46,02
1875
27,93
40,92
44,49
48,45
2900
32,99
45,98
32,94
45,82
1900
28,08
42,54
43,44
48,00
2925
32,64
45,76
32,59
46,39
1925
28,20
41,37
43,28
47,87
2950
32,49
45,42
32,47
46,28
1950
28,48
41,84
43,19
48,35
2975
32,30
45,91
32,25
45,41
1975
28,47
41,18
42,18
47,42
3000
31,85
44,98
31,84
44,82
2000
28,55
41,93
43,39
48,12
Page 18
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
18

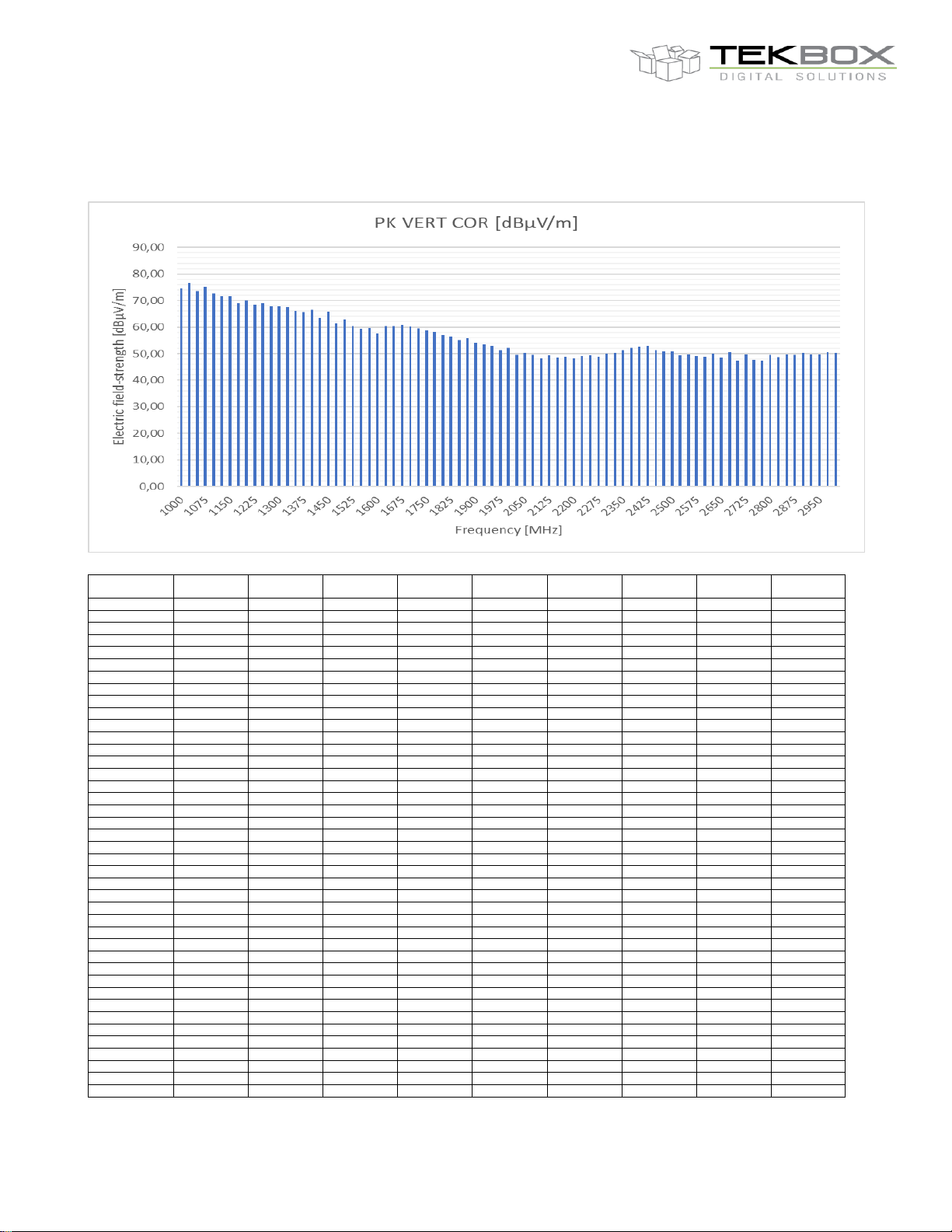

5.12 25 MHz comb frequency, 10 cm antenna, amplifier on, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
43,69
48,09
74,59
74,75
2025
28,94
42,37
45,11
49,46
1025
43,07
48,05
76,57
76,71
2050
29,15
42,14
46,44
50,33
1050
38,97
44,42
73,43
73,58
2075
29,62
42,27
44,97
49,47
1075
38,40
44,39
74,96
75,09
2100
30,01
43,32
42,47
48,31
1100
33,14
41,90
72,56
72,73
2125
30,47
43,60
43,83
49,39
1125
31,17
41,87
71,41
71,61
2150
30,98
44,10
41,83
48,41
1150
38,15
44,20
71,35
71,56
2175
31,35
44,85
42,57
49,00
1175
29,38
40,71
68,55
68,87
2200
31,77
45,35
40,74
48,29
1200
31,66
41,97
69,84
70,10
2225
32,00
45,19
41,42
49,04
1225
35,30
43,20
68,24
68,54
2250
32,13
45,12
42,36
49,31
1250
29,89
41,14
68,68
68,95
2275
32,00
44,80
41,69
48,96
1275
27,53
40,27
67,49
67,82
2300
31,83
45,01
43,47
50,03
1300
29,90
41,73
67,55
67,87
2325
32,11
45,57
43,96
50,26
1325
28,68
40,61
67,29
67,63
2350
32,62
46,11
45,77
51,29
1350
29,22
41,20
65,67
66,08
2375
33,47
46,59
46,49
52,21
1375
28,47
40,77
65,26
65,65
2400
34,20
47,45
46,58
52,64
1400
29,12
40,46
66,20
66,58
2425
33,76
46,87
47,44
52,94
1425
27,44
40,06
62,80
63,36
2450
33,04
45,95
44,63
51,35
1450
27,12
40,07
65,45
65,88
2475
32,74
45,88
44,86
50,79
1475
27,44
40,61
60,72
61,43
2500
32,63
46,08
44,36
50,90
1500
30,63
41,78
62,22
62,84
2525
32,32
45,01
41,84
49,33
1525
27,92
40,58
59,47
60,34
2550
32,26
44,98
43,11
49,78
1550
28,22
41,79
58,27
59,26
2575
32,04
44,86
41,33
49,13
1575
31,24
42,14
58,67
59,59
2600
32,86
45,17
41,86
48,81
1600
28,26
41,08
56,46
57,57
2625
32,25
45,50
44,26
49,93
1625
27,56
40,94
59,43
60,31
2650
32,29
45,42
40,73
48,53
1650
27,56
40,58
59,39
60,26
2675
32,26
45,18
44,89
50,62
1675
27,68
40,55
59,93
60,76
2700
32,61
46,32
35,35
47,43
1700
30,78
41,85
59,38
60,23
2725
32,61
45,82
42,67
49,87
1725
31,95
42,17
58,65
59,56
2750
32,92
46,14
36,78
47,59
1750
31,56
42,31
57,81
58,87
2775
33,79
46,96
34,57
47,31
1775
30,20
42,00
56,90
58,12
2800
33,48
46,54
38,66
49,52
1800
28,14
40,92
55,54
56,94
2825
33,72
47,01
37,47
48,72
1825
28,74
41,21
55,03
56,46
2850
34,04
46,70
41,13
49,87
1850
28,41
41,06
53,61
55,14
2875
33,18
46,05
41,23
49,50
1875
28,15
41,59
54,10
55,67
2900
33,96
46,67
43,09
50,28
1900
28,38
41,42
52,18
54,10
2925
33,05
46,27
42,84
49,83
1925
28,50
41,06
51,21
53,48
2950
32,60
45,96
42,93
49,76
1950
28,65
42,65
50,26
52,88
2975
32,82
46,19
44,92
50,73
1975
28,51
41,39
48,38
51,31
3000
31,93
45,60
44,29
50,22
2000
28,57
41,33
48,91
52,30
Page 19
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
19

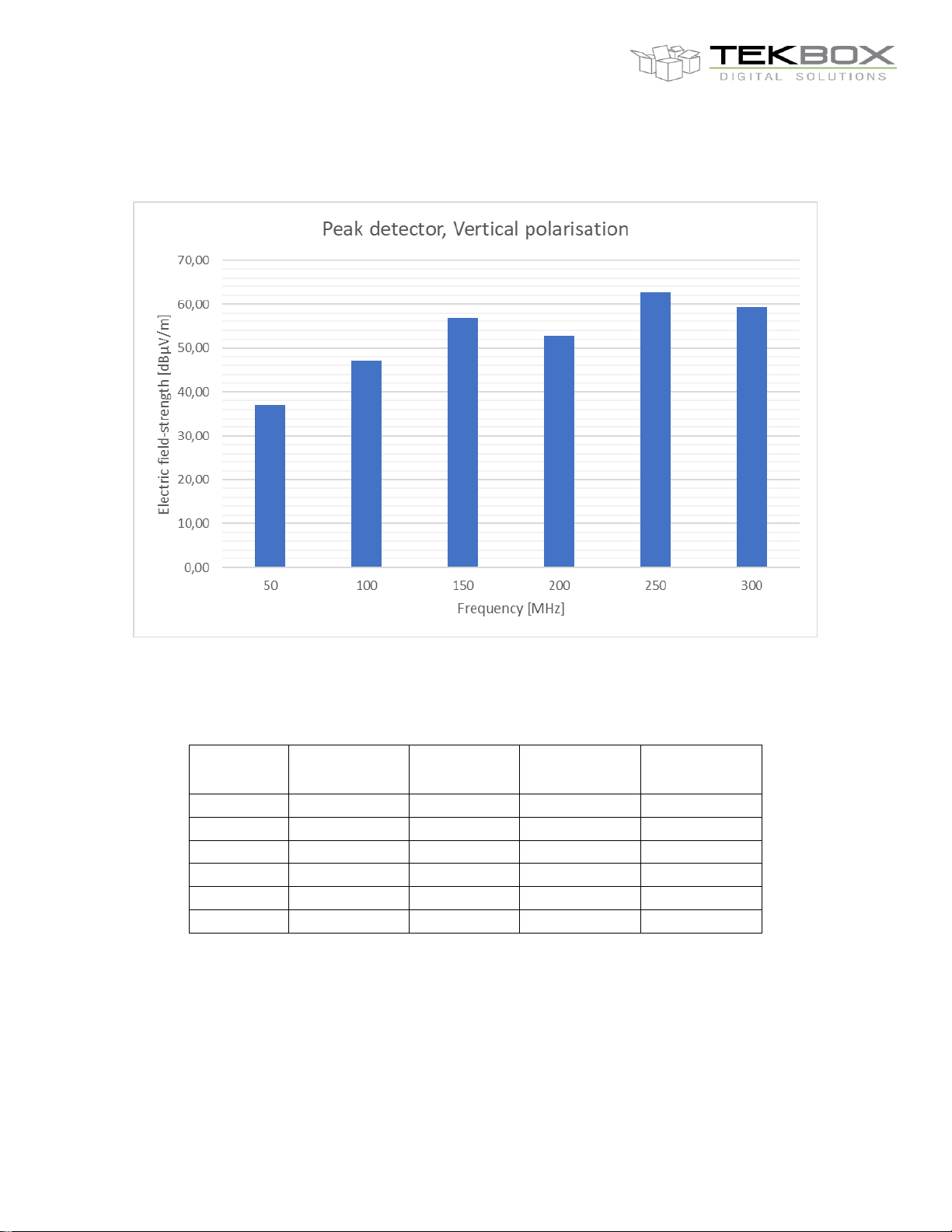

5.13 50 MHz comb frequency, 10 cm antenna, amplifier off, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
50
-0,35
13,09
36,45
36,92
100
16,00
20,18
46,90
47,05
150
29,54
31,11
56,76
56,85
200
28,24
30,42
52,72
52,88
250
35,96
37,26
62,63
62,70
300
31,69
34,17
59,21
59,34
Page 20
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
20

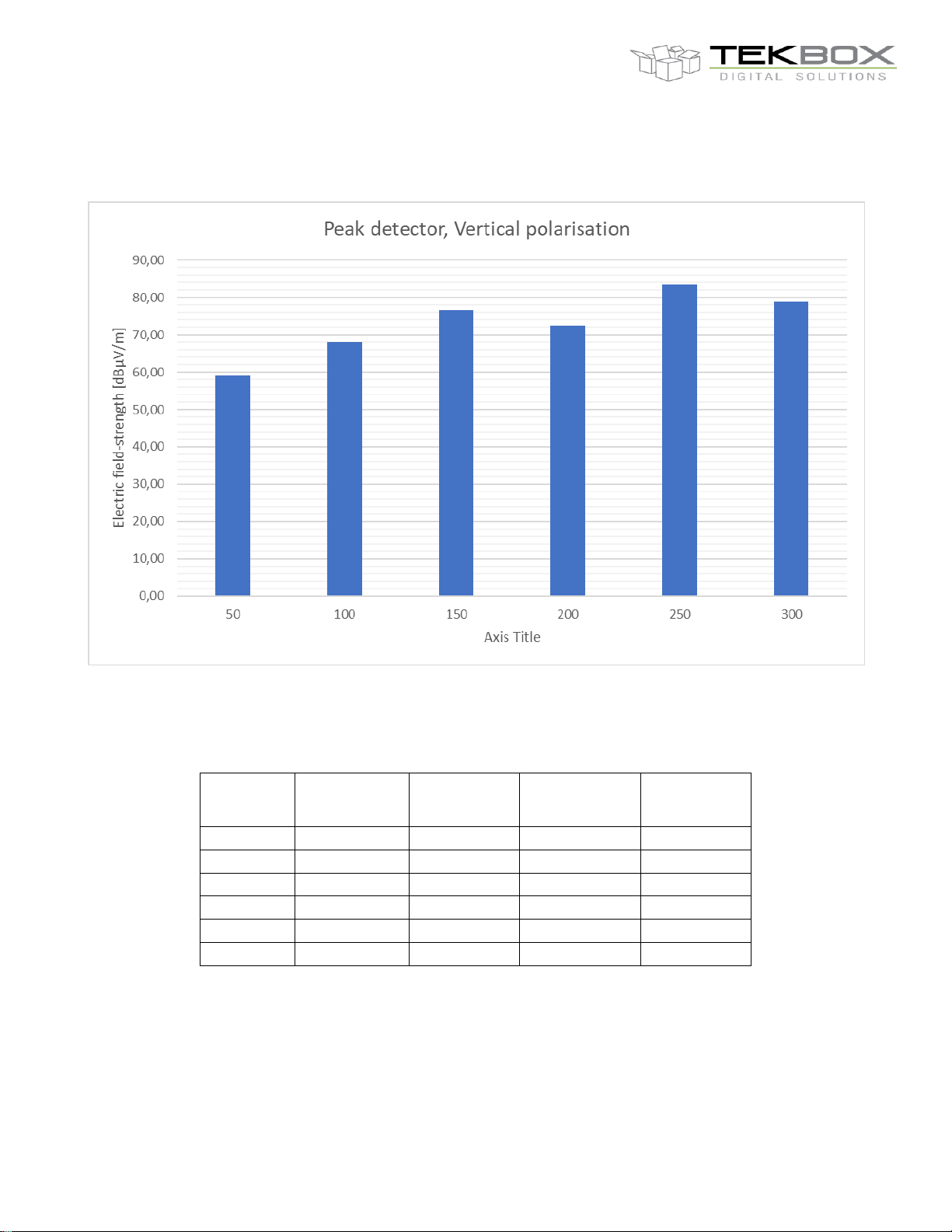

5.14 50 MHz comb frequency, 10 cm antenna, amplifier on, 30 MHz – 300 MHz
Measured with biconical antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
50
23,58
25,53
58,90
58,95
100
37,66
38,05
68,09
68,12
150
49,56
49,74
76,64
76,67
200
48,16
48,43
72,43
72,48
250
56,87
56,99
83,41
83,45
300
51,71
52,00
78,84
78,89
Page 21
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
21

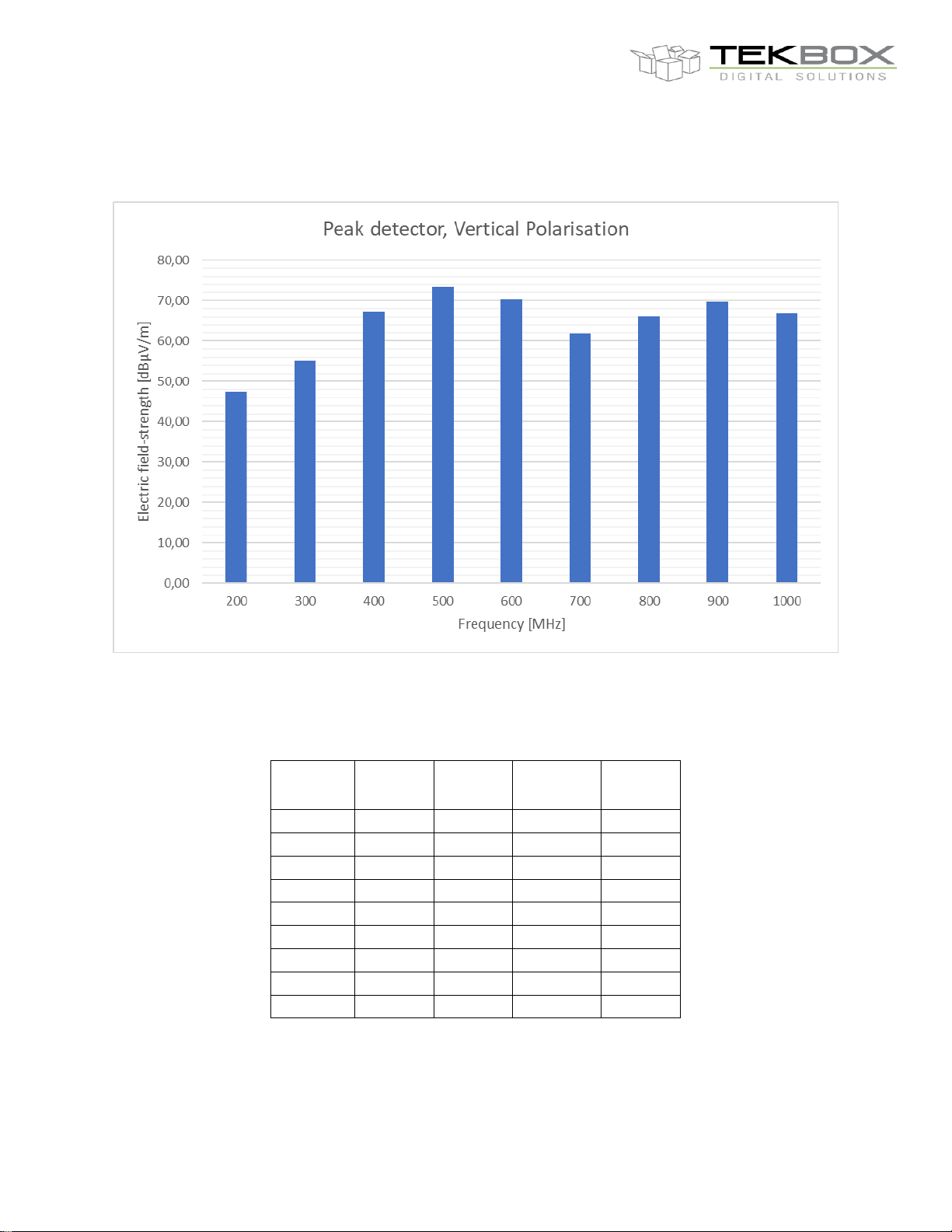

5.15 50 MHz comb frequency, 10 cm antenna, amplifier off, 200 MHz – 1000 MHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
19,38
22,79
41,03
41,38
250
16,35
20,97
45,83
46,05
300
28,65
30,41
49,63
49,80
350
35,32
36,29
57,97
58,05
400
34,19
35,33
61,77
61,84
450
29,87
32,03
66,23
66,27
500
44,61
45,11
67,72
67,77
550
33,35
35,16
67,85
67,89
600
35,11
36,84
64,79
64,86
650
33,31
35,41
59,39
59,50
700
34,80
36,80
56,24
56,42
750
37,37
38,79
57,62
57,77
800
37,63
39,12
60,91
61,03
850
40,58
41,74
62,86
62,96
900
36,08
38,19
63,97
64,06
950
41,46
42,62
64,39
64,48
1000
36,00
38,24
61,21
61,35
Page 22
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
22
5.16 50 MHz comb frequency, 10 cm antenna, amplifier on, 200 MHz – 1000 MHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG COR
[dBµV/m]
PK HOR
[dBµV/m]
AVG COR
[dBµV/m]
PK COR
[dBµV/m]
200
42,32
42,61
60,81
60,86
250
34,57
35,31
65,10
65,14
300
46,56
46,81
69,57
69,62
350
55,20
55,31
78,92
78,97
400
55,50
55,61
83,06
83,10
450
50,91
51,11
86,94
86,97
500
64,36
64,42
87,71
87,74
550
47,25
47,65
87,60
87,63
600
58,25
58,38
85,13
85,16
650
55,14
55,32
79,62
79,65
700
55,19
55,41
75,67
75,71
750
55,23
55,43
76,33
76,36
800
57,18
57,35
79,22
79,25
850
58,36
58,52
80,91
80,94
900
56,18
56,40
81,52
81,55
950
59,86
60,01
81,96
81,99
1000
54,67
54,97
79,58
79,61
Page 23
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
23

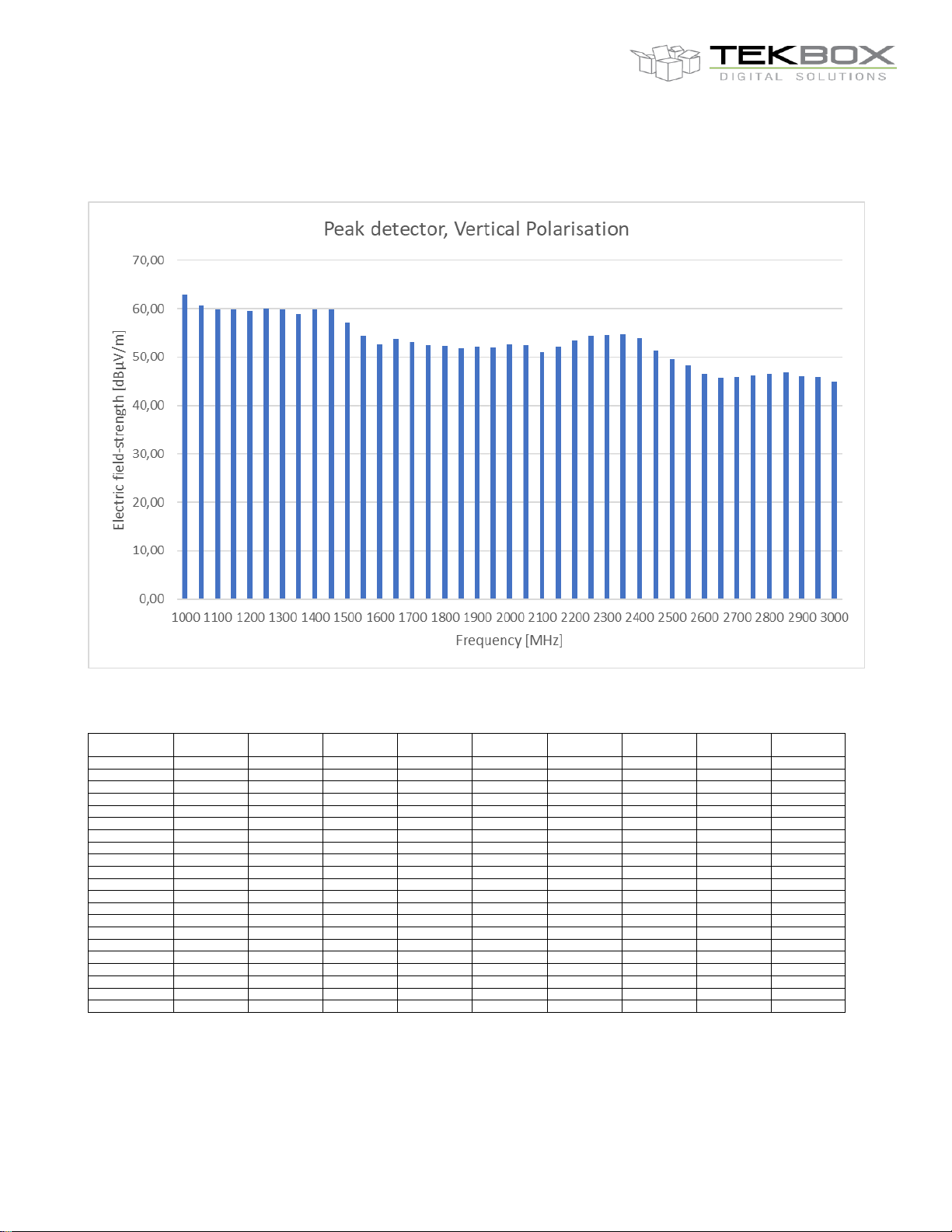

5.17 50 MHz comb frequency, 10 cm antenna, amplifier off, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
32,42
44,08
62,29
62,95
2050
29,18
41,95
49,56
52,38
1050
28,40
40,43
59,95
60,65
2100
30,09
42,85
47,18
51,05
1100
59,10
59,88
59,10
59,88
2150
31,14
44,73
48,37
52,19
1150
28,60
41,10
59,17
59,91
2200
31,90
46,08
48,94
53,30
1200
27,31
40,07
58,63
59,50
2250
32,17
45,31
51,02
54,38
1250
27,18
39,78
59,18
60,00
2300
31,90
44,97
51,48
54,59
1300
27,19
40,25
59,02
59,79
2350
32,69
45,56
51,58
54,82
1350
26,92
39,75
58,04
58,97
2400
34,21
47,29
48,96
53,77
1400
26,75
39,67
59,12
59,90
2450
33,04
46,37
44,17
51,36
1450
27,09
39,85
58,89
59,82
2500
32,62
45,55
41,90
49,50
1500
28,12
41,01
55,94
57,12
2550
32,14
45,19
38,47
48,21
1550
28,03
41,09
52,43
54,41
2600
31,94
45,16
34,92
46,51
1600
27,57
40,70
50,34
52,65
2650
32,13
45,79
33,38
45,64
1650
27,32
40,89
51,84
53,68
2700
32,47
46,10
32,46
45,76
1700
27,78
40,40
51,15
53,07
2750
32,77
45,95
32,89
46,23
1750
28,23
41,30
50,40
52,51
2800
33,41
46,60
33,46
46,56
1800
27,75
40,83
49,96
52,22
2850
33,87
47,03
33,90
46,94
1850
27,91
40,66
49,23
51,79
2900
32,98
45,96
32,98
46,12
1900
28,26
41,11
49,37
52,08
2950
32,49
45,81
32,47
45,76
1950
28,60
41,30
49,19
52,01
3000
31,84
45,40
31,91
44,92
2000
28,52
41,51
49,95
52,56
Page 24
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
24

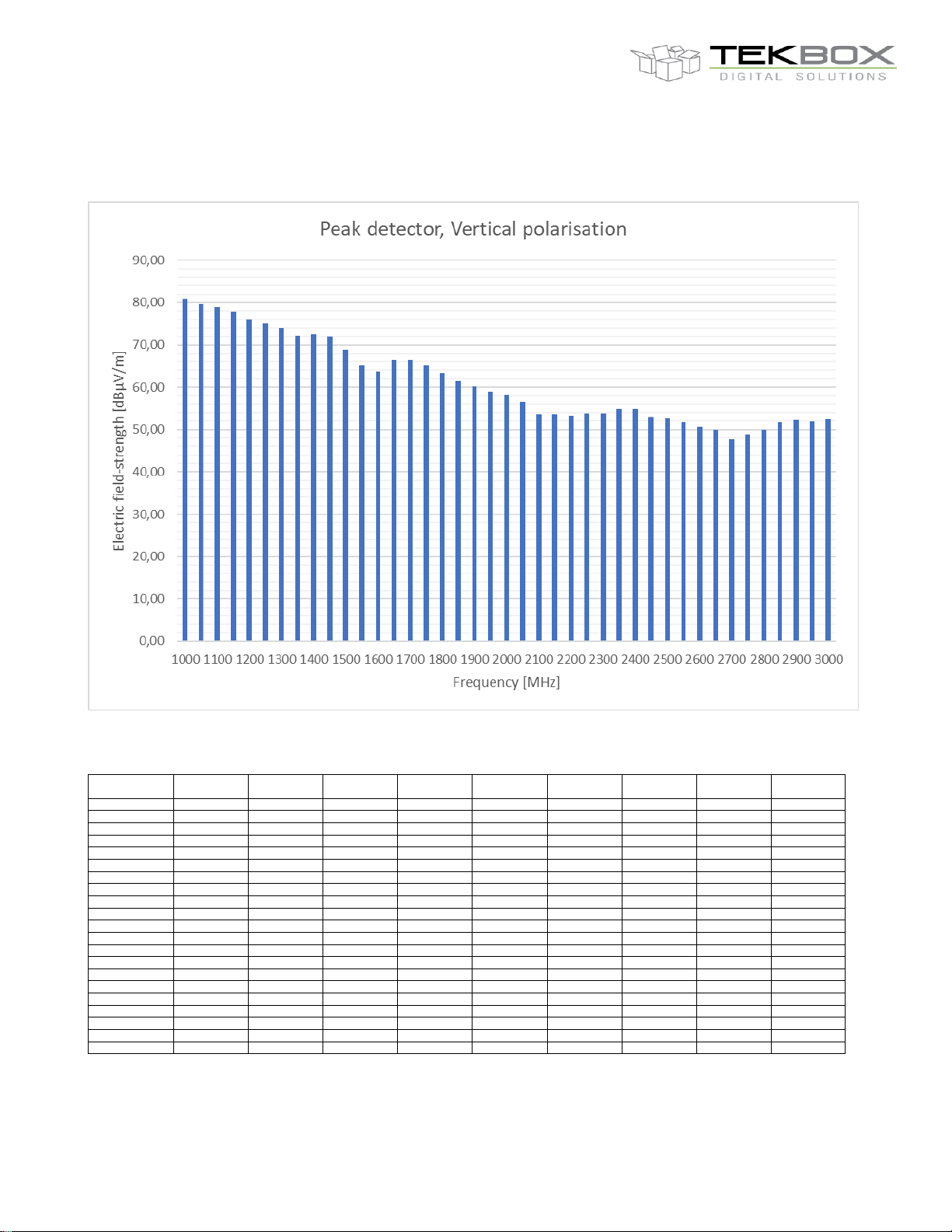

5.18 50 MHz comb frequency, 10 cm antenna, amplifier on, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency [MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
49,82
52,24
80,76
80,84
2050
29,26
42,64
54,79
56,46
1050
44,93
48,37
79,64
79,71
2100
30,21
43,27
50,92
53,66
1100
38,95
44,38
78,80
78,88
2150
31,25
43,90
50,46
53,64
1150
44,89
48,28
77,84
77,93
2200
31,91
45,68
49,60
53,28
1200
37,39
44,63
75,79
75,92
2250
32,16
44,99
50,30
53,88
1250
35,11
43,27
74,98
75,12
2300
31,87
45,41
50,48
53,85
1300
33,57
42,86
73,76
73,91
2350
32,69
46,01
51,43
54,87
1350
33,49
42,48
71,95
72,14
2400
34,21
47,03
51,03
54,87
1400
33,76
42,79
72,46
72,62
2450
33,13
46,65
48,57
53,00
1450
27,62
40,64
71,76
71,96
2500
32,66
45,22
47,88
52,69
1500
34,11
43,32
68,54
68,86
2550
32,52
45,79
47,10
51,79
1550
29,90
41,86
64,68
65,16
2600
33,85
46,36
45,40
50,71
1600
29,85
41,67
63,17
63,75
2650
32,43
46,47
44,13
50,04
1650
28,12
41,08
66,00
66,44
2700
32,87
46,40
37,76
47,75
1700
35,79
44,33
66,00
66,39
2750
33,22
46,04
40,29
48,98
1750
36,07
44,01
64,57
65,08
2800
33,55
46,50
42,36
49,95
1800
30,85
42,00
62,82
63,40
2850
34,24
47,14
44,89
51,67
1850
30,73
42,14
60,65
61,39
2900
35,21
47,17
47,13
52,32
1900
29,93
41,95
59,28
60,17
2950
32,90
45,84
46,86
51,88
1950
29,62
42,18
57,70
58,90
3000
32,06
45,14
48,46
52,48
2000
28,71
41,68
56,97
58,31
Page 25
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
25
5.19 100 MHz comb frequency, 10 cm antenna, amplifier off, 30 MHz – 300 MHz
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
100
22,13
24,08
52,77
52,84
200
34,14
35,42
58,29
58,37
300
37,69
39,13
65,26
65,33
Measured with biconical antenna,
3m distance, 1m height
5.20 100 MHz comb frequency, 10 cm antenna, amplifier on, 30 MHz – 300 MHz
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
100
43,59
43,79
73,98
74,01
200
53,93
54,06
78,16
78,19
300
57,66
57,83
85,02
85,05
Measured with biconical antenna,
3m distance, 1m height
Page 26
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
26
5.21 100 MHz comb frequency, 10 cm antenna, amplifier off, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
27,18
28,68
47,21
47,37
300
33,78
34,73
54,95
55,05
400
41,27
41,79
67,17
67,20
500
49,24
49,52
73,42
73,45
600
43,55
44,19
70,38
70,42
700
41,05
42,00
61,75
61,85
800
43,50
44,23
66,02
66,09
900
43,94
44,77
69,65
69,70
1000
41,44
42,74
66,76
66,84
Page 27
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
27

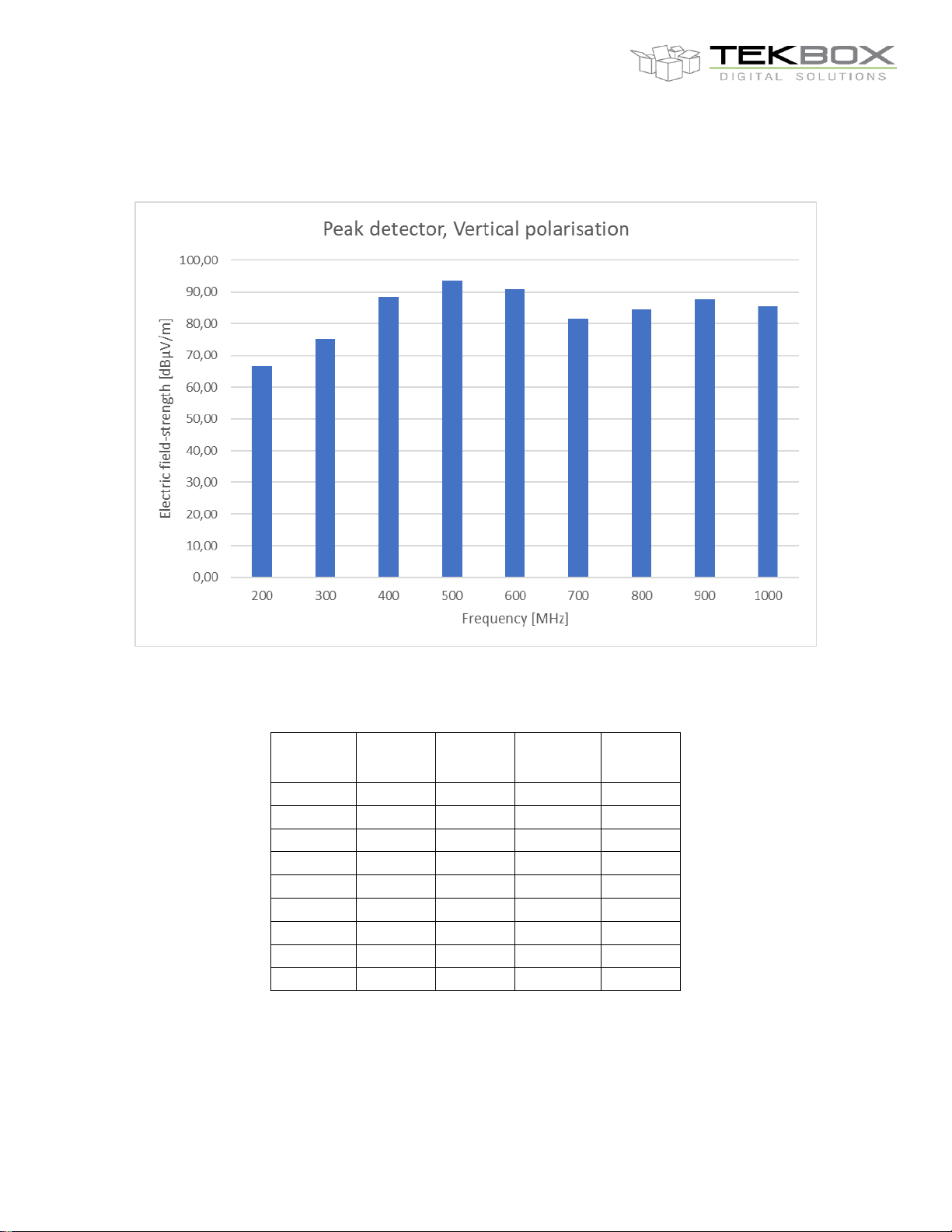

5.22 100 MHz comb frequency, 10 cm antenna, amplifier on, 200 MHz – 1 GHz
Measured with logarithmic periodic antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
200
46,99
47,17
66,49
66,52
300
53,95
54,06
75,05
75,08
400
62,73
62,78
88,58
88,61
500
69,08
69,12
93,45
93,47
600
64,05
64,11
90,91
90,94
700
60,88
60,98
81,41
81,44
800
62,10
62,19
84,59
84,62
900
61,77
61,87
87,48
87,50
1000
59,99
60,16
85,37
85,40
Page 28
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
28

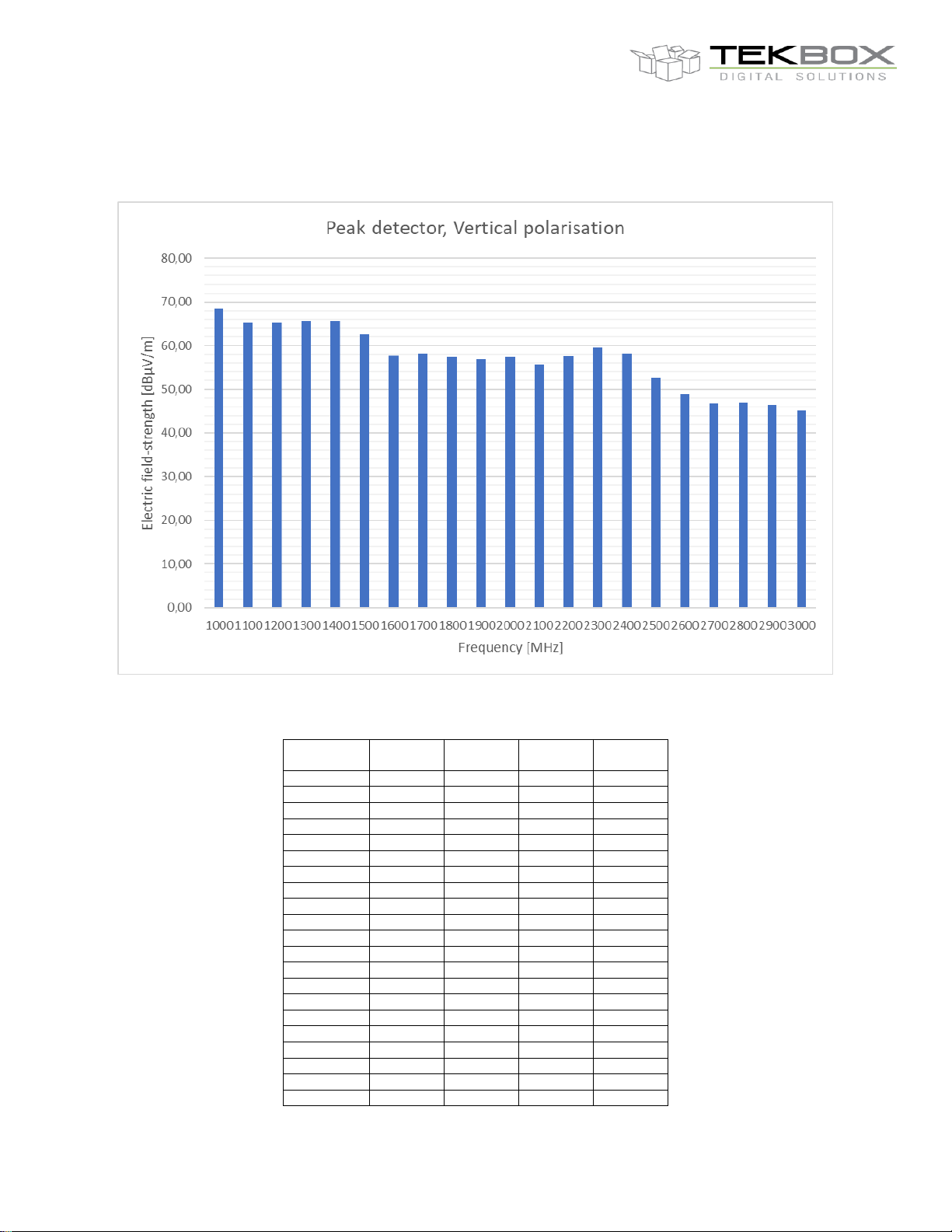

5.23 100 MHz comb frequency, 10 cm antenna, amplifier off, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR COR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
37,48
44,71
68,10
68,45
1100
28,04
40,27
64,93
65,31
1200
29,40
41,22
64,94
65,36
1300
28,56
40,83
65,22
65,64
1400
28,91
40,52
65,28
65,68
1500
30,44
42,02
61,99
62,65
1600
29,15
41,46
56,55
57,72
1700
29,14
40,98
57,12
58,16
1800
28,55
40,78
56,27
57,42
1900
28,93
42,05
55,43
56,83
2000
28,99
42,00
55,91
57,33
2100
30,62
43,41
53,55
55,66
2200
32,55
44,94
55,39
57,52
2300
32,35
45,52
58,01
59,54
2400
34,25
47,19
55,37
58,12
2500
32,65
45,88
47,98
52,63
2600
32,56
46,43
40,64
48,87
2700
32,53
45,21
33,98
46,72
2800
33,41
46,55
33,70
46,94
2900
33,00
46,08
33,71
46,52
3000
31,83
45,18
31,80
45,10
Page 29
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
29

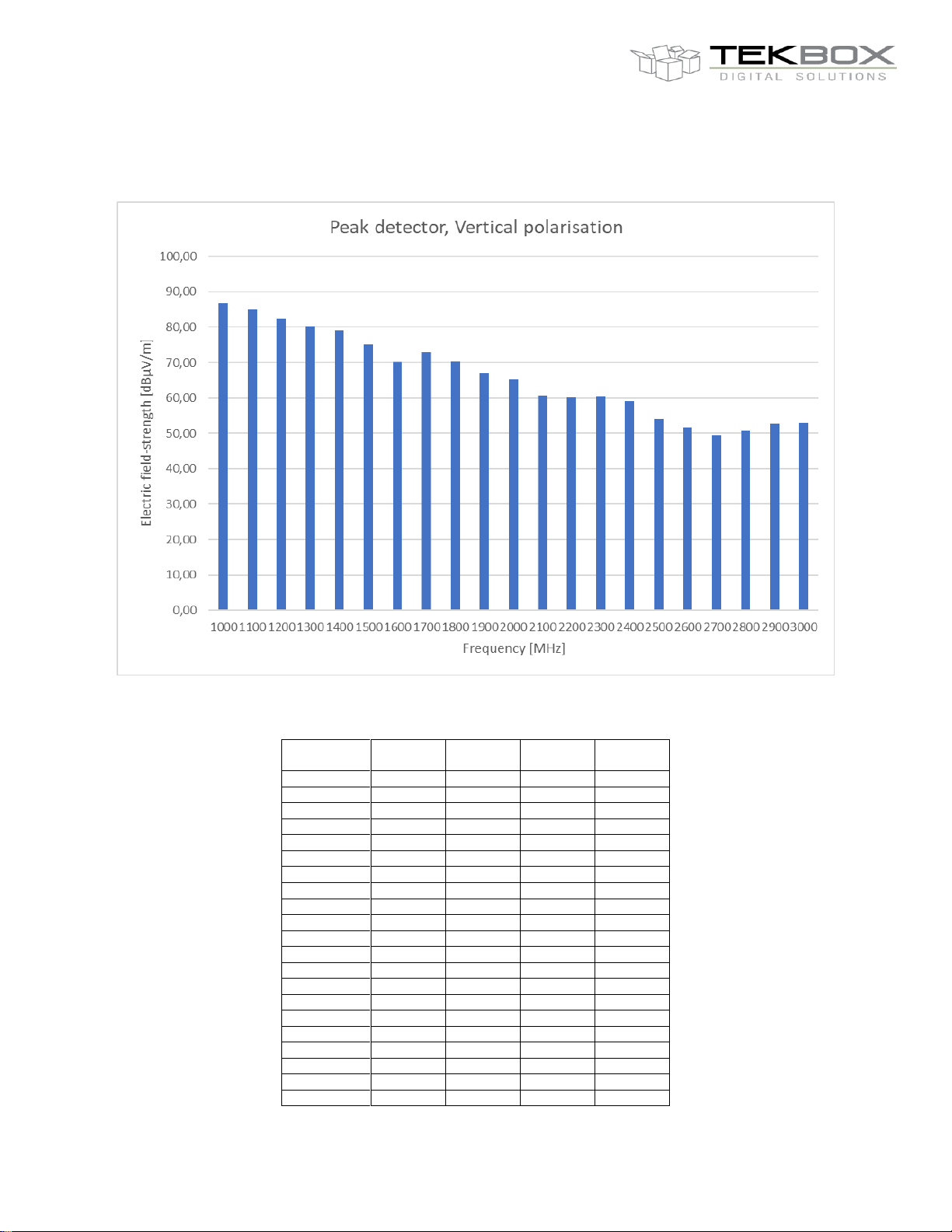

5.24 100 MHz comb frequency, 10 cm antenna, amplifier on, 1 GHz – 3 GHz
Measured with horn antenna, 3m distance, 1 meter height
Frequency
[MHz]
AVG HOR
[dBµV/m]
PK HOR COR
[dBµV/m]
AVG VERT
[dBµV/m]
PK VERT
[dBµV/m]
1000
55,78
57,12
86,74
86,79
1100
44,80
48,45
84,92
84,96
1200
43,81
48,03
82,36
82,42
1300
39,69
45,31
80,26
80,34
1400
39,81
45,83
79,00
79,09
1500
41,02
46,25
75,00
75,16
1600
35,16
43,65
69,90
70,16
1700
42,45
46,90
72,71
72,90
1800
36,45
44,09
70,05
70,32
1900
34,33
44,09
66,61
67,03
2000
30,46
42,78
64,76
65,31
2100
31,85
43,65
59,49
60,64
2200
32,95
45,69
58,64
60,19
2300
32,47
45,18
59,18
60,49
2400
34,25
47,51
56,76
59,04
2500
32,67
45,22
49,88
53,99
2600
34,49
46,01
46,73
51,61
2700
32,91
45,96
39,38
49,35
2800
33,63
46,55
42,66
50,80
2900
35,56
47,23
48,19
52,73
3000
32,15
45,24
48,87
52,96
Page 30
V1.1
TBCG3-RN2
TBCG3-RN2 Comb Generator
30
6 Accessories
The TBCG3-RN6 includes a charger and two monopole antennas as standard accessories. A
coaxial interfacing cable for LISN is available as optional accessory.
TBCG3-RN6 accessories
7 Inserting / replacing batteries
Due to airfreight regulations concerning batteries, the TBCG3 is not supplied with batteries.
Loosen the SMA-connector nut a few turns. Remove the six screws at the bottom of the comb
generator housing and take off the bottom lid. Insert six AA rechargable 1.2V NiMH batteries
in the battery compartments taking care to follow the polarity indicated on the PCB.
Reattach the bottom lid, then tighten the screws and the SMA-connector nut as well.
Before connecting the charger plug to the unit connector, please check that the centre tip
polarity is shown as (positive) “+”.
8 Ordering Information
Part Number
Description
TBCG3-RN2
Comb generator, Ansmann ACS310 charger, 30 cm monopole,
10 cm monopole
9 History
Version
Date
Author
Changes
V 1.0
4.2.2023
Mayerhofer
Creation
V 1.1
19.6.2023
Minh Nguyen
Update Charger part number
www.tekbox.com
TekBox Digital Solutions Vietnam Pte. Ltd.
Factory 4, F4, Lot I-3B-1, Saigon Hi-Tech Park, Tan Phu Ward, District 9, Ho Chi Minh City, Vietnam
Loading...
