Page 1
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 1 of 39 TekBox Digital Solutions 10-Aug-23

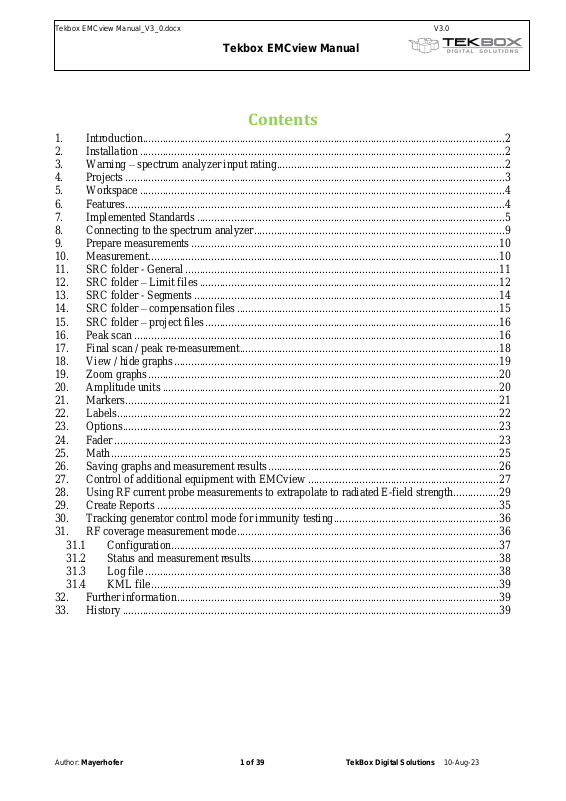

Contents
31.1 Configuration ................................................................................................................... 37
31.2 Status and measurement results ....................................................................................... 38
31.3 Log file ............................................................................................................................ 38
31.4 KML file .......................................................................................................................... 39
Page 2
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 2 of 39 TekBox Digital Solutions 10-Aug-23
1. Introduction
The EMCview software carries out automated conducted or radiated noise measurements. It currently supports all Rigol DSA and RSA spectrum analyzers, all Siglent SSA, SSA-plus, SVA models, Rohde & Schwarz FPC and FPH series analyzers, OWON XSA and HSA series, BK Precision models 2682/2683, ComPower SPA900 series, Teledyne LeCroy T3SA series, Multicomp MP700 series and TheEMCshop ESA series. All relevant CISPR (= EN550xx) conducted and radiated noise measurement settings are pre­configured in the current version. EMCview also supports RF-coverage measurements and tracking generator control for immunity testing. This manual reflects the state of EMCview V8.0. Some screenshots may be based on older SW versions
and slightly differ from the latest versions. As EMCview is a very dynamic project, have a look at our website from time to time for new releases with new features. As the manual is only updated for each major release, refer to the readme files and the EMCview FAQ document for more detailed information on features.
2. Installation
Download and install the VISA driver package from the National Instruments website. Download and install EMCview from the Tekbox website. Copy the license file into the same directory as EMCview.exe. Click EMCview.exe within your program directory or the desktop icon to run the program.
Important: Rigol DSA815 FW >= V00.01.16; Siglent SSA FW >= 1.2.9.3a; Siglent SVA FW >= V2.2.1.2.1 or higher R&S FPC1500: >= FW 1.5 PC-requirements: Windows 7, 8, 10; min 4MB RAM
It is highly recommended to check the firmware download section of the spectrum analyzer manufacturer and install the latest firmware version.
R&S FPC and FPH spectrum analyzers: In addition, install “R&S Instrumentview”. Connect over USB cable via menu Device, SA TCP with “SA TCP” = 172.16.10.10. Connection over LAN is not recommended, as it works very slowly. See chapter 6 on how to connect to the spectrum analyzer. In case of any display issues, refer to chapter 12 of the EMCview FAQ document. Check the Tekbox website for EMCview updates from time to time.
3. Warning – spectrum analyzer input rating
Always consider the maximum input ratings of any spectrum analyzer. Be aware that powerful surges and harmonics of a DUT may have the potential to damage the spectrum analyzer input stage.
Be aware, that EMCview project files are set up to utilize the maximum sensitivity of the spectrum analyzer. The requirements of certain standards are tough, especially those of CISPR 25 class 5 and manufacturer specific automotive conducted noise standards. Consequently, the internal attenuator is set to OFF and the internal preamplifier is set to ON in order to avoid crossing the limit lines with the noise level of the analyzer. Furthermore, all conductive noise measurement projects use the LISN correction file for disabled attenuator/limiter.
Take following precautions to protect the spectrum analyzer input before testing an unknown DUT:
Check the attenuator and preamplifier settings of the segment file upfront to any measurement
Be especially careful when testing conducted emissions of inductive loads such as motors or switched inductive loads. Whenever measuring an unknown source or DUT, protect the spectrum analyzer input with the internal limiter an external attenuator of 20dB or 30dB and check the spectrum for any high amplitude signals. Protect the spectrum analyzer input from harmful ESD events. In case of conducted noise measurements with the 50µH LISN (TBLC08) follow the procedure in the LISN manual. With the LISN power switch OFF, the line selection switch OFF and the LISN attenuator/limiter on, first power the isolation transformer and thereafter turn ON the LISN power switch. Next, connect the powered spectrum analyzer via BNC cable to the LISN. The internal spectrum analyzer attenuator shall be ON and the internal preamplifier shall be OFF. It is a good practice to keep the spectrum analyzer RF input
Page 3
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 3 of 39 TekBox Digital Solutions 10-Aug-23
disconnected or at least the line switch in OFF position when powering ON/OFF the DUT in order to protect the analyzer from potentially harmful switching transients. In case of the 5µH LISN (TBOH01) use an external 20dB attenuator or consider using an external limiter such as the TBFL1 for a first check.
Before running a test with EMCview, monitor especially the frequency range 9 kHz to 2 MHz for potential high amplitude harmonics and check for spectrum analyzer messages “IF overload”. Operate the spectrum analyzer with Max Hold for this purpose. In case of strong signals, increase the attenuator and reference Level of the analyzer or even add an external attenuator at the input.
Modify the segment file with respect to attenuator and preamplifier settings accordingly. When doing a fast scan, consider the attenuator and preamplifier settings in the control box.
Hint: attenuator and preamplifier settings in the segment files can easily be modified using a text editor with “find and replace all” capability.
4. Projects
In EMCview, any EMC standard is represented by one or more projects. A project summarizes all configurations necessary to carry out measurements. It consists of limit files, segment files, a cable file, a LISN file, an antenna file, an amplifier file and various settings such as graph boundaries, trace colors, and settings for peak measurements.
Limit files: configuration containing the frequency dependent limit values given in the corresponding standard. Segment files: spectrum analyzer settings such as start and stop frequency, sweep time, resolution bandwidth, detector, attenuator and preamplifier settings. Refer to the CISPR16 standard or to the Tekbox document Pre Compliance Conducted Emission Measurements V1_1.pdf for more detailed information. Radiated noise measurements often cover a wide frequency span and require different antennas for different frequency ranges. Consequently, it makes sense to split segment files. Segment files for radiated noise typically cover 150kHz -30MHz, 30MHz-300MHz, 300MHz-1GHz, 1GHz – 1,5GHz (DSA815 frequency range), etc. LISN files: insertion loss/calibration data of the LISN over frequency, entered in dB with negative sign. Use LISN files also to implement conversion from dBµV to dBµA for conducted noise measurements with RF current probes. The default 50µH LISN file is using the correction data for the attenuator/limiter in OFF position. If you measure with attenuator/limiter engaged, select the corresponding LISN file. Antenna files: antenna factor of the antennas used for radiated noise measurement; converts the dBµV measured by the spectrum analyzer into dBµV/m
Cable files: insertion loss of cables between DUT and spectrum analyzer Gain files: amplifier gain or attenuator loss in the signal path, if any
These files can be created or edited either with a built in editor in the Setup Menu or with any text editor. The files are located in the src subdirectory. Press the Tab key after loading any configuration file.
Project files for conducted noise measurements have file names starting with CN_*.prj. Project files for radiated noise measurements with antennas start with RN_*.prj. Project files for radiated noise measurements with TEM cells start with TC_*.prj. Refer to the applicable standards for more details and insight. Standards and corresponding limits may change over time. Tekbox does not take any liability for the validity of the limits and other settings in the preconfigured projects.
Consider that most segment files have the default attenuator settings at 0dB and in some cases such as CISPR 25 the preamplifier of the spectrum analyzer is set to ON in order to achieve maximum sensitivity. When testing any device with switched mode power supplies, consider to change the attenuator setting to 10dB for the first run.
Also in case of an “IF Overload” message of the analyzer, stop the measurement and disconnect the
analyzer and increase the attenuator setting before proceeding with the measurement.
Page 4
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 4 of 39 TekBox Digital Solutions 10-Aug-23

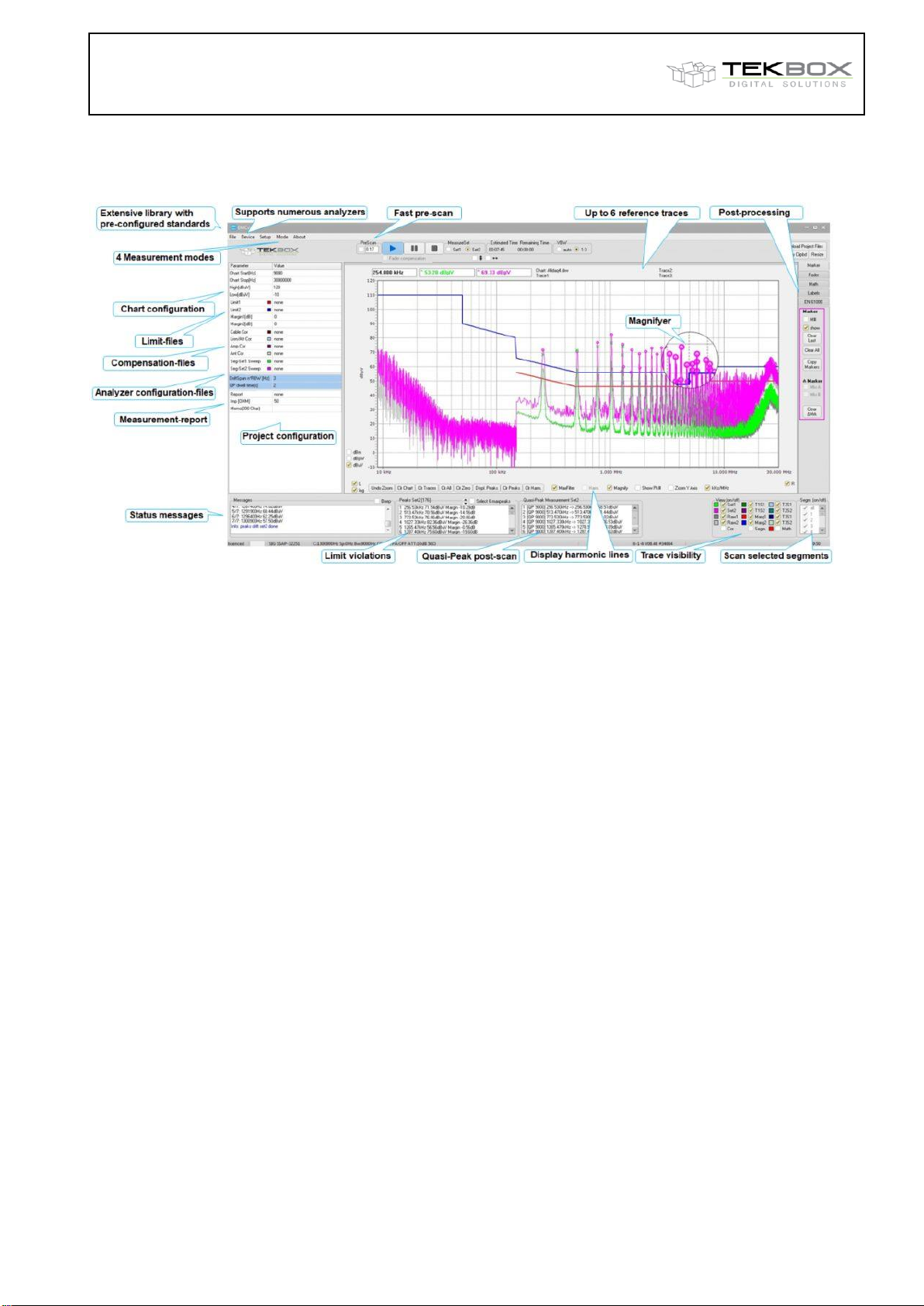

5. Workspace
6. Features
• numerous pre-configured project files for all relevant EMC standards
• Graph supports two complete measurement runs, same as in test house; simultaneous
measurement with two detectors available for a few analyzers
• fast Quasi-Peak scan of critical peaks, immune to frequency drift of the selected peaks
• Fast pre-scan
• configurable limit lines and segment files
• configurable correction files for cables, LISN, amplifiers, antennas, current probes, etc.
• configurable margins for the identification and selection of critical peaks
• supports import and overlaying of reference measurements for comparison purpose
• linear or logarithmic frequency axis
• Harmonic markers
• automatic creation of test reports
• many import/export-functions
• graphs can be saved as charts containing meta-data, graphs can be loaded together with the
corresponding measurement configuration
• RF coverage measurements
• tracking generator control for immunity testing using TEM cells
• many post-processing features
• useful calculators
• Immunity testing using CDNs or BCI probes; requires EMCview PRO license
• Rapid measurement, supporting real time bandwidth capability of Siglent SSA3000X-R series and
Rigol RSA series; requires EMCview PRO license
Page 5
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 5 of 39 TekBox Digital Solutions 10-Aug-23

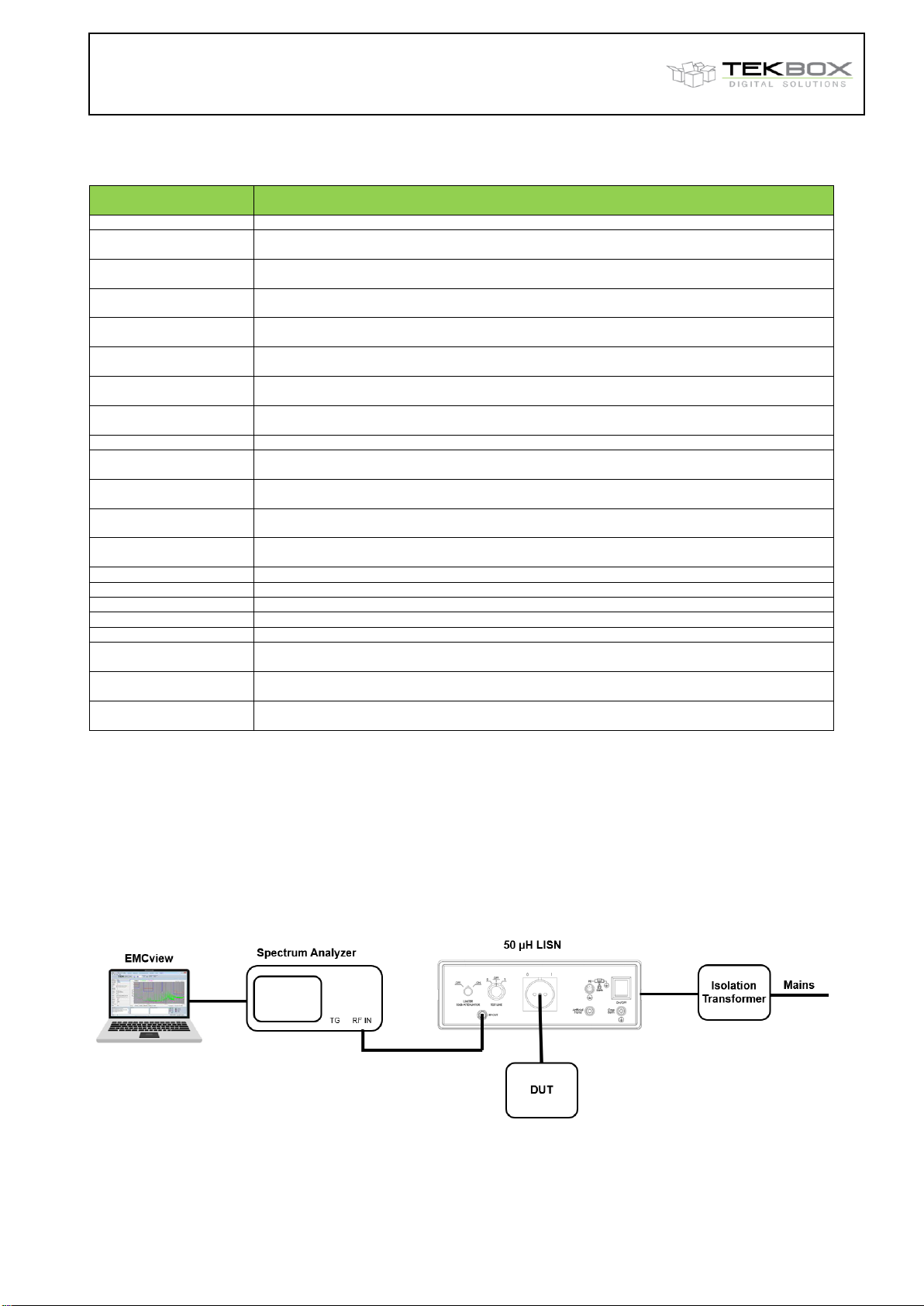

7. Implemented Standards
Implemented Standards
Description CISPR 16 / EN 55016
Base standard used by EMCview for control and settings of the spectrum analyzers during measurement
CISPR 11 / EN 55011
Industrial, scientific and medical equipment - Radio-frequency disturbance characteristics - Limits and methods of measurement
CISPR 12 / EN 55012
Vehicles, boats and internal combustion engines - Radio disturbance characteristics - Limits and methods of measurement for the protection of off-board receivers
CISPR 13 / EN 55013
Sound and television broadcast receivers and associated equipment -Radio disturbance characteristics
- Limits and methods of measurement; replaced by CISPR 32
CISPR 14 / EN 55014
Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus
CISPR 15 / EN 55015
Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
CISPR 22 / EN 55022
Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement; replaced by CISPR 32
CISPR 25 / EN 55025
Vehicles, boats and internal combustion engines - Radio disturbance characteristics - Limits and
methods of measurement for the protection of on-board receivers
CISPR 32 / EN 55032
Electromagnetic compatibility of multimedia equipment - Emission requirements
CISPR 36 / EN 55036
Electric and hybrid electric road vehicles - Radio disturbance characteristics - Limits and methods of measurement for the protection of off-board receivers below 30 MHz
IEC / EN 61000-6-3
generic EMC emission standard applicable only if no relevant dedicated product EMC standard has been published; residential environments
IEC / EN 61000-6-4
generic EMC emission standard applicable only if no relevant dedicated product EMC standard has been published; industrial environments
IEC / EN 300330
Short Range Devices; Radio equipment in the frequency range 9 kHz - 25 MHz and inductive loop systems in the frequency range 9 kHz - 30 MHz
IEC / EN 60945
Maritime navigation and radiocommunication equipment and systems
EN 15194
Electrically power assisted cycles
MIL-STD-461G
United States Military standard for electromagnetic compatibility
DO-160
Avionics
FCC15 Subpart B
FCC emission limits for two major classes of unintentional radiators
IEC / EN 61000-4-6
Immunity to conducted disturbances, induced by radio-frequency fields; used for immunity feature in EMCview PRO
ISO 11452-4
Road vehicles - Component test methods for electrical disturbances from narrowband radiated electromagnetic energy; used for immunity feature in EMCview PRO
IEC / EN 61000-4-20
Emission and immunity testing in transverse electromagnetic (TEM) waveguides; used for Near-field to
far-field correlation feature in EMCview
8. Applications
Conducted emission testing using LISN
Page 6
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 6 of 39 TekBox Digital Solutions 10-Aug-23

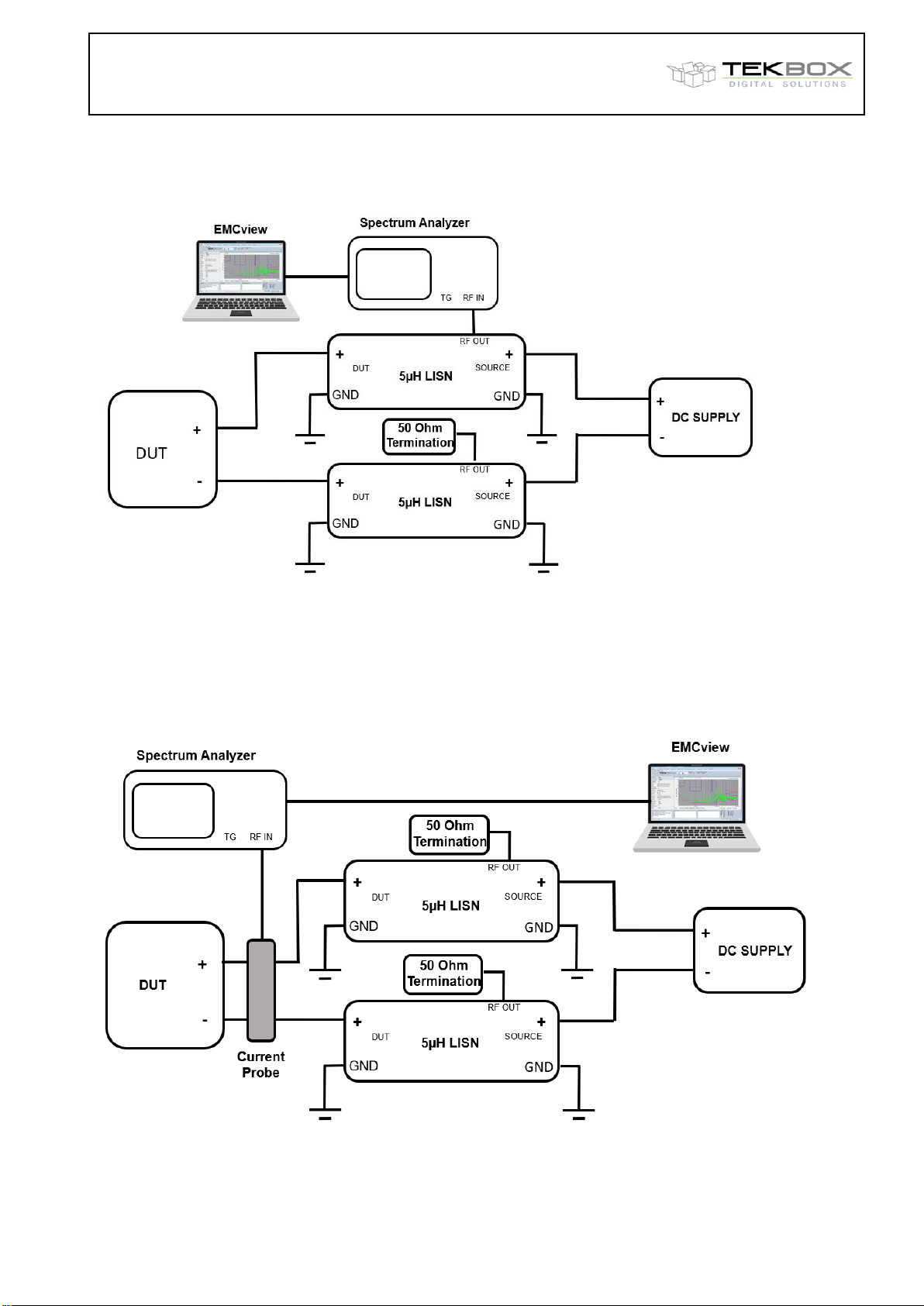

Conducted emission testing using LISN
Conducted emission testing using a RF current monitoring Probe
Page 7
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 7 of 39 TekBox Digital Solutions 10-Aug-23

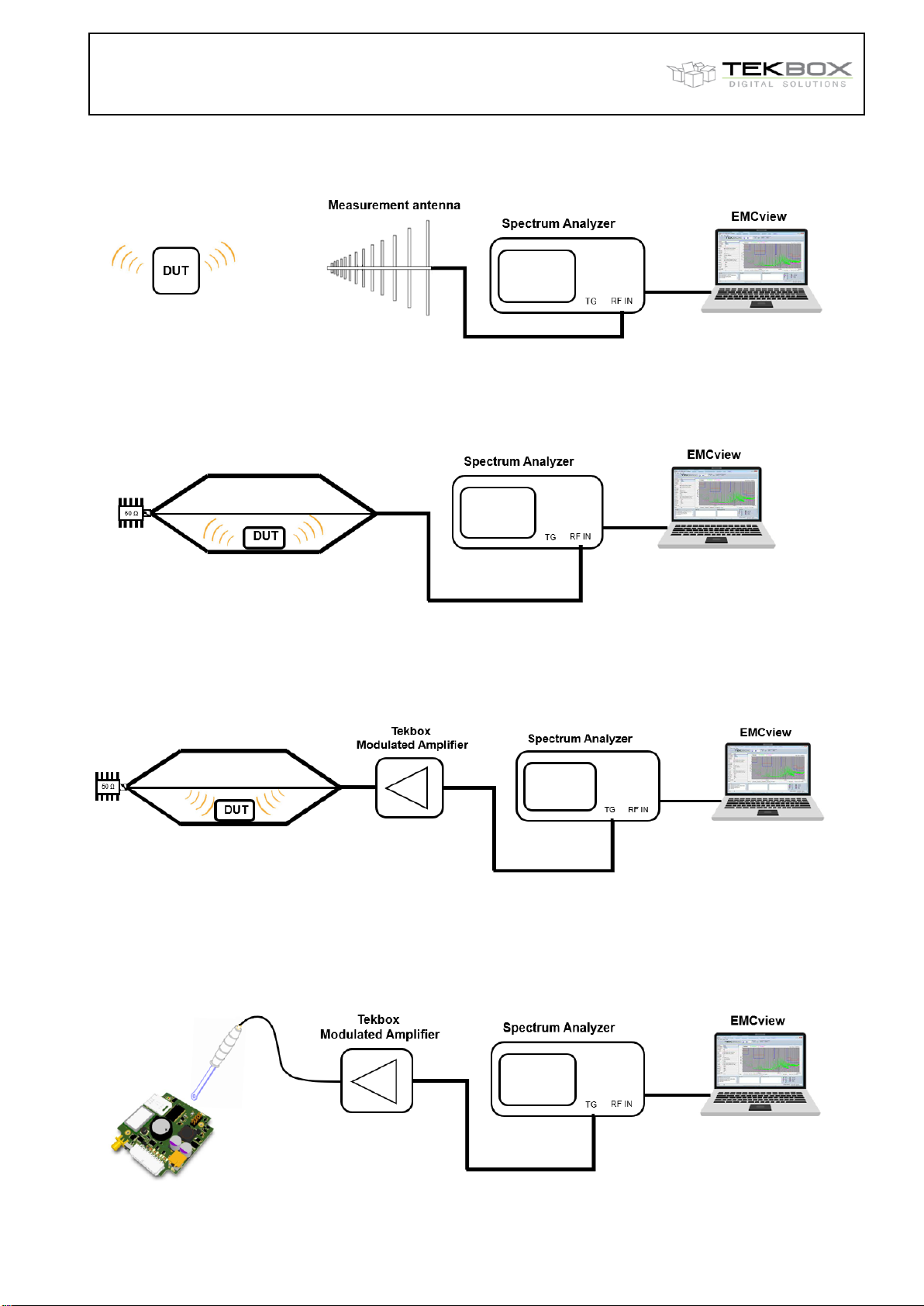

Radiated emission testing using a measurement antenna
Radiated emission testing using a TEM-cell
Immunity testing using a TEM-cell
Immunity testing using near field probes
Page 8
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 8 of 39 TekBox Digital Solutions 10-Aug-23

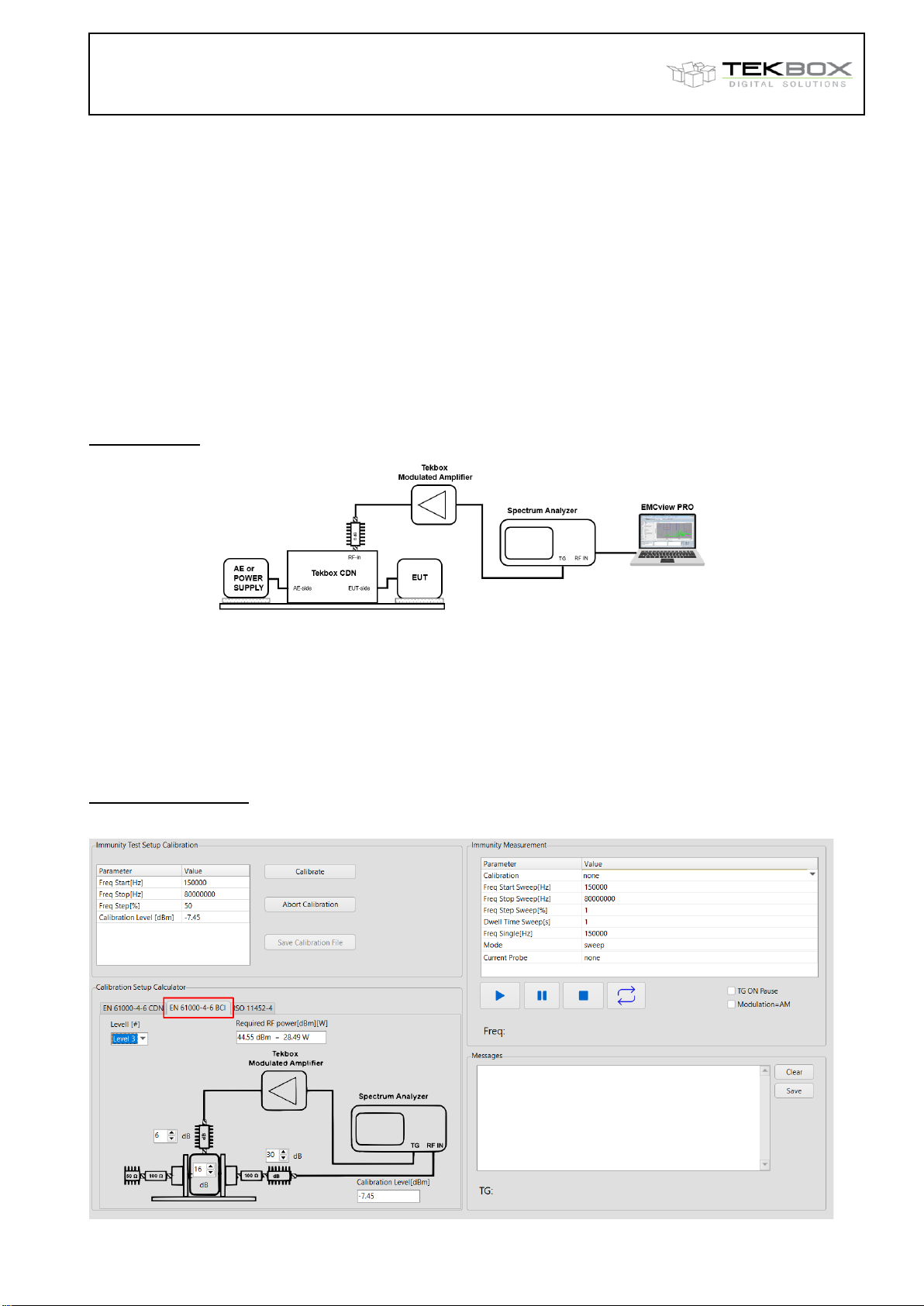

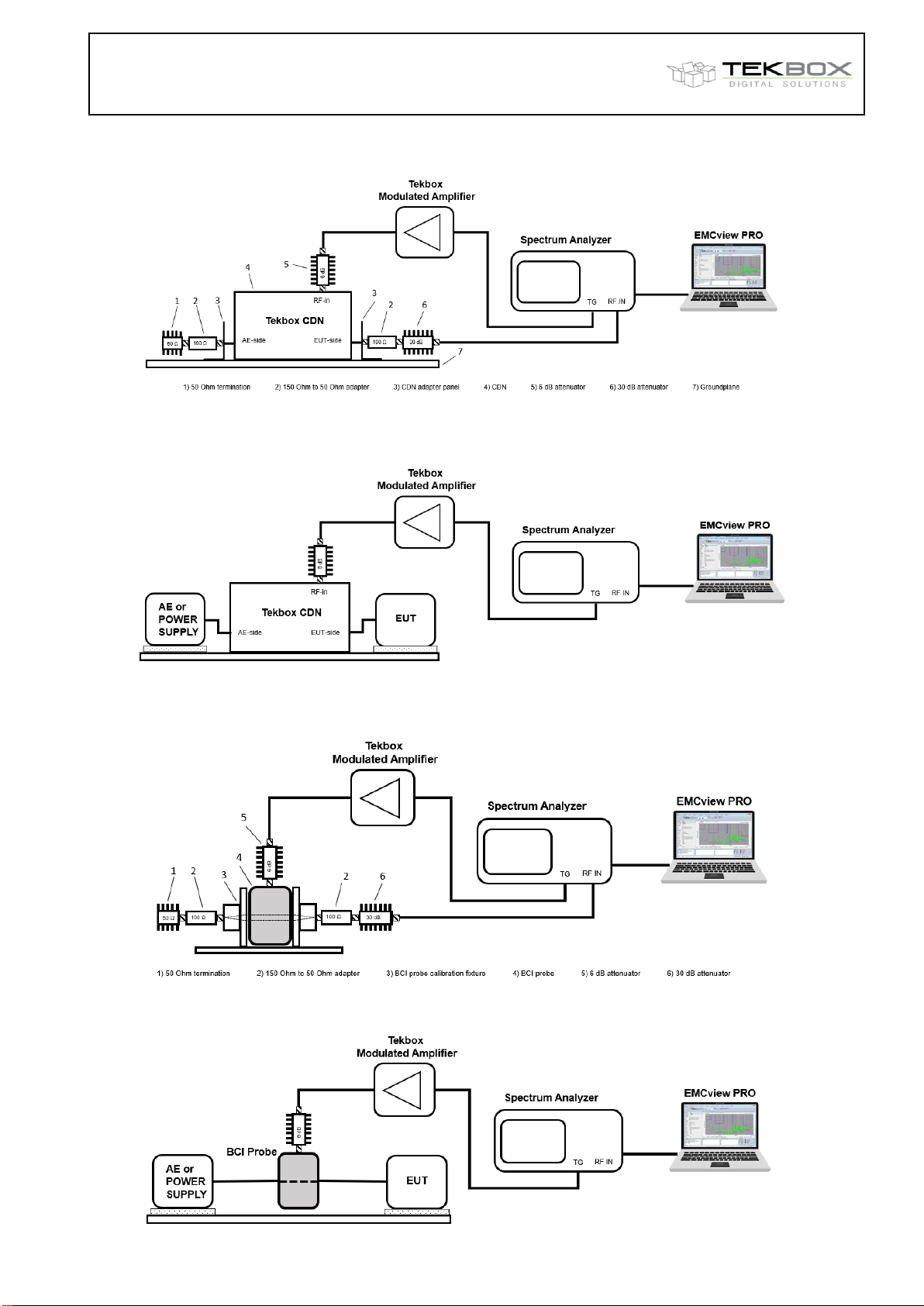

EN 61000-4-6 calibration set up using EMCview PRO
EN 61000-4-6 immunity test set up using EMCview PRO
EN 61000-4-6 300 Ohm loop BCI calibration set up using EMCview PRO

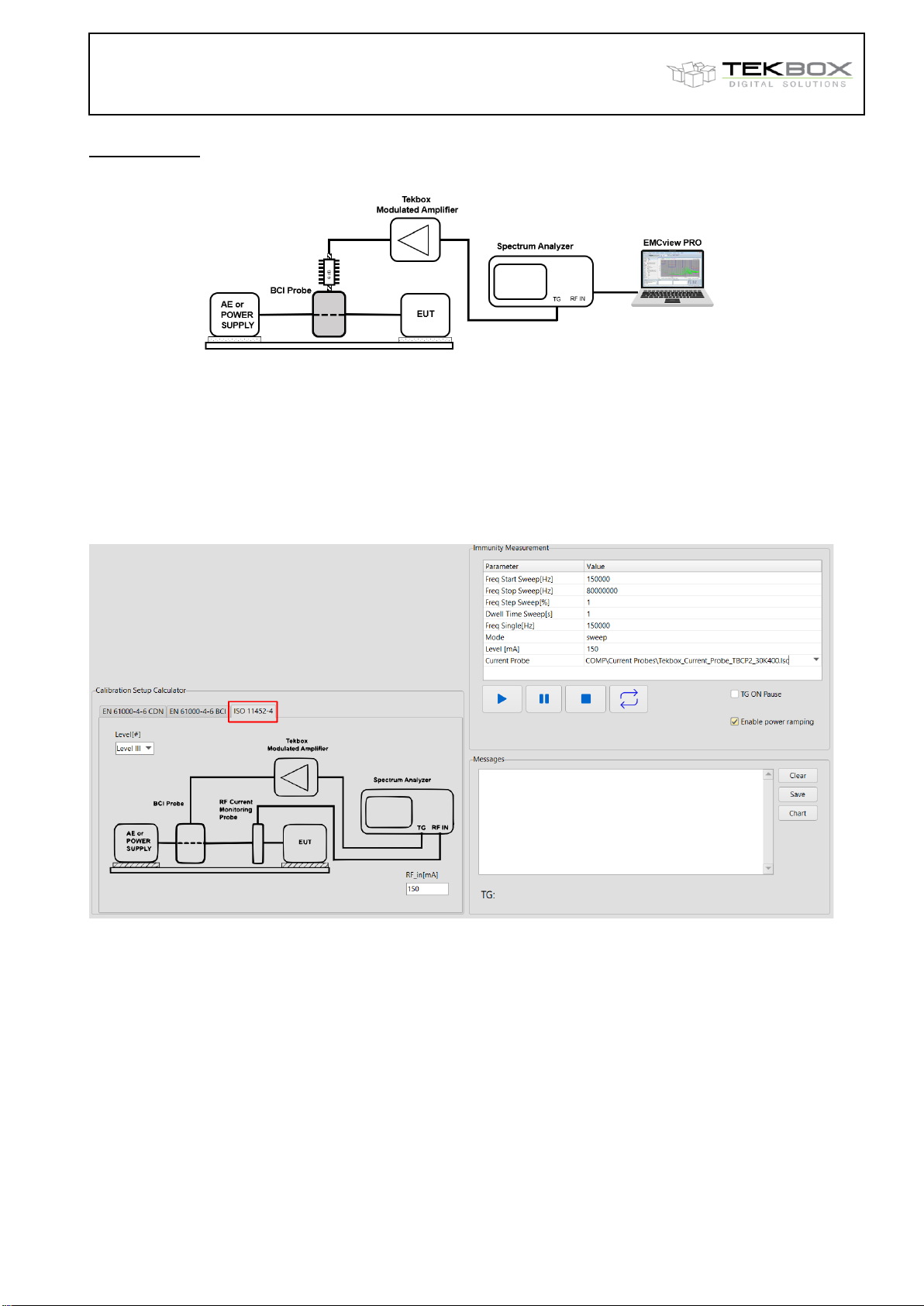

EN 61000-4-6 immunity test set up using a BCI probe using EMCview PRO
Page 9
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 9 of 39 TekBox Digital Solutions 10-Aug-23

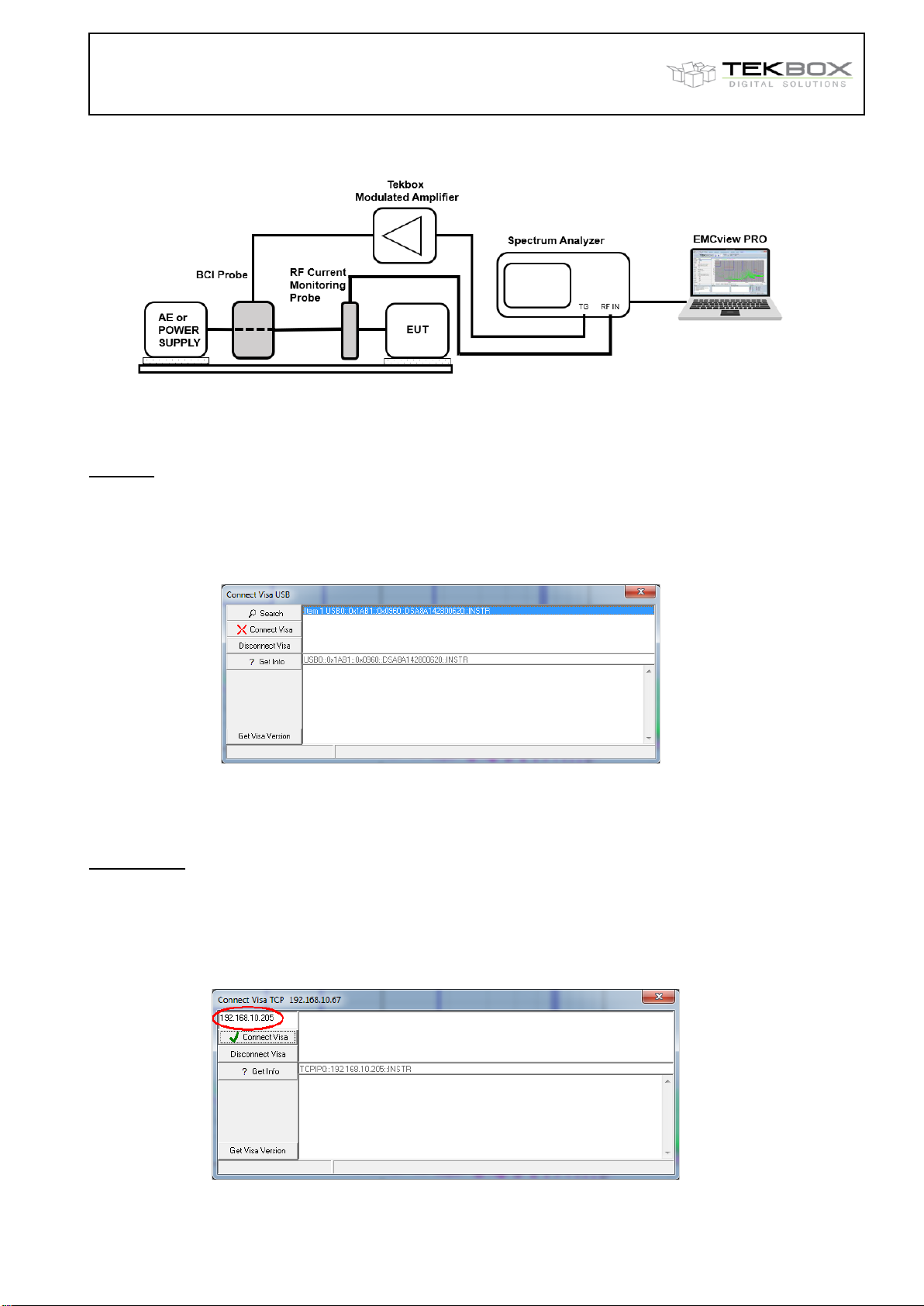

ISO 11452-4 Conducted immunity measurement using EMCview PRO
9. Connecting to the spectrum analyzer
Via USB: Launch EMCview and connect the spectrum analyzer to the PC via USB.
In the menu line, click DEVICE, then SA USB and SEARCH. You should then see the Rigol analyzer listed in the search window. Click at the line with the Rigol Analyzer and then click the CONNECT VISA button. You can validate the connection by clicking the GET INFO button. Furthermore, you should see a “licensed” status message in the very left lower corner of EMCview. Close the window with the x button. Do not close it with the Disconnect Visa button, as it would disconnect the spectrum analyzer.
Note: When connecting R&S FPC and FPH series via USB, click DEVICE, then SA TCP. Enter 172.16.10.10 into the IP address field.
Via Ethernet: Launch EMCview and connect the spectrum analyzer to the PC via an Ethernet cable. On the analyzer LAN settings, change to manual IP and enter an IP address, e.g. 192.168.10.205 In the menu line, click DEVICE, then SA TCP. Enter the IP address of the spectrum analyzer into the box at the upper right corner. Click the CONNECT VISA button. You can validate the connection by clicking the GET INFO button. Furthermore, you should see a “licensed” status message in the very left lower corner of EMCview. Close the window with the x button. Do not close it with the Disconnect Visa button, as it would disconnect the spectrum analyzer.
Page 10
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 10 of 39 TekBox Digital Solutions 10-Aug-23
10. Prepare measurements
Click File, Load Project and select an appropriate standard for your EUT. Each standard directory is divided into two subdirectories: CN (conducted emission projects) and RN (radiated emission projects). The folder \EMCview\Doku contains thorough documentation for all standards that have been implemented. The predefined limit lines and segment files for the selected standard will pop up in the configuration section at the left side of the screen. The limit lines will appear in the graph chart. To create additional standards, you can generate new limit lines, segment files, and correction files in the Setup menu. Alternatively, and most likely faster, you can use a text editor to copy, rename, and modify one of the existing files.
If you edit any configuration file during runtime of EMCview, press the Reload Project files button in the right upper corner.
11. Measurement

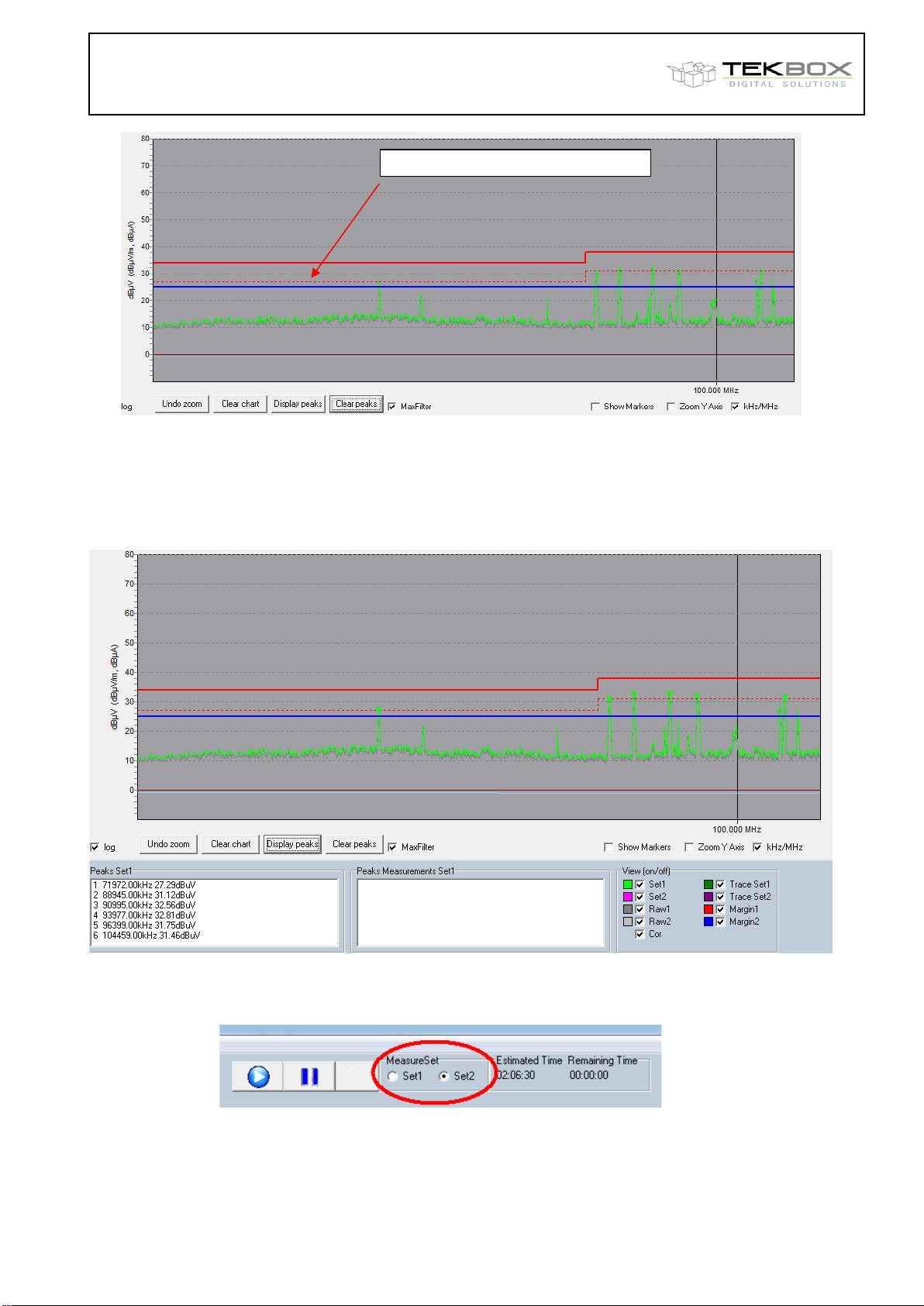

After correct set up and configuration, just press the Play button at the top of the window. The analyzer will start carrying out the measurement defined in Segment-Set 1. The associated limit line is Limit1. After the measurement is completed, click the Set2 button at the top of the window. Press the Play button. The analyzer will start carrying out the measurement defined in Segment-Set 2. The associated limit line is Limit2.
Most project files define Peak or Average measurements as Set1 and Quasi-Peak measurements as Set2. By default, all segments are measured and displayed consecutively.
If you want to perform a quick pre-measurement, turn on PreScan. Changing the PreScan parameter will change the sweep time. Pre-scans do not produce CISPR-compliant data and are just designed to provide a rapid overview of the spectrum..
Page 11
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 11 of 39 TekBox Digital Solutions 10-Aug-23

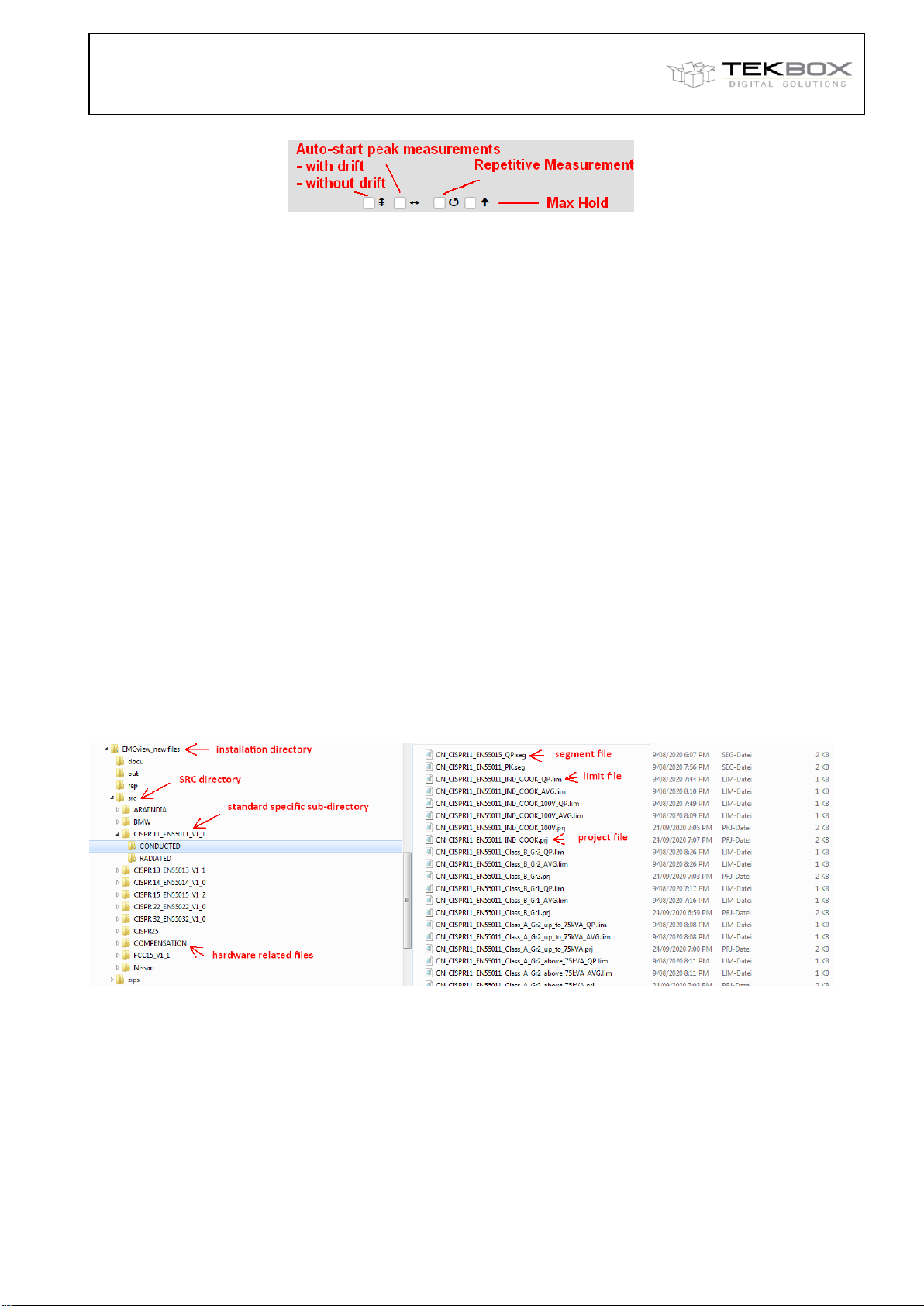

Repetitive Measurement and Max Hold need to be enabled in the Setup, Options menu upfront.

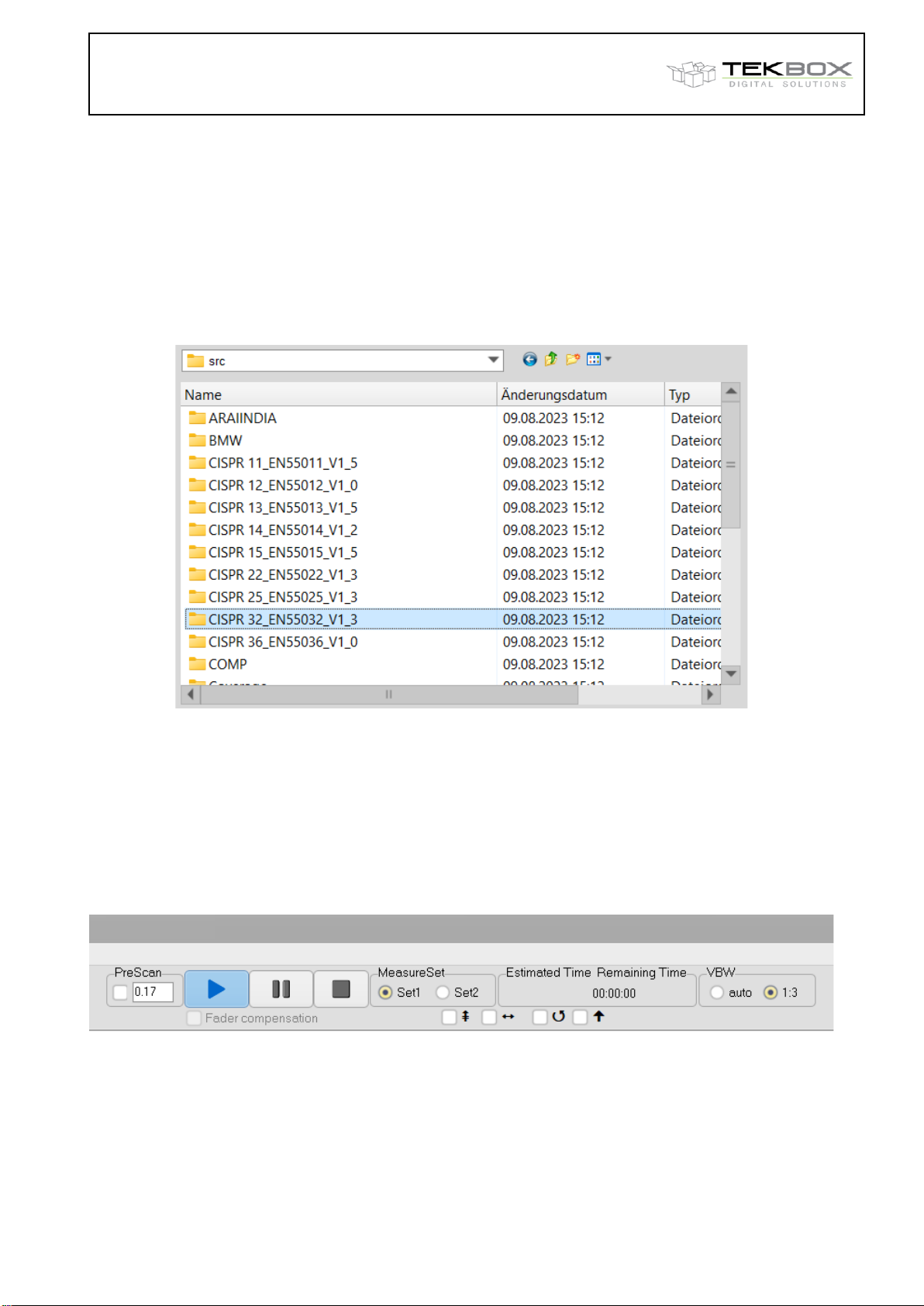

12. SRC folder - General
The SRC – folder is a sub directory of the installation directory of EMCview. The SRC folder contains:
• Project files, which define graph boundaries – start frequency, stop frequency, minimum amplitude, maximum amplitude reference limit line files – conducted emission limits, radiated emission limits as per relevant standard reference segment files – spectrum analyzer parameters such as start frequency, stop frequency, RBW, detector, sweep time, internal attenuation, pre-amplifier setting define settings for peak re-measurement
• Limit files, which then are loaded and displayed on the graph
• Segment files, which control the spectrum analyzer settings and measurement
• Compensation files, which characterize hardware such as LISN, current probes, antennas,
amplifiers, attenuators, cables and any other devices which influence the frequency response of the measurement set up.
Up to EMCview V7.0, the SRC folder did not contain any sub directories. With V7.0, each standard is contained in an individual sub directory, which then contains further sub directories for conducted noise, radiated noise and TEM cell measurements, where foreseen by the standard. There is also a separate sub directory for compensation files. All files in the SRC folder are plain text files, which can be created or edited with any text editor. Alternatively, the files can be created within EMCview menu SETUP, however using a text editor is most probably a more efficient method.
It is important to understand, that the SRC folder remains untouched, when updating EMCview. This prevents overwriting or deleting any files, which were created or modified by the user. Consequently, any new projects, which may have been added to the updated software, will not be added during the installation process. In order to have the SRC directory updated during a SW update, save your customized files to another directory and then delete the SRC directory. Thereafter you can merge your customized files with the updated SRC directory. Alternatively, create another installation directory for EMCview, such as C:\EMCview_NEW\, etc.
Page 12
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 12 of 39 TekBox Digital Solutions 10-Aug-23
13. SRC folder – Limit files
Each limit file can contain a main limit line as well as up to 15 auxiliary limit lines. EMCview can also provide a margin line for the main limit line. The main limit line will serve as a reference for margin lines and will be utilized to calculate peaks that exceed the main limit line or the margin line. Auxiliary limit lines are essentially graphic content that cannot be used for processing. Auxiliary limit lines can be segmented or interrupted; however main limit lines must be cohesive. Example: CISPR22 Class A and Class B as main limit lines and FCC 15 Class A and FCC 15 Class B as auxiliary limit lines
Limit File syntax:
[Application] * start header Software=TekBox RP-W32-D7 Version=Demo Date=18.01.2017 09:42:29 [General] Name=RN_CISPR22_FCC15_Class_A_30M_1G_3m_QP.lim * file name Freq_Interplot_Mode=lin Level_Interplot_Mode=log [Data] * Main limit line (CISPR 22 Class A) Freq1=30.000.000 * first frequency point [Hz] Lev1=50.5 * amplitude level of the first frequency point [dBµV] Freq2=230.000.000 * second frequency point Lev2=50.5 * amplitude level of the second frequency point [dBµV] Freq3=230.000.010 * third frequency point (using a point with 10 Hz offset Lev3=57.5 creates a vertical step and keeps the line coherent) Freq4=1.000.000.000 Lev4=57.5 * amplitude level of the last point of the main limit line
[Data_Limit1] * start first auxiliary limit line (FCC 15 Class A) Caption=FCC15 Class A QP * text label for 1st auxiliary limit line Color=$FF00FF * line color “Fuchsia” (alternatively enter clFuchsia instead of the Hex value) Style=psSolid * line style “solid” Freq1=30.000.000 * first frequency point of auxiliary limit line [Hz] Lev1=49.6 * amplitude of the first frequency point of the first limit line [dBµV] Freq2=88.000.000 * second frequency point of auxiliary limit line [Hz]
Page 13
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 13 of 39 TekBox Digital Solutions 10-Aug-23
Lev2=49.6 * amplitude of the second frequency point of the first limit line [dBµV]
Break2=1 * suppress the limit line between second and third frequency point
Freq3=88.000.000 * third frequency point of auxiliary limit line [Hz] Lev3=54 Freq4=216.000.000 Lev4=54
Break4=1
Freq5=216.000.000 Lev5=56.9 Freq6=960.000.000 Lev6=56.9
Break6=1
Freq7=960.000.000 Lev7=60 Freq8=1.000.000.000 Lev8=60 * end of 1st auxiliary limit line
[Data_Limit2] * start 2nd auxiliary limit line Caption=enter label here * text label for auxiliary limit line Color=$FFFF00 * line color “Aqua” (alternatively enter clAqua instead of the Hex value) Style=psDash * line style “dashed”
Freq1=…….. ……………..

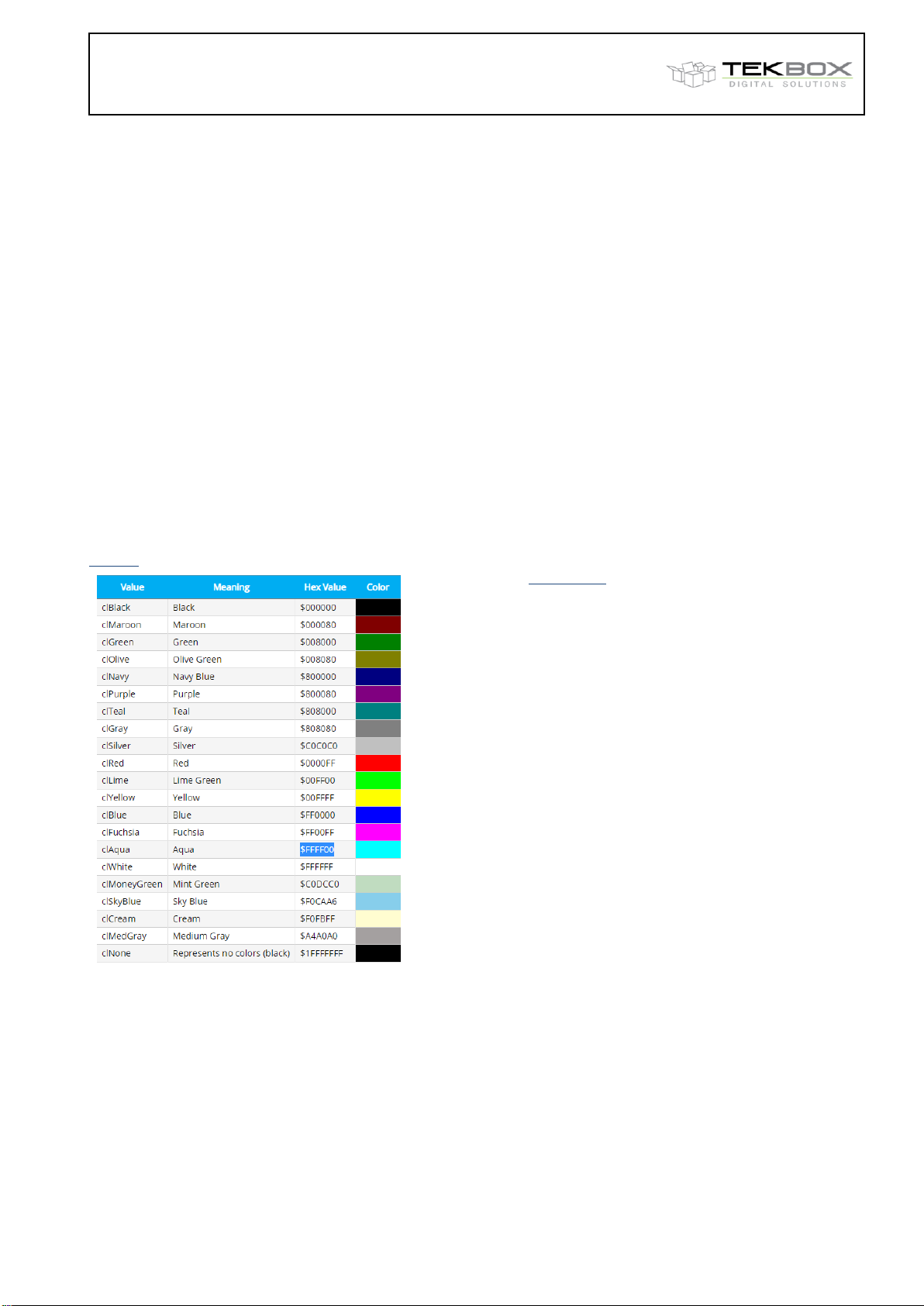

Colors:
Line styles: psSolid psDash psDot psDashDot psDashDotDot
Limit lines are linked to a corresponding segment file. Limit 1 is coupled with Segment Set1 and Limit 2 is coupled with Segment Set2. Labels of auxiliary limit lines can be moved, by dragging it with the mouse. Interrupted main limit lines, such as specified for example in CISPR 25 are created by setting the frequency sections without limitations to a high value such as for example 150 dBµV and thereby shifting it outside the upper amplitude boundary of the graph window (though of course, the upper boundary could be as high or higher than 150dBµV]. Vertical steps are created by entering two frequency points very close to each other. Use a frequency difference of 10 Hz between the two adjacent points, for example. See Freq2 and Freq3 in the example file above. The default color of main limit lines can be modified in the SETUP menu. The line style is always solid. Color and line style of auxiliary limit lines can be edited or modified inside the limit file, as shown in the example above.
Page 14
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 14 of 39 TekBox Digital Solutions 10-Aug-23
14. SRC folder - Segments
It is very important to understand the concept of segments. A segment defines a frequency sweep of the spectrum analyzer. A segment is a piece of frequency spectrum, with a defined start frequency and a defined stop frequency of the sweep. Segments are defined in the segment files, which are located in the src folder of the EMCview directory. Segment files can be identified by the .seg extension. A segment file basically defines a measurement run. The entire frequency span of the measurement run is split into many adjacent frequency segments, means a series of frequency sweeps, which will be measured consecutively. EMCview then stitches together the results of the individual sweeps to a single graph.
You may ask, why the entire spectrum is not measured just with a single sweep. A sweep is not a continuous measurement, but a series of discrete frequency steps, at which measurements are taken. A typical spectrum analyzer for EMC pre-compliance measurements has a display with 601 pixels in X (frequency)-axis direction. Consequently a sweep is divided into 601 discrete frequency steps.
A consequence of this architectural detail can be seen, if you set your spectrum analyzer to full span and feed it with a constant frequency signal, e.g. 98 MHz. Assuming a full span of 3 GHz, measurement point # 19 is at 95 MHz and measurement point #20 is at 100 MHz. Full span resolution bandwidth typically is set to 1 MHz. Pressing max peak at the analyzer will detect the maximum amplitude at measurement point #20 and consequently report a peak at 100 MHz and not at 98 MHz. Worse, depending on the frequency offset of the applied signal with respect to the nearest measurement point, it will also report a lower amplitude, as the applied signal sits somewhere at the shoulder of the RBW filter.
To prevent incorrect measurements, CISPR 16 specifies that adjacent frequency points shall not be spaced more than half the resolution bandwidth of the analyzer. As an example, CISPR band B, the frequency range 150 kHz to 30 MHz, must be measured with a resolution bandwidth of 9 kHz. This results in a frequency spacing of 4.5 kHz between adjacent measurement points and a maximum sweep span of 601 * 4.5 kHz =
2.7 MHz. Consequently, a CISPR compliant measurement can only be carried out in slices. Doing it manually would be very inefficient and this is why automatic measurement tools such as EMCview are needed for any serious pre-compliance tests.
Segment files of EMCview do not only define the start and stop frequencies of sweeps, but also set additional spectrum analyzer parameters which will be associated to every single frequency segment:
Resolution Bandwidth - EMC standards specify the RBW depending on the frequency band Sweep time – EMC standards specify the sweep time depending on RBW and detector type Detector – EMC standards specify which detectors need to be engaged Internal Attenuator – the internal attenuator setting effects the base noise level of the spectrum analyzer. At the same time, the user must be aware of potentially overdriving the analyzer input and potential intermodulation distortion which would falsify the measurement. Internal Pre-amplifier – activating the internal pre-amplifier will lower the base noise of the analyzer. This may be necessary for standards which have very low limits. However, similar considerations as for the internal attenuator have to be applied.
As mentioned, segment files are located in the src folder of the EMCview directory. They are plain text files and can be edited or created with the built in editing feature in menu Setup / Edit Segments, or perhaps more simply and conveniently with any text editor. A segment will look as below:
FRQa__1=9.000 * segment number (#1) and start frequency (9 kHz) of the segment FRQb__1=50.000 * segment number (#1) and stop frequency (50 kHz) of the segment BW____1=200 * segment number (#1) and RBW (200 Hz) of the segment Sweep_1=1000000 * segment number (#1) and sweep time (1000000 ms) of the segment Att___1=0 * segment number (#1) and internal attenuation (0dB) of the segment PreAmp1=off * segment number (#1) and pre amplifier setting (off) of the segment Detector1=QPEAK * segment number (#1) and detector type (quasi peak) of the segment
If you want to focus on a certain frequency range when carrying out EMC related improvements of a DUT, you can shorten time by selectively measure the segments of interest:
Page 15
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 15 of 39 TekBox Digital Solutions 10-Aug-23

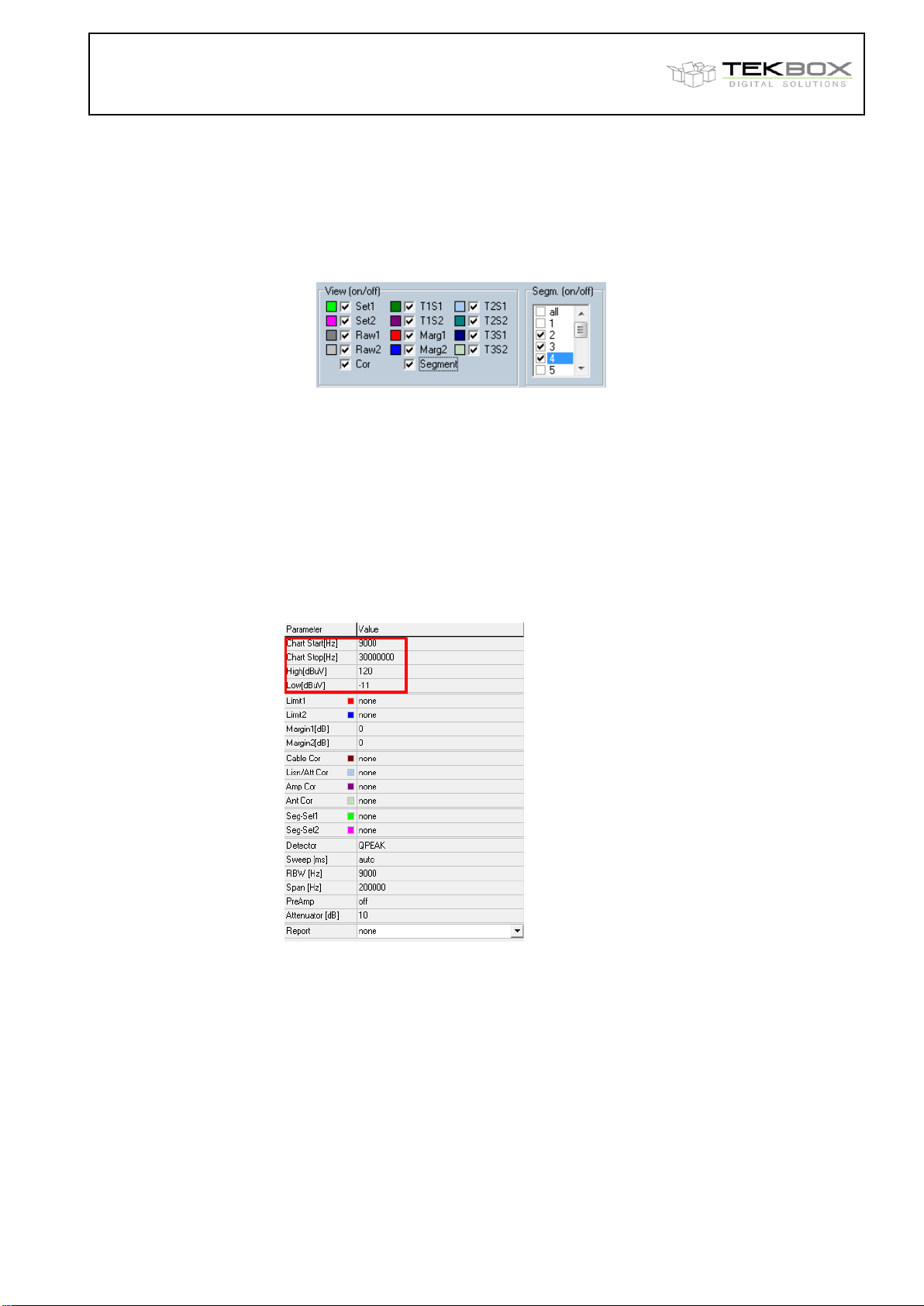

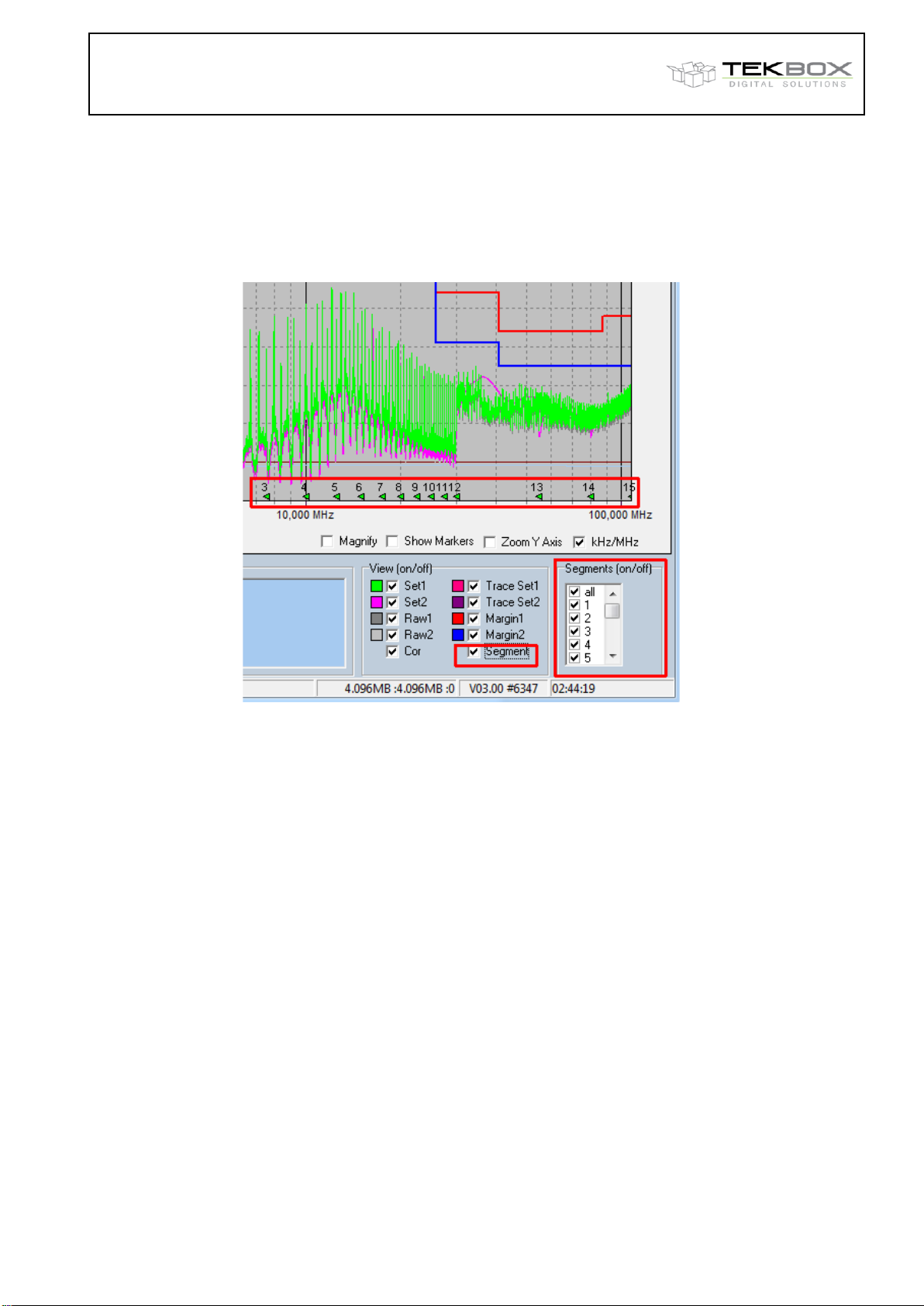

Activate displaying the segments by clicking the corresponding box in View (on/off) / Segment. You will then get the frequency segments displayed at the bottom of the graph. Select the segments that you want to measure in the Segments (on/off) box. Upon starting a measurement, only the selected segments will be measured and other segments will be skipped. By default, skipped segments will be replaced with a straight line. Alternatively, in menu Setup / Options / Misc, you can select keeping segments from the previous measurement, when skipping it in consecutive measurements.
As Quasi-Peak measurements take much time, an alternative, time saving measurement method is recommended. Use a scan with Peak detector and then compare the result against the Quasi-Peak limits. The result of the Peak detector is always higher or worst case same as the result of a measurement with Quasi Peak detector. This means, that when passing the Quasi Peak limits with a Peak detector measurement, the DUT is definitely compliant with Quasi-Peak limits. If the result of the Peak measurement exceeds Quasi Peak limits, there is still the chance that a measurement with Quasi Peak detector would be within the Quasi Peak limits. Consequently, a selective Quasi Peak measurement will be carried out, which only looks at the spurious frequencies where the Quasi Peak limit is exceeded. The Peak Scan chapter further down describes how such a measurement is carried out.
Pressing the Pause button interrupts ongoing measurements. The current segment will however be completed, before the measurement pauses. To continue the measurement, press the Play button.
15. SRC folder – compensation files
Any measurement setup has a frequency response which needs to be compensated. The measurement data delivered by the spectrum analyzer is considered “raw-data”. In order to display Raw Data, activate the RAW1, RAW2 check boxes in the View (on/off) menu at the right bottom of the EMCview window. In order to convert the Raw Data into a valid response, compensation files have to be applied. This could be the LISN file or the trans-impedance file of a current probe in case of conducted noise measurements. In case of a radiated noise measurement, an antenna factor file would describe the antenna properties and provide the dBµV to dBµV/m conversion. The measurement set up may also contain cable losses, amplifiers or attenuators that need to be taken into calculation. The combined frequency response can be displayed by activating the Cor box in the View (on/off) menu at the right bottom of the EMCview window.
Page 16
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 16 of 39 TekBox Digital Solutions 10-Aug-23
Open existing files from within the COMPENSATION sub directory of the SRC folder to see how to create it. A compensation file is composed of frequency points with the corresponding value (gain, attenuation, antenna factor, trans-impedance, etc.) The frequency range of the compensation file should always cover at least the span of the segment file of the corresponding project.
Consider the calculation below, if you are not sure about which sign needs to be entered for the compensation values:
Graph amplitude = Raw amplitude [dBµV] – cable file [dB] – LISN file [dB] + ant file [dB] – amp file [dB]
Raw amplitude: spectrum analyzer measurement values For more information, such as how to deal with current monitoring probe trans-impedance, antenna factors, unit conversion and other operations that can be carried out using the correction files, have a look at our EMCview application notes.
Compensation files for Tekbox products can be downloaded on the corresponding product pages of the Tekbox website.
16. SRC folder – project files
Project files contain a summary of settings for a dedicated measurement set up. In contrary to limit files, segment files and compensation files, which are created with an editor, project files are usually created from within EMCview, by setting the graph boundaries, loading the desired limit files and segment files and then saving it as a project using menu File / Save Proj. Nevertheless, a user familiar with EMCview, may also use a text editor to create project files.
EMCview contains a large number of pre-defined projects. The projects are loaded using menu File / Load Proj. Most conducted noise projects reference to Tekbox LISN or current probes. They can easily be changed, if you have measurement equipment from other manufacturers. Other projects may not yet contain any compensation files and need to be completed with suitable files for the equipment of your measurement set up.
Tekbox will regularly provide updates with additional projects. They are part of the installation package, but they can also be downloaded separately from our web site and manually copied into the SRC folder. Tekbox also provides compensation files for Tekbox products, which you can find on the corresponding product pages of www.tekbox.com.
17. Peak scan
Any measurement value of the Set1 run that violates the limit line is indicated with a small bubble on top of the peak. Activating the MaxFilter box at the bottom of the graph will only mark the highest peaks, if several consecutive measurement values violate the limit lines. You can define Margins with respect to the limit lines of each measurement set. The SW would then indicate peaks, which cross the margin lines. Enter the margin with positive sign to create a dashed line offset below the limit line. Margins with negative sign can be created as well.
Page 17
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 17 of 39 TekBox Digital Solutions 10-Aug-23

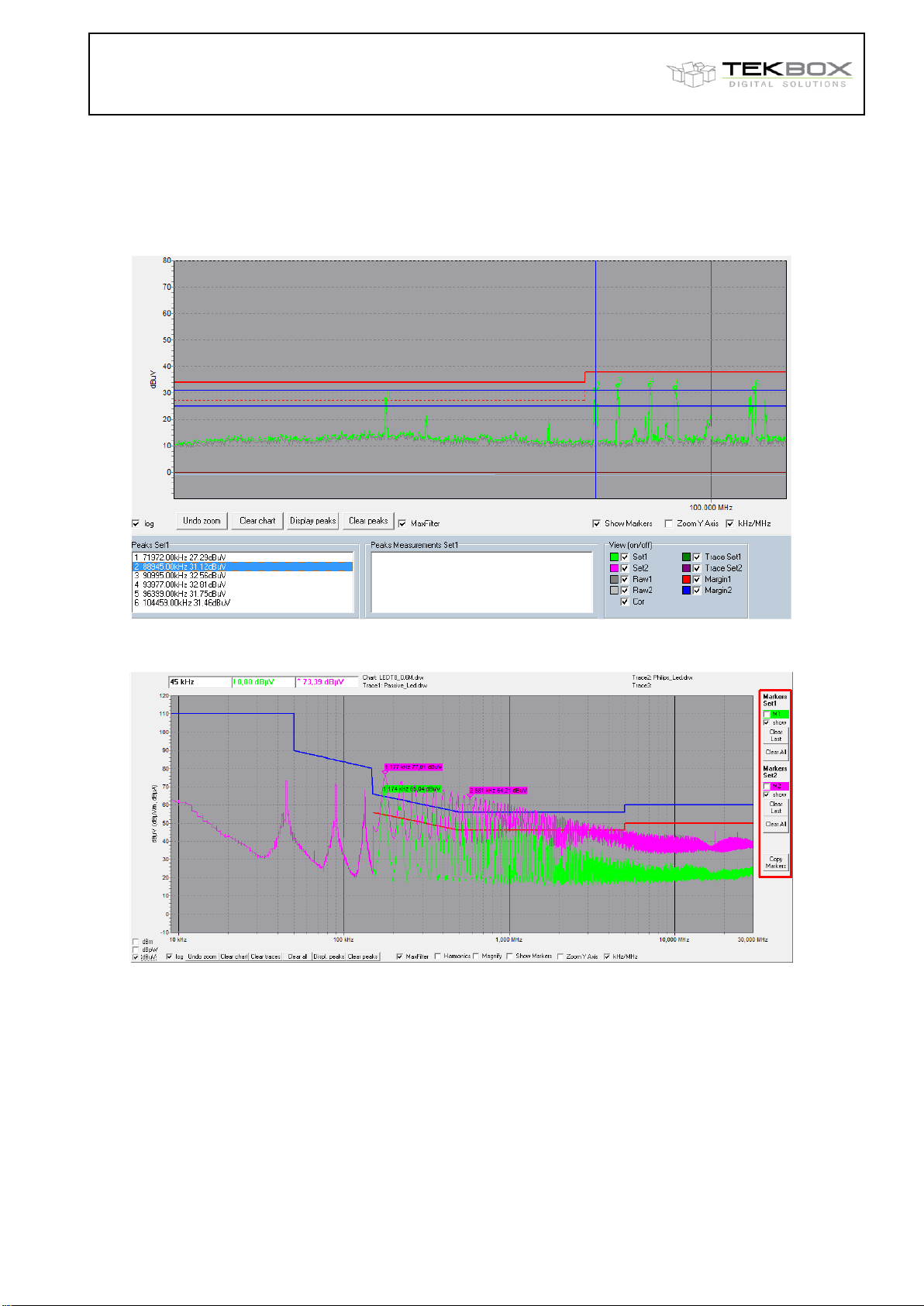

By default, the margins are set to 0, so any peak crossing the limit line would be indicated. Setting margin1 to e.g. 7dB would select all peaks coming within 7 dB close to the limit line of the graph measured with Settings1. Peaks crossing the margin line or limit line can be listed in the in the Peaks window by pressing the Display peaks button. See chapter 19 on how to manually select peaks and transfer it into the peaks list.
In order to display peaks for the second graph, change MeasureSet to set 2
Margin line for Limit 1, set to 7dB
Page 18
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 18 of 39 TekBox Digital Solutions 10-Aug-23

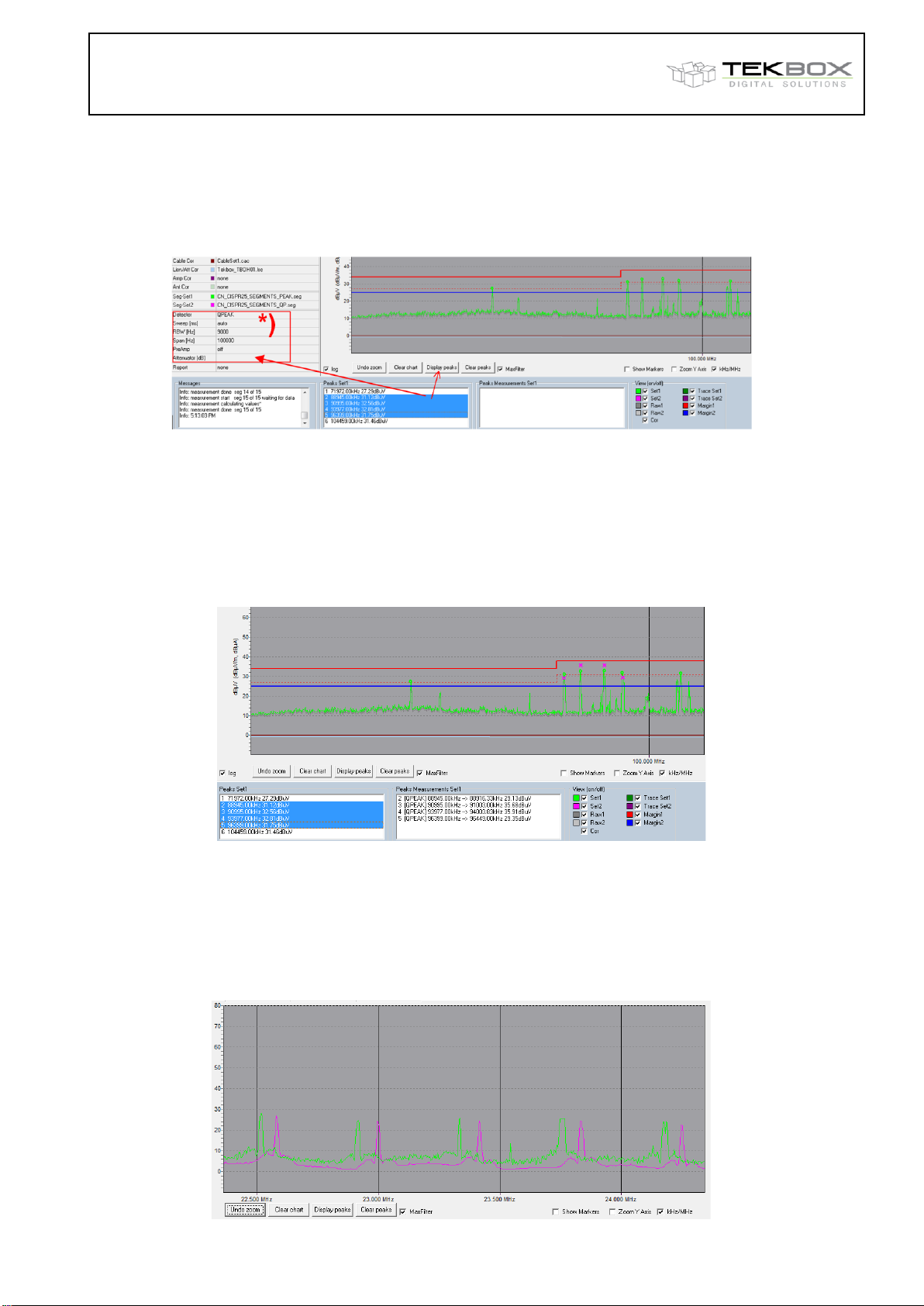

18. Final scan / peak re-measurement
Select any peaks from the list by pressing the Ctrl button and select it with the left mouse button. Then click the right mouse button and click Measure. There are two measurement options. The recommended choice is Measure (consider drift).
The software will then re-measure, using the selected peaks as center frequency and using the detector, sweep time, RBW, Span and PreAmp settings defined in the control box. This feature is a short cut to make a fast Quasi Peak measurement for selected peaks, instead of making a time-consuming full span QP measurement.
Note that with EMCview V 8.0 and higher, the settings for peak re-measurement are reduced to drift span in order to simplify the user interface and avoid settings, which may result in incorrect measurements. All other settings will be derived from the segment file settings. Refer to the EMCview FAQ document for more detailed information on fast QP measurements.
The Peaks Measurements box then displays the results of the fast quasi peak measurement. In addition, the graph shows a cross at the respective frequency and level. Consider the span setting of the peak re-measurement, with respect to a potential drift of the peaks. The higher the drift over time (e.g. drift of the frequency of a switched mode regulator), the wider make the span. The software will scan the measurement values of the entire span for the highest peak. Consequently, the frequency of the re-measured peak may deviate from the initial peak frequency. The capability of setting a Span for a peak re-measurement is an essential feature of EMCview, often missed by similar tools.
Page 19
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 19 of 39 TekBox Digital Solutions 10-Aug-23

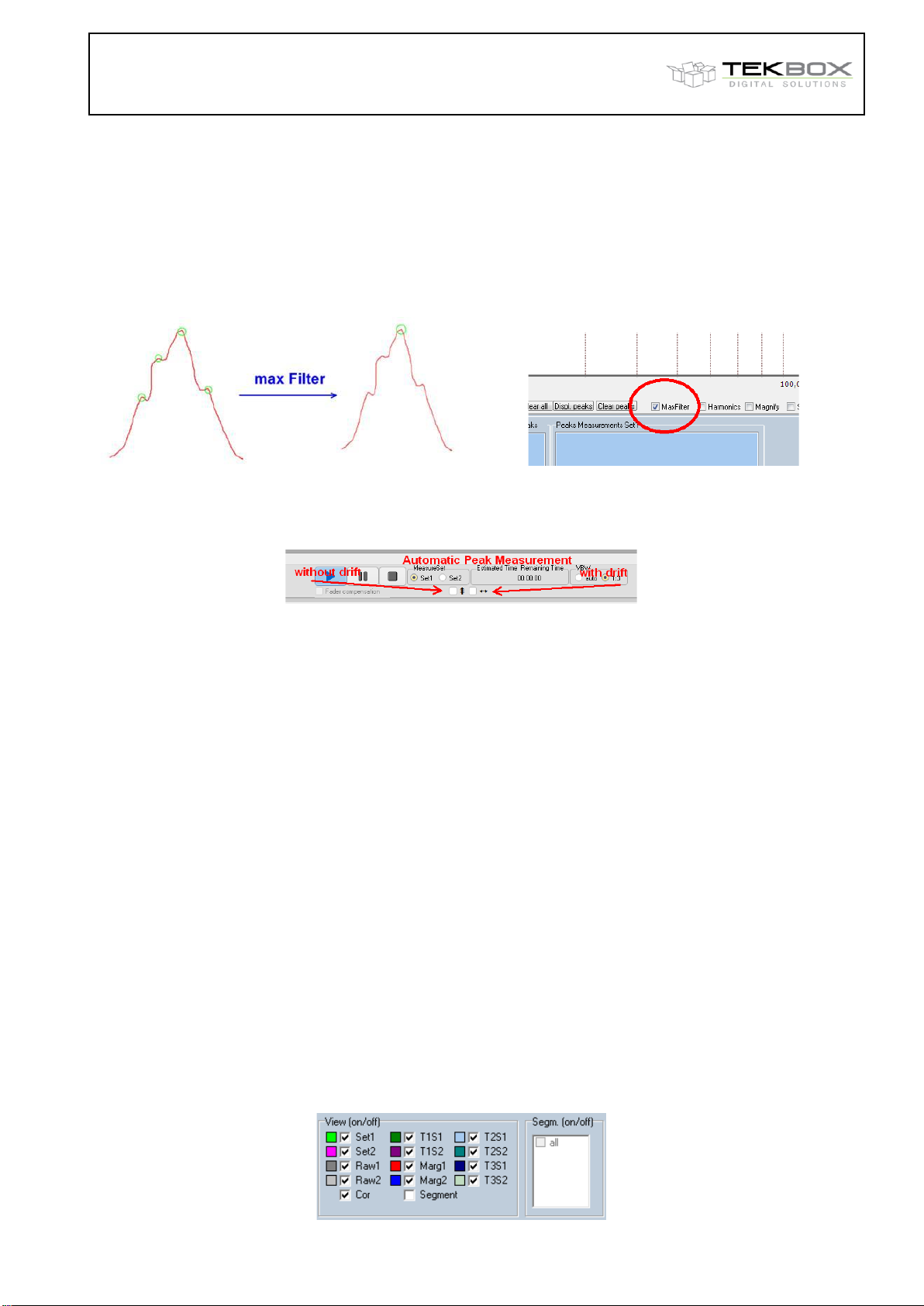

The example above illustrates the purpose of the span setting. Harmonics of a switched mode regulator, which drifted over the time that passed between carrying out the peak measurement (green graph) and the quasi peak measurement (purple graph). If measured at exactly the peak frequencies of the green graph using the option Measure (ignore drift), it would completely miss the signals when re-measuring with quasi peak detector. However, by setting a span of 200 kHz, the quasi peak signal is measured correctly. Use the option Measure (ignore drift) only if the spurious are harmonics of a crystal clock.
In the measurement graph, peak markers, which are very close to each other may appear to be at the same frequency, unless zoomed in. Zoomed in, it would look similar as below:
Activate the Max Filter box to get rid of these artefacts.
Note that with EMCview V8.28 or higher, you can enable peak re-measurement to start automatically, after completion of the Set-1 or Set-2 scan. However, you have to be aware, that it will re-measure every single peak then.
Furthermore, with EMCview V8.30 and higher, you can enable simultaneous measurement of two graphs with R&S FPC or Siglent analyzers in the Setup / Option menu. You then have to switch between Set-1 or
Set-2 in order to display and re-measure the peaks for the corresponding graph.
19. View / hide graphs
The graph window can display several traces: Set 1 corrected graph of the measurement defined by Seg-Set1 and Limit1 Set 2 corrected graph of the measurement defined by Seg-Set1 and Limit1 Raw 1 raw data of Set1 – no LISN, cable, etc. correction Raw 2 raw data of Set2 – no LISN, cable, etc. correction Cor correction data of LISN, cable, etc. Trace1 Set1 imported data from a previous measurement to overlay for comparison purpose Trace1 Set2 imported data from a previous measurement to overlay for comparison purpose Trace2 Set1 imported data from a previous measurement to overlay for comparison purpose Trace2 Set2 imported data from a previous measurement to overlay for comparison purpose Trace3 Set1 imported data from a previous measurement to overlay for comparison purpose Trace3 Set2 imported data from a previous measurement to overlay for comparison purpose Margin1 margin with respect to Limit1 Margin2 margin with respect to Limit2 Segment displays the frequency segments, which are defined in the segment file click Segment to enable measurement of selected segments only
Hide or view traces using the tick boxes in the lower right corner of the window. Configure colors of traces, limit lines and the background of the graph window in the Setup menu, edit colors.
Page 20
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 20 of 39 TekBox Digital Solutions 10-Aug-23
Upon selecting the Segment box, the segments defined in the segment file of the current project are displayed on the frequency axis. De-select all and then select the segments that you want to re-measure in the segment box in the lower right corner of the EMCview window. In the Setup / Options menu, you can select, if you want only the selected and re-measured segments displayed, or if you want to overwrite the initial graph with the newly selected segments. Means, the de-selected segments are kept and displayed as well.
20. Zoom graphs
You can zoom or set the boundaries of the graph by entering frequency and amplitude values into the boxes Chart Start[Hz], Chart Stop[Hz], High[dBµV], Low[dBµV]. Press the TAB button or click another box to confirm the entered values. During an ongoing measurement, access to the control box is disabled. Alternatively, you can use the mouse and pull a rectangle in the graph section. When zooming with the mouse, you can Undo Zoom with a button under the graph window. You can also switch between linear and logarithmic frequency axis. When zooming in very deeply, the display may be changed automatically to linear frequency display in order to get a useful grid. Switching to logarithmic frequency axis is not possible then, unless you Undo Zoom.
To restrict zooming to the y-axis, click the Y-axis check box. In order to use the magnifying glass to check the graph, click Magnify.
21. Amplitude units
By default, the spectrum analyzer results are taken in dBµV. Antenna or current probe measurements need conversion files, taking into account antenna factors or trans-impedance to get the y-axis values displayed in dBµV/m or dBµA. See the corresponding application notes on the EMCview page for more details. Other than that, units can be selected by ticking the check-boxes next to the lower left corner of the graph window.
Page 21
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 21 of 39 TekBox Digital Solutions 10-Aug-23
22. Markers
Clicking Show Markers adds the corresponding peak number of the peak list to the graph. Double clicking any marker in the list will place a cross hair.
You can also set markers manually:
Click Marker on the upper right side of the EMCview window. Click the M1 check box. Thereafter, click at a point of the corresponding graph (Set1) to set a marker. Click the M2 checkbox, if you want to set a marker to the graph measured according the configuration specified for Set2.
Page 22
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 22 of 39 TekBox Digital Solutions 10-Aug-23

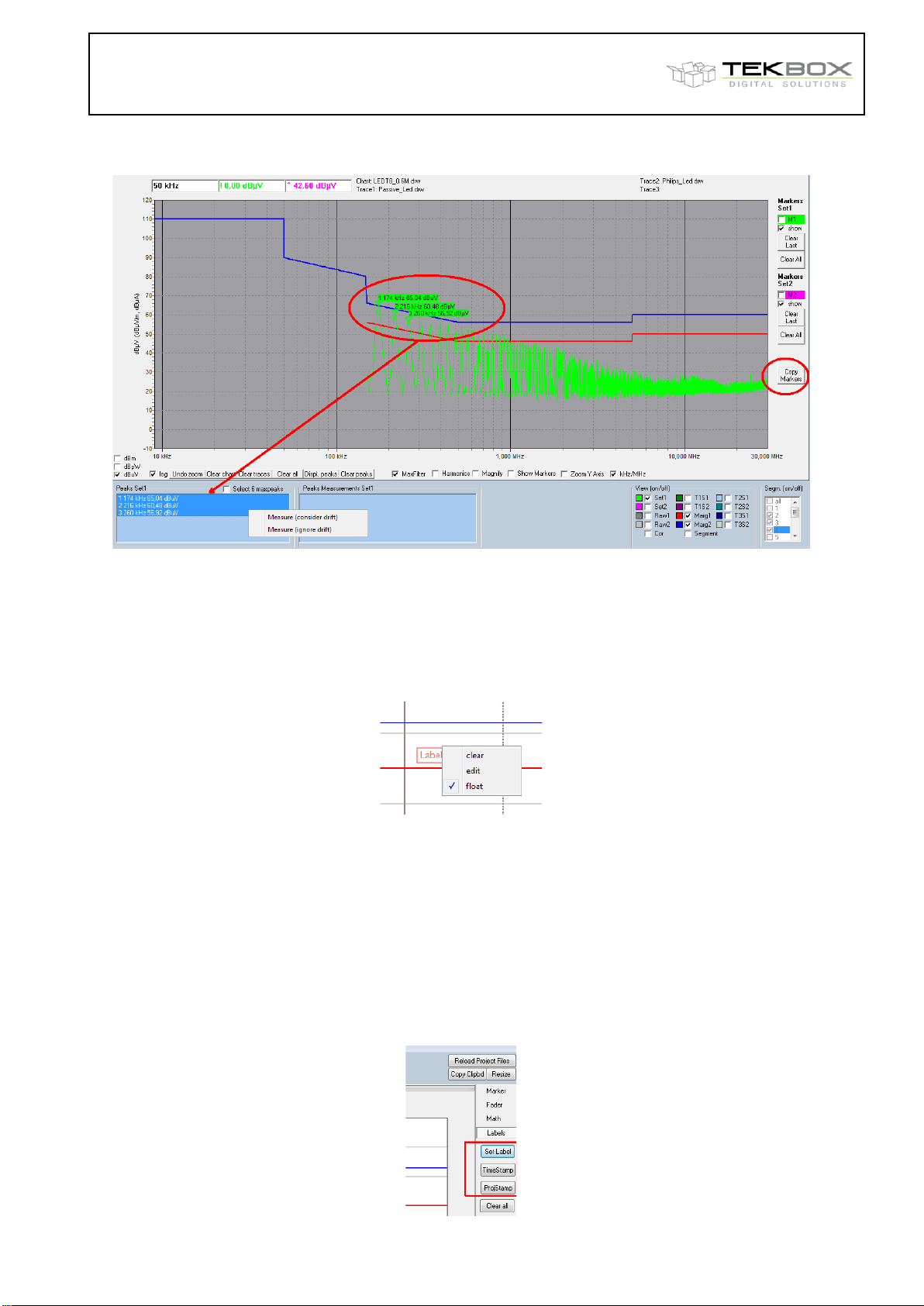

If required, manually set markers can be copied into the Peak list for subsequent re-measurement.
23. Labels
If you want to add comments to the graph, click the Labels button at the right side of the graph. Click Set Label and a text field will appear in the left upper corner of the graph window. Drag the text field to the desired position within the graph. Right click into the text field and a context menu will appear:
Click edit to edit the text. De-activate float, if you want to lock the label on its position. The label cannot be dragged anymore thereafter. By default, the text field has a frame. If you want to remove the frame, enter menu Setup / Options and set it to transparent. If you want to change the font size of the labels, edit the emcview.ini file that you can find in the installation folder of EMCview. Change the TextSize1 parameter to the desired value. The color of the labels can be changed in the Setup / Edit Colors menu of EMCview. Note that you can only change the color of all labels, but not change colors of individual labels.
Within Labels, you can also set a Time Stamp Label and a Project Stamp label. Any time, the TimeStamp button is clicked, it will update date and time. In Setup / Options menu, you can set the time stamp label being updated, any time you press the Copy Clipbd button.
Page 23
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 23 of 39 TekBox Digital Solutions 10-Aug-23
24. Options
In menu Setup / Options you can set various preferences: Path / Out: by default, all files are saved in the EMCview\Out directory. Here you can change your
preferred default output directory. Misc / Enable dialog box to conform closing EMCview: Close EMCview immediately or upon confirming
in a dialog box
Misc / Load last project: Launch EMCview with the project file used when last exiting EMCview Misc / Show TG box to enable TG during RF measurement sweep: In preparation of a future feature to
create amplitude correction files using the tracking generator of the analyzer Misc / Enable sweep step size in %: Add a selection box in the generator feature to select sweep step size either in Hz or in % Misc / Report marked peaks only: In order to avoid an excessively long peak list in the report file, the listed peaks can be limited to selected (marked) peaks from the peaks list Misc / Show full names of loaded charts and traces: When loading charts or traces, they will be displayed on top of the graph window. If the file names are excessively long and exceed the available display space, they will be cropped to a suitable length. Misc / Keep old segments, when re-measuring selected segments: When making selective measurements, keep results of previous measurements for skipped segments instead of connecting it with a straight line. Misc / Show checkbox for MaxHold and Repeat measurement: This adds two checkboxes below to the measurement button for repetitive scanning and Max Hold. Misc / Show checkbox for consecutive measurement of both sets: This adds a checkbox next to the measurement button to choose to automatically run Set2 after Set1 has finished. Misc / Monitor SCPI communication link: Indicates in the status line, if the communication link between PC and analyzer is interrupted (green hook/red x).
Misc / Show VISA errors: Displays Visa error messages in a pop up window Misc / Enable simultaneous measurement for two traces: R&S FPC models and Siglent analyzers can
simultaneously measure two traces (Set-1 and Set-2). If Set-1 is active, the second trace will use all settings configured in the segment file of Set-1, except the detector setting, which will be based on the configuration in segment file of Set-2 and vice versa. Consequently, if the standard limits cover different frequency ranges for the two detectors, select Set-x according to the segment file with the wider frequency range.
RealTimeMode: Enable real-time measurements. This feature requires an EMCview PRO license and works only with Siglent and Rigol spectrum analyzers, which support real-time measurement.
Styles: Selection of various Windows styles; default Slate Classico Labels / Draw labels transparent: Removes frame and background of the label text boxes Labels / Update time stamp when copying to clipboard: Updates the time stamp label, when the graph
window is copied to the clip board Workarounds: workarounds for bugs of spectrum analyzers with older firmware versions. If you miss the result of the measurement in the graph window, change the Chart High and Chart Low levels in the configuration section to +/- 200 dBµV. If the graph appears with 107 dB offset, you can apply the workaround or better update the FW of the spectrum analyzer. Another workaround lets you shift the right window border, in case that the EMCview window is cropped at the right side. This may be required for Laptops with tiny displays.
25. Fader

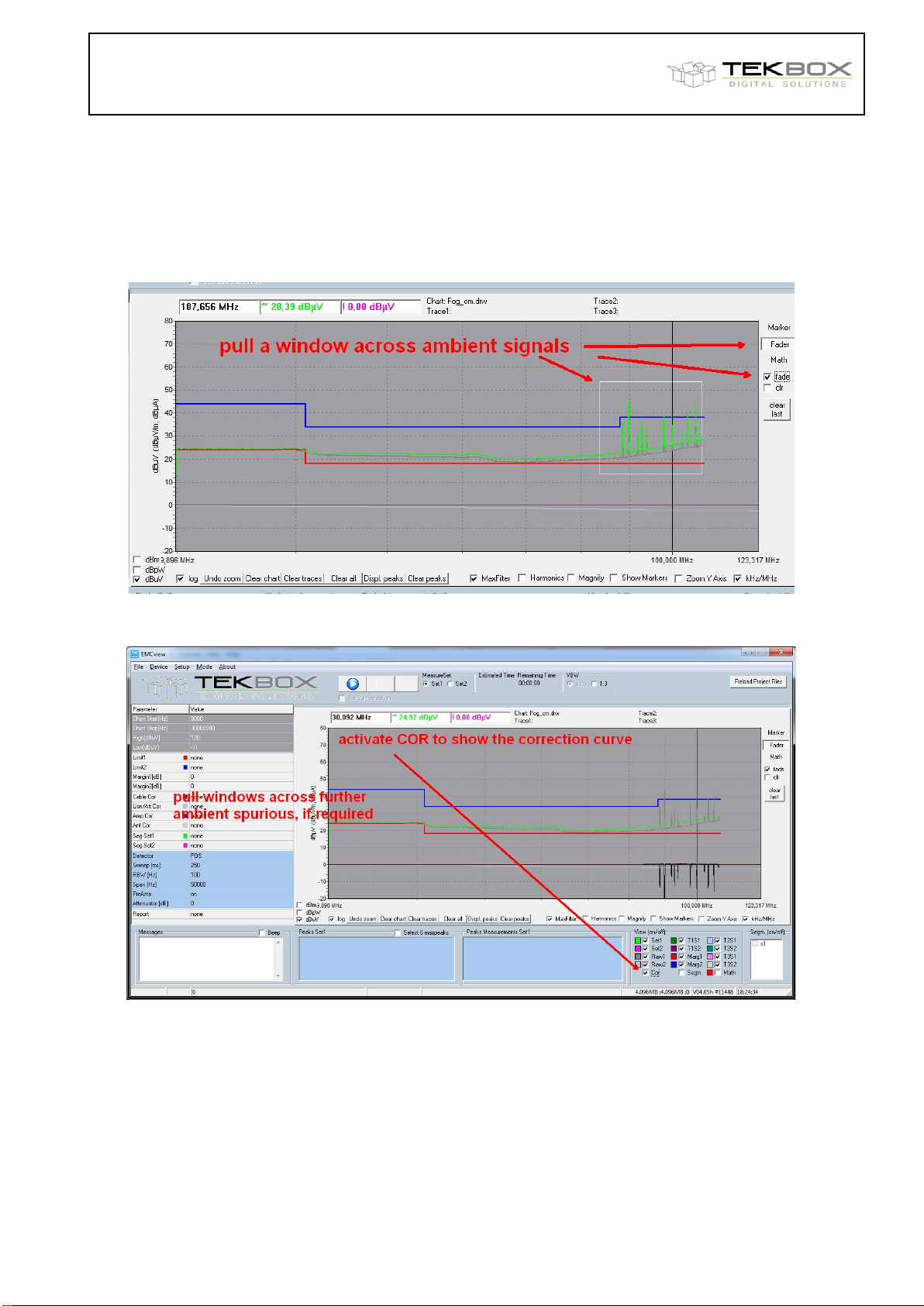

The “fader” is a feature to cancel ambient noise when measurements are carried out in a non-shielded setup. It needs to be mentioned upfront, that it is no alternative to measurements in shielded chambers or tents. Main reason for implementing the fader feature was repeated customer request. The fader is based on making a measurement of the ambient noise, with the DUT not powered and then subtracting the ambient noise from a consecutive measurement, with the DUT powered. However, ambient noise is hardly ever static. Cellular radio signals are highly dynamic both in frequency and amplitude. Broadcast stations create ambient noise with static frequency, however they drift in amplitude. Subtracting such signals will not cancel completely or may result in negative spikes, if their amplitude does
Page 24
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 24 of 39 TekBox Digital Solutions 10-Aug-23
not remain constant, but decrease or increase in the time between taking the un-powered measurement and the powered measurement. Consequently the fader does not take the entire ambient noise spectrum, but gives the user the capability to select portions of the noise spectrum that he wants to subtract. To use the fader, first take a measurement with the DUT not being powered. Then click the Fader button at the right side of the graph window and activate the fade box. Then left click the mouse to pull a window across the noise that you want to get subtracted when you do a powered measurement.
Activate the Cor box to see the resulting correction curve.
Repeat this process for other noise spurious, if required.
Page 25
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 25 of 39 TekBox Digital Solutions 10-Aug-23

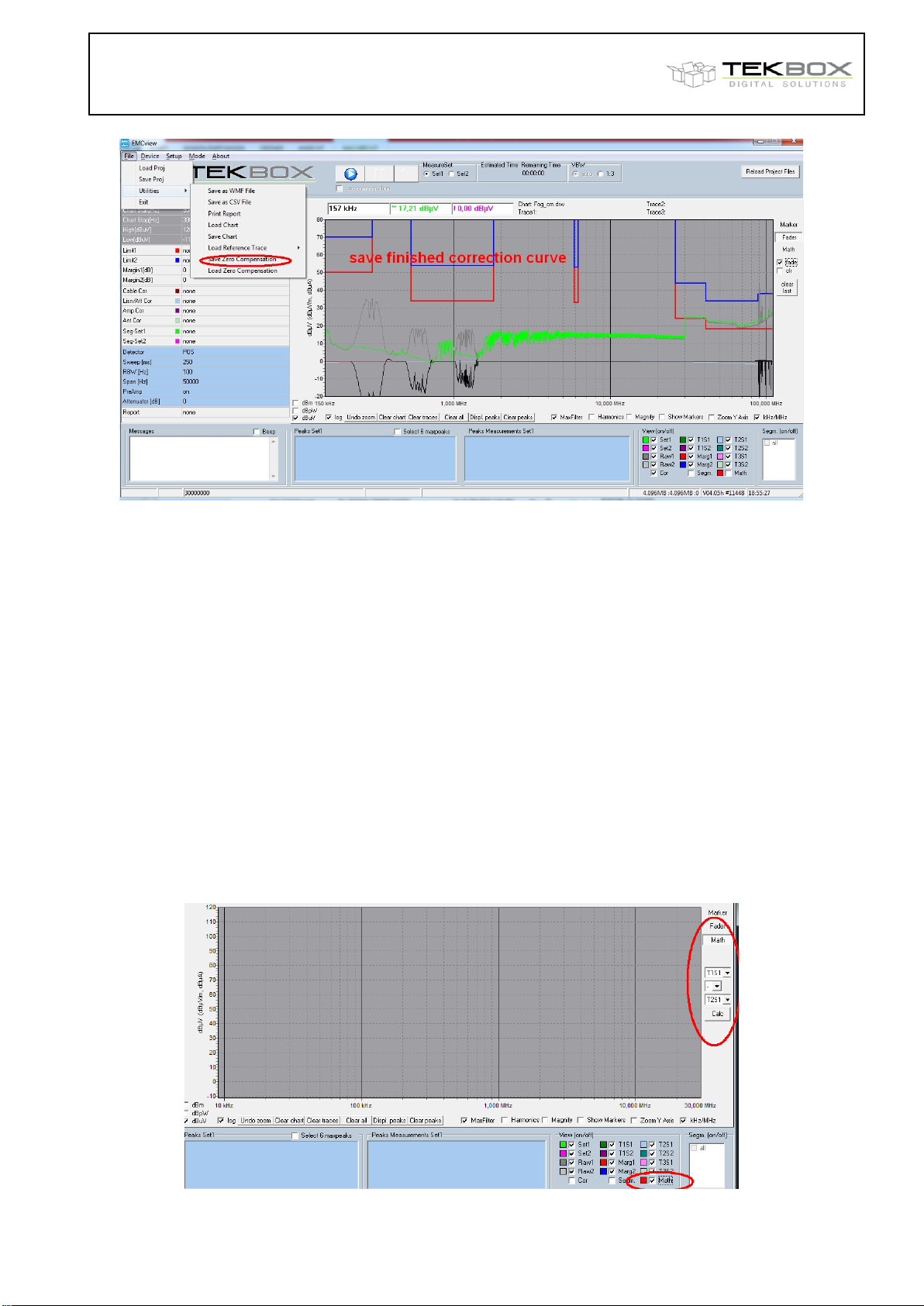

Next save the correction curve in File, Utilities, Save Zero Compensation. In order to apply the correction curve to the powered measurement, load the correction curve in File, Utilities, Load Zero Compensation. Then click the box use compensation (fader compensation) located under the Play button. Then start another measurement run, with the DUT being powered. The correction curve will then immediately be applied to this measurement. As mentioned – don´t expect miracles from this feature. A perfect cancellation will only be achieved for ambient noise signals that remained perfectly constant with respect to frequency and amplitude. Also be aware, that any DUT noise hidden under the ambient noise will not be recovered.
26. Math
“Math” is a feature to add, subtract, multiply or divide traces. The traces need to be loaded into EMCview before being able to carry out mathematical operations. Click the Math button located right to the graph window. Then select the traces, select the mathematical operation and click the Calc button to get the result displayed in the graph window. In order to view the resulting graph, activate the Math button in the View (on/off) window. If you take for example conducted noise measurements of the positive and negative supply line and want to merge it to a worst case graph, load the traces and use the MAX operation.
Page 26
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 26 of 39 TekBox Digital Solutions 10-Aug-23
27. Saving graphs and measurement results
Save data in File menu, Utilities, Save Chart. The chart (graph) of any measurement can be reloaded into EMCview clicking Load Chart. Clicking Load Chart overwrites any graph present on the screen. Reload and overlay older measurements to a fresh measurement for comparison purpose by clicking Load Reference Trace in the same menu. This feature adds (overlays) one or two more graphs to the existing measurement or chart. Restarting a measurement will clear the graph of the previous measurement, but not affect the Reference Trace. In order to bring any of the reference traces to the foreground, click at the line listing the trace file. Click at the text again to bring it to the background. Click Save as WMF File to save chart screen shots. Click Save as CSV File to save the measurement result as table. You can save peak lists as text file, right clicking in the peak window and selecting Save to File in the context menu.
Charts are always saved including the amplitude correction data. If you figure out, that you applied wrong correction files, after completing a measurement, you can save the chart and then reload it as raw data and select different amplitude correction files.

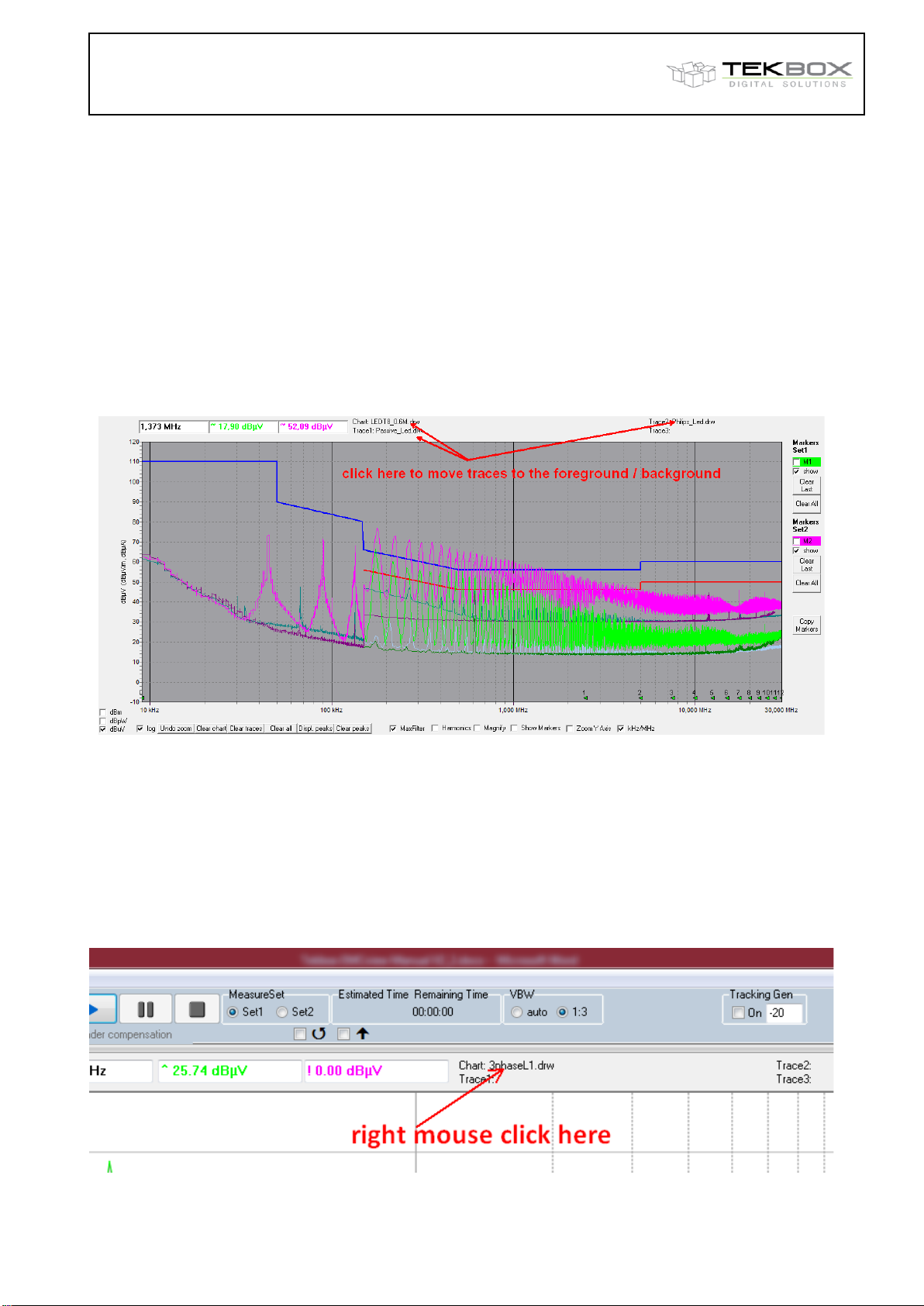

With EMCview V8.12, meta data is added when saving charts. You can restore the entire set up of EMCview of the point you carried out your measurement and saved the chart. This not only includes the set-up, chart and correction data, but also any trace, which was loaded when saving the chart. Load the chart and then right click at the chart string displayed on top of the graph window, after loading the chart:
Page 27
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 27 of 39 TekBox Digital Solutions 10-Aug-23

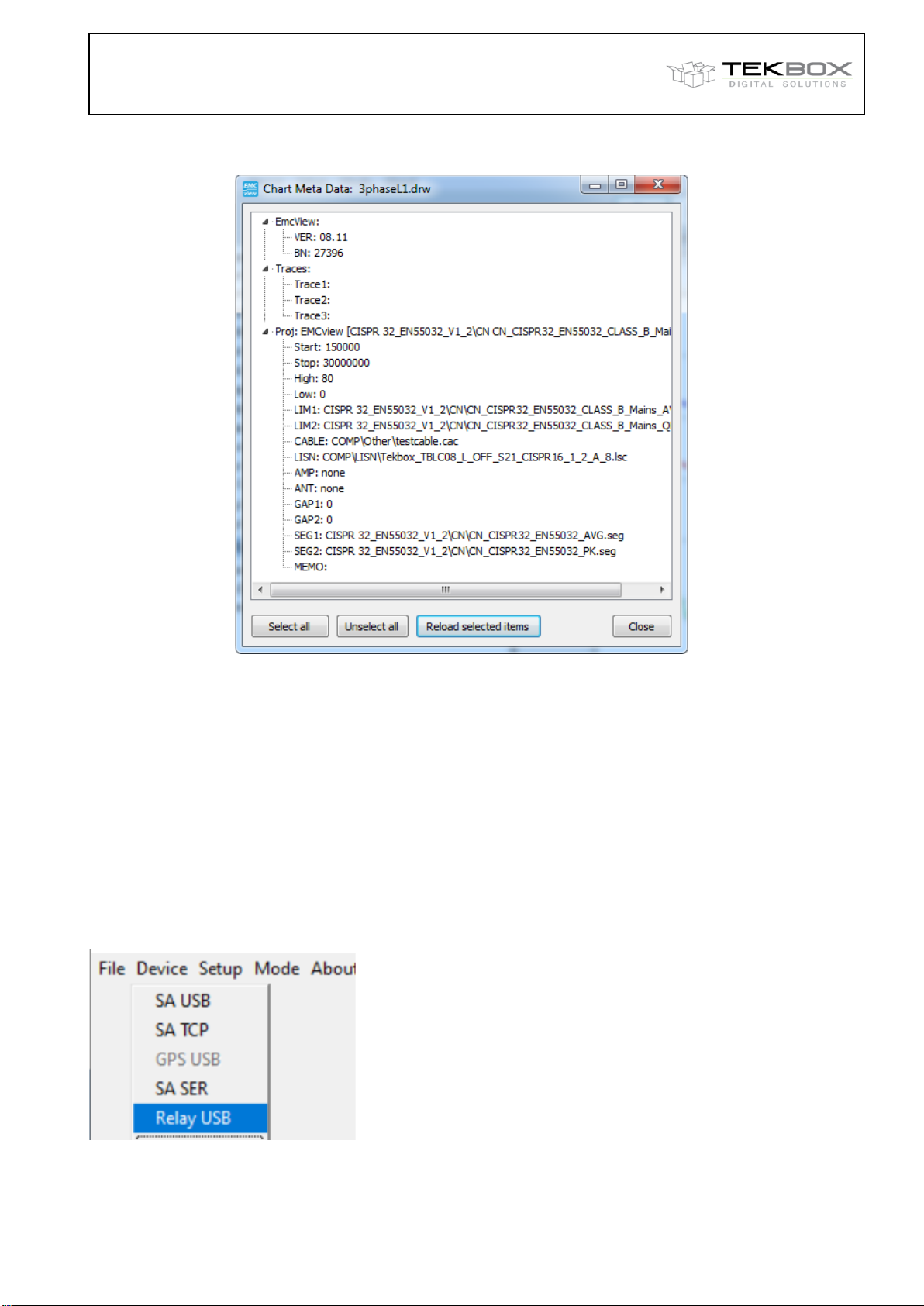

After right clicking, following window will pop up:
Click Select all and Reload selected items, if you want to restore the entire set up or make a selection by clicking any of the lines. Note that restoring only works correctly, if all involved files are still present in its original location.
28. Control of additional equipment with EMCview
With EMCview V5.48 or higher, commands for ASCII controllable devices can be added to the segment files. You can use a device such as KMTronic 4UCRB Relay Controller to switch coaxial antenna relays or external attenuators.

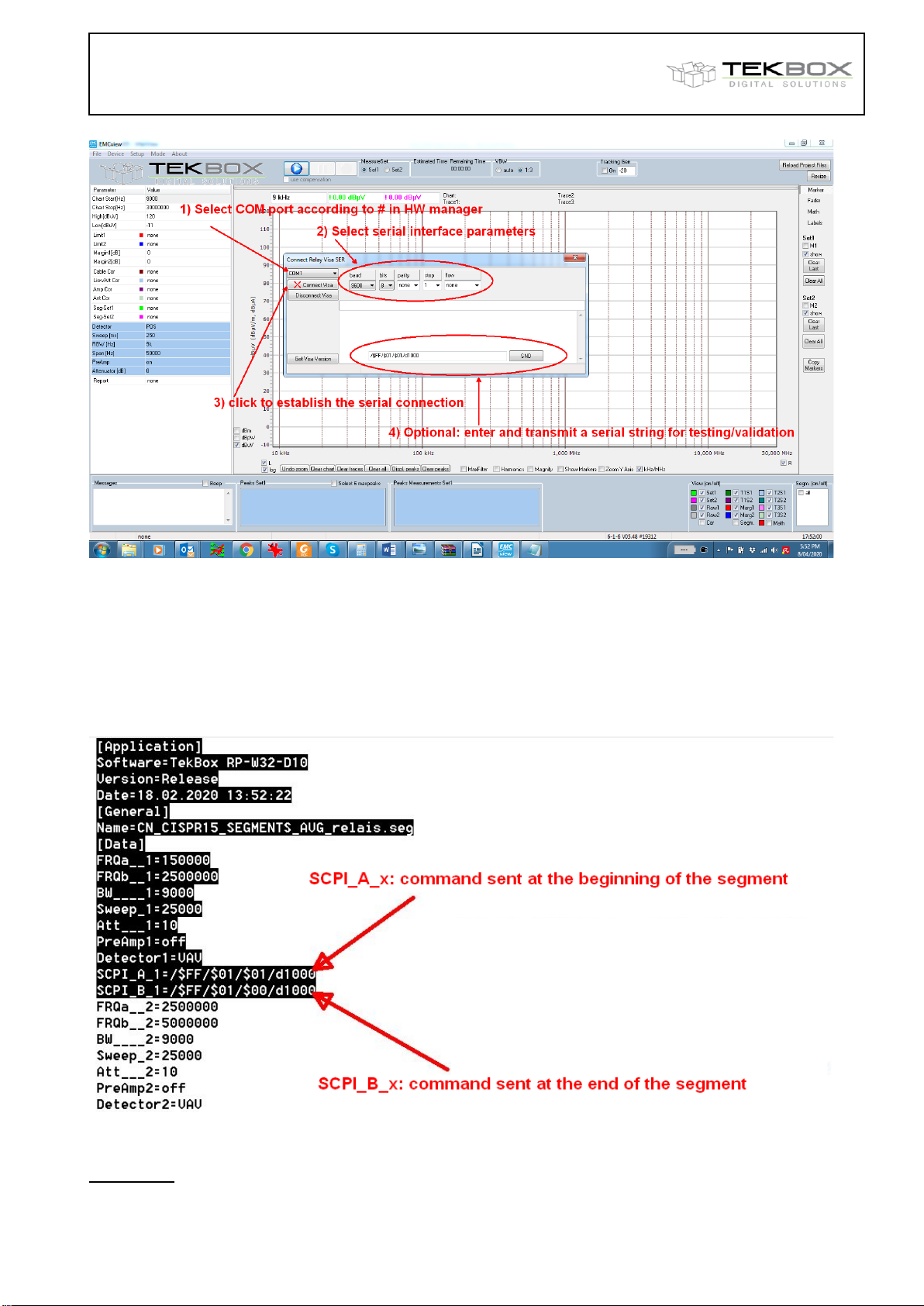

Go to menu DEVICE to connect to the relay controller:
Next select the COM port and set up the parameters for the serial interface of the relay controller or any other serial device. Establish the connection and optionally transmit a string for testing/validation:
Page 28
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 28 of 39 TekBox Digital Solutions 10-Aug-23
In order to automatically transmit test strings, they need to be entered into the desired segment file. You can add two serial command strings to each segment. Command SCPI_A will be executed before the sweep of the corresponding segment. Command SCPI_B will be executed after the sweep of the corresponding segment.
Example: Segment file with commands for the KMTronic 4UCRB Relay Controller
Explanation: SCPI_A_x with x being the segment number; command sent at the beginning of the segment
Page 29
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 29 of 39 TekBox Digital Solutions 10-Aug-23
SCPI_B_x with x being the segment number; command sent at the end of the segment SCPI_B_x is optional. A single command at the beginning of the segments would be sufficient to turn
ON/OFF a relay. /$FF/$01/$01: serial string to turn on output 1 of the KMTronic 4UCRB Relay Controller. It will send the
characters FF 01 01. This string is not EMCview specific. Its syntax has to be chosen according to the manual of the corresponding device. FF 01 01 means turn ON Output 1 of the 4UCRB. EMCview will send whatever string is entered in this place.
/d1000: wait 1000 ms before starting the sweep. Maximum value: 9999 ms Special control commands can be entered as /$XX (upper case, always 2 characters)
Example: /$0A LF, Line Feed (not /$0a) /$0D CR, Carriage Return (not /$cr)
29. Using RF current probe measurements to extrapolate to radiated E-field strength
Signal- and power supply cables carrying conducted noise act as antennas and consequently cause radiated emissions. Henry Ott and Clayton Paul outlined a method to convert RF current probe measurements into electric field strength radiated from cables carrying RF currents. It is a derivation/simplification of the full treatment outlined in “Antenna Theory – Analysis and Design” (C. Balanis). This application note is based on an excellent article on the website of Andy Eadie from EMC FASTPASS. The application note explains how this method can be applied, using Tekbox EMCview software. It automatically creates a graph of radiated emissions, converting a common mode current conducted noise measurement carried out with a RF current probe and a spectrum analyzer. Andy Eadie´s article can be found here:
https://emcfastpass.com/current-probe-e-field-emi-testing/
“The Formula”
𝐸 =
4𝜋 ∙ 10
−7
(
𝑓 ∙ 𝐼 ∙ 𝐿)𝑠𝑖𝑛𝜃
𝑟
E = electric field strength [V/m] f = frequency [Hz] I = CM current [A] L = cable length [m] r = measurement distance [m]
Ɵ = π/2 According to Andy Eadie’s article, this formula delivers a very accurate result up until approximately 200
MHz with a 1m cable. The Tekbox application note AN_ RF current to electric field strength extrapolation shows two methods how to calculate and display the E-field using EMCview. Refer to this document for detailed instructions.
30. EN 61000-4-20 correlation
EN 61000-4-20 specifies how to correlate radiated emission measured in (G)TEM-cells with OATS measurements. The EN61000-4-20 correlation algorithm requires separate scans for the three main orthogonal orientations of the EUT. After measuring the EUT and saving the results as chart files, load the three charts as reference traces (Trace 1, Trace 2, Trace 3). Click the EN61000-4-20 button at the right side of the window:
Page 30
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 30 of 39 TekBox Digital Solutions 10-Aug-23

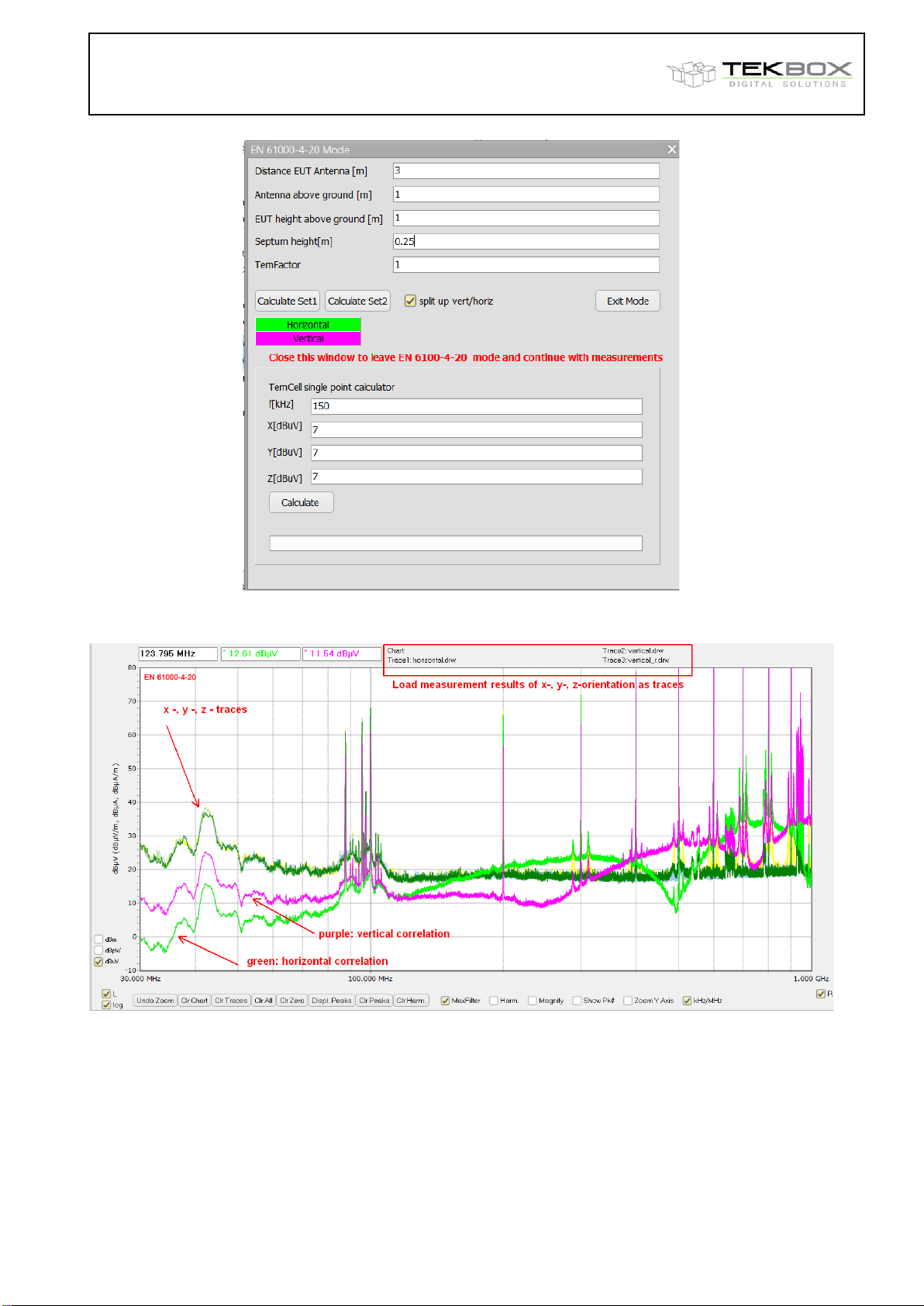

Next click the Calculate Set1 button to calculate the correlated OATS result:
The correlation result appears as two additional charts. These charts can be processed same as any other chart, however, no peak-remeasurements can be carried out. “EN 61000-4-20” indicates that EMCview is in EN 61000-4-20-mode. The measurement buttons cannot be activated. In order to exit the EN 61000-4-6 – mode, click at the EN 61000-4-6 button and press Exit.
Refer to the TEM-cell FAQ document, chapter 6, for a detailed description of the EN61000-4-20 correlation.
Page 31
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 31 of 39 TekBox Digital Solutions 10-Aug-23
31. Real time measurements
Starting with EMCview version 8.42, the license variant EMCview PRO, offers real time analysis capability and advanced conducted immunity testing features. The customer can select between a standard EMCview license or EMCview PRO. Users with a standard EMCview license have the option to upgrade to EMCview Pro. Real time analysis can be activated in menu SETUP, OPTIONS, RealTimeMode. The RealTimeMode feature supports analyzers of Rigol and Siglent. EMCview version 8.42 supports 10 MHz, 20 MHz and 40 MHz real-time bandwidth for Rigol analyzers and 25 MHz, 40 MHz real-time bandwidth for Siglent analyzers.

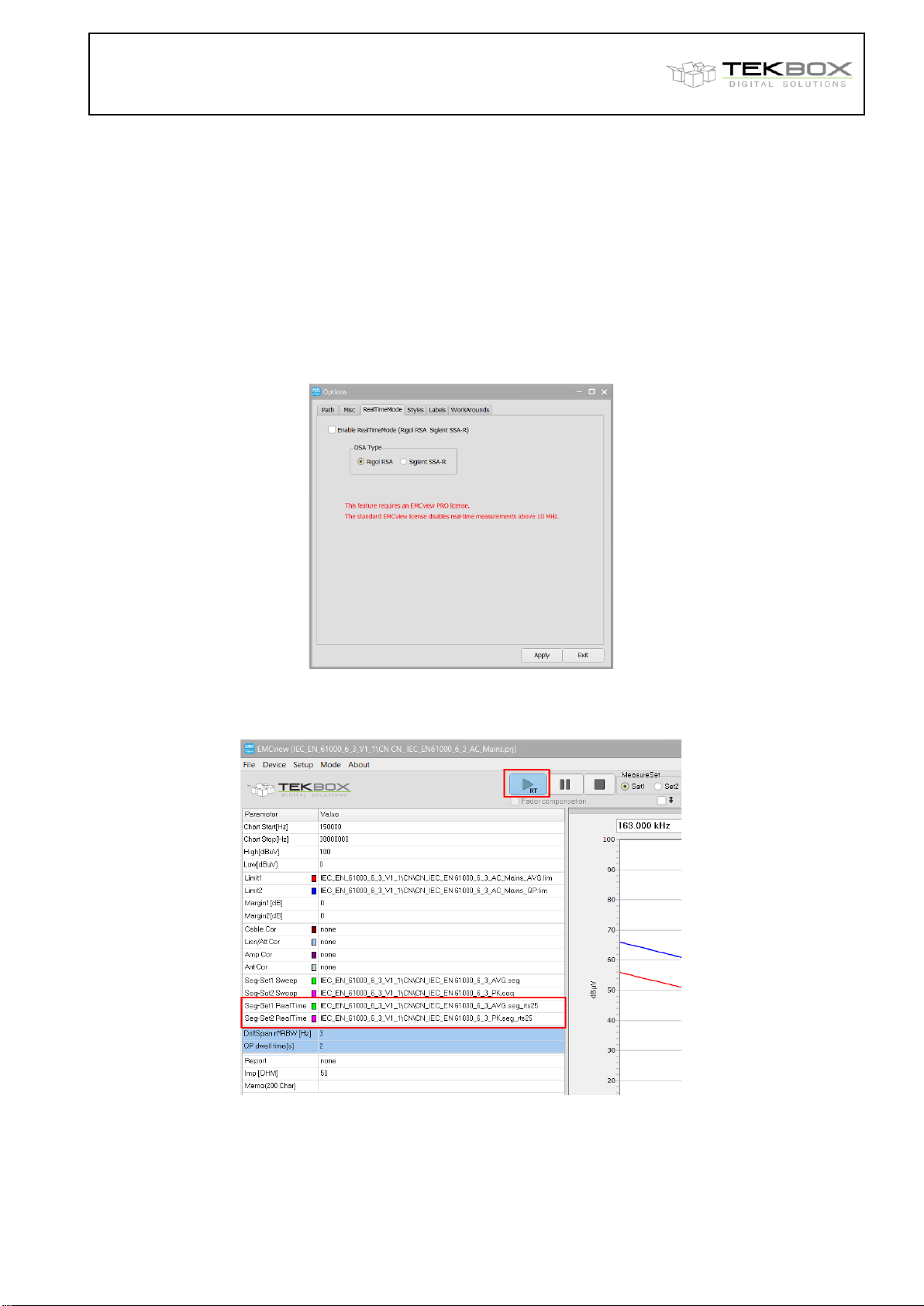

In the OPTIONS window, enable real-time mode, select the analyzer brand and press APPLY, EXIT:
The start button for the measurement will indicate the activation for real-time mode. The configuration section will show two additional segment files, which are used for real-time mode measurements:
In the screenshot above, the extension of the segment file *.seg_rts25 indicates 25 MHz real-time bandwidth for Siglent analyzers. Similarly, the extension *.seg_rtr10 (*.seg rtr20, *.seg_rtr40) would indicate 10 MHz (30
MHz, 40 MHz) real-time bandwidth for Rigol analyzers. In the implementation of EMCview V8.42, the SETUP menu does not offer a selection other than the analyzer brand. In order to select 20 MHz or 40 MHz RTBW for Rigol models, the corresponding segment files must be loaded manually:
Page 32
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 32 of 39 TekBox Digital Solutions 10-Aug-23

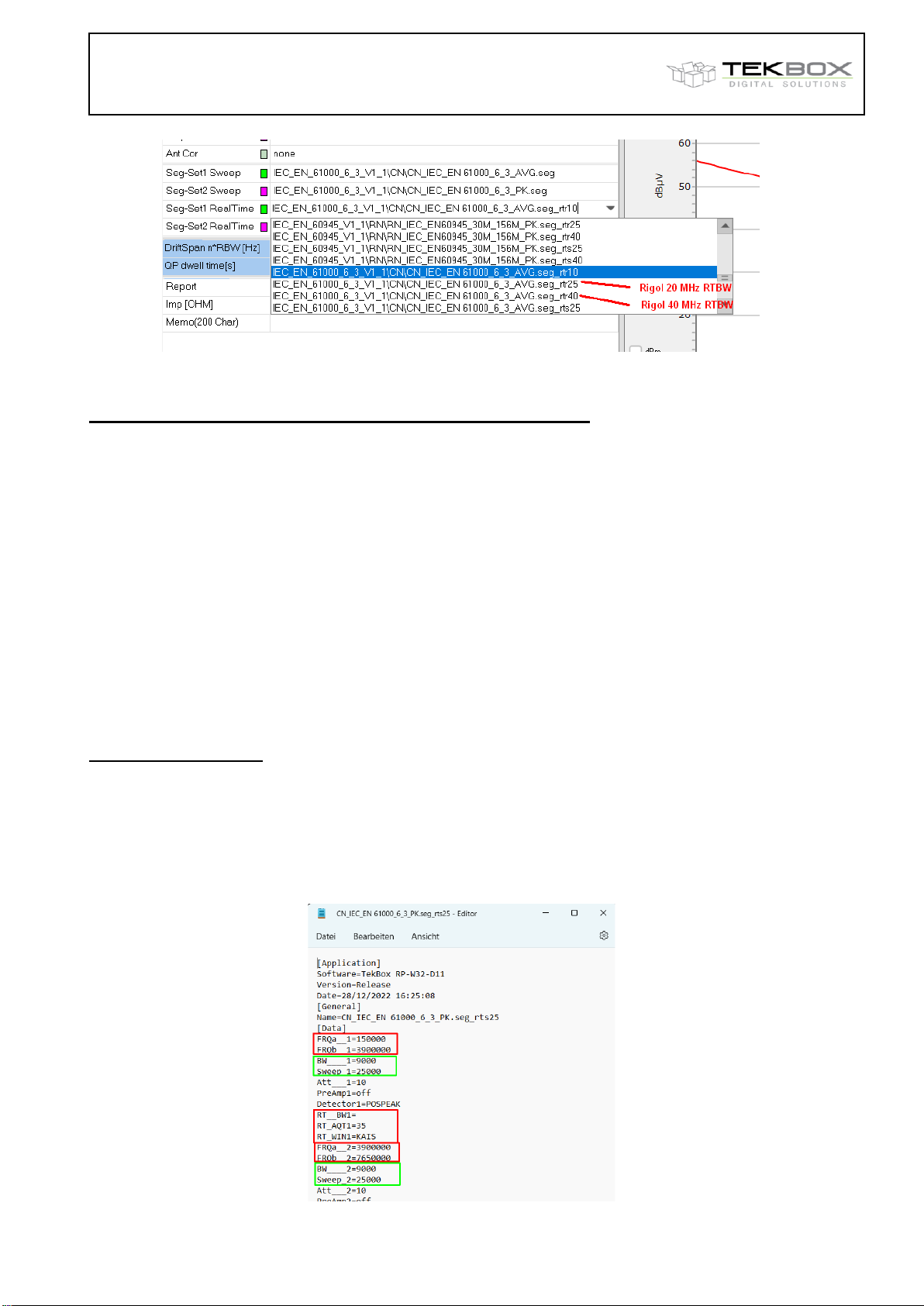

Similarly, proceed for loading Siglent 40 MHz RTBW segment file.
Limitations of Real Time Mode with respect to CISPR 16 compliance
The implementation of real time mode on the analyzer does not permit the selection of CISPR filters and bandwidths. EMCview RTBW segment files configure frequency spans and acquisition times in order to achieve a resolution bandwidth as close as possible to the corresponding CISPR bandwidths. Furthermore, available detectors in real-time mode are limited. There is no QP detector available in real-time mode. Furthermore, the results of the average detector may deviate up to 10 dB compared to the sweep mode measurement, in case of broadband noise. In contrary, the results of the peak detector measurement in real­time mode comes pretty close to the results in sweep mode. The currently implemented real-time segment files support the frequency range from 9 kHz to 1 GHz. Above 1 GHz, a RTBW of 10 MHz would require 100 segments/GHz. The advantage of the fast measurement time of a single segment is nullified by the processing time required for downloading data and configuring and starting consecutive segments. Swept measurements above 1 GHz have segment files with 300 MHz span and 30 seconds sweep time.
Real-time mode is significantly speeding up emission measurements, which is a great advantage when tracking modifications for relative improvements during design optimization. However, final measurements should be carried out in sweep mode for confidence reasons.
Real-time segment files
Below an example for a Siglent analyzer with 25 MHz RTBW. The parameters in the red boxes are relevant for real-time mode, whereas the parameters in the green boxes are ignored. In case of Siglent analyzers, the Realtime resolution bandwidth RT_BWx= is ignored as well. The real-time resolution bandwidth results from the settings for the span Freqa_x and Freqb_x and the setting for the acquisition time. These were derived by entering it manually and tuning it until the desired resolution bandwidth could be achieved.
Page 33
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 33 of 39 TekBox Digital Solutions 10-Aug-23

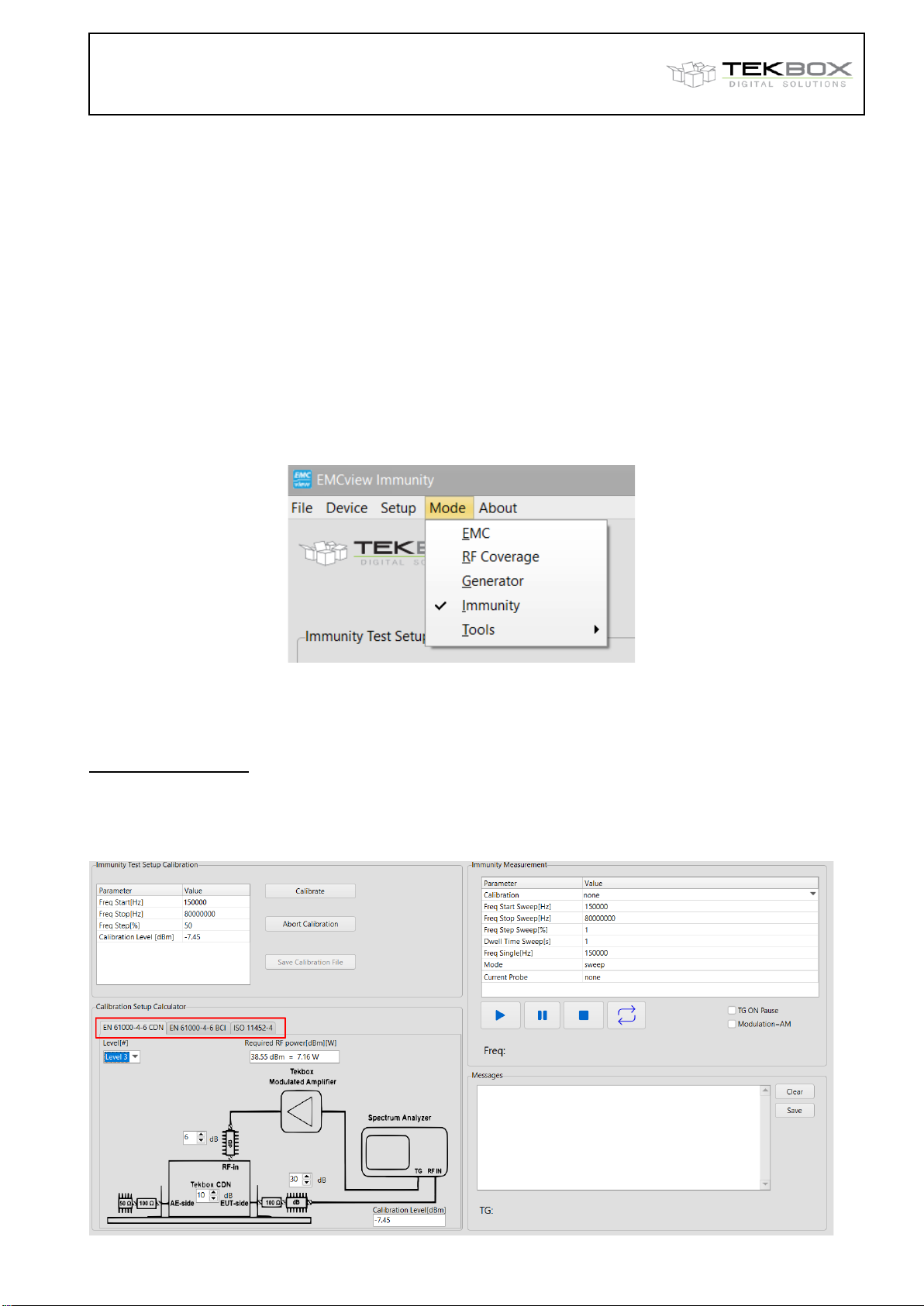

32. Conducted immunity mode
Starting with EMCview version 8.42, the license variant EMCview PRO, offers real time analysis capability and advanced conducted immunity testing features. The customer can select between a standard EMCview license or EMCview PRO. Users with a standard EMCview license have the option to upgrade to EMCview Pro. There are currently three conducted immunity modes. Two modes are used for immunity measurements using CDNs or BCI clamps according to EN 61000-4-6 and a third mode has an implementation of Closed Loop BCI testing according to ISO 11452-4.
32.1 EN 61000-4-6, CDN
EMCview PRO enables “Immunity” in menu Mode
Below a screenshot of the EN 61000-4-6 immunity feature for testing with CDN. The immunity test is a two­step process. First, the setup needs to be calibrated (left screen - section). Next, the EUT and supply need to be connected and the immunity test needs to be carried out (right screen - section).
Immunity Calibration:
Set up the equipment as depicted in the screen-shot. In the calibration setup calculator window select the desired stress level. The calculator will then display the required output power of the amplifier and the corresponding power at the RF input of the spectrum analyzer depending on the involved attenuators. This level will be transferred into the parameter list of the Immunity Test Setup Calibration window.
Page 34
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 34 of 39 TekBox Digital Solutions 10-Aug-23
Next, set the desired frequency range and frequency steps in the Immunity Test Setup Calibration window and press the Calibrate button. During calibration, the tracking generator frequency will be stepped across the configured frequency range and the tracking generator level will be set in order to achieve the configured calibration level across the entire frequency range. Upon completion of the sweep, save the resulting calibration file. The calibration file contains a table with frequency points with their corresponding tracking generator level. This table will be used during the actual immunity test to look up the tracking generator level and set it in order to compensate for the frequency response of the tracking generator, power amplifier and CDN. The resulting accuracy is ± 1 dB, as the amplitude resolution of the tracking generator is limited to 1 dB.
If the desired level cannot be achieved at one or more frequency points, EMCview will display a warning message and set the tracking generator output level to the maximum value of 0 dBm. Nevertheless, the calibration file can be used, but keep in mind that the stress level at the corresponding frequencies. You may reduce the 6 dB attenuator to 3 dB as a workaround or use a more powerful modulated amplifier, such as the TBMDA-CDN25.
Immunity Test:
Set up the equipment as depicted below:
In order to run the immunity test, click the Calibration box in the Immunity Measurement window. Select the calibration file, configure the remaining parameters as desired and click the start button. Upon observing an immunity issue, the sweep can be interrupted. The sweep can be continued by clicking the start button again. The direction of the sweep can be reversed, by clicking the button with the two arrows.
32.2 EN 61000-4-6, BCI
Immunity Calibration:
Click at the EN 61000-4-6 BCI tab, set up the equipment as depicted and proceed same as described for the CDN in the previous chapter.
Page 35
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 35 of 39 TekBox Digital Solutions 10-Aug-23
Immunity Test:
Set up the equipment as depicted below and proceed same as described for the CDN in the previous chapter.
32.3 ISO 11452-4, BCI
The immunity test according ISO 11452-4 is a closed loop test, which does not require separate calibration. In contrary to EN 61000-4-20, where the stress levels are specified as voltage, the stress levels specified in ISO 11452-4 is specified in terms of injected current. The injected current is controlled based on the current measured with the current probe. Click at the ISO 11452-4 BCI tab and set up the equipment as depicted below:
Select the RF current monitoring probe used and the other test parameters and press the Play button. The injected current level will be displayed in a pop-up graph window. The injected current may not be achievable for any frequency, especially if ungrounded EUTs are used. At parallel resonances of the cable, the impedance will become very high and maintaining the set current level might exceed the capabilities of the RF power amplifier. In this case, the test should be switched to an open loop / substitution method similar to EN 61000-6-4. An open loop feature for ISO 11452-4 will be added in one of the next EMCview releases.
33. Create Reports
Click Setup, Edit Report. Click Clear and then enter the report details. Click Save and enter a file name. In order to print the report, click File, Utilities, Print Report. If you want to keep the report as a file, print using a pdf writer. To do so, set a pdf writer as default printer in Windows settings.
Page 36
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 36 of 39 TekBox Digital Solutions 10-Aug-23

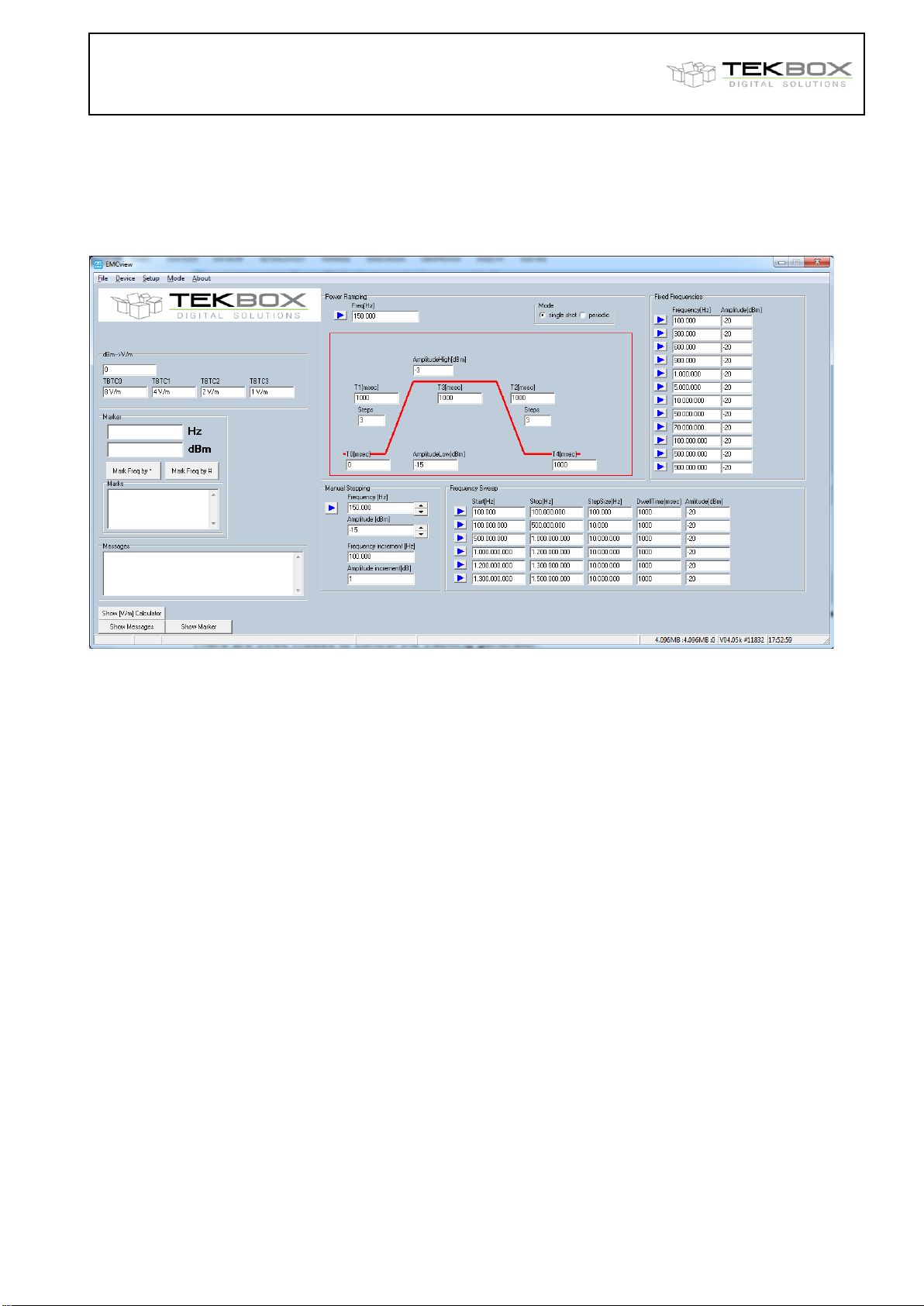

34. Tracking generator control mode for immunity testing
A spectrum analyzer equipped with tracking generator, together with a TEM Cell and a modulated power amplifier from Tekbox can be used very effectively for pre-compliance immunity testing. In order to simplify tracking generator control, click menu Mode / Generator.
There are three modes to control the tracking generator: Power Ramping generates a configurable power ramp profile at a fixed frequency; either as a single
pulse or periodic.
Frequency Sweep carries out a frequency sweep with configurable start and stop frequency, frequency
step size, output level and dwell time per frequency point. Fixed Frequencies sets the generator to a fixed output frequency and output level Manual Stepping manually step frequency and amplitude of the tracking generator
Consider that the amplitude of most tracking generators are limited to the range -20dBm to 0 dBm and to an amplitude step size of 1 dB. For lower output levels, use an external attenuator; for higher output levels use an external amplifier.
An immunity pre-compliance test will typically start with a frequency sweep. The DUT is placed inside a TEM cell and a wideband amplifier will boost the TG signal to the necessary level to create a strong electric field inside the TEM cell. Observe the DUT for any misbehavior during the sweep. In case of observing any DUT malfunction, press the Mark Frequency tab to record the frequency. In order to save time during later re-testing, after modification of the DUT, change to fixed frequency mode, using critical frequencies observed during the sweep.
Check our website for corresponding application notes and for the EMCview FAQ document from time to time.

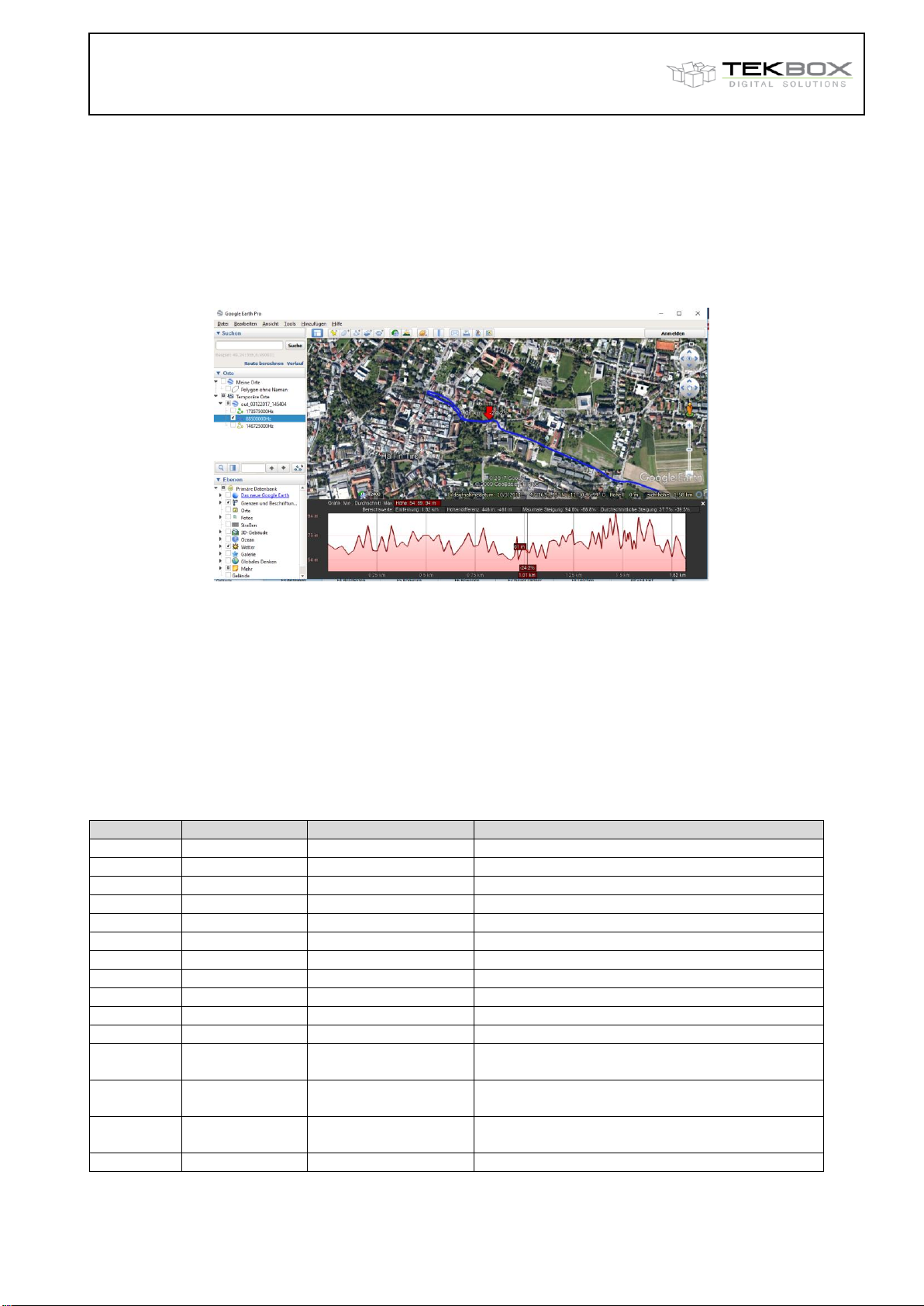

35. RF coverage measurement mode
In RF coverage measurement mode, the field strength of up to 3 transmitters can be monitored in parallel. GPS coordinates are assigned to every measurement sample. EMCview currently supports Opus / Eride chipset based GPS receivers with NMEA output via USB. A suitable GPS receiver is also available from Tekbox.
Page 37
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 37 of 39 TekBox Digital Solutions 10-Aug-23

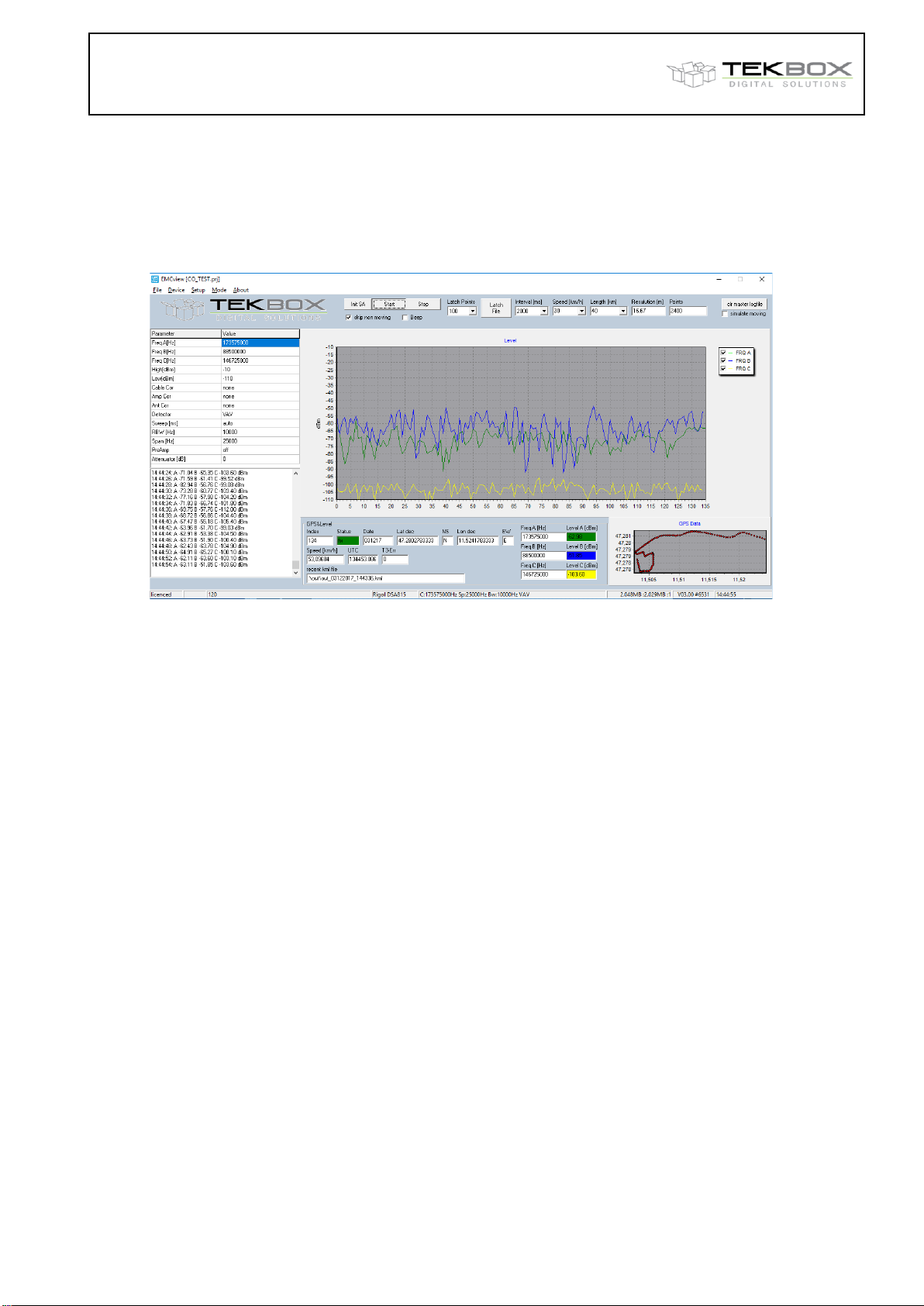

In order to make RF coverage measurements, connect to the spectrum analyzer and GPS receiver in the
Device menu. Click Mode, RF Coverage to enter RF coverage measurement mode.

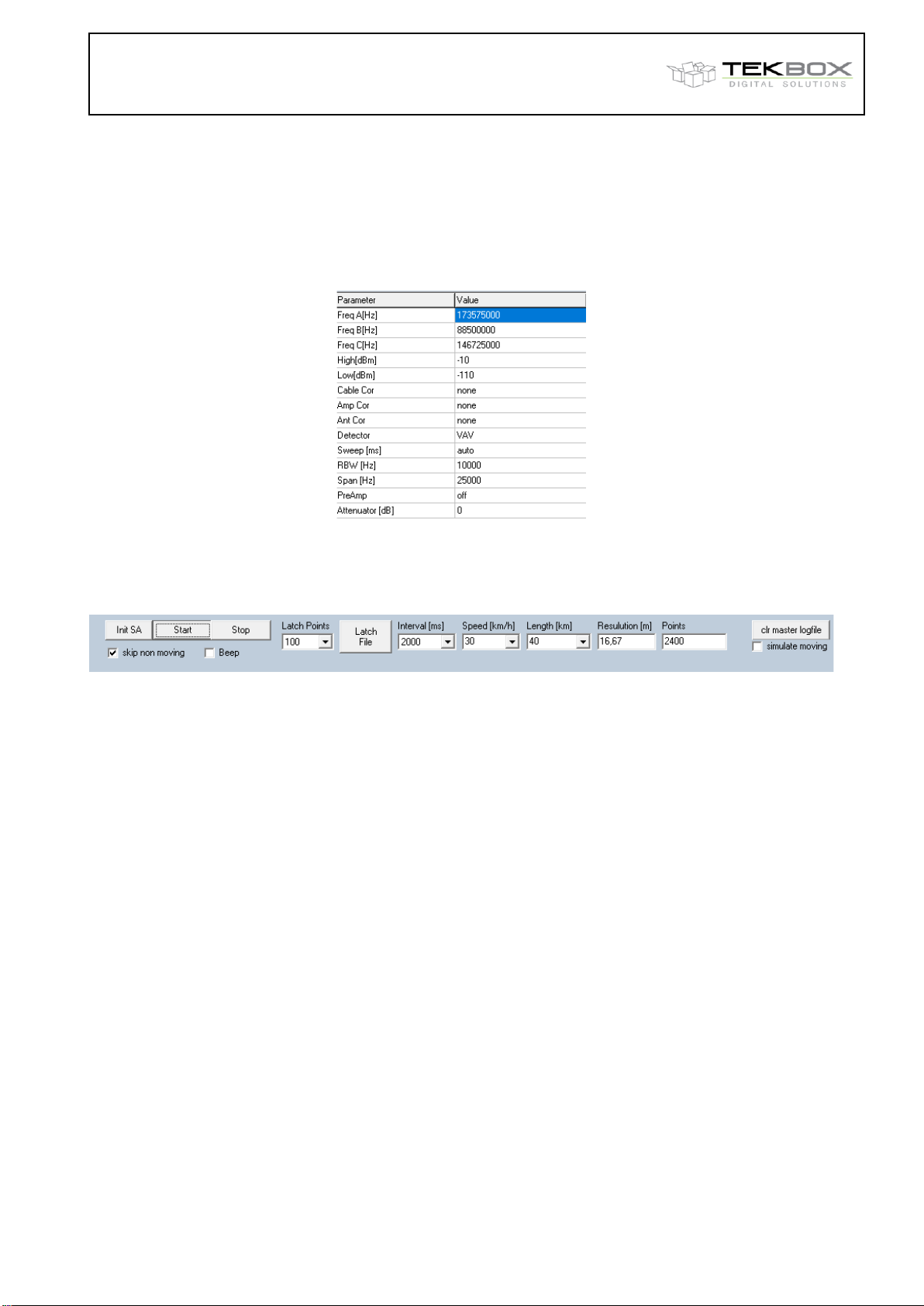

35.1 Configuration
Enter the frequencies that you want to observe along with the spectrum analyzer settings:
If Freq(B) and or Freq(C) are not required for the measurement, simply delete the contents of the corresponding box. High[dBm], Low[dBm] values specify the y-axis display range of the graph. The values on the X-axis correspond to the index of the consecutive measurement samples.
Init SA: transfers the measurement settings to the spectrum analyzer and initialize the SW for
a new measurement Start: start measurement or continue interrupted measurement; requires a GPS fix and
established connection to the spectrum analyzer. Stop: stop measurement Latch Points: select the number of measurement points, after which a KML file will be created
automatically. If the total number of measurement points exceeds the settings in
Latch Points, additional KML files will be created. Latch File: creates a KML file upon pressing the button Interval [ms]: time in between two consecutive measurements (measurement interval). Minimum
time largely depends on number of observed frequencies, sweep time and
measurement response time of the analyzer. With the analyzer settings in the
example above, 3 frequencies can be monitored every 2 seconds. If the set interval
time is too low, a timing error will be occur and increment the T3-Err counter at the
bottom of the graph. Speed [km/h]: enter the estimated average speed of your measurement drive here to calculate the
resolution of your measurement Length [km]: enter the estimated length of your measurement drive here to calculate the resulting
number of measurement points Resolution[m]: average distance between two measurement points based on the entered value of
Speed and the settings for the measurement interval. Points: resulting number of measurement points based on the estimation of the length of the
measurement drive and the settings for the measurement interval. Clr master logfile: the data of every measurement point is logged into a text file with file name
coverage.txt. Any additional measurement will be appended to existing data in the
log file. Press this button to delete the contents of the log file. The log file is located in
the sub directory \out. Skip non moving: Don´t log any measurement points if the speed reported by the GPS receiver is zero
Page 38
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 38 of 39 TekBox Digital Solutions 10-Aug-23
Simulate moving: only to validate the measurement setup; don´t click for an actual measurement. The
SW generates a random offset to the coordinates measured by the GPS receiver to
simulate a test drive.
35.2 Status and measurement results

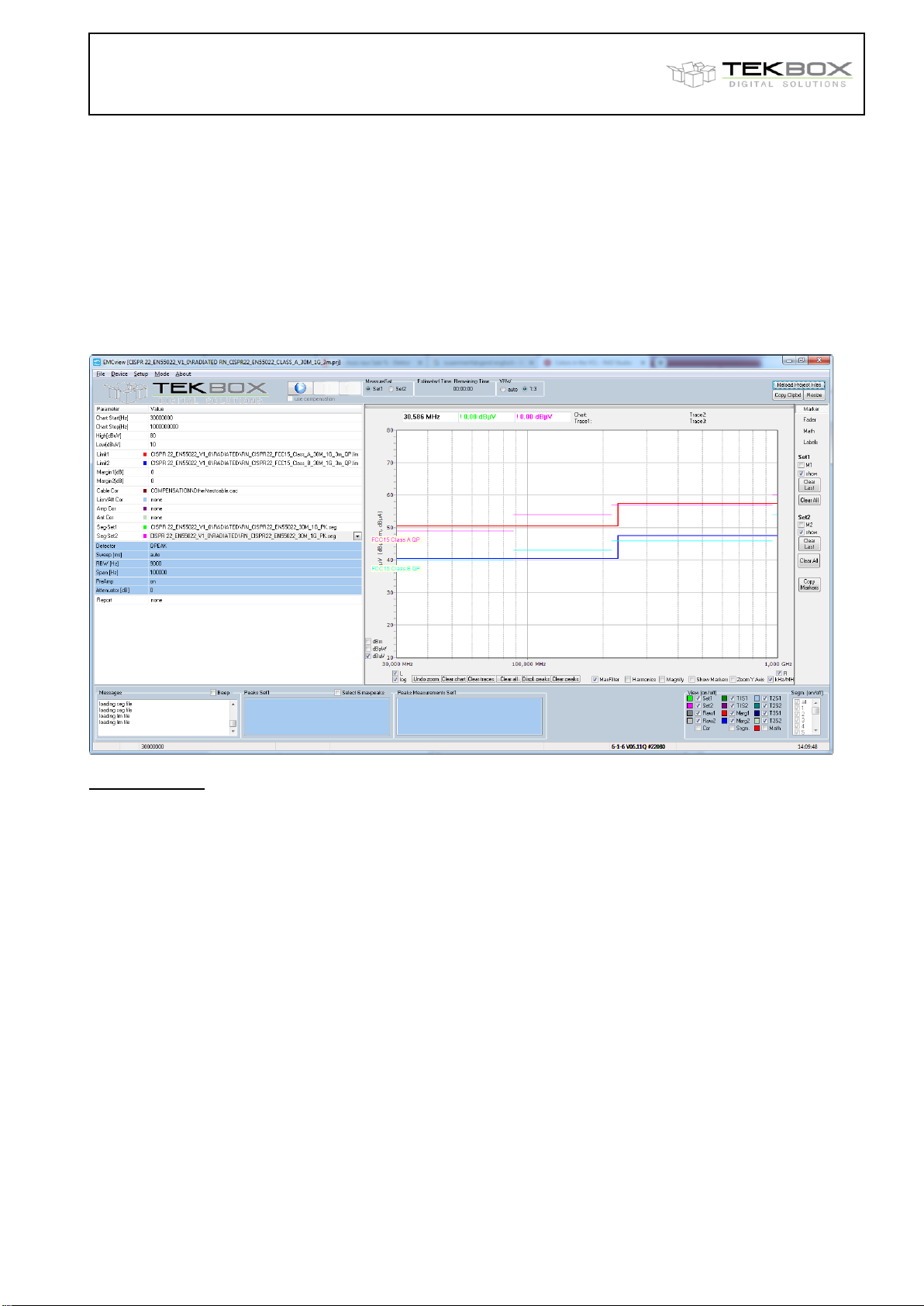

The main graph displays the measured field strength of the observed transmitters on the y- Axis and the index number of the corresponding measurement on the X-axis. The GPS data window displays the coordinates of consecutive measurement points.
Index: index counter; number of current measurement sample Status: displays GPS fix Date: current date Lat dec: current latitude in decimal format NS: latitude north/south Long dec: current longitude in decimal format EW: latitude east/west Speed: current speed UTC: current time T3-Err: error counter, counts timer errors caused by insufficient length of measurement interval Freq A: observed frequency A Level A: field strength/ amplitude of transmitter A Freq B: observed frequency B Level B: field strength/ amplitude of transmitter B Freq C: observed frequency C Level C: field strength/ amplitude of transmitter C Recent kml file: shows the path and file name of the latest generated kml file: default directory is \out. The kml file is created automatically and consists of the string out_date_time.kml.
35.3 Log file
The index file is a text file containing an index for each sample, date, time, longitude, latitude, speed, observed frequencies and corresponding field strength. Example:
Index;Fix;Date;UTC;Lat;NS;Long;EW;Speed[km/h];FreqA[Hz];LevA[dBm];FreqB[Hz];LevB[dBm];FreqC[Hz];LevC[dBm] 0;fix;031217;133951.086;47.2786633333;N;11.5031383333;E;19,8164;173575000;-61.62;88500000;-55.71;146725000;-102.30 1;fix;031217;133953.086;47.2785533333;N;11.5031883333;E;23,46484;173575000;-66.53;88500000;-67.06;146725000;-104.70 2;fix;031217;133955.086;47.2784366667;N;11.5032450000;E;24,20564;173575000;-77.26;88500000;-58.54;146725000;-104.80 3;fix;031217;133957.086;47.2783266667;N;11.5033033333;E;22,35364;173575000;-86.61;88500000;-56.00;146725000;-104.00 ….
Page 39
Tekbox EMCview Manual_V3_0.docx V3.0
Tekbox EMCview Manual
Author: Mayerhofer 39 of 39 TekBox Digital Solutions 10-Aug-23
35.4 KML file
The KML file can be used to project the measurement drive into Google Earth Professional. The altitude-profile graph feature of Google Earth Professional is utilized to display a field strength profile. The [m] unit displayed by Google Earth is equivalent to the measured amplitude in [-dBm]. Consequently, peaks in the graph represent lower field strength values, means the graph is mirrored on the x-axis. In Google Earth menu View, reset tilt. If you don´t see the track, in Layers, activate More. In order to see the field strength profile, click the Edit menu and then show elevation profile.
36. Further information
Read the EMCview FAQ document for more detailed information. Also check our website from time to time for software updates, new project packages and useful application notes.
37. History
Version
Date
Author
Changes
V 1.0
20.04.2017
Mayerhofer
Creation of the document
V 1.1
26.04.2017
Mayerhofer
Chapter 2 (warnings) added
V 1.2
21.06.2017
Mayerhofer
Siglent support added
V 1.3
16.12.2017
Mayerhofer
Updates - SW REV 3.0
V 1.4
6.6.2018
Mayerhofer
Updates - SW REV 4.0
V 1.5
9.10.2018
Mayerhofer
Updates - SW REV 4.05
V 1.6
9.10.2018
Mayerhofer
Chapter 1 and 2 updated
V 1.7
9.4.2020
Mayerhofer
Chapter 1, 2, 16, 18 and 22 updated
V 1.8
6.5.2020
Mayerhofer
Chapter – SW REV 6.01
V 1.9
6.5.2020
Mayerhofer
Chapter 22 inserted – SW REV 6.07
V 2.0
25.9.2020
Mayerhofer
Chapter 9, 10, 12, 13 inserted – SW REV 7.0
V 2.1
1.4.2021
Mayerhofer
Information on changed peak re-measurement UI with EMCview V8.0
V 2.2
4.11.2021
Mayerhofer
Information on restoring measurement set-ups with EMCview V8.12 and higher
V 2.3
6.6.2022
Mayerhofer
Update referring to changes with EMCview V8.30 and higher
V 3.0
10.8.2023
Mayerhofer
Update for the release of EMCview V8.64
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
