User Manual

DSI 76850 SS

www.teka.com

CONTENTS

SAFETY INFORMATION

PRODUCT OVERVIEW

USING YOUR DISHWASHER

Loading The Salt Into The Softener

Basket Loading Tips

MAINTENANCE AND CLEANING

External Care

Internal Care Caring For The Dishwasher

INSTALLATION INSTRUCTION

Power Connection

Water Supply And Drain

Connection Of Drain Hoses

Positioning The Appliance

Free Standing Installation

Built-In Installation (for the integrated model)

TROUBLESHOOTING TIPS

Availability Of Spare Parts

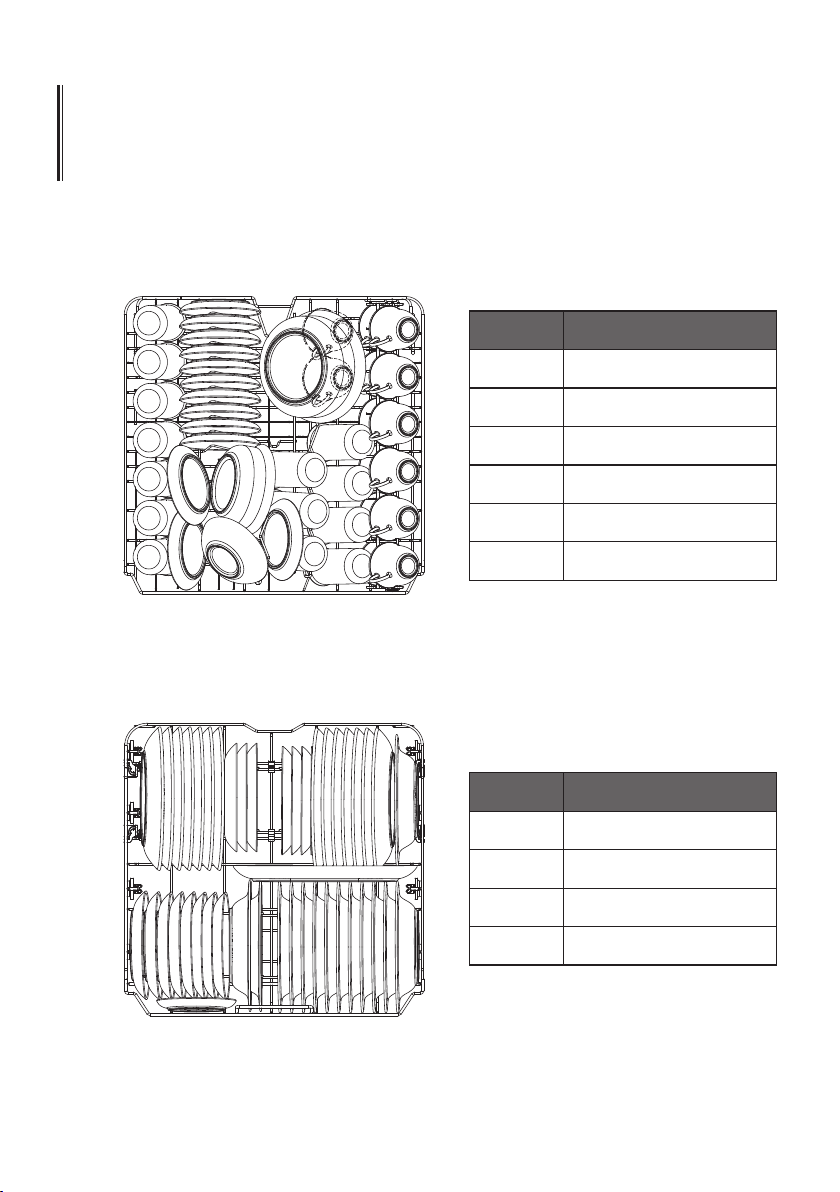

LOADING THE BASKETS

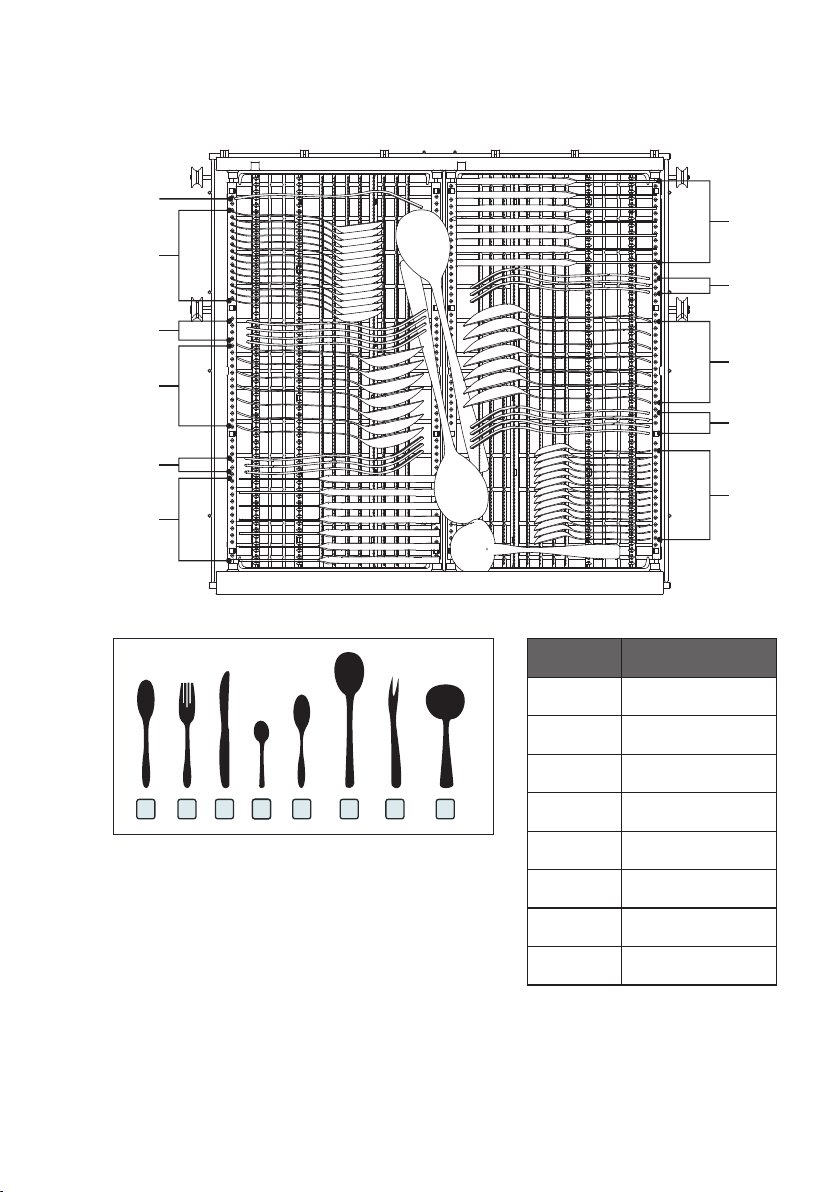

Cutlery Rack Used Tips

NOTE:

Reviewing the section on will help you solve some common problems by yourself. If you cannot solve the problems by yourself, please ask for help from a professional technician. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

Troubleshooting Tips

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other

working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments. This appliance can be used by children

older

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

, and persons with reduced physical,sensory or

aged 8 and

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and performing maintenance on the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Earthing Instructions

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Do not modify the plug provided with the appliance

it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position. Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

Check that there are no detergent residues after completion of the wash cycle.

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. To save energy, in stand by mode, the appliance will

witch of automatically after 15 minutes without any

user interaction.

The maximum number of place settings to be washed is 14. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is

0.04MPa.

Disposal

For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Top spray arm

Inner pipe

Lower spray arm

Salt container

Dispenser

Cutlery rack

Upper spray arm

Upper basket

Cup rack

NOTE:

Pictures are only for reference, different models may be different.

Filter assembly

Lower basket

USING YOUR DISHWASHER

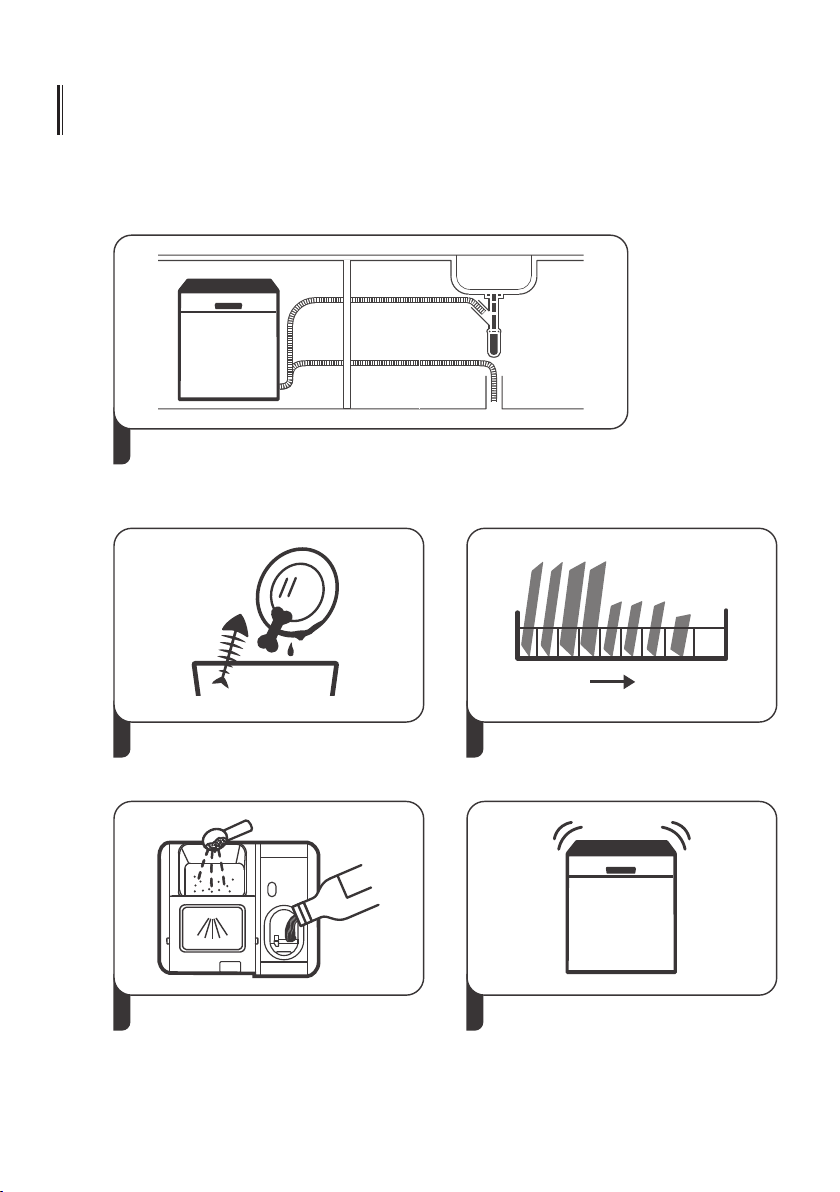

Before using your dishwasher :

Inside Outside

1. Set the water softener

2. Loading the salt Into the softener

3. Loading the basket

4. Fill the dispenserdetergent

Please check the section 1 “Water Softener” of PART Ⅱ: Special Version,

If you need to set the water softener .

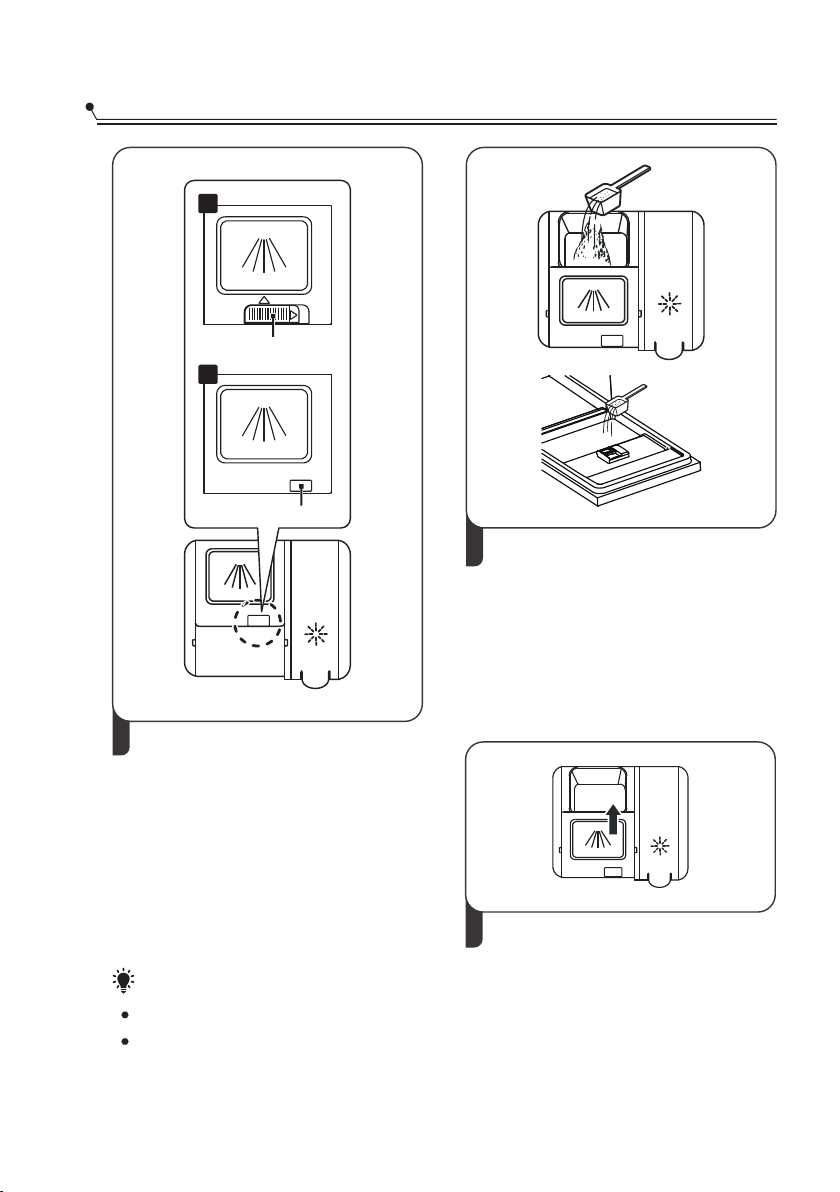

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

Only use salt specifically designed for dishwashers use!

Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of

dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

turn off

NOTE:

The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some ), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. If salt has spilled, run a soak or quick program to remove it.

models

Basket TipsLoading

Adjusting the upper basket

Type 1:

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps:

lower position

Pull out the upper basket.

Re-attach the upper basket to upper or lower rollers.

Remove the upper basket.

Push in the upper basket.

upper position

Type 2:

To raise the the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

upper basket just lift ,

To lower the lift the adjust handles on each side to release the basket and lower it to the lower position.

upper basket,

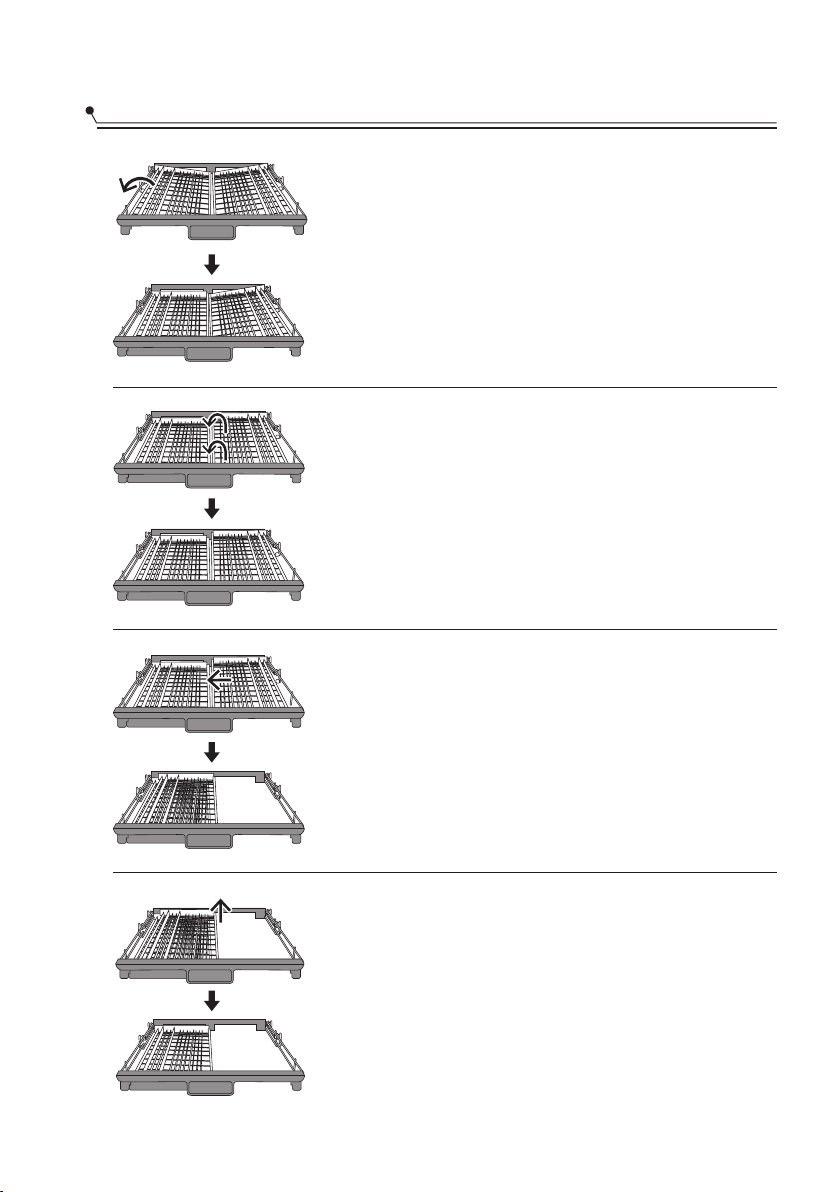

Folding back the cup shelves

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it.

Folding back the rack shelves

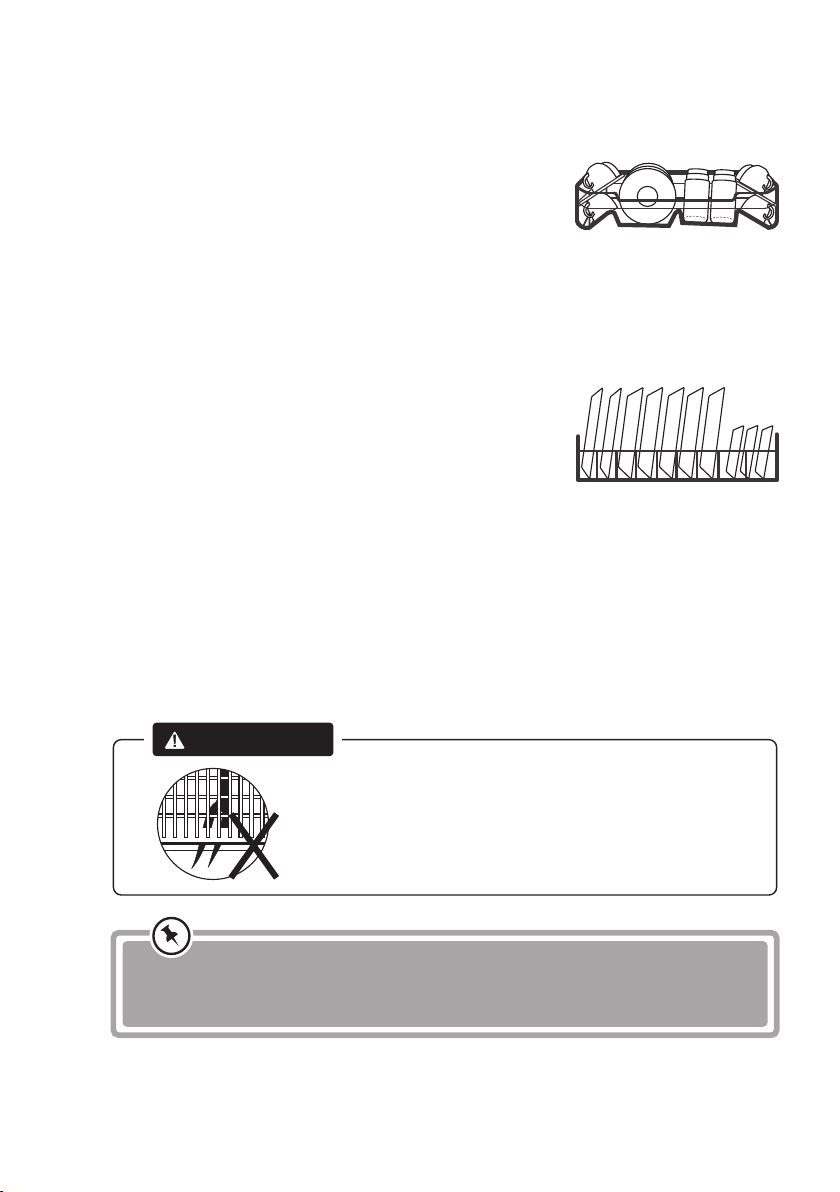

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

raise upwards fold backwards

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Coarse filterCoarse filter

Main filter Main filter

OpenOpen

1 2

Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

3 4

Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

Fine filter

The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

Wash the arms in soapy and warm

water and use a soft brush to clean the jets.

To remove the lower spray arm, pull out the spray arm upward.

Caring For The Dishwasher

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.for a while

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTION

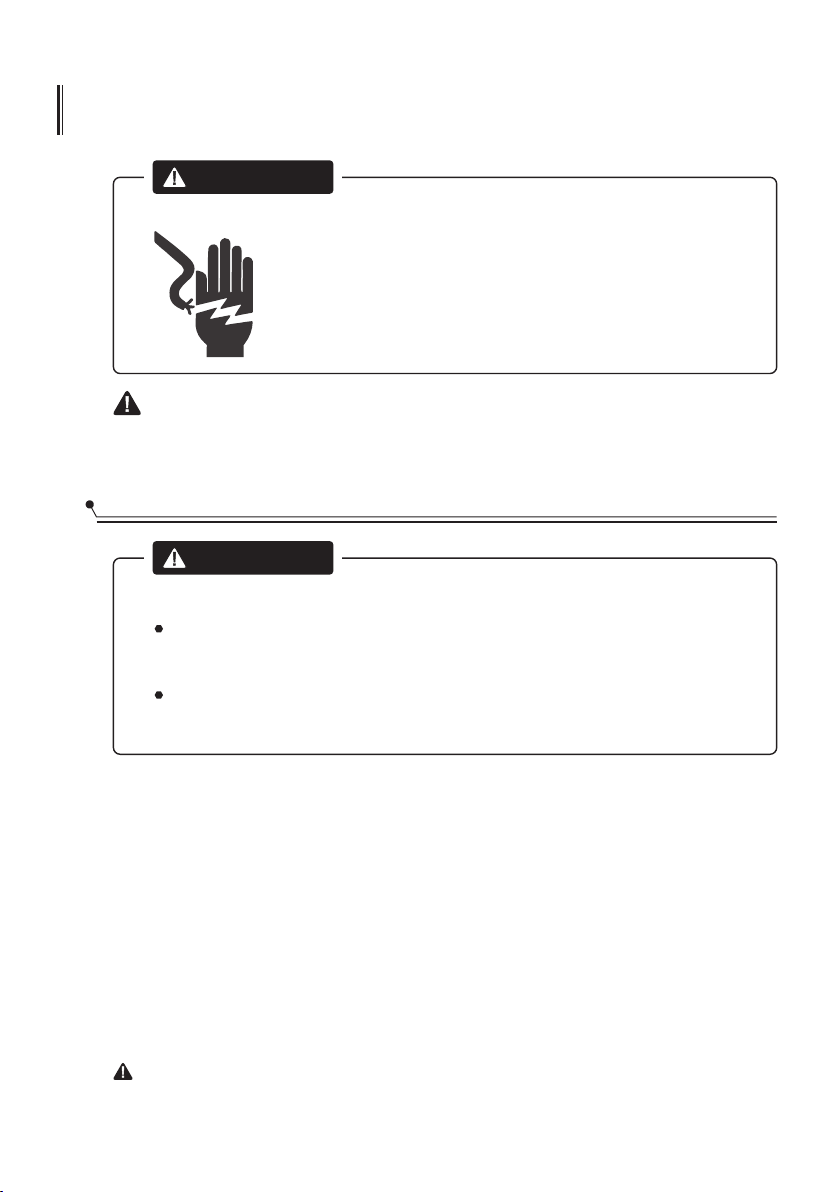

WARNING

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

About Power Connection

WARNING

For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

About the safety supply hose

The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

ordinary supply hose

safety supply hose

A hose that attaches to can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

a tap

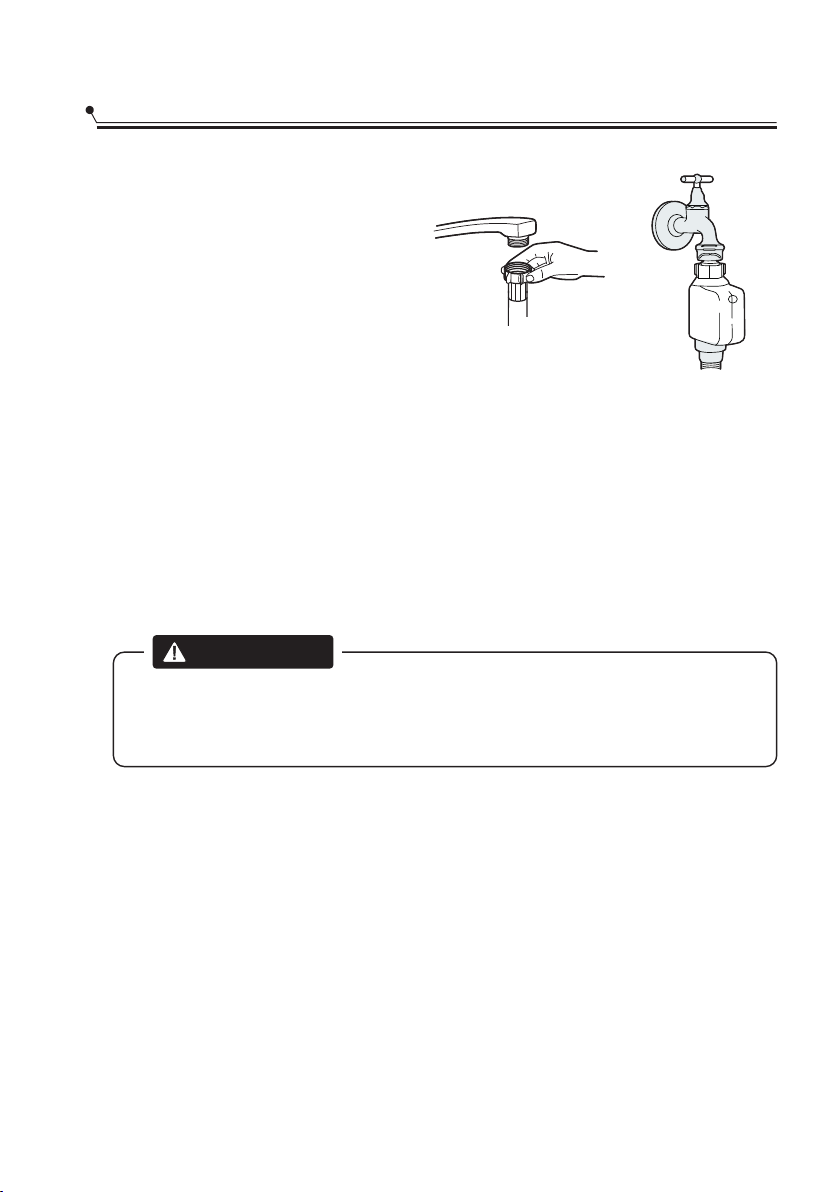

How to connect the safety supply hose

the

1. Pull safety supply hoses out from storage compartment located at rear of dishwasher.

Tighten

2. the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn water fully on before starting the dishwasher.

the

How to disconnect the safety supply hose

1. Turn off the water.

2. Unscrew the safety supply hose from the faucet.

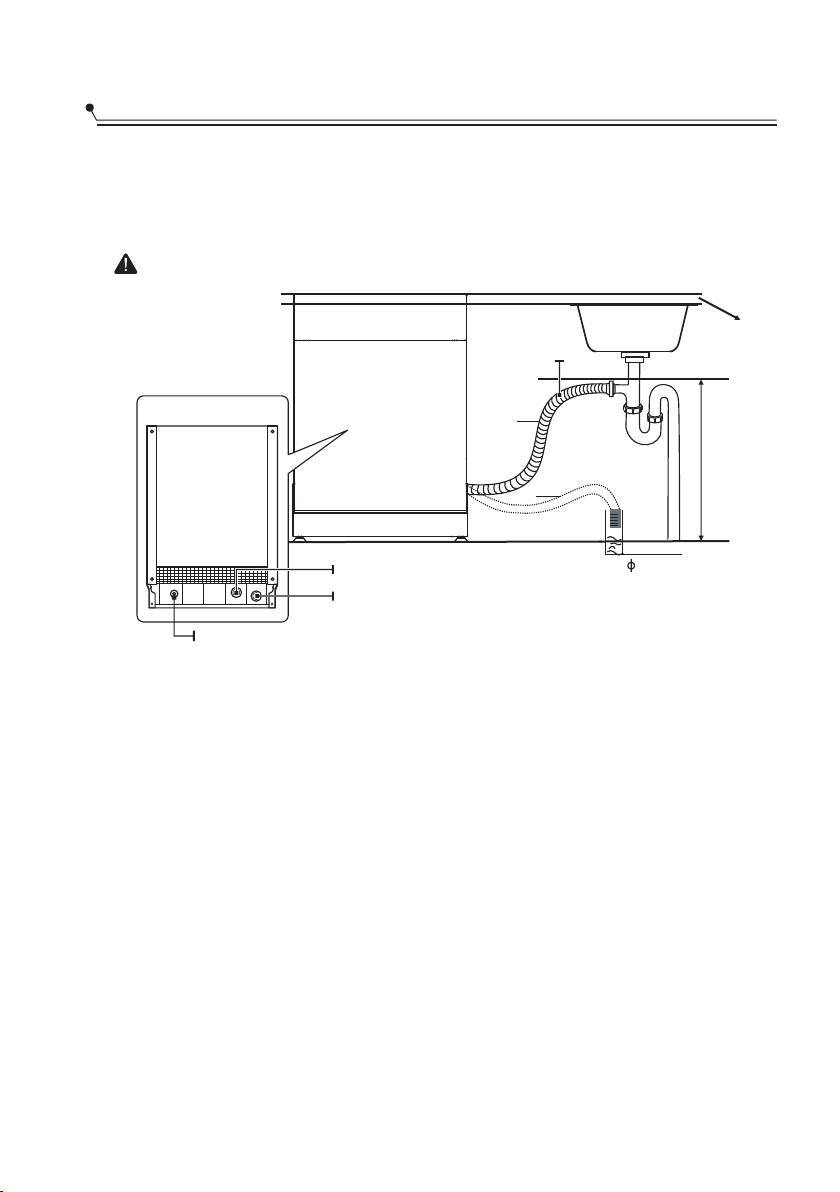

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

Counter

MAX 1000 mm

Back of dishwasher

Mains Cable

Drain hose

Water Inlet

Drain Pipe

40 mm

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. the hose It will be necessary to drain excess water from

into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher

could be reduced.

Syphon connection

The waste connection must be at a height less than (maximum) from the bottom of the .

dishwasher

1000 mm

Positioning The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

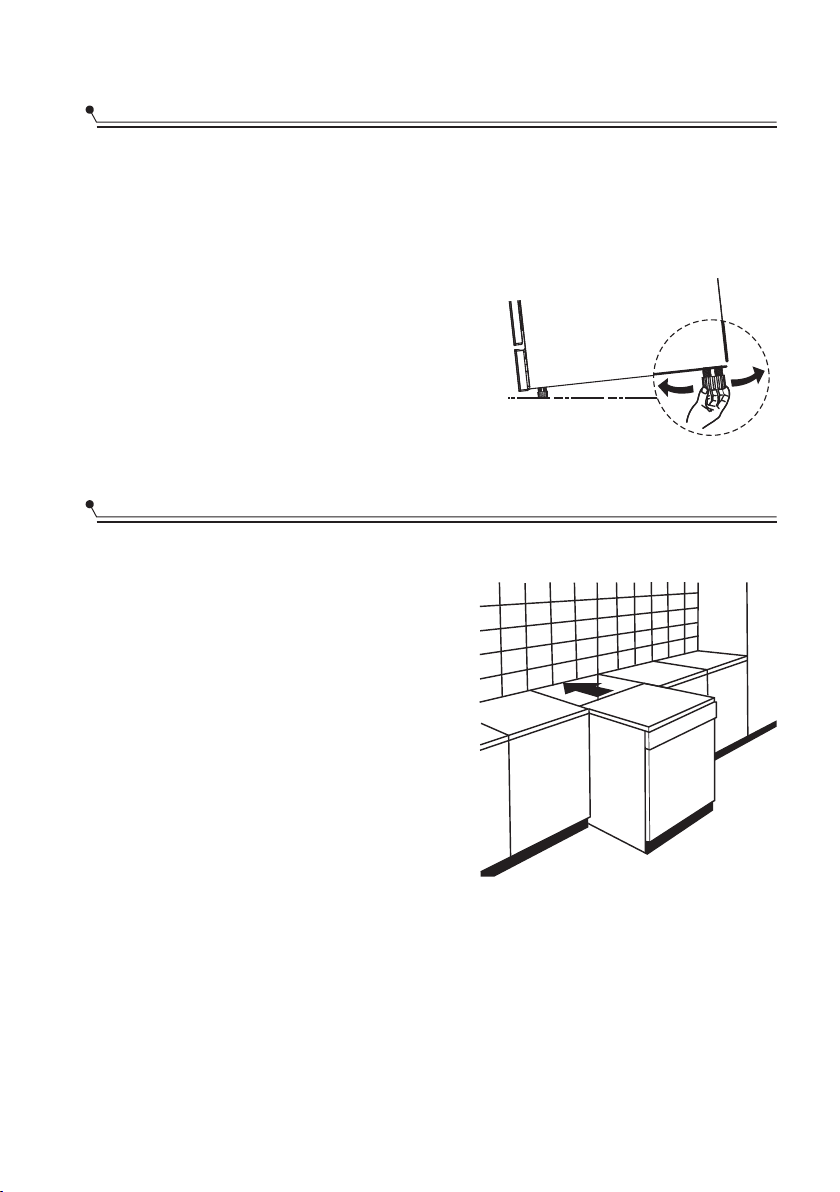

Levelling the appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.

In any case, the appliance should not be inclined more than 2°

Free Standing Installation

Fitting between existing carbinets

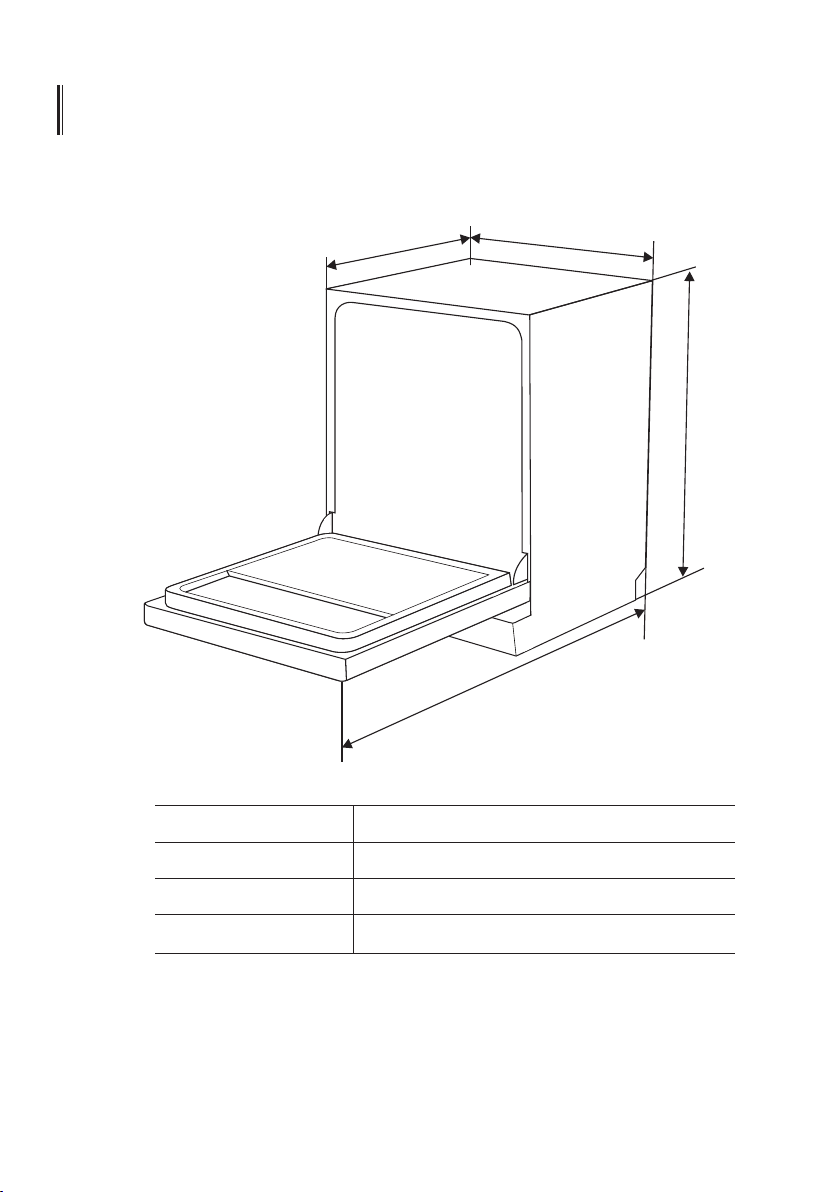

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one

single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

Attention

After removing the work top, the screws must be screwed again under the rear edge of the top (b).

Built-In Installation (for the integrated model)

Step 1. Selecting the best location for the dishwasher

The installation position of dishwasher should be near the existing inlet and drain

hose socket

and power .

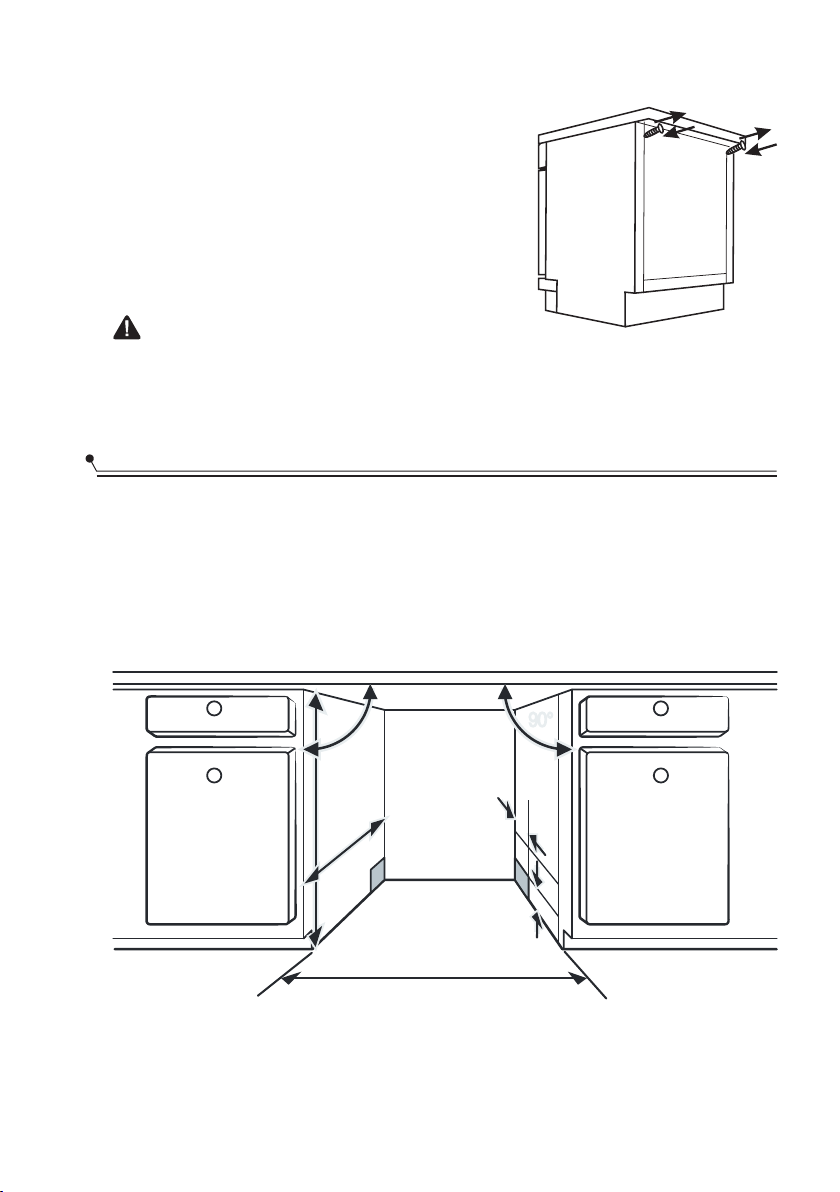

Illustrations of cabinet dimensions and installation position of the dishwasher.

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

the

90 °

Electrical, drain

820mm820mm

580mm580mm

Electrical, drain

and water supply

line connection

Space between cabinet

bottom and floor

600 mm(for 60cm m odel)

450 mm(f or 45cm model)

90 °

8080

100100

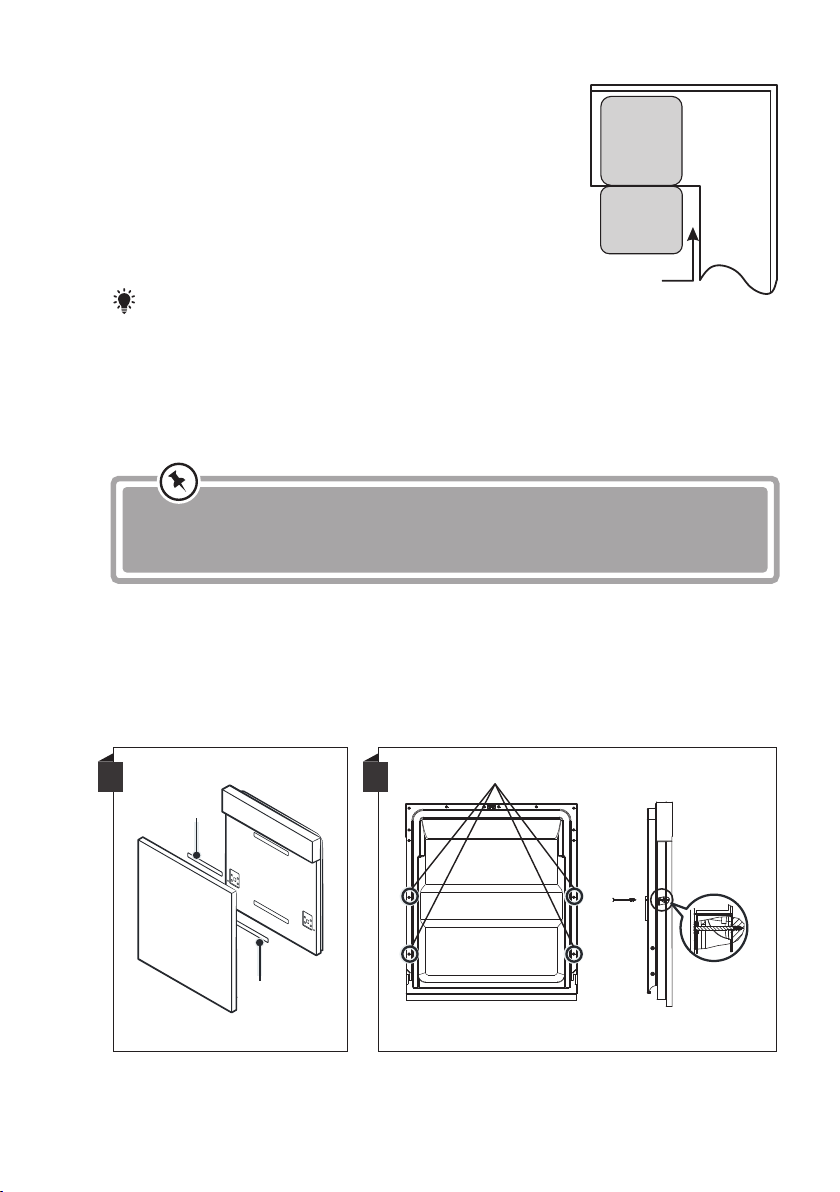

2. If dishwasher is at the corner of the cabinet,

installed

there should be some space when the door is opened.

CabinetDishwasher

Door of dishwasher

Minimum space

of 50mm

NOTE:

Depending on where your electrical outlet is, you may need to cut a hole in the

opposite cabinet side.

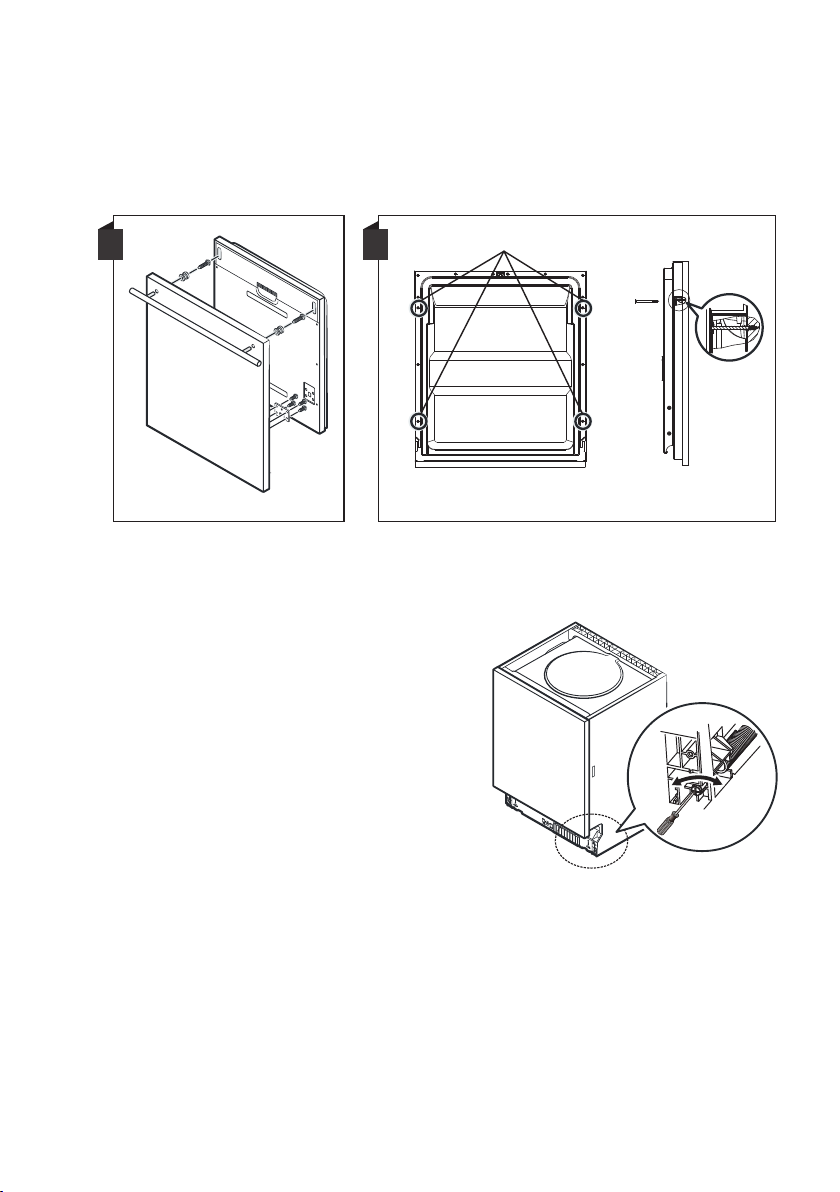

Step 2. Aesthetic panel's dimensions and installation

Follow the specific installation instruction for attaching the

aesthetical door panel.

Semi-integrated model

Seperate velcro stripe A and velcro stripe B and attach velcro stripe A on the inner side of the aesthetic panel. Attach the felted velcro stripe B on the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by

screws and bolts (See figure B) .

Velcro stripe

1.Take away the four short screws

2.Pin up the four long screws

Fully-integrated model

Install the hook on the aesthetic panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B).

1.Take away the four short screws

2.Pin up the four long screws

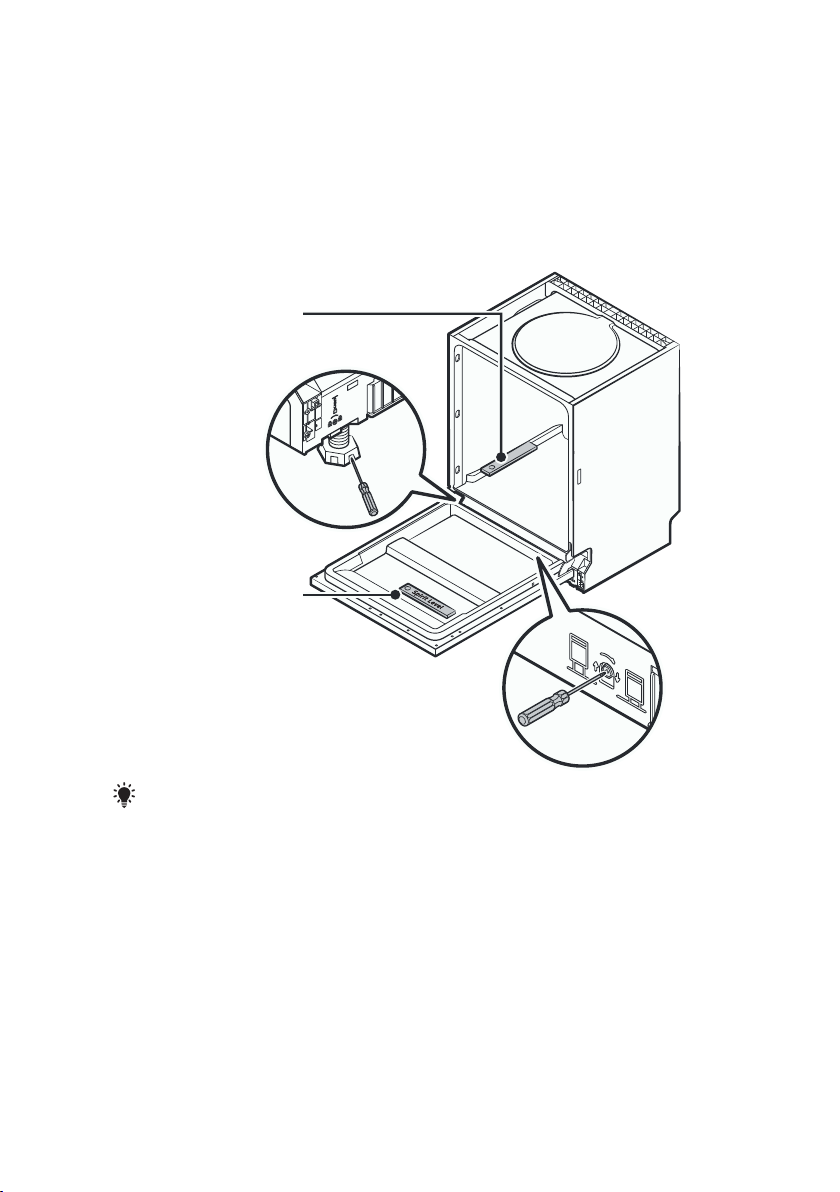

Step 3. Tension adjustment of the door spring

1. The door springs are set at the factory to

the proper tension for the outer door. If aesthetic panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable.

2. Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

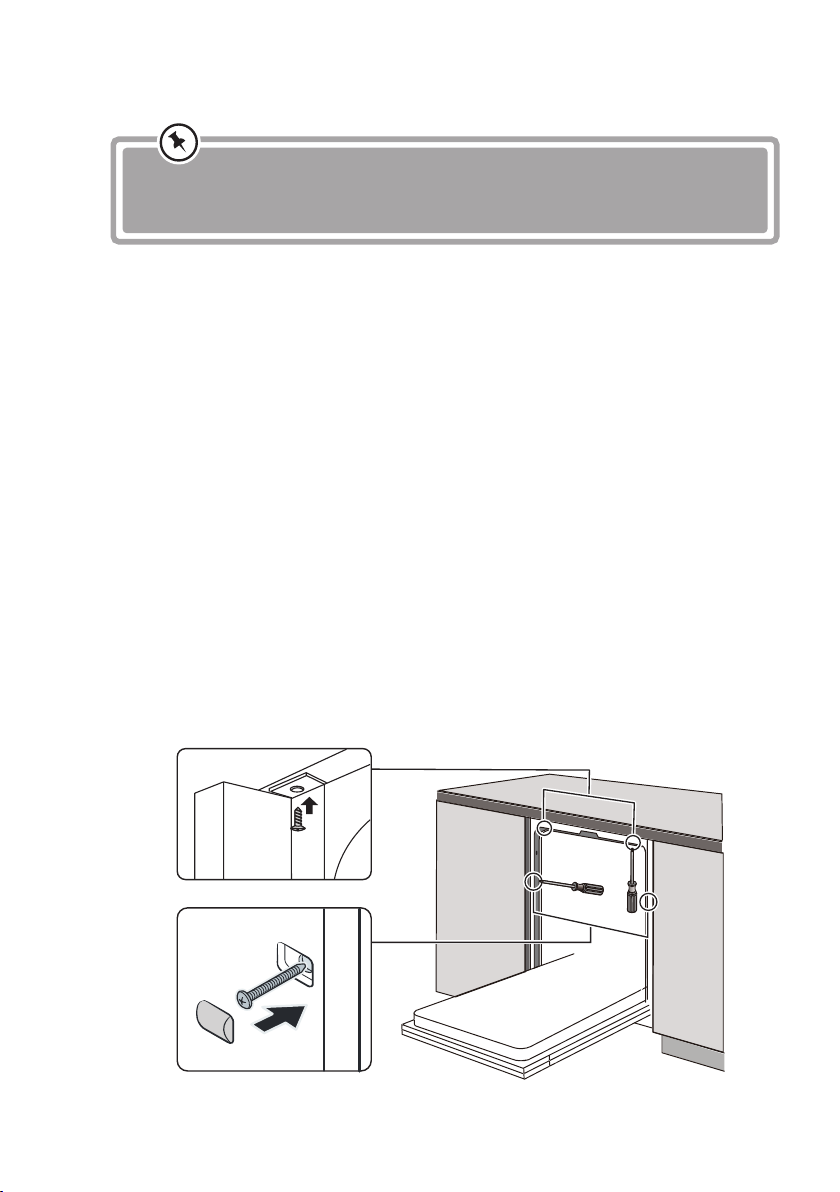

Step 4. Dishwasher installation steps

Please refer to the specific installation steps in the installation

Please refer to the installation steps in the installation

drawings.

1. Affix the condensation strip under the work surface of cabinet. Please ensure the

condensation strip is flush with edge of work surface. (Step 2)

2. Connect the inlet hose to the cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into

6. Level the dishwasher. The rear foot can be adjusted from the front of the

dishwasher by turning the Philips screw in the middle of the base of dishwasher

a driver

use Philips screw . To adjust the front feet, use a flat screw driver and turn

the front feet until the dishwasher is level. (Step 5 to Step 6)

7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 10)

8. Adjust the tension of the door springs by using turning in a

clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher. (Step 11)

9. The dishwasher must be secured in place. There are two ways to do this: A. Normal work surface: Put the installation hook into the slot of the side plane

and secure it to the work surface with

B. Marble or granite work top: Fix the side with .

specific

the cabinet.

a Philips screw driver

the screws.

screws

Step 5. Levelling the dishwasher

Dishwasher must be level for proper dish rack operation and wash performance.

Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling individually.

When level the dishwasher, please pay attention not to let the dishwasher tip over.

Check level front to back

Check level side to side

feet

DOWN

NOTE:

The maximum adjustment height of the feet is 50 mm.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do

Dishwasher doesn't start

Water not pumped form dishwasher

Foam in the tub Wrong detergent.

Fuse blown, or the circuit break tripped.

Power supply is not turned on.

Water pressure is low

Door of dishwasher not properly closed.

Twisted or trapped drain hose.

Filter clogged.

Kitchen sink clogged.

Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.

Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.

Check that the water supply is connected properly and the water is turned on.

Make sure to close the door properly and latch it.

Check the drain hose.

Check .the filter system

Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers.

Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary.

liter

Problem Possible Causes What To Do

Spilled .rinse aid Always wipe up spills

Stained tub interior Detergent with

colourant may have been used.

White film on inside surface

There are rust stains on cutlery

Hard water minerals. To clean the interior, use

The affected items are not corrosion resistant.

A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.

The lid of the softer is loose.

rinse aid

immediately.

Make sure that the detergent has no colourant.

the damp soft cloth

and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.

Avoid washing items that are not corrosion resistant in the dishwasher.

Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.

Check the softener lid is secure.

with dishwasher detergent

Knocking noise in the dishwasher

Rattling noise in the dishwasher

Knocking noise in the water pipes

The dishes are not clean

A spray arm is knocking against an item in a basket

Items of crockery are loose in the dishwasher.

This may be caused by on-site installation or the cross-section of the piping.

The dishes were not loaded correctly.

The program was not powerful enough.

Interrupt the program and rearrange the items which are obstructing the spray arm.

Interrupt the program and rearrange the items of crockery.

This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.

See PART Ⅱ “Preparing And Loading Dishes”.

Select a more intensive program.

Problem Possible Causes What To Do

The dishes are not clean.

Cloudiness on glassware.

White spots appear on dishes and glasses.

Black or grey marks on dishes

Not enough detergent was dispensed.

Items are blocking the movement of the spray arms.

The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.

Combination of soft water and too much detergent.

Hard water area can cause limescale deposits.

Aluminium utensils have rubbed against dishes

Use more detergent, or change your detergent.

Rearrange the items so that the spray can rotate freely.

Clean and/or fit the filter correctly. Clean the spray arm jets.

Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.

Check water softener settings or fill status of salt container.

Use a mild abrasive cleaner to eliminate those marks.

Detergent left in dispenser

The dishes aren't drying

Dishes block detergent dispenser

Improper loading

Dishes are removed too soon

Re-loading the dishes properly.

Use gloves if detergent residue can be found on dishes to avoid skin irritations.

Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.

Problem

The dishes aren't drying

Possible Causes What To Do

Wrong program has been selected.

With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.

Use of cutlery with a low-quality coating.

Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

WARNING

Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

Availability Of Spare Parts

Seven years after placing the last unit of the model on the market:

Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

Ten years after placing the last unit of the model on the market:

Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

LOADING THE BASKETS ACCORDING TO EN50242:

Loading the dishwasher to its full capacity will contribute to energy and water savings.

1.Upper basket:

2.Lower basket:

88 77 77 88

1010

Number

Cups

Saucers

Glasses

Small serving bowl

Medium serving bowl

Large serving bowl

Dessert plates

Dinner plates

Soup plates

Item

77 9999

Oval platter

3.Cutlery rack:

1 32 6444 5 7 8

Information for comparability tests in accordance with EN50242 Capacity: 14 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

Number

Item

Soup spoons

Forks

Knives

Tea spoons

Dessert spoons

Serving spoons

Serving fork

Gravy ladle

Cutlery Rack Used Tips

Lift the left basket up, adjust it to lower position, left basket is flat and right basket is sideling.

Lift the right basket up, both left and right baskets are flat.

Move the right basket from right to left, two basket are overlapping.

Remove the right basket from the tray, only has the left basket.

CONTENTS

USING YOUR DISHWASHER

Control Panel Water Softener

Preparing And Loading Dishes

Function Of The Rinse Aid And Detergent

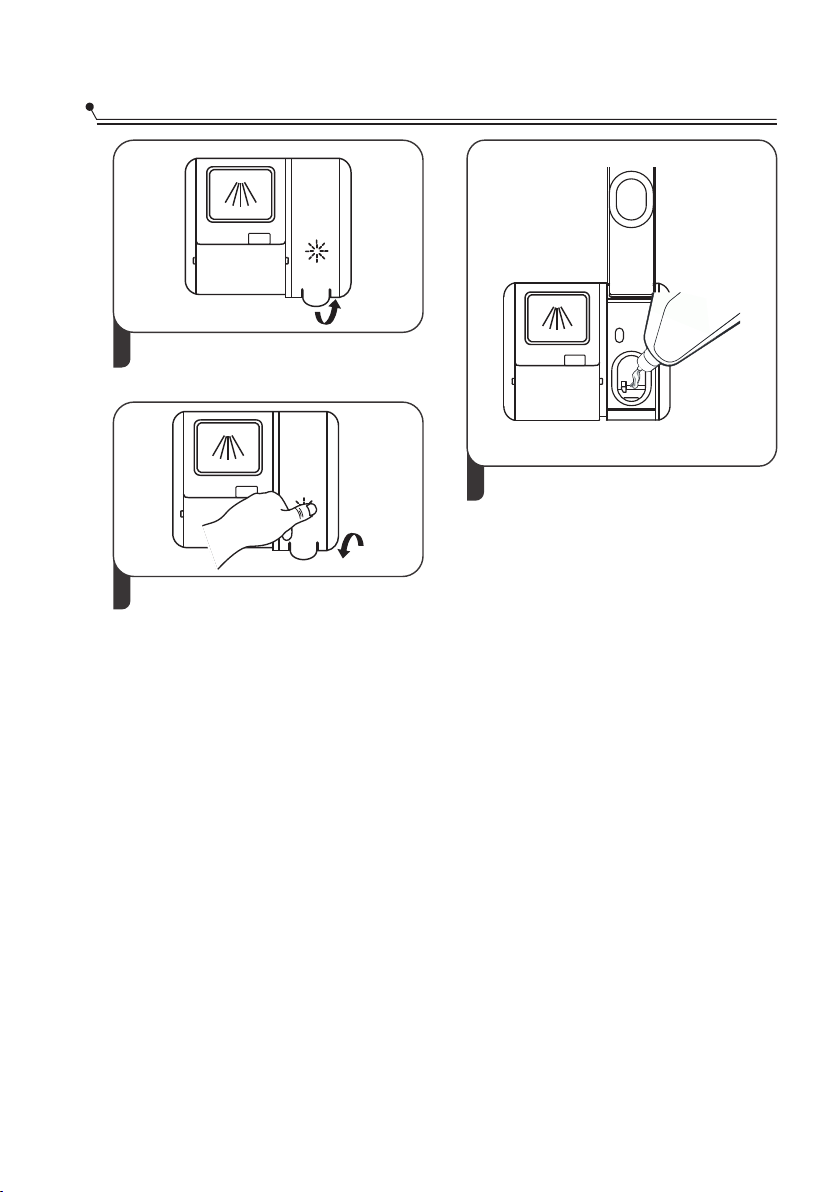

Filling The Rinse Aid Reservoir

Filling The Detergent Dispenser

PROGRAM SELECTION

Wash Cycle Table

Saving Energy

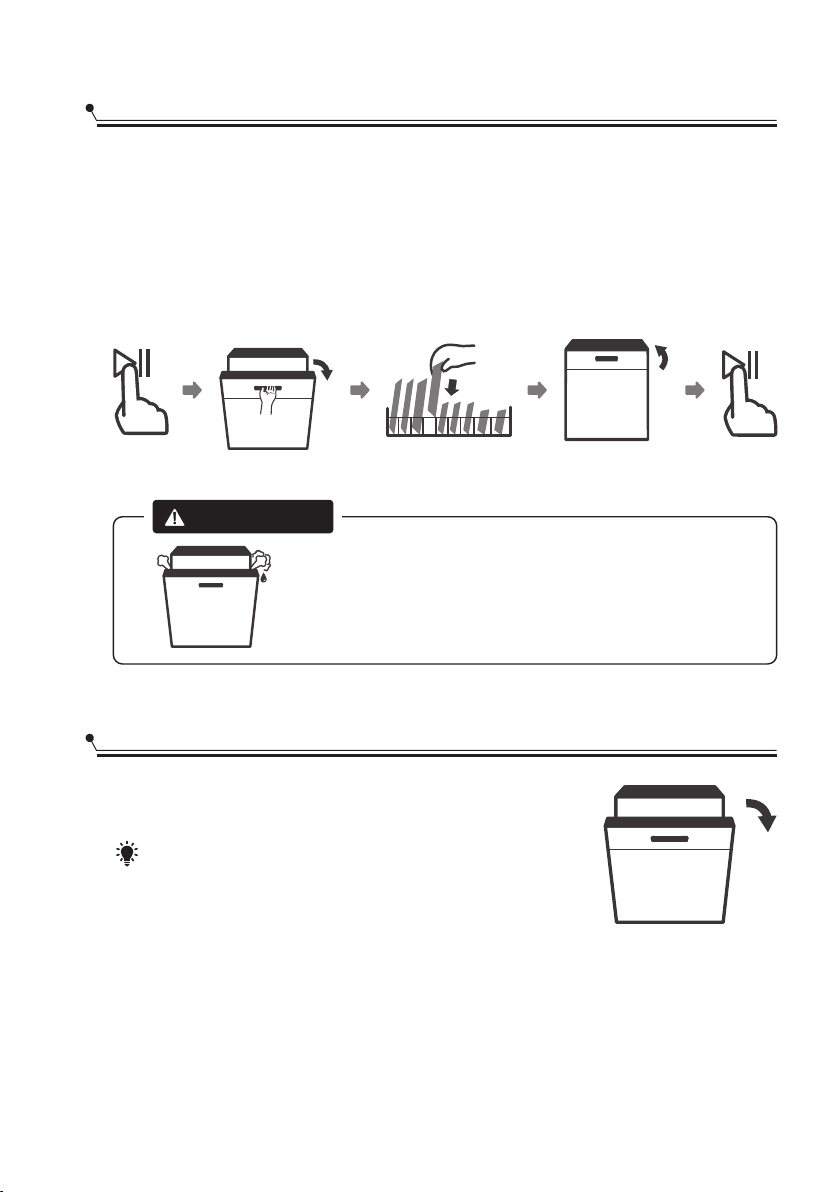

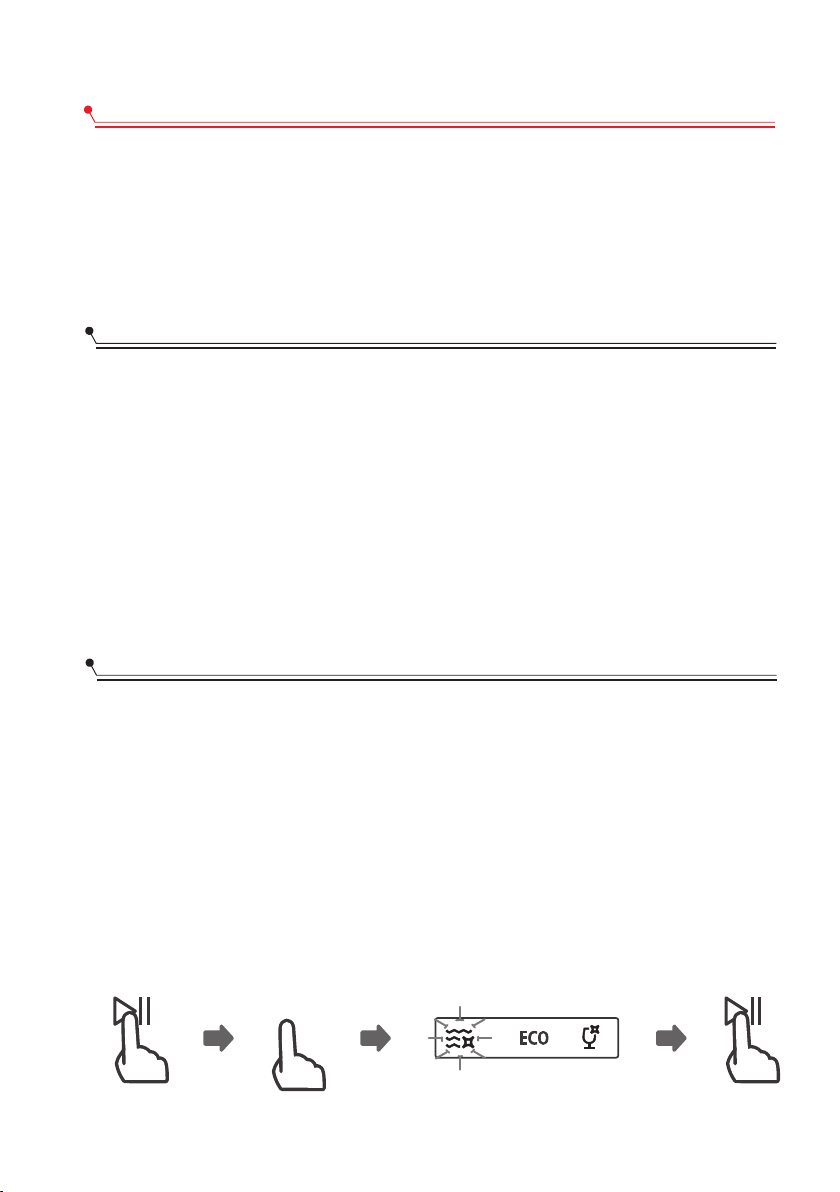

Starting A Program

Changing The Program Mid-cycle

Forget To Add A Dish?

Auto Open

ERROR CODES

TECHNICAL INFORMATION

NOTE:

If you cannot solve the problems by yourself, please ask for help from a professional technician. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Install the dishwasher

(Please check the section 5 “INSTALLATION INSTRUCTION ”

of PART Ⅰ: Generic Version.)

Inside Outside

Remove larger residue from dishes. Avoid pre-rinsing.

Fill the dispenser with detergent and rinse aid.

Load the baskets.

Select a suitable program and start the dishwasher.

USING YOUR DISHWASHER

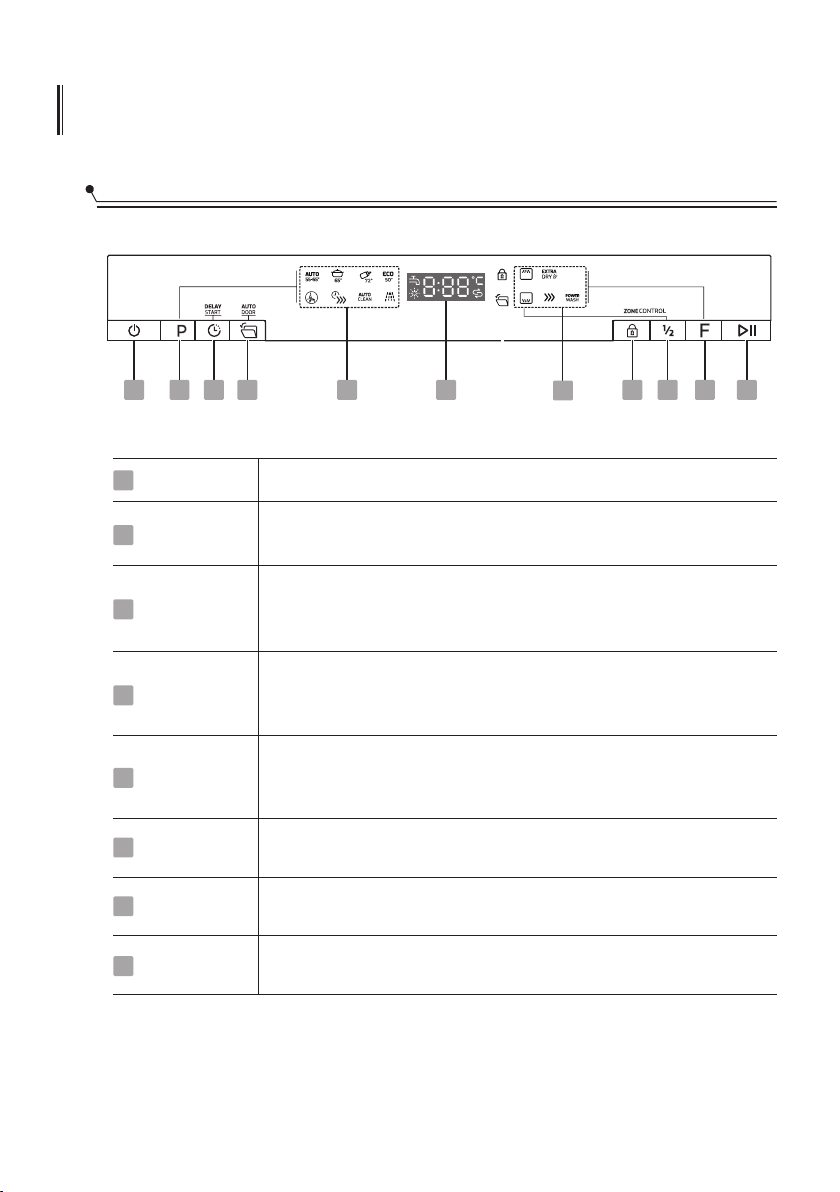

Control Panel

1 2 3 4 5 6 7 89 11

Operation (Button)

Power

Program

Delay

Auto open

Child lock

Alt

Function

Start/Pause8

Press this button to turn on your dishwasher.

Press this button to select the appropriate washing

the program

Press this button to set the delayed hours for washing. You can

delay the start of washing up to 24 hours. One press on this

button delays the start of washing by one hour.

When be selected, the dishwasher door opens automatically at the end of the program, which improves the drying results. This function is selected by default.

This option allows you to lock the buttons on the control panel, so children cannot accidently start the dishwasher by pressing the buttons on the panel. Only the Power button remains active.

Press the button to select either upper basket or lower basket loaded, and the corresponding indicator will light up.

Press the button to select a function, corresponding indicator will be lit.

Press the button to start the selected washing program or pause the working program.

indicator will be lit.

program,

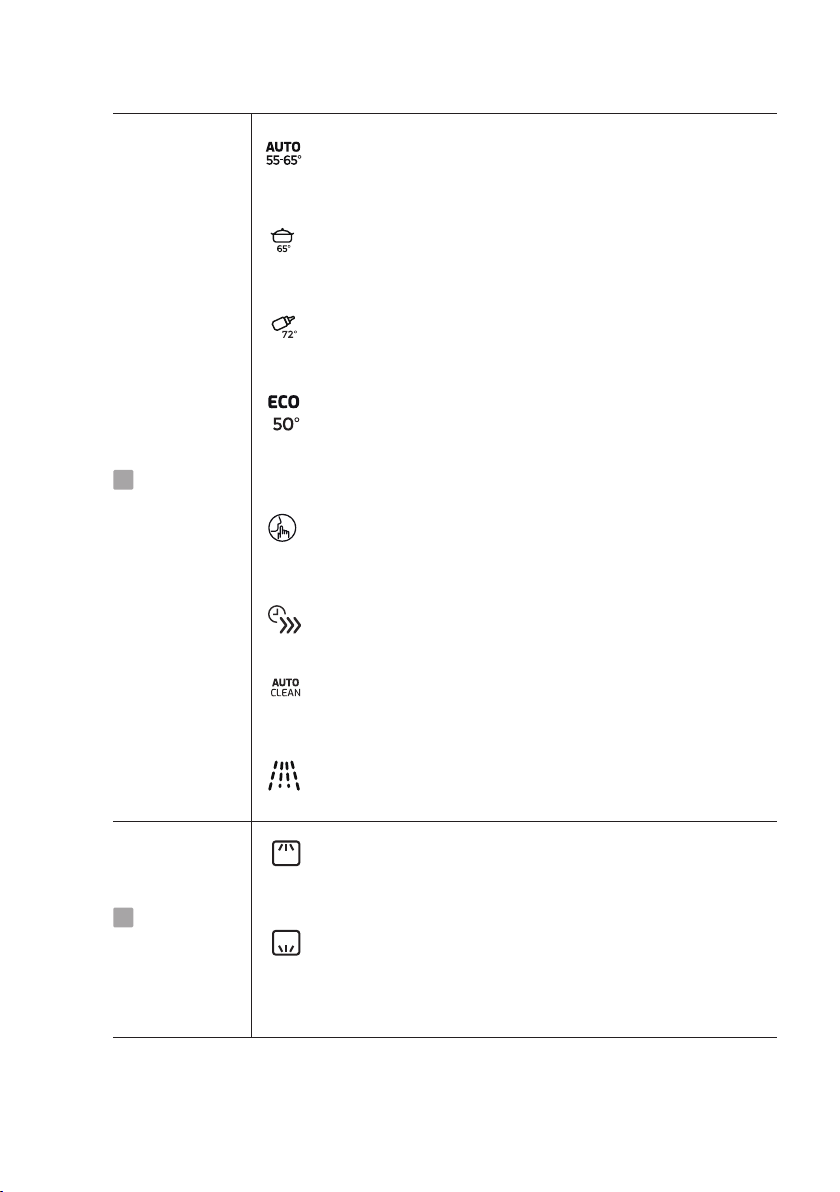

Display

Program

Auto

Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.

Intensive

For the heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food.

Hygiene Use to sanitize your dishes and glassware. Maintains the water temperature at 7 ℃2 .

ECO This is the standard program suitable for normally

soiled loads, such as pots, plates, glasses and lightly soiled pans.

Whisper Lower noise and normally energy consumption, used for

washing in evening.

1 hour For normally soiled loads that need quick wash.

Function

Self-Cleaning This program provides an effective cleaning of the

dishwasher itself.

Soak To rinse dishes that you plan to wash later that day.

Upper

When you select Upper, only the dishes in the upper rack will be washed. The spray system of the lower basket will not operate.

Lower

When you select Lower, only the dishes in the lower rack will be washed. The spray system of the upper basket will not operate.

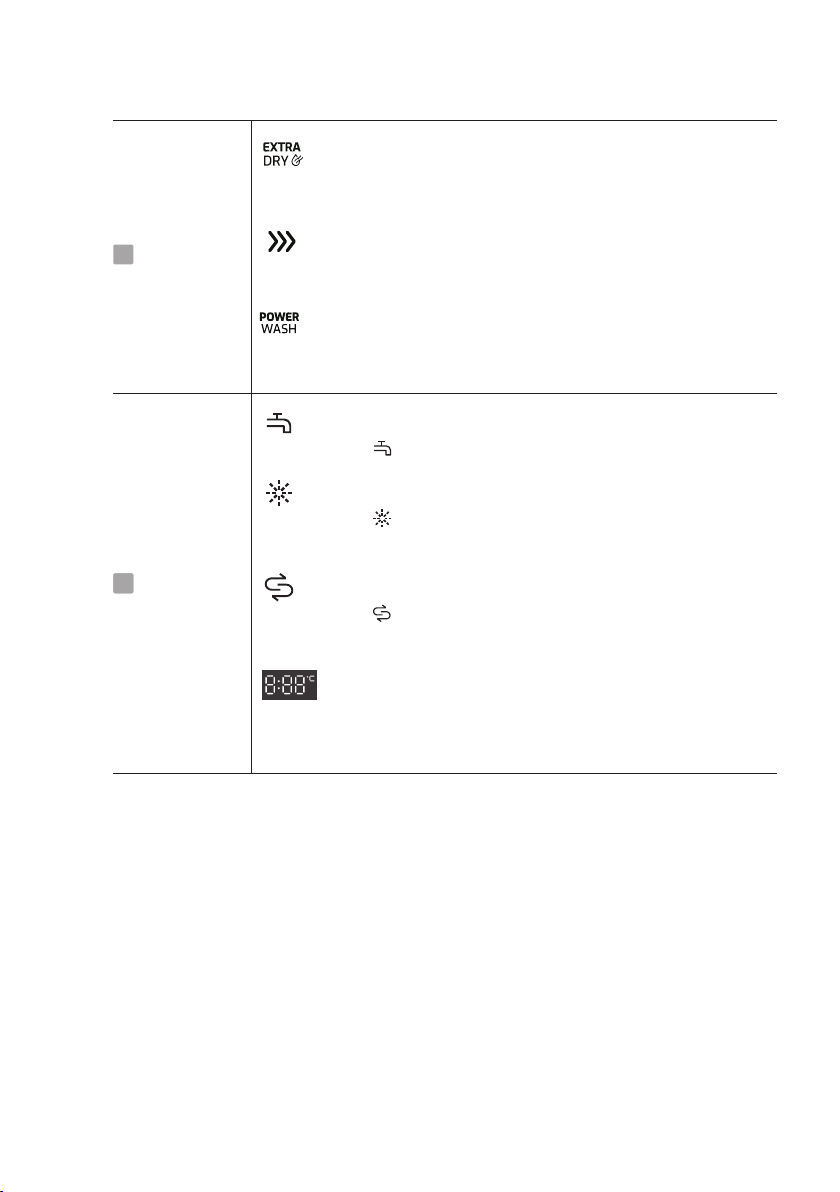

Display

Function

Extra Drying For better drying result. (It can only be used with Intensive, Hygiene, ECO, Whisper, 1 hour)

Express Reduce the program time. (It can only be used with Intensive, Hygiene, ECO, Whisper, 1 hour)

Power Wash

To wash very dirty, hard to clean dishes. (It can only be used with Intensive, Hygiene, ECO, Whisper, 1 hour)

Water Faucet If the “ ” indicator is lit, it means the water faucet closed.

Rinse Aid If the “ ” indicator is lit, it means the dishwasher is low

on dishwasher rinse aid and requires a refill.

Screen611

Salt If the “ ” indicator is lit, it means the dishwasher is low

on dishwasher salt and needs to be refilled.

To show the and delay time, error code etc.

remaining program time

Water Softener

The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. the door, on the appliance;

Open

Within 60 seconds after the appliance was switched on press the

button

for more than 5 seconds to enter the water softener setting mode.

3. Press the to select the proper set according to your local environment, the will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Press the Power button to end the ..

switch

program button

setting

program

again

setting mode

WATER HARDNESS

German

0 - 5

6 - 11

12 - 17

18 - 22

23 - 34

35 - 55

dH=1.25 Clarke=1.78 fH=0.178mmol/l

French

0 - 9

10 - 20

21 - 30

31 - 40

41 - 60

61 - 98

British

Clarke

0 - 6

7 - 14

15 - 21

22 - 28

29 - 42

43 - 69

Mmol/lMmol/l

0 - 0.94

1.0 - 2.0

2.1 - 3.0

3.1 - 4.0

4.1 - 6.0

6.1 - 9.8

Water softner

level

Regeneration occurs

every X program

sequence

No regeneration

Salt consumption

(gram/cycle)

The setting: H3factory

Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes.

Please check the section 3 “Loading The Salt Into The Softener”

of PART Generic Version, If your dishwasher lacks salt.Ⅰ:

of PART Ⅰ: Generic Version, If your dishwasher lacks salt.

NOTE:

If your model does not have any water softener, you may skip this section. Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Preparing And Loading Dishes

Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres

Are of limited suitability

Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolor during washing Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:

Items such as cups, glasses, pots/pans, etc. are faced downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and

cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Loading the lower basket

We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids,

serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Loading the cutlery basket

Cutlery should be placed in the cutlery basket separate from each other in the

appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

WARNING

Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to standard

loading options on last section of PART Generic VersionⅠ:

loading options on last section of PART Ⅰ: Generic Version

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid

The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used.

The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser.

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.

Do not fill detergent into the dispenser until you are ready to start the dishwasher

Dishwasher detergent is corrosive!Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

Remove the rinse reservoir cap by lifting up the handle .

Pour the rinse aid into the dispenser, being careful not to overfill.

Close the cap after all.

Adjusting the rinse aid reservoir

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

Close the door and switch on the appliance

1. .

2. Within 60 seconds after press the Power button, press the Program button

more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

3. Press the Program button to select the proper set according to your using habits, the sets will change in the following sequence: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.

4. Without operation in 5 seconds or press the Power button to exit the set model, the set success.

Filling The Detergent Dispenser

Sliding it to the right

Press down

Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

Please choose an open way according to the actual situation.

1. Open the cap by sliding the release catch.

2. Open the cap by pressing down the release catch.

Close the flap by sliding it to the front and then pressing it down.

NOTE:

Be aware that depending on the soiling of water, setting may be different. Please observe the manufacturer's recommendations on the detergent packaging.

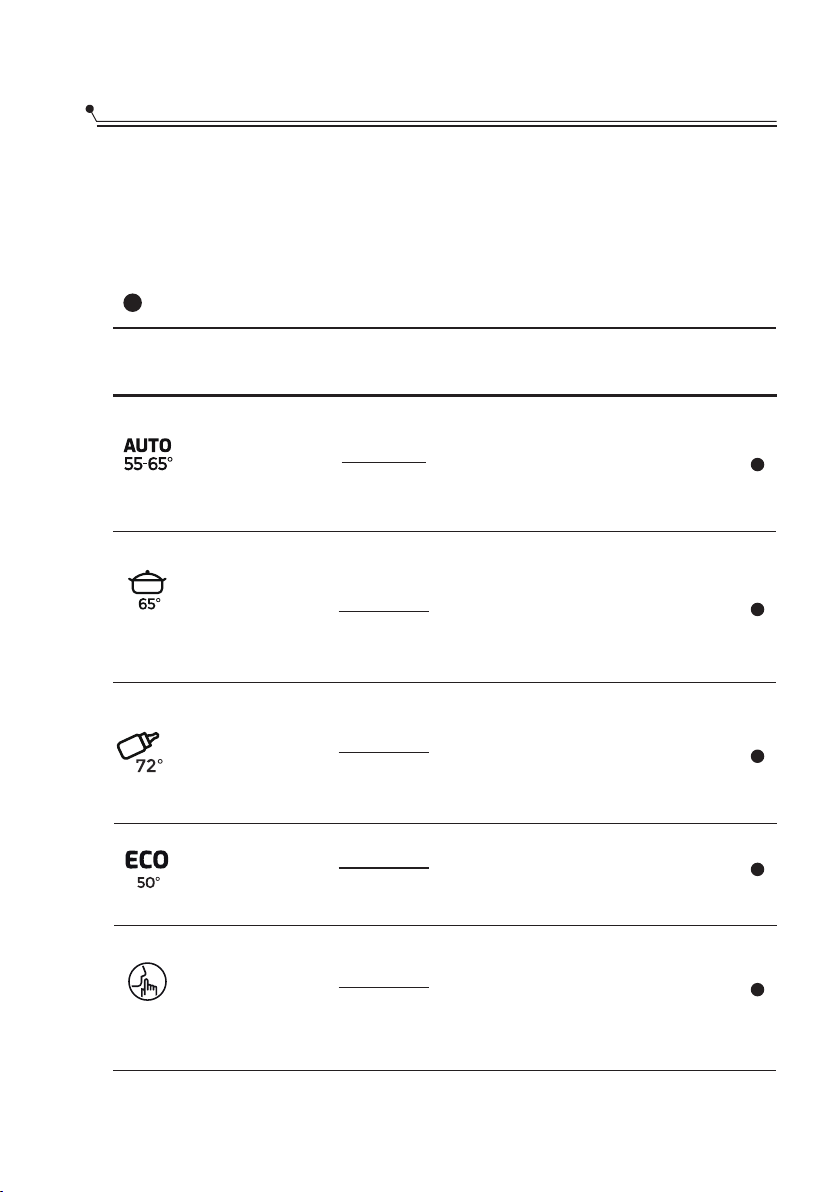

Wash Cycle Table Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except

for ECO program.

( ) indicates that the program uses rinse aid in the last rinse.

Program

Intensive

(*EN

50242)

Description

Of Cycle

Prewash(45℃) Wash(55-65℃) Rinse Rinse(50-55℃) Drying

Prewash(50℃) Wash(65℃) Rinse Rinse Rinse(60℃) Drying

Prewash(50℃) Wash(72℃) Rinse Rinse Rinse(72℃) Drying

Wash(50℃) Rinse Rinse(50℃) Drying

Detergent

Pre/Main Wash

5/30g

1 or 2tabs

5/30g

1 or 2tabs

5/30g

1 or 2tabs

5/30g

1 or 2tabs

Running

Time(min)

85-150 1.050-1.551

205 1.651 16.5

215 1.800 18.5

198 0.833

Energy

(kWh)

Water

(L)

10.6-15.9

10.0

Rinse

Aid

Whisper

Prewash(50℃) Wash(60℃) Rinse Rinse Rinse(50℃) Drying

5/30g

1 or 2tabs

270

1.362 16.8

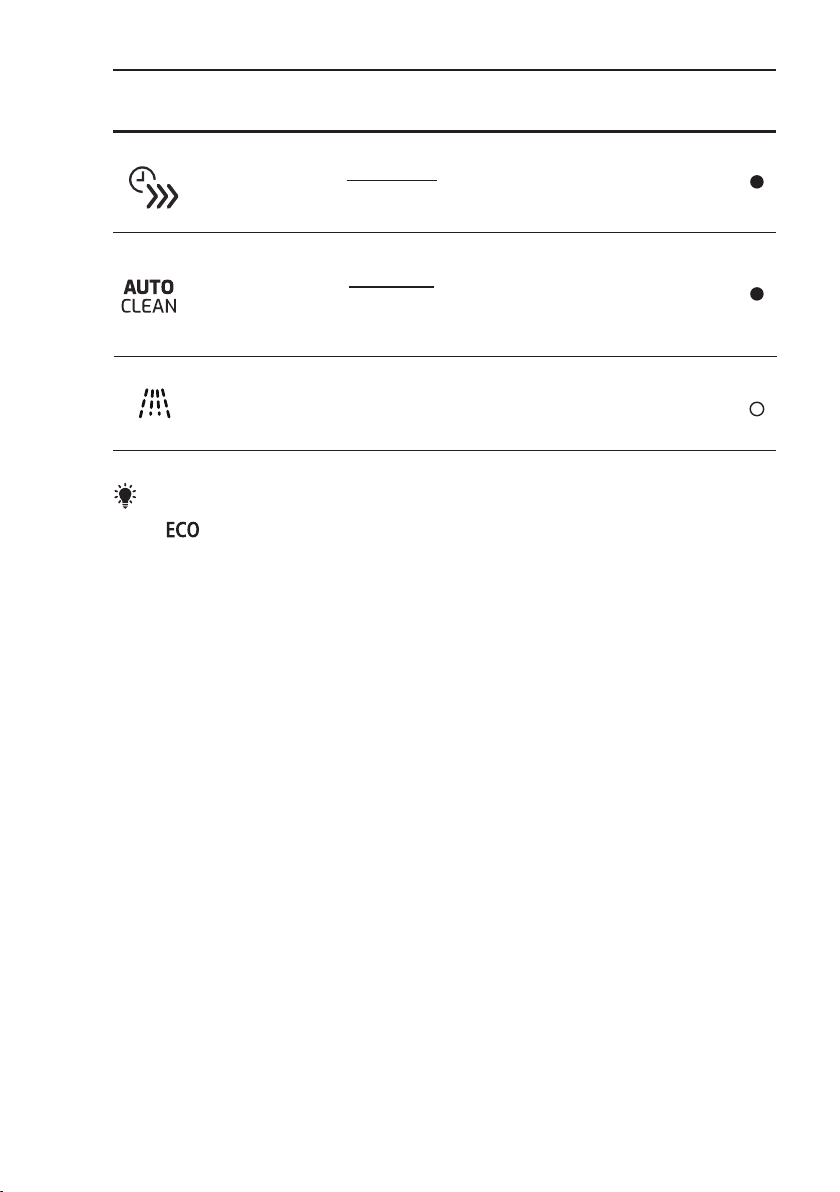

Program

Description

Of Cycle

Detergent

Pre/Main Wash

Running

Time(min)

Energy

(kWh)

Water

(L)

Rinse

Aid

NOTE:

(*EN50242)

Wash(55℃) Rinse Rinse(50℃) Drying

Pre-wash(45℃) Wash(70℃) Rinse Rinse(70℃) drying

Soak

This program is the test cycle. The information for comparability test in

1 tab

5/30g

1 or 2tabs

145

0.853

1.241

0.021

11.5

15.1

4.0

accordance with EN50242.

Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption

and is not recommended.

2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Starting A program

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page”Product fiche”.

Make sure that the water supply is turned on to full pressure.

4. Close the door, press the Power button, to switch on the machine.

5. Choose a program, the response light will turn on. Then press the Start/Pause

button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled.

dishwasher, follow the instructions below:

1. Open the door a little to stop the dishwasher, after the spray arm working, you can open the door completely.

2. Press Program button more than three seconds the machine will be in program selection mode.

3. You can change the program to the desired cycle setting.

3 sec

To reset the

stopped

Program

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

2. After the spray arms working, you can open the door completely.

3. Add the forgotten dishes.

4. Close the door.

5. Press the Start/Pause button after 10 seconds, the dishwasher will start.

After 5 sec

WARNING

stopped

It is dangerous to open the door mid-cycle, as hot steam may scald you.

Auto Open

After washing, the door will open automatically to achieve better drying effect.

NOTE:

The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

ERROR CODES

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Codes

Meanings

Longer inlet time.

Not reaching required temperature.

Overflow.

Failure of communication between main with display

circuit board

circuit board.

Possible Causes

Faucets is not opened, or water intake is restricted, or water pressure is too low.

Malfunction of heating element.

Some element of dishwasher leaks.

Open c ircuit or break wir ing for the co mmunication

WARNING

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

If there is an error code that cannot be solved, please request professional assistance.

TECHNICAL INFORMATION

Height (H)

815mm

D2D 2

Width (W)

Depth (D1)

Depth (D2)

598mm

570mm (with the door closed)

1175mm (with the door opened 90°)

Product fiche (EN50242)

Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:

Manufacturer

Type / Description

Standard place settings

Energy efficiency class

Annual energy consumption

Energy consumption of the standard cleaning cycle

Power consumption of off-mode

Power consumption of left-on mode

Annual water consumption

Drying efficiency class

Standard cleaning cycle

Program duration of the standard cleaning cycle

Noise level

Mounting

Could be built-in

Power consumption

TEKA

DSI 76850 SS

A+++

237 kWh

0 833 kWh ,

0 45 W,

0 49W,

2800 liter

ECO 50℃

198 min

44 dB(A) re 1 pW

Bult-in

YES

1760-2100W

Rated voltage / frequency

Water pressure (flow pressure)

220-240V/50Hz

0 04-1 0MPa=0 4-10 bar, , ,

NOTE：

A + + + (highest efficiency) to D (lowest efficiency)

Energy consumption based on 280 standard cleaning cycles using cold water fill and the

consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.

Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.

A (highest efficiency) to G (lowest efficiency)

This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.

www.teka.com

Teka DSI 76850 SS User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
