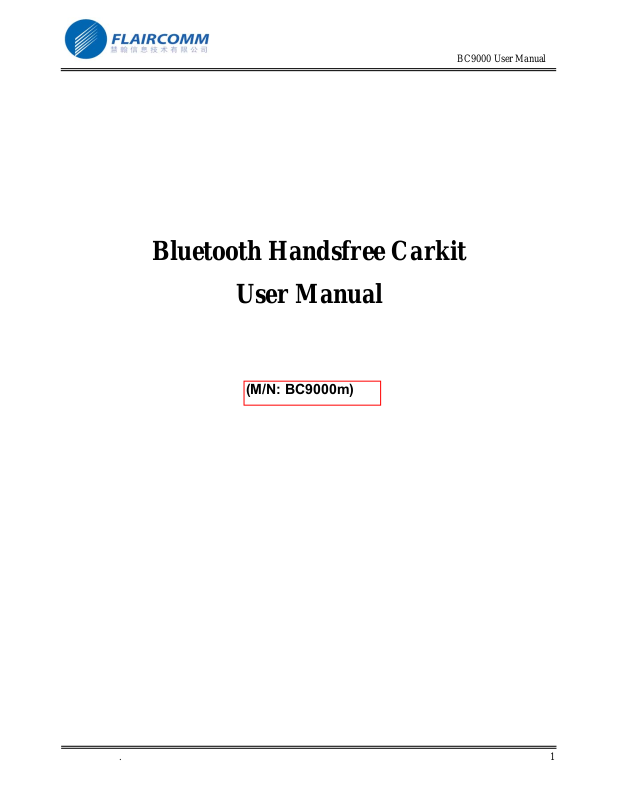

BC9000 User Manual

(M/N: BC9000m)

Bluetooth Handsfree Carkit

User Manual

Model： BC9000

. 1

BC9000 User Manual

Thank you for choosing our Bluetooth handsfree products. Please read this BC9000 User Manual before you use
this handsfree carkit. Flaircomm Technologies Inc. (hereinafter referred to as “The company”) reserves its rights to
make any changes and improvements to the product described in this document without prior notice.

Declaration:

Without written permission from original manufacturer, reproduction, transfer, distribution or storage of part or all
of the contents in this document in any form is prohibited.

Notice:

Please make sure your mobile phone supports Bluetooth profiles and network operator supports the functions
described in this manual, otherwise the relative functions cannot be realized on this handsfree device.

Safety:

z Before starting the installation, make sure that the car ignition is off.
z Before you install the individual components, check that the installation locations have been selected in such a

way that the cable length is sufficient to connect every element.

z Do not install any component in the airbag deployment area.
z Once the installation is complete, make sure that no cables are pinched or trapped.
z Make sure not to damage electrical cables, fuel or brake lines or safety equipment during the installation.
z Make sure not to impact the steering or braking system or other key systems essential for the proper operation

of the car when installing the carkit.

z The carkit may only be used at an operating voltage of 12V with the minus pole earthed. Failure to observe

this requirement may result in damage to the car’s electronics system.

z Use the accessories compatible with this device. The company is not responsible for any losses caused by

using other accessories.

z Check the laws and regulations on the use of mobile phones and carkit in the areas where you drive. Always

give full attention to driving, and pull off the road and park before making or answering a call if driving
conditions require.

z Do not allow children to play with your Bluetooth handsfree carkit since it contains small parts that could

become detached and create a choking hazard.

. 2

BC9000 User Manual

Certification and Safety Approvals

This product has been tested and found to comply with Bluetooth BQB requirements, part 15 of FCC rules,
R&TTE Directive（99/5/EC） of CE marked requirements, and approval on Bluetooth models of China
Wireless Communications Committee.

Warning: Users should not make changes on or modify the device in any way. Changes or modifications
without being expressly approved by the party responsible for compliance could void the user’s authority to
operate the device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

-Reorient or relocate the receiving antenna;

-Increase the separation between the equipment and receiver;

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

-Consult the dealer or an experienced radio/ TV technician for help.

RF exposure warning:

This equipment must be installed and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users
and installers must be provided with antenna installation instructions and transmitter operating conditions
for satisfying RF exposure compliance.

CE command：

ETSI EN 301 489-1 V1.6.1(2005-09);
ETSI EN 301 489-17 V1.2.1(2002-08);
ETSI EN 300 328 V1.7.1(2006-10);
IEC 60950-1:2001,EN 60950-1:2001+A11:2004

. 3

BC9000 User Manual

Contents：

BLUETOOTH HANDSFREE CARKIT.....................................................................................................1

USER MANUAL...........................................................................................................................................1

MODEL： BC9000 .......................................................................................................................................1

DECLARATION:..........................................................................................................................................2

NOTICE:........................................................................................................................................................2

SAFETY:........................................................................................................................................................2

CERTIFICATION AND SAFETY APPROVALS.....................................................................................3

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT........................3

RF EXPOSURE WARNING:.......................................................................................................................3

CE COMMAND： ........................................................................................................................................ 3

ETSI EN 301 489-1 V1.6.1(2005-09); ...........................................................................................................3

ETSI EN 301 489-17 V1.2.1(2002-08);..........................................................................................................3

ETSI EN 300 328 V1.7.1(2006-10);...............................................................................................................3

IEC 60950-1:2001,EN 60950-1:2001+A11:2004 ..........................................................................................3

1. INTRODUCTION................................................................................................................................. 6

1.1 BLUETOOTH TECHNOLOGY...................................................................................................................6

1.2 BLUETOOTH HANDSFREE CARKIT .........................................................................................................6

1.3 PRODUCT FEATURES.............................................................................................................................6

1.4 PACKAGE CONTENTS ............................................................................................................................6

2. BEFORE YOU BEGIN.........................................................................................................................8

2.1 CHECK THE CAR CONFIGURATION ........................................................................................................8

2.2 REMOVE THE CAR STEREO....................................................................................................................8

3. INSTALL THE CARKIT.....................................................................................................................9

3.1 INSTALL THE ELECTRONIC BOX ............................................................................................................9

3.2 INSTALL THE IN-CAR RADIO CABLE ....................................................................................................10

3.2.1 Connect in-car radio with «ISO» connectors.............................................................................10

3.2.2 Connect in-car radio with «line in» inputs.................................................................................11

3.3 INSTALL THE POWER SUPPLY CABLE...................................................................................................12

3.4 INSTALL THE MUSIC CABLE, THE MICROPHONE AND THE CONTROL UNIT............................................12

3.4.1 Music cable................................................................................................................................12

3.4.2 Microphone................................................................................................................................12

3.4.3 Control unit................................................................................................................................13

4. GET STARTED...................................................................................................................................14

4.1 NAVIGATE THROUGH THE MENUS.......................................................................................................14

4.2 PAIR/CONNECT YOUR PHONE WITH BLUETOOTH CARKIT ...................................................................14

4.2.1 Pair your phone with Bluetooth carkit.......................................................................................14

4.2.2 Disconnect your phone with Bluetooth carkit ...........................................................................14

4.2.3 Connect an already used phone with Bluetooth carkit...............................................................15

4.2.4 Delete paired records.................................................................................................................15

5. SYNCHRONIZE THE PHONEBOOK.............................................................................................16

5.1 AUTOMATIC SYNCHRONIZATION ........................................................................................................16

. 4

BC9000 User Manual

5.2 ORGINATE SYNCHRONIZATION FROM BLUETOOTH CARKIT ................................................................16

5.3 ORIGINATE SYNCHRONIZATION FROM PHONE.....................................................................................16

5.4 DELETE PHONEBOOK..........................................................................................................................16

6. CALL FUNCTIONS...........................................................................................................................17

6.1 MAKE A CALL.....................................................................................................................................17

6.2 RECEIVE A CALL .................................................................................................................................17

6.3 USE THE BC9000 WHILE ON A CALL...................................................................................................17

6.4 END A CALL........................................................................................................................................18

6.5 VOICE DIAL ........................................................................................................................................18

7. VOICE RECOGNITION....................................................................................................................19

7.1 ACTIVATE/DEACTIVATE THE VOICE CONTROL ...................................................................................19

7.2 ACCEPT A CALL..................................................................................................................................19

7.3 REJECT A CALL...................................................................................................................................19

8. AV FUNCTIONS.................................................................................................................................20

8.1 MUSIC PLAYER CONNECTED VIA MUSIC CABLE ..................................................................................20

8.2 MUSIC PLAYER CONNECTED VIA BLUETOOTH ....................................................................................20

8.3 AV OPERATIONS.................................................................................................................................20

9. TWO-LINK OPERATION.................................................................................................................21

10. SETTINGS.......................................................................................................................................22

10.1 PHONEBOOK.......................................................................................................................................22

10.2 MUTE CONTROL .................................................................................................................................22

10.3 VOLUME CONTROL.............................................................................................................................22

10.4 VOICE CONTROL.................................................................................................................................22

10.5 AUTO ANSWER ...................................................................................................................................22

10.6 DISPLAY.............................................................................................................................................23

10.6.1 Brightness..................................................................................................................................23

10.6.2 Contrast .....................................................................................................................................23

10.6.3 Wallpaper ..................................................................................................................................23

10.6.4 Color..........................................................................................................................................23

10.6.5 Backlight off time......................................................................................................................23

10.7 LANGUAGE.........................................................................................................................................23

10.8 REMOTE CONTROLLER........................................................................................................................23

10.9 SECURITY...........................................................................................................................................24

10.10 FACTORY SETTINGS........................................................................................................................24

11. UPGRADE SOFTWARE................................................................................................................25

. 5

BC9000 User Manual

1. Introduction

1.1 Bluetooth technology

Bluetooth is an internationally standardized technology supporting short distance wireless communications. Any
two Bluetooth-compatible equipments, such as mobile phone, PDA, PC, headset, mouse, keyboard, printer, etc. can
wirelessly communicate with each other via Bluetooth connection.

Though line-of-sight is not required, Bluetooth connections could be subject to interferences from obstructions such
as walls, human bodies, and other electronic devices. In addition, due to variations on product implementation, it is
likely that Bluetooth equipments from different manufactures have interoperability issues. In that case, you may
consult with manufactures to check product compatib ility.

Note:There could be some restrictions imposing on using Bluetooth devices in some countries. Please check with
your local authorities.

1.2 Bluetooth handsfree carkit

This Bluetooth handsfree carkit is a specially designed product bringing not only convenience but also safety by
allowing car drivers to make and receive calls without holding a mobile phone. It provides a clean wireless audio
connection with your Bluetooth mobile phone and PDA. Mobile phones that are not Bluetooth-enabled also support
this carkit set through AV adaptors.

1.3 Product features

z Bluetooth v 2.1＋EDR compliant, and data rate up to 2Mbps
z Class II, operating range up to 10 meters (33 feet)
z Compatible with most Bluetooth-enabled devices such as cellular phones, PDAs, and computers for voice

communication

z Loud audio output and supreme audio effect, allowing crystal-clear conversations within a noisy car

environment

z Display caller names on the control screen
z Access phonebook from the control screen
z Voice command technology makes real handsfree operating possible
z Mutes the in-car radio when the audio comes from the carkit

1.4 Package contents

z Control unit (Screen unit)
z Junction box (Electronic box)
z Microphone
z ISO cable
z Control unit to junction box cable
z Holder for control unit

1
1
1
1
1
1

. 6

BC9000 User Manual

z Music line-in cable (Jack cable)
z SW upgrade cable (MiniUSB to USB convert cable)
z Mounting accessories (Screws, double side adhesive tape, etc.)

z User manual

1
1
1
1

. 7

BC9000 User Manual

2. Before you begin

2.1 Check the car configuration

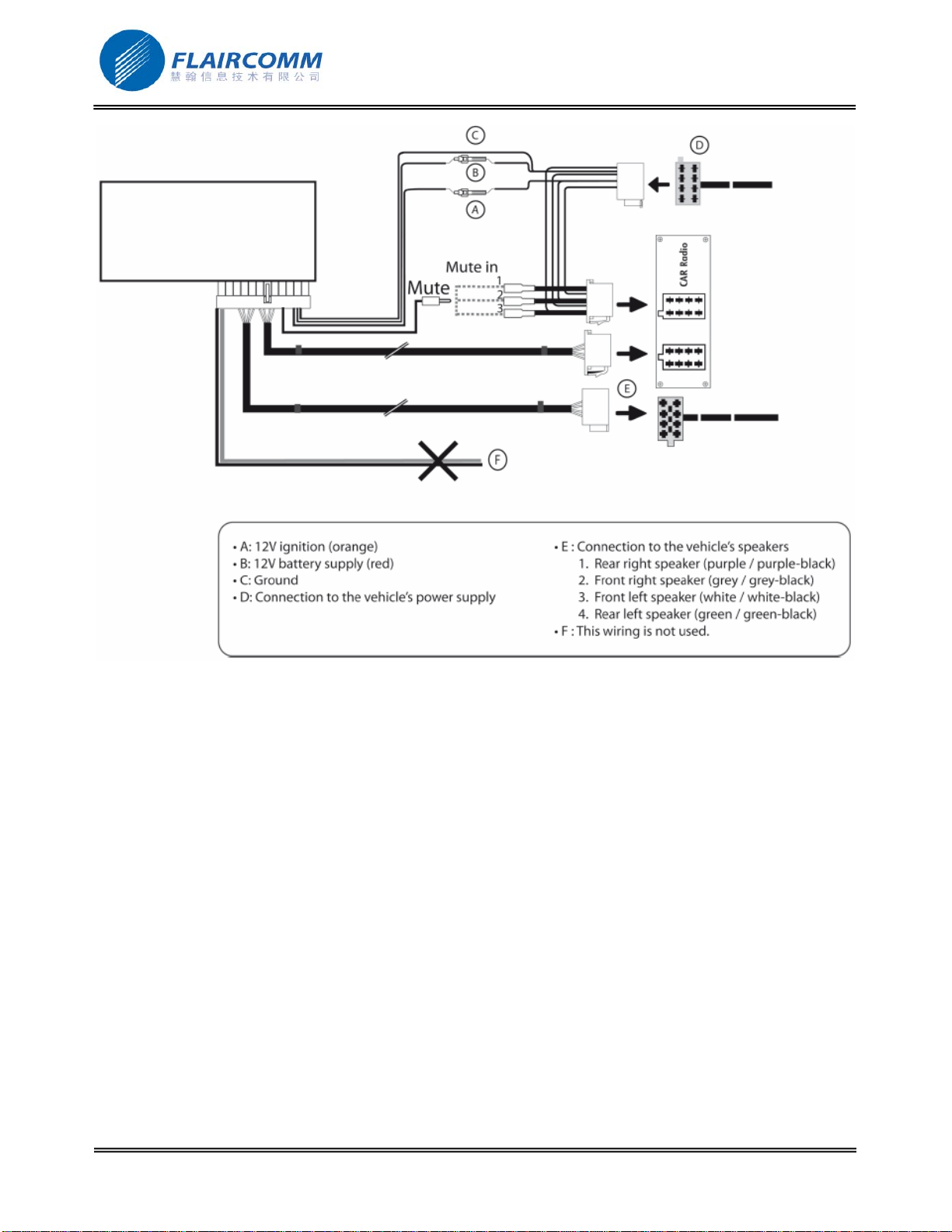

z The cables supplied with the kit feature ISO connectors and two pairs of line-out jacks. The line-out jacks can

be used if your audio system features this option (use of an amplifier). Several set-ups are therefore possible
depending on the type of car stereo and your vehicle.

z If your car stereo is not fitted with ISO connectors, you need to purchase an ISO adapter cable to simplify the

wiring procedure.

2.2 Remove the car stereo

z Remove your car stereo from you vehicle. You may need release keys to do so. Refer to your car stereo user

guide or contact your car dealer for more information.

z Remove the audio system from your vehicles dashboard to access the wiring harness.
z The mute function is used to cut the sound of your car stereo to enable a phone call. The choice of the mute-in

jack depends on your car stereo’s configuration.

. 8
