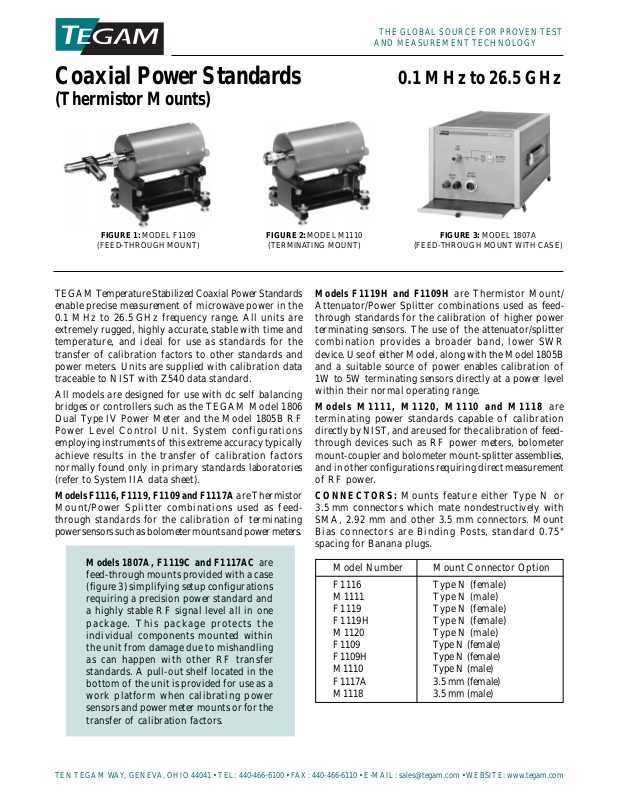

TEGAM 1807A Specifications Sheet

THE GLOBAL SOURCE FOR PROVEN TEST
AND MEASUREMENT TECHNOLOGY

Coaxial Pow er Standar ds 0.1 MHz to 26.5 GHz

(Thermistor Mounts)

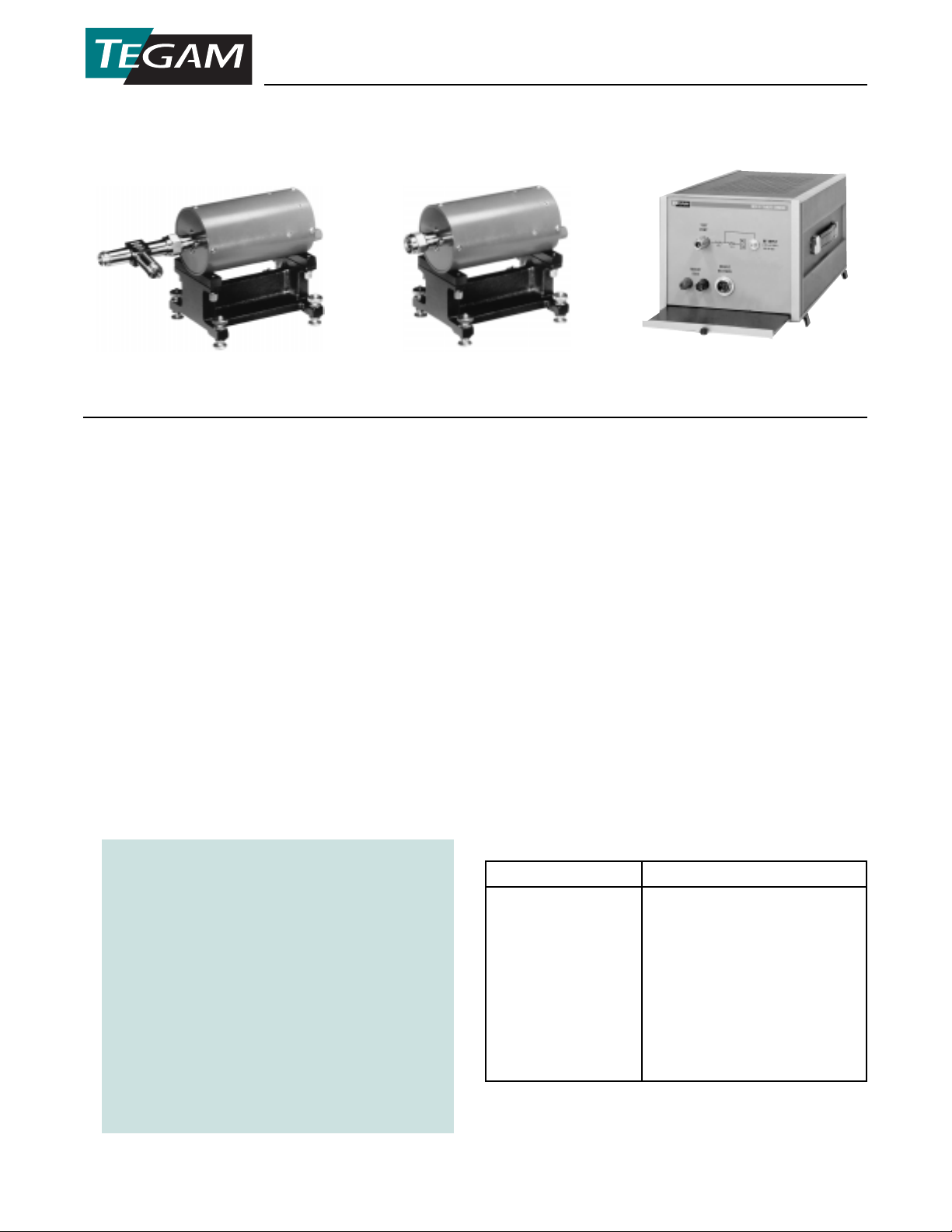

FIGURE 1: MODEL F1109

(FEED-THROUGH MOUNT)

TEGAM T emperature Sta bilized Coaxial Po wer Standards
enable precise measurement of microwave power in the

0.1 MHz to 26.5 GHz frequency range. All units are
extremely rugged, highly accurate, stable with time and
temperature, and ideal for use as standards for the
transfer of calibration factors to other standards and
power meters. Units are supplied with calibration data
traceable to NIST with Z540 data standard.

All models are designed for use with dc self balancing
bridges or controllers such as the TEGAM Model 1806
Dual Type IV Power Meter and the Model 1805B RF
Power Level Control Unit. System configurations
employing instruments of this extreme accuracy typically
achieve results in the transfer of calibration factors
normally found only in primary standards laboratories
(refer to System IIA data sheet).

Models F1116, F1119, F1109 and F1117A are Thermistor
Mount/Power Splitter combinations used as feed­through standards for the calibration of terminating
power sensors such as bolometer mounts and po wer meters .

FIGURE 2: MODEL M1110

(TERMINATING MOUNT)

FIGURE 3: MODEL 1807A

(FEED-THROUGH MOUNT WITH CASE)

Models F1119H and F1109H are Thermistor Mount/
Attenuator/Power Splitter combinations used as feed­through standards for the calibration of higher power
terminating sensors. The use of the attenuator/splitter
combination provides a broader band, lower SWR
device . Use of either Model, along with the Model 1805B
and a suitable source of power enables calibration of
1W to 5W terminating sensors directly at a power level
within their normal operating range.

Models M1111, M1120, M1110 and M1118 are
terminating power standards capable of calibration
directly by NIST, and ar e used f or the calibration of feed­through devices such as RF power meters, bolometer
mount-coupler and bolometer mount-splitter assemblies ,
and in other configurations requiring dir ect measurement
of RF power.

CONNECTORS: Mounts feature either Type N or

3.5 mm connectors which mate nondestructively with
SMA, 2.92 mm and other 3.5 mm connectors. Mount
Bias connectors are Binding Posts, standard 0.75"
spacing for Banana plugs.

Models 1807A, F1119C and F1117AC are
feed-through mounts pr ovided with a case
(figure 3) simplifying setup configurations
requiring a precision power standard and
a highly stable RF signal level all in one
package. This package protects the
individual components mounted within
the unit from damage due to mishandling
as can happen with other RF transfer
standards. A pull-out shelf located in the
bottom of the unit is pro vided for use as a
work platform when calibrating power
sensors and power meter mounts or f or the
transfer of calibration factors.

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

Model Number Mount Connector Option
F1116 Type N (female)

M1111 Type N (male)
F1119 Type N (female)
F1119H Type N (female)
M1120 Type N (male)
F1109 T ype N (female)
F1109H T ype N (female)
M1110 T ype N (male)
F1117A 3.5 mm (female)
M1118 3.5 mm (male)

THE GLOBAL SOURCE FOR PR OVEN TEST
AND MEASUREMENT TECHNOLOGY

CALIBRATION: Individual calibr ations tracea ble to NIST
are supplied at following frequencies. Data is supplied on
floppy diskette with hard copy backup.

0.1 to 100 MHz

0.1, 0.2, 0.455, 1.0, 1.25, 3.0, 5.0, 10-100 MHz
in 10 MHz increments

100 kHz to 4.2 GHz

0.0001 to 0.10 GHz in 10 MHz increments

0.15 to 2.00 GHz in 50 MHz increments

2.10 to 4.00 GHz in 100 MHz increments

4.2 GHz

0.01 to 18.0 GHz

0.01 to 1.10 GHz in 10 MHz increments

0.10 to 2.00 GHz in 100 MHz increments

2.10 to 4.00 GHz in 100 MHz increments

4.20 to 12.40 GHz in 200 MHz increments

12.40 to 18.00 GHz in 250 MHz increments

0.05 to 26.5 GHz

0.05 to 0.10 GHz in 10 MHz increments

0.10 to 2.00 GHz in 50 MHz increments

2.10 to 4.00 GHz in 100 MHz increments

4.00 to 12.40 GHz in 200 MHz increments

12.40 to 18.00 GHz in 250 MHz increments

18.00 to 26.00 GHz in 1 GHz increments

26.5 GHz

NIST CALIBRATION: Calibration Factors only for the
Models M1110, M1111 and M1118 Terminating Mounts
can be supplied directly by the National Institute of
Standards and Technology.

RACK MOUNTING: Models 1807A, F1119C and
F1117AC are half-rack instruments that can be mounted
in any cabinet or rack designed according to EIA RS-310
and MIL-STD-189 using the Rack Adapter Kit (P/N 1919).
This kit allows any of the models to be mounted with the
model 1805B, or another coaxial power standard in the
same rack-mount configuration.

ORDERING INFORMA TION

F1116 Feed-thr ough Mount/Splitter 0.1 to 100 MHz
M1111 T ermina ting Mount 0.1 to 100 MHz
F1119 Feed-thr ough Mount 100 kHz to 4.2 GHz
F1119C Feed-thr ough Mount with case 100 kHz to 4.2 GHz
F1119H 100m W Feed-thr ough Mount 100 kHz to 4.2 GHz
M1120 T ermina ting Mount 100 kHz to 4.2 GHz
F1109 Feed-thr ough Mount 0.01 to 18.0 GHz
1807A Feed-thr ough Mount with case 0.01 to 18.0 GHz
F1109H 100m W Feed-thr ough Mount 0.01 to 18.0 GHz
M1110 T ermina ting Mount 0.01 to 18.0 GHz
F1117A Feed-through Mount/Splitter 0.05 to 26.5 GHz
F1117AC Feed-thr ough Mount/Splitter with case 0.05 to 26.5 GHz
M1118 T ermina ting Mount 0.05 to 26.5 GHz

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PROVEN TEST
AND MEASUREMENT TECHNOLOGY

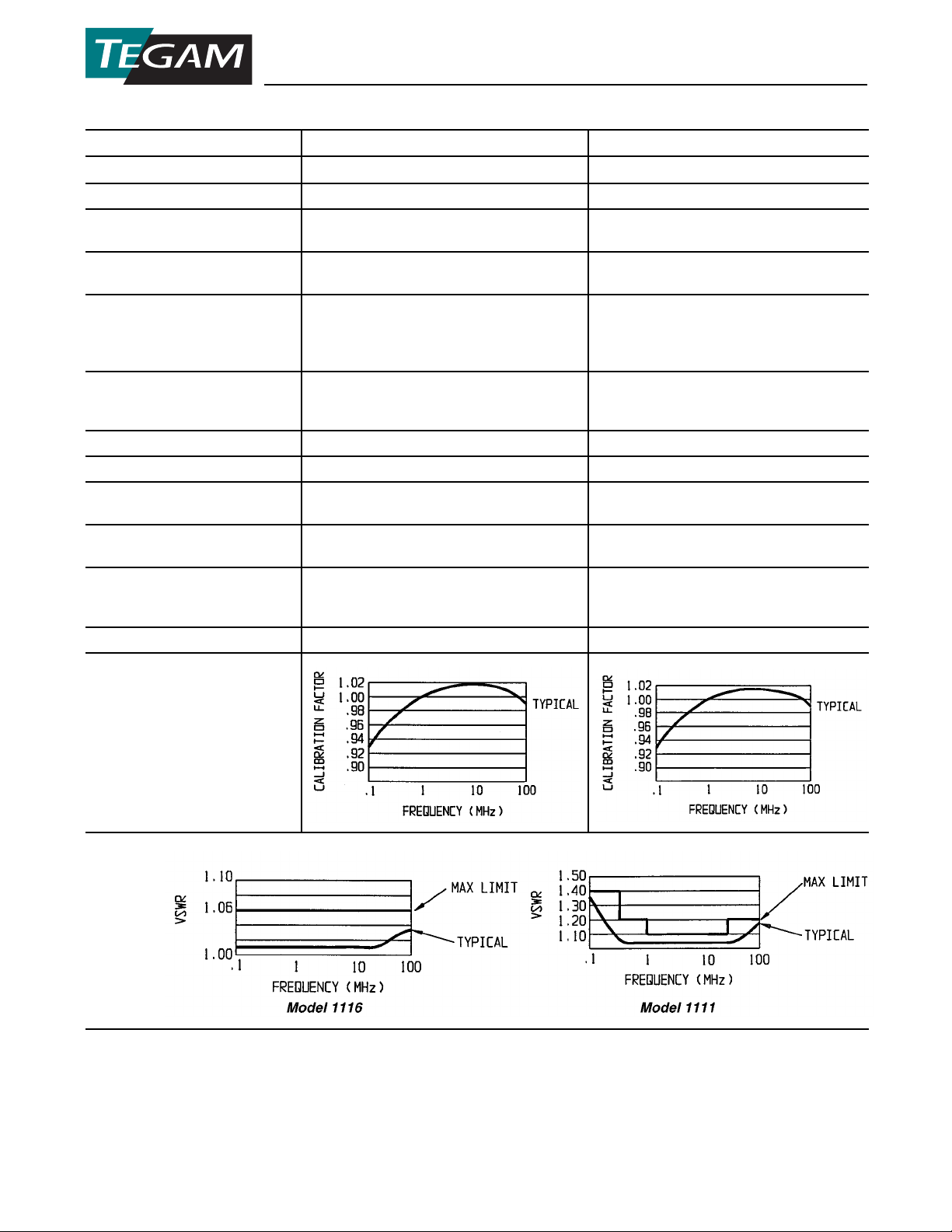

SPECIFICATIONS

SPECIFICATION Model F1116 Model M1111

FREQUENCY RANGE 0.1 to 100 MHz 0.1 to 100 MHz
RF IMPEDANCE 50 Ω nominal 50 Ω nominal
THERMISTOR BIAS POWER 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with

temperature control temperature control

CALIBRATION FACTOR < 0.5 % per year < 0.5 % per year
STABILITY

CALIBRATION FACTOR
ACCURA CY (RSS %)

0.1 - 10 MHz ± 0.80 ± 0.80
10 - 100 MHz ± 0.90 ± 0.90

POWER DEPENDENCE OF < 0.1 % from 1 to 10 mW, < 0.1 % from 1 to 10 mW,
CALIBRATION FACTOR negligible to maximum negligible to maximum

useful limit useful limit
POWER RANGE 10 µW to 25 mW 100 µW to 250 mW
RESISTANCE AT BIAS 200 Ω 200 Ω
RESISTANCE TEMP. Negative Negative

COEFFICIENT
RESISTANCE POWER ~ 13 Ω /mW ~ 13 Ω /mW

SENSITIVITY
TEMPERATURE RANGE

Operating: +12°C to +40°C +12°C to +40 °C

Non-Operating: -55°C to +75°C -55°C to +75°C
WEIGHT 1.5 kg (3 lbs , 4 oz) 1.3 kg (2 lbs , 14 oz)
CALIBRATION FACTOR

(T ypical)

VSWR

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PR OVEN TEST
AND MEASUREMENT TECHNOLOGY

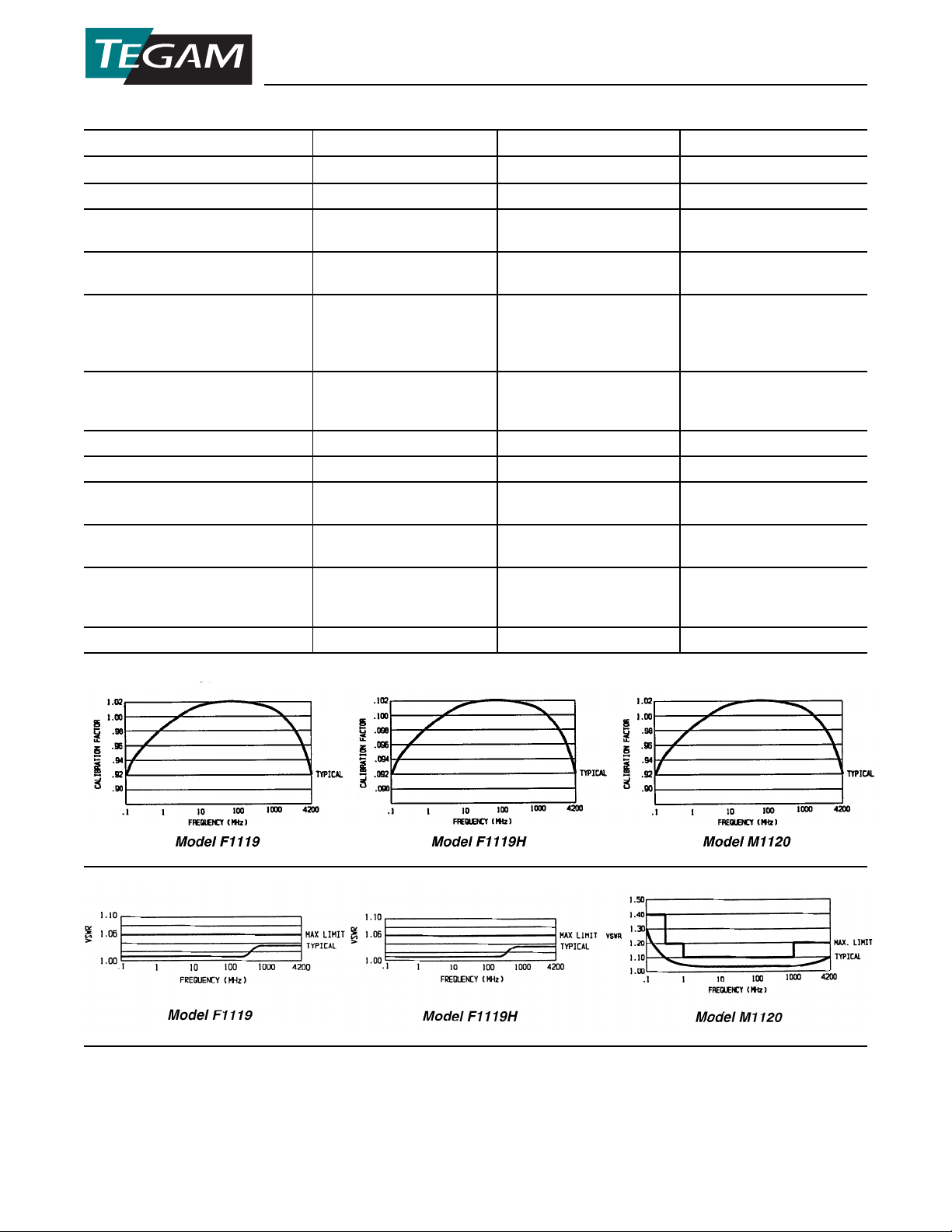

SPECIFICATIONS

SPECIFICATION Model F1119 Model F1119H Model M1120

FREQUENCY RANGE 100 kHz to 4.2 GHz 100 kHz to 4.2 GHz 100 kHz to 4.2 GHz
RF IMPEDANCE 50 Ω nominal 50 Ω nominal 50 Ω nominal
THERMISTOR BIAS POWER 30 ± 0.7 milliwatt with 30 ± 0.7 milliwa tt with 30 ± 0.7 milliwatt with

temperature control temperature control temperature control

CALIBRATION FACTOR < 0.5 % per year < 0.5 % per year < 0.5 % per year
STABILITY

CALIBRATION FACTOR
ACCURACY (RSS %)

0.01 - 10 MHz ± 0.80 ± 0.80 ± 0.80
10 - 4200 MHz ± 0.90 ± 0.90 ± 0.90

POWER DEPENDENCE OF < 0.1 % from 1 to 10 mW, < 0.1 % from 10 to 100 < 0.1 % from 1 to 10 mW,
CALIBRATION FACTOR negligible to maximum mW , negligib le to negligible to maximum

useful limit maximum useful limit useful limit
POWER RANGE 10 µW to 25 mW 100 µW to 250 mW 10 µW to 25 mW
RESISTANCE AT BIAS 200 Ω 200 Ω 200 Ω
RESISTANCE TEMP. Negativ e Negative Negative

COEFFICIENT
RESISTANCE POWER ~ 13 Ω /mW ~ 13 Ω /mW ~ 13 Ω /mW

SENSITIVITY
TEMPERATURE RANGE

Operating: +12°C to +40°C +12°C to +40°C +12°C to +40°C
Non-Operating: -55°C to +75°C -55°C to +75°C -55°C to +75°C

WEIGHT 1.5 kg (3 lbs , 4 oz) 1.57 kg (3 lbs , 7 oz) 1.3 kg (2 lbs, 14 oz)
CALIBRATION FACTOR (Typical)

VSWR

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PROVEN TEST
AND MEASUREMENT TECHNOLOGY

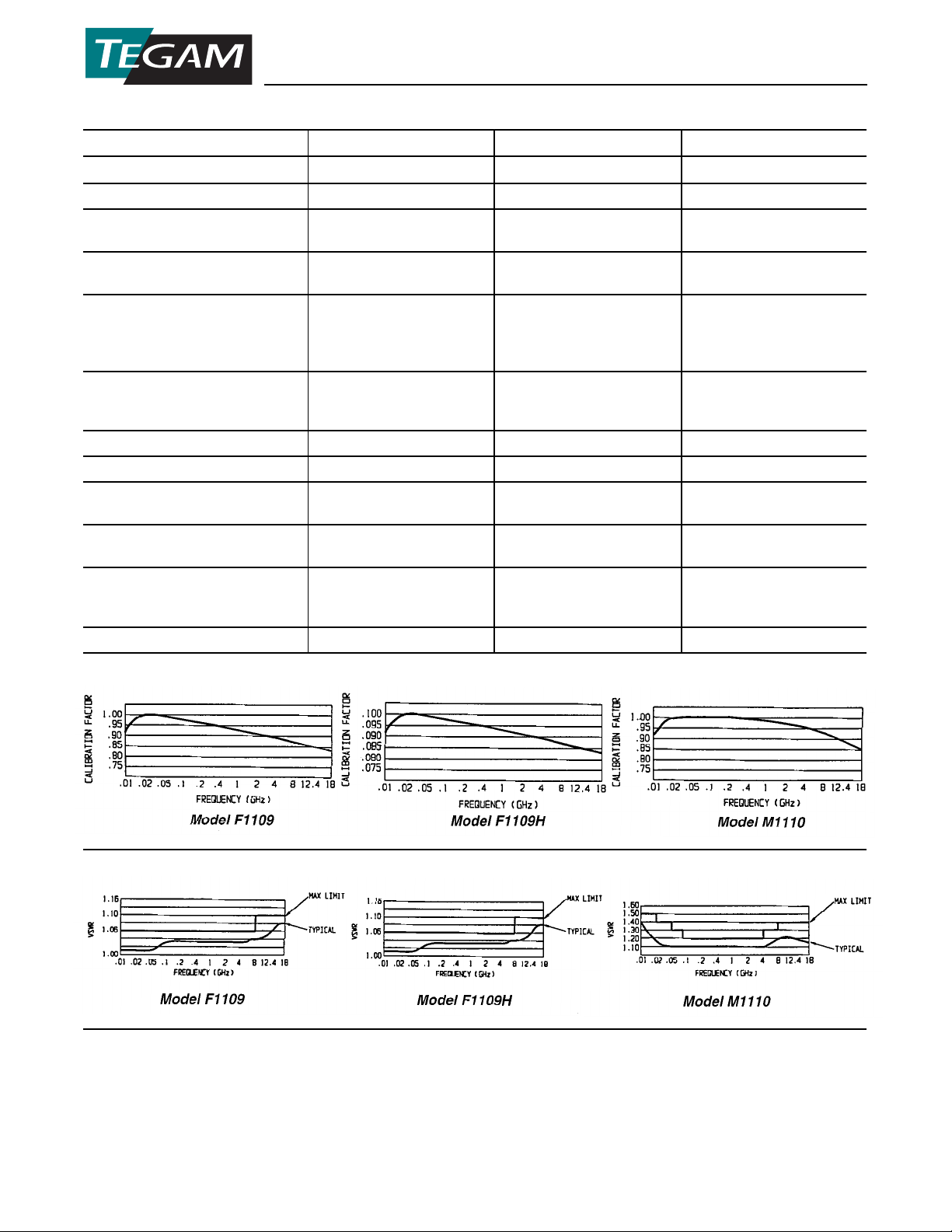

SPECIFICATIONS

SPECIFICATION Model F1109 Model F1109H Model M1110

FREQUENCY RANGE 0.01 to 18.0 GHz 0.01 to 18.0 GHz 0.01 to 18.0 GHz
RF IMPEDANCE 50 Ω nominal 50 Ω nominal 50 Ω nominal
THERMISTOR BIAS POWER 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with

temperature contr ol temperature control temperature control

CALIBRATION FACTOR < 0.5 % per year < 0.5 % per year < 0.5 % per year
STABILITY

CALIBRATION FACTOR
ACCURA CY (RSS %)

0.01 - 10 GHz ± 1.00 ± 1.00 ± 1.20
10 - 18 GHz ± 1.10 ± 1.10 ± 1.30

POWER DEPENDENCE OF < 0.1 % from 1 to 10 mW, < 0.1 % from 1 to 100 mW, < 0.1 % from 1 to 10 mW,
CALIBRATION FACTOR negligible to maximum negligible to maximum negligible to maximum

useful limit useful limit useful limit

POWER RANGE 10 µW to 25 mW 100 µW to 250 mW 10 µW to 25 mW
RESISTANCE AT BIAS 200 Ω 200 Ω 200 Ω
RESISTANCE TEMP. Negative Negative Negative

COEFFICIENT
RESISTANCE POWER ~ 13 Ω /mW ~ 13 Ω /mW ~ 13 Ω /mW

SENSITIVITY
TEMPERATURE RANGE

Operating: +12°C to +40°C +12°C to +40°C +12°C to +40°C
Non-Operating: -55°C to +75°C -55°C to +75°C -55°C to +75°C

WEIGHT 1.5 kg (3 lbs , 4 oz) 1.57 kg (3 lbs , 7 oz) 1.3 kg (2 lbs, 14 oz)
CALIBRATION FACTOR (Typical)

VSWR

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PR OVEN TEST
AND MEASUREMENT TECHNOLOGY

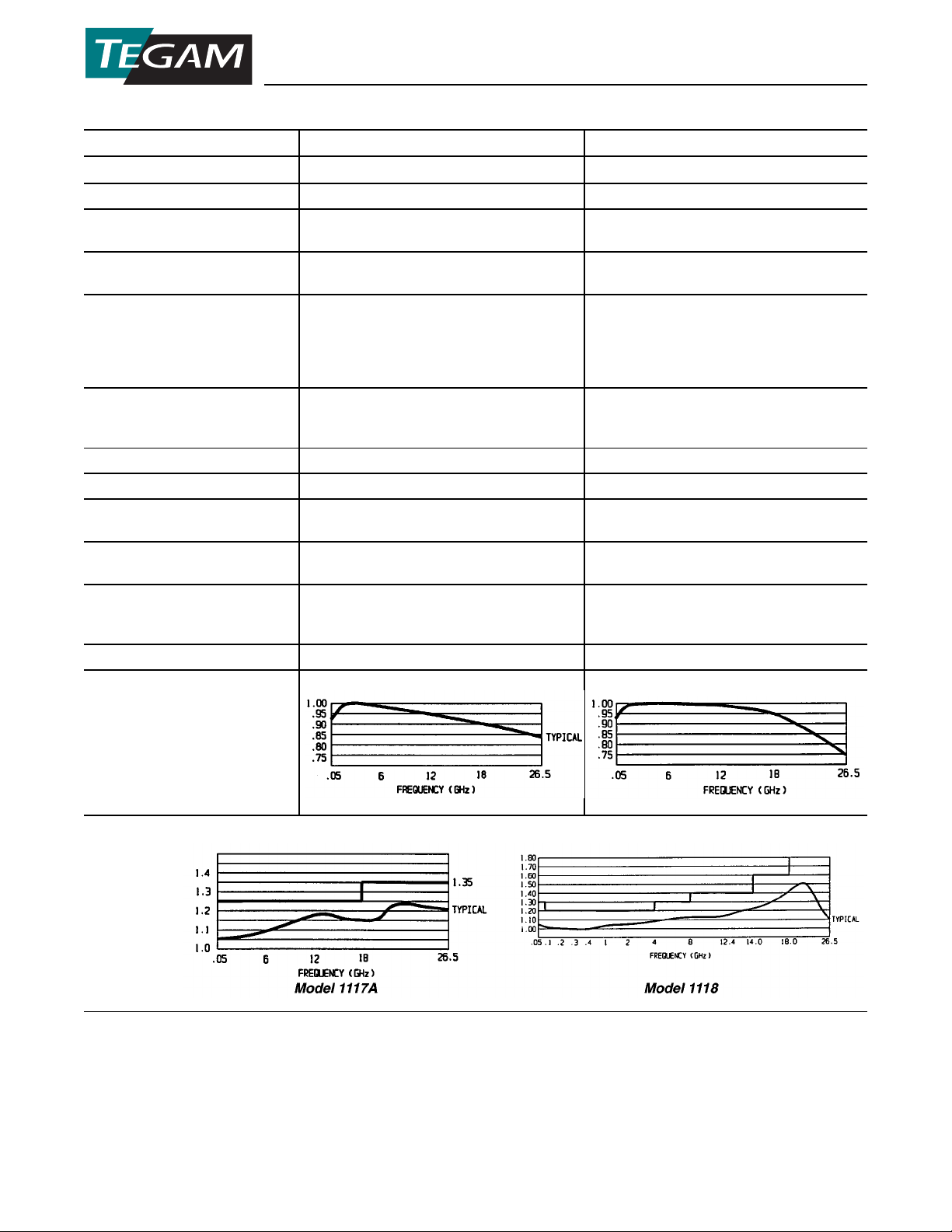

SPECIFICATIONS

SPECIFICATION Model 1117A Model 1118

FREQUENCY RANGE 0.05 to 26.5 GHz 0.05 to 26.5 GHz
RF IMPEDANCE 50 Ω nominal 50 Ω nominal
THERMISTOR BIAS POWER 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with

temperature control temperature contr ol

CALIBRATION FACTOR < 0.5 % per year < 0.5 % per year
STABILITY

CALIBRATION FACTOR
ACCURA CY (RSS %)

0.05 - 10 GHz ± 1.00 ± 1.20
10 - 18 GHz ± 1.10 ± 1.30
18 - 26.5 GHz ± 2.20 ± 2.30

POWER DEPENDENCE OF < 0.1 % from 1 to 10 mW, < 0.1 % from 1 to 10 mW,
CALIBRATION FACTOR negligible to maximum negligible to maximum

useful limit useful limit

POWER RANGE 10 µW to 25 mW 10 µW to 25 mW
RESISTANCE AT BIAS 200 Ω 200 Ω
RESISTANCE TEMP. Negative Negative

COEFFICIENT
RESISTANCE POWER ~ 13 Ω /mW ~ 13 Ω /mW

SENSITIVITY
TEMPERATURE RANGE

Operating: +12°C to +40°C +12°C to +40°C

Non-Operating: -55°C to +75°C -55°C to +75°C
WEIGHT 1.5 kg (3 lbs , 4 oz) 1.3 kg (2 lbs , 14 oz)
CALIBRATION FACTOR

(T ypical)

VSWR

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PROVEN TEST
AND MEASUREMENT TECHNOLOGY

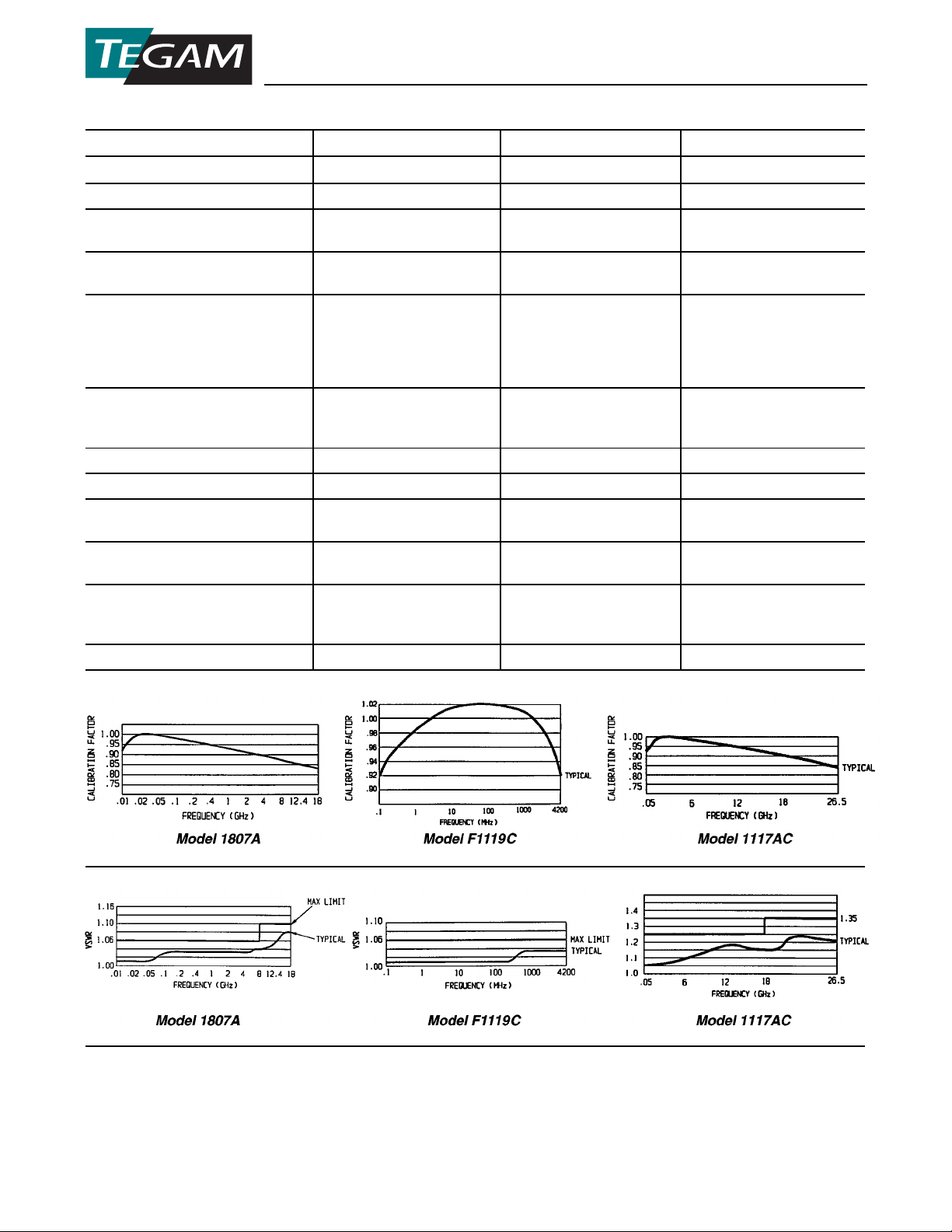

SPECIFICATIONS

SPECIFICATION Model 1807A Model F1119C Model 1117AC

FREQUENCY RANGE 0.01 to 18.0 GHz 100 kHz to 4.2 GHz 0.05 to 26.5 GHz
RF IMPEDANCE 50 W nominal 50 W nominal 50 Ω nominal
THERMISTOR BIAS POWER 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with 30 ± 0.7 milliwatt with

temperature control temperature control temperature control

CALIBRATION FACTOR < 0.5 % per year < 0.5 % per year < 0.5 % per year
STABILITY

CALIBRATION FACTOR
ACCURA CY (RSS %)

0.1 - 10 MHz — ± 0.80 ± 1.00
10 MHz - 10 GHz ± 1.00 ± 0.90 ± 1.10
10 - 18 GHz ± 1.10 — ± 2.20

POWER DEPENDENCE OF < 0.1 % from 1 to 10 mW, < 0.1 % from 1 to 10 mW, < 0.1 % from 1 to 10 mW,
CALIBRATION FACTOR negligible to maximum negligib le to maxim um negligible to maxim um

useful limit useful limit useful limit
POWER RANGE 10 mW to 25 mW 100 mW to 25 mW 10 µW to 25 mW
RESISTANCE AT BIAS 200 W 200 W 200 Ω
RESISTANCE TEMP. Negative Negative Negative

COEFFICIENT
RESISTANCE POWER ~ 13 Ω /mW ~ 13 Ω /mW ~ 13 Ω /mW

SENSITIVITY
TEMPERATURE RANGE

Operating: +12°C to +40°C +12°C to +40°C +12°C to +40°C

Non-Operating: -55°C to +75°C -55°C to +75°C -55°C to +75°C
WEIGHT 5.69 kg (12 lbs, 8.5 oz) 5.69 kg (12 lbs, 8.5 oz) 5.69 kg (12 lbs, 8.5 oz)
CALIBRATION FACTOR (Typical)

VSWR

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com

THE GLOBAL SOURCE FOR PR OVEN TEST
AND MEASUREMENT TECHNOLOGY

TEN TEGAM WAY, GENEVA, OHIO 44041 • TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • WEBSITE: www.tegam.com
