Tefal GC722 User Manual

Download

Page 1

FR DE EN NL DA SV FI NO ES PT EL

Mode d’emploi - Bedienungsanleitungen Instructions for use - Gebruiksaanwijzing -

Brugsvejledning - Bruksanvisning - Käyttöohje -

Bruksanvisning - Instrucciones de uso -

Instruções de utilização -

Οδηγίες χρήσης

Page 2

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

Use, maintenance and product installation guidelines: for your own safety, please read through all paragraphs of the instruction manual including the associated pictograms.

• This appliance is intended for indoor, domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working

environments;

- farm houses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments.

• Before first use remove all packaging materials, stickers and

accessories from the inside and the outside of the appliance.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance, and do not use as a toy.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Never leave the appliance unattended when in use.

•

Accessible surface temperatures can be high when the appliance

Page 3

is operating. Never touch the hot surfaces of the appliance.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Fully unwind the power cord before plugging in the appliance.

• If the power supply cord is damaged, it must be replaced by the manufacturer or its after sales service in order to avoid any danger.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance. Take all necessary precautions to prevent anyone tripping over an extension cord.

• Always plug the appliance into an earthed socket.

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• Use a sponge, hot water and washing up liquid to clean the cooking plates.

• Never immerse the appliance, its power cord or plug in water or any other liquid.

WARNING:

Do not heat or pre-heat without the 2 cooking plates

inside the grill.

• Read the instructions carefully, common to different versions depending on the

accessories supplied with your appliance, and keep them within reach.

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

• Before ﬁrst use, wash the plates (see paragraph 5), pour a little cooking oil onto the plates and wipe with a soft cloth

or paper kitchen towel.

• Position the power cord carefully, whether an extension is used or not, so that guests can move freely around the

table without tripping over it.

• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds.

We advise bird owners to keep them away from the cooking area.

• Always keep the appliance out of the reach of children.

• Check that both faces of the plate are clean before use.

• To prevent damage to the plates, only use them on the appliance for which they were designed (e.g., do not place in

an oven, on the gas ring or electric hot-plate, etc.).

• Ensure that the plates are stable, well positioned and correctly clipped to the appliance. Only use the plates provided

with the appliance or bought from an Approved Service Centre.

• Always use a wooden or plastic spatula to avoid damaging the cooking plates.

• Only use parts or accessories provided with the appliance or bought from an Approved Service Centre. Do not use

them for other appliances or intention.

Page 4

Do not

• Do not use the appliance outside.

• Never leave the appliance unattended when plugged in or in use.

• To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard.

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished

furniture, etc.) or on a soft surface such as a tea-towel.

• Never place the appliance under a cupboard attached to a wall or a shelf or next to

inﬂammable materials such as blinds, curtains or wall hangings.

• Never place the appliance on or near hot or slippery surfaces; the power cord must never be close

to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.

• Do not place cooking utensils on the cooking surfaces of the appliance.

• Never cut food directly on the plates,

• Do not use metal scouring pads, abrasive wire wool or harsh scouring powder as this may

damage the nonstick coating.

• Do not move the appliance when in use.

• Do not carry the appliance by the handle or metallic wires.

• Never run the appliance empty.

• Do not use aluminium foil or other objects between the plate and the food being cooked.

• Do not remove the grease collection tray while cooking. If the grease collection tray

becomes full when cooking: let the appliance cool down before emptying.

• Do not place the hot plate on a fragile surface or under water.

• To preserve the non-stick properties of the coating, avoid excessive pre-heating with the

appliance empty.

• The plates should never be handled when hot.

• Do not cook food in aluminium foil.

• To avoid spoiling your appliance, do not use ﬂambé recipes in connection with it at any time.

• Do not place a sheet of aluminum or any other object between the plates and the heating element.

• Never heat or cook whilst the grill is open.

• Never heat up the appliance without the cooking plates.

Tips/information

• Thank you for buying this appliance, which is intended for domestic use only.

• For your safety, this appliance complies with the applicable standards and regulations - Low voltage

directive - Electromagnetic compatibility - The environment - Materials in contact with food.

• On ﬁrst use, there may be a slight odour and a little smoke during the ﬁrst few minutes.

• Our company has an ongoing policy of research and development and may modify these

products without prior notice.

• Do not consume foodstuff that comes into contact with the parts marked with logo .

• If the food is too thick, the safety system will stop the appliance from working.

Environment

Environment protection first!

Your appliance contains valuable materials which can be recovered or

recycled.

Leave it at a local civic waste collection point.

Page 5

A5 A6

Page 6

Description

Control panel

On/off button

Frozen food mode

Cooking programs

Manual mode “4 temperature settings”

See speciﬁc manual quick start guide.

A5 OK

button

Cooking level indicator

Body

Guide of LED colors

preheating starting of cooking

Handle

Cooking plates

Drip tray

Power cord

PURPLE FLASHING

Wait.

YELLOW

“Rare” cooking.

SOLID GREEN

Manual function selected or

automatically activated, refer to

“Trouble shooting guide p. 42”.

SOLID PURPLE

End of preheating

Waiting for food.

cooking - ready to eat

ORANGE

“Medium” cooking.

WHITE FLASHING

Refer to “Trouble shooting guide”.

Contact customer services

BLUE

Starting of cooking.

RED

“Well done” cooking.

During the start of the cooking

cycle, a beep will sound to

alert the user that the “Rare”

cooking program is getting

ready to begin.

“30’ approximately”

RED FLASHING

Guide of automatic cooking programs

Burger Fish Bacon

Red meat Poultry Manual mode:

Panini / Sandwich Sea food

Sausage/lamb Pork

Traditional grill for manual operation with 4different temperature settings (from 110°C to 285°C)

GREEN

keep warm

End of cooking for “Well done”.

Page 7

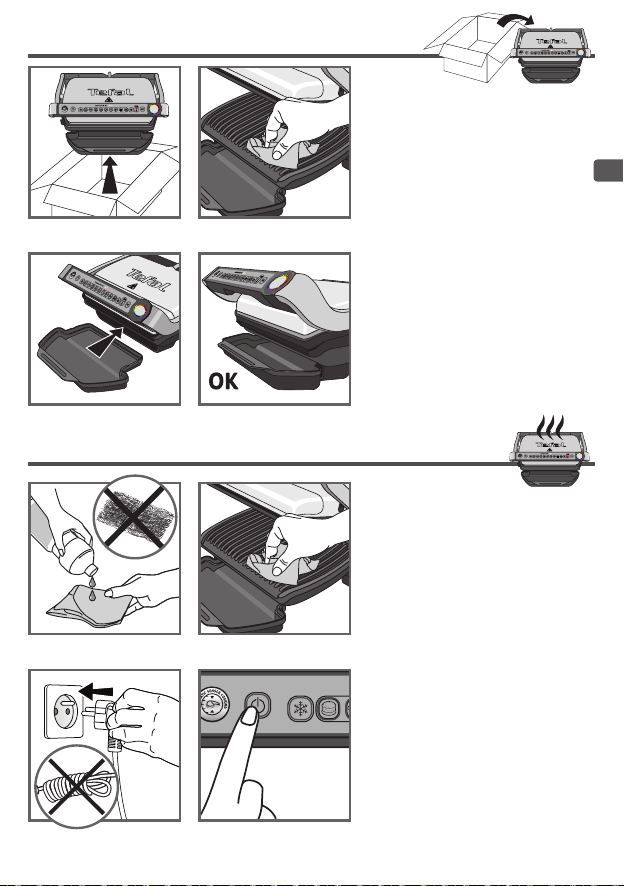

Setting

Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance. The colour sticker on the cooking level indicator can be changed, according to the language. You can replace it with the one on the inside of the packaging.

1 2

3 4

Pre-heating

5 6

Before using for the ﬁrst time, thoroughly clean the plates with warm water and a little dishwashing liquid, rinse and dry thoroughly.

3-4

Position the removable drip tray at the

front of the appliance.

For the best results you may wipe the cooking plates using a paper towel dipped in a little cooking oil, to improve the non-stick release.

5bis

Ensure that the bottom cooking plate and the upper cooking plate are correctly positioned in the product before the preheating phase begins.

Remove any surplus oil using a clean kitchen paper towel.

Connect the appliance to an outlet. (note the cord should be fully unwound).

Press the On/Off button.

7 8

Page 8

If the food that you wish to cook is frozen, press the “frozen food” button.

Select the appropriate cooking mode according to what type of food you wish to cook.

9 10

9 automatic cooking programs and a manual mode with 4 different temperature settings

Select this cooking program if you want to cook burgers.

Select this cooking program if you want to cook pork.

Select this cooking program if you want to cook a panini/sandwich

Select this cooking program if you want to cook sausage/lamb.

Select this cooking program if you want to cook ﬁsh.

Select this cooking program if you want to cook poultry.

If you are uncertain about what cooking mode to use for other foods because it is not listed above, please refer to the “Cooking table for out of program food” page 43.

4-7

minutes

Select this cooking program if you want to cook sea food.

Select this cooking program if you want to cook red meat.

Select this cooking program if you want to cook bacon

If you select Manual mode the indicator light is green and you have manual control of the cooking time. 4 different temperature settings are available for this manual mode (green, yellow, orange and red). See speciﬁc manual quick start guide.

Press the “OK” button: the appliance starts pre-heating and the cooking level indicator ﬂashes purple.

NB:

If you have selected the wrong

program, return to stage 8.

11 12

Wait for 4-7 minutes.

An audible tone is heard and the cooking level indicator stops flashing purple the pre-heating mode is complete.

Comments:

the appliance remains closed, the safety system will turn off the appliance.

At the end of pre-heating, if

Page 9

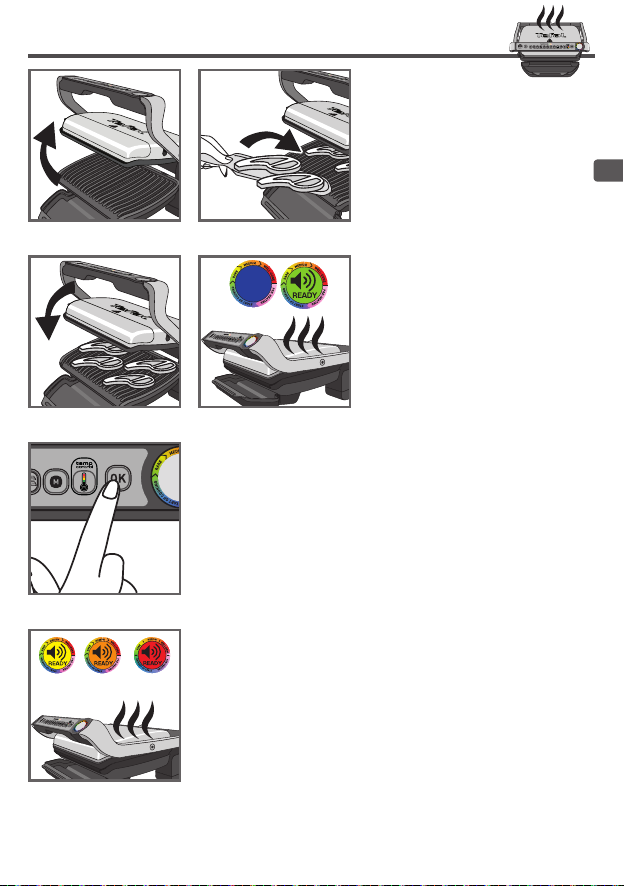

Cooking

14 15

16 17

rare well-

medium

done

14-15

After pre-heating, the appliance is

ready for use.

Open the grill and place the food on the

cooking plate.

Comments:

open for too long, the safety system will turn off the appliance automatically.

16-17

adjusts the cooking cycle (time and temperature) according to the food thickness and quantity.

Close the appliance to start the cooking

cycle. The cooking level indicator turns blue and then becomes green to indicate the cooking is in progress (for the best results do not open or move your food during the cooking process).

During the cooking progress, there is a

beep at each stage of cooking to warn the user that a cooking level (eg rare/ yellow) has been reached.

Note for very thin pieces of food:

the appliance, the button “OK” will ﬂash and the indicator will stay “ﬁxed purple”, press “OK” to ensure the appliance recognizes the food and that the cooking cycle starts.

According to the degree of cooking, the indicator light changes color. When the indicator light is yellow with a beep, your food is rare, when the indicator light is orange with a beep, your food is medium and when the indicator light is red, your food is well done.

N.B.:

remove the meat when the cooking level indicator turns green.

Please note, especially on meat, it

is normal that cooking result vary depending on type, quality and origin of food.

if the appliance remains

The appliance automatically

if you like your meat very rare,

Page 10

Cooking

19 20

Cooking more food

If you want to cook a second batch of food, please pre-heat

the appliance again (see section 2. “Pre-heating”, starting from point 9) even if you want to cook the same type of food.

How to cook another batch of food:

After ﬁnishing ywour ﬁrst batch of food:

1. Make sure the appliance is closed with no food inside.

2. Select the appropriate cooking mode/program (this step is necessary even if you decide to pick the same cooking mode than for the previous batch of food).

3. Press the “OK” button: the appliance starts pre-heating. The pre-heating is symbolized by the cooking level indicator that ﬂashes purple.

4. The pre-heating is complete when an audible beep is heard and the cooking level indicator stops ﬂashing purple.

5. After the pre-heating, the appliance is ready for use. Open the grill and place the food inside the appliance.

Important:

- Please note that any new batch of food, the pre-heating phase is mandatory.

19-20

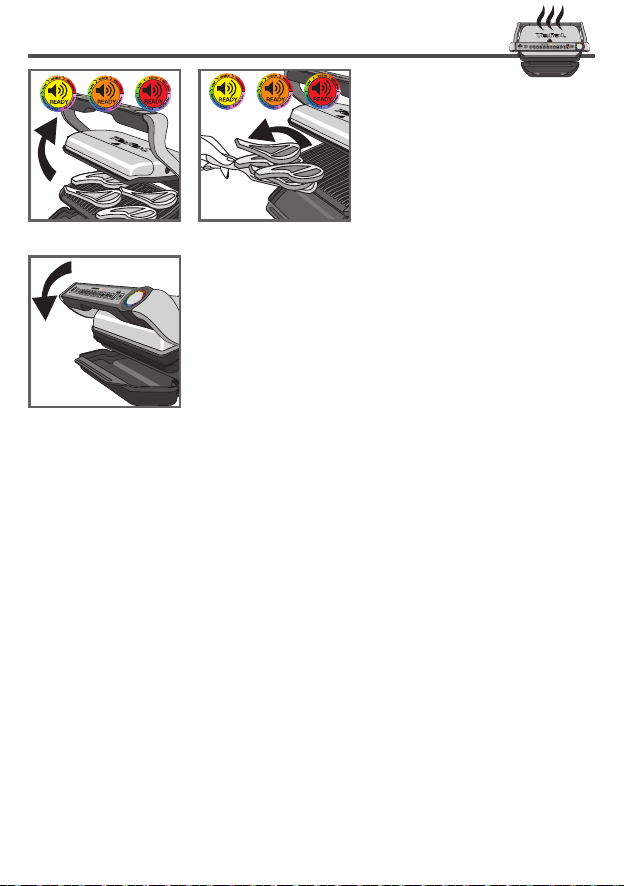

When the color corresponding to your choice of cooking level appears, open the appliance and remove your food.

Close the appliance. The control panel will light up and set itself to ‘choice of program’ mode.

Comment:

turn off automatically if no program selection is made.

the security system will

Page 11

Comments

22 23

Remember to always have the grill

closed and no food inside in order for the pre-heating to effectively function.

- Then wait for the pre-heating to be

complete before opening the grill and place the food inside.

N.B.:

if the new pre-heating cycle is carried out immediately after the end of the preceding cycle, the pre-heating time will be reduced.

22-23-24

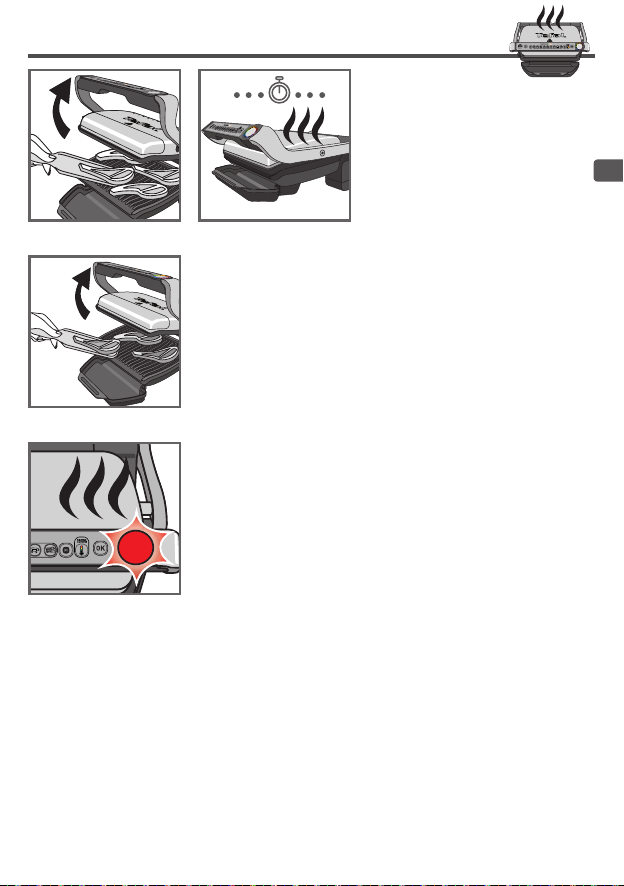

If you want to cook food to different

personal tastes, open the grill and remove the food when it has reached the desired level and then close the grill and continue cooking the other food. The program will continue its cooking cycle until it reaches the ‘well done’ level.

25 Keep warm function

When the cooking process has ended

the appliance will automatically go on the keep warm setting and the cooking level indicator will automatically go red and an audible tone will sound every 20 seconds. If food is left on the grill it will continue to cook, while the cooking plates are cooling. You can stop the audible tone by pressing the “OK” button.

Comment:

the appliance off automatically after a certain amount of time.

Second cooking

If you want to cook more food, please

refer to section 21.

the safety system will turn

Page 12

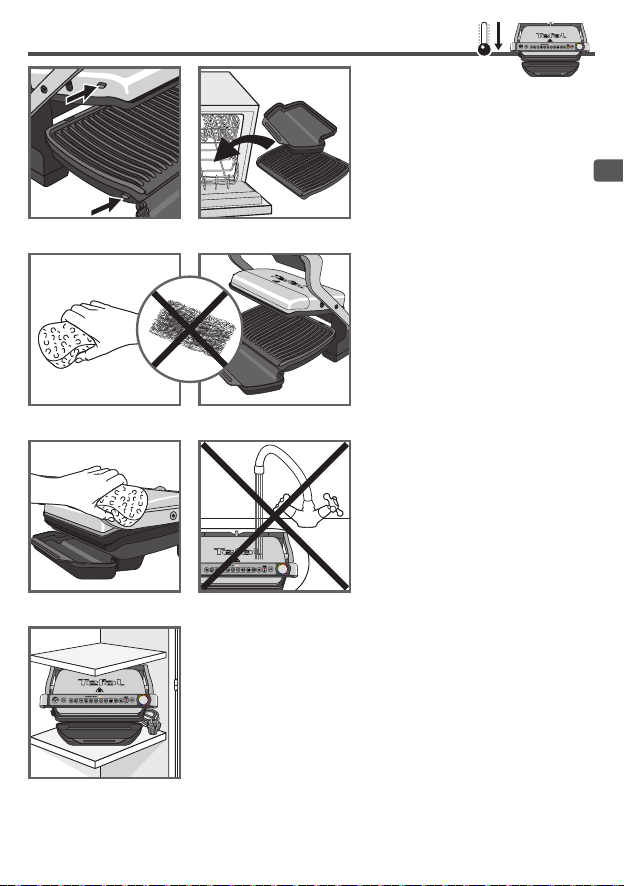

Cleaning and maintenance

26 27

2 H

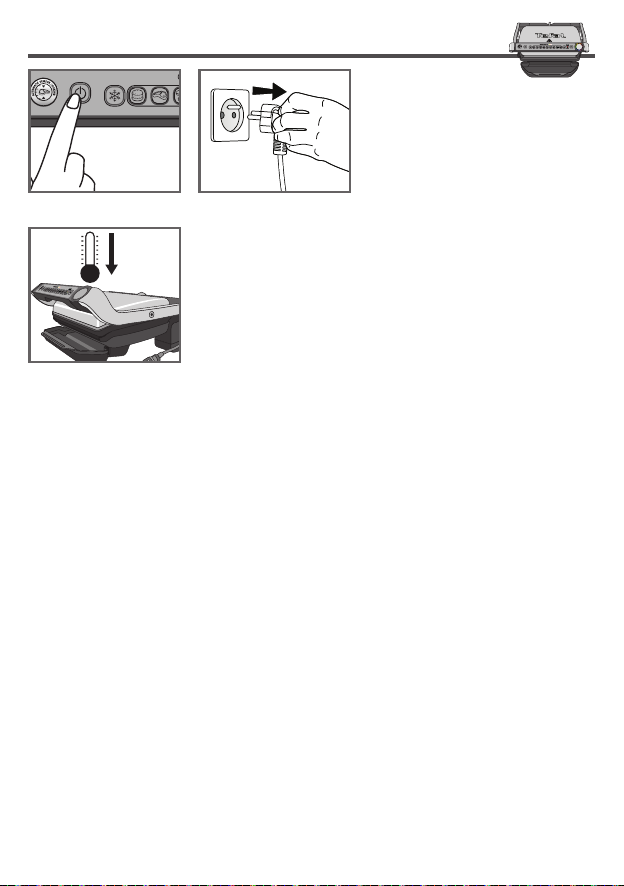

Press the on/off button to turn off the

appliance.

Unplug grill from wall outlet.

Allow to cool for at least 2 hours.

To avoid accidental burns, allow grill to

cool thoroughly before cleaning.

Page 13

Cleaning

29 30

31 32

33 34

Before cleaning, unlock and remove the plates to avoid damaging the cooking surface. The drip tray and the cooking plates are dishwasher safe.

The appliance and its cord cannot be placed in the dishwasher. The heating elements, visible and accessible parts, should not be cleaned after removing the plates. If they are very dirty, wait until the appliance has completely cooled down and clean them with a dry cloth. If you do not want to clean them in a dishwasher, you can use warm water and a little dishwashing liquid to clean the cooking plates, then rinse thoroughly to remove any residue. Dry thoroughly using a paper towel.

31-32

Do not use metallic scouring pads, steel wool or any abrasive cleaners to clean any part of your grill, only use nylon or non-metallic cleaning pads.

Empty the drip tray and wash in warm

water and a little dishwashing liquid, dry thoroughly using a paper towel.

To clean the grill cover, wipe with a warm, wet sponge and dry with a soft, dry cloth.

Do not immerse the body of grill in water

or any other liquid.

Always make sure grill is clean and dry

before storing.

Any other servicing should be performed

by an authorized service representative.

Page 14

Troubleshooting guide

Problem Cause Solution

lit

Button

+ Solid

green indicator light

+ +

The appliance stops during the cycle of pre-heating or cooking.

+ +

The appliance no longer beeps.

After the preheating, I have put my food on the grill but the indicator stays on PURPLE not start.

The appliance will activate in manual mode

Flashing + +

Tip, especially for meat:

the food being cooked, the programs have been set and tested for good quality food. Similarly, the thickness of the meat has to be taken into account during cooking; you cannot cook food that is thicker than 4 cm.

flashing

Button

flashing

Button

Flashing

white indicator light. / / / button Dis continue bip

and the cooking cycle does

The indicator light

white

flashing

button Continuous bip

will blink red.

the cooking results on the preset programs may vary depending on origin, cut and quality of

flashing

• Switching on the appliance or starting an automatic cooking cycle with food between plates and without preheating(manual mode is automatically activated).

• The appliance has been kept open for too long while cooking.

• The appliance has been idle too long after the end of warm up or keep warm.

• Appliance failure.

• Appliance stored or used in a room that is too cold.

• Your food is thicker than 4 cm.

• You have not completely opened the grill to place the food.

• Not sensing the food.

The food thickness too thin, "OK" is flashing.

• Preheating time was cut short.

• Appliance failure • Unplug the product and contact your

• 2 possible options: – Choose the temperature setting by

pressing the press OK. Allow to cook, but you must monitor the cooking (manual mode).

– stop the appliance, remove the

food, close the appliance properly, re-program the appliance and wait until end of preheating.

• Disconnect the appliance from the

outlet and leave for 2-3 mins., restart the process. The next time you use the appliance, make sure you open and close it quick for best cooking results. If the problem occurs again contact your local Tefal customer service.

• Disconnect and reconnect your

appliance and immediately restart a preheat cycle. If the problem persists, contact your Customer Service.

• Food must not be thicker than 4 cm.

• Completely open the grill then close it.

• Confirm the start of the cooking by

pressing the

• Monitor the cooking periodically

(for use in manual mode).

• Stop the grill, remove food, close the

grill, select the new cooking programme you wish to use and wait for the preheating cycle to ﬁnish.

customer service.

button and then

button.

Page 15

Cooking Guide (automatic programs)

Dedicated program

Red meat Burger Panini / Sandwich Fish

Lightly cooked Browned Crispy Lightly cooked Medium Well-done

Poultry Sausage/lamb Pork Bacon

Lightly cooked Well-done

Sea food

Tips:

if you like your meat blue rare, you can use

Cooking level color indicator

Rare Medium Well-done Rare Medium Well-done

Fully cooked Fully cooked Fully cooked

Medium Well-done

Cooking Guide (including Manual Mode)

Cooking level

rare medium

different temperature settings

Food

Bread

Meat & Poultry

Fish

Manual mode

See specific manual quick start guide

For frozen food

Slices of bread, toasted sandwiches Burger: (after pre-cooking the meat)

Lamb (boneless) Slice of ham to cook Frozen chicken nuggets Marinated chicken breast Pork ﬁllet (boneless), pork belly Duck breast Whole trout Tuna steak

King prawns Shelled prawns Gambas

Grilled vegetables and fruits (need to be of same cut and thickness)

, press

Cooking

program

(with and without shells on)

before selecting your program.

well-done

Page 16

FR DE EN NL DA SV FI NO ES PT EL

2 - 15 16 - 29 30 - 43 44 - 57 58 - 71 72 - 85 86 - 99

100 - 113 114 - 127 128 - 141 142 - 155

Ref. 2100094721
