Teeter Hang Ups NXT-R Assembly Information

If you have any problems assembling the equipment,
or questions about its use, please contact customer service at:

USA:
Teeter
9902 162nd St. Ct. E., Puyallup, WA 98375
Toll Free (Phone) 800-847-0143 (Fax) 800-847-0188
Local (Phone) 253-840-5252 (Fax) 253-840-5757
[email protected]
www.teeter-inversion.com

International:
Inversion International, Ltd.
PO Box: AP 59245
New Providence Island, Bahamas
(Phone) [phone]
[email protected]
www.InversionInternational.com

U.S. patents apply.

Teeter Hang Ups is a registered trademark of Teeter

Specications subject to change without notice.

© COPYRIGHT 2010, Teeter

International Law Prohibits Any Copying, NX-1705 0510-4

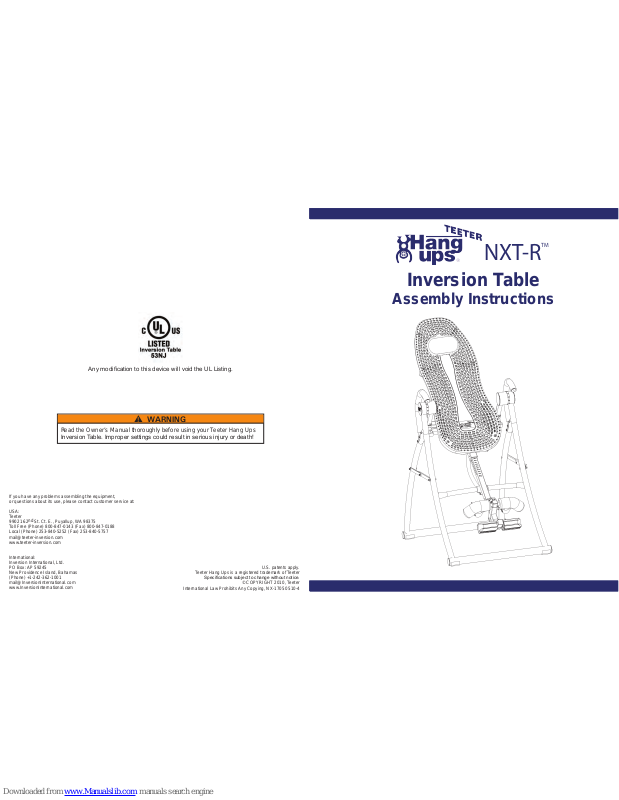

Inversion Table

Assembly Instructions

NXT-R

TM

Any modication to this device will void the UL Listing.

WARNING

!

Read the Owner’s Manual thoroughly before using your Teeter Hang Ups

Inversion Table. Improper settings could result in serious injury or death!

WARNING - To reduce the risk of injury to persons:

• Read and understand all the instructions, view the instructional video, review all other accompanying
documents, and inspect the equipment before using the inversion table. It is your responsibility to
familiarize yourself with the proper use of this equipment and the inherent risks of inversion, such as
falling on your head or neck, pinching, entrapment, or equipment failure. It is the responsibility of the
owner to ensure that all users of the product are fully informed about the proper use of the equipment
and all safety precautions.

• Close supervision is necessary when the inversion table is used near children, or by or near invalids
or disabled persons.

• Use the inversion table only for its intended use as described in this manual. DO NOT use attachments
not recommended by the manufacturer.

• NEVER drop or insert any object into any opening.

• DO NOT use or store product outdoors.

• DO NOT use if you are over 6 ft 6 in (198 cm) or over 300 lbs. (136 kg). Structural failure could occur

or head/neck may impact the oor during inversion.

• DO NOT allow children to use this machine.

• Keep children, bystanders, and pets away from machine while in use.

• Keep body parts, hair, loose clothing and jewelry clear of all moving parts.

• The inversion table has no user serviceable parts.

• This product is intended for indoor home use only. DO NOT use in any commercial, rental or institutional
setting.

• DO NOT use the equipment without a licensed physician’s approval and a review of the medical
contraindications, as noted in the Owner’s Manual.

• Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this

product and could result in injury or death.

• Choose a level surface for assembling and operating the table.

• Follow each step in sequence. DO NOT skip ahead.

• Make sure that all fasteners are secure.

• ALWAYS test and inspect the table. Make sure the table rotates smoothly to inverted position and back.

• ALWAYS replace defective components immediately and/or keep the equipment out of use until repair.

FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD

RESULT IN SERIOUS INJURY OR DEATH.

Before you begin: Review all steps before beginning assembly and read all precautions before

using the inversion table. Carefully adhere to the Assembly Instructions and Owner’s Manual to help
ensure user safety and product integrity.

WARNING

!

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE.

1 Teeter Hang Ups • NXT-R

Teeter Hang Ups • NXT-R 10

POST-ASSEMBLY

PRE-ASSEMBLY

ADJUSTMENTS / MAINTENANCE / STORAGE

Figure 21

Figure 23

CHANGING THE ROTATION ADJUSTMENT SETTING

• Shorten the Main Shaft and rotate the Table Bed opposite
from use into its storage position. Leave the A-frame open
and locked at the spreader arms (Figure 21).

• The Pinlock Knobs serve two functions:

- As a “de-rattler” to prevent excess
movement of the support arms (Figure 22A)

-

As a “spring-loaded pinlock” to engage the

Rotation Adjustment Setting (Figure 22B).

• First, loosen the “de-rattler” function of the Pinlock Knobs by
rotating them counterclockwise. Then pull the knobs up to
disengage the pin and rotate counterclockwise to lock them
in the “out” position.

• Move the Support Housing along the Rotation Adjustment

Arms to the desired setting using the line markings as a
guide. Rotate the pin clockwise to release the lock and allow
the pin to engage a hole. You will hear a click when the pin
is properly engaged.

NOTE: Engage Pinklock Knobs in same setting for each of
the Rotation Adjustment Arms.

• Turn the Pinlock Knobs clockwise to re-engage the
de-rattler function.

• Rotate the Table Bed back to its use position and extend
the Main Shaft to your preferred setting.

MAINTENANCE

• To clean the Table Bed, wipe down with a damp cloth.
Do not use abrasive cleaners.

STORING THE INVERSION TABLE

• Loosen the Main Shaft De-Rattler Knob. Pull the
height-selector locking pin, slide the Main Shaft in
all the way, and engage the pin in the storage setting.

• Rotate the table opposite from use until the table has turned
180 degrees and rests against the Crossbar on the A-frame.

• Pull up on the Spreader Arms to fold the A-frame (Figure 23)

NOTE: This operation may pinch ngers if not done slowly

and carefully.

Option: instead of rotating to lock pins in

the “out” position, simply pull the knobs up,

slide, and release into your desired setting.

(Counterclockwise to Lock,

Clockwise to Release)

(Counterclockwise to

Loosen, Clockwise

to Tighten)

Support Housing

Figure 22A

Figure 22B

WARNING

!

Tipping Hazard: For upright storage, leave A-Frame open
wide enough to remain stable, or secure the the wall to
prevent tipping. In households with small children, the

table should be stored at on the oor, not upright.

ITEMS FOR ASSEMBLY

Carefully remove the individual parts from the carton. You should have all of the items listed below. If
any items are missing or damaged, contact Customer Service at 1-800-847-0143.

Items for Assembly Item Numbers
A-frame Base NX-1100

Tether Strap F5-1007
Table Bed Assembly NX-1300
Bolts, Washers,

Nuts & Allen Wrench EP-1128
Head Pillow EP-1105

Main Shaft with
Ankle Lock System NX-1600

Foam Rollers (2) F5-1051
Rubber Plugs (2) F5-1056

Handles NX-1500
Bolts (4) NX-1510
Nuts (4) NX-1530

Crossbrace NX-1400
Bolts (2) NX-1415
Nuts (2) NX-1420

Wrench IA-1147
Allen Wrenches IA-1149

Step Seven

Install the Front Foam Rollers (F5-1051)

• Slide the Foam rollers over each side of
the Front Ankle Bar (Figure 17).

TIP: Rotate the Front Foam Rollers up and

down repeatedly while pushing onto the

bar for easier assembly.

• Insert the black plugs (F5-1056) into each
open end of the Front Ankle Bar if they are
not already assembled (Figure 17A).

Step Eight

Attach the Tether Strap (F5-1007) to Limit
the Degree of Rotation

• Hook the clip at the end of the Tether Strap
to the loop at the base of the Table Bed
(Figure 18). This assists in limiting your
degree of rotation.

• Tighten or loosen the strap to restrict or
extend the degree of rotation.

Step Nine

Attach the Head Pillow and Owner’s Manual

• Attach the Head Pillow by securing the
Velcro straps through the holes in the
Table Bed – the position of the pillow can
be adjusted depending on the user
(Figure 19).

• Hang the Owner’s Manual over one of the

handles for future reference (Figure 20).

NX-1600

F5-1056

F5-1051

Teeter Hang Ups • NXT-R

Teeter Hang Ups • NXT-R 2

PRE-ASSEMBLY

ASSEMBLY

Figure 17

Figure 19

Figure 18

Figure 17A

Figure 20

F5-1007

IA-1149

NX-1400

IA-1147

NX-1510 & NX-1530

Bolts & Nuts Pre-Assembled

NX-1500

NX-1300

NX-1100

EP-1105

EP-1128

F5-1007

NX-1415 & NX-1420

Bolts & Nuts Pre-Assembled

Owner’s Manual

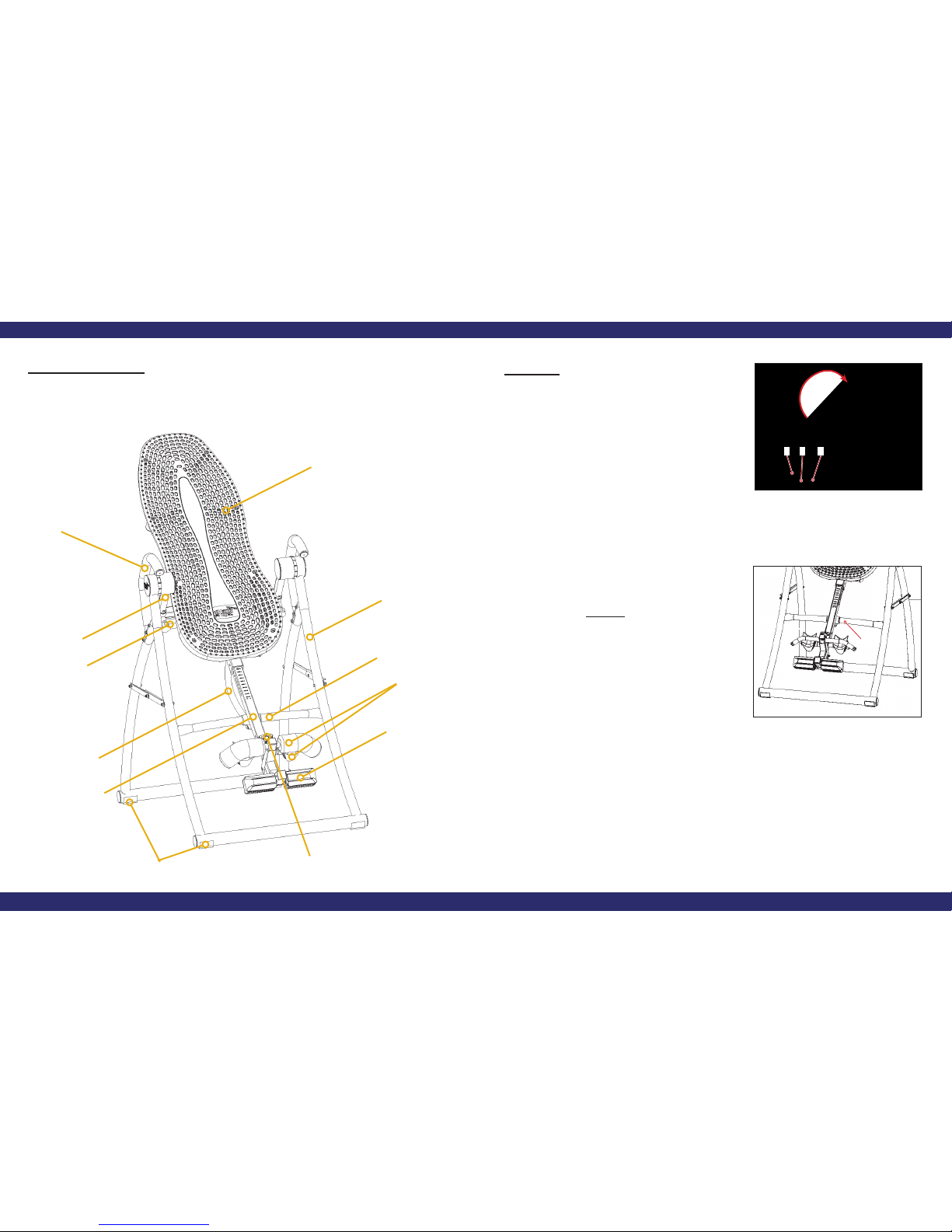

Before Beginning

Before reading further, study the drawing below to familiarize yourself with the important components
of your new Teeter Hang Ups inversion table.

Table Bed

A-Frame

Main Shaft

Ankle Locking Pin

Ankle Comfort Dial

Handle

Feet

Rear and Front

Ankle Clamps

Tether Strap

Crossbar

Step Six

Insert the Main Shaft (NX-1600) into the
Table Bed (NX-1300)

• Ensure that the A-frame is fully open and
locked at the Spreader Arms.

• Rotate the Table Bed into its use position
(Figure 15).

• Loosen the Main Shaft De-rattler Knob at
the base of the Main Shaft Housing.

• With the height adjustment settings on the

Main Shaft facing up, insert the end of the
Main Shaft into the Main Shaft Housing at
the base of the Table Bed.

• Pull out the Height Selector Locking Pin to
allow the Main Shaft to slide in further, then
release the pin to engage a hole. (Refer
to the Owner’s Manual for proper height

adjustment before use.)

Note: The De-rattler Knob is an optional
feature that prevents a slight shift

when you invert. Product security is not

compromised if you choose to not tighten
the knob.

• The Main Shaft must rest against the
Crossbar of the A-frame (Figure 16). The
Crossbar prevents the table from rotating
forward when the user steps on the Foot
Platform. If the Main Shaft does not rest
on the Crossbar as shown in Figure 16
then the Table Bed has been assembled
backwards onto the A-frame and this must
be corrected before use.

Rotation Adjustment Arm

Crossbrace

3 Teeter Hang Ups • NXT-R

Teeter Hang Ups • NXT-R 8

ASSEMBLY

PRE-ASSEMBLY

1 De-Rattler Knob
2 Main Shaft Housing
3 Height-Selector Locking Pin

Figure 15

Figure 16

3

1 2

1

1 Main Shaft properly resting on Crossbar.

Step One

Attach the Support Beam to the Table
Bed (NX-1300).

• Place the Table Bed face down on the oor.

Push down on the Support Beam so that
the two holes align evenly with the holes
at the base of the Upper Support Arms
(Figure 1).

NOTE: You may have to exert extra
pressure to ensure that the Support Beam
slides over the Rubber Spacers.

• Insert the two bolts (EP-1128) into the open
holes.

• Fasten each bolt with the washer and nut
(EP-1128).

• Using the Allen Wrench (EP-1128) to
steady the bolts, tighten the nut onto the
bolt with the larger wrench (F5-1088)
(Figure 2). Repeat with second bolt.

Step Five

Attach the Crossbrace (NX-1400) to the
Rotation Adjustment Arms

• Remove the pre-assembled bolts from the
Crossbrace.

• Align the holes in the Crossbrace with the

last hole on the Rotation Adjustment Arms

(Figure 12).

• Re-insert the bolts and secure with the
washers and nuts, tightening with the
wrenches provided (IA-1149 & IA-1147)
(Figure 13).

• Turn the Pinlock Knobs clockwise to
re-engage the “de-rattler” function
(Figure 14).

Figure 12

Figure 13

Figure 14

(Turn Clockwise to Tighten the De-Rattler Function.)

7 Teeter Hang Ups • NXT-R

Teeter Hang Ups • NXT-R 4

ASSEMBLY

ASSEMBLY

Figure 2

Figure 1

1 Support Beam
2 Upper Support Arms
3 Rubber Spacers

1

2

3

Step Two

Assemble the Table Bed (NX-1300) to the
A-frame Base (NX-1100)

• Position the A-frame on the oor with the
crossbar pointing down, so that the frame

is resting on the Rotation Adjustment Arms

(Figure 3).

• With the Table Bed face up and the top of
the bed pointing to the A-frame feet, slide it
on the oor between the legs of the
A-frame.

• Loosen the “de-rattler” function of
the Pinlock Knobs by turning each
counterclockwise (Figure 4).

• Align and insert the Rotation Adjustment

Arms into the Support Housings (Figure 5).

• Pull out both spring-loaded Pinlock Knobs
and pull up to align the Support Housing
with one of the marked settings on the

Rotation Adjustment Arms.

• Release the knobs so that they engage a
hole setting (Figure 6). Should the knobs
be locked in the “out” position, simply
rotate clockwise to release (Figure 7).

Note: Refer to the Owner’s Manual for an

explanation of the hole settings. If you are
unsure, use Setting C (Figure 6) to start.

Step Three

Attach the Handles (NX-1500) to the A-frame
Base (NX-1100)

• To assemble the Handles, leave the
inversion table in this position.

• Remove the pre-assembled bolts from the
Handles.

• Fit each Handle over the A-frame legs,
aligning with the pre-drilled holes
(Figure 8).

• Re-insert the bolts and secure with the
nuts, tightening with the Allen Wrenches
provided (IA-1149) (Figure 8A).

Step Four

Stand the Inversion Table Upright

• To stand the inversion table upright, rst move

the A-frame onto its side (Figure 9), and then
carefully lift it up onto its feet (Figure 10).

• Use the handles to open the A-frame wide
enough so that it is stable and can stand
upright on its own (Figure 11).

• Leave the table in this position for Step Five
of the assembly.

5 Teeter Hang Ups • NXT-R

Teeter Hang Ups • NXT-R 6

ASSEMBLY

ASSEMBLY

Figure 3

Figure 4

(Counterclockwise to Loosen,
Clockwise to Tighten)

Figure 5

Figure 6

LOOSEN

TIGHTEN

Figure 7

LOCK

RELEASE

A

B

C

Figure 8

Figure 8A

Figure 9

Figure 11

Figure 10

1 Support Housing
2 Rotation Adjustment Arms

Crossbar pointing down

1
2
