ComforTrakTM Series
Assembly Instructions
R
EP-560™ Inversion Tables
Pour télécharger et imprimer les instructions de
montage du dossier ComforTrak™ en français,
rendezvous sur teeter-inversion.com
Para descargar e imprimir las instrucciones
de montaje de ComforTrak™ en español, visite
teeter-inversion.com
T
E
E
T
E
R
H
A
N
G
U
P
S
W
A
R
R
A
N
T
Y
YEAR
5
FULL
* Inversion Table images may
vary slightly from your model.
The EP-560 is shown here.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE.
SAVE THESE INSTRUCTIONS
WARNING - To reduce the risk of injury to persons:
• Read and understand all the instructions, view the instructional video, review all other accompanying documents, and inspect the
equipment before using the inversion table. It is your responsibility to familiarize yourself with the proper use of this equipment and the
inherent risks of inversion, such as falling on your head or neck, pinching, entrapment, or equipment failure. It is the responsibility of
the owner to ensure that all users of the product are fully informed about the proper use of the equipment and all safety precautions.
•
Close supervision is necessary when the inversion table is used near children, or by or near invalids or disabled persons.
• Use the inversion table only for its intended use as described in this manual. DO NOT use attachments not recommended by the
manufacturer.
• NEVER drop or insert any object into any opening.
• DO NOT use or store product outdoors.
• DO NOT use if you are over 6 ft 6 in (198 cm) or over 300 lbs. (136 kg). Structural failure could occur or head/neck may impact the
oor during inversion.
• DO NOT allow children to use this machine.
• Keep children, bystanders, and pets away from machine while in use.
• Keep body parts, hair, loose clothing and jewelry clear of all moving parts.
• The inversion table has no user serviceable parts.
• This product is intended for indoor home use only. DO NOT use in any commercial, rental or institutional setting.
FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.
BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity.
1
WARNING
!
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE.
SAVE THESE INSTRUCTIONS
FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.
BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table.
Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity.
• DO NOT use the equipment without a licensed physician’s approval and a review of the medical contraindications, as noted in the
Owner’s Manual.
• Failure to assemble and/or use the equipment as directed may void the manufacturer’s warranty on this product and could result in
injury or death.
• Choose a level surface for assembling and operating the table.
• Follow each step in sequence. DO NOT skip ahead.
• Make sure that all fasteners are secure.
• ALWAY S test and inspect the table. Make sure the table rotates smoothly to inverted position and back.
• ALWAY S replace defective components immediately and/or keep the equipment out of use until repair.
2
WARNING
!
ITEMS FOR ASSEMBLY (Page 1 of 2)
3
E61100
F51007
E61301A
E61300B
HK1006
E61600
IA1119
HK1005
IA1113
HK1003
ITEM NAME
ITEM NUMBER
Stretch-and-Grip
TM
Base Assembly
A-Frame
Angle Tether pre-assembled to A-Frame
ComforTrakTM Table Bed Assembly
Upper Portion with pre-assembled Bed Frame Extension
Lower Portion with pre-assembled Bed Frame
Table Bed Assembly Hardware Kit
Large Bolt (1), Small Bolts (2), Nuts (3)
Main Shaft
with
T-Pin Ankle Lock System Assembly
Ankle Comfort Dial Assembly
Ankle Comfort Dial with one removable dial for assembly
Ankle Comfort Dial Assembly Hardware Kit
Screw (1)
Rear Ankle Bar Assembly
Rear Ankle Bar with one removable cup for assembly
Rear Ankle Bar Assembly Hardware Kit
Rubber Plug (1), Bolt (1), Nut (1), Washer (1), Screw (1)
EP1045
HK1004
E61500
HK1008
F51064
E61105
F51088
IA1149
F51130
ITEM NAME
ITEM NUMBER
Front Ankle Bar Assembly
Front Ankle Bar with two pre-assembled cups
Front Ankle Bar Assembly Hardware Kit
Bolt (1), Nut (1), End Cap (1)
Handle Assembly
Stretch AssistTM Handles (2)
Stretch AssistTM Handle Assembly Hardware Kit
Allen Head Bolts (6)
Roller Hinge Assembly
3-Hole Roller Hinges (2)
Optional Accessories
Head Pillow
Tools Provided for Assembly
10/13mm Open-Ended Wrenches (2)
5mm Allen Wrench (1)
Screwdriver (1)
ITEMS FOR ASSEMBLY (Page 2 of 2)
Items not shown to scale. Hardware drawings located on the insert inside each Hardware Kit.
4
Stretch-and-Grip Base Assembly
with pre-assembled Angle Tether
F51088
ComforTrak Table Bed Assembly
use Table Bed Assembly Hardware Kit (HK1006)
Main Shaft with T-Pin Ankle Lock System
requires assemblies, below
Roller Hinge Assembly
Optional Accessories
Tools Provided for Assembly
IA1149
F51130
E61100
F51007
E61301A
EP1045
F51064
E61105
E61300B
E61600
IA1119
IA1113
Ankle Comfort Dial Assembly
use Ankle Comfort Dial Assembly Hardware Kit (HK1005)
Rear Ankle Bar Assembly
use Rear Ankle Bar Assembly Hardware Kit (HK1003)
Front Ankle Bar Assembly
use Front Ankle Bar Assembly Hardware Kit (HK1004)
Stretch Assist Handle Assembly
use Stretch Assist Handle Assembly
Hardware Kit (HK1008)
E61500
Head Pillow
Bed Frame Extension
ComforTrak
™
Table Bed
Pivot Pins
Hinge Plates
Self-Locking Hooks
3-Hole Roller Hinges
Stretch Assist
™
Handles
Height-Selector Locking Pin
1
2
3
4
5
6
7
8
9
Spreader Arms
Angle Tether
Crossbar
A-Frame
Main Shaft
Ankle Lock System
Ankle Comfort Dial
™
Stability Feet
UNDERSTANDING YOUR INVERSION TABLE
Identifying Parts and Components
* Inversion Table images may
vary slightly from your model.
The EP-560 is shown here.
Before reading further, study the drawing below to familiarize yourself with
the important components of your new Teeter Hang Ups® Inversion Table.
Located on
back of table
bed.
10
11
12
13
14
15
16
17
1
2
3
9
10
8
13
12
11
15
16
17
4
5
6
7
5
14

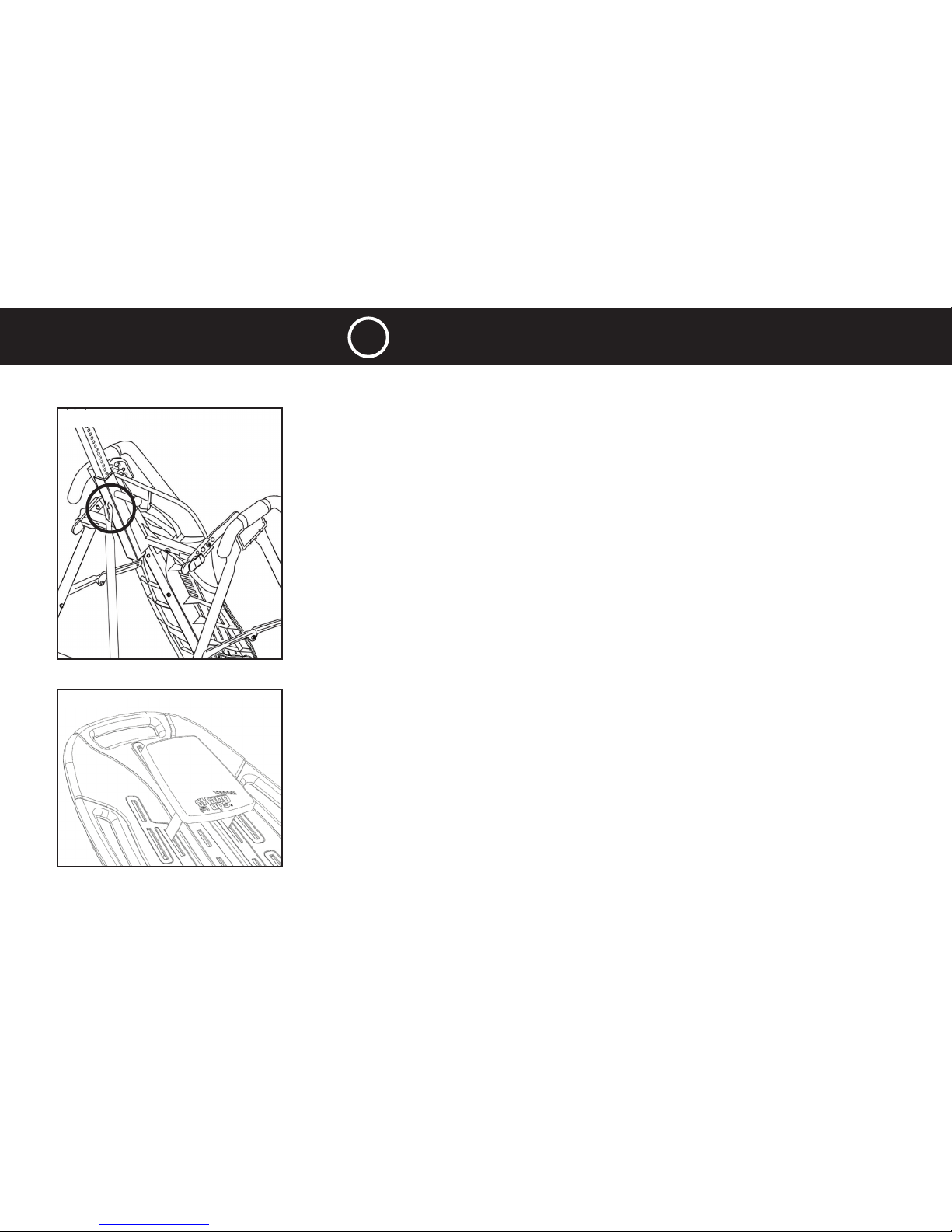

Important: Please review all labels and supporting materials before using your inversion table.
This drawing indicates the locations of the warning labels found on your product.
If a label is missing, illegible or is removed, contact Customer Service at the phone number
or website found on the last page to request a complimentary replacement label.
Note: Image and labels below not shown at actual size.
WARNING / AVERTISSEMENT
ADVERTENCIA
!
E6-1740-M 1112-0
Do not use Setti ng A for users over 220 lb s (100kgs).
Ne pas utiliser l e réglage A pour les ut ilisateurs plus 10 0 kgs (220 lbs).
No utilizar Co nfiguración A pa ra los usuarios de 10 0kg (220lbs).
Replace labe l if damaged, il legible, or rem oved. / Remplacer l’etiquette si endommage
ou enleve. / Reemplace las etiquetassi se ll egará daña r, se volviera n ilegibles o a pe rder.
WARNING / AVERTISSEMENT
ADVERTENCIA
!
NX-1750-M 1112-2
TIPPING HAZARD: For upright storage, leave A-Frame open wide enough to remain stable, or secure to the
wall to prevent tipping. In households with small children, the table should be stored flat on the floor, not upright.
DANGER DE RENVERSEMENT: Pour un rangement en position verticale, laissez le cadre en A suffisamment
ouvert pour qu'il reste stable, ou appuyez-le sur un mur pour éviter les chutes. Dans les foyers avec de jeunes
enfants, cette table devrait être rangée à plat sur le sol et non pas debout.
PELIGRO DE DESLIZAMIENTO: Para guardar la tabla parada, deje la estructura A lo suficiente abierta para
que quede estable, o asegúrela a la pared para prevenir que se deslice y caiga. En casa con niños pequeños,
la tabla debe guardarse acostada sobre el piso, no parada.
Replace label i f damaged, ille gible, or remove d. / Remplacer l’etiquette si endommage
ou enleve. / Reemplace las etiquetassi se lleg ará daña r, se volvieran il egibles o a perd er.
WARNING / AVERTISSEMENT
ADVERTENCIA
!
IA-2007-M 1112-2
Ankles must be properly secured before use.
Les chevilles doivent etre convenablement a obtenu avant l’usage.
Los tobillos deben estar propiamente asegurados antes de usarse.
Replace labe l if damaged, ill egible, or rem oved. / Remplacer l’etiquette si endommage
ou enleve. / Reemplace las etiquetassi se lle gará daña r, se volviera n ilegibles o a pe rder.
WARNING LABEL PLACEMENT DIAGRAM
6
Teeter, 9902 162nd St. Ct. E., Puyallup, WA 98375
Teléfono: 800-847-0143 www.teeter-inversion.com
ADVERTENCIA
!
EP-1737-S 0612-2
ADVERTENCIA - Para reducir el riesgo de lesiones personales o muerte
• Lea y entienda todas las instrucciones antes de usar la tabla de inversión.
Es su responsabilidad familiarizarse con el uso adecuado del equipo y con
los riesgos inherentes de la inversión, tales como caer de cabeza o en el
cuello, pellizcarse, quedar atrapado o que el equipo falle.
• No permita que niños usen este equipo.
• Mantenga niños, espectadores y mascotas lejos del equipo mientras este en uso.
• Mantenga partes corporales, cabello, ropa holgada y joyería alejados de las partes móviles.
• Capacidad de Altura/Peso: 4 pies 8 pulgadas, 6 pies 6 pulgadas
(142-198 cm); 300 libras (136 kg).
• Este producto está diseñado solamente para uso casero en interiores.
Reemplace las etiquetas y el manual del usuario si se llegará dañar,
se volvieran ilegibles o a perder.
Teeter, 9902 162nd St. Ct. E., Puyallup, WA 98375
Téléphone: 800-847-0143 www.teeter-inversion.com
AVERTISSEMENT
!
EP-1737-F 0612-2
AVERTISSEMENT - Afin de réduire le risque de blessures ou la mort:
• Lire et comprendre toutes les instructions avant d’utiliser la table d’inversion.
Vous êtes responsable de vous familiariser avec l’utilisation correcte de cet
appareil et aux risques inhérents à l’inversion tels que le risque de tomber
sur la tête ou sur le cou, les pincements,la possibilité de rester coincé, ou
les risques de défaillances de l’appareil.
• NE PAS permettre aux enfants d’utiliser cet appareil.
• Maintenir les enfants, les spectateurs et les animaux de compagnie éloignés
lors de l’utilisation de l’appareil.
• Maintenir toutes les parties du corps, les cheveux, les vêtements amples et
les bijoux éloignés de toutes les pièces en mouvement.
• Capacité de hauteur/poids: 1,42 m-1,98 m (4 ft 8 in – 6 ft 6 in); 136 kg (300 lbs)
• Ce produit est pour l’usage domestique intérieur seulement.
Remplacer L’etiquette Si Endommage Ou Enleve.
WARNING - To reduce the risk of personal injury or death:
•
Read and understand all the instructions before using the inversion table.
It is your responsibility to familiarize yourself with the proper use of the
equipment and the inherent risks of inversion, such as falling on your head
or neck, pinching, entrapment or equipment failure.
•
Do not allow children to use the machine.
•
Keep children, bystanders, and pets away from the machine while in use.
•
Keep body parts, hair, loose clothing and jewelry clear of all moving parts.
•
Height/Weight capacity: 4 ft 8 in - 6 ft 6 in (142-198 cm); 300 lbs (136 kgs).
•
This product is for consumer, indoor household use only.
Replace Labels and Owner’s Manual if Damaged, Illegible, or Removed.
Teeter, 9902 162nd St. Ct. E., Puyallup, WA 98375
Toll Free (Phone): 800-847-0143 Web: www.teeter-inversion.com
WARNING
!
EP-1737 0911-3
* Inversion Table images may
vary slightly from your model.
The EP-560 is shown here.
Unpack and Prepare Your Workspace
• If possible, set up the product at or near the space in which you intend to use it to avoid moving it later.
• Unpack all parts and support materials. Set aside packing materials and clear your work area.
• Locate the Hardware Kits, packaged with the manuals. They are labeled to correspond with the assembly process.
• The Assembly & Use DVD provides step-by-step instruction on how to assemble your product. You may find it helpful to follow along
with the DVD by watching it on either your TV or computer. The DVD is divided into the following sections:
• Assembly -
Follow step-by-step instruction on how to assemble your inversion table.
• User Settings - Personalize your inversion experience by adjusting these four settings.
• Use Instructions - Learn how to properly invert and return upright.
• Advanced Stretching & Exercises - Rotational stretches, sit ups, squats and more!
• BONUS Healthy Back Routines* - Dr. Shawn leads you through 5 original “Healthy Back Routines,” including
one designed specifically for use with your inversion table!
*Not available in French or Spanish.
BEFORE BEGINNING ASSEMBLY
7
Open the Stretch-and-Grip Base (“A-Frame”)
• On a level surface, position the A-Frame so that it is standing upright and the Stability Feet
are on the ground.
• Gently push down on the Spreader Arms to ensure they are fully open and in the “locked”
position (Figure 1).
• Look for these temporary labels on your A-Frame, designed to assist you with the remainder
of the assembly process. You may choose to remove them after you assemble your
inversion table.
RIGHT Indicates right side as you are using the inversion table, not facing it.
LEFT Indicates left side as you are using the inversion table, not facing it.
BACK Indicates the back of the A-Frame / fully assembled inversion table.
FRONT Indicates the front of the A-Frame / fully assembled inversion table.
Assemble the Stretch Assist Handles
• Locate the Stretch Assist Handle Assembly Hardware Kit (HK1008).
• Determine the left or right handles, marked with an embossed L / R on the inside of the black
plastic part of each handle.
• Align the black plastic part of the corresponding handle (left / right) over the outside edge of
the Hinge Plate on the A-Frame (Figure 2).
• Insert and loosely hand-tighten three of the Allen Head Screws through the Hinge Plate into
the handle (Figure 3).
• Repeat with other handle. Tighten all fasteners with the Allen Wrench provided, being careful
not to over-tighten.
STEP 1 Stretch-and-Grip Base & Stretch Assist Handle Assembly
FIGURE 2
FIGURE 3
Crossbar
2
Spreader Arms
1
LEFTRIGHT
BACK
FRONT
FIGURE 1
8
Assemble the Upper and Lower Portions of the Table Bed
NOTE: Do not detach the Bed Frame Extension from the clips.
• Locate the Table Bed Assembly Hardware Kit (HK1006)
• Lay the Upper and Lower Portions face down on the floor (Figure 4).
• Gently lift the base of the pre-assembled Bed Frame Extension to slide the Lower Portion
and Frame onto the Upper Portion. Align the shaft of the frame into the plastic track of the
Upper Portion (Figure 5).
• Align the bolt holes of the upper part of the frame (triangle-shaped area) to the bolt holes
on the Upper Portion. Release the Bed Frame Extension so that it rests on top of the bolt
holes (Figure 5).
• Reaching underneath, insert one of the shorter bolts through one of the holes in the Upper
Portion and hold in place. Slide one of the Bed Frame Extension loops over the
bolt and hand-tighten with a nut (Figures 6 & 6a). Repeat with the other shorter bolt.
• Reaching underneath, insert the longest bolt into the lower hole and hand-tighten with a
nut.
• To fully tighten all three nuts to the bolts, insert the Allen Wrench into the bolt heads and
tighten the nuts using a 10/13mm Open-Ended Wrench.
9
STEP 2 Table Bed Assembly
FIGURE 5
FIGURE 4
Lower Hole / Longer Bolt
Upper Holes / Shorter Bolts
1
2
FIGURE 6
Bed Frame Extension Loop
2
Shorter Bolt
1
FIGURE 6a
Lower Portion
Upper Portion
Bed Frame Extension
• Familiarize yourself with the Roller Hinge and Cam Lock terms detailed below in Figure 7.
• For ease of assembly, rest the Table Bed against the Crossbar (Figure 8) at the front of the
A-Frame.
• On one side of the Table Bed, lift and hold the Cam Lock up all the way to unlock (Figure 9).
• In your other hand, hold one 3-Hole Roller Hinge at the Pivot Pin. With the Pivot Pin facing out
(away from the Table Bed), slide the bottom of the Roller Hinge between the Cam Lock and
the Bracket.
TIP: Make sure that the Cam Lock is completely open when inserting the Roller Hinge,
otherwise assembly will be more difficult.
• Engage one of the holes in the Roller Hinge over the Bracket Pin. Figure 11 shows the Roller
Hinge installed correctly, with the Bracket Pin engaged in Setting C.
NOTE: Refer to the Owner’s Manual for an explanation of the hole settings. If you are unsure,
use Setting C to start.
• Push down on the Cam Lock (Figure 10) to lock it and secure the Roller Hinge.
• Repeat on other side. Make sure the Roller Hinges are in the same hole setting on both sides.
STEP 3 Roller Hinge Assembly
CBA
1
10
FIGURE 8
FIGURE 9 FIGURE 10
FIGURE 11
Unlocked Locked
Bracket Pin
Cam LockPivot Pin
Bracket
FIGURE 7
NEVER disassemble the
Roller Hinge Pivot Pin.
WARNING
!
Bracket Pin
1
• Face the front of the A-Frame where the Crossbar is located (refer to Figure 12 to determine
A-Frame Front).
• Grasp both the Roller Hinges, right above the Cam Lock, and lift the Table Bed. Allow the top
of the Table Bed to rotate toward the floor, so that the back of the Table Bed is now facing
you and the top of the Table Bed is in front of the Crossbar (Figure 13).
• Lower each Roller Hinge Pivot Pin into the A-Frame hinge plates, one side at a time
(Figure 14). The Self-Locking Hooks will open to allow the Pivot Pin into the Hinge Plate slot,
then automatically snap closed over the Pivot Pin.
TIP: You may need to push outward on the Hinge Plate in order for the second Pivot Pin
to lock in place.
• Make sure that each Pivot Pin is seated at the base of the slot in the Hinge Plates, and that
the Self-Locking Hooks have closed over both Pivot Pins (Figures 14a & 14b).
• Rotate the Table Bed into the use position (Figure 15). Ensure that it rotates smoothly.
STEP 4 Attach the Table Bed to the A-Frame
11
FIGURE 12
FIGURE 13
FIGURE 14
FIGURE 15
FIGURE 14a
TOP VIEW
FIGURE 14b
INSIDE VIEW
Failure of the Self-Locking Hooks to close over both Roller Hinge
Pivot Pins is an indication of improper assembly and if not corrected
could result in serious injury or death!
WARNING
!
FRONT
BACK
Depending on the model you have purchased, the items in this step will vary.
EP-560: Complete Steps 5-7.
EP-560 Sport: Complete these steps to use the T-Pin Ankle Lock System, or if using
with the EZ-Up Gravity Boots, skip to Step 8. To assemble the Conversion Bar, refer to the
additional instructions enclosed.
Assemble the Ankle Comfort Dial onto the Main Shaft
• Locate the Ankle Comfort Dial Assembly Hardware Kit (HK1005).
• Slide the Ankle Comfort Dial Bar with pre-assembled Ankle Comfort Dial into the
hole at the front base of the Main Shaft (Figure 16a).
• The Ankle Comfort Dial is designed with a High and Low setting. Position the pre-assembled
Dial in the Low Setting (screw holes facing up) for ease of assembly.
• Slide the separate Ankle Comfort Dial onto the Ankle Comfort Dial Bar (Figure 16b) and align
the screw holes.
• Secure with the screw and tighten with the screwdriver provided (Figure 17).
NOTE: Refer to the Owner’s Manual for a complete description of the Ankle Comfort Dial
settings.
STEP 5 Ankle Comfort Dial Assembly
12
FIGURE 16
FIGURE 16b
FIGURE 16a
FIGURE 17
STEP 6 Rear Ankle Bar Assembly
13
Assemble the Rear Ankle Bar onto the Main Shaft
• Locate the Rear Ankle Bar Assembly Hardware Kit (HK1003).
• With the two ridges of the pre-assembled Heel Cup on the bottom, insert the Rear Ankle Bar
into the large hole at the back of the Main Shaft (Figure 18).
• Insert the bolt from the rear of the Main Shaft to secure the Rear Ankle Bar (Figure 18), and
fasten with the washer and nut using the wrenches provided.
• Slide the separate heel cup, with the two ridges on the bottom, onto the open
end of the Rear Ankle Bar (Figure 19).
TIP: To assist with assembly, repeatedly rotate the Heel Cup while pushing it onto the Rear
Ankle Bar.
• Align the pre-drilled screw hole in the Rubber Plug with the screw hole in the Rear Ankle Bar.
Insert the Rubber Plug into the open end of the Rear Ankle Bar (Figure 20).
TIP: You may want to use a rubber mallet to assist with assembly.
• Secure the Rubber Plug with the screw using the screwdriver provided (Figure 21). If the
screw does not tighten easily, you may need to reposition the alignment of the Rubber Plug.
FIGURE 18
FIGURE 19
FIGURE 20
FIGURE 21
TOP
BOTTOM
1 Ridge
2 Ridges
STEP 7 Front Ankle Bar Assembly
14
Assemble the Front Ankle Bar onto the Main Shaft
NOTE: Extending out from the Front Ankle Bar, you will see a temporary plastic zip-tie
fastened to the loops of the Retainer Spring with Cable. This is provided to assist with the
assembly process, detailed below.
• Locate the Front Ankle Bar Assembly Hardware Kit (HK1004).
• With hole settings of the Front Ankle Bar facing up, insert the temporary plastic zip-tie and
Front Ankle Bar into the Front Ankle Bar housing (Figure 22) of the Main Shaft.
• Pull up on the T-Pin Lock to allow the Front Ankle Bar to insert all the way into the housing.
Release the T-Pin to engage in the hole setting closest to the Front Ankle Cups (Figure 22a).
• Turn over the Main Shaft (Figure 23). From the back side of the Front Ankle Bar housing,
pull the plastic zip-tie to stretch the Retainer Spring and Cable Loops so that they align with
the bolt holes in the back of the Front Ankle Bar housing.
• Insert the Bolt through the hole in the outer side of the housing, through both the Retainer
Spring and Cable Loops, and through the hole in the other side of the housing (Figure 23a).
• Release your hold on the plastic zip-tie. Secure the Bolt with the Nut (Figure 24) using the
10/13mm Open-Ended Wrench provided.
IMPORTANT: Cut the long segment of zip-tie off so that it will not interfere with the function
of the Retainer Spring. Be careful not to damage the Retainer Spring with the Cable.
• Cover the open end of the Front Ankle Bar Housing with the End Cap (Figure 24a).
1
FIGURE 22
Front Ankle Bar Housing
1
Retainer Spring & Cable Loop1
FIGURE 24
FIGURE 24a
Failure to assemble the T-Pin Ankle Lock System
properly could result in serious injury or death!
WARNING
!
FIGURE 22a
Large Arrow: Pull up on the T-Pin.
Small Arrow: Insert the Front Ankle
Bar into the Front Ankle Bar Housing.
FIGURE 23
FIGURE 23a
Temporary Zip-Tie2
1
2
• Facing the front of the A-Frame, hold the Main Shaft in your left hand with the height
markings facing up. Slide the end of the Main Shaft into the Main Shaft Housing (Figure
25), located at the base of the Table Bed.
• With your right hand, pull out the Height-Selector Locking Pin (Figure 25a) to allow the
Main Shaft to slide in further and release in the desired height setting. Refer to the Owner’s
Manual for more information on selecting your height setting.
• The Main Shaft MUST REST against the Crossbar of the A-Frame (Figure 26).
IMPORTANT: The Crossbar prevents the Table Bed from rotating forward when the user
steps on the Ankle Comfort Dial. If the Main Shaft does not rest on the Crossbar as shown
in Figure 26, then the Table Bed has been assembled backwards onto the A-Frame.
This MUST BE CORRECTED before use.
• Test the inversion table by hand for smooth and steady rotation (Figure 27) and ensure that
all fasteners are secure.
STEP 8 Assemble the Main Shaft to the Table Bed
15
FIGURE 25
FIGURE 26
FIGURE 27
FIGURE 25a
Image B
Go back to Step 4 for instruction.
Demonstrates that the Table Bed has been assembled
into the A-Frame backwards so the Main Shaft is not resting
on the Crossbar and must be corrected.
Image A
Go back to Step 3 for instruction
Demonstrates that the Roller Hinges have been assembled
upside down into the Table Bed and must be corrected.
If your Teeter Hang Ups Inversion Table looks like either of these images, your inversion table has
been misassembled and is unfit for use. Improper assembly could result in serious injury or death!
MISASSEMBLY CHECK
* Inversion Table images may
vary slightly from your model.
The EP-560 is shown here.
16
WARNING
!
Attach the Angle Tether (OPTIONAL)
• The tether will come pre-assembled to the A-Frame.
• Unfold the adjustable tether and clip it to the U-Bar on the underside of the Table Bed
(Figure 28).
• Refer to the Owner’s Manual for guidance with pre-setting your angle of rotation.
Attach the Head Pillow (OPTIONAL)
• Attach the Head Pillow by securing the Velcro Straps through the holes in the Table Bed
(Figure 29). The position of the pillow can be adjusted depending on the user.
STEP 9 Attach the Accessories
17
FIGURE 28
FIGURE 29
Attach the Owner’s Manual
The Owner’s Manual contains important information on how to use your Teeter Hang Ups
Inversion Table, including how to personalize the user settings, properly secure and release
the Ankle Lock System, and test and adjust the rotation control.
• If not already attached, thread the provided metal chain through the pre-punched hole in the
upper corner of the Owner’s Manual.
• Secure the chain to the A-Frame through the designated hole in the Hinge Plate
(Figure 30 & 30a). Allow the Owner’s Manual to hang freely on the outside of the A-Frame
Spreader Arms so it doesn’t interfere with the rotation of the Table Bed.
IMPORTANT: Once attached to the A-Frame, do not remove the Owner’s Manual. It should
remain permanently attached to your inversion table to serve as a reference for all users in
regards to proper adjustment and use of the equipment.
Review the Use Instruction section of your DVD
• The Use Instruction section of your DVD provides guidance on how to properly adjust, use
and become acclimated to inversion.
Register Your Product
• Please complete the warranty registration online at teeter-inversion.com.
WARNING
!
Read the Owner’s Manual thoroughly before using your Teeter Hang Ups
Inversion Table. Improper settings could result in serious injury or death!
BEFORE INVERTING
18
FIGURE 30
FIGURE 30a
U.S. and Foreign Patents Pending. Teeter Hang Ups is a registered trademark of Teeter.
Specications subject to change without notice. © COPYRIGHT 2014 Teeter. International Law Prohibits Any Copying.
E61716 0314-0
If you have any trouble assembling the equipment, or
questions about its use, please contact customer service.
Medical Device Safety Service GmbH
Schiffgraben 41
30175 Hannover
Germany
Tel. +49 511 62628630
EC
REP
International: Inversion International, Ltd.
PO Box: AP 59245
New Providence Island, Bahamas
(Phone) +1-242-362-1001
(Fax) +1-242-362-1002
info@InversionInternational.com
www.InversionInternational.com
Any modication to this device will void the UL Listing.
USA: Teeter
9902 162
nd
St. Ct. E.
Puyallup, WA 98375
Toll Free (Phone) 800-847-0143
(Fax) 800-847-0188
info@teeter-inversion.com
www.teeter-inversion.com
This product is Listed by
Underwriters Laboratories Inc.
Representative samples of this
product have been evaluated
by UL and meet applicable
safety standards.
This product is Listed by
Underwriters Laboratories Inc.
Representative samples of this
product have been evaluated
by UL and meet applicable
safety standards.
This product is Listed by
Underwriters Laboratories Inc.
Representative samples of this
product have been evaluated
by UL and meet applicable
safety standards.
This product is Listed by
Underwriters Laboratories Inc.
Representative samples of this
product have been evaluated
by UL and meet applicable
safety standards.
USA: 800-847-0143 or info@teeter-inversion.com
International: +1-242-362-1001 or info@inversioninternational.com
Loading...
