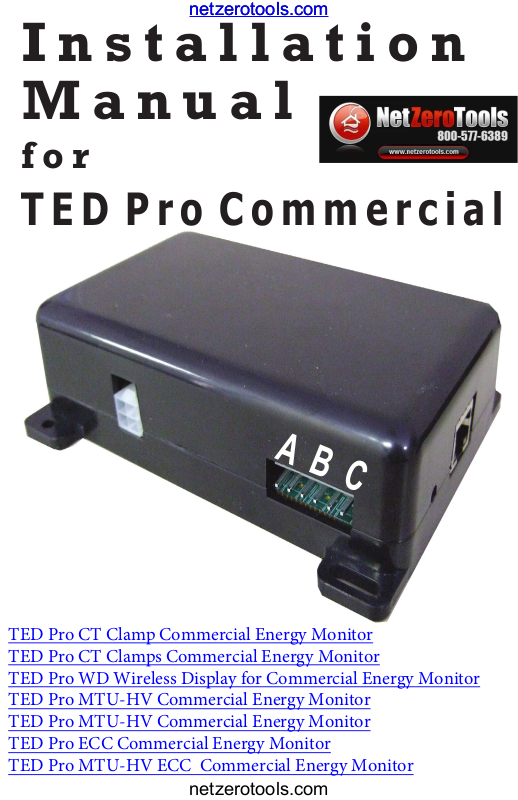

TED Pro Commercial Installation Manual
I n s t a l l a t i o n
netzerotools.com
netzerotools.com
netzerotools.com
M a n u a l
f o r
T E D P r o C o m m e r c i a l
A B C
TED Pro CT Clamp Commercial Energy Monitor
TED Pro CT Clamps Commercial Energy Monitor
TED Pro WD Wireless Display for Commercial Energy Monitor
TED Pro MTU-HV Commercial Energy Monitor
TED Pro MTU-HV Commercial Energy Monitor
TED Pro ECC Commercial Energy Monitor
TED Pro MTU-HV ECC Commercial Energy Monitor
Page 2
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
IMPORTANT:
The installation of your TED Pro system is a several-step process. The 1st step is the installation of the MTU-HV. After the
MTU-HV is installed, Step 2 is the installation of the ECC, and
the last Step ... Footprints software.
If the equipment is used in a manner not
specied by the manufacturer, the protection
provided by the equipment may be impaired.
T A B L E O F C O N T E N T S
PART I
PART II
PART III
PART IV
Appendix
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . Page 3
Three phase services . . . . . . . . . . . . . . . . . . . . . . . Page 3
Single-phase from 3-phase . . . . . . . . . . .. . . . . . . . Page 4
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Communication Options . . . . . . . . . . . . . . . . . . Page 15
MTU-to-ECC
ECC Communication via Local Area Network . . Page 17
Footprints Software Installation . . . . . . . . . . . . . Page 18
Appendix A1 . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
Appendix A2 . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
Appendix A3 . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Appendix A4 . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
Communication via Ethernet . . . . Page 16
Appendix A5 . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23
Page 3
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
P A R T I – I N T R O D U C T I O N
SAFE OPERATING RANGE AND CONDITIONS:
Display &
ECC
MTU & CTs
Use
Condition
Temperature
Relative Humidity
Altitude
Voltage
Maximum Power
Limitations
Please note the following limitations:
• If you have a Single-Phase service, TED Pro Commercial will work.
in most cases for a less-costly solution)
• If your main circuit breaker or fuse panel is larger than 1200 Amps, TED WILL NOT work.
•
If you have more than one main circuit breaker or switch you will need to use multiple MTUs.
• If your main service circuit conductors (wires) are larger than 1.25 inch diameter, TED WILL
NOT work.
• Other TED models and accessories may be available for these applications. Please see
our website for details.
Indoor
Dry
10° - 40°C
< 80%
3,300M
95-265VAC
5W
Indoor/Outdoor
Dry /Damp
- 40°C to +50C
< 95%
3,300M
200-500 VAC
4.5W
(Use TED Pro Residential
TE D M TU 3 -PH AS E OPE RATIO N
3-Phase Services
• TED is designed to work on most 3-phase 50-60HZ electrical services worldwide. TED will work
on 3PH-4W Wye, 3-PH-3W Delta 1 or 3PH-4W Hi-Leg Delta services anywhere where the line-line
nominal voltage is between 200VAC and 600VAC. For specic connection drawings for each type
of service see Appendix.
•
Common 3-Phase Electrical Services around the world include:
o 200V 3PH-3W Delta (Japan)
o 208Y/120V 3PH-4W Wye (North America)
o 240V 3PH-3W Delta (North America)
1
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Rev 1.0.13
Page 4
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

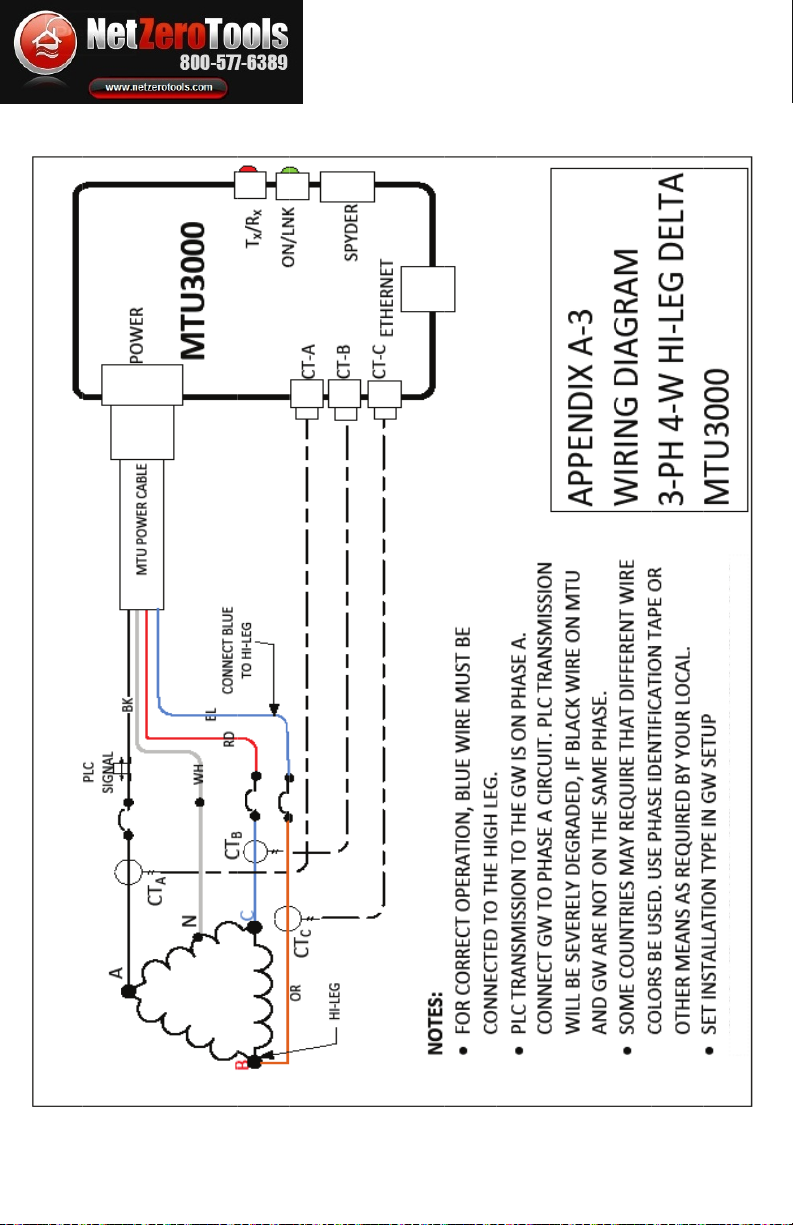

o 240/120 3PH-4W Hi-Leg Delta (North America)
o 380Y/220V 3PH-4W Wye or 380V 3PH-3W Delta (Asia)
o 400Y/230V3PH-4W Wye or 380V 3PH-3W Delta (Europe)
o 415Y/240V 3PH-4W Wye or 380V 3PH-3W Delta (UK, Australia/NZ, India)
o 480Y/277V 3PH-4W Wye or 480V 3-PH-3W Delta (North America)
o 600/347V 3PH-4W Wye or 600V 3PH-3W Delta (Canada)
1
1
1
1
1,2
• Service voltages shown above are common systems. There are other congurations. If yours is
not listed and you are not sure, please contact Energy, Inc. Tech Support for assistance.
• TED is only suitable for services of 400 Amps or less, or up to 1200 Amps with parallel 400A feeds
(May require optional CT Harness).
• TED is only suitable for services with cables that have a maximum outside diameter of 32mm
(1.25”) or 700 MCM Conductors.
1
Delta Services and Wye services where voltage between line-and-neutral exceeds 250V cannot
use PLC communication between the MTU and ECC. In these cases the MTU must be mounted
outside the electrical panel and Ethernet communication method must be used. The MTU and ECC
will need to be connected to the Local Area Network (or connected to each other via Ethernet.)
2
Services with 400A parallel feeds will require the use of a CT harness (Model ADP) and additional
sets of CTs (CT301B) for each additional parallel conductor.
4
Normally TED Pro Commercial MTU is provided with 400A current transformers. For small services
200A or less, where space is limited, it is highly recommended that customer use 200A current
transformers (Model CT601B). Please specify with order.
Single-Phase Services
TED Pro Commercial is designed to work on 3-Phase services, however it is possible to congure it
for single-phase services. TED Pro Residential (MTU-LV) is recommended for single-phase services
and provides a much smaller, more accurate and less costly solution for single-phase services up to
400A. TED Pro Commercial MTU-HV can be congured to work on any single phase service where
the line-line nominal voltage or line-to-neutral nominal voltage is between 200VAC and 250VAC. For
specic connection drawings for each type of service see the Appendix.
Page 5
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Common 1-Phase Electrical Services around the world include:
•

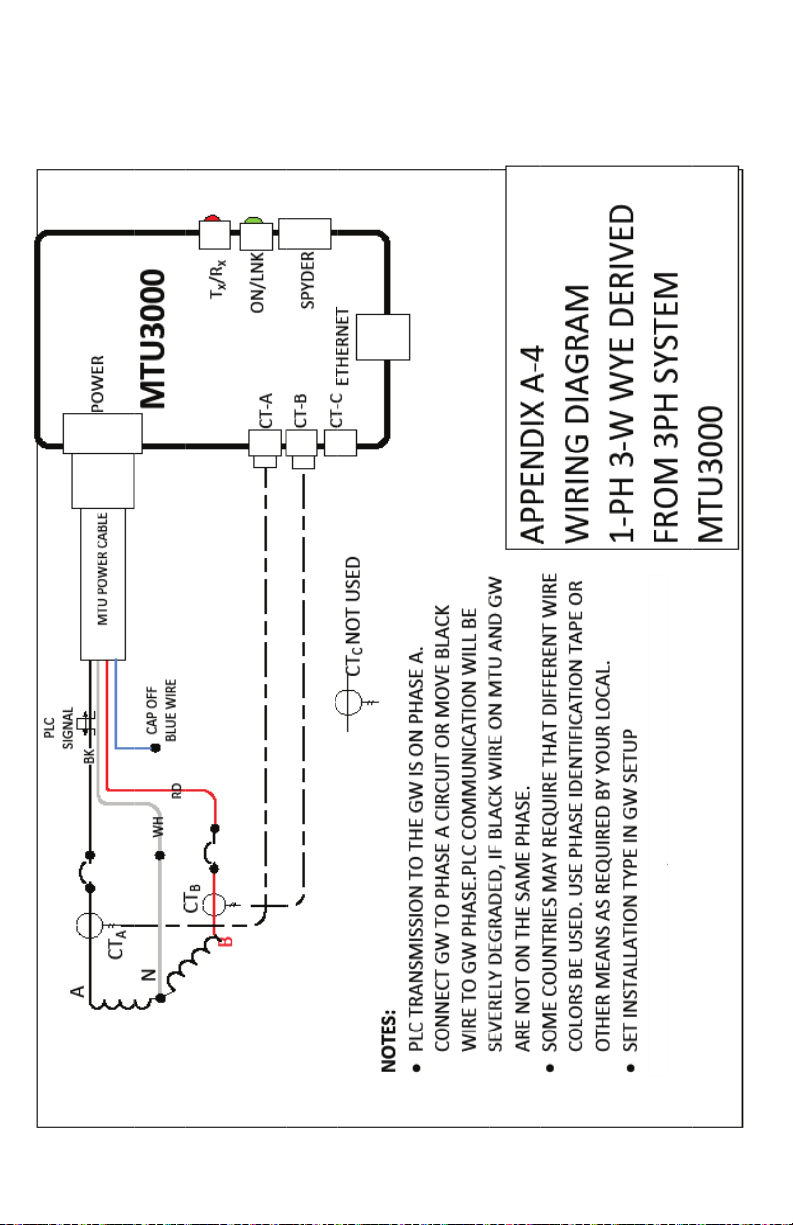

208Y/120V 1PH-3W Single Phase service derived from 3-Phase system (North America)
•
240/120V 1PH-3W (North America)
•
230V 1PH-2W (Europe and most other countries in the world)
•
TED Pro Commercial MTU-HV will not work on 120V 1PH-2W services
SYSTEM COMPONENTS
TED Pro Commercial Energy Monitoring System includes:
•
One (1) MTU3000 Measuring Transmitting Unit (MTU-HV)
•
One (1) ECC (with Footprints rmware embedded)
•
One (1) wired or wireless Display (if purchase included Display)
•
Associated cables, power supplies, installation brochure
•
Three (3) 400A Current Transformers (CTs)

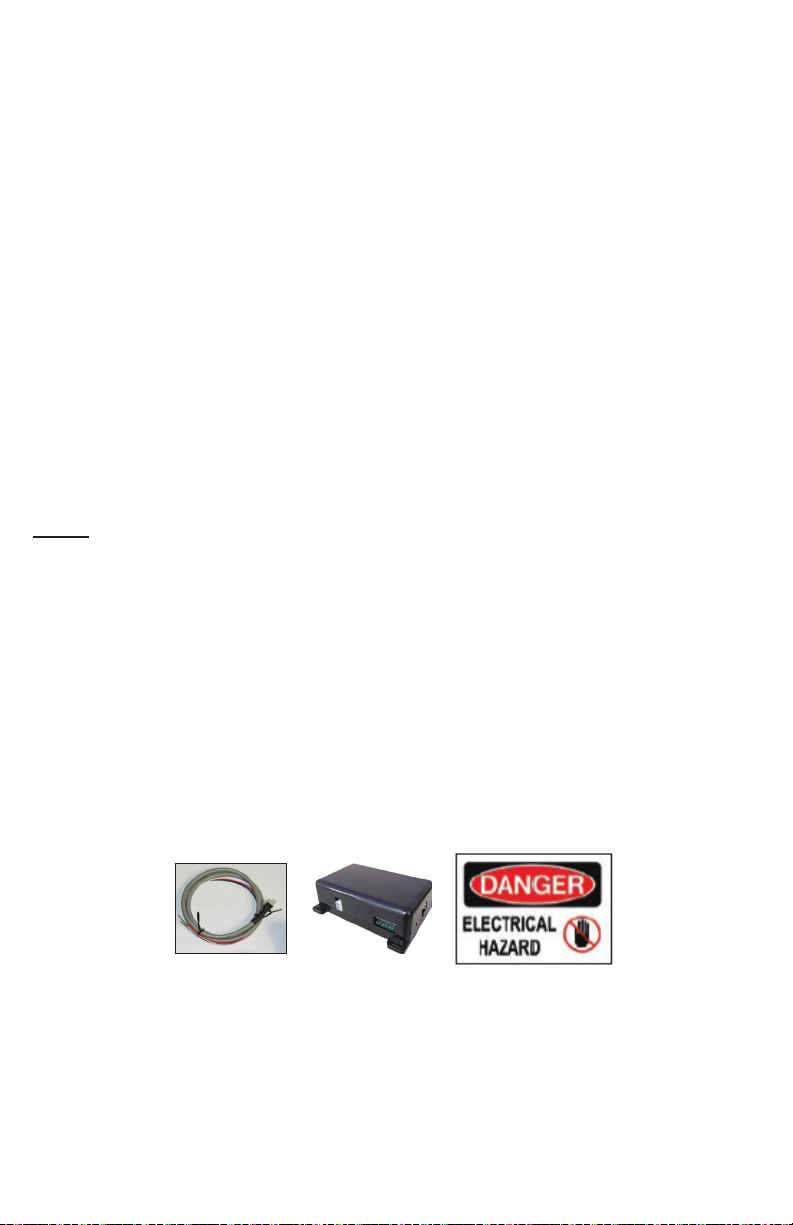

Un pa ck in g
Unpack TED and ensure that all parts are included in the package.
A) One (1) Measuring Transmitting Unit (MTU-HV)
B) One (1) ECC (Energy Control Center).
C) Power Cables for MTU-HV and, ECC; Ethernet Cable, (Low-
voltage power adapter if optional wireless Display included)
D) Three (3) Model QX400CT Current Transformers (CT’s)
E)
Installation Manual - Please Read Carefully
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Rev 1.0.13
Page 6
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
P A R T I I – S A F E T Y
THE MTU AND CTs OF THE TED PRO COMMERCIAL sYsTEM MUsT BE
INsTALLED BY A LICENsED ELECTRICIAN
This manual provides the steps necessary to safely install the MTU and Current Transformers (CTs).
For detailed installation and operation of other components and software, please nd it on the TED
website: www.theenergydetective.com
Every effort has been made in providing for the safe, secure installation of TED. The installation of
TED requires the cover of the main electrical circuit breaker panel to be removed. After the circuit
breaker panel cover has been removed, the potential hazard of shock, burn, or even electrocution
now exists. Do not attempt to complete this installation unless you are a licensed electrician familiar
with the electrical components and operation of the circuit breaker panel. Even when the main circuit
breaker has been turned to the “OFF” position, certain areas within the circuit breaker panel may still
be electried. Do not attempt installation unless you know where these electried areas are.
This symbol will be found throughout
the instructions where there is a potential for electric shock, burn, or even
electrocution. Do not attempt to complete the noted section if you are not
an electrician, or qualied installer
.
WARNING - These servicing instructions are for use by qualied personnel only. To reduce the risk of
electric shock, DO NOT perform any servicing other than that contained in these operational instruc-
tions unless you are qualied to do so.
WARNING -
ment and within easy reach of the operator. It must be marked as the disconnecting device for the MTU.
WARNING - If the equipment is used in a manner not specied in these instructions, the protection
provided by the equipment may be impaired.
EnErgy, Inc. ModEl TEd3000 / TEd Pro
FOR HOME AND OFFICE USE
The MTU must be connected to a switch or circuit breaker in close proximity to the equip-
This device complies with part 15 of the FCC Rules.
TESTED TO COMPLY WITH
FCC STANDARDS
FCC Part 15 SubPart B
EU/EN 61326-1
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2)
including interference that may cause undesired operations.
This device must accept any interference received,
Page 7
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
P A R T I I I – I N S TA L L AT I O N
B E F O R E Y O U S TA R T
• Do not begin installation until you have read the “Safety” section of this manual.
• Read all instructions before beginning installation.
Estimated Installation Time:
Professional Installer: 30 minutes
Equipment Needed:
- Flathead screwdriver - small and large
- Phillips screwdriver - small and large
- Flashlight
QUALIFIED ELECTRICIANS OR PROFESSIONAL INSTALLERS FAMILIAR WITH ALL ASPECTS OF
ELECTRICAL WIRING AND THEORY MAY USE THE FOLLOWING INSTRUCTIONS FOR INSTALLATION
OF TED PRO COMMERCIAL MTU.
TED will work on single-phase services, however TED Pro Residential will prove to be a smaller and
more cost effective solution. For services where there are two-or-more main circuit breaker panels you
will need one additional MTU for each main circuit breaker or panel.
For services with Wind/Solar or Standby Generator, an additional MTU will be required to measure
GENERATION and NET.
All wiring in the United States must be installed in accordance with the latest adopted edition of the Na-
tional Electrical Code (ANSI/NFPA 70, NEC) and state or local requirements. All wiring in Canada must
be installed in accordance with the latest adopted edition of the Canadian Electrical Code (CSA C22.2
CEC, Part I) and any provincial or local requirements.
Wiring in other countries and jurisdictions should be done in accordance with the rules and regulations in
effect for the installing location. Contact your local power authority or local regulator for more information.
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Rev 1.0.13
Page 8
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Neutral
Phase C
Phase A
Incoming Power Lines
MAX 600V
MAX 1200A
White
(neutral)
Black
(phase A)
Neutral
Bus
15, 20, or 30A
Circuit Breaker
CT’s
Main Circuit Breaker
MAX 1200A
A
B
C
A
B
C
A
B
A
B
C
A
B
C
A
B
Red
(phase B)
Phase B
Blue
(phase C)
MTU
(Measuring/Transmitting Unit)
Ethernet Port
(MTU must be mounted
outside of panel if
Ethernet port is used)
C
B
A
netzerotools.com
netzerotools.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Figure 3(a)
Installation of MTU
(communication via Power Line Carrier)
