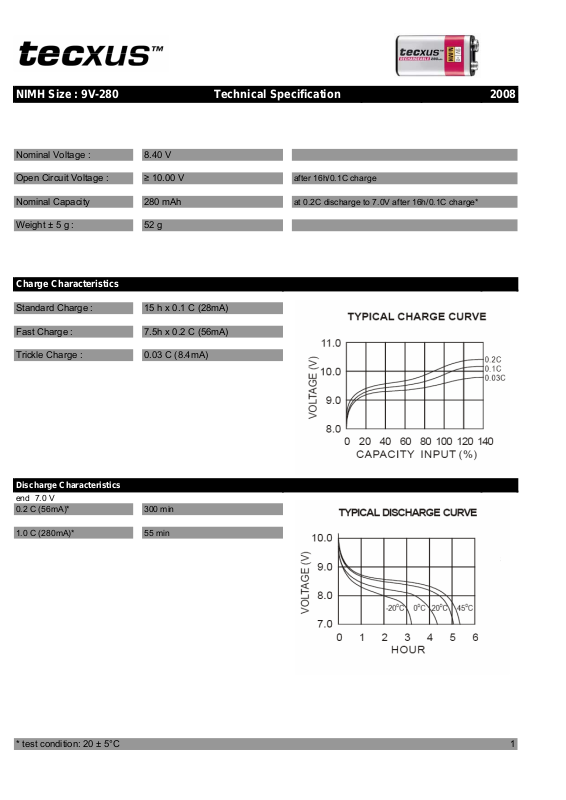

NIMH Size : 9V-280 Technical Specification 2008
Nominal Voltage : 8.40 V
Open Circuit Voltage : ≥ 10.00 V
after 16h/0.1C charge
Nominal Capacity 280 mAh at 0.2C discharge to 7.0V after 16h/0.1C charge*
Weight ± 5 g : 52 g
Charge Characteristics
Standard Charge : 15 h x 0.1 C (28mA)
Fast Charge : 7.5h x 0.2 C (56mA)
Trickle Charge : 0.03 C (8.4mA)
Discharge Characteristics
end 7.0 V
0.2 C (56mA)* 300 min
1.0 C (280mA)* 55 min
* test condition: 20 ± 5°C 1
Page 2
Performance Characteristics
Storage Temperature : min -20 °C max 40°C
Operating Temperature : min -10 °C max 45°C
Cycle life test : IEC standard > 500 cycles
Cycle life performance (IEC)
Cycle number Charge
1 0.1C / 16 h
2 to 48 0,25 C / 3.17 h
49 0.25C / 3.17 h
50 0.1C / 16 h
Rest Discharge
no 0.25 C 2.33 h
no 0.25 C / 2.33 h
no 0.25 C to 7.0 V
1-4 h 0.25 C to 7.0 V
The endurance test is considered complete when two such seccessive cycles give a discharge
duration less than 3 h of any 50th cycle
Safety Performance
Drop test Drop to an concrete floor from a height of 75 cm No machanical and
4 times after fully charge and discharge electrical abnormality
Short-circuit Short-circuit for 2 hours with 0,75qmm wire No explosion
after fully charge and discharge
Overcharge test 1 Charge 0.1C / 16h, charge 0.1C / 48h Discharge time should be
rest 1h, discharge 0.1C to 7.0V > 5h
Overcharge test 2 Charge 1.0C (-dV:5mV), rest 10 min, charge 1.7A No leakage should
(-dV:5mV) rest 10 min, charge 1.0C (-dV:5mV) occure
Drop-overcharge Discharge 1.0C to 7.0 V, discharge 0.2C to 1.0 V, drop to No explosion
an concrete floor 3 times, charge 1.0C / 5h
Drop short-circuit Charge 0.1C / 16h, drop to an concrete floor No explosion
3 times, short-circuit for 2 hours with 0,75qmm wire
2
Page 3

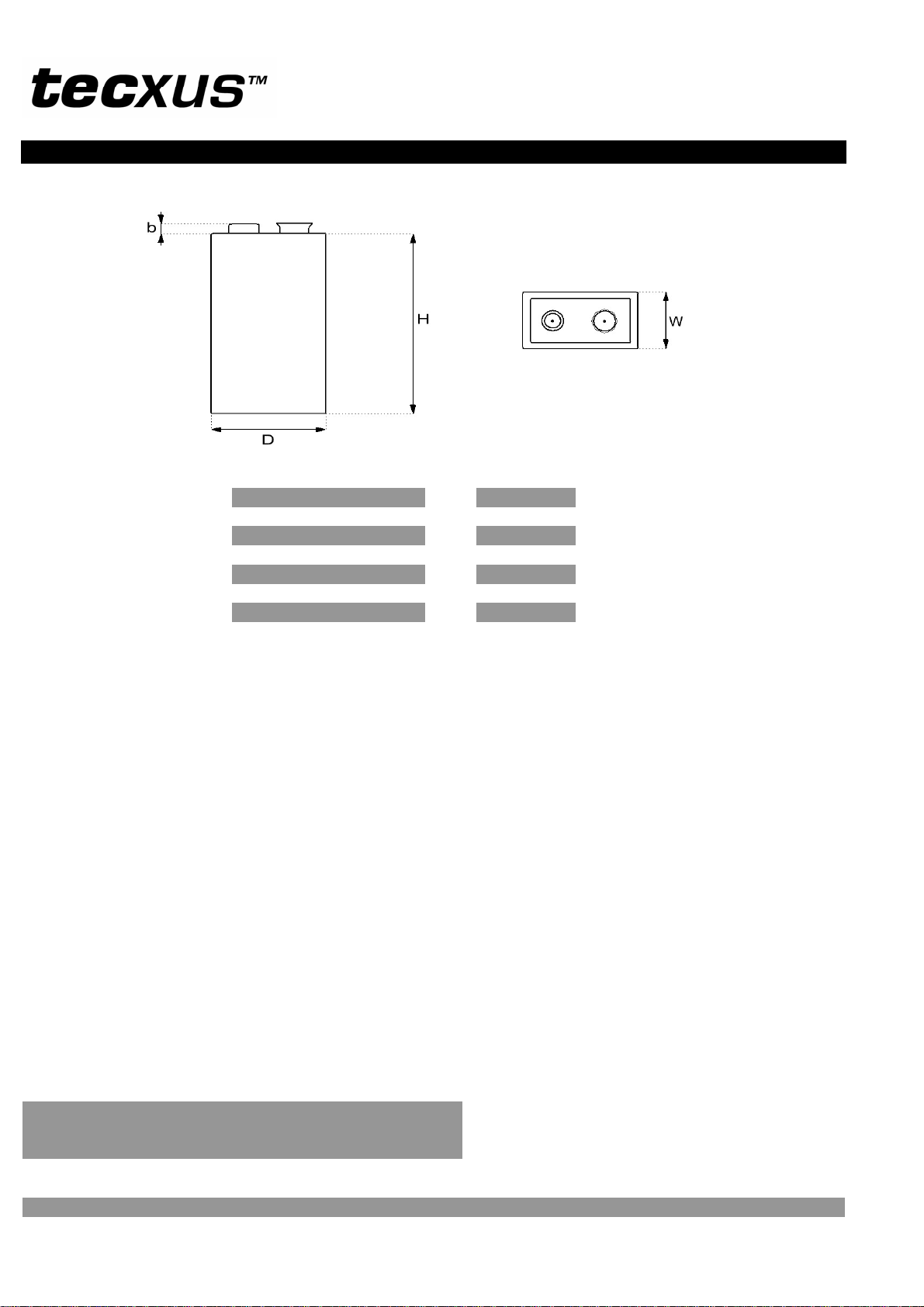

Dimensions
Height (H) ± 0.25mm 45.25 mm
Lenght (D) ± 0.25mm 17.25 mm
Width (W) ± 0.25mm 26.00 mm
Nipple height (b) ± 0.25mm 3.00 mm
Don´t dissasemble and don´t mix with used or other battery types.
Don´t dispose to fire.
Remove batteries when not in use for long periods.
