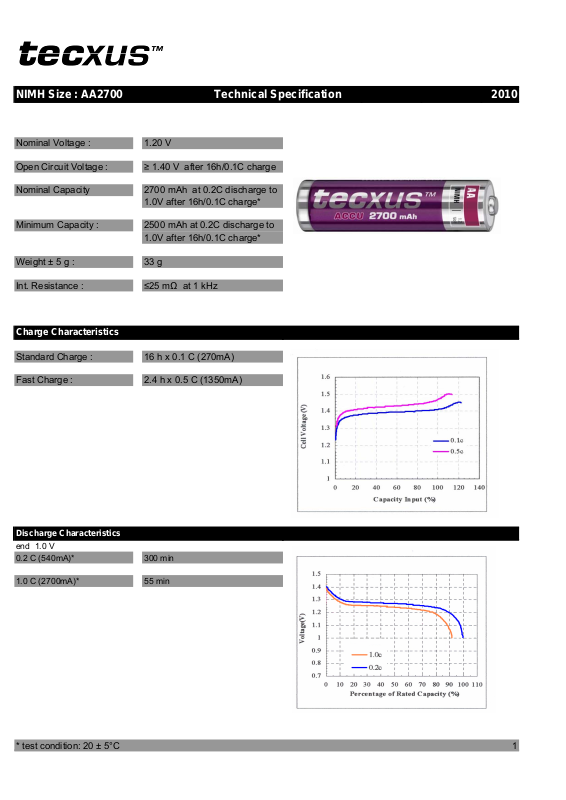

NIMH Size : AA2700 Technical Specification 2010
Nominal Voltage : 1.20 V
Open Circuit Voltage : ≥ 1.40 V after 16h/0.1C charge
Nominal Capacity 2700 mAh at 0.2C discharge to
1.0V after 16h/0.1C charge*
Minimum Capacity : 2500 mAh at 0.2C discharge to
1.0V after 16h/0.1C charge*
Weight ± 5 g : 33 g
Int. Resistance : ≤25 mΩ at 1 kHz
Charge Characteristics
Standard Charge : 16 h x 0.1 C (270mA)
Fast Charge : 2.4 h x 0.5 C (1350mA)
Discharge Characteristics
end 1.0 V
0.2 C (540mA)* 300 min
1.0 C (2700mA)* 55 min
* test condition: 20 ± 5°C 1
Performance Characteristics
Storage Temperature : min -20 °C max 40°C
Operating Temperature : min -10 °C max 45°C
Cycle life test : IEC standard > 300 cycles
Cycle life performance (IEC)
Cycle number Charge
1 0.1 C / 16 h
2 to 48 0,25 C / 3.17 h
49 0.25 C / 3.17 h
50 0.1 C / 16 h
no 0.25C 2.33 h
no
no
1-4 h
DischargeRest
0.25C / 2.33 h
0.25 C to 1.0 V
0.25 C to 1.0 V
The endurance test is considered complete when two such seccessive cycles give a discharge
duration less than 3 h of any 50th cycle
Safety Performance
Drop test Drop to an concrete floor from a height of 75 cm No machanical and
4 times after fully charge and discharge electrical abnormality
Short-circuit Short-circuit for 2 hours with 0,75qmm wire No explosion
after fully charge and discharge
Overcharge test 1 Charge 0.1C / 16h, charge 0.1C / 48h Discharge time should be
rest 1h, discharge 0.1C to 1.0V > 5h
Overcharge test 2 Charge 1.7A (-dV:5mV), rest 10 min, charge 1.7A No leakage should
(-dV:5mV) rest 10 min, charge 1.7A (-dV:5mV) occure
Reverse charge Charge in reversed polarity 1C / 6 h after fully discharge No explosion
Drop-overcharge Discharge 1.0C to 1.0 V, discharge 0.2C to 1.0 V, drop to No explosion
an concrete floor 3 times, charge 1.0C / 5h
Drop short-circuit Charge 0.1C / 16h, drop to an concrete floor No explosion
3 times, short-circuit for 2 hours with 0,75qmm wire
Fire Stay in fire (250°C) for 15 minutes after No explosion
fully charged
2
Dimensions
Height (H) ± 0.25mm 50.25 mm
Diameter (D) ± 0.25mm 14.0 mm
Nipple height (b) ± 0.1mm 1.0 mm
Nipple diameter (a) ± 0.1mm 5.3 mm
Don´t dissasemble and don´t mix with used or other battery types.
Don´t dispose to fire.
Remove batteries when not in use for long periods.
