Tecway Sweet Digger Operation Manual
OPERATION MANUAL
Sweet Digger Operation Manual
CONTENT
1、SPECIFICATION & TECHNICIAL PARAMETER...........1
2、SPARE PART LIST ..............................................................................................2
3、TROUBLE SHOOTING.......................................................................................3
4、GAME INSTRUCTION .......................................................................................4
4-1 GAME INSTRUCTION................................................................................4
4-2 OPERATION MENU ....................................................................................4
4-3 CONTROL SIGNAL & INSTRUCTION ......................................................5
5、 PART LIST.........................................................................................................6
5-1 MECHNICAL PART................................................................................. 6-9

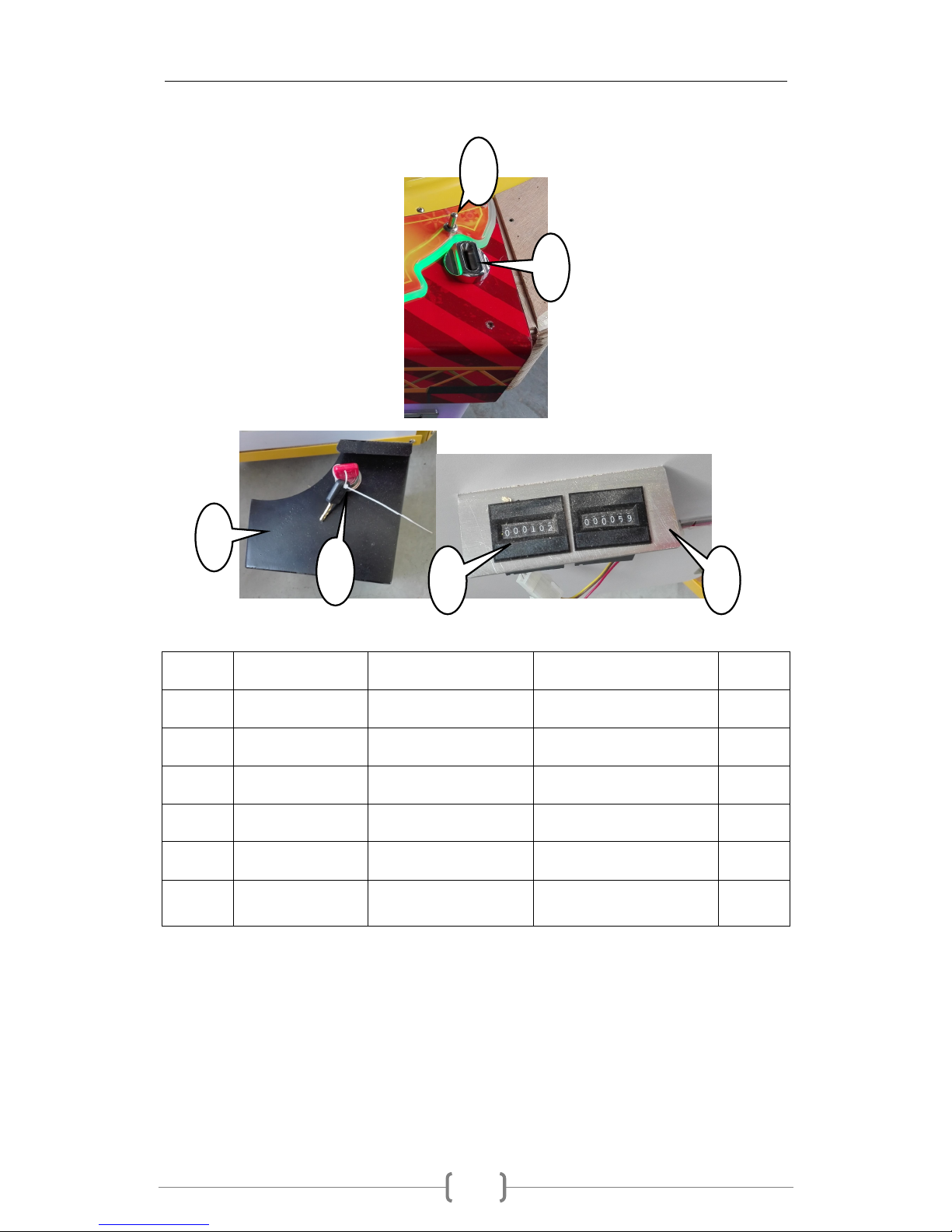

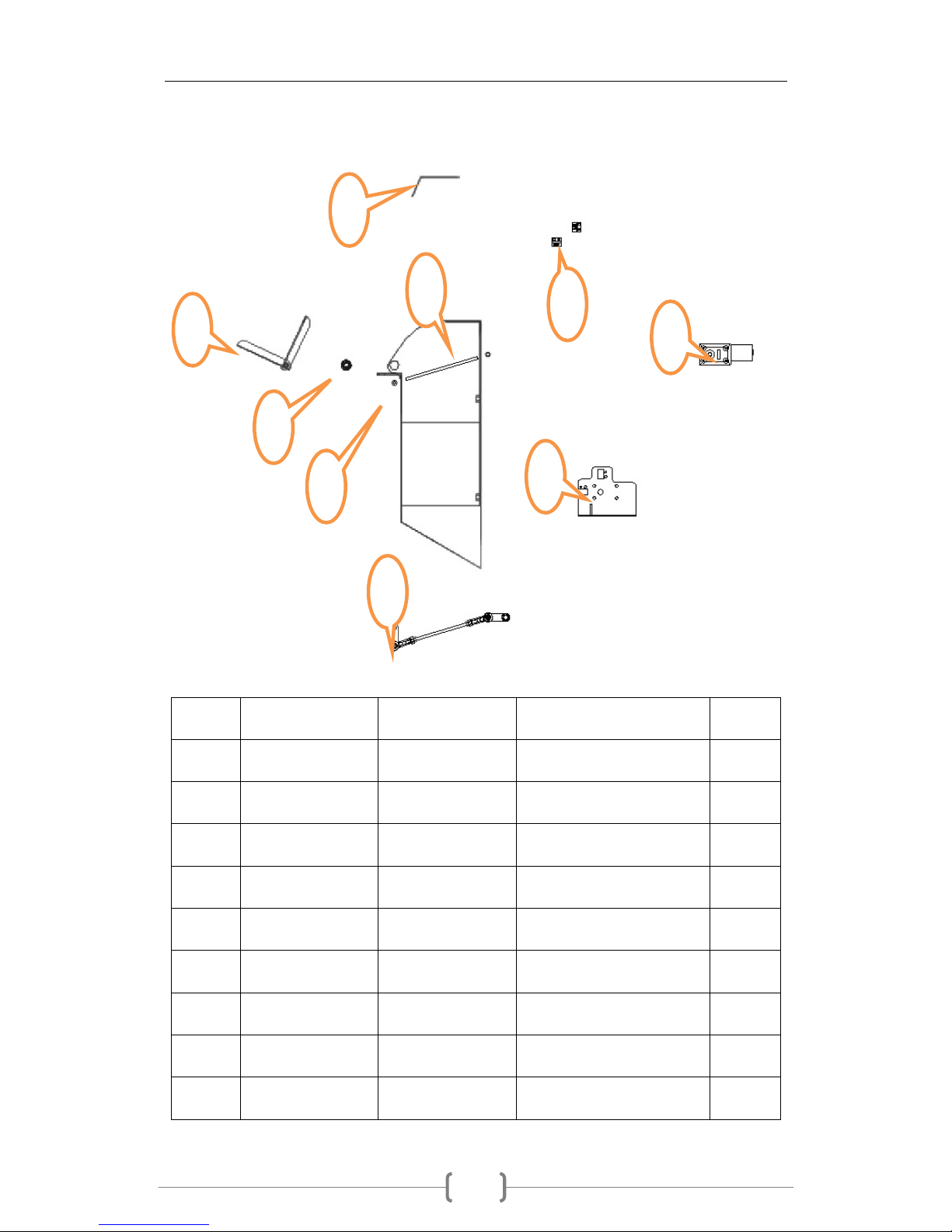

5-2 COIN ASSY. PART .....................................................................................10

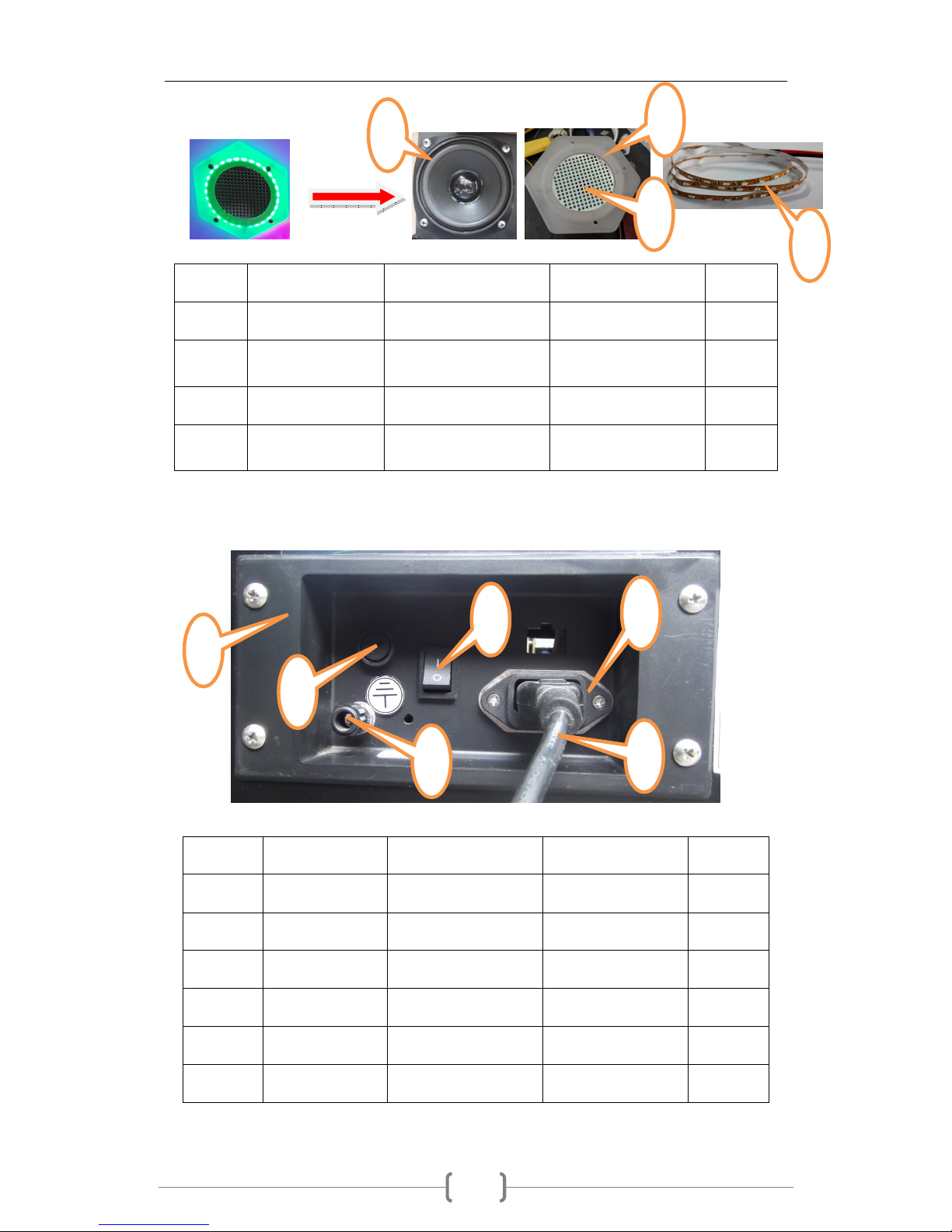

5-3 SPEAKER ASSY. PART .............................................................................11
5-4 FUSE & POWER PART..............................................................................11
5-5 ELECTRIC INSTALLATION PART ..................................................... 12-13

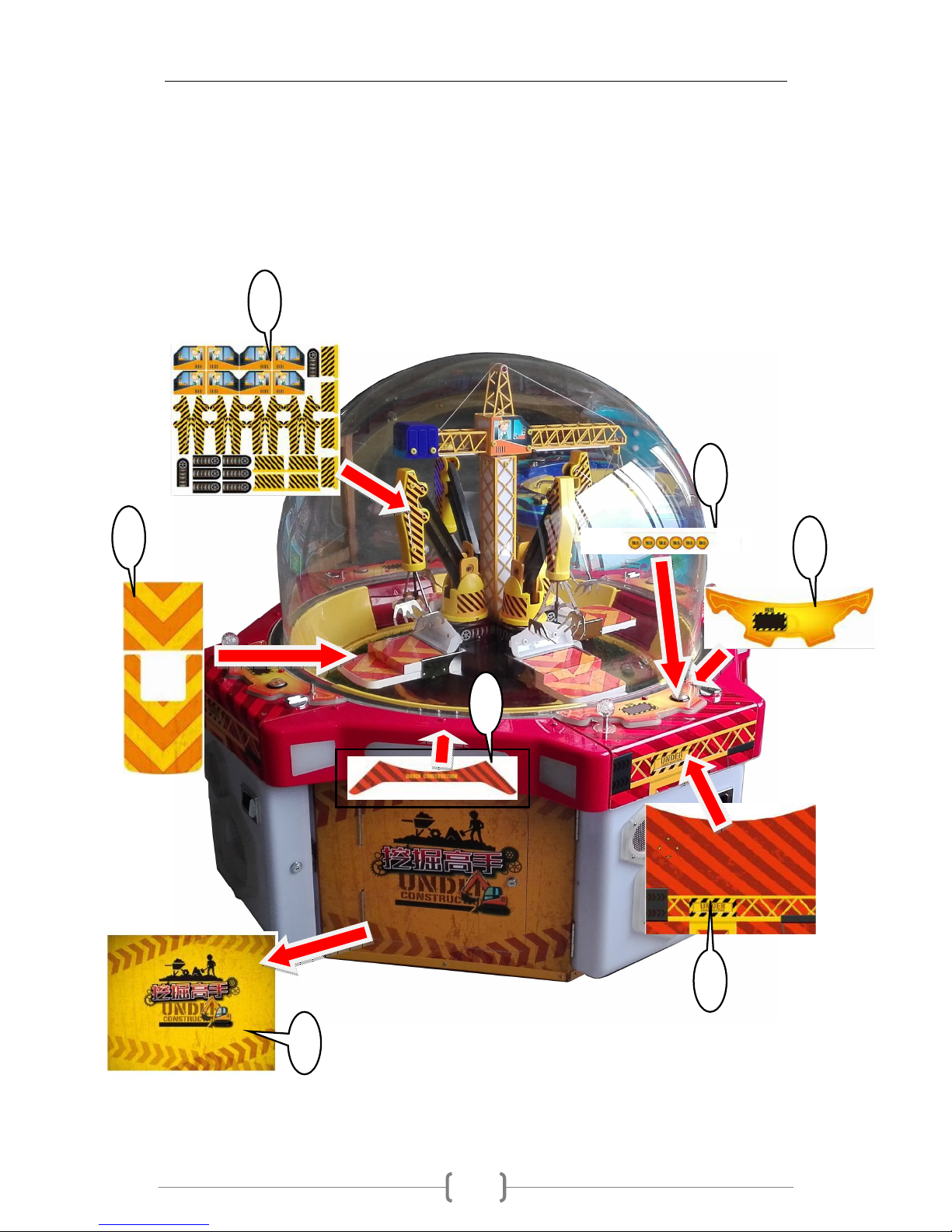

5-6 ART PART ............................................................................................ 14-16

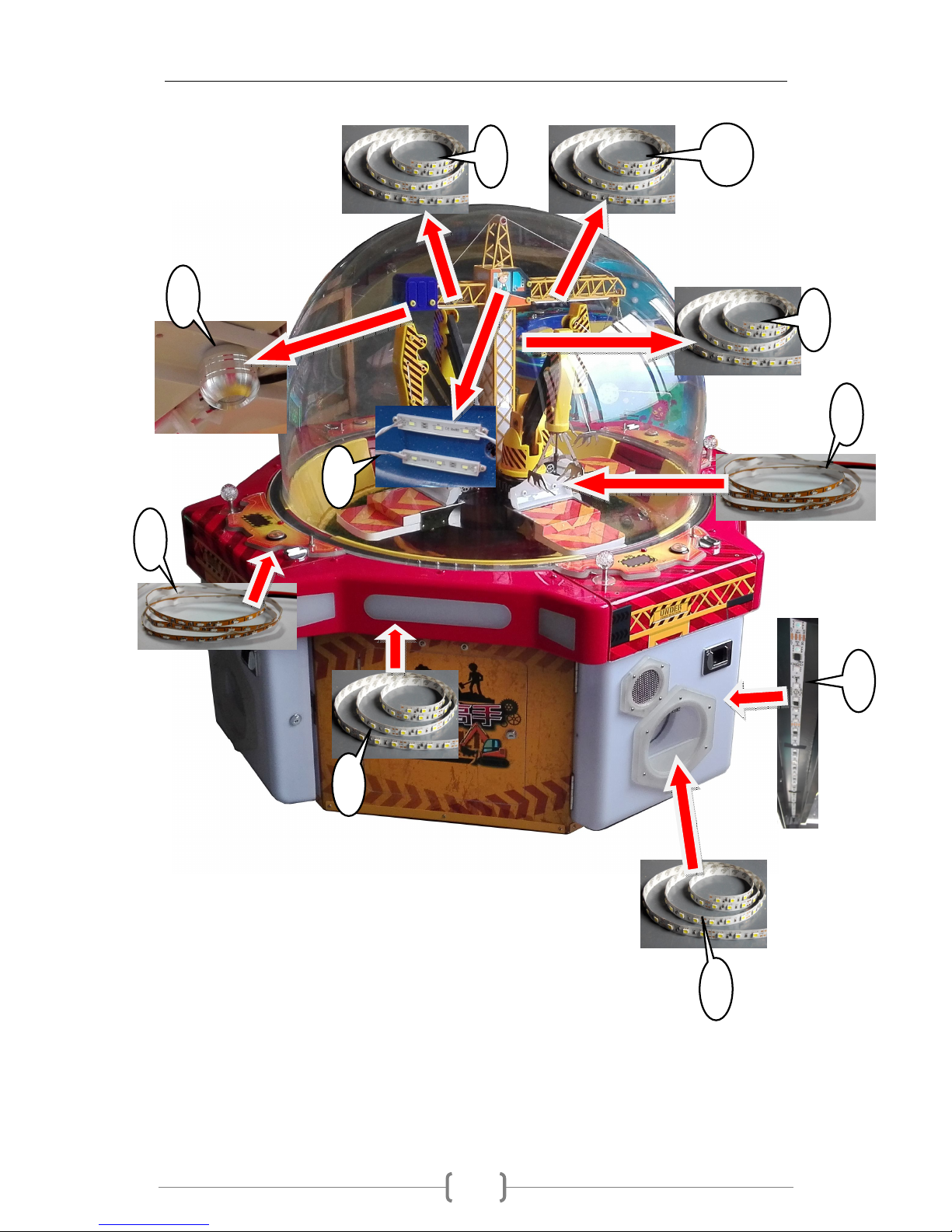

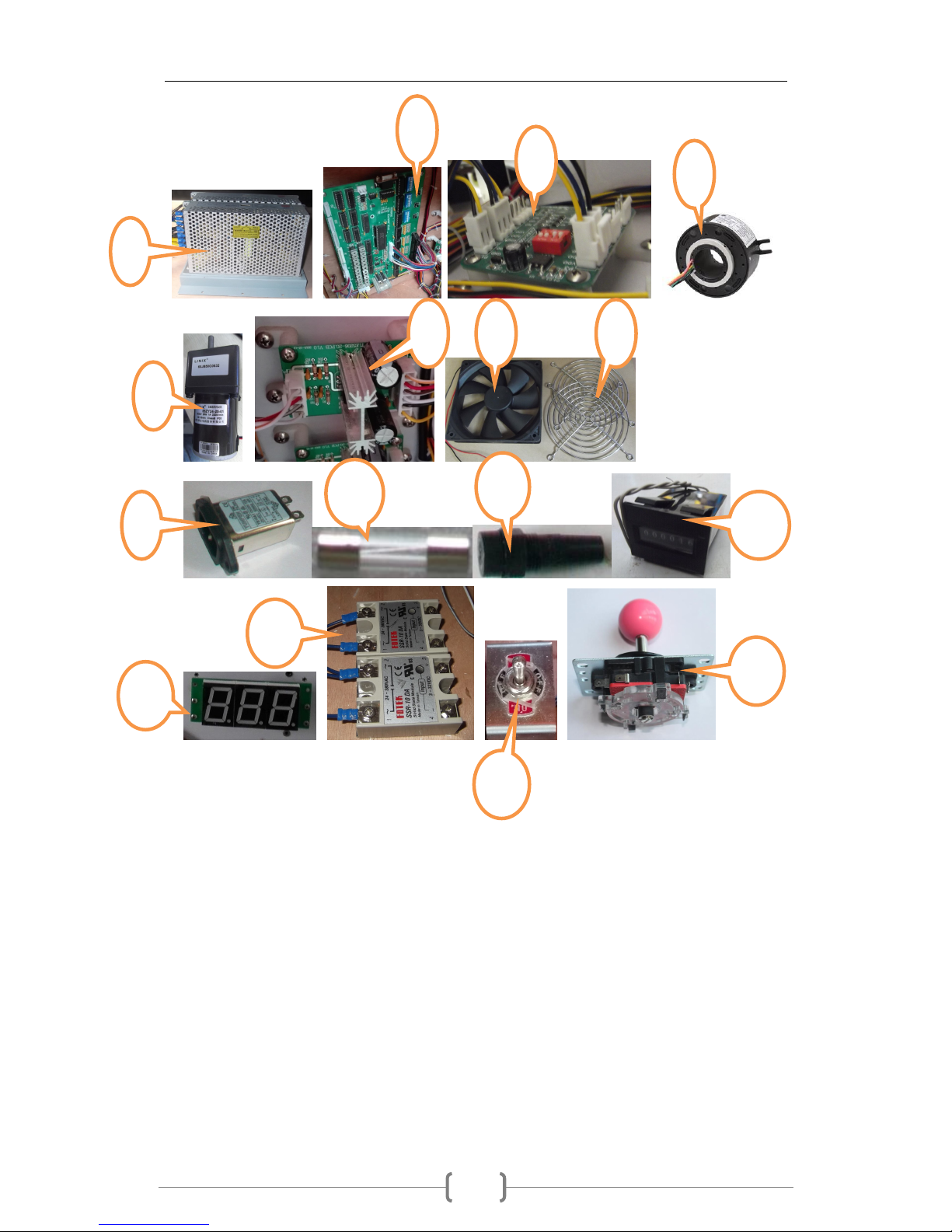

5-7 ELECTRIC PART ................................................................................. 17-18
6、IO SHEET .................................................................................................... 19-22
Sweet Digger Operation Manual
1
1、SPECIFICATION & TECHNICIAL PARAMETER
1) Voltage： AC 220V±10% 50Hz
2) Consumption Power：mix 190W ～ max230 W
3) Dimension：1488L×1488W×1413H（mm）
4) Weight ：About 250 kg
5) Environment condition：Temperature (Indoor): -10℃～+40℃；
Humidity：≤90%；
Atmospheric pressure：86Pa～106Pa。
Warning： When power off the machine please wait for 1 minute to power on.
Remark： If the pictures have change in this manual, please according to the
machine you received.
Unit：mm
Sweet Digger Operation Manual
2
2、SPARE PART LIST
Spare Part List：
NO. NAME Spec./ Material QTY UNIT
DRAWING REMARK
1 Manual A4 1
AH57 1 Pc
Ticket
dispenser
door、coin
door、repair
door
2 Key
AH78 1 Pc
Coin door
3 Fuse 6.3A 1 Pc
4 Power cord 1.5M 1 Pc
5 Micro switch
1 Pc
6
Concave
Optocoupler
1 pc
Sweet Digger Operation Manual
3
3、Trouble Shooting
Fault Failure cause Trouble shooting
Do not insert
coin
Do not adjust for coin acceptor
Has fake coin。
Adjust coin acceptor, token, tolerance,
trimming resistance.
Take out the fake coin。
No music
Volume is low。
Sound output signal short-circuit。
Speaker damage。
Sound amplifier damage。
PC board damage。
Audio connection mouth loosen or damage
Speaker connect or not。
Adjust volume。
Connect wire。
Change speaker。
Change main board。
Change circuit。
Re-connect audio connection。
Open the speaker wire。
No movement
No power input。
Do not turn on the power。
Fuse burned。
No output for power supply。
No power for main board。
Main board damage。
Turn on power and plug on power。
Turn on power。
Change the new fuse。
Change power supply。
Connect the main board wire。
Change new main baord。
Sweet Digger Operation Manual
4
4、Game Instruction
4-1 Game Instruction
1. Insert coin and start game.
2. Press “Claw” button and will move to relevant place.
3. Player to see the plate and press “Confirm” button.
4. Tube will pick up the gift and send back to table.
5. Table will push the gift to prize mouth.

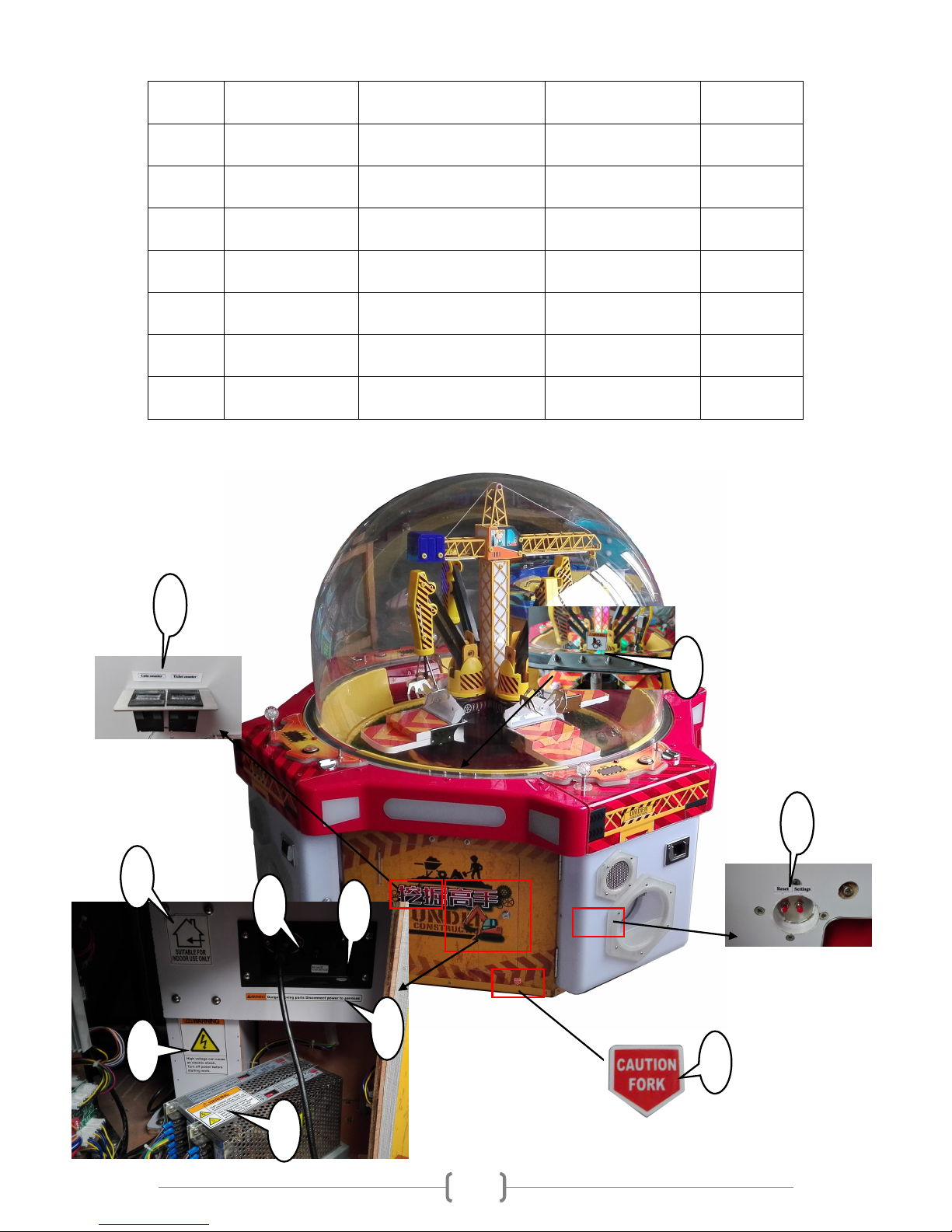

4-2 Operation Menu
Claw button
Prize mouth
Fake coin button
Crab button
Fake coin mouth
Control table
Sweet Digger Operation Manual
5
4-3 Control Signal & Instruction
1. Check the IO sheet and diagram, main board schematic drawing can see the input,
output wiring connection place.
2. DIP setting can refer to the IO sheet, capital letter for factory setting, customer can
set according to the exact conditions.
3. Main board schematic drawing:
Sweet Digger Operation Manual
6
5、Spare Part List

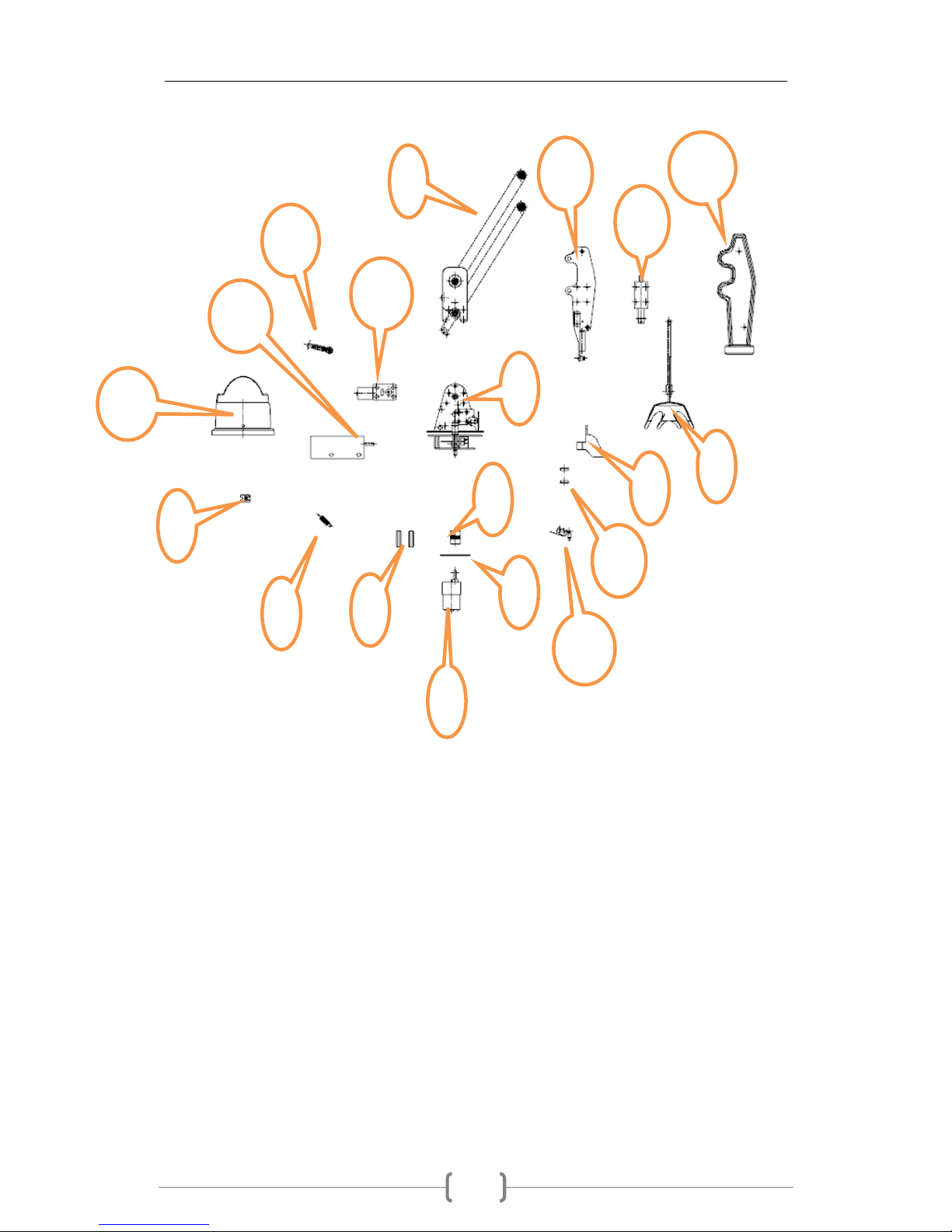

5-1 Mechanical Part
Overall
Cabinet
Prize mechanism
Sugar digging mechanism
