Spare Part：
CAPTIN JACK OPERATION MANUAL
1、Spare Part List
NO. NAME Spec./ Material QTY UNIT
1 Manual A4 1 pc
AH57 1 Pc
2 Key
AH78 1 Pc
3 Fuse 6.3A 1 Pc
4 Wire 1.5M 1 Pc
5
6 Ball 90 pc
Long micro
switch
1 Pc
DRAWING REMARK
Ticket door、
coin door、
repair door
Coin box
door
80 pcs
2
Page 3
CAPTIN JACK OPERATION MANUAL
2、TROUBLE SHOOTING
Faulty Failure Cause Trouble Shooting
Can not insert
coin
No ticket out
No music
Do not adjust the coin acceptor。
Have the fake coin。
No 12V input voltage。
Ticket dispenser signal wire loosen。
Not put down the wheel for press ticket。
Ticket dispenser drive signal terminal damage。
Not design for ticket out version。
Volume is low。
Sound input wire damage。
Speaker damage。
Sound amplifier damage。
PC board damage。
Audio plug wire loosen。
Speaker connect or not。
No power。
Adjust the coin acceptor。
Take out the fake coin。
Check the wire of power supply。
Check the wire of drive signal。
Put down the ticket wheel。
Change the main board。
Adjust for ticket out version。
Adjust the volume。
Connect the wire。
Change the speaker。
Change the main board。
Change the wire。
Connect the audio wire。
Open the audio and connect the power。
Turn on the power。
No movement
No score
Do not turn on the power。
Fuse damage。
No output for the power supply。
No power from the main board。
Main board damage。
Infrared connection line dropped。
Infrared damage。
Turn on the power。
Change the new fuse。
Change the power supply。
Connect the power wire。
Change the main board。
Connect the wire。
Change the infrared。
3
Page 4
CAPTIN JACK OPERATION MANUAL
3、GAME INSTRUCTION
3-1 Game Instruction
1. Insert coin, press start button to start game.
2. Players move the gun(up/down; left/right) to aim the target, shoot for score.
3. In the game time, much score you get more ticket you got.
3-2 Operation Menu
Target
Gun
Control Cabinet
4
Page 5
CAPTIN JACK OPERATION MANUAL
3-3 Control Signal & Instruction

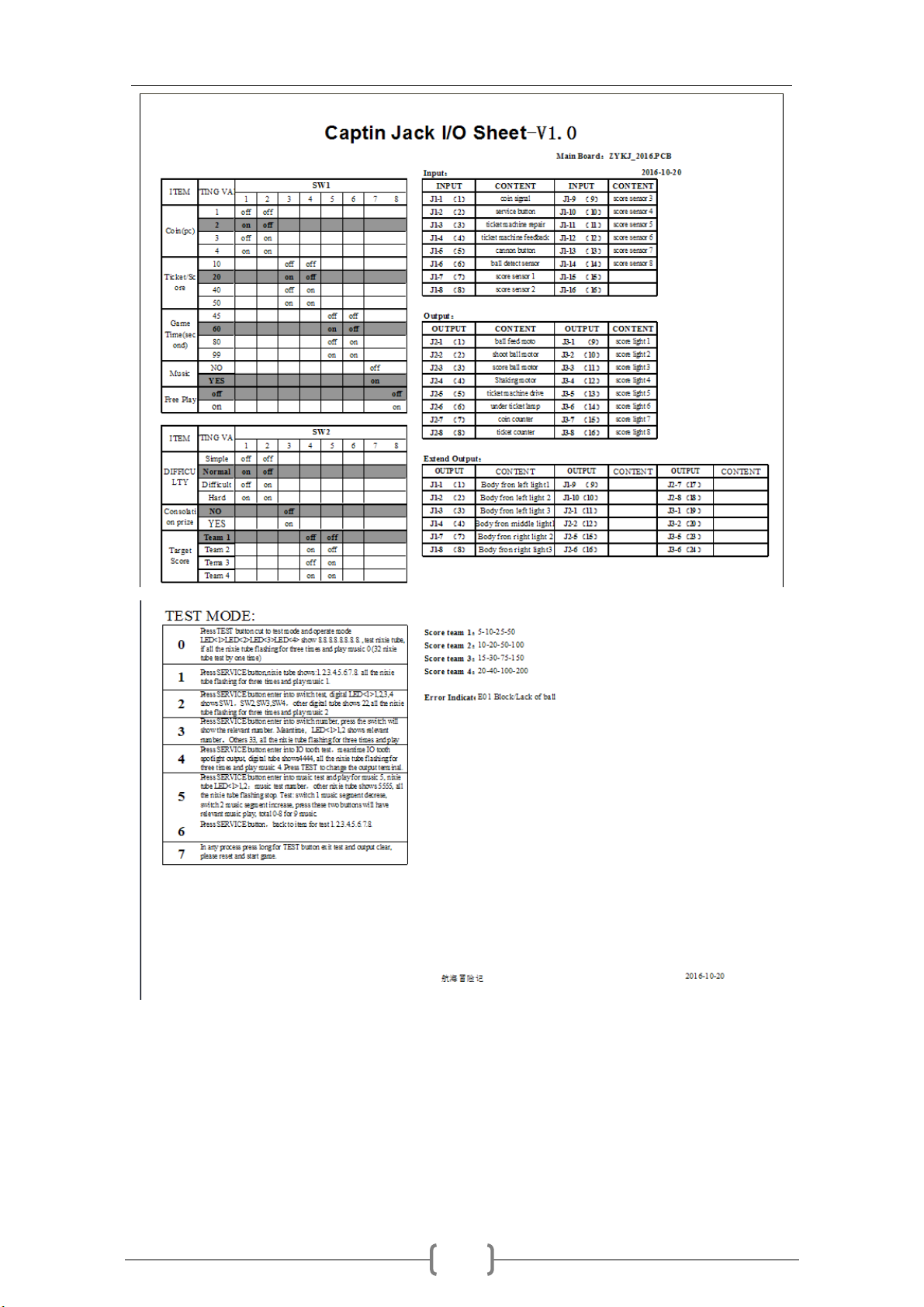

1. See attached IO sheet and drawing, from the main board can know the place for
input and output.
2. DIP setting can reference for IO sheet, capatial letter is for factory setting, customer
can adjust by yourself.
3. Main board drawing：
5
Page 6
Shaking frame
4-1 Mechanism Part
Overall
Shooting Mechanism
CAPTIN JACK OPERATION MANUAL
4、Spare Part List
Fiberglass
Ball feed mechanism
Shaking mechanism
6
Page 7
CAPTIN JACK OPERATION MANUAL

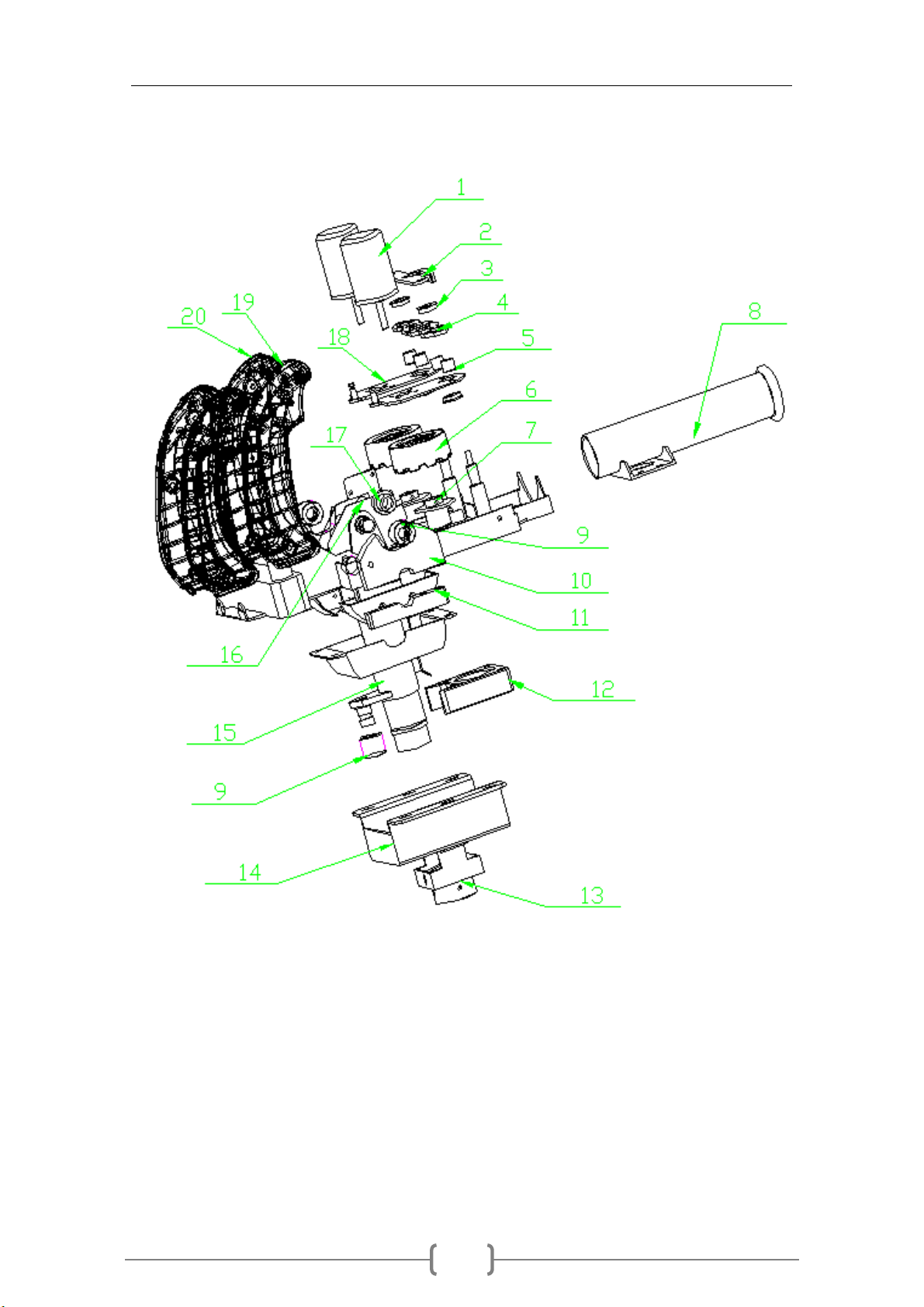

Ball Feed
Mechanism
7
Page 8
CAPTIN JACK OPERATION MANUAL
NO. Drawing No. Name Spec. / Material QTY
1 Motor
2 Adjust board Stainless 1
3 Side bearing F688 2
4 Synchro board Stainless 2
5 Pole(common part) Nylon 4
6 Ball wheel(common part)
7 Shooting motor base Aluminum 2
8 Tube welding Q235 1
9 Rubber(common part)
10 Side board A Q235 2
ZYTD38SRZ-R(55)
24V3000RPM
Silicone 2
PU 3
2
11
12 Limit block Q235 1
13 Connector B Stainless 1
14 Fixing base Q235 1
15 Ball feed tube Q235 1
16 Turning bucket Stainless 1
17
18 Motor board Stainless 2
19 Handle left 2
20 Handle right 2
Side board B(common
part)
Copper bush(common
part)
Q235 2
Copper 2
8
Page 9

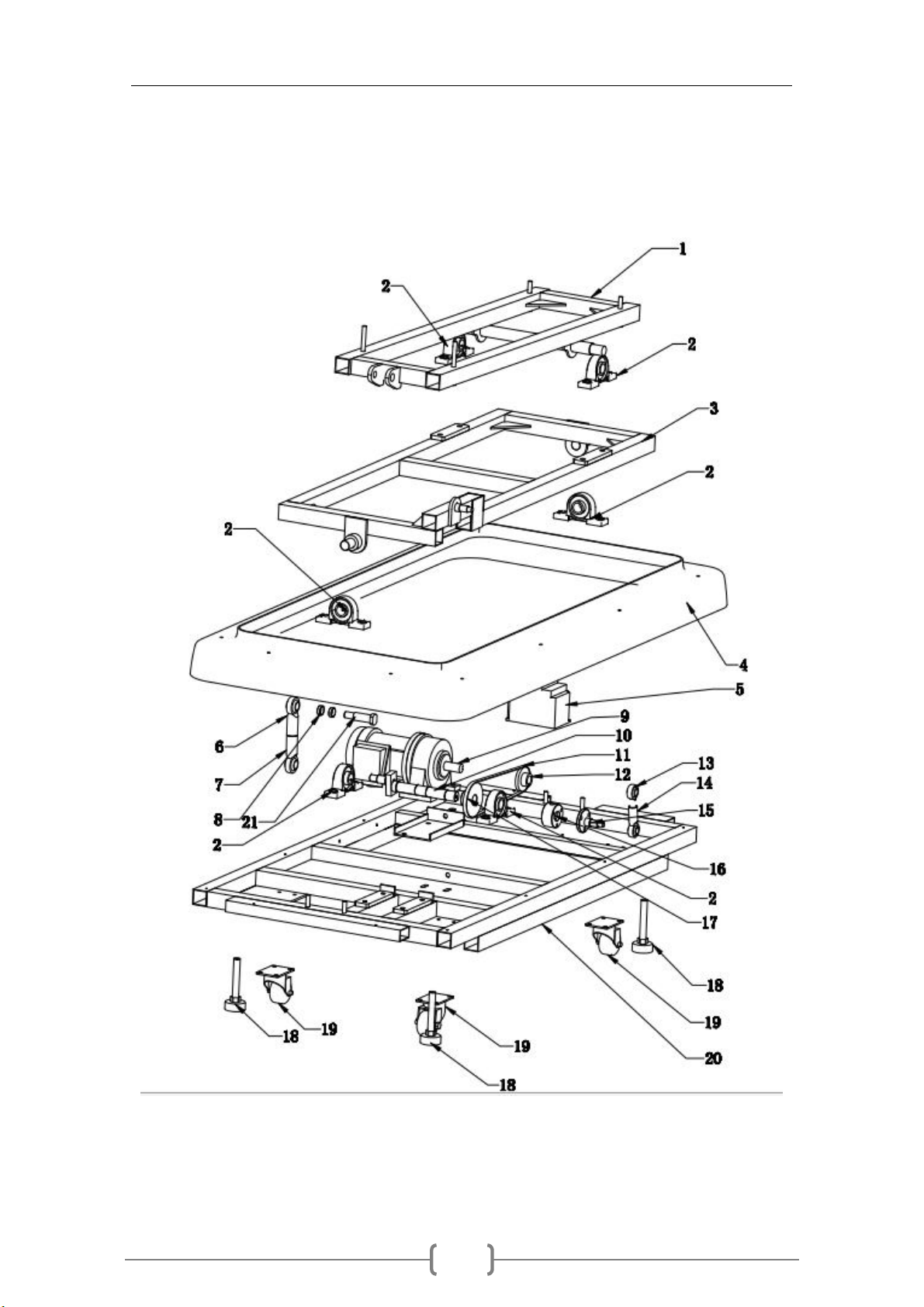

Shaking Frame
CAPTIN JACK OPERATION MANUAL
9
Page 10
CAPTIN JACK OPERATION MANUAL
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
Drawing No. Name Spec. Material QTY
Up shaking frame
Bearing with base
Frame cover Black ABS 1
Inverter 1
Joint bearing M16 outer tooth 1
Joint bearing M16 inner tooth 1
Sleeve Q235 2
Motor GH22-200-40S 1
Axis 45” iron 1
Chain 5”chain 22
Drive chain 11 gear 45” iron 1
Joint bearing M20 inner tooth 1
Down
shaking frame
Q235 1
UCP205 6
Q235 1
14
15
16
17
18
19
20
21
Joint bearing M20 outer tooth 1
Flange shaft 45” iron 1
Connecting flange
Drive Sprocket 16 gear 45”iron 1
Top foot Stainless 4
Foot wheel 2.5” Stainless 4
Base Q235 1
Small shaft 45” iron 1
45” iron 1
10
Page 11
Ball Feed Mechanism
CAPTIN JACK OPERATION MANUAL
NO. Drawing NO. Name Spec. / Material QTY
1 Pull ball rod 201 Stainless 2
2 Connector A welding
3 Ball feed side board A
4 Joint bearing M4 inner tooth 2
5 Screw M4*50 outer tooth 2
6 Roller sleeve B Black nylon 10
7 Ball feed side board B
8 Motor board 201 stainless 2
9 Motor 2
10 Adjust sleeve 201 stainless 6
201 Stainless 2
201 Stainless 2
201 stainless 2
11 Side bearing F634 4
12 Friction base Aluminum 2
13 Rubber Yellow rubber 2
14 Ball feed cover 201 Stainless 1
11
Page 12
Shaking Mechanism
CAPTIN JACK OPERATION MANUAL
NO. Drawing NO. Name Spec. / Material QTY
1
2
3
4
5
6
7
8
9
HDXPS-01-11 Blocking cover
HDXPS-05-05
HDXPS-03-13
HDXPS-03-07
Panel
Boat
Bomb
HDXPS-04-07 Lamp ring sleeve
HDXPS-04-08
HDXPS-04-09
HDXPS-03-05
HDXPS-03-06
Lamp ring Clarity PC
Lamp ring back
cover
Clown A
Clown B
Stainless 201 1
Plywood 1
PVC +PE 1
PVC Left/right
White rubber
Black ABS
PVC 2
PVC 1
3
3
3
10
11
HDXPS-01-17 Balance weight
F674 bearing
12
Stainless 201 5
10
Page 13
CAPTIN JACK OPERATION MANUAL
Fixing welding part
Fixing welding part
12
13
14
15
16
17
18
19
20
21
HDXPS-02-05
HDXPS-03-04 Background board
HDXPS-05-03 Background board
HDXPS-01-16
HDXPS-01-46
HDXPS-01-19
HDXPS-01-42
674 Axle
Stainless 201 10
Detector
Plywood 1
Stainless 201 3
A
1W spotlight
B
Stainless 201 2
Eccentric plate
Stainless 201 1
welding part
6002 bearing
Flanged shaft 45#
5
1
5
2
1
22
23
24
25
HDXPS-02-14 Connector axle
HDXPS-02-15
Motor
1
Skewing 45#
Bolt bearing
Stainless 1
1
1
13
Page 14
4-2 Coin Assy. Part
7 9 6 1 4 8 3 5
2
CAPTIN JACK OPERATION MANUAL
NO. Drawing NO. Name Spec. / Material QTY
1 Coin acceptor Side Electronic LK100M 2
2 Coin box Iron 1
3 Ticket machine 1
4 Lock AH78 Short lock 78 1
5 Counter frame Black plastic 1
6 Six bit counter C-012 2
7 Volume adjuster Black 1
8 Ticket box 1
9 Reset button 2
14
Page 15
CAPTIN JACK OPERATION MANUAL
Blue three color
1 2 2 3 4
4-4 Speaker Assy. Part
1
NO. Drawing NO. Name Spec. / Material QTY
1 Round speaker 4”8Ω15W 2
2 White Arylic Arylic 2
3 Speaker light ring
4 Speaker cover Silver 2
Red，Green
，
light ring
4-5 Fuse & Power Assy. Part
2
NO. Drawing NO. Name Spec. / Material QTY
1 Fuse base HJMF-527 1
2 Power cord 6.3A 1
15
Page 16
4 9 2 7 3
8
4-6 Electric Assy. Part
1
CAPTIN JACK OPERATION MANUAL
5
10
6
11
NO. Name Spec. / Material QTY UNIT
12V 220W 1 Pc
1 Power supply
12V 150W 1 Pc
2 Main board 1 Pc
3 Magic light control board 12V 1 Pc
4 Counter frame Black plastic 1 Pc
5 Six bit counter C-012 2 Pc
6 Reset button CSAN.PCB 2 Pc
7 Filter 1 Pc
8 Fuse 1 Pc
9 Digital tube 2 Pc
10 Motor 1 Pc
11 Detector 5 pc
16
Page 17
4-7 Art Part
8 7 2 4 3 1
CAPTIN JACK OPERATION MANUAL
5
6
17
Page 18
CAPTIN JACK OPERATION MANUAL
2 4 1 7 6 5
NO. Drawing NO. Name Spec. Material QTY
1 Cabinet menu Surface glue 1
2
3
4
5
6
7
8
Cannon cover menu
Repair door menu
Boat menu A
Boat menu B
Boat menu C Surface glue
Main menu Surface glue
Telescope menu Surface glue
Surface glue 1
Surface glue 1
Surface glue 1
Surface glue 2
1
1
1
3
NO. Drawing NO. Name Spec. / Material QTY
1 Ticket mouth White sticker 1
2 Fork label White sticker 4
3 Repair label White sticker 1
4 HTHP label White sticker 1
5 Fuse/current label White sticker 1
6 HP label White sticker
7 Indoor label White sticker 1
18
Page 19
CAPTIN JACK OPERATION MANUAL
9 5 4 3 2
4-8 Electric Part
1
6
8
12
7
10
11
19
Page 20
CAPTIN JACK OPERATION MANUAL
NO. Name Spec. / Material QTY
1 Telescope light 12V/5050RGB soft lamp strip/35CM 1
2 Side light
3 Front arylic light
4 Side light 12V/5050RGB soft lamp strip/35CM 2
5 Down side light
6 Side Arylic light
7 Spot light 8
8 Flag rod light 3528 12V Blue L:0.4m W:8mm 1
9 Seat side light
10 Back light
11 Top light MX-S5050W 400mm 4
12 Inner spotlight 12V Yellow light 5
60珠/m2811 Symphony light 12V/0.3m
ADS-75123-2835
ADS-75123-2835
ADS-75123-2835
ADS-75123-2835
ADS-75123-2835
1
4
12
4
4
1
20
Page 21
CAPTIN JACK OPERATION MANUAL
21
