Operator’s Manual

OH195EA/OH195XA (OHH50-65)

OH195EP/OH195XP

Four-Cycle Engine • Horizontal Crankshaft • Air-Cooled

Table of Contents

IMPORTANT NOTICE! Safety Definitions..........................................ii

I. General Safety Precautions............................................................. 1

II. How to Get Service.......................................................................... 3

III. Oil and Fuel Specifications...............................................................4

IV. Before Starting Your Engine............................................................. 4

V. Starting Your Engine ........................................................................ 6

VI. Stopping Your Engine and Short-Term Storage ............................... 9

VII. Maintenance .................................................................................. 10

VIII. Transporting Your Engine...............................................................13

IX. Storing Your Engine .......................................................................14

X. Preventing Forest, Brush and Grass Fires..................................... 16

XI. Maintenance Intervals....................................................................16

California & US EPA Emission Control Warranty Statement.......... 20

Emission Control System Warranty...............................................21

XII. Warranty Information......................................................................22

Visit our web site at www.TecumsehPower.com

LOG ON!

181-1032-14

(English) 6/01/08

IMPORTANT NOTICE!

Safety Definitions

Statements in this manual preceded by the following words and graphics are of special significance:

WARNING

WARNING indicates a potentially hazardous situation which if NOT avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if NOT avoided, may result in minor or moderate injury.

CAUTION

Indicates a potential situation which, if NOT avoided, could result in equipment or property damage.

NOTE

Refers to important information and is placed in italic type.

It is recommended that you take special notice of all items discussed on the next two pages and wear the appropriate safety equipment.

Before operating this engine it is your responsibility to read this Operator’s Manual. Follow these basic rules for your personal safety:

• Keep this manual handy at all times for future reference.

• Read it carefully and familiarize yourself with operating, maintenance, components and safety instructions.

Notice Regarding Emissions

NOTE Engines which are certified to comply with California and U.S. EPA emission regulations for SORE (Small Off Road Equipment), are certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM) Engine Modification and (TWC) Three-way Catalyst (if so equipped).

TecumsehPower Contact Information

For engine adjustments, repairs or warranty service NOT covered in this manual, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower .co m or call TecumsehPower Company at 1-800-558-5402 for additional information.

The trade marks T ECUMSE H® and the DES IGN (Nat ive Ame rican Head l ogo) are registered trademarks of Tecumseh Products Company and are used by TecumsehPower Company under license from Tecumseh Products Company. TecumsehPower Company is no longer owned by Tecumseh Products Company nor is it associated or affiliated in any way with Tecumseh Products Company .

TecumsehPo wer Company

Page ii 181-1032-14

I. General Safety Precautions

WARNING

Read equipment manufacturer’s manual and this material thoroughly before using this engine. Failure to do so can result in serious injury or death. Consult your local Authorized TecumsehPower Servicing Dealer, call 1-800-558-5402, or go to www.TecumsehPower.com for additional information.

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you DO NOT see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly-ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

To prevent serious injury or death from carbon monoxide:

• NEVER run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

• NEVER run engine in poorly-ventilated or partially enclosed areas such as barns, garages, basements, carports, under dwellings, or in pits.

• NEVER run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

• NEVER store engine with fuel in fuel tank inside a building with potential sources of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

• NEVER remove fuel fill cap or add fuel when engine is running.

• NEVER start or operate the engine with the fuel fill cap removed.

• Allow engine to cool before refueling.

• NEVER fill fuel tank indoors. Fill fuel tank outdoors in a well-ventilated area.

• DO NOT smoke while refueling tank.

• Use only an approved red GASOLINE container to store and dispense fuel. TecumsehPower Company recommends purchasing gasoline in containers with a capacity of 2.5 gallons or less. Small containers are easier to handle and help eliminate spillage during refueling.

• DO NOT pour fuel from engine or siphon fuel by mouth. T o empty the fuel t ank, see "I. Draining Fuel" instructions on page 14.

C. Adult Supervision of Operation, Refueling

and Maintenance

The manufacturer of the equipment may provide information about who is allowed to use this engine (see equipment manufacturer’s manual). NOT everyone who is allowed to use this engine is capable of safely and responsibly operating, maintaining and/or fueling it. TecumsehPower Company recommends the following:

• An adult should fuel this engine. NEVER allow children to refuel this engine. See "C. Filling Fuel Tank" instructions on page 5.

• An adult should perform maintenance on this engine. See "VII. Maintenance" instructions on page 10. Only allow children to perform maintenance if an adult has determined they are experienced and capable of such operation.

• An adult should start the engine. See "G. Avoid Accidental Starts" instructions on page 2. Only allow children to start the engine if an adult has determined they are experienced and capable of such operation.

• To avoid unsupervised operation of the engine, especially by children, NEVER leave it unattended when it is running. Remove ignition key, if equipped.

D. Stay Away from Rotating Parts

NEVER operate the engine with an unguarded engine shaft or flywheel. See Figures 1 and 2 on page 2.

The equipment manufacturer may attach a sprocket and chain or pulley and belt to the engine shaft. If these parts are NOT properly guarded, or if you are NOT sure whether they are properly guarded, DO NOT use your engine; contact the equipment manufacturer. Hands, feet, hair, jewelry, clothing, etc.,can become entangled in rotating parts, leading to serious injury or death. To avoid serious injury or death, be sure the flywheel guard is in place. See Figures 1 and 2 on page 2.

181-1032-14 Page 1

E. DO NOT Modify Engine

To avoid serious injury or death, DO NOT modify en gine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

WARNING

Use of this engine on fun-carts, go-kar ts, o r mini-bikes can result in serious injury or death. TecumsehPower Company manufactures the Power Sport line of engines for use in such applications. Consult your local Authorized TecumsehPower Servicing Dealer, call 1-800-558-5402, or visit www.TecumsehPower .com for additional information.

F. Avoid Burns and Fire from Hot Surfaces

The muffler and other engine parts become extremely hot during operation and remain hot after the engine has stopped.

Figure 1. DO NOT use Without Engine Shaft Guard

• To avoid severe burns on contact, STAY AWAY from hot areas of engine. DO NOT operate the engine without the muffler guard in place, if equipped.

• To reduce the risk of fire keep all materials that can burn, including grass and leaves, away from muffler and rest of engine. DO NOT operate, idle or park engine powered equipment in long dry grass or other dry ground cover.

G. Avoid Accidental Starts

To prevent accidental starting when working on equipment always:

• Carefully disconnect spark plug wire and keep it away from spark plug. See Figures 3 and 4.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Carefully attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

1. Muffler Guard

2. F lyw h ee l Gu ard

Figure 2. Typical Engine Guard Locations

Figure 3. Disconnecting/Connecting Spar k Plug

• Remove ignition key, if provided.

H. Use Hearing Protection

Engine noise may cause hearing damage. Always wear hearing protection when operating an engine.

Page 2 181-1032-14

Figure 4. Typical Spark Plug Connection

II. How to Get Service

32 F

For engine adjustments, repairs or warranty service NOT covered in this manual, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower.com or call TecumsehPower Company at 1-800-558-5402 for additional information.

Visit our web site at www.TecumsehPower.com

TECUMSEHPOWER COMPANY

THIS ENGINE MEETS 1995-2005 CALIF & US EPA PHI APPLICABLE EMISSION REGULATIONS FOR SI SORE ENGINES

LV195EA

361540D

4TPXS.1951BB 195

04015AA0001

2083

LOG ON!

On-Line Store Locate your nearest TecumsehPower Servicing Dealer

A. Engine Identification Decal

A sample engine identification decal is located in the next column and indicates the engine’s model number, specification and date of manufacture (DOM). See Figure 5.

NOTES

Please look at the decal on your engine. Fill in the engine information in the spaces provided for

future reference.

The engine identification decal also includes engine life specifications for the emissions-related useful life period of your engine. This period relates to the emission compliance life as certified by EPA and/or CARB.

• OH models are designated as “C” 125 hours, “B” 250 hours and “A” 500 hours.

B. Technician’s Handbook

If you have a general understanding of internal combustion engines and wish to repair and service your engine and/or engine emission control systems yourself, a Technician’s Handbook is available from your Authorized TecumsehPower Servicing Dealer. See Figure 6. This handbook covers repairs and adjustments not covered within this Operator’s Manual, and it is intended for individuals who have had adequate training, experience and who practice proper tool usage. Service procedures should be clearly understood and practiced when servicing TecumsehPower engines.

• Order as part #695244A or #7 40043 for OH models.

TecumsehPower Company manufactures and is responsible only for the engine used on this power equipment. If repair or service is needed for anything other than the engine, contact the service source recommended by the equipment manufacturer.

ENGINE MODEL:

SPEC: DOM:

Figure 5. Engine Identificati on D ec a l

Figure 6. Technician’s Handbook

Table 1. Recommended Oil

TecumsehPower Recommended Oil Usage

Multi Grade

TecumsehPower Part No.

730226A or SAE 5W30 or SAE 10W

TecumsehPower

Synthetic Part No.

-30 C

730263 or SAE 0W30

-20 C

-20 F

-10 C

32 FO32 F

40 F

20 F

Straight Grade

TecumsehPower Part No.

730225A or SAE 30W

60 F

20 C

80 F

10 C

100 F

40 C

30 C

181-1032-14 Page 3

III. Oil and Fuel Specifications

Ta bl e 2. Re co mme nde d Fuel

A. Oil

To operate engine you need to use a clean, high quality, detergent oil. For recommended engine oil, see Table 1 on page 3. In addition, you need to be sure the oil sump contains the correct amount of oil to operate properly.

NOTES The oil sump capacity is 21 ounces or 1-1/4 U.S. Pints (.62 liters).

Be sure original container is marked A.P.I. Service “SL/SJ”. Using multigrade oil above 32°F (0°C) will increase oil

consumption. SAE 10W40 is NOT recommended. Special-formulated oils are available at your Authorized

TecumsehPower Servicing Dealer.

B. Fuel

Use unleaded regular, unleaded premium or reformulated automotive fuel only. You may use gasoline containing the components identified in Table 2.

• DO NOT use leaded fuel.

• Fuel must be fresh and clean. NEVER use fuel left over from last season or stored for long periods.

• NEVER mix oil with fuel.

• DO NOT use fuel containing Methanol (Wood Alcohol).

CAUTION

TecumsehPower engines. Alternative fuels with high alcohol content can cause hard starting, poor engine performance, and may cause internal engine damage.

Damage and/or performance problems that occur fro m use of fuels other than those listed in the Operator’s Manuals will not be considered warranty.

The use of alternative fuels such as E85 or E20 are NOT recommended for use in

NOTE

Fuel Component Percentage

Ethanol 10% Grain Alcohol (“Gasohol”) 10% MTBE (Methyl Tertiary Butyl Ether) 15% ETBE (Ethyl Tertiary Butyl Ether) 15%

Fill Between “FULL” and “ADD” Marks

Figure 7. Engine Oil Level

IV. Before Starting Your Engine

A. Checking Oil Level

To avoid engine damage, it is important to:

• Check oil level before each use and every 5 operating hours when engine is warm. Check oil level more frequently during engine break-in.

• Keep oil level between “FULL” and “ADD” marks on dipstick. See Figure 7.

• Insure oil fill cap/plug is tightened securely.

1. Carburetor

2. Primer

3. Muffler

4. Spark Plug Cap

5. Oil Fill Cap

6. Fuel Fill Cap

NOTES DO NOT overfill oil filler. Doing so may result in oil carry-over to the air cleaner and equipment and cause malfunction or damage.

DO NOT allow oil level to fall below the “ADD” mark on

7. Engine Stop Switch

8. Starter Cord Handle

9. Speed Control

10. Air Cleaner

dipstick. Doing so may result in equipment malfunction or damage.

Figure 8. Engine with Oil Fill Dipstick

Contact your Authorized TecumsehPower Servicing Dealer for TecumsehPower Oil.

Page 4 181-1032-14

B. Filling Oil Sump

I. Oil Fill Cap or Oil Fill Plug with Dipstick

If your engine has an oil fill cap go to step 1. If your engine has an oil fill plug, see "II. Oil Fill Cap Without Dipstick (Oil Fill Plug)" instructions below.

1. Be sure engine is upright and level.

2. Unscrew oil fill cap from oil filler tube and wipe dipstick clean. See Figure 8 on page 4. Afterward, continue reading instructions below.

NOTE Some engine models feature an oil fill plug with an attached dipstick. See Figure 9.

3. Screw oil fill cap or oil fill plug back into oil filler tube.

Tighten securely.

4. Unscrew and remove oil fill cap or oil fill plug from oil

filler tube. Note oil level. If oil reading on dipstick is below “ADD” mark, slowly add oil to reach “FULL” level. See Figure 7 on page 4. Afterward, continue reading instructions below.

5. Screw oil fill cap or oil fill plug back into oil filler tube.

Tighten securely.

6. Wipe away any spilled oil.

1. Oil Fill Plug With Dipstick

2. Oil Fill Plug

Figure 9. Other Possible Oil Fill Locations

Front View

Bottom View

II. Oil Fill Cap Without Dipstick (Oil Fill Plug)

If your engine has an oil fill plug go to step 1. If your engine has an oil fill cap, see "I. Oil Fill Cap or Oil Fill Plug with Dipstick" instructions above.

1. Be sure engine is upright and level.

2. Clean area around oil fill plug. See Figure 9.

3. Unscrew oil fill plug.

4. Add oil to overflow point, making sure to avoid spilling.

5. Screw oil fill plug back into oil fill hole. Tighten securely.

6. Wipe away any spilled oil.

C. Filling Fuel Tank

WARNING

engine. Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

1. Stop engine and allow it to cool before refueling.

2. Be sure engine is outdoors and in a well-ventilated

area.

3. Clean area around fuel fill cap and remove fuel fill cap.

See Figure 8 on page 4. Afterward, continue reading instructions below.

An adult should fuel this engine. NEVER allow children to refuel this

Figure 10. Possible Fuel Fill Cap(s)

4. Using an approved red GASOLINE container, add fuel slowly, being careful to avoid spilling. DO NOT overfill fuel tank. Leave space in the tank to allow fuel to expand without overflowing.

5. Replace fuel fill cap securely and wipe up spilled fuel before starting engine. If fuel is spilled DO NOT start engine. Move machine away from area of spillage. Avoid creating any source of ignition until fuel vapors are gone.

NOTE Replace a damaged or missing fuel fill cap only with a genuine T ecumsehPower replacement Fuel Fill Cap. Failure to do so may VOID YOUR WARRANTY. See Figure 10.

6. Be sure fuel valve, if present (see equipment manufac-

turer’s instructions) is open. See Figure 13 on page 6.

NOTES For recommended fuel, see Table 2 and “III. Oil and Fuel Specifications” instructions on page 4. Afte rward, continue reading instructions.

181-1032-14 Page 5

D. Engine Stop Switch

Some engines are equipped with an optional Stop Switch. This rocker switch is used to shut off the ignition that supplies the spark plug with power. Pressing the "OFF" position will turn the engine off when it is running. This switch must be in the “ON” position or the engine will not start. See Figure 12.

E. Optional Fuel Valve

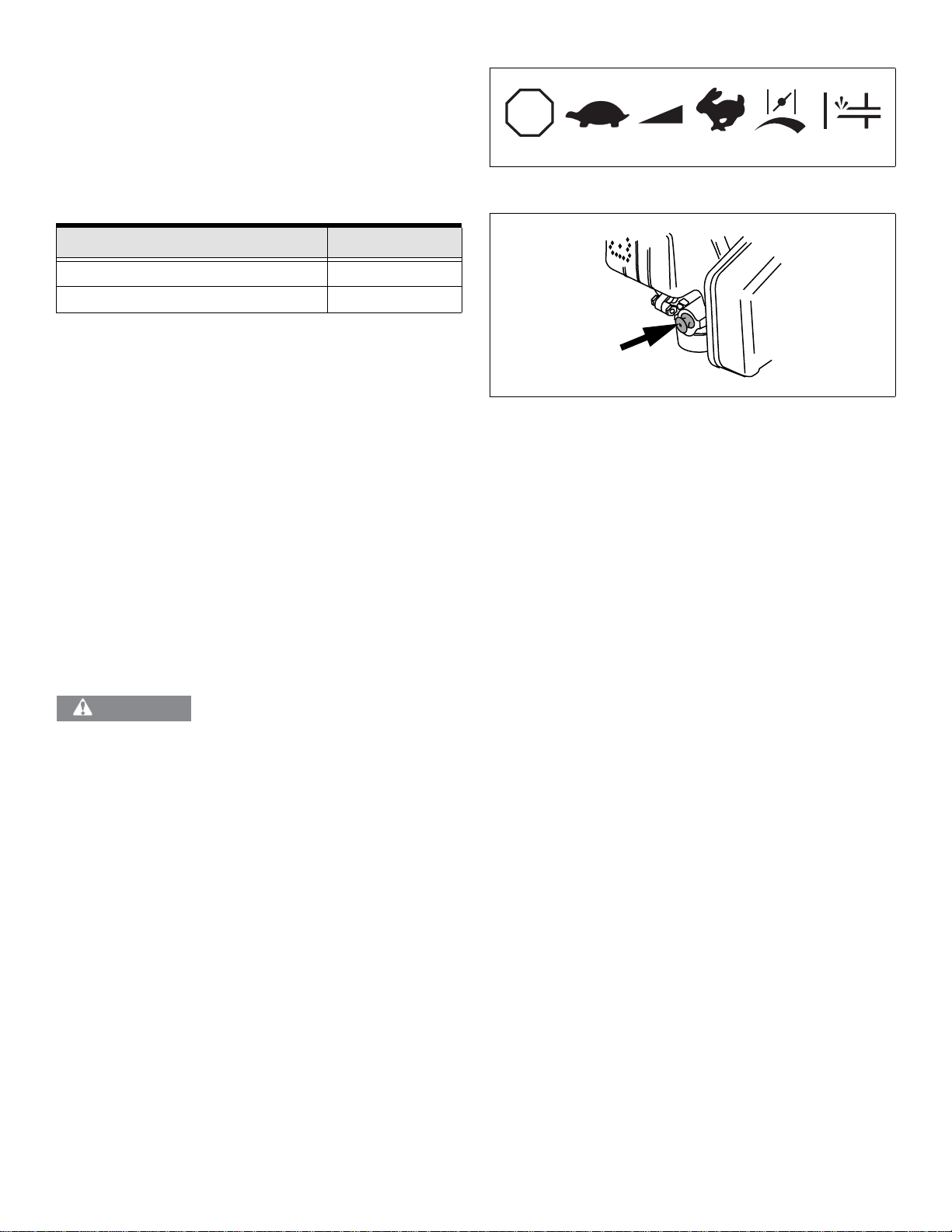

Some engines are equipped with an optional fuel valve. See Figure 13.

V. Starting Your Engine

STOP

STOP SLOW RUN FAST CHOKE PRIMER

Figure 11. Typical Engine Symbols

WARNING

To avoid serious injury or death, an

adult should start this engine. Only allow children to start engine if an adult has determined they are experienced and capable of such operation.

WARNING

If you are unable to start this engine

after following instructions in this manual, contact your Authorized TecumsehPower Servicing Dealer. To avoid serious burn injuries or da mage to your engine, DO NOT attempt to start or troubleshoot this engine in any other way. For example:

• DO NOT use starting fluid.

• DO NOT spray flammable vapors into carburetor or onto air cleaner.

• DO NOT put flammable liquids into carburetor or onto air cleaner.

• DO NOT operate engine or pull on starter rope with spark plug removed. Fuel can spray from spark plug hole and ignite.

This section contains starting instructions for several different types of engines. In order to locate the instructio ns that apply to your engine, first determine what type of starter you have. If you have an electric starter, see "A. Engines with Electric Starters" instructions. If you have a manual recoil starter, see "B. Engines with Recoil Starters" instructions on page 8.

1. Carburetor

2. Primer

3. Muffler

4. Spark Plug Cap

5. Oil Fill Cap

6. Fuel Fill Cap

7. Engine Stop Switch

8. Starter Cord Handle

9. Speed Control

10. Air Cleaner

A. Engines with Electric Starters

Figure 12. Engine Components

Only one of the following two sections will apply to your engine. See Table 3.

Fuel Tank

Table 3. Engines with Electric Starters

If your engine has: Go to:

Primer Bulb Only Section A.I Choke Only Section A.II

Fuel Valve “OPEN” Position Shown

Turn Valve Clockwise To “OFF” Position

I. Primer Bulb Only

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

2. Move equipment control (see equipment manufacturer’s instructions) or engine throttle control to “FAST” position. See Figures 11 and 12.

Page 6 181-1032-14

Figure 13. Fuel V alve Positions

3. When starting a cold engine, push primer bulb firmly with your thumb 3 times, allowing primer bulb to return completely to original position between pushes. See Figure 14.

NOTES Cooler temperatures may require pushing pri mer bulb firmly with your thumb 5 times.

DO NOT use primer to restart a warm engine after a short shutdown. Doing so will flood the engine and may result in equipment malfunction.

DO NOT operate an electric starter for more than 5 seconds each attempt.

4. Push starter button or turn ignition switch key to start

engine.

5. When engine starts, release starter button or ignition

switch key.

6. If engine fails to start after 3 attempts repeat steps 2

thru 5 and try again.

7. If engine does not start after following steps 1 thru 6,

contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

II. Choke Only

1. T o avoid carbon monoxid e poisoning, be sure e ngine is

outdoors in a well-ventilated area.

2. Move choke control to “FULL CHOKE” position. See

Figure 15.

NOTE If restarting a warm engine after a short shutdown, move choke control to “NO CHOKE” position. See Figure 15 .

3. Move equipment control (see equipment manufacturer’s

instructions) or engine throttle control to “FAST” position.

NOTE DO NOT operate an electric starter for more than 5 seconds each attempt.

4. Push starter button or turn ignition switch key to start

engine.

5. When engine starts:

a. Release starter button or ignition switch key. b. Momentarily move choke lever to “1/2 CHOKE”

position until engine runs smoothly. See Figure 15.

c. Next, move choke lever to “N O CHO KE” position.

Figure 14. Engine Primer Bulb

1. “FULL CHOKE” Position

2. “1/2 CHOKE” Position

3. “NO CHOKE” Position

Figure 15. Engine Choke Positions

NOTES If engine starts but falters when ch oke lever is moved to “NO CHOKE” position:

a. Momentarily move choke lever back to “FULL

CHOKE” position. b. Next, move choke lever to “1/2 CHOKE” position. c. Finally, move choke lever to “NO CHOKE” position.

If engine dies after choke lever is moved to “NO CHOKE” position, repeat steps 2 thru 5 to restart engine.

6. If engine fires, but does not continue to run, move choke lever to “NO CHOKE” position and start engine.

7. If engine fails to start after 3 attempts in the “NO CHOKE” position, repeat steps 2 thru 6 to restart engine.

8. If engine does not start after following steps 1 thru 7, contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

181-1032-14 Page 7

B. Engines with Recoil Starters

If you have an electric starter, see "A. Engines with Electric Starters" instructions on page 6. Only one of the following two sections will apply to your engine. If you have a manual recoil starter, see Table 4.

Table 4. Engines with Recoil Starters

If your engine has: Go to:

Primer Bulb Only Section B.I Choke Only Section B.II

I. Primer Bulb Only

1. T o avoid carbon monoxid e poisoning, be sure e ngine is outdoors in a well-ventilated area.

2. Move equipment control (see equipment manufacturer’s instructions) or engine throttle control to “FAST” position, if present. See Figure 16.

3. When starting a cold engine, push primer bulb firmly with your thumb 3 times, allowing primer bulb to return completely to original position between pushes. See Figure 17.

STOP

STOP SLOW RUN FAST CHOKE PRIMER

STOP SLOW RUN FAST CHOKE PRIME

Figure 16. Typical Engine Symbols

Figure 17. Engine Primer Bulb

NOTES Cooler temperatures may require pushing pri mer bulb firmly with your thumb 5 times.

DO NOT use primer to restart a warm engine after a short shutdown. Doing so will flood the engine and may result in equipment malfunction.

WARNING

engine causing serious injury. To avoid this risk, carefully follow these instructions:

4. Grasp starter cord handle. See Figure 18 on page 9.

Afterward, continue reading instructions below. a. Pull rope out slowly until you feel drag. b. Next, pull rope with one rapid full arm stroke. c. Return rope slowly to original position.

Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

5. If engine fails to start after 3 attempts, repeat steps 2

thru 4 and try again.

6. If engine does not start after following steps 1 thru 5,

contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

When pulling starter rope, the rope can unexpectedly jerk back toward

NOTE

Page 8 181-1032-14

II. Choke Only

WARNING

1. T o avoid carbon monoxid e poisoning, be sure e ngine is

outdoors in a well-ventilated area.

2. Move engine ch ok e leve r to “FULL CHOKE” position.

See Figure 19.

NOTE If restarting a warm engine after a short shutdown, move choke lever to “NO CHOKE” position. See Figure 19.

3. Move equipment control (see manufacturer’s

instructions) or engine throttle control to “FAST” position. See Figure 16 on page 8. Afterward, continue reading instructions below.

WARNING

engine causing serious injury. To avoid this risk, carefully follow these instructions:

4. Grasp starter cord hand l e. Se e Fig ur e 18.

a. Pull rope out slowly until you feel drag. b. Next, pull rope with one rapid full arm stroke. c. Return rope slowly to original position.

When pulling starter rope, the rope can unexpectedly jerk back toward

Figure 18. Starter Cord Handle

NOTE Following the instructions listed in the steps above avoids potential damage to the recoil mechanism.

5. When engine starts:

a. Momentarily move choke lever to “1/2 CHOKE”

position until engine runs smoothly. See Figure 19.

b. Next, move choke lever to “NO CHO KE” position.

NOTES If engine starts but falters when choke lever is moved to “NO CHOKE” position:

a. Momentarily move choke lever back to “FULL

CHOKE” position. b. Next, move choke lever to “1/2 CHOKE” position. c. Finally, move choke lever to “NO CHOKE” position.

If engine dies after choke lever is moved to “NO CHOKE” position, repeat steps 2 thru 5 to restart engine.

6. If engine fires, but does not continue to run, move choke lever to “NO CHOKE” position and start engine.

7. If engine fails after 3 attempts in the “NO CHOKE” position, repeat steps 2 thru 6 to restart engine.

8. If engine does not start after following steps 1 thru 7, contact your Authorized TecumsehPower Servicing Dealer. DO NOT attempt to start or troubleshoot this engine in any other way.

1. “FULL CHOKE” Position

2. “1/2 CHOKE” Position

3. “NO CHOKE” Position

Figure 19. Engine Choke Positions

VI. Stopping Your Engine and

Short-Term Storage

Stop engine according to equipment manufacturer’s instructions.

To avoid unsupervised operation of an

engine, especially by children, NEVER leave it unattended when it is running. Always turn off the engine after use and remove ignition key, if provided. Failure to do so may lead to serious injury or death.

NEVER store engine with fuel in the

fuel tank inside a building with potential sources of ignition such as hot water or space heaters, clothes dryers, electric motors, etc. Doing so may lead to an explosion resulting in death or serious injury.

181-1032-14 Page 9

VII. Maintenance

WARNING

this engine. Only allow children to perform maintenance if an adult has determined they are experienced and capable of such operation.

WARNING

• Carefully disconnect spark plug wire and keep it away from spark plug. See “G. Avoid Accidental Starts” instructions on page 2. Afterward, continue reading instructions below.

• Keep the disconnected spark plug wire securely away from metal par ts where arcing could occur.

• Carefully attach the spark plug wire to the grounding post, if provided.

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

• Remove ignition key, if provided.

To avoid serious injury or death, an adult should perform maintenance on

To prevent accidental starting whe n working on equipment, always:

A. Checking and Changing Oil

To avoid engine damage, it is important to:

• Check oil level before each use and every 5 operating hours when engine is warm. See "A. Checking Oil Level" instructions on page 4. Afterward, continue reading instructions below.

• Change oil after first 2 operating hours and ever y 25 operating hours thereafter; more of ten if operated in extremely dusty or dirty conditions. Engine should still be warm but NOT hot from recent use.

1. Be sure you find the correct drain plug location, if provided. See Figure 20.

2. Carefully disconnect spark plug wire and keep it away from spark plug. See "G. Avoid Accidental Starts" instructions on page 2. Afterward, continue reading instructions below.

• Keep the disconnected spark plug wire securely away from metal parts where arcing could occur.

• Carefully attach the spark plug wire to the grounding post, if provided.

3. Be sure the fuel fill cap is on and tightened securely.

4. Clean area around oil drain plug. See Figure 20.

5. Place approved recyclable oil container under oil drain plug, if present.

Figure 20. Possible Oil Drain Plug Locations

Figure 21. Possible Oil Fill Locations

6. Remove oil drain plug, if present. See Figure 20.

7. Tip engine to position the oil flow, so it will drain from the lowest point on the engine (see equipment manufacturer’s instructions).

8. Drain oil into an approved recyclable oil container.

NOTE

Used oil must be disposed of at a proper collection center.

9. Install oil drain plug and tighten securely.

10. Fill with recommended oil. See Table 1 on page 3 and "III. Oil and Fuel Specifications" instr uctions on page 4. See Figure 21. Afterward, continue reading instructions below.

11. Wipe away any spilled oil.

12. Carefully disconnect spark plug wire from grounding post, if provided.

13. Connect spark plug wire to spark plug before attempting to start engine.

Page 10 181-1032-14

B. Removing Debris from Engine

Before each use, remove grass clippings, dirt and debris from the following areas:

• Levers and Linkage

• Cooling Fins

• Air Intake Screen

• Guards

Removing debris will insure adequate cooling, correct engine speed and reduce the risk of fire. See Figure 22.

C. Spark Plug

Check spark plug yearly or every 100 operating hour s.

1. Clean area around spark plug.

2. Remove and inspect spark plug.

3. Replace spark plug if porcelain is cracked or if electrodes are:

•Pitted

• Burned

• Fouled with Deposits

4. Check electrode gap with wire feeler gauge and set gap to—.030 in. (0.76 mm) if necessary. See Figure 23.

5. Install spark plug and tighten securely.

NOTE A resistor spark plug must be used for replacement. Co ntact your Authorized TecumsehPower Servicing Dealer for a genuine replacement Resistor Spark Plug.

D. Cleaning/Replacing Air Cleaner

Your engine has an air cleaner which helps prevent premature engine wear and failure. NEVER run engine without complete air cleaner installed on engine. Your air cleaner periodically needs to be cleaned or replaced.

1. Levers and Linkage

2. Cooling Fins

3. Air Intake Screen

Figure 22. Debris Removal Areas

1. .030 in. (0.76 mm) Gap

2. Electrodes

3. Porcelain

Figure 23. Resistor Spark Plug

NOTE Contact your Authorized TecumsehPower Servicing Dealer for a genuine replacement Air Cleaner.

I. Servicing Foam Pre-Filters

Inspect and clean or replace foam pre-filters every 3 months or every 25 operating hours. Clean daily if used in extremely dusty conditions. After removing the filter, follow these cleaning instructions below:

1. Wash in warm water and detergent solution then press

(DO NOT twist) until all dirt is removed.

2. Rinse thoroughly until water is clear.

3. Wrap in a clean cloth and press (DO NOT twist) until

completely dry.

NOTE DO NOT oil foam pre-filter.

4. Replace foam pre-filter onto paper filter.

181-1032-14 Page 11

II. Servicing Paper Filters

Paper filters cannot be cleaned and must be replaced once a year or every 100 operating hours; more often if used in extremely dusty conditions. Replacement filters are available at an Authorized TecumsehPower Servicing Dealer.

NOTE DO NOT put oil on or clean a paper filter.

III. Removal and Installation of Air Filters

1. Remove wing nut and air cleaner cover. See Figure 24.

2. Remove optional foam pre-filter, if present from air

cleaner cover.

3. Remove paper filter from base.

4. Clean inside of base and air cleaner cover thoroughly.

5. Install paper filter into base.

6. Install foam pre-filter, if present into air cleaner cover.

7. Install air cleaner cover on base.

8. Install wing nut and tighten secu re ly.

E. Anti-Icing Baffle

Some engines may be equipped with an anti-icing air cleaner baffle that prevents ice from forming in the carburetor when the engine is run at temperatures below 32°F (0°C).

Engines equipped with the baffle will have an opening which draws warm air from the muffler into the air cleaner housing. To work effectively, it is necessary for the baffle to block cold air from entering the air cleaner.

COLD WEATHER

BAFFLE

POSITION

POSITION “

“

”FOR SUMMER

ABOVE 32°F (0°C)

”

BELOW 32°F (0°C)

FOR WINTER

NOTE Be sure air cleaner cover is in correct “WINTER” or “SUMMER” position before operation.

At Temperatures of 32°F (0°C) and Below

1. Remove wing nut from air cleaner cover. See Figure 24.

2. Remove air cleaner cover from base.

3. Remove red baffle from inside of air cleaner cover.

4. Insert red ba ffle in “WIN T E R” po sitio n sho wn.

5. Install air cleaner cover onto base.

6. Install wing nut and tighten secu re ly.

At Temperatures Above 32°F (0°C)

1. Remove wing nut from air cleaner cover. See Figure 24.

2. Remove air cleaner cover from base.

3. Remove red baffle from inside of air cleaner cover.

4. Insert red ba ffle in “SUMM E R” posit ion s how n .

5. Install air cleaner cover onto base.

6. Install wing nut and tighten secu re ly.

1. Red Baffle

2. Baffle Summer Position

3. Baffle Winter Position

4. Base

5. Paper Filter

6. Foam Pre-Filter (Optional)

7. Air Cleaner Cover

8. Wing Nut

Figure 24. Air Cleaner and Optional Anti-Icing Baffle

Page 12 181-1032-14

F. Alternator (Optional)

WARNING

VIII. Transporting Your Engine

For alternator related electrical problems such as:

• Inoperative Starter

• Discharged Battery

• Fuse Replacement

• Alternator Maintenance/Repairs

See your equipment manufacturer’s instructions and an Authorized TecumsehPower Servicing Dealer.

G. Carburetor

If you think your carburetor needs adjusting, see your nearest Authorized TecumsehPower Servicing Dealer. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). For operation at higher elevations, contact an Authorized TecumsehPower Servicing Dealer.

H. Engine Speed

WARNING

Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

Running the engine faster than the speed set at the factory can be dangerous and will

To avoid serious injury or death, DO NOT modify engine in any way.

VOID THE ENGINE WARRANTY.

NEVER transport this engine inside

another vehicle or in any enclosed space if there is any gasoline in the tank. Fuel vapor or spilled fuel may ignite leading to serious injury or death.

If there is fuel in the fuel tank, close the fuel shut-off valve, if equipped, and transport the engine up right in an open vehicle, such as an open trailer or open bed of a pickup truck.

If you do not have an open vehicle and have to transport the engine upright in a closed vehicle, follow these steps for emptying the fuel tank before transporting:

1. Empty fuel tank by using a commercially available

suction device designed for use with gasoline.

To avoid severe injury or death,

DO NOT pour fuel from engine or siphon fuel by mouth.

2. Drain fuel into an approved red GASOLINE container,

being careful to avoid spilling.

3. Run the engine until remaining fuel is consumed.

NEVER leave the engine unattended

when it is running and NEVER run engine in enclosed areas to avoid death or serious injury.

I. Adjustments

DO NOT make any engine adjustments. Factory settings are satisfactory for most conditions. If adjustments are needed, contact your Authorized TecumsehPower Servicing Dealer.

181-1032-14 Page 13

IX. Storing Your Engine

WARNING

A. Short-Term/Seasonal Storage

I. Clean Engine

Before servicing the engine remove the carburetor cover and/or blower housing. Remove grass clippings, dirt and debris from the following areas:

• Cooling Fins

• Air Intake Screen

• Levers

• Linkage Area

• Guards

• Carburetor

•Head

Removing debris will insure adequate cooling, correct engine speed and reduce the risk of fire.

II. Fuel Storage

WARNING

potential sources of ignition such as hot water or space heaters, clothes dryers, electric motors, etc. Doing so may lead to an explosion resulting in death or serious injury.

If engine fuel stored in the gas tank and/or an approved gas container is to be unused without gasoline stabilizer for more than 15-30 days, prepare it for short-term/seasonal storage. See "IV. Fuel Treatment" instructions. Afterward, continue reading instructions below.

If engine fuel is to be stored for more than one season, without gasoline stabilizer, it will gradually deteriorate. Also, if it is stored in the engine’s gas tank without gasoline stabilizer it is likely that your carburetor will have gum deposits, a clogged fuel system and will VOID YOUR WARRANTY. Prepare the fuel for extended storage. See "B. Extended Storage" instructions. Afterward, continue reading instructions below.

III. Fuel System

To avoid stale gas and carburetor problems, treat the fuel system in the following method below:

NEVER store engine with fuel in the fuel tank inside a building with

NOTES

IV. Fuel Treatment

1. Add fuel stabilizer according to manufacturer’s

instructions.

2. Run engine at least 10 minutes after adding stabilizer

to allow it to reach carburetor.

NEVER store engine with fuel in the

NOTE Instead of using a fuel preservative/stabilizer, you can empty the fuel tank as described under "I. Draining Fuel" instructions.

B. Extended Storage

I. Draining Fuel

NOTES Clean debris from engine before draining fuel from carburetor. See "I. Clea n Engine" instructions. Afterward, continue reading instructions below.

If you have prepared your fuel for short-term storage it is NOT necessary to drain fuel that contains stabilizer from your carburetor. See "A. Short-Term/Seasonal Storage" instructions. Afterward, continue reading instructions below .

To avoid severe injury or death, DO NOT pour fuel from engine or

siphon fuel by mouth.

1. To prevent serious injury from fuel fires, empty fuel tank

by running engine until it stops from lack of fuel. DO NOT attempt to pour fuel from engine.

2. Run the engine while waiting until the remaining fuel is

consumed.

NEVER leave the engine unattended when it is running and NEVER run

engine in enclosed areas to avoid death or serious injury.

3. Begin servicing th e cylinder bore. See "II. Oil Cylinder

Bore" instructions on page 15.

NOTE If you operate the engine during all four seasons, it is not necessary to lubricate the cylinder bore.

NOTES

TecumsehPower Company recommends using

ULTRA-FRESH

method of minimizing formation of fuel gum deposits during storage. This product is available from your Authorized TecumsehPower Servicing Dealer.

Always follow mix ratio found on stabilizer container. Failure to do so may result in equipment damage.

It is NOT necessary to drain stabilized gas from carburetor.

Page 14 181-1032-14

™ Gasoline Stabilizer as an acceptable

II. Oil Cylinder Bore

CAUTION

prevent serious injury from fuel fires, follow these instructions:

1. Carefully disconnect spark plug wire and keep it away from spark plug. See Figures 25 and 26.

• Keep the disconnected spark plug wire

• Carefully attach the spark plug wire to the

• Disconnect battery at negative terminal first, if engine is equipped with a DC electric starter.

• Turn all engine switches to “OFF” position.

• Remove ignition key, if provided.

2. Remove spark plug.

3. Squirt 1oz. (30 ml) of clean engine oil into spark plug hole.

4. Cover spark plug hole with rag to prevent fuel from spraying from spark plug hole when starter rope is pulled.

For engines equipped with recoil starters pro ceed to S tep 5. For engines equipped with electric starters proceed to S tep 6.

5. Grasp starter cord han d le: a. Pu ll starter cord hand l e ou t slow ly usin g a full ar m

stroke.

b. Repeat once. (This will distribute oil throughout the

cylinder to prevent corrosion during storage.)

6. Remove rag covering spark plug hole.

7. Install spark plug.

8. Carefully disconnect spark plug wire from grounding post, if provided.

9. Connect spark plug wire to spark plug before attempting to start engine.

When lubricating cylinder bore, fuel may spray from spark plug hole. To

securely away from metal par ts where arcing could occur.

grounding post, if provided.

NOTES

Figure 25. Disconnecting/Connecting Spark Plug

Figure 26. Typical Spark Plug Connection

III. Oil

Change oil if NOT changed within the last 3 months. See "A. Checking and Changing Oil" instructions on page 10.

IV. Battery

See equipment manufacturer’s instructions for proper battery storage if machine is equipped with a battery.

181-1032-14 Page 15

X. Preventing Forest, Brush and

Grass Fires

Local, state and federal laws may require use of a spark arrester to prevent fires. For example, it is a violation of California Public Resources Code (section 4442) to use or operate engine on any forest-covered, brush-covered or unimproved grass-covered land unless engine is equipped with a spark arrester. Spark arrester must be maintained in effective working order by owner and/or operator.

To determine if your engine has a spark arrester, locate the muffler on your engine. For example, the muffler discha rge will have a spark arrester cover that reads “Screen Type 36085”.

If your engine does NOT have a spark arrester, you may purchase one from your Authorized TecumsehPower Servicing Dealer. In some cases the muffler may need to be replaced to allow the spark arrester to be installed.

XI. Maintenance Intervals

Maintenance is one of the most important thing s tha t you can do to extend the life of your TecumsehPower engine. If you are unable to perform maintenance intervals yourself, contact your nearest Authorized TecumsehPower Servicing Dealer. Find them on our website at www.TecumsehPower.com or call TecumsehPower Company at 1-800-558-5402 for additional information.

ALWAYS promptly follow maintenance intervals listed in this manual. See Table 5.

Table 5. Maintenance Intervals

Procedure Time

Change Oil

Check Oil Level

After First 2 Hours

When Engine is Warm

Every 5 Hours or

Before Each Use

Clean Cooling Fins

Change Oil

Clean Foam Pre-Filter

Replace Paper Filter

Check Spark Plug

Replace Spark Plug

Scheduled Maintenance After First 2 Hours When Engine is Warm

1. Change Oil

Date_______________Owner/Dealer

Every 5 Hours or

Before Each Use

Every 25 Hours or 3 Months

Every 100 Hours

or Seasonally

Every 100 Hours

or Seasonally

Every 200 Hours

or Seasonally

Page 16 181-1032-14

Every 5 Hours or Before Each Use

1. Check Oil Level

2. Clean Cooling Fins

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer Date_______________Owner/Dealer

Date_______________Owner/Dealer

Every 25 Hours or 3 Months

1. Change Oil

2. Clean Foam Pre-Filter

Date_______________Owner/Dealer

Every 100 Hours or Seasonally

1. Replace Paper Filter

2. Check Spark Plug

Date_______________Owner/Dealer

Every 200 Hours or Seasonally

1. Replace Spark Plug

181-1032-14 Page 17

Page 18 181-1032-14

NOTES

181-1032-14 Page 19

CALIFORNIA & US EPA EMISSION CONTROL WARRANTY STATEMENT

The U. S. Environmental Protection Agency (“EPA”), the California Air Resources Board (“CARB”) and TecumsehPower Company are pleased to explain the Federal and California Emission Control Systems Warranty on your new small off-road engine. In California, new 1995 and later small off-road engines must be designed, built and equipped to meet the State’s stringent anti-smog standards. In other states, new 1997 and later model year engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non-road engines. TecumsehPower Company will warrant the emission control system on your small off-road engine for the periods of time listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor, air cleaner assembly, ignition system, exhaust system, crankcase breather assembly and, the evaporative control system. Also included may be the compression release system and other emission-related assemblies.

Where a warrantable condition exists, TecumsehPower Company will repair your small off-road engine at no cost to you for diagnosis, parts and labor.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE

Emission control systems on 1995 and later model year California small off-road engines are warranted for two years as hereinafter noted. In other states, 1997 and later model year engines are also warranted for two years. If, during such warranty period, any emission-related part on your engine is defective in materials or workmanship, the part will be repaired or replaced by TecumsehPower Company.

(any TecumsehPower Registered Service Dealer, TecumsehPower Authorized Service Distributor or TecumsehPower Central Warehouse Distributor) as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either an Authorized TecumsehPower Servicing Dealer and/or TecumsehPower Company, c/o Service Manager, 900 North Street, Grafton, WI 53024-1499. Telephone 1-262377-2700 [or in USA/Canada call 1-800-558-5402].

IMPORTANT NOTE

This warranty statement explains your rights and obligations under the Emission Control System Warranty (“ECS Warranty”) which is provided to you by TecumsehPower Company pursuant to California law. TecumsehPower Company also provides to original purchasers of new TecumsehPower engines the TecumsehPower Company Limited Warranties for New TecumsehPower Engines and Electronic Ignition Modules. The TecumsehPower Company Limited Warranties for New TecumsehPower Engines and Electronic Ignition Modules (“TecumsehPower Company Warranty”) are located on the back cover of the Operator’s Manual, enclosed with all new TecumsehPower engines. The ECS Warranty applies only to the emission control system of your new engine. To the extent that there is any conflict in terms between the ECS Warranty and the TecumsehPower Company Warranty, the ECS Warranty shall apply except in any circumstances in which the TecumsehPower Company Warranty may provide a longer warranty period. Both the ECS Warranty and the TecumsehPower Company Warranty describe important rights and obligations with respect to your new engine.

OWNER’S WARRANTY RESPONSIBILITIES

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operator’s Manual, but TecumsehPower Company will not deny warranty solely due to the lack of receipts or for your failure to provide written evidence of the performance of all scheduled maintenance.

As the small off-road engine owner , you should, however, be aware that TecumsehPower Company may deny you warranty coverage if your small off-road engine or a part thereof has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road engine to a TecumsehPower Authorized Service Outlet

Warranty service can only be performed by a TecumsehPower Authorized Servicing Dealer. At the time of requesting warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for making service calls and/or for transporting the products to and from the place where the inspection and/or warranty work is performed. The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of any engine or any part(s) thereof submitted for inspection and/or warranty work.

If you have any questions regarding your warranty rights and responsibilities, you should contact TecumsehPower Company at 1-262-377-2700 or in USA/Canada call 1-800-558-5402.

Revised February 2008

IMPORTANT!

The Emission Regulations may be different for your country. The Emissions Control Warranty Statement is only applicable to engines with an emissions compliance statement and decal that references “Emissions Regulations”.

Page 20 181-1032-14

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (“ECS Warranty”) for 1995 and later model year California small off-road engines (for other states, 1997 and later model year engines):

A. APPLICABILITY: This warranty shall apply to 1995 and later

model year California small off-road engines (for other state s, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.

B. GENERAL EMISSIONS WARRANTY COVERAGE:

TecumsehPower Company warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its small off-road engines is:

1. Designed, built and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and

2. Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, will cause a warranted emissions-related part to fail to be identical in all material respects to the part as described in the engine manufacturer’s application for certification.

C. THE ECS WARRANTY ONLY PERTAINS TO EMISSION-

RELATED PARTS ON YOUR ENGINE AS FOLLOWS:

1. Any warranted, emissions-related parts which are not scheduled for replacement as required maintenance in the Operator’s Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by TecumsehPower Company according to Subsection 4 below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

2. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Operator’s Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

3. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Operator’s Manual, shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by TecumsehPower Company according to Subsection 4 below. Any such emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.

4. Repair or replacement of any warranted, emissionsrelated part under this ECS Warranty shall be performed at no charge to the owner at a TecumsehPower Authorized Service Outlet.

5. The owner shall not be charged for diagnostic l abor which leads to the determination that a part covered by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a TecumsehPower Authorized Service Outlet.

6. TecumsehPower Company shall be liable for damages to other original engine components or approved modifications proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.

7. Throughout the ECS Warranty Period, TecumsehPower Company shall maintain a supply of warranted emissionrelated parts sufficient to meet the expected demand for such emission-related parts.

8. Any TecumsehPower Company authorized and approved emission-related replacement part may be used in the performance of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce TecumsehPower Company ECS Warranty obligations.

9. Unapproved add-on or modified parts may not be used to modify or repair a TecumsehPower engine. Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. TecumsehPower Company shall not be liable hereunder for failures of any warranted parts of a TecumsehPower engine caused by the use of such an unapproved add-on or modified part.

EMISSION-RELA TED PARTS INCLUDE THE FOLLOWING:

1. Carburetor Assembly including internal components: a) Carburetor gaskets b) Intake pipe

2. Air Cleaner Assembly including components: a) Air filter element

3. Ignition System inclu ding components: a) Spark plug b) Ignition module c) Flywheel assembly

4. Exhaust System incl uding components: a) Catalytic muffler (if so equipped) b) Muffler gasket (if so equipped) c) Exhaust manifold (if so equipped)

5. Crankcase Breather Assembly including components a) Breather connection tube

6. Evaporative Control System including components: a) Fuel line(s) b) Fuel filter c) Canister (if so equipped) d) Fuel tank (if so equipped) e) Fuel fill cap (if so equipped)

Revised February 2008

IMPORTANT!

181-1032-14 Page 21

XII. Warranty Information

LIMITED WARRANTY FOR NEW TECUMSEHPOWER ENGINES

AND ELECTRONIC IGNITION MODULES

For the time period shown below from the date of purchase and subject to the exceptions and limitati ons described herein, TecumsehPower Company will, at its option as the exclusive remedy, either repair or replace for the original purchaser, free of charge, any part of any new TecumsehPower engine which is found, upon examination by any Authorized TecumsehPower Servicing Outlet or by TecumsehPower’s Service Division, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP. This Limited Warranty DOES NOT COVER (i) any TecumsehPower engine or part(s) thereof used to power any vehicle in competitive racing and/or used on any commercial or rental track, or (ii) defects or damage caused by alterations or modification s of new TecumsehPower engines or parts or by normal wear, accidents, improper maintenance, improper use or abuse of the product, or failure to follow the instructions contained in an Instruction Manual for the operation of the new TecumsehPower engine or part. The cost of normal maintenance or replacement of service items which are not defective shall be paid for by the original purchaser. At the time warranty service is requested, evidence must be presented of the date of purchase by the original purchaser. Any charge for making service calls and/or for transporting any engine or part(s) thereof to and from the place where the inspection and/or warranty work is performed is payable solely by the purchaser. The purchaser is responsible for any damage or loss incurred in connection with the transportation of any engine or part(s) thereof submitted for inspection and/or warranty work. WARRANTY SERVICE CAN ONLY BE PERFORMED BY A TECUMSEHPOWER AUTHORIZED SERVICE OUTLET. Warranty service can be arranged by contacting a TecumsehPower Authorized Service Outlet (any TecumsehPower Registered Service Dealer, TecumsehPower Authorized Service Distributor, or TecumsehPower Central Warehouse Distributor) or by contacting TecumsehPower Company c/o Service Manager, 900 North Street, Grafton, Wisconsin USA 53024-1499.

“CONSUMER USE”

Warranty Within Outside Within Outside

(6)

Tecumsehpower OH195XP, OH195EA, OH195XA, OH195, OH195EP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

181-1032-14

(English) 6/01/08

IMPORTANT NOTICE!

Safety Definitions

Statements in this manual preceded by the following words and graphics are of special significance:

WARNING indicates a potentially hazardous situation which if NOT avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if NOT avoided, may result in minor or moderate injury.

Indicates a potential situation which, if NOT avoided, could result in equipment or property damage.

It is recommended that you take special notice of all items discussed on the next two pages and wear the appropriate safety equipment.

Before operating this engine it is your responsibility to read this Operator’s Manual. Follow these basic rules for your personal safety:

Notice Regarding Emissions

TecumsehPower Contact Information

I. General Safety Precautions

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and eventually death.

To prevent serious injury or death from carbon monoxide:

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable and can explode. Fuel vapors can spread and be ignited by a spark or flame many feet away from engine. To prevent injury or death from fuel fires, follow these instructions:

D. Stay Away from Rotating Parts

NEVER operate the engine with an unguarded engine shaft or flywheel. See Figures 1 and 2 on page 2.

E. DO NOT Modify Engine

To avoid serious injury or death, DO NOT modify en gine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. NEVER tamper with factory setting of engine governor.

F. Avoid Burns and Fire from Hot Surfaces

The muffler and other engine parts become extremely hot during operation and remain hot after the engine has stopped.

Figure 1. DO NOT use Without Engine Shaft Guard

G. Avoid Accidental Starts

To prevent accidental starting when working on equipment always:

1. Muffler Guard

2. F lyw h ee l Gu ard

Figure 2. Typical Engine Guard Locations

Figure 3. Disconnecting/Connecting Spar k Plug

H. Use Hearing Protection

Engine noise may cause hearing damage. Always wear hearing protection when operating an engine.

Figure 4. Typical Spark Plug Connection

II. How to Get Service

A. Engine Identification Decal

A sample engine identification decal is located in the next column and indicates the engine’s model number, specification and date of manufacture (DOM). See Figure 5.

The engine identification decal also includes engine life specifications for the emissions-related useful life period of your engine. This period relates to the emission compliance life as certified by EPA and/or CARB.

B. Technician’s Handbook

TecumsehPower Company manufactures and is responsible only for the engine used on this power equipment. If repair or service is needed for anything other than the engine, contact the service source recommended by the equipment manufacturer.

Figure 5. Engine Identificati on D ec a l

Figure 6. Technician’s Handbook

Table 1. Recommended Oil

III. Oil and Fuel Specifications

Ta bl e 2. Re co mme nde d Fuel

A. Oil

To operate engine you need to use a clean, high quality, detergent oil. For recommended engine oil, see Table 1 on page 3. In addition, you need to be sure the oil sump contains the correct amount of oil to operate properly.

B. Fuel

Use unleaded regular, unleaded premium or reformulated automotive fuel only. You may use gasoline containing the components identified in Table 2.

Figure 7. Engine Oil Level

IV. Before Starting Your Engine

A. Checking Oil Level

To avoid engine damage, it is important to:

Figure 8. Engine with Oil Fill Dipstick

B. Filling Oil Sump

I. Oil Fill Cap or Oil Fill Plug with Dipstick

If your engine has an oil fill cap go to step 1. If your engine has an oil fill plug, see "II. Oil Fill Cap Without Dipstick (Oil Fill Plug)" instructions below.

1. Be sure engine is upright and level.

2. Unscrew oil fill cap from oil filler tube and wipe dipstick clean. See Figure 8 on page 4. Afterward, continue reading instructions below.

6. Wipe away any spilled oil.

1. Oil Fill Plug With Dipstick

2. Oil Fill Plug

Figure 9. Other Possible Oil Fill Locations

II. Oil Fill Cap Without Dipstick (Oil Fill Plug)

If your engine has an oil fill plug go to step 1. If your engine has an oil fill cap, see "I. Oil Fill Cap or Oil Fill Plug with Dipstick" instructions above.

1. Be sure engine is upright and level.

2. Clean area around oil fill plug. See Figure 9.

3. Unscrew oil fill plug.

4. Add oil to overflow point, making sure to avoid spilling.

5. Screw oil fill plug back into oil fill hole. Tighten securely.

6. Wipe away any spilled oil.

C. Filling Fuel Tank

1. Stop engine and allow it to cool before refueling.

Figure 10. Possible Fuel Fill Cap(s)

4. Using an approved red GASOLINE container, add fuel slowly, being careful to avoid spilling. DO NOT overfill fuel tank. Leave space in the tank to allow fuel to expand without overflowing.

5. Replace fuel fill cap securely and wipe up spilled fuel before starting engine. If fuel is spilled DO NOT start engine. Move machine away from area of spillage. Avoid creating any source of ignition until fuel vapors are gone.
