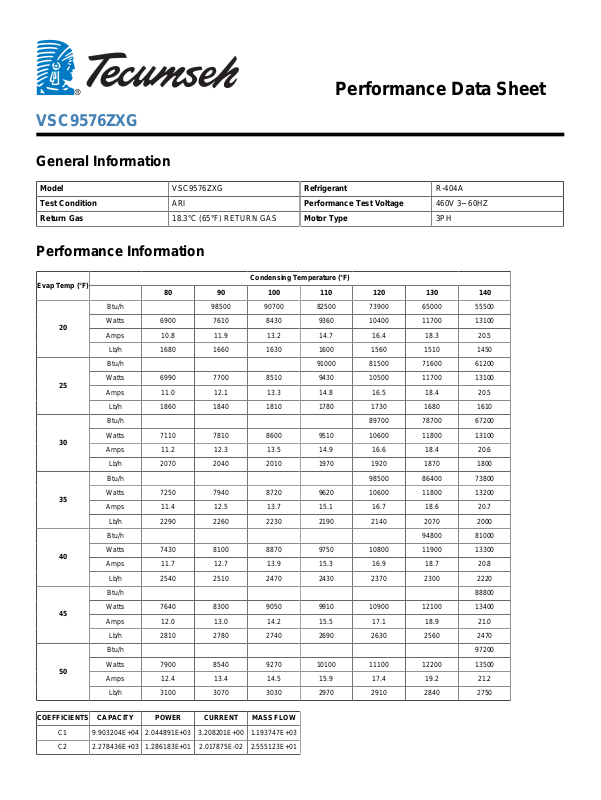

Tecumseh VSC9576ZXG Performance Data Sheet

Performance Data Sheet

VSC9576ZXG

General Information

Model VSC9576ZXG Refrigerant R-404A
Test Condition ARI Performance Test Voltage 460V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 98500 90700 82500 73900 65000 55500
Watts 6900 7610 8430 9360 10400 11700 13100
Amps 10.8 11.9 13.2 14.7 16.4 18.3 20.5

Lb/h 1680 1660 1630 1600 1560 1510 1450

Btu/h 91000 81500 71600 61200
Watts 6990 7700 8510 9430 10500 11700 13100
Amps 11.0 12.1 13.3 14.8 16.5 18.4 20.5

Lb/h 1860 1840 1810 1780 1730 1680 1610

Btu/h 89700 78700 67200
Watts 7110 7810 8600 9510 10600 11800 13100
Amps 11.2 12.3 13.5 14.9 16.6 18.4 20.6

Lb/h 2070 2040 2010 1970 1920 1870 1800

Btu/h 98500 86400 73800
Watts 7250 7940 8720 9620 10600 11800 13200
Amps 11.4 12.5 13.7 15.1 16.7 18.6 20.7

Lb/h 2290 2260 2230 2190 2140 2070 2000

Btu/h 94800 81000
Watts 7430 8100 8870 9750 10800 11900 13300
Amps 11.7 12.7 13.9 15.3 16.9 18.7 20.8

Lb/h 2540 2510 2470 2430 2370 2300 2220

Btu/h 88800
Watts 7640 8300 9050 9910 10900 12100 13400
Amps 12.0 13.0 14.2 15.5 17.1 18.9 21.0

Lb/h 2810 2780 2740 2690 2630 2560 2470

Btu/h 97200
Watts 7900 8540 9270 10100 11100 12200 13500
Amps 12.4 13.4 14.5 15.9 17.4 19.2 21.2

Lb/h 3100 3070 3030 2970 2910 2840 2750

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 9.903204E+04 2.044891E+03 3.208201E+00 1.193747E+03
C2 2.278436E+03 1.286183E+01 2.017875E-02 2.555123E+01

C3 -3.166276E+02 6.518975E+01 1.022753E-01 -3.384579E+00
C4 2.622505E+01 7.416206E-02 1.163519E-04 2.045354E-01
C5 -8.008281E+00 1.057747E-01 1.659485E-04 2.586038E-02
C6 -3.843337E-01 -3.643799E-01 -5.716708E-04 4.258807E-02
C7 6.511546E-02 8.304765E-03 1.302923E-05 2.225342E-03
C8 -1.551689E-01 -3.810994E-03 -5.979017E-06 -5.578217E-05
C9 -1.720114E-02 -6.342702E-04 -9.950980E-07 -4.207025E-04

C10 -3.773134E-03 3.220871E-03 5.053181E-06 -2.273536E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
