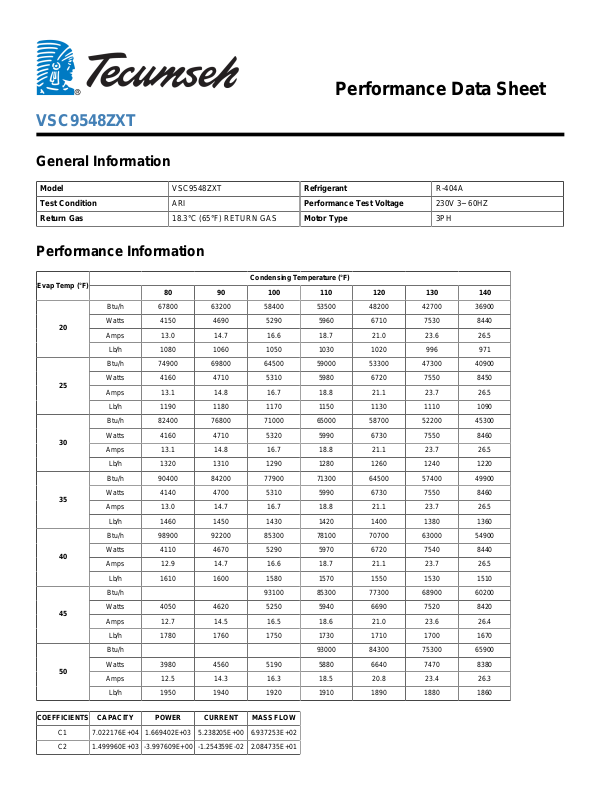

Tecumseh VSC9548ZXT Performance Data Sheet

Performance Data Sheet

VSC9548ZXT

General Information

Model VSC9548ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 67800 63200 58400 53500 48200 42700 36900
Watts 4150 4690 5290 5960 6710 7530 8440
Amps 13.0 14.7 16.6 18.7 21.0 23.6 26.5

Lb/h 1080 1060 1050 1030 1020 996 971

Btu/h 74900 69800 64500 59000 53300 47300 40900
Watts 4160 4710 5310 5980 6720 7550 8450
Amps 13.1 14.8 16.7 18.8 21.1 23.7 26.5

Lb/h 1190 1180 1170 1150 1130 1110 1090

Btu/h 82400 76800 71000 65000 58700 52200 45300
Watts 4160 4710 5320 5990 6730 7550 8460
Amps 13.1 14.8 16.7 18.8 21.1 23.7 26.5

Lb/h 1320 1310 1290 1280 1260 1240 1220

Btu/h 90400 84200 77900 71300 64500 57400 49900
Watts 4140 4700 5310 5990 6730 7550 8460
Amps 13.0 14.7 16.7 18.8 21.1 23.7 26.5

Lb/h 1460 1450 1430 1420 1400 1380 1360

Btu/h 98900 92200 85300 78100 70700 63000 54900
Watts 4110 4670 5290 5970 6720 7540 8440
Amps 12.9 14.7 16.6 18.7 21.1 23.7 26.5

Lb/h 1610 1600 1580 1570 1550 1530 1510

Btu/h 93100 85300 77300 68900 60200
Watts 4050 4620 5250 5940 6690 7520 8420
Amps 12.7 14.5 16.5 18.6 21.0 23.6 26.4

Lb/h 1780 1760 1750 1730 1710 1700 1670

Btu/h 93000 84300 75300 65900
Watts 3980 4560 5190 5880 6640 7470 8380
Amps 12.5 14.3 16.3 18.5 20.8 23.4 26.3

Lb/h 1950 1940 1920 1910 1890 1880 1860

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 7.022176E+04 1.669402E+03 5.238205E+00 6.937253E+02
C2 1.499960E+03 -3.997609E+00 -1.254359E-02 2.084735E+01

C3 -4.031357E+02 1.522521E+01 4.777325E-02 4.379480E-02
C4 1.343964E+01 -1.234037E-01 -3.872127E-04 9.949443E-02
C5 -5.732299E+00 2.338155E-01 7.336601E-04 -7.642718E-02
C6 1.660608E+00 1.138757E-01 3.573163E-04 4.152459E-03
C7 1.422923E-02 -3.690576E-03 -1.158019E-05 9.872622E-04
C8 -6.009126E-02 2.082305E-03 6.533801E-06 3.836997E-04
C9 -7.111652E-03 -1.436138E-03 -4.506276E-06 2.427914E-04

C10 -8.280224E-03 8.578973E-04 2.691887E-06 -6.460539E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
