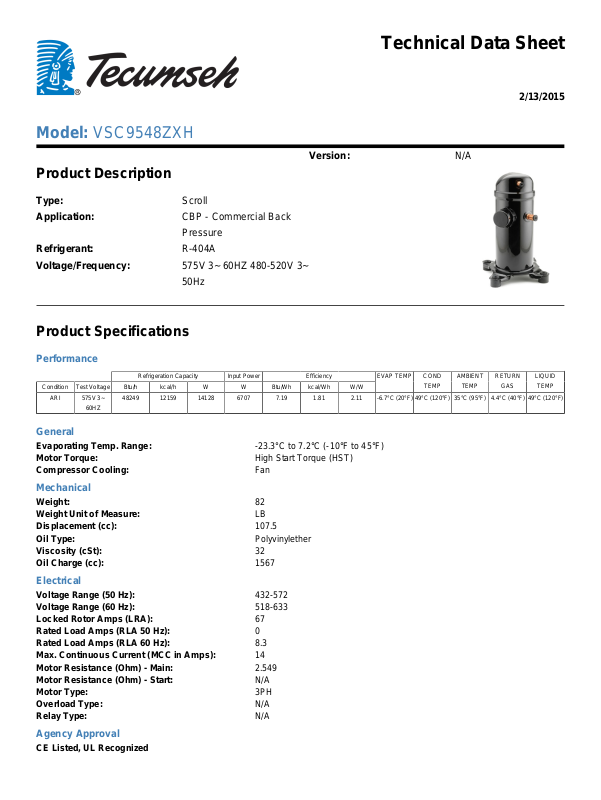

Tecumseh VSC9548ZXH Technical Data Sheet

Model: VSC9548ZXH

Product Description

Type: Scroll
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 575V 3~ 60HZ 480-520V 3~

50Hz

Product Specifications

Technical Data Sheet

2/13/2015

Version: N/A

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 575V 3~

60HZ

48249 12159 14128 6707 7.19 1.81 2.11 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

General

Evaporating Temp. Range: -23.3°C to 7.2°C (-10°F to 45°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 82
Weight Unit of Measure: LB
Displacement (cc): 107.5
Oil Type: Polyvinylether
Viscosity (cSt): 32
Oil Charge (cc): 1567

Electrical

Voltage Range (50 Hz): 432-572
Voltage Range (60 Hz): 518-633
Locked Rotor Amps (LRA): 67
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 8.3
Max. Continuous Current (MCC in Amps): 14
Motor Resistance (Ohm) - Main: 2.549
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

CE Listed, UL Recognized
