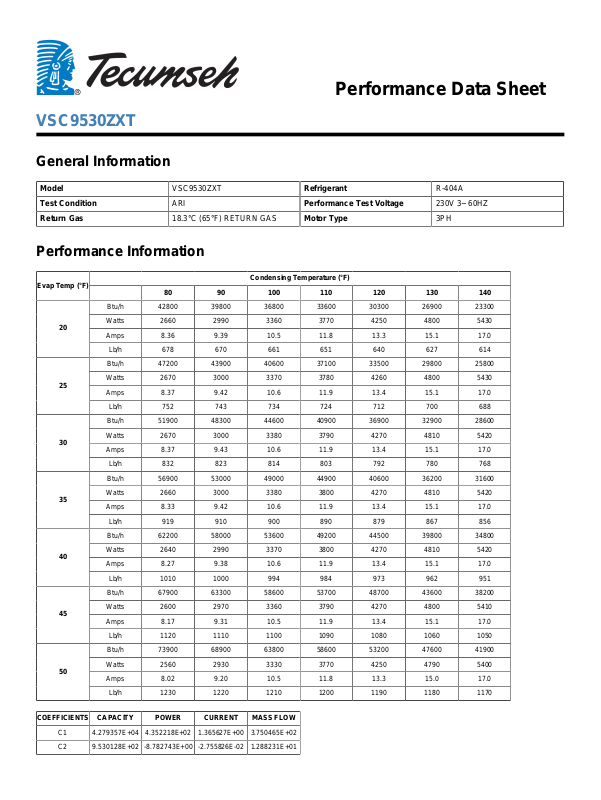

Tecumseh VSC9530ZXT Performance Data Sheet

Performance Data Sheet

VSC9530ZXT

General Information

Model VSC9530ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 42800 39800 36800 33600 30300 26900 23300
Watts 2660 2990 3360 3770 4250 4800 5430
Amps 8.36 9.39 10.5 11.8 13.3 15.1 17.0

Lb/h 678 670 661 651 640 627 614

Btu/h 47200 43900 40600 37100 33500 29800 25800
Watts 2670 3000 3370 3780 4260 4800 5430
Amps 8.37 9.42 10.6 11.9 13.4 15.1 17.0

Lb/h 752 743 734 724 712 700 688

Btu/h 51900 48300 44600 40900 36900 32900 28600
Watts 2670 3000 3380 3790 4270 4810 5420
Amps 8.37 9.43 10.6 11.9 13.4 15.1 17.0

Lb/h 832 823 814 803 792 780 768

Btu/h 56900 53000 49000 44900 40600 36200 31600
Watts 2660 3000 3380 3800 4270 4810 5420
Amps 8.33 9.42 10.6 11.9 13.4 15.1 17.0

Lb/h 919 910 900 890 879 867 856

Btu/h 62200 58000 53600 49200 44500 39800 34800
Watts 2640 2990 3370 3800 4270 4810 5420
Amps 8.27 9.38 10.6 11.9 13.4 15.1 17.0

Lb/h 1010 1000 994 984 973 962 951

Btu/h 67900 63300 58600 53700 48700 43600 38200
Watts 2600 2970 3360 3790 4270 4800 5410
Amps 8.17 9.31 10.5 11.9 13.4 15.1 17.0

Lb/h 1120 1110 1100 1090 1080 1060 1050

Btu/h 73900 68900 63800 58600 53200 47600 41900
Watts 2560 2930 3330 3770 4250 4790 5400
Amps 8.02 9.20 10.5 11.8 13.3 15.0 17.0

Lb/h 1230 1220 1210 1200 1190 1180 1170

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.279357E+04 4.352218E+02 1.365627E+00 3.750465E+02
C2 9.530128E+02 -8.782743E+00 -2.755826E-02 1.288231E+01

C3 -2.000917E+02 3.520561E+01 1.104672E-01 2.087113E+00
C4 7.877790E+00 -2.351571E-01 -7.378698E-04 7.325134E-02
C5 -3.735125E+00 3.431046E-01 1.076584E-03 -4.996272E-02
C6 4.408467E-01 -2.463888E-01 -7.731123E-04 -1.875205E-02
C7 1.117925E-02 -1.951586E-03 -6.123634E-06 5.759540E-04
C8 -3.312588E-02 2.950890E-03 9.259222E-06 1.448140E-04
C9 -4.102958E-03 -2.292997E-03 -7.194905E-06 1.903054E-04

C10 -3.108517E-03 1.805195E-03 5.664294E-06 2.930658E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
