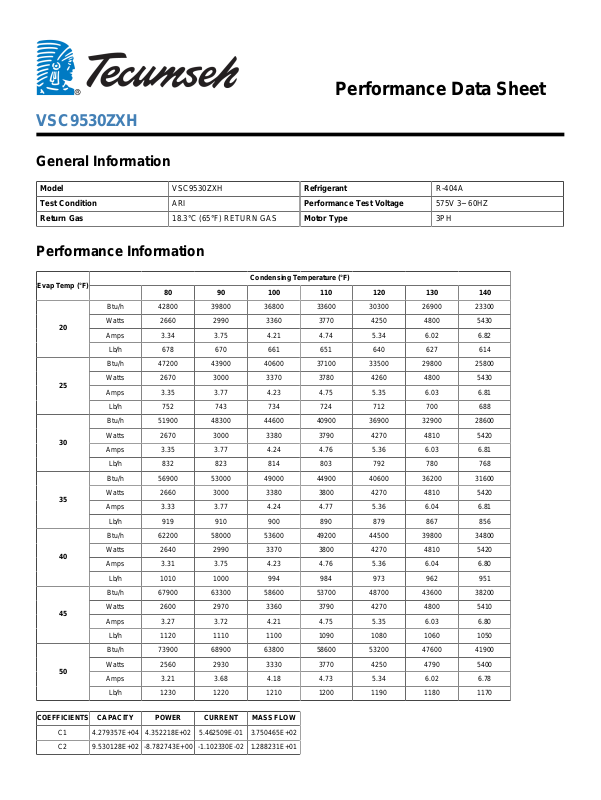

Tecumseh VSC9530ZXH Performance Data Sheet

Performance Data Sheet

VSC9530ZXH

General Information

Model VSC9530ZXH Refrigerant R-404A
Test Condition ARI Performance Test Voltage 575V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 42800 39800 36800 33600 30300 26900 23300
Watts 2660 2990 3360 3770 4250 4800 5430
Amps 3.34 3.75 4.21 4.74 5.34 6.02 6.82

Lb/h 678 670 661 651 640 627 614

Btu/h 47200 43900 40600 37100 33500 29800 25800
Watts 2670 3000 3370 3780 4260 4800 5430
Amps 3.35 3.77 4.23 4.75 5.35 6.03 6.81

Lb/h 752 743 734 724 712 700 688

Btu/h 51900 48300 44600 40900 36900 32900 28600
Watts 2670 3000 3380 3790 4270 4810 5420
Amps 3.35 3.77 4.24 4.76 5.36 6.03 6.81

Lb/h 832 823 814 803 792 780 768

Btu/h 56900 53000 49000 44900 40600 36200 31600
Watts 2660 3000 3380 3800 4270 4810 5420
Amps 3.33 3.77 4.24 4.77 5.36 6.04 6.81

Lb/h 919 910 900 890 879 867 856

Btu/h 62200 58000 53600 49200 44500 39800 34800
Watts 2640 2990 3370 3800 4270 4810 5420
Amps 3.31 3.75 4.23 4.76 5.36 6.04 6.80

Lb/h 1010 1000 994 984 973 962 951

Btu/h 67900 63300 58600 53700 48700 43600 38200
Watts 2600 2970 3360 3790 4270 4800 5410
Amps 3.27 3.72 4.21 4.75 5.35 6.03 6.80

Lb/h 1120 1110 1100 1090 1080 1060 1050

Btu/h 73900 68900 63800 58600 53200 47600 41900
Watts 2560 2930 3330 3770 4250 4790 5400
Amps 3.21 3.68 4.18 4.73 5.34 6.02 6.78

Lb/h 1230 1220 1210 1200 1190 1180 1170

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.279357E+04 4.352218E+02 5.462509E-01 3.750465E+02
C2 9.530128E+02 -8.782743E+00 -1.102330E-02 1.288231E+01

C3 -2.000917E+02 3.520561E+01 4.418689E-02 2.087113E+00
C4 7.877790E+00 -2.351571E-01 -2.951479E-04 7.325134E-02
C5 -3.735125E+00 3.431046E-01 4.306338E-04 -4.996272E-02
C6 4.408467E-01 -2.463888E-01 -3.092449E-04 -1.875205E-02
C7 1.117925E-02 -1.951586E-03 -2.449453E-06 5.759540E-04
C8 -3.312588E-02 2.950890E-03 3.703689E-06 1.448140E-04
C9 -4.102958E-03 -2.292997E-03 -2.877962E-06 1.903054E-04

C10 -3.108517E-03 1.805195E-03 2.265718E-06 2.930658E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
