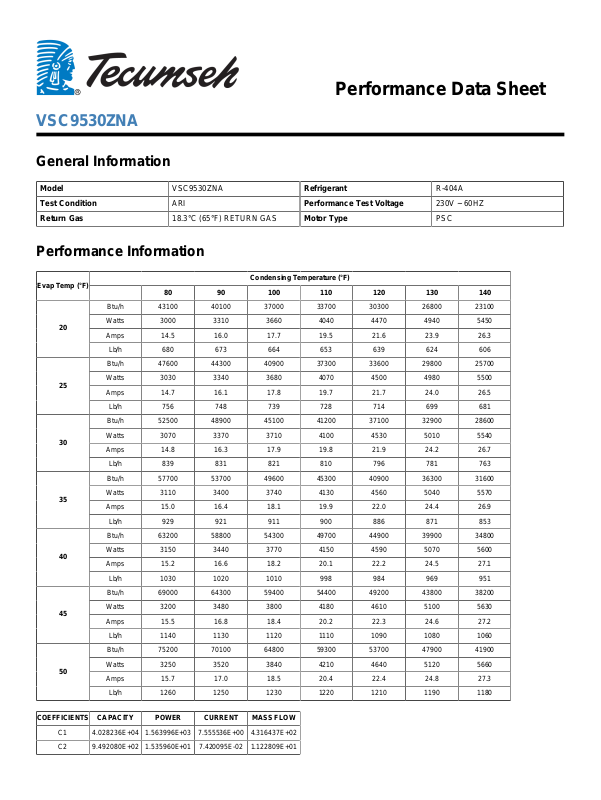

Tecumseh VSC9530ZNA Performance Data Sheet

Performance Data Sheet

VSC9530ZNA

General Information

Model VSC9530ZNA Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 43100 40100 37000 33700 30300 26800 23100
Watts 3000 3310 3660 4040 4470 4940 5450
Amps 14.5 16.0 17.7 19.5 21.6 23.9 26.3

Lb/h 680 673 664 653 639 624 606

Btu/h 47600 44300 40900 37300 33600 29800 25700
Watts 3030 3340 3680 4070 4500 4980 5500
Amps 14.7 16.1 17.8 19.7 21.7 24.0 26.5

Lb/h 756 748 739 728 714 699 681

Btu/h 52500 48900 45100 41200 37100 32900 28600
Watts 3070 3370 3710 4100 4530 5010 5540
Amps 14.8 16.3 17.9 19.8 21.9 24.2 26.7

Lb/h 839 831 821 810 796 781 763

Btu/h 57700 53700 49600 45300 40900 36300 31600
Watts 3110 3400 3740 4130 4560 5040 5570
Amps 15.0 16.4 18.1 19.9 22.0 24.4 26.9

Lb/h 929 921 911 900 886 871 853

Btu/h 63200 58800 54300 49700 44900 39900 34800
Watts 3150 3440 3770 4150 4590 5070 5600
Amps 15.2 16.6 18.2 20.1 22.2 24.5 27.1

Lb/h 1030 1020 1010 998 984 969 951

Btu/h 69000 64300 59400 54400 49200 43800 38200
Watts 3200 3480 3800 4180 4610 5100 5630
Amps 15.5 16.8 18.4 20.2 22.3 24.6 27.2

Lb/h 1140 1130 1120 1110 1090 1080 1060

Btu/h 75200 70100 64800 59300 53700 47900 41900
Watts 3250 3520 3840 4210 4640 5120 5660
Amps 15.7 17.0 18.5 20.4 22.4 24.8 27.3

Lb/h 1260 1250 1230 1220 1210 1190 1180

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.028236E+04 1.563996E+03 7.555536E+00 4.316437E+02
C2 9.492080E+02 1.535960E+01 7.420095E-02 1.122809E+01

C3 -1.245019E+02 4.830806E+00 2.333723E-02 4.657977E-01
C4 8.907990E+00 2.543203E-01 1.228600E-03 7.823287E-02
C5 -3.409704E+00 -3.226417E-01 -1.558656E-03 -1.698922E-02
C6 -3.116134E-01 1.463002E-01 7.067641E-04 -2.963630E-03
C7 1.125046E-02 1.963992E-04 9.487883E-07 9.265886E-04
C8 -4.364361E-02 -2.414060E-03 -1.166212E-05 -5.544209E-05
C9 -4.366473E-03 2.135431E-03 1.031609E-05 8.097749E-05

C10 -9.424909E-04 4.955283E-05 2.393857E-07 -2.814972E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
