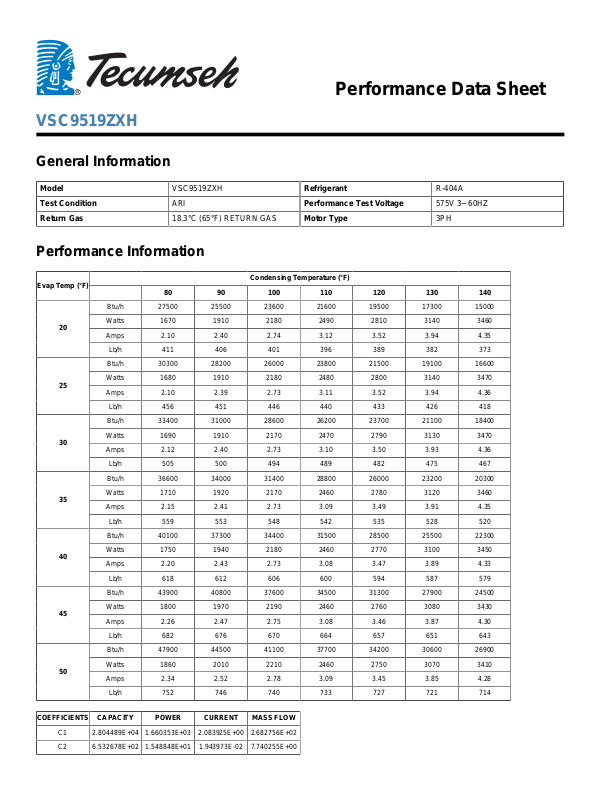

Tecumseh VSC9519ZXH Performance Data Sheet

Performance Data Sheet

VSC9519ZXH

General Information

Model VSC9519ZXH Refrigerant R-404A
Test Condition ARI Performance Test Voltage 575V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 27500 25500 23600 21600 19500 17300 15000
Watts 1670 1910 2180 2490 2810 3140 3460
Amps 2.10 2.40 2.74 3.12 3.52 3.94 4.35

Lb/h 411 406 401 396 389 382 373

Btu/h 30300 28200 26000 23800 21500 19100 16600
Watts 1680 1910 2180 2480 2800 3140 3470
Amps 2.10 2.39 2.73 3.11 3.52 3.94 4.36

Lb/h 456 451 446 440 433 426 418

Btu/h 33400 31000 28600 26200 23700 21100 18400
Watts 1690 1910 2170 2470 2790 3130 3470
Amps 2.12 2.40 2.73 3.10 3.50 3.93 4.36

Lb/h 505 500 494 489 482 475 467

Btu/h 36600 34000 31400 28800 26000 23200 20300
Watts 1710 1920 2170 2460 2780 3120 3460
Amps 2.15 2.41 2.73 3.09 3.49 3.91 4.35

Lb/h 559 553 548 542 535 528 520

Btu/h 40100 37300 34400 31500 28500 25500 22300
Watts 1750 1940 2180 2460 2770 3100 3450
Amps 2.20 2.43 2.73 3.08 3.47 3.89 4.33

Lb/h 618 612 606 600 594 587 579

Btu/h 43900 40800 37600 34500 31300 27900 24500
Watts 1800 1970 2190 2460 2760 3080 3430
Amps 2.26 2.47 2.75 3.08 3.46 3.87 4.30

Lb/h 682 676 670 664 657 651 643

Btu/h 47900 44500 41100 37700 34200 30600 26900
Watts 1860 2010 2210 2460 2750 3070 3410
Amps 2.34 2.52 2.78 3.09 3.45 3.85 4.28

Lb/h 752 746 740 733 727 721 714

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 2.804489E+04 1.660353E+03 2.083925E+00 2.682756E+02
C2 6.532678E+02 1.548848E+01 1.943973E-02 7.740255E+00

C3 -1.479208E+02 -3.201580E+01 -4.018334E-02 9.171745E-03
C4 5.502007E+00 4.136518E-01 5.191782E-04 4.402074E-02
C5 -3.375113E+00 -4.655639E-01 -5.843336E-04 -3.045962E-02
C6 5.121989E-01 5.241989E-01 6.579270E-04 1.529575E-03
C7 1.322050E-02 2.713409E-03 3.405624E-06 5.075901E-04
C8 -2.830217E-02 -5.838807E-03 -7.328342E-06 3.727121E-05
C9 2.952484E-03 3.338705E-03 4.190440E-06 1.251648E-04

C10 -2.877814E-03 -1.517137E-03 -1.904172E-06 -2.508750E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
