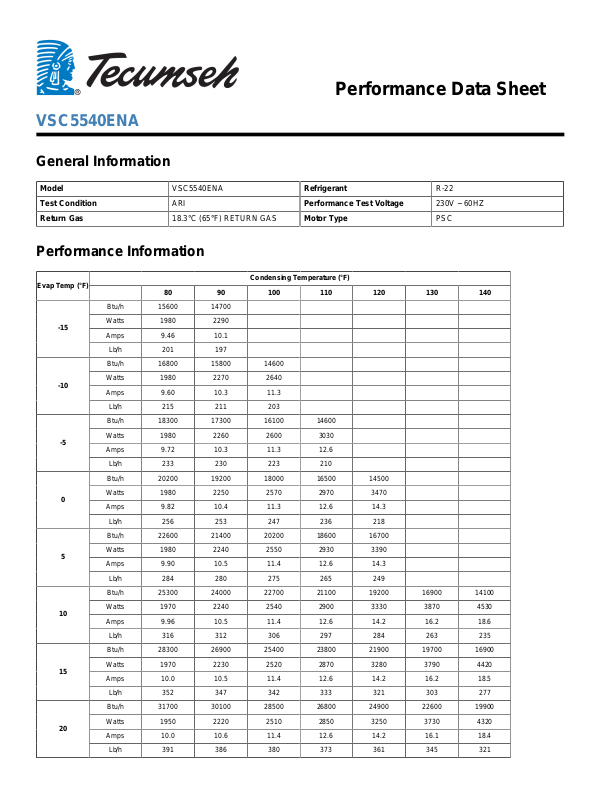

Tecumseh VSC5540ENA Performance Data Sheet

Performance Data Sheet

VSC5540ENA

General Information

Model VSC5540ENA Refrigerant R-22 Test Condition ARI Performance Test Voltage 230V ~ 60HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 15600 14700 Watts 1980 2290 Amps 9.46 10.1

Lb/h 201 197

Btu/h 16800 15800 14600 Watts 1980 2270 2640 Amps 9.60 10.3 11.3

Lb/h 215 211 203

Btu/h 18300 17300 16100 14600 Watts 1980 2260 2600 3030 Amps 9.72 10.3 11.3 12.6

Lb/h 233 230 223 210

Btu/h 20200 19200 18000 16500 14500 Watts 1980 2250 2570 2970 3470 Amps 9.82 10.4 11.3 12.6 14.3

Lb/h 256 253 247 236 218

Btu/h 22600 21400 20200 18600 16700 Watts 1980 2240 2550 2930 3390 Amps 9.90 10.5 11.4 12.6 14.3

Lb/h 284 280 275 265 249

Btu/h 25300 24000 22700 21100 19200 16900 14100 Watts 1970 2240 2540 2900 3330 3870 4530 Amps 9.96 10.5 11.4 12.6 14.2 16.2 18.6

Lb/h 316 312 306 297 284 263 235

Btu/h 28300 26900 25400 23800 21900 19700 16900 Watts 1970 2230 2520 2870 3280 3790 4420 Amps 10.0 10.5 11.4 12.6 14.2 16.2 18.5

Lb/h 352 347 342 333 321 303 277

Btu/h 31700 30100 28500 26800 24900 22600 19900 Watts 1950 2220 2510 2850 3250 3730 4320 Amps 10.0 10.6 11.4 12.6 14.2 16.1 18.4

Lb/h 391 386 380 373 361 345 321

Btu/h 35400 33600 31900 30100 28000 25800 23100

Watts 1930 2210 2500 2830 3220 3680 4240 Amps 10.0 10.6 11.4 12.6 14.2 16.1 18.4

Lb/h 435 428 422 415 404 389 368

Btu/h 39500 37400 35500 33500 31400 29100 26400 Watts 1890 2190 2490 2820 3190 3640 4180 Amps 10.0 10.6 11.4 12.6 14.1 16.0 18.3

Lb/h 482 474 467 459 450 436 417

Btu/h 43800 41500 39400 37200 35000 32600 29800 Watts 1850 2160 2470 2800 3180 3610 4120 Amps 10.0 10.6 11.4 12.6 14.1 16.0 18.3

Lb/h 532 522 514 507 497 485 467

Btu/h 48400 45900 43500 41100 38700 36200 33400 Watts 1790 2130 2450 2790 3160 3590 4090 Amps 9.99 10.5 11.4 12.6 14.1 16.0 18.3

Lb/h 585 573 564 556 547 535 519

Btu/h 53300 50500 47800 45200 42700 40000 37100 Watts 1720 2080 2430 2780 3150 3570 4060 Amps 9.95 10.5 11.4 12.6 14.2 16.1 18.3

Lb/h 641 627 617 608 599 587 573

Btu/h 58500 55300 52300 49500 46800 43900 40900 Watts 1630 2020 2390 2760 3140 3560 4040 Amps 9.91 10.5 11.4 12.6 14.2 16.1 18.4

Lb/h 699 684 671 661 652 641 628

Btu/h 63900 60300 57100 54000 51000 47900 44800 Watts 1520 1950 2350 2730 3130 3550 4030 Amps 9.86 10.5 11.4 12.6 14.2 16.1 18.4

Lb/h 760 742 728 717 707 696 683

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 3.417718E+04 -7.720574E+02 1.547149E+01 3.700969E+02 C2 8.761059E+02 -4.224237E+01 3.464611E-02 9.992510E+00 C3 -3.618242E+02 6.599544E+01 -1.682785E-01 -4.343407E+00 C4 1.193717E+01 -7.100067E-01 -1.177416E-03 1.269715E-01 C5 -9.129239E+00 1.156406E+00 3.044730E-05 -1.149724E-01 C6 3.736073E+00 -6.742701E-01 1.021276E-03 5.822018E-02 C7 -1.745831E-02 -2.100531E-03 1.963102E-06 -2.633776E-04 C8 -5.390222E-02 8.407679E-03 9.561620E-06 -4.793897E-04 C9 4.401189E-02 -7.833173E-03 -3.052851E-06 6.708633E-04

C10 -1.737036E-02 3.490130E-03 2.490439E-06 -2.713127E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
