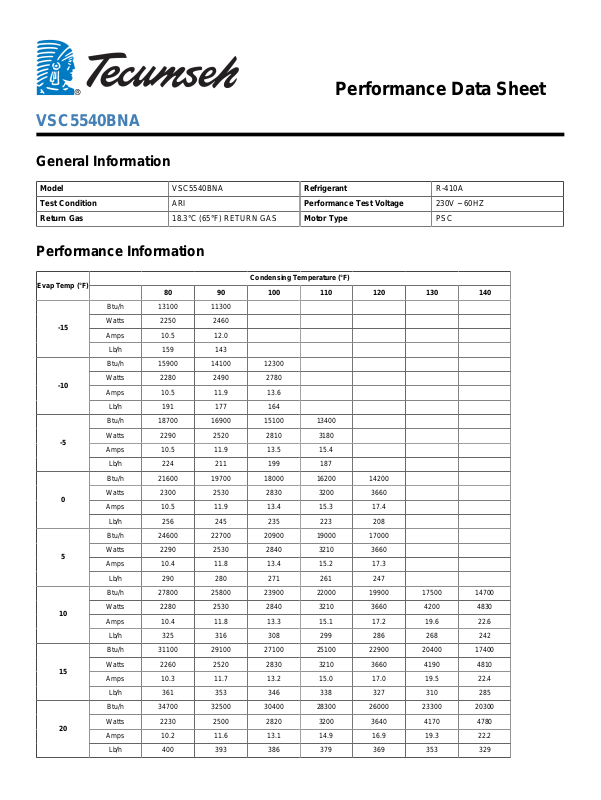

Tecumseh VSC5540BNA Performance Data Sheet

Performance Data Sheet

VSC5540BNA

General Information

Model VSC5540BNA Refrigerant R-410A
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 13100 11300
Watts 2250 2460
Amps 10.5 12.0

Lb/h 159 143

Btu/h 15900 14100 12300
Watts 2280 2490 2780
Amps 10.5 11.9 13.6

Lb/h 191 177 164

Btu/h 18700 16900 15100 13400
Watts 2290 2520 2810 3180
Amps 10.5 11.9 13.5 15.4

Lb/h 224 211 199 187

Btu/h 21600 19700 18000 16200 14200
Watts 2300 2530 2830 3200 3660
Amps 10.5 11.9 13.4 15.3 17.4

Lb/h 256 245 235 223 208

Btu/h 24600 22700 20900 19000 17000
Watts 2290 2530 2840 3210 3660
Amps 10.4 11.8 13.4 15.2 17.3

Lb/h 290 280 271 261 247

Btu/h 27800 25800 23900 22000 19900 17500 14700
Watts 2280 2530 2840 3210 3660 4200 4830
Amps 10.4 11.8 13.3 15.1 17.2 19.6 22.6

Lb/h 325 316 308 299 286 268 242

Btu/h 31100 29100 27100 25100 22900 20400 17400
Watts 2260 2520 2830 3210 3660 4190 4810
Amps 10.3 11.7 13.2 15.0 17.0 19.5 22.4

Lb/h 361 353 346 338 327 310 285

Btu/h 34700 32500 30400 28300 26000 23300 20300
Watts 2230 2500 2820 3200 3640 4170 4780
Amps 10.2 11.6 13.1 14.9 16.9 19.3 22.2

Lb/h 400 393 386 379 369 353 329

Btu/h 38500 36200 34000 31700 29300 26500 23300

25

30

35

40

45

50

55

Watts 2190 2470 2800 3180 3630 4150 4750
Amps 10.1 11.5 13.0 14.8 16.8 19.2 22.0

Lb/h 441 435 429 423 413 398 376

Btu/h 42600 40200 37800 35400 32800 29900 26500
Watts 2150 2440 2780 3160 3610 4120 4720
Amps 10.0 11.4 12.9 14.7 16.7 19.1 21.9

Lb/h 486 479 474 469 460 446 424

Btu/h 47000 44500 42000 39400 36600 33500 29900
Watts 2100 2400 2750 3140 3580 4090 4680
Amps 9.89 11.3 12.8 14.6 16.6 18.9 21.7

Lb/h 533 527 523 518 510 496 475

Btu/h 51800 49100 46400 43600 40700 37300 33500
Watts 2050 2360 2720 3110 3550 4060 4640
Amps 9.73 11.2 12.7 14.5 16.5 18.8 21.6

Lb/h 585 579 575 570 563 549 529

Btu/h 56900 54100 51200 48200 45000 41500 37500
Watts 1990 2320 2680 3080 3530 4030 4600
Amps 9.55 11.0 12.6 14.3 16.4 18.7 21.4

Lb/h 640 635 631 627 619 607 586

Btu/h 62500 59500 56400 53200 49800 46000 41800
Watts 1930 2270 2640 3050 3500 4000 4560
Amps 9.35 10.8 12.4 14.2 16.2 18.6 21.3

Lb/h 701 695 692 687 680 668 648

Btu/h 68600 65300 62000 58600 54900 50900 46400
Watts 1860 2220 2610 3020 3460 3960 4520
Amps 9.12 10.7 12.3 14.1 16.1 18.5 21.2

Lb/h 766 761 757 753 746 733 714

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 5.498846E+04 1.665582E+03 -2.688524E+00 6.569738E+02
C2 5.840800E+02 -4.417928E+01 -4.195747E-02 5.071043E+00
C3 -7.699294E+02 5.930451E+00 2.759705E-01 -1.117102E+01
C4 4.949762E+00 -2.781786E-01 -1.050913E-03 3.650257E-02
C5 7.831345E-01 8.831502E-01 1.095633E-03 1.506900E-02
C6 6.053640E+00 -1.030970E-01 -2.368932E-03 1.072189E-01
C7 4.696857E-02 9.794226E-04 -1.731233E-06 5.684132E-04
C8 -3.405546E-02 1.018450E-03 1.017544E-05 -2.455102E-04
C9 -8.859124E-03 -4.143557E-03 -8.142485E-06 5.441292E-05

C10 -2.055867E-02 1.599496E-03 1.220896E-05 -3.773344E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
