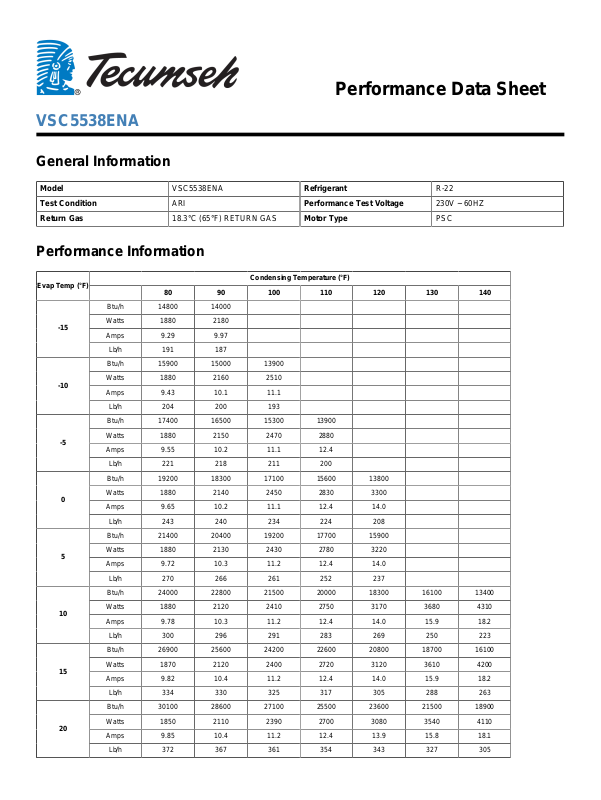

Tecumseh VSC5538ENA Performance Data Sheet

Performance Data Sheet

VSC5538ENA

General Information

Model VSC5538ENA Refrigerant R-22
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 14800 14000
Watts 1880 2180
Amps 9.29 9.97

Lb/h 191 187

Btu/h 15900 15000 13900
Watts 1880 2160 2510
Amps 9.43 10.1 11.1

Lb/h 204 200 193

Btu/h 17400 16500 15300 13900
Watts 1880 2150 2470 2880
Amps 9.55 10.2 11.1 12.4

Lb/h 221 218 211 200

Btu/h 19200 18300 17100 15600 13800
Watts 1880 2140 2450 2830 3300
Amps 9.65 10.2 11.1 12.4 14.0

Lb/h 243 240 234 224 208

Btu/h 21400 20400 19200 17700 15900
Watts 1880 2130 2430 2780 3220
Amps 9.72 10.3 11.2 12.4 14.0

Lb/h 270 266 261 252 237

Btu/h 24000 22800 21500 20000 18300 16100 13400
Watts 1880 2120 2410 2750 3170 3680 4310
Amps 9.78 10.3 11.2 12.4 14.0 15.9 18.2

Lb/h 300 296 291 283 269 250 223

Btu/h 26900 25600 24200 22600 20800 18700 16100
Watts 1870 2120 2400 2720 3120 3610 4200
Amps 9.82 10.4 11.2 12.4 14.0 15.9 18.2

Lb/h 334 330 325 317 305 288 263

Btu/h 30100 28600 27100 25500 23600 21500 18900
Watts 1850 2110 2390 2700 3080 3540 4110
Amps 9.85 10.4 11.2 12.4 13.9 15.8 18.1

Lb/h 372 367 361 354 343 327 305

Btu/h 33700 32000 30300 28600 26600 24500 21900

25

30

35

40

45

50

55

Watts 1830 2100 2380 2690 3060 3500 4030
Amps 9.86 10.4 11.2 12.4 13.9 15.8 18.0

Lb/h 413 407 401 394 384 370 350

Btu/h 37500 35600 33700 31900 29900 27600 25100
Watts 1800 2080 2360 2680 3030 3460 3970
Amps 9.85 10.4 11.2 12.4 13.9 15.8 18.0

Lb/h 458 450 443 436 427 414 396

Btu/h 41600 39500 37400 35400 33200 30900 28300
Watts 1760 2050 2350 2660 3020 3430 3920
Amps 9.84 10.4 11.2 12.4 13.9 15.8 18.0

Lb/h 505 496 489 481 472 460 444

Btu/h 46000 43600 41300 39100 36800 34400 31700
Watts 1700 2020 2330 2650 3000 3410 3880
Amps 9.81 10.4 11.2 12.4 13.9 15.8 18.0

Lb/h 556 545 536 528 520 508 493

Btu/h 50700 47900 45400 43000 40500 38000 35300
Watts 1630 1980 2300 2640 2990 3390 3860
Amps 9.78 10.3 11.2 12.4 13.9 15.8 18.0

Lb/h 609 596 586 577 569 558 544

Btu/h 55600 52500 49700 47000 44400 41700 38900
Watts 1550 1920 2270 2620 2980 3380 3840
Amps 9.74 10.3 11.2 12.4 13.9 15.8 18.0

Lb/h 664 649 638 628 619 609 596

Btu/h 60700 57300 54200 51300 48400 45500 42600
Watts 1450 1860 2230 2600 2970 3380 3830
Amps 9.69 10.3 11.2 12.4 14.0 15.9 18.1

Lb/h 722 705 692 681 671 661 649

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 3.247092E+04 -7.333279E+02 1.520006E+01 3.516289E+02
C2 8.322648E+02 -4.012995E+01 3.403828E-02 9.492676E+00
C3 -3.438387E+02 6.269152E+01 -1.653263E-01 -4.127643E+00
C4 1.133959E+01 -6.745131E-01 -1.156760E-03 1.206148E-01
C5 -8.672381E+00 1.098586E+00 2.991314E-05 -1.092235E-01
C6 3.550354E+00 -6.405373E-01 1.003359E-03 5.532305E-02
C7 -1.658634E-02 -1.995594E-03 1.928662E-06 -2.502181E-04
C8 -5.120039E-02 7.987437E-03 9.393872E-06 -4.553447E-04
C9 4.180999E-02 -7.441570E-03 -2.999293E-06 6.373261E-04

C10 -1.650507E-02 3.315669E-03 2.446747E-06 -2.577869E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
