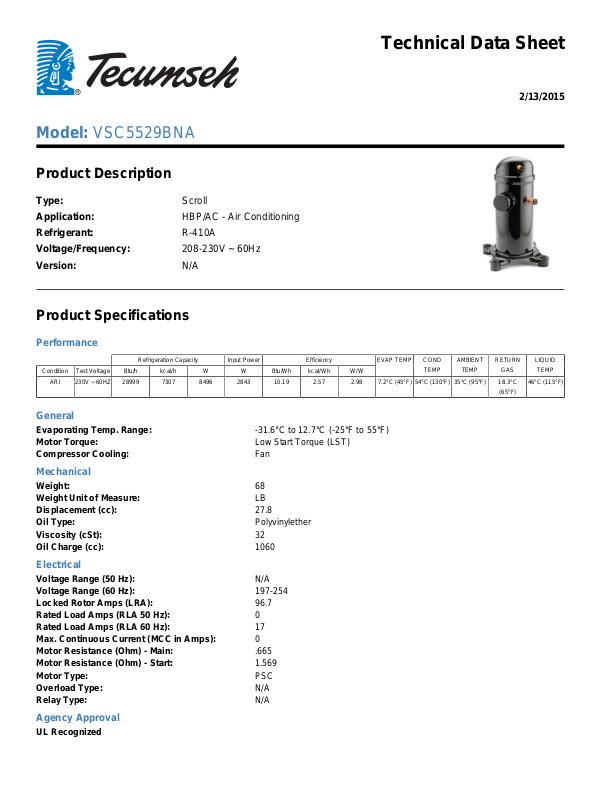

Tecumseh VSC5529BNA Technical Data Sheet

Model: VSC5529BNA

Product Description

Type: Scroll
Application: HBP/AC - Air Conditioning
Refrigerant: R-410A
Voltage/Frequency: 208-230V ~ 60Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 230V ~ 60HZ 28999 7307 8496 2843 10.19 2.57 2.98 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 18.3°C

EVAP TEMP COND

TEMP

AMBIENT

TEMP

General

Evaporating Temp. Range: -31.6°C to 12.7°C (-25°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 68
Weight Unit of Measure: LB
Displacement (cc): 27.8
Oil Type: Polyvinylether
Viscosity (cSt): 32
Oil Charge (cc): 1060

Electrical

Voltage Range (50 Hz): N/A
Voltage Range (60 Hz): 197-254
Locked Rotor Amps (LRA): 96.7
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 17
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: .665
Motor Resistance (Ohm) - Start: 1.569
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

RETURN

GAS

(65°F)

LIQUID

TEMP

46°C (115°F)

Agency Approval

UL Recognized
