Tecumseh VSAG475ZXT Performance Data Sheet

Download

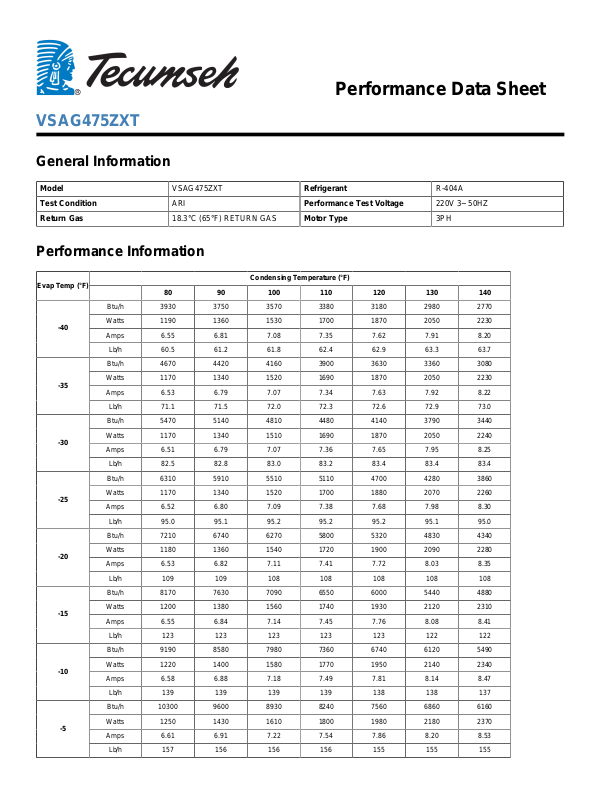

Page 1
Performance Data Sheet
VSAG475ZXT
General Information
Model VSAG475ZXT Refrigerant R-404A Test Condition ARI Performance Test Voltage 220V 3~ 50HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
-40
-35
-30
-25
-20
-15
-10
-5
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 3930 3750 3570 3380 3180 2980 2770 Watts 1190 1360 1530 1700 1870 2050 2230 Amps 6.55 6.81 7.08 7.35 7.62 7.91 8.20
Lb/h 60.5 61.2 61.8 62.4 62.9 63.3 63.7
Btu/h 4670 4420 4160 3900 3630 3360 3080 Watts 1170 1340 1520 1690 1870 2050 2230 Amps 6.53 6.79 7.07 7.34 7.63 7.92 8.22
Lb/h 71.1 71.5 72.0 72.3 72.6 72.9 73.0
Btu/h 5470 5140 4810 4480 4140 3790 3440 Watts 1170 1340 1510 1690 1870 2050 2240 Amps 6.51 6.79 7.07 7.36 7.65 7.95 8.25
Lb/h 82.5 82.8 83.0 83.2 83.4 83.4 83.4
Btu/h 6310 5910 5510 5110 4700 4280 3860 Watts 1170 1340 1520 1700 1880 2070 2260 Amps 6.52 6.80 7.09 7.38 7.68 7.98 8.30
Lb/h 95.0 95.1 95.2 95.2 95.2 95.1 95.0
Btu/h 7210 6740 6270 5800 5320 4830 4340 Watts 1180 1360 1540 1720 1900 2090 2280 Amps 6.53 6.82 7.11 7.41 7.72 8.03 8.35
Lb/h 109 109 108 108 108 108 108
Btu/h 8170 7630 7090 6550 6000 5440 4880 Watts 1200 1380 1560 1740 1930 2120 2310 Amps 6.55 6.84 7.14 7.45 7.76 8.08 8.41
Lb/h 123 123 123 123 123 122 122
Btu/h 9190 8580 7980 7360 6740 6120 5490 Watts 1220 1400 1580 1770 1950 2140 2340 Amps 6.58 6.88 7.18 7.49 7.81 8.14 8.47
Lb/h 139 139 139 139 138 138 137
Btu/h 10300 9600 8930 8240 7560 6860 6160 Watts 1250 1430 1610 1800 1980 2180 2370 Amps 6.61 6.91 7.22 7.54 7.86 8.20 8.53
Lb/h 157 156 156 156 155 155 155
Page 2
Btu/h 11400 10700 9950 9200 8440 7680 6910
0
5
10
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.731520E+04 -1.412151E+02 4.203230E+00 1.770187E+02 C2 3.458663E+02 5.272475E+00 -9.005244E-04 3.959923E+00 C3 -7.384238E+01 1.790808E+01 3.088137E-02 -1.934142E-02 C4 1.324700E+00 6.670592E-02 6.459338E-05 2.724442E-02 C5 -1.346363E+00 8.211101E-03 9.218897E-05 -6.657019E-04 C6 1.354044E-02 -7.556969E-03 -1.761964E-05 5.453951E-05 C7 3.992775E-03 -2.186106E-03 -2.733183E-06 1.293462E-04 C8 1.251691E-03 -7.450037E-04 -7.793081E-07 5.212220E-05 C9 -1.412219E-05 -6.909028E-06 2.875302E-08 2.416353E-06
C10 -1.210991E-04 6.766365E-05 1.517711E-07 -7.744828E-07
Watts 1280 1460 1640 1830 2020 2210 2400 Amps 6.64 6.95 7.27 7.59 7.92 8.25 8.60
Lb/h 175 175 175 175 174 174 173
Btu/h 12700 11900 11000 10200 9400 8570 7730 Watts 1310 1490 1670 1860 2050 2240 2430 Amps 6.67 6.99 7.31 7.64 7.97 8.31 8.66
Lb/h 196 196 195 195 195 194 194
Btu/h 14000 13100 12200 11300 10400 9540 8640 Watts 1340 1520 1700 1880 2070 2260 2460 Amps 6.70 7.02 7.35 7.68 8.02 8.36 8.72
Lb/h 218 218 217 217 217 216 216
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
VSAG475ZXT
General Information
Model VSAG475ZXT Refrigerant R-404A Test Condition ARI Performance Test Voltage 220V 3~ 50HZ Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
-40
-35
-30
-25
-20
-15
-10
-5
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 3700 3520 3330 3130 2930 2730 2510 Watts 1180 1340 1510 1680 1850 2030 2210 Amps 6.61 6.85 7.09 7.35 7.60 7.87 8.14
Lb/h 61.5 62.5 63.3 64.0 64.7 65.2 65.6
Btu/h 4440 4180 3910 3640 3360 3070 2780 Watts 1160 1330 1500 1670 1850 2030 2210 Amps 6.57 6.82 7.07 7.33 7.59 7.87 8.15
Lb/h 73.1 73.7 74.2 74.6 74.9 75.1 75.2
Btu/h 5220 4880 4530 4180 3830 3460 3090 Watts 1160 1330 1500 1670 1850 2030 2220 Amps 6.55 6.80 7.06 7.33 7.60 7.88 8.17
Lb/h 85.4 85.7 85.9 86.0 86.1 86.0 85.9
Btu/h 6040 5620 5200 4770 4340 3900 3450 Watts 1170 1340 1510 1680 1860 2050 2230 Amps 6.54 6.81 7.08 7.35 7.63 7.91 8.21
Lb/h 98.6 98.6 98.6 98.5 98.3 98.0 97.6
Btu/h 6910 6410 5920 5420 4910 4390 3870 Watts 1180 1350 1530 1700 1880 2070 2250 Amps 6.56 6.83 7.10 7.38 7.66 7.96 8.26
Lb/h 113 113 112 112 112 111 111
Btu/h 7830 7260 6690 6120 5530 4940 4350 Watts 1200 1380 1550 1730 1910 2090 2280 Amps 6.58 6.86 7.14 7.42 7.71 8.01 8.32
Lb/h 128 128 128 127 127 126 125
Btu/h 8810 8170 7520 6880 6220 5560 4890 Watts 1230 1410 1580 1760 1940 2120 2310 Amps 6.62 6.90 7.18 7.47 7.77 8.07 8.38
Lb/h 145 145 144 144 143 142 141
Btu/h 9850 9140 8420 7700 6970 6240 5500 Watts 1270 1440 1610 1790 1970 2150 2340 Amps 6.66 6.94 7.23 7.52 7.82 8.13 8.45
Lb/h 164 163 162 162 161 160 159
Page 4
Btu/h 11000 10200 9390 8590 7800 6990 6180
0
5
10
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.715698E+04 -4.346720E+01 4.469932E+00 1.872451E+02 C2 3.416574E+02 8.128457E+00 3.867492E-03 4.247944E+00 C3 -7.781057E+01 1.698411E+01 2.835005E-02 -4.429925E-02 C4 1.258426E+00 6.840055E-02 1.112553E-04 3.024739E-02 C5 -1.415211E+00 -1.358676E-02 6.510030E-05 -9.652703E-04 C6 1.480790E-02 -7.962050E-03 -1.754372E-05 9.694386E-05 C7 6.154357E-03 -2.344547E-03 -3.681509E-06 2.120107E-04 C8 2.099254E-03 -8.026089E-04 -1.125092E-06 8.499496E-05 C9 1.987397E-05 -8.746217E-06 1.985133E-08 3.836654E-06
C10 -1.370085E-04 7.134393E-05 1.533804E-07 -1.332885E-06
Watts 1300 1470 1650 1820 2000 2190 2370 Amps 6.70 6.99 7.28 7.58 7.88 8.20 8.52
Lb/h 184 183 182 182 181 180 179
Btu/h 12100 11300 10400 9560 8700 7820 6940 Watts 1340 1510 1680 1860 2030 2220 2400 Amps 6.75 7.04 7.34 7.64 7.94 8.26 8.58
Lb/h 206 205 204 204 203 202 201
Btu/h 13400 12500 11500 10600 9670 8730 7780 Watts 1370 1540 1710 1880 2060 2240 2430 Amps 6.79 7.09 7.38 7.69 8.00 8.32 8.64
Lb/h 230 229 228 228 227 226 226
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 5
Performance Data Sheet
VSAG475ZXT
General Information
Model VSAG475ZXT Refrigerant R-404A Test Condition ARI Performance Test Voltage 230V 3~ 60HZ Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
-40
-35
-30
-25
-20
-15
-10
-5
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 4770 4510 4250 3990 3710 3420 3120 Watts 1160 1360 1560 1760 1970 2180 2390 Amps 4.90 5.28 5.66 6.05 6.45 6.86 7.28
Lb/h 79.7 80.4 80.9 81.3 81.6 81.7 81.6
Btu/h 5630 5280 4930 4570 4200 3820 3420 Watts 1190 1390 1590 1790 2000 2210 2420 Amps 4.94 5.32 5.71 6.11 6.51 6.93 7.36
Lb/h 93.0 93.3 93.5 93.6 93.5 93.2 92.8
Btu/h 6540 6100 5660 5210 4740 4270 3790 Watts 1220 1420 1620 1820 2030 2240 2450 Amps 4.99 5.38 5.78 6.18 6.59 7.01 7.45
Lb/h 107 107 107 107 107 106 105
Btu/h 7520 6990 6450 5910 5360 4790 4220 Watts 1260 1460 1660 1860 2070 2280 2490 Amps 5.06 5.45 5.85 6.26 6.68 7.11 7.55
Lb/h 123 123 122 122 121 120 119
Btu/h 8560 7940 7310 6680 6040 5390 4720 Watts 1300 1490 1690 1900 2100 2310 2530 Amps 5.13 5.53 5.93 6.35 6.77 7.20 7.65
Lb/h 140 140 139 138 137 136 135
Btu/h 9670 8960 8250 7530 6800 6060 5310 Watts 1340 1530 1730 1940 2140 2350 2570 Amps 5.21 5.61 6.02 6.44 6.86 7.30 7.75
Lb/h 159 158 157 156 156 154 153
Btu/h 10900 10100 9270 8460 7640 6810 5970 Watts 1380 1570 1770 1980 2180 2390 2610 Amps 5.29 5.69 6.11 6.53 6.96 7.40 7.85
Lb/h 179 178 178 177 176 174 173
Btu/h 12100 11300 10400 9470 8570 7660 6730 Watts 1420 1620 1820 2020 2220 2430 2650 Amps 5.37 5.78 6.19 6.61 7.05 7.49 7.95
Lb/h 202 201 200 199 198 197 195
Page 6
Btu/h 13500 12500 11600 10600 9590 8590 7580
0
5
10
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.109640E+04 -8.564491E+01 2.249650E+00 2.309484E+02 C2 4.152946E+02 8.956080E+00 1.151192E-02 5.172663E+00 C3 -9.564615E+01 1.957863E+01 4.059079E-02 -6.037077E-02 C4 1.688760E+00 -1.556309E-03 -5.405666E-05 4.008219E-02 C5 -1.674558E+00 -1.141780E-02 3.167791E-05 -2.557544E-04 C6 2.419166E-02 -9.726387E-03 -2.674055E-05 2.400342E-04 C7 7.480510E-03 -8.152867E-04 -4.050384E-06 2.568091E-04 C8 2.361684E-03 -1.259691E-04 -1.104023E-06 9.946324E-05 C9 -2.429864E-05 3.492898E-05 5.470718E-08 3.757041E-06
C10 -2.174756E-04 8.197747E-05 2.299338E-07 -2.623382E-06
Watts 1460 1660 1860 2060 2270 2480 2690 Amps 5.44 5.85 6.27 6.70 7.13 7.58 8.04
Lb/h 226 226 225 224 223 221 220
Btu/h 14900 13900 12800 11800 10700 9630 8540 Watts 1500 1700 1900 2100 2310 2520 2730 Amps 5.51 5.92 6.34 6.77 7.21 7.66 8.12
Lb/h 253 253 252 251 250 249 247
Btu/h 16500 15400 14200 13100 11900 10800 9600 Watts 1540 1740 1940 2140 2340 2550 2770 Amps 5.57 5.98 6.40 6.83 7.27 7.72 8.18
Lb/h 283 283 282 281 280 279 278
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 7
Performance Data Sheet
VSAG475ZXT
General Information
Model VSAG475ZXT Refrigerant R-404A Test Condition ARI Performance Test Voltage 230V 3~ 60HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
-40
-35
-30
-25
-20
-15
-10
-5
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 4960 4720 4470 4220 3950 3680 3390 Watts 1190 1400 1600 1810 2020 2240 2460 Amps 4.99 5.38 5.78 6.18 6.60 7.02 7.46
Lb/h 76.3 77.0 77.5 77.9 78.1 78.2 78.2
Btu/h 5840 5510 5180 4840 4490 4130 3760 Watts 1200 1410 1610 1820 2040 2250 2480 Amps 4.99 5.39 5.80 6.21 6.63 7.07 7.51
Lb/h 88.9 89.3 89.5 89.7 89.7 89.6 89.3
Btu/h 6780 6370 5950 5530 5090 4650 4190 Watts 1220 1420 1630 1850 2060 2280 2510 Amps 5.02 5.42 5.83 6.26 6.69 7.13 7.59
Lb/h 103 103 103 103 103 102 102
Btu/h 7790 7300 6790 6280 5760 5230 4690 Watts 1240 1450 1660 1880 2090 2320 2540 Amps 5.06 5.47 5.89 6.32 6.76 7.21 7.67
Lb/h 117 117 117 117 117 116 116
Btu/h 8870 8290 7700 7110 6510 5890 5270 Watts 1280 1480 1700 1910 2130 2360 2580 Amps 5.12 5.54 5.96 6.40 6.84 7.30 7.76
Lb/h 134 133 133 133 132 132 131
Btu/h 10000 9360 8690 8020 7330 6630 5920 Watts 1310 1520 1730 1950 2170 2400 2630 Amps 5.18 5.61 6.04 6.48 6.93 7.39 7.86
Lb/h 151 151 151 150 150 149 148
Btu/h 11300 10500 9770 9010 8240 7460 6670 Watts 1350 1560 1780 1990 2210 2440 2670 Amps 5.26 5.69 6.12 6.56 7.02 7.48 7.96
Lb/h 171 170 170 169 169 168 167
Btu/h 12600 11800 10900 10100 9240 8380 7510 Watts 1390 1600 1820 2030 2250 2480 2710 Amps 5.33 5.76 6.20 6.65 7.10 7.57 8.05
Lb/h 192 192 191 191 190 189 188
Page 8
Btu/h 14000 13100 12200 11300 10300 9390 8440
0
5
10
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.112689E+04 -2.233087E+02 2.040506E+00 2.165093E+02 C2 4.174077E+02 8.243444E+00 1.126547E-02 4.799654E+00 C3 -8.977773E+01 2.089890E+01 4.265962E-02 -2.091950E-02 C4 1.745683E+00 1.400979E-02 -3.125325E-06 3.603991E-02 C5 -1.571110E+00 -6.584876E-03 2.809001E-05 2.216832E-04 C6 2.462440E-02 -9.996113E-03 -2.627596E-05 2.243175E-04 C7 6.786096E-03 -2.331952E-03 -6.205430E-06 1.992138E-04 C8 2.073099E-03 -7.677027E-04 -2.041133E-06 7.606649E-05 C9 -3.914357E-05 -7.144251E-07 -7.746833E-10 2.646338E-06
C10 -2.192525E-04 8.811380E-05 2.318722E-07 -2.347258E-06
Watts 1430 1640 1850 2070 2290 2520 2750 Amps 5.40 5.84 6.28 6.72 7.18 7.65 8.13
Lb/h 215 215 214 214 213 212 212
Btu/h 15500 14500 13500 12500 11500 10500 9470 Watts 1470 1680 1890 2110 2330 2550 2780 Amps 5.47 5.90 6.34 6.79 7.25 7.72 8.20
Lb/h 240 240 240 239 239 238 237
Btu/h 17100 16000 15000 13900 12800 11700 10600 Watts 1500 1710 1920 2140 2360 2580 2810 Amps 5.52 5.95 6.39 6.84 7.30 7.77 8.25
Lb/h 268 268 267 267 267 266 265
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
