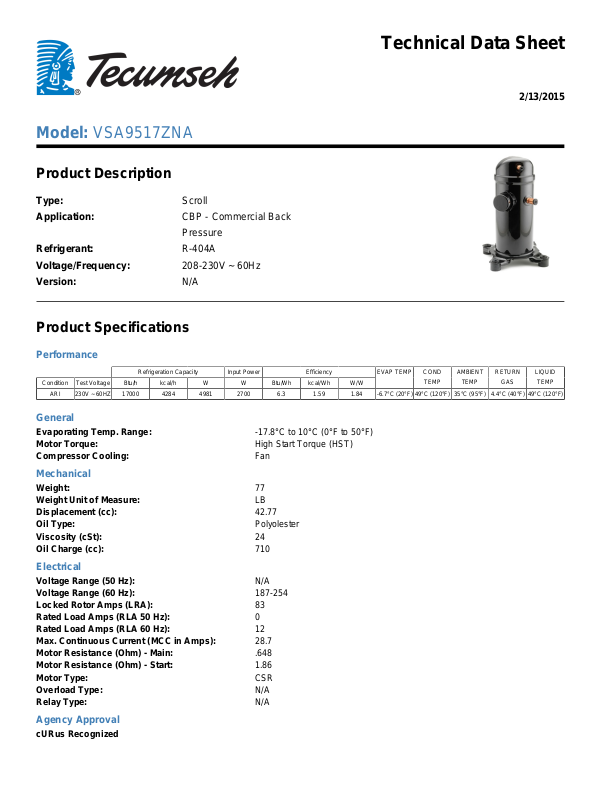

Tecumseh VSA9517ZNA Technical Data Sheet

Model: VSA9517ZNA

Product Description

Type: Scroll
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 208-230V ~ 60Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 230V ~ 60HZ 17000 4284 4981 2700 6.3 1.59 1.84 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

General

Evaporating Temp. Range: -17.8°C to 10°C (0°F to 50°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 77
Weight Unit of Measure: LB
Displacement (cc): 42.77
Oil Type: Polyolester
Viscosity (cSt): 24
Oil Charge (cc): 710

Electrical

Voltage Range (50 Hz): N/A
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 83
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 12
Max. Continuous Current (MCC in Amps): 28.7
Motor Resistance (Ohm) - Main: .648
Motor Resistance (Ohm) - Start: 1.86
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

LIQUID

TEMP

Agency Approval

cURus Recognized
