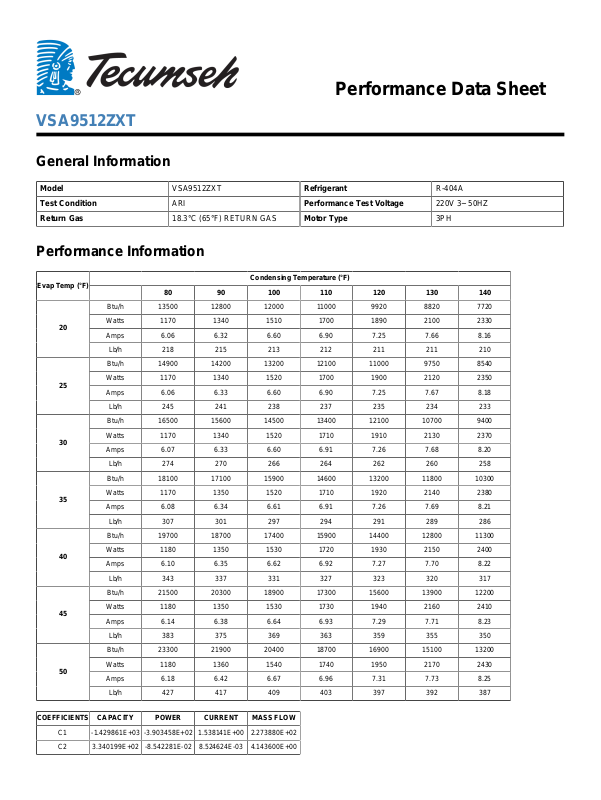

Page 1
Performance Data Sheet
VSA9512ZXT
General Information
Model VSA9512ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 220V 3~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 13500 12800 12000 11000 9920 8820 7720
Watts 1170 1340 1510 1700 1890 2100 2330
Amps 6.06 6.32 6.60 6.90 7.25 7.66 8.16
Lb/h 218 215 213 212 211 211 210
Btu/h 14900 14200 13200 12100 11000 9750 8540
Watts 1170 1340 1520 1700 1900 2120 2350
Amps 6.06 6.33 6.60 6.90 7.25 7.67 8.18
Lb/h 245 241 238 237 235 234 233
Btu/h 16500 15600 14500 13400 12100 10700 9400
Watts 1170 1340 1520 1710 1910 2130 2370
Amps 6.07 6.33 6.60 6.91 7.26 7.68 8.20
Lb/h 274 270 266 264 262 260 258
Btu/h 18100 17100 15900 14600 13200 11800 10300
Watts 1170 1350 1520 1710 1920 2140 2380
Amps 6.08 6.34 6.61 6.91 7.26 7.69 8.21
Lb/h 307 301 297 294 291 289 286
Btu/h 19700 18700 17400 15900 14400 12800 11300
Watts 1180 1350 1530 1720 1930 2150 2400
Amps 6.10 6.35 6.62 6.92 7.27 7.70 8.22
Lb/h 343 337 331 327 323 320 317
Btu/h 21500 20300 18900 17300 15600 13900 12200
Watts 1180 1350 1530 1730 1940 2160 2410
Amps 6.14 6.38 6.64 6.93 7.29 7.71 8.23
Lb/h 383 375 369 363 359 355 350
Btu/h 23300 21900 20400 18700 16900 15100 13200
Watts 1180 1360 1540 1740 1950 2170 2430
Amps 6.18 6.42 6.67 6.96 7.31 7.73 8.25
Lb/h 427 417 409 403 397 392 387
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 -1.429861E+03 -3.903458E+02 1.538141E+00 2.273880E+02
C2 3.340199E+02 -8.542281E-02 8.524624E-03 4.143600E+00
Page 2
C3 3.151855E+02 2.683047E+01 1.069636E-01 -2.528500E+00
C4 2.685736E+00 -6.557484E-03 8.299490E-05 5.678747E-02
C5 -1.331694E+00 -2.064937E-02 -2.188567E-04 -1.772369E-02
C6 -3.039115E+00 -1.398930E-01 -8.996385E-04 2.276807E-02
C7 -6.945678E-03 7.194958E-04 3.187654E-06 2.742392E-04
C8 -8.775927E-03 -5.888886E-04 -3.043692E-06 -2.309840E-04
C9 -1.958315E-03 4.850201E-04 1.875291E-06 7.493408E-05
C10 7.972120E-03 5.859893E-04 3.316277E-06 -6.731370E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
VSA9512ZXT
General Information
Model VSA9512ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 220V 3~ 50HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 8430 7820 7250 6660 6010 5240 4320
Watts 1210 1340 1490 1640 1820 2020 2240
Amps 6.15 6.34 6.56 6.83 7.14 7.49 7.91
Lb/h 143 142 141 140 138 137 135
Btu/h 9450 8770 8120 7460 6740 5900 4900
Watts 1210 1350 1500 1660 1840 2040 2260
Amps 6.16 6.35 6.58 6.85 7.16 7.52 7.94
Lb/h 161 160 159 157 156 155 153
Btu/h 10600 9800 9070 8330 7520 6600 5520
Watts 1210 1350 1500 1670 1850 2050 2280
Amps 6.16 6.36 6.59 6.87 7.18 7.55 7.97
Lb/h 180 179 178 177 176 174 173
Btu/h 11800 10900 10100 9260 8360 7350 6170
Watts 1210 1360 1510 1680 1860 2070 2300
Amps 6.18 6.38 6.61 6.89 7.21 7.58 8.00
Lb/h 202 200 199 198 197 196 194
Btu/h 13000 12100 11200 10300 9260 8140 6870
Watts 1220 1360 1520 1690 1880 2090 2330
Amps 6.20 6.40 6.64 6.92 7.24 7.61 8.04
Lb/h 226 224 223 221 220 219 218
Btu/h 14400 13400 12400 11300 10200 8990 7610
Watts 1220 1370 1530 1710 1900 2110 2350
Amps 6.24 6.44 6.68 6.96 7.28 7.66 8.08
Lb/h 252 250 249 247 246 245 244
Btu/h 15900 14700 13600 12500 11200 9890 8390
Watts 1240 1390 1550 1730 1930 2140 2390
Amps 6.29 6.49 6.73 7.01 7.34 7.71 8.14
Lb/h 281 279 278 276 275 274 272
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.042407E+04 9.444983E+01 5.481741E+00 1.711277E+02
C2 2.945347E+02 -3.847089E+00 -5.016245E-03 3.647322E+00
Page 4
C3 -2.873752E+02 1.907563E+01 3.840197E-03 -6.761696E-01
C4 3.146326E+00 -9.529936E-02 5.757780E-05 3.872332E-02
C5 -1.180909E+00 5.434040E-02 7.578363E-05 -7.398961E-03
C6 2.368773E+00 -1.135038E-01 2.333110E-06 5.649675E-03
C7 2.491232E-03 2.827262E-03 5.862567E-06 3.709912E-04
C8 -1.759428E-02 1.339939E-04 -1.669050E-06 -1.012485E-04
C9 -8.333743E-04 4.819424E-05 1.171673E-07 4.576793E-05
C10 -8.127052E-03 6.197523E-04 6.707601E-07 -1.905577E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 5
Performance Data Sheet
VSA9512ZXT
General Information
Model VSA9512ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 9640 9380 8900 8240 7410 6460 5420
Watts 1180 1370 1560 1760 1980 2230 2520
Amps 4.80 5.15 5.50 5.89 6.34 6.85 7.46
Lb/h 175 174 172 170 168 165 162
Btu/h 11200 10800 10100 9270 8320 7270 6150
Watts 1200 1390 1580 1780 2000 2260 2550
Amps 4.82 5.17 5.53 5.93 6.38 6.91 7.54
Lb/h 198 197 195 192 189 186 183
Btu/h 12900 12200 11400 10400 9290 8140 6950
Watts 1210 1400 1590 1800 2020 2280 2570
Amps 4.84 5.18 5.55 5.95 6.42 6.96 7.60
Lb/h 224 222 220 217 213 209 205
Btu/h 14600 13700 12700 11500 10300 9070 7810
Watts 1230 1420 1610 1820 2040 2300 2600
Amps 4.85 5.20 5.57 5.98 6.45 7.01 7.66
Lb/h 253 251 248 245 240 236 231
Btu/h 16300 15200 14000 12700 11400 10100 8720
Watts 1250 1430 1630 1830 2060 2320 2620
Amps 4.87 5.22 5.59 6.00 6.48 7.05 7.72
Lb/h 285 283 280 276 271 266 260
Btu/h 18100 16800 15400 14000 12500 11100 9660
Watts 1260 1450 1640 1850 2080 2340 2640
Amps 4.90 5.24 5.61 6.03 6.52 7.09 7.77
Lb/h 322 319 315 311 306 299 293
Btu/h 19900 18400 16800 15200 13600 12100 10600
Watts 1290 1470 1660 1870 2090 2360 2660
Amps 4.94 5.28 5.65 6.07 6.56 7.14 7.83
Lb/h 363 360 356 351 345 338 330
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 -1.507537E+01 -1.455587E+03 3.082778E-01 1.485389E+02
C2 8.552500E+02 8.308170E+00 1.946721E-02 4.089932E+00
Page 6
C3 2.883389E+02 5.656332E+01 9.885718E-02 8.549047E-01
C4 1.408245E+00 5.616309E-02 6.014907E-05 4.588420E-02
C5 -9.049500E+00 -1.274221E-01 -4.205703E-04 1.171460E-02
C6 -2.514708E+00 -4.203229E-01 -7.890218E-04 -8.130215E-03
C7 -1.852640E-02 9.272927E-04 5.396666E-06 6.764439E-04
C8 2.296212E-03 -9.500734E-04 -2.674868E-06 -5.416489E-05
C9 2.804344E-02 8.069301E-04 2.878751E-06 -9.667335E-05
C10 5.230244E-03 1.563990E-03 3.197987E-06 1.948700E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 7
Performance Data Sheet
VSA9512ZXT
General Information
Model VSA9512ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 16900 15900 14800 13700 12400 11000 9460
Watts 1250 1420 1610 1820 2060 2320 2620
Amps 4.90 5.19 5.55 5.99 6.49 7.07 7.73
Lb/h 267 267 266 264 260 255 248
Btu/h 18700 17600 16500 15100 13700 12200 10500
Watts 1250 1420 1610 1820 2070 2340 2640
Amps 4.89 5.18 5.55 5.99 6.51 7.10 7.77
Lb/h 297 298 297 295 291 285 278
Btu/h 20700 19500 18200 16800 15200 13500 11600
Watts 1250 1420 1610 1830 2070 2350 2660
Amps 4.89 5.18 5.54 5.99 6.51 7.12 7.81
Lb/h 330 332 332 329 325 319 312
Btu/h 22800 21600 20100 18600 16800 15000 12900
Watts 1250 1420 1610 1830 2080 2360 2670
Amps 4.89 5.17 5.54 5.99 6.52 7.14 7.85
Lb/h 368 370 370 368 364 358 350
Btu/h 25200 23800 22300 20600 18700 16600 14300
Watts 1250 1420 1610 1830 2080 2360 2680
Amps 4.89 5.17 5.54 5.99 6.53 7.16 7.88
Lb/h 409 412 413 411 407 401 392
Btu/h 27800 26300 24600 22700 20700 18400 15900
Watts 1250 1420 1610 1830 2080 2360 2690
Amps 4.91 5.18 5.54 6.00 6.54 7.18 7.92
Lb/h 456 460 461 460 456 449 440
Btu/h 30600 29000 27100 25100 22900 20400 17700
Watts 1250 1420 1610 1830 2080 2370 2690
Amps 4.93 5.20 5.56 6.01 6.57 7.21 7.96
Lb/h 508 513 514 514 510 503 494
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.635130E+04 2.069977E+02 4.573933E+00 1.674830E+02
C2 1.903374E+02 -1.106263E+00 2.432056E-02 1.780618E+00
Page 8
C3 -6.178433E+01 1.489179E+01 -1.699275E-02 2.292511E-01
C4 3.357788E+00 7.628118E-02 -5.469895E-05 1.617219E-02
C5 1.995650E+00 -4.787244E-02 -5.462769E-04 4.535205E-02
C6 8.688499E-03 -6.676765E-02 2.503041E-04 -1.780602E-03
C7 2.164992E-02 6.443087E-04 3.445627E-06 6.026073E-04
C8 -1.864738E-02 -1.467514E-03 -2.272106E-06 1.064159E-04
C9 -1.687827E-02 8.431380E-04 3.688702E-06 -2.269729E-04
C10 -6.074175E-04 5.516027E-04 1.271058E-07 -2.846673E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
