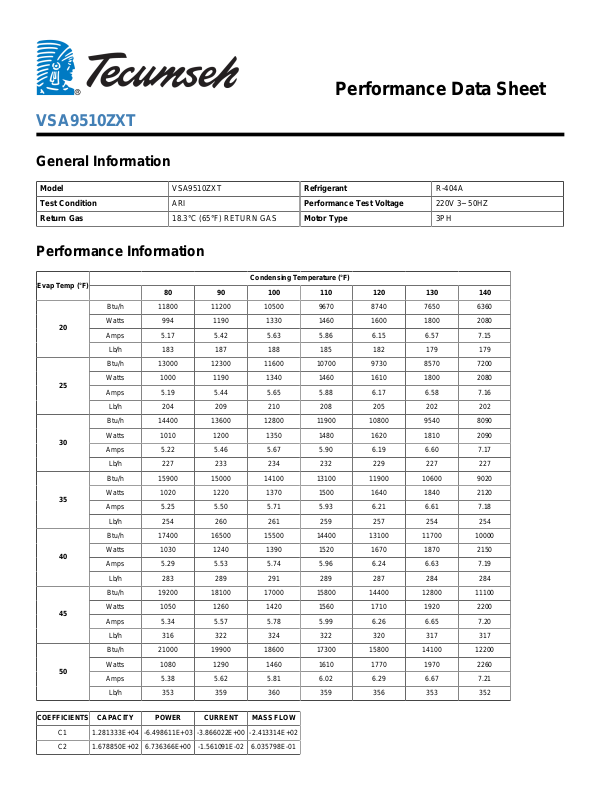

Performance Data Sheet
VSA9510ZXT
General Information
Model VSA9510ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 220V 3~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 11800 11200 10500 9670 8740 7650 6360
Watts 994 1190 1330 1460 1600 1800 2080
Amps 5.17 5.42 5.63 5.86 6.15 6.57 7.15
Lb/h 183 187 188 185 182 179 179
Btu/h 13000 12300 11600 10700 9730 8570 7200
Watts 1000 1190 1340 1460 1610 1800 2080
Amps 5.19 5.44 5.65 5.88 6.17 6.58 7.16
Lb/h 204 209 210 208 205 202 202
Btu/h 14400 13600 12800 11900 10800 9540 8090
Watts 1010 1200 1350 1480 1620 1810 2090
Amps 5.22 5.46 5.67 5.90 6.19 6.60 7.17
Lb/h 227 233 234 232 229 227 227
Btu/h 15900 15000 14100 13100 11900 10600 9020
Watts 1020 1220 1370 1500 1640 1840 2120
Amps 5.25 5.50 5.71 5.93 6.21 6.61 7.18
Lb/h 254 260 261 259 257 254 254
Btu/h 17400 16500 15500 14400 13100 11700 10000
Watts 1030 1240 1390 1520 1670 1870 2150
Amps 5.29 5.53 5.74 5.96 6.24 6.63 7.19
Lb/h 283 289 291 289 287 284 284
Btu/h 19200 18100 17000 15800 14400 12800 11100
Watts 1050 1260 1420 1560 1710 1920 2200
Amps 5.34 5.57 5.78 5.99 6.26 6.65 7.20
Lb/h 316 322 324 322 320 317 317
Btu/h 21000 19900 18600 17300 15800 14100 12200
Watts 1080 1290 1460 1610 1770 1970 2260
Amps 5.38 5.62 5.81 6.02 6.29 6.67 7.21
Lb/h 353 359 360 359 356 353 352
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.281333E+04 -6.498611E+03 -3.866022E+00 -2.413314E+02
C2 1.678850E+02 6.736366E+00 -1.561091E-02 6.035798E-01
C3 -1.142747E+02 1.991324E+02 2.524461E-01 1.034363E+01
C4 3.335172E+00 -2.953914E-01 3.664953E-04 4.137792E-02
C5 2.146733E-01 -6.059058E-03 2.035291E-04 2.872473E-02
C6 1.033662E+00 -1.779152E+00 -2.413272E-03 -9.506199E-02
C7 8.185806E-03 1.404464E-03 -1.415563E-06 3.606219E-04
C8 -2.234164E-02 2.740512E-03 -1.505098E-06 -2.095853E-04
C9 -2.594671E-03 -5.774606E-04 -8.190251E-07 -5.564170E-05
C10 -5.031556E-03 5.696567E-03 8.376110E-06 2.757852E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
VSA9510ZXT
General Information
Model VSA9510ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 220V 3~ 50HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 7400 6830 6280 5700 5050 4290 3370
Watts 1000 1140 1290 1460 1650 1860 2090
Amps 5.15 5.41 5.68 5.96 6.26 6.62 7.03
Lb/h 121 120 119 118 118 117 118
Btu/h 8260 7680 7090 6470 5750 4900 3860
Watts 1010 1150 1300 1470 1660 1870 2110
Amps 5.18 5.43 5.69 5.97 6.27 6.63 7.05
Lb/h 138 138 137 136 135 134 135
Btu/h 9170 8580 7970 7290 6510 5560 4420
Watts 1020 1150 1310 1480 1670 1880 2120
Amps 5.20 5.44 5.69 5.97 6.28 6.64 7.07
Lb/h 156 156 156 155 154 153 152
Btu/h 10200 9550 8910 8180 7330 6290 5040
Watts 1030 1170 1320 1490 1680 1900 2140
Amps 5.22 5.45 5.69 5.96 6.28 6.64 7.08
Lb/h 175 176 175 174 173 172 171
Btu/h 11200 10600 9920 9140 8220 7090 5720
Watts 1050 1190 1340 1510 1700 1920 2160
Amps 5.25 5.47 5.70 5.97 6.28 6.65 7.10
Lb/h 195 196 196 195 194 192 191
Btu/h 12300 11700 11000 10200 9180 7970 6490
Watts 1080 1210 1360 1530 1720 1940 2190
Amps 5.30 5.50 5.73 5.99 6.30 6.68 7.14
Lb/h 215 217 218 217 216 214 213
Btu/h 13500 12900 12200 11300 10200 8920 7330
Watts 1120 1240 1390 1560 1760 1980 2230
Amps 5.37 5.56 5.78 6.04 6.35 6.73 7.19
Lb/h 237 240 241 241 240 238 236
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.818642E+04 2.154845E+02 1.205589E+00 6.108035E+01
C2 3.450883E+01 9.283357E+00 5.507256E-02 1.681622E+00
C3 -2.583839E+02 8.615271E+00 8.725018E-02 1.894764E+00
C4 1.039108E+00 3.930403E-02 -2.755988E-04 -1.604381E-03
C5 3.271898E+00 -1.656014E-01 -9.310421E-04 3.625919E-02
C6 2.150911E+00 -1.049744E-02 -6.730268E-04 -1.934118E-02
C7 8.794602E-03 1.816349E-03 1.054410E-05 1.529411E-04
C8 -2.808887E-04 -8.594693E-05 -5.054775E-07 1.588094E-04
C9 -2.031617E-02 8.082170E-04 4.169757E-06 -1.827533E-04
C10 -7.582033E-03 3.203522E-04 2.477415E-06 6.232555E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
VSA9510ZXT
General Information
Model VSA9510ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 15000 14100 13200 12100 11000 9710 8310
Watts 1110 1250 1410 1580 1770 1990 2240
Amps 4.26 4.53 4.83 5.18 5.59 6.08 6.67
Lb/h 236 237 237 235 231 226 219
Btu/h 16600 15600 14600 13400 12200 10800 9200
Watts 1110 1260 1420 1590 1780 1990 2250
Amps 4.25 4.53 4.84 5.19 5.62 6.11 6.71
Lb/h 263 264 264 262 258 253 246
Btu/h 18300 17300 16100 14800 13400 11900 10200
Watts 1130 1270 1430 1600 1790 2000 2250
Amps 4.25 4.53 4.85 5.21 5.64 6.14 6.75
Lb/h 293 293 293 291 288 283 275
Btu/h 20200 19000 17800 16400 14800 13200 11300
Watts 1150 1290 1450 1620 1800 2020 2260
Amps 4.25 4.54 4.86 5.23 5.66 6.17 6.78
Lb/h 325 326 325 323 320 315 307
Btu/h 22100 20900 19500 18000 16300 14500 12500
Watts 1180 1330 1480 1650 1830 2040 2280
Amps 4.26 4.55 4.88 5.25 5.69 6.20 6.82
Lb/h 360 361 360 358 355 349 342
Btu/h 24200 22800 21400 19700 18000 16000 13800
Watts 1220 1370 1520 1680 1870 2070 2300
Amps 4.28 4.57 4.90 5.28 5.72 6.24 6.86
Lb/h 398 399 398 396 392 387 379
Btu/h 26300 24900 23300 21600 19700 17600 15200
Watts 1280 1420 1580 1740 1910 2110 2340
Amps 4.30 4.60 4.93 5.31 5.76 6.28 6.91
Lb/h 440 440 439 437 433 428 420
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.518476E+04 -2.888240E+02 1.607569E+00 1.309472E+02
C2 2.520784E+02 -1.448098E+01 -1.321060E-02 3.289754E+00
C3 -9.730149E+01 2.943867E+01 6.073971E-02 1.423393E-01
C4 2.390661E+00 2.430124E-02 4.743214E-06 4.195672E-02
C5 6.896538E-01 2.612701E-01 1.507760E-04 1.071626E-03
C6 5.524057E-01 -2.378018E-01 -5.519040E-04 4.488315E-03
C7 1.670698E-03 2.753569E-03 2.591691E-06 2.176907E-04
C8 -3.352981E-03 -1.273790E-03 -1.794147E-06 -8.192865E-05
C9 -1.321861E-02 -9.596894E-04 3.626384E-07 1.432305E-05
C10 -2.424377E-03 1.109764E-03 2.606921E-06 -3.950064E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
VSA9510ZXT
General Information
Model VSA9510ZXT Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V 3~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 9320 8740 8080 7360 6540 5640 4640
Watts 1110 1240 1380 1550 1740 1960 2210
Amps 4.29 4.52 4.78 5.08 5.46 5.92 6.50
Lb/h 158 158 157 154 151 145 137
Btu/h 10500 9820 9080 8260 7360 6370 5290
Watts 1120 1250 1390 1560 1750 1970 2220
Amps 4.28 4.52 4.78 5.10 5.48 5.95 6.54
Lb/h 179 178 177 175 171 165 157
Btu/h 11800 11000 10200 9250 8260 7180 6000
Watts 1120 1250 1400 1570 1760 1980 2240
Amps 4.28 4.52 4.79 5.11 5.50 5.98 6.57
Lb/h 201 201 199 197 193 188 180
Btu/h 13100 12300 11300 10300 9220 8040 6770
Watts 1120 1260 1410 1580 1770 1990 2250
Amps 4.27 4.52 4.80 5.12 5.52 6.01 6.61
Lb/h 226 225 224 222 218 213 205
Btu/h 14600 13600 12600 11400 10300 8970 7590
Watts 1120 1260 1420 1590 1780 2010 2270
Amps 4.27 4.53 4.81 5.15 5.55 6.05 6.66
Lb/h 253 252 250 248 245 240 233
Btu/h 16100 15000 13900 12600 11300 9950 8460
Watts 1120 1270 1420 1600 1790 2020 2280
Amps 4.29 4.55 4.84 5.18 5.59 6.09 6.71
Lb/h 281 280 279 277 274 269 263
Btu/h 17700 16500 15200 13900 12500 11000 9380
Watts 1120 1270 1430 1600 1800 2030 2290
Amps 4.32 4.58 4.88 5.22 5.64 6.15 6.78
Lb/h 311 310 310 308 305 301 296
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.237593E+04 -7.697552E+01 9.445816E-01 1.685656E+02
C2 3.667366E+02 -4.490218E+00 -7.702639E-03 5.200709E+00
C3 -2.895221E+01 2.321794E+01 8.349974E-02 -6.521209E-01
C4 2.777465E+00 -4.198644E-02 -7.137850E-05 2.188874E-02
C5 -1.803067E+00 9.248287E-02 4.884495E-05 -2.237084E-02
C6 -1.889809E-02 -1.784204E-01 -7.986074E-04 1.107215E-02
C7 -7.217441E-03 -9.281081E-04 5.389713E-06 -1.890963E-05
C8 -9.833557E-03 6.475194E-04 -4.265277E-07 2.012141E-04
C9 4.145866E-04 -3.214601E-04 4.705272E-07 8.883974E-05
C10 -1.207077E-03 9.235244E-04 3.468294E-06 -5.737647E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
