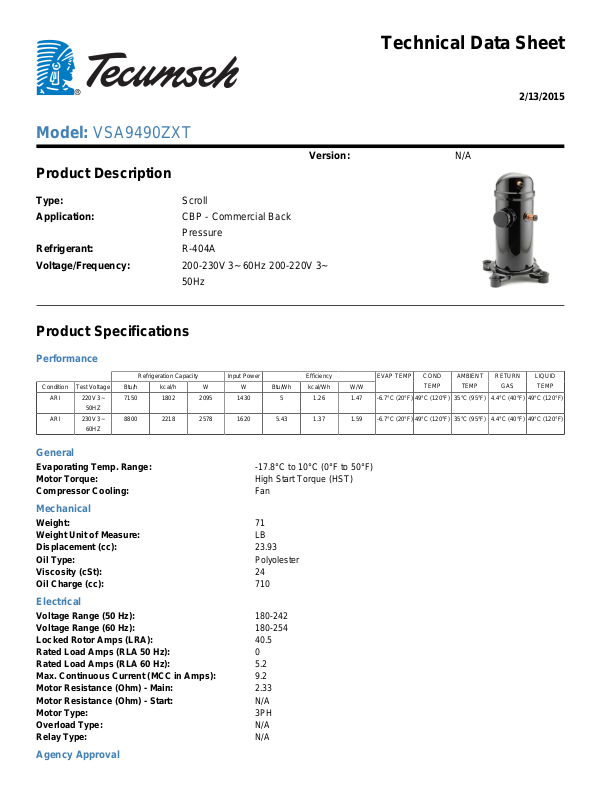

Tecumseh VSA9490ZXT Technical Data Sheet

Model: VSA9490ZXT

Version: N/A

Product Description

Type: Scroll
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 200-230V 3~ 60Hz 200-220V 3~

50Hz

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 220V 3~

50HZ

ARI 230V 3~

60HZ

7150 1802 2095 1430 5 1.26 1.47 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

8800 2218 2578 1620 5.43 1.37 1.59 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

General

Evaporating Temp. Range: -17.8°C to 10°C (0°F to 50°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 71
Weight Unit of Measure: LB
Displacement (cc): 23.93
Oil Type: Polyolester
Viscosity (cSt): 24
Oil Charge (cc): 710

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 180-254
Locked Rotor Amps (LRA): 40.5
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 5.2
Max. Continuous Current (MCC in Amps): 9.2
Motor Resistance (Ohm) - Main: 2.33
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

cURus Recognized
