Page 1
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

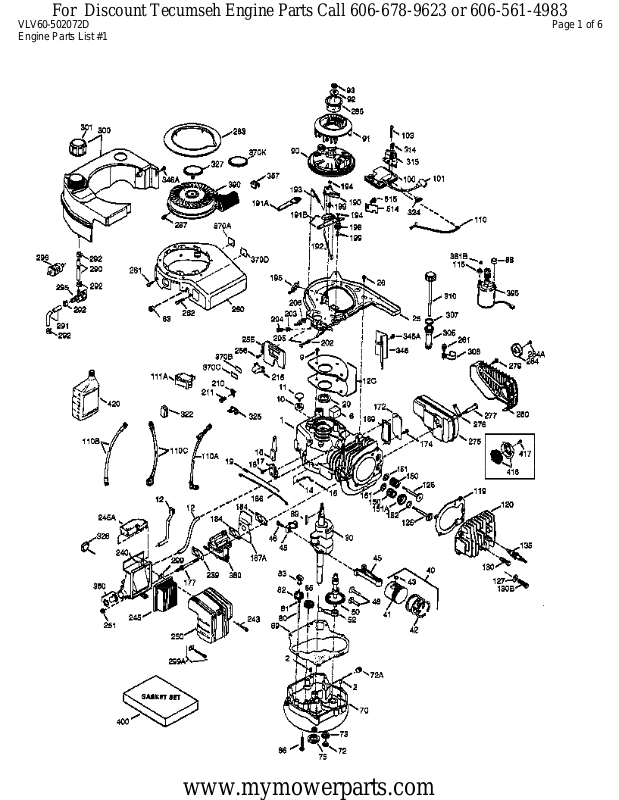

Engine Parts List #1
Page 1 of 6
www.mymowerparts.com
Page 2
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 6
Ref # Part Number Qty Description
1 36177 Cylinder (Incl. 2,10,12,20 & 125)1
2 27652 Dowel Pin2
6 36059 Breather Element1
9 590568 Screw, 10-24 x 3/4"3
10 36002 Breather Valve Body1
11 36003A Check Valve1
12 32447 Breather Tube1
12C 36005A * Breather Cover & Gasket1
14 28277 Flat Washer1
15 36006 Governor Rod (Machined)1
16 36008 Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-15, 8-32 x 19/64"1
19 36103 Governor Spring1
20 36010 Oil Seal1
25 36145 Blower Housing Baffle Ass'y.(Incl. 19 5)1
26 650802 Screw, 1/4-20 x 5/8"3
30 37004 Crankshaft1
40 40004 Piston,Pin,Ring Set (Std.)1
40 40005 Piston,Pin,Ring Set (.010 OS)1
41 36070 Piston & Pin Ass'y.(Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y.(.010 OS)(Incl.43)1
42 40006 Ring Set (Std.)1
42 40007 Ring Set (.010 OS)1
43 20381 Piston Pin Retaining Ring2
45 36023A Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 36030 Valve Lifter2
50 36031A Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 36032A * Mounting Flange Gasket1
70 36194 Mounting Flange (Incl. 72 thru 85)1
72A 28483 Oil Drain Plug1
72 30572 Oil Drain Plug (Incl. 73)1
73 28833 Drain Plug Gasket1
75 36010 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl.81)1
83 36057 Governor Spool1
85 36034 Idler Gear1
86 650924 Screw, 1/4-20 x 1-9/16"7
89 611154 Flywheel Key1
90 611170 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443B Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 36230 Ground Wire1
110A 35183 Ground Wire1
119 36061 * Cylinder Head Gasket1
120 36187 Cylinder Head1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS)1
126 29314B Intake Valve (Std.) (Incl. 151)1
126 29315C Intake Valve (1/32" OS) (Incl. 151)1
130 6021A Screw, 5/16-18 x 1-1/2"7
www.mymowerparts.com
Page 3
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Lower Valve Spring Cap2
151A 40016 Intake Valve Seal1
152 37075 "O"-Ring1
169 27234A * Valve Spring Box Gasket1
172 32755 Valve Spring Box Cover1
174 30200 Screw, 10-24 x 1/2"2
177 650925A Carburetor Mounting Stud2
184 36183 Carburetor Gasket2
186 36009 Governor Link1
187A 37136 Air Baffle1
195 610973 Terminal1
202 36482 Compression Spring1
203 31342 Compression Spring1
204 651029 Screw, Torx T-10, 5-40 x 7/16"1
205 651030 Screw, Torx T-10, 6-32 x 41/64"1
215 36051 Control Knob1
239 36048 * Carburetor to Air Cleaner Gasket1
240 36044B Air Cleaner Body (Incl.239,299 & 350)1
243 650899 Screw, 10-32 x 2-3/32"1
245 36046 Air Cleaner Filter1
245A 36102 Air Cleaner Filter1
250 36047 Air Cleaner Cover1
251 650928 Lock Nut, 1/4-202
255 36110 Control Plate1
256 650983 Screw, 8-32 x 1/2"2
260 36038 Blower Housing1
262 650737 Screw, 1/4-20 x 1-1/2"3
263 36108 Trim Ring1
275 36107 Muffler1
276 36043 Lockig Plate1
277 650927 Screw, 5/16-18 x 2-11/32"2
279 650956 Screw, Torx T-25, 12-24 x 49/64"3
280 36090 Heat Shield (Incl. 279)1
285 34449A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
299 650900 "U" Type Nut, 10-321
300 36066 Fuel Tank (Incl. 301)1
301 36246 Fuel Cap1
305 36063 Oil Fill Tube1
307 35499 "O" Ring1
308 36040 Fill Tube Clip1
310 36064 Oil Dipstick1
324 33177 Terminal1
346A 28763 Screw, 10-32 x 35/64"2
350 36045 Primer1
370C 36530 Primer Decal1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
380 640020 Carburetor (Incl. 239)1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
Page 3 of 6
1
with 590738 starter).
www.mymowerparts.com
Page 4
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
400 36062D * Gasket Set (Incl. items marked PK i n notes). Incl. part #'s
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225 4 Cycle Oil, SAE 30 (Quart)1
Page 4 of 6
1
27234A (1), 28833 (1), 36005A (1), 36032A (1), 36061 (1),
37136 (1), 696088 (1)
www.mymowerparts.com
Page 5
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Page 5 of 6
www.mymowerparts.com
Page 6
VLV60-502072D
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Ref # Part Number Qty Description
152 37075 "O"-Ring1
240 36044B Air Cleaner Body (Incl.239,299 & 350)1
245 36046 Air Cleaner Filter1
250 36047 Air Cleaner Cover1
251 650928 Lock Nut, 1/4-202
287 650926 Screw, 8-32 x 21/64"2
350 36045 Primer1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
Page 6 of 6
1
with 590738 starter).
www.mymowerparts.com
