VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 1 of 6
www.mymowerparts.com
VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 6
Ref # Part Number Qty Description
1 36177 Cylinder (Incl. 2,10,12,20 & 125)1
2 27652 Dowel Pin2
6 36059 Breather Element1
7 36005A * Breather Cover & Gasket1
9 590568 Screw, 10-24 x 3/4"3
10 36002 Breather Valve Body1
11 36003 Check Valve1
12 32447 Breather Tube1
14 28277 Flat Washer1
15 36006 Governor Rod (Machined)1
16 36008 Governor Lever1
17 31335 Governor Lever Clamp1
18 651018 Screw, Torx T-10, 8-32 x 19/64"1
19 36140 Governor Spring1
20 36010 Oil Seal1
25 36145 Blower Housing Baffle (Incl.l95)1
26 650802 Screw, 1/4-20 x 5/8"3
30 36178 Crankshaft1
40 36073 Piston,Pin,Ring Set (Std.)1
40 36074 Piston,Pin,Ring Set (.010 OS)1
40 36075 Piston,Pin,Ring Set (.020 OS)1
41 36070 Piston & Pin Ass'y.(Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y.(.010 OS)(Incl.43)1
41 36072 Piston & Pin Ass'y.(.020 OS)(Incl.43)1
42 36076 Ring Set (Std.)1
42 36077 Ring Set (.010 OS)1
42 36078 Ring Set (.020 OS)1
43 20381 Piston Pin Retaining Ring2
45 36023A Connecting Rod Ass'y. (Incl. 46)1
46 32610A Connecting Rod Bolt2
48 36030 Valve Lifter2
50 36031A Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 36032A * Mounting Flange Gasket1
70 36194A Mounting Flange (Incl. 72 thru 85)1
72A 28483 Oil Drain Plug1
72 36083 Oil Drain Plug1
75 36010 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl.81)1
83 36057 Governor Spool1
85 36034 Idler Gear1
86 650924 Screw, 1/4-20 x 1-9/16"7
89 611154 Flywheel Key1
90 611170 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 36230 Ground Wire1
119 36061 * Cylinder Head Gasket1
120 36120A Cylinder Head1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS)1
126 29314B Intake Valve (Std.) (Incl. 151)1
126 29315C Intake Valve (1/32" OS)1
www.mymowerparts.com
VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
130 6021A Screw, 5/16-18 x 1-1/2"7
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151A 40016 Intake Valve Seal1
151 31673 Lower Valve Spring Cap2
152 37075 "O"-Ring1
169 27234A * Valve Spring Box Gasket1
172 32755 Valve Spring Box Cover1
174 30200 Screw, 10-24 x 9/16"2
177 650925A Carburetor Mounting Stud2
186 36009 Governor Link1
187B 36035 * Carburetor Gasket/Air Baffle1
195 610973 Terminal1
202 36482 Compression Spring1
203 31342 Compression Spring1
204 651029 Screw, Torx T-10, 5-40 x 7/16"1
205 651030 Screw, Torx T-10, 6-32 x 17/32"1
215 36051 Control Knob1
239 36048 * Carburetor to Air Cleaner Gasket1
240 36044B Air Cleaner Body (Incl.239,299 & 350)1
243 650899 Screw, 10-32 x 2-3/32"1
245A 36102 Air Cleaner Filter1
245 36046 Air Cleaner Filter1
250 36047 Air Cleaner Cover1
251 650928 Lock Nut 1/4-202
255 36110 Control Plate1
256 650983 Screw, 8-32 x 21/64"2
260 36038 Blower Housing1
261 650737 Screw, 1/4-20 x 1/2"3
262 650929 Screw, 1/4-20 x 11/16"1
263 36080 Trim Ring1
275 36107 Muffler1
276 36043 Locking Plate1
277 650927 Screw, 5/6-18 x 2-11/32"2
285 34449A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
299 650900 "U" Type Nut Clip1
300 36066 Fuel Tank (Incl. 301)1
301 36246 Fuel Cap1
305 36063 Oil Fill Tube1
307 35499 "O" Ring1
308 36040 Fill Tube Clip1
310 36064 Dipstick1
346A 28763 Screw, 10-32 x 35/64"2
350 36045 Primer1
370K 36695 Starter Decal1
370A 36261 Lubrication Decal1
370B 36530 Control Decal1
380 632671A Carburetor (Incl. 187B & 239)1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
Page 3 of 6
1
with 590738 starter).
400 36062C * Gasket Set (Incl. items marked PK i n notes). Incl. part #'s
416 36085 Spark Arrestor Kit (Incl. 417)(Option al)1
1
27234A (1), 28833 (1), 36005A (1), 36032A (1), 36035 (1),
36048 (1), 36061 (1), 36183 (2), 696088 (1)
www.mymowerparts.com
VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
417 650760 Screw, 8-32 x 3/8" (Optional)1
420 730225 4 Cycle Oil, SAE 30 (Quart)1
Page 4 of 6
www.mymowerparts.com
VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

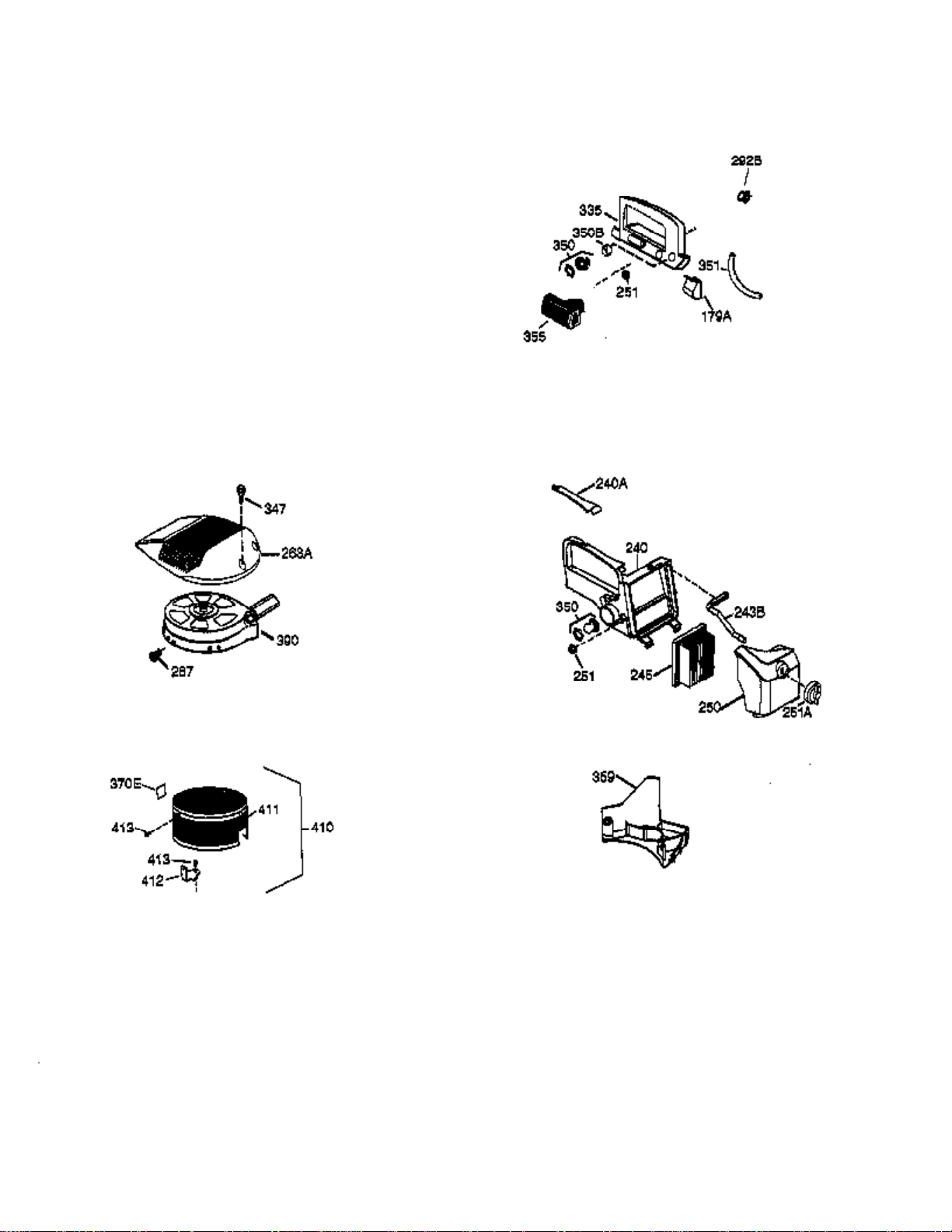

Engine Parts List #2
Page 5 of 6
www.mymowerparts.com
VLV60-502010C
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Ref # Part Number Qty Description
152 37075 "O"-Ring1
187B 36035 * Carburetor Gasket/Air Baffle1
240 36044B Air Cleaner Body (Incl.239,299 & 350)1
245 36046 Air Cleaner Filter1
250 36047 Air Cleaner Cover1
251 650928 Lock Nut 1/4-202
287 650926 Screw, 8-32 x 21/64"2
350 36045 Primer1
390 590732 Rewind Starter (NOTE: This engine could hav e been built
Page 6 of 6
7 36005A * Breather Cover & Gasket1
1
with 590738 starter).
