Page 1
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983

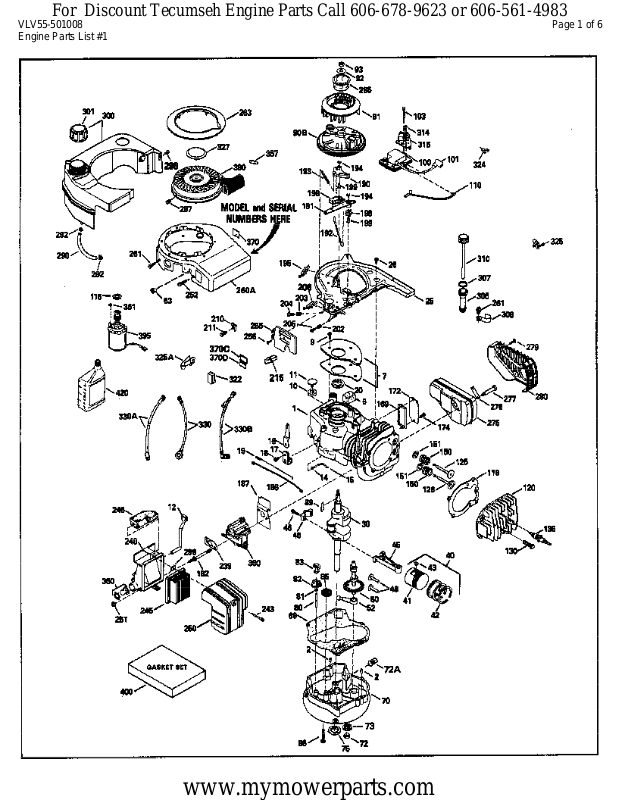

Engine Parts List #1
Page 1 of 6
www.mymowerparts.com
Page 2
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 6
Ref # Part Number Qty Description
1 36084 Cylinder (Incl. 2, 10, & 20)1
2 27652 Dowel Pin2
6 36059 Breather Element1
9 650836 Screw, 10-24 x 1/2"3
10 36002 Breather Valve Body1
11 36003 Check Valve1
12C 36005A * Breather Cover & Gasket1
12 36001 Breather Tube1
14 28277 Flat Washer1
15 36006 Governor Rod (Machined)1
16 36008 Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 x 5/16"1
19 36103 Governor Spring1
20 36010 Oil Seal1
25 36011 Blower Housing Baffle Ass'y.(Incl.l95 )1
26 650802 Screw, 1/4-20 x 5/8"3
30 36111 Crankshaft Ass'y.1
40 36073 Piston,Pin,Ring Set (Std.)1
40 36074 Piston,Pin,Ring Set (.010 OS)1
40 36075 Piston,Pin,Ring Set (.020 OS)1
41 36070 Piston & Pin Ass'y.(Std.) (Incl. 43)1
41 36071 Piston & Pin Ass'y.(.010 OS)(Incl.43)1
41 36072 Piston & Pin Ass'y.(.020 OS)(Incl.43)1
42 36076 Ring Set (Std.)1
42 36077 Ring Set (.010 OS)1
42 36078 Ring Set (.020 OS)1
43 20381 Piston Pin Retaining Ring2
45 36023 Connecting Rod Ass'y. (Incl. 46)1
46 650923 Connecting Rod Bolt2
48 36030 Valve Lifter2
50 36031 Camshaft (MCR)1
52 29914 Oil Pump Ass'y.1
69 36032 * Mounting Flange Gasket1
70 36033A Mounting Flange (Incl. 72 thru 85)1
72 30572 Oil Drain Plug1
73 28833 Drain Plug Gasket1
75 36010 Oil Seal1
80 30574A Governor Shaft1
81 30590A Flat Washer1
82 30591 Governor Gear Ass'y. (Incl.81)1
83 36057 Governor Spool1
85 36034 Idler Gear1
86 650924 Screw, 1/4-20 x 1-9/16"7
89 611154 Flywheel Key1
91 611156 Flywheel Fan1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
103 650814 Screw, Torx T-15, 10-24 x 1"2
110 36054 Ground Wire1
119 36061 * Cylinder Head Gasket1
120 36037A Cylinder Head1
125 29313C Exhaust Valve (Std.) (Incl. 151)1
125 29315C Exhaust Valve (1/32" OS)1
126 29314B Intake Valve (Std.) (Incl. 151)1
126 29315C Intake Valve (1/32" OS)1
www.mymowerparts.com
Page 3
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
130 6021A Screw, 5/16-18 x 1-1/2"7
135 35395 Resistor Spark Plug (RJ19LM)1
150 31672 Valve Spring2
151 31673 Lower Valve Spring Cap2
169 27234A * Valve Spring Box Gasket1
172 32755 Valve Spring Box Cover1
174 30200 Screw, 10-24 x 1/2"2
177 650925 Carburetor Mounting Stud2
186 36009 Governor Link1
187 36035 * Carburetor Mounting Spacer1
190 36013 Brake Lever Ass'y.1
191B 36012 Brake Control Lever1
192 36016 Brake Control Lever Link1
193 36015 Brake Spring1
194 36014 Retaining Ring2
195 610973 Terminal Ass'y.1
198 36017 Brake Control Lever Spring1
199 36018 Brake Levers Bushing2
202 33802 Compression Spring1
203 31342 Compression Spring1
204 650549 Screw, 5-40 x 7/16"1
205 650777 Screw, 6-32 x 21/32"1
215 36051 Control Knob1
239 36048 * Carburetor to Air Cleaner Gasket1
240 36044A Air Cleaner Body (Incl.239,299 & 350)1
243 650899 Screw, 10-32 x 2-3/32"1
245 36046 Air Cleaner Filter1
250 36047 Air Cleaner Cover1
251 650928 Lock Nut 1/4-202
255 36110 Control Plate1
256 650926 Screw, 8-32 x 21/64"2
261 650929 Screw, 1/4-20 x 11/16"1
262 650737 Screw, 1/4-20 x 1-1/2"3
263 36108 Trim Ring1
275 36107 Muffler Ass'y.1
276 36043 Locking Plate1
277 650927 Screw, 5/6-18 x 2-11/32"2
285 34449 Starter Cup1
287 650926 Screw, 8-32 x 21/64"4
290 34357 Fuel Line1
292 26460 Fuel Line Clamp2
299 650900 "U" Type Nut Clip1
300 36066 Fuel Tank (Incl. 301)1
301 35355 Fuel Cap Ass'y.1
305 36063 Oil Fill Tube1
307 35499 "O" Ring1
308 36040 Fill Tube Clip1
310 36064 Oil Dipstick1
327 35392 Starter Plug1
346A 28763 Screw, 10-32 x 35/64"2
350 36045 Primer1
370 36055 Control Decal1
380 632671 Carburetor (Incl. 187 & 239)1
390 590686 Rewind Starter1
400 36062A * Gasket Set (Incl. items marked PK i n notes). Incl. part #'s
Page 3 of 6
1
27234A (1), 36005A (1), 36032 (1), 36035 (1), 36048 (1),
36061 (1)
www.mymowerparts.com
Page 4
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
420 730225 4 Cycle Oil, SAE 30 (Quart)1
Page 4 of 6
www.mymowerparts.com
Page 5
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Page 5 of 6
www.mymowerparts.com
Page 6
VLV55-501008
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Ref # Part Number Qty Description
12C 36005A * Breather Cover & Gasket1
177 650925 Carburetor Mounting Stud2
191B 36012 Brake Control Lever1
260 36038 Blower Housing1
261 650929 Screw, 1/4-20 x 11/16"1
262 650737 Screw, 1/4-20 x 1-1/2"3
287 650926 Screw, 8-32 x 21/64"4
346A 28763 Screw, 10-32 x 35/64"2
370 36055 Control Decal1
Page 6 of 6
90 611155 Flywheel1
