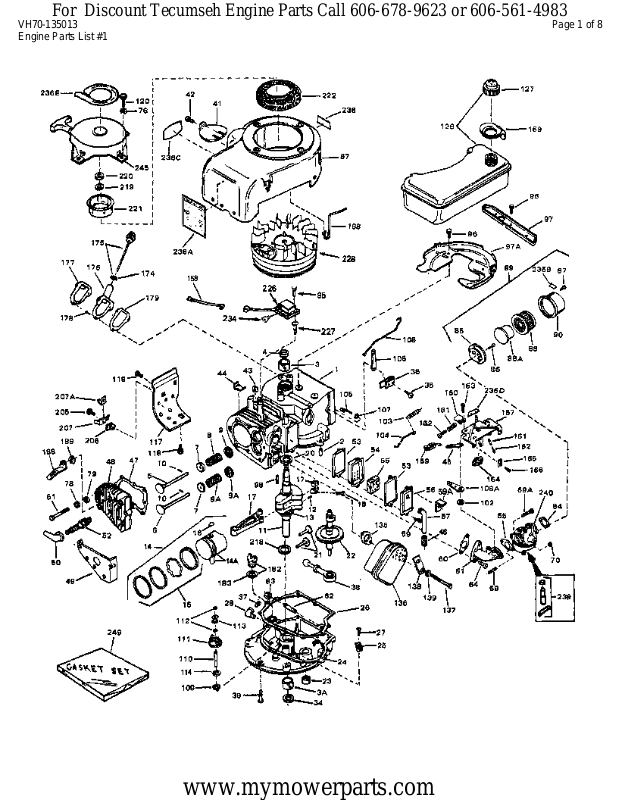

Page 1
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 1 of 8
www.mymowerparts.com
Page 2
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 2 of 8
Ref # Part Number Qty Description
1 32711A Cylinder Assy. (Cast iron liner) (2-3/4"0
2 27652 Pin, Dowel0
3 31461 Bushing, Crankshaft0
3A 31462 Bushing, Crankshaft0
4 32630 Seal, Oil0
5 32783 Valve, Intake (Standard)0
5 32784 Valve, Intake (1/32" oversize)0
6 27878A Valve, Intake (Standard)0
6 27880A Valve, Intake (1/32" oversize)0
7 27882 Cap, Upper valve spring0
8A 27881 Spring, Valve0
8 27881 Spring, Valve0
9A 32581 Cap, Lower valve spring0
9 32581 Cap, Lower valve spring0
10 20810 Pin, Valve spring retaining0
11 32639 Crankshaft Assy.0
12 29783 Pin, Crankshaft gear0
13 27884 Gear, Crankshaft0
14A 32770B Piston & Pin Assy. (Std.) (2-3/4")0
14A 32771B Piston & Pin Assy. (.010 oversize)0
14A 32772B Piston & Pin Assy. (.020 oversize)0
14 34528 Piston, Pin & Ring Assy. (Std.)0
14 34529 Piston, Pin & Ring Assy. (.010 oversize)0
14 34530 Piston, Pin & Ring Assy. (.020 oversize)0
15 32595 Ring Set, Piston (Std.) (2-3/4")0
15 32596 Ring Set, Piston (.010 oversize)0
15 32597 Ring Set, Piston (.020 oversize)0
16 27888 Ring, Piston pin retaining0
17 32591C Rod Assy., Connecting0
18 650662C Screw, Connecting rod (Two pieces)0
20 650625 Washer, Thrust0
21 34034 Lifter, Valve0
22 32114 Camshaft (Mech. Compression Release)0
24 31471C Flange, Mounting0
25 31355 Screen, Oil filter0
26 30684 Gasket, Mounting flange0
27 29117 Screw0
34 27897 Seal, Oil0
35 650548 Screw, Hex washer hd., 8-32 x 5/160
36 31335 Clamp, Governor lever0
37 27642 Plug, Drain0
38 31356 Pump Assy., Oil0
39 30564 Screw0
43 27275 Clip, Hi-tension wire0
43 33685 Clip, Hi-tension wire0
44 29443 Clip, Fuel line0
47 32631 Gasket, Cylinder head0
48 30938A Head, Cylinder0
49 30939A Cover, Cylinder head0
50 610118 Cover, Spark plug0
51 650694A Screw, Hex flange hd., 5/16-18 x 20
52 33636 Plug, Spark (Champion J-8 or equivalent)0
52 34251 Resistor Spark Plug0
53 27896 Gasket, Breather cover0
54 28423 Body, Breather0
55 28424 Element, Breather0
56 28425 Cover, Valve chamber0
57 27627 Tube, Breather0
www.mymowerparts.com
Page 3
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Page 3 of 8
Ref # Part Number Qty Description
59 650128 Screw0
60 27915 Gasket, Intake pipe0
61 32632 Pipe, Intake0
64 650378 Screw0
65 26756 Gasket, Carburetor0
67 32629B Housing Assy., Blower (5.56 dia. starter0
69 32633 Stud, Intake pipe0
69A 650372 Screw, Hex hd. Sems, 1/4-20 x 13/160
70 29752 Nut0
76 27261 Washer, Flat0
76 650168 Washer, Flat0
78 650690 Washer, Belleville0
79 650691 Washer, Flat0
84 27272 Gasket, Air cleaner0
85 31691 Bracket, Air cleaner0
86 28820 Screw0
87 650152 Screw0
88 30727 Element, Air cleaner0
89 730127 Cleaner Assy., Air (Poly)0
89 730164 Cleaner Assy., Air (Paper)0
90 31715 Body, Air cleaner0
95 650489 Screw0
95 650516 Screw0
96 650561 Screw0
97A 29536 Baffle, Blower housing0
97A 35256A Baffle, Blower housing (With electric0
98 32589 Key, Flywheel0
103 31361 Spring, Governor0
104 32582 Link, Governor spring0
105 30669 Rod, Governor0
106 31357 Lever, Governor0
107 28277 Washer, Flat0
108 31823 Link, Throttle0
109 31707A Spacer Assy., Governor0
110 30668 Shaft, Mechanical governor0
111 30591 Gear Assy., Governor0
112 29193 Ring, Retaining0
113 30588A Spool, Governor0
117 30622A Extension, Blower housing0
118 650128 Screw0
119 30063 Screw0
119 30688 Screw, Hex hd. Sems, 1/4-20 x 1/20
120 29716 Screw0
126 32584 Tank Assy., Fuel (White Poly) (2 qt.)0
127 33032 Cap, Fuel filler (Red Plastic) (Spurt0
127 34118 Cap, Fuel filler (Red Plastic) (Spurt0
127 34210 Cap, Fuel filler (Red Plastic) (Spurt0
127 410144B Cap, Fuel filler (White Plastic) (Std.)0
135 27930 Gasket, Exhaust0
136 28269 Muffler0
137 650696 Screw, Hex hd., 5/16-18 x 2-3/40
138 31588 Plate, Muffler locking0
139 8274 Lockwasher0
158 35349 Wire Assy., Ground (Female fittings both0
159 610973 Terminal Assy.0
161 31342 Spring, Compression0
162 650549 Screw0
163 30200 Screw0
www.mymowerparts.com
Page 4
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #1
Ref # Part Number Qty Description
164 32410 Knob, Speed control0
165 27793 Clip, Conduit0
166 28942 Screw0
167 32181A Control Assy., Speed0
182 27625 Plug, Oil filler0
183 29673 Gasket, Filler plug0
219 650815 Washer, Belleville0
220 8116 Nut0
221 32125 Cup, Starter0
222 590417 Screen, Starter cup0
236A 550223 Decal, Name0
236 34346 Decal, Instruction0
236B 31752 Decal, Air cleaner0
239 631021 Inlet Needle, Seat & Clip Assy.0
240 631449 Carburetor0
245 590420 Starter, Rewind0
249 33239 Gasket Set0
Page 4 of 8
www.mymowerparts.com
Page 5
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Page 5 of 8
www.mymowerparts.com
Page 6
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #2
Ref # Part Number Qty Description
107 28277 Washer, Flat0
121 30063 Screw0
121 30688 Screw, Hex hd. Sems, 1/4-20 x 1/20
209 33018 Harness, Adapter0
237 30547A Contact Assy., Breaker0
238 30548B Condenser0
244 610689A Magneto, Tecumseh0
247 32386 Starter Motor Kit (110-120 Volt)0
247 32901 Starter Motor Kit (110-120 Volt)0
247 33328 Starter Motor Kit (110-120 Volt)0
247 33328A Starter Motor Kit (110-120 Volt)0
247 33328B Starter Motor Kit (110-120 Volt)0
247 33328C Starter Motor Kit (110-120 Volt)0
247 33518 Starter Motor Kit (110-120 Volt)0
247 33518A Starter Motor Kit (110-120 Volt)0
247 33518B Starter Motor Kit (110-120 Volt)0
247 33518B Starter Motor Kit (110-120 Volt)0
248 30811A Flywheel0
248 611042 Flywheel (Std. Point) (V70 type letter D)0
248 611085 Flywheel (Solid state ignition)0
Page 6 of 8
77 27656 Washer, Flat0
95 650489 Screw0
95 650516 Screw0
www.mymowerparts.com
Page 7
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #3
Page 7 of 8
www.mymowerparts.com
Page 8
VH70-135013
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
Engine Parts List #3
Ref # Part Number Qty Description
124 26460 Clamp, Fuel line0
125 29774 Line, Fuel (Braided 8.25")0
125 30705 Line, Fuel (Braided 16")0
125 30962 Line, Fuel (Braided 32")0
135 27930 Gasket, Exhaust0
136F 391026 Muffler0
153 31288 Muffler Adapter Kit0
153A 730130 Muffler Adapter Kit0
154 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
155 650697A Screw, Hex flange hd., 5/16-18 x 2-1/20
156 30196 Screw0
165 27793 Clip, Conduit0
166 28942 Screw0
Page 8 of 8
66 29747B Screw, Phil. Hex hd. Sems, 5/16-24 x 21/320
www.mymowerparts.com
